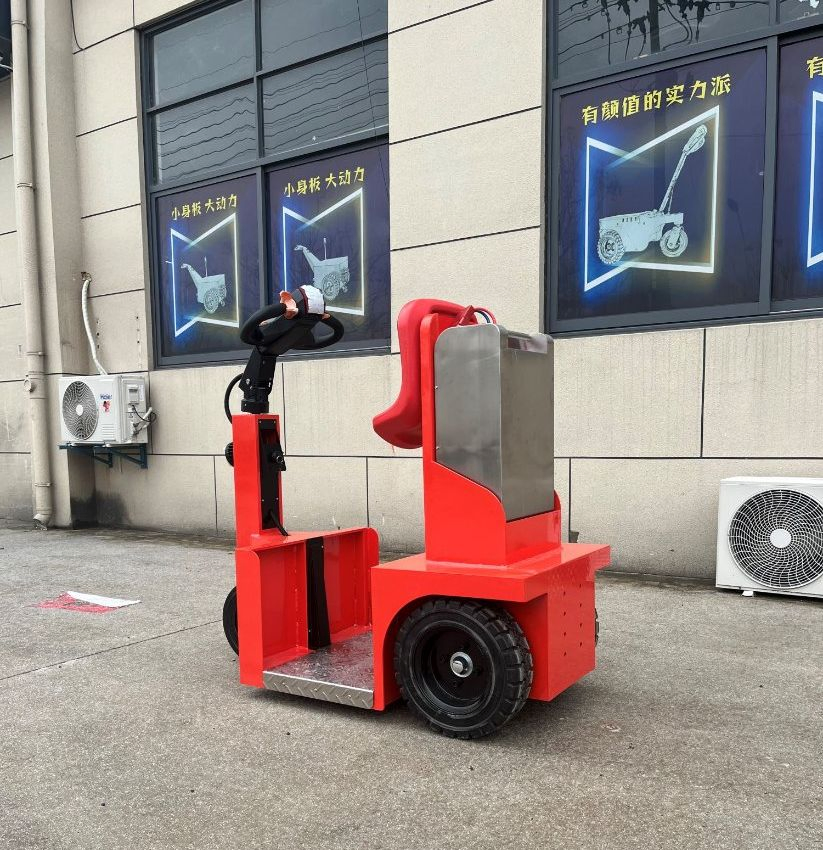

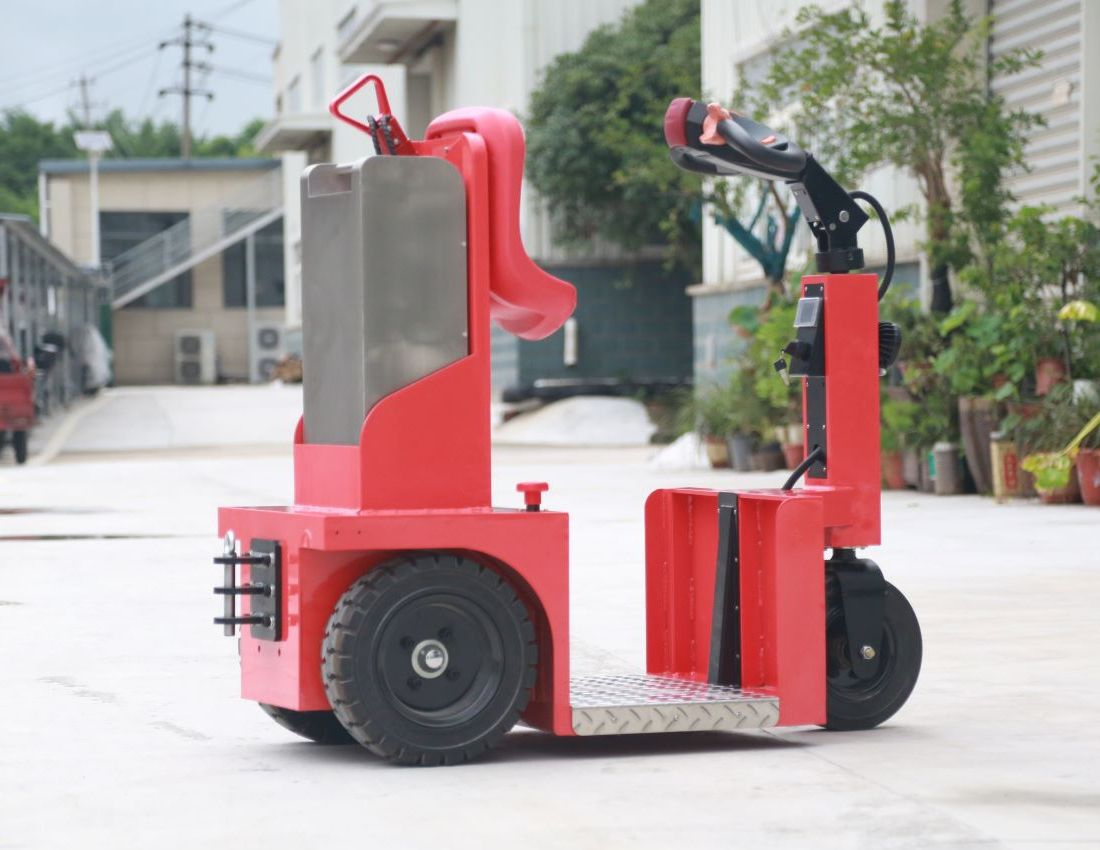

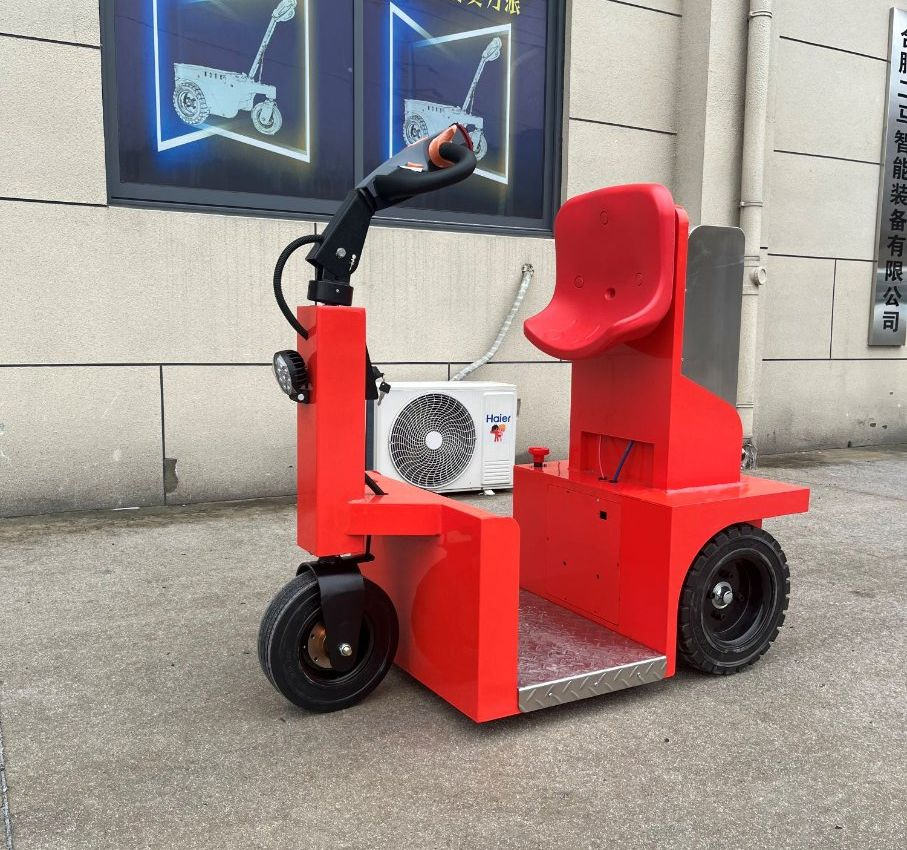

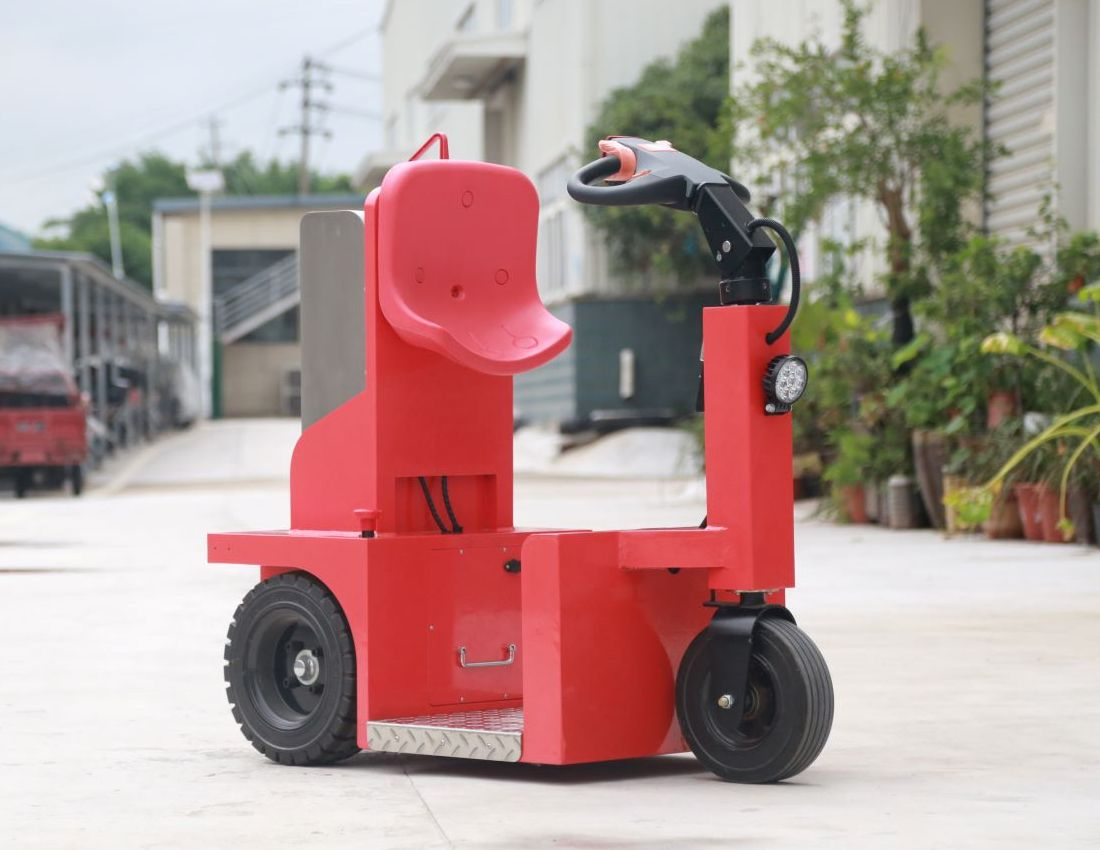

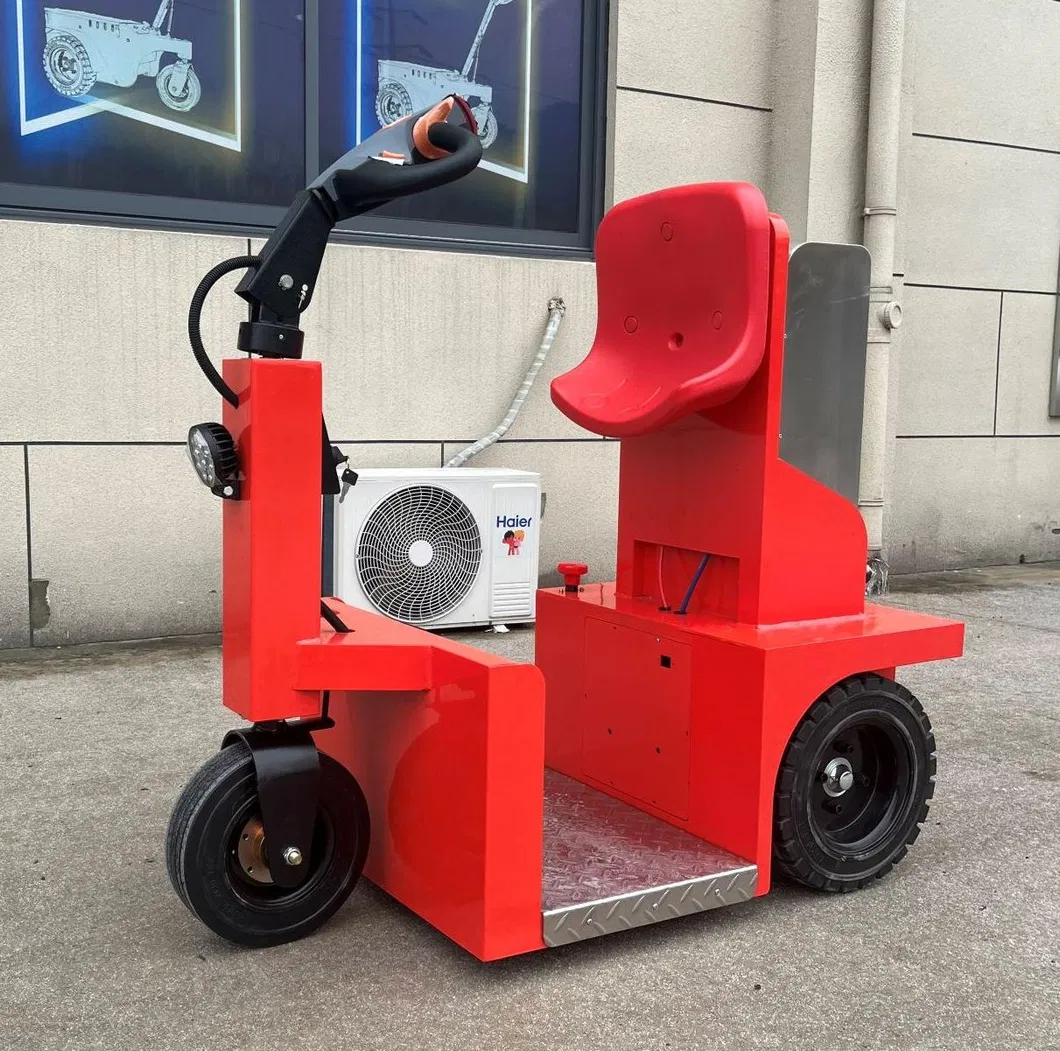

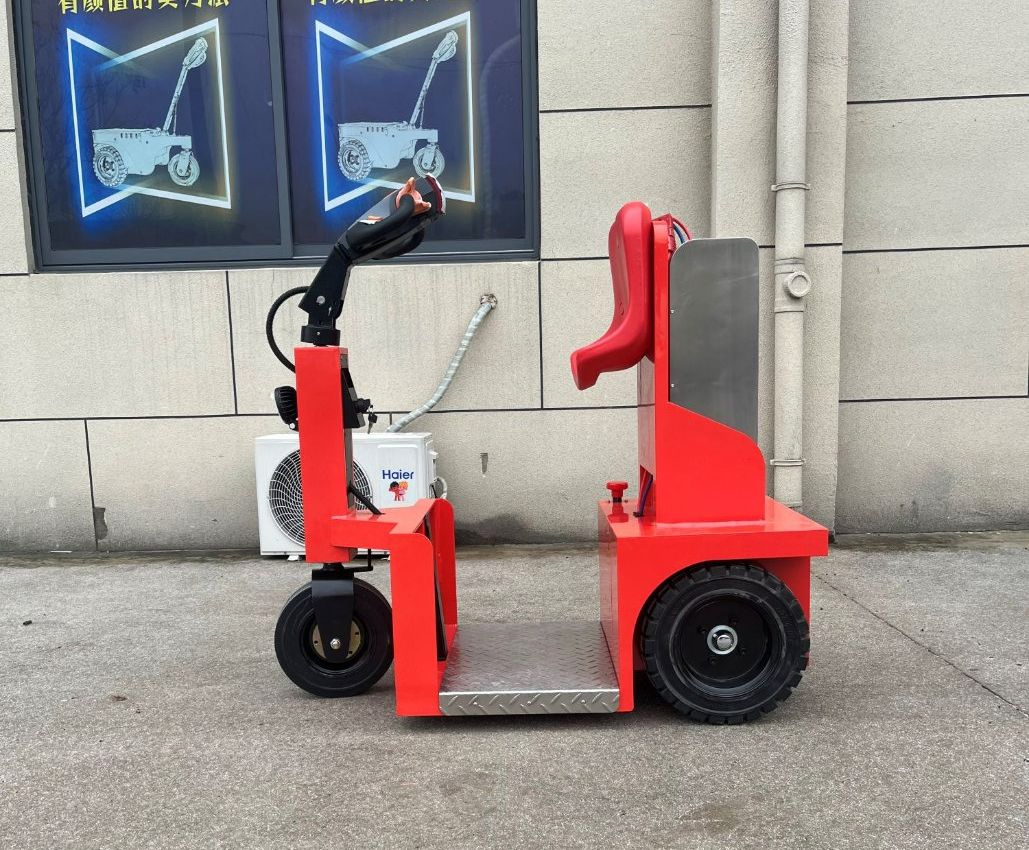

| 1.5T Electric Tractor Specifications | |||
|---|---|---|---|
| Identification | |||
| 1.1 | Model | - | KZ-G10 |
| 1.2 | Power supply | - | Electric |
| 1.3 | Operating type | - | Standing |
| 1.4 | Max traction weight | Q(kg) | 1500 |
| 1.5 | Rated pulling force | F(N) | 500 |
| Weight | |||
| 2.1 | Truck weight (with battery) | kg | 290 |
| 2.2 | Battery weight | kg | 70 |
| Tyre | |||
| 3.1 | Tire type | - | PU Rubber / PU |
| 3.2 | Drive wheel size | mm | 2×Φ375×122 |
| 3.3 | Bearing wheel size | mm | Φ300×90 |
| Dimensions | |||
| 4.1 | Overall height | h1(mm) | 1220 |
| 4.3 | Hook height | h3(mm) | 280/330 |
| 4.5 | Overall width | b1(mm) | 625 |
| 4.7 | Turning radius | WA(mm) | 1110 |
| Performance | |||
| 5.1 | Drive speed (load/unload) | km/h | 4-6 |
| 5.4 | Max gradeability | % | 5/10 |
| 5.6 | Brake type | - | Electromagnetic |
| Motor & Battery | |||
| 6.1 | Drive motor rating | kw | 0.8 |
| 6.3 | Battery voltage/capacity | V/Ah | 2×12/107 |
| Others | |||
| 7.3 | Noise level | dB(A) | <70 |
| 7.4 | Type of trailer coupling | - | Latch |
