Transmission Type
Manual or Automatic

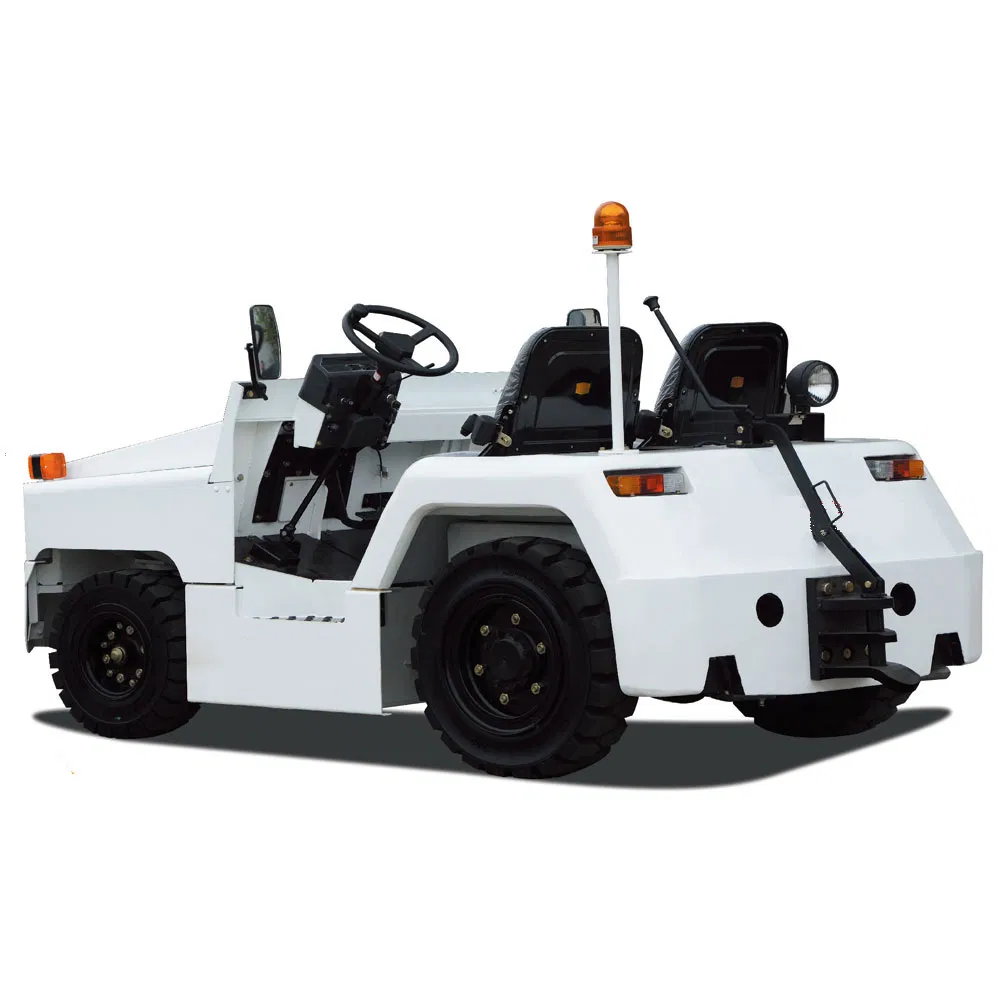

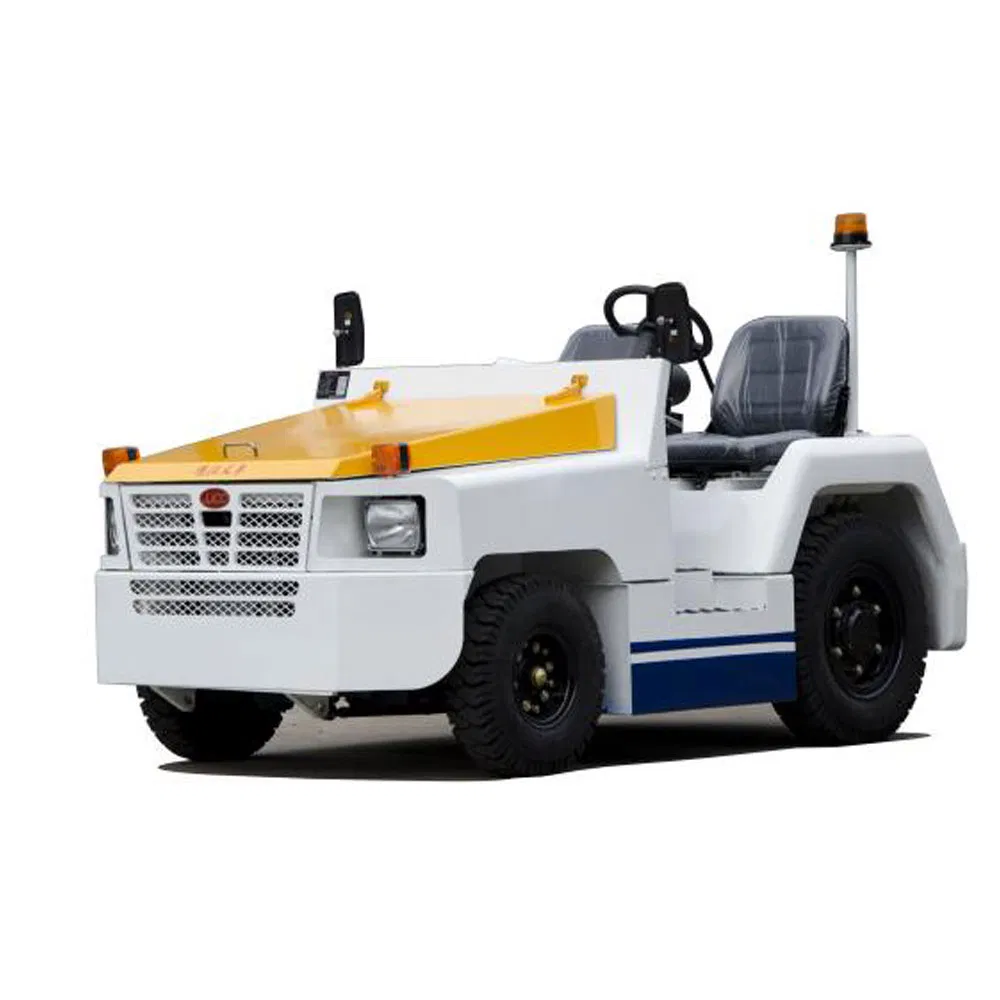

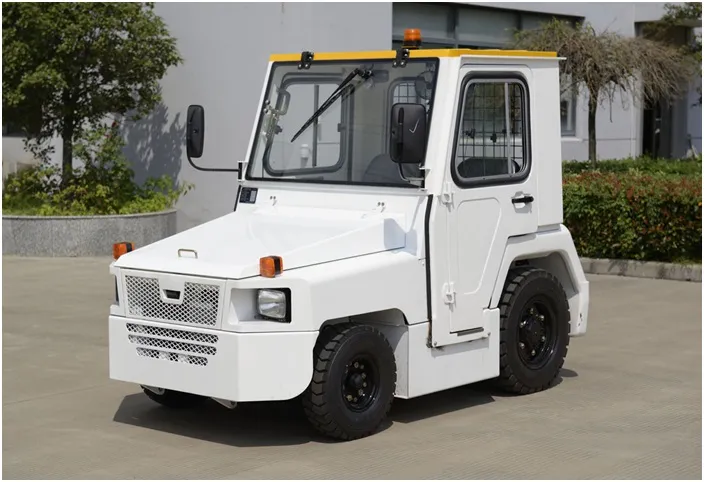

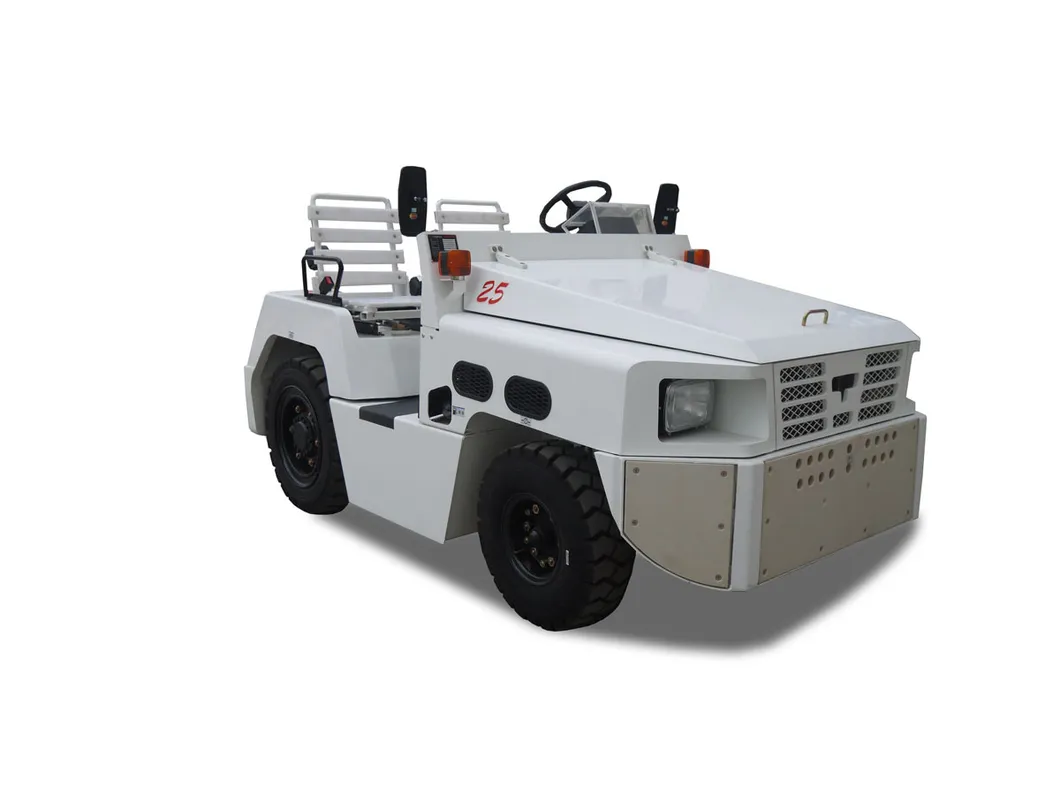

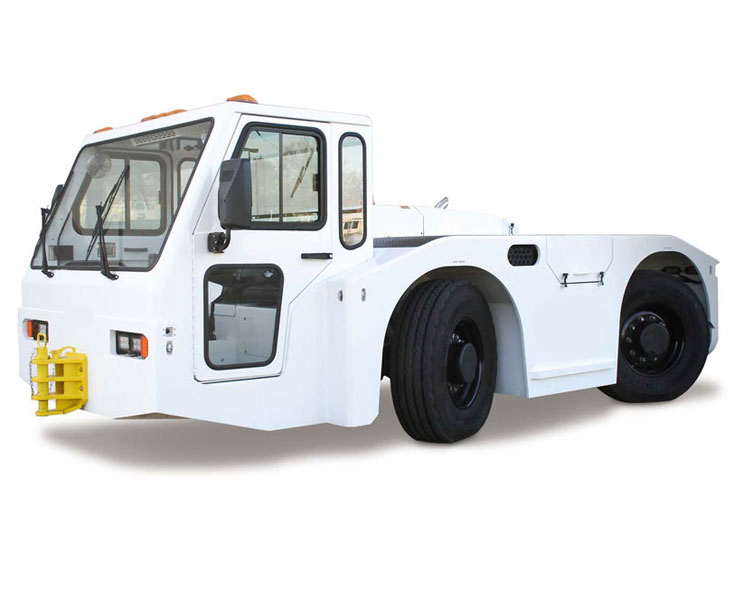

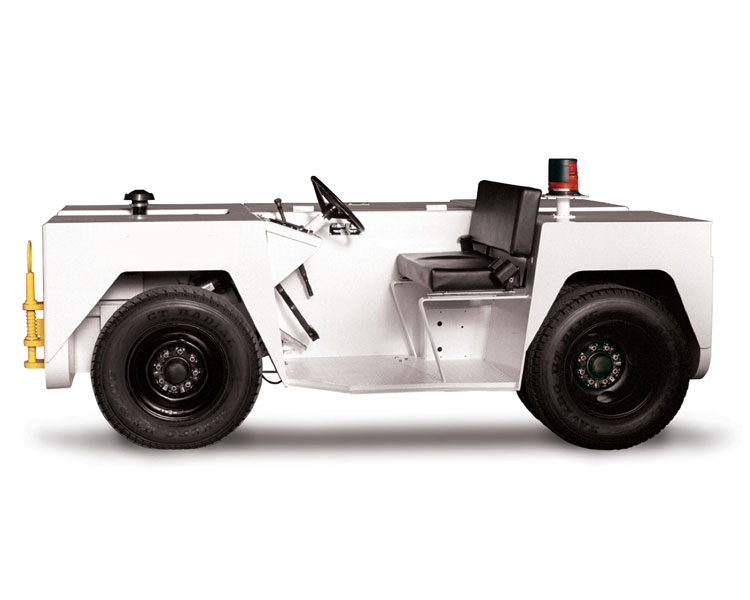

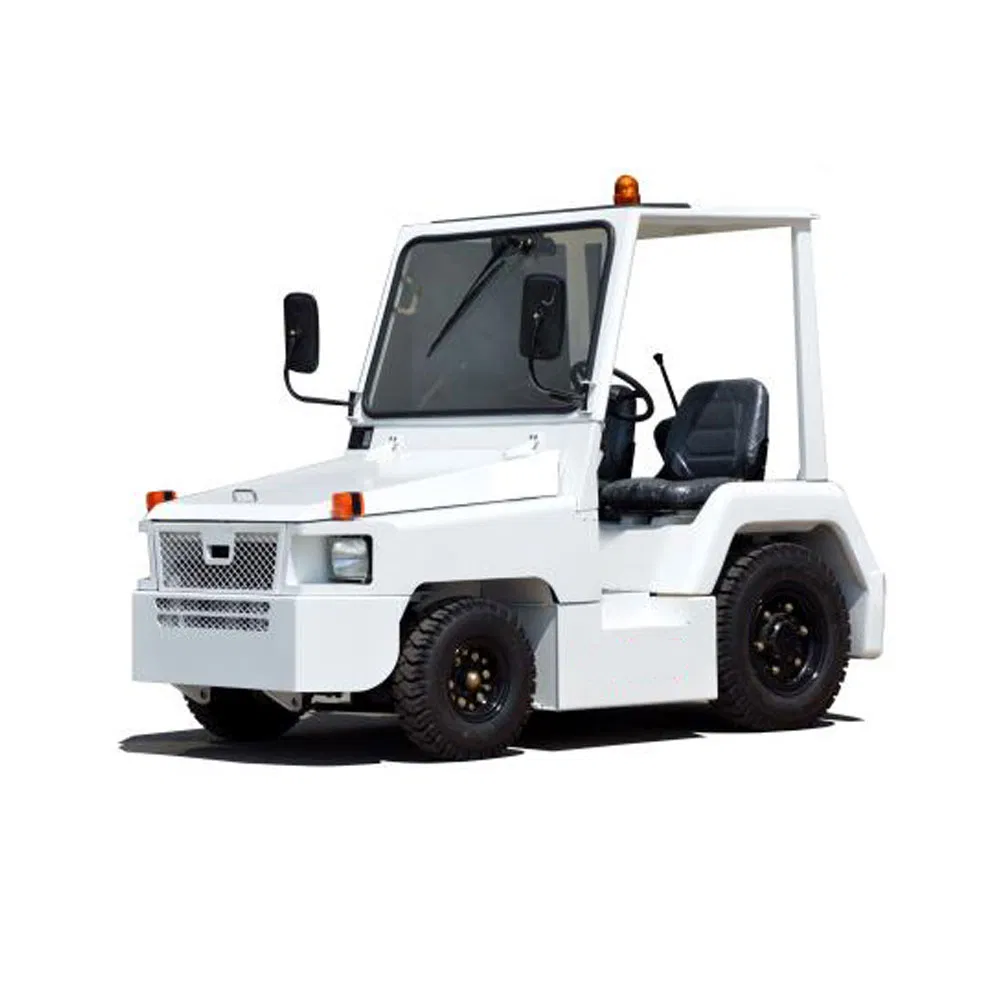

The WGQY15 Conventional Aircraft tow tractor is a premier model in our series of conventional aircraft tow tractors, specifically engineered for pushback operations on small to medium-sized commercial aircraft. It features a compact, low-profile design combined with a robust power-shift transmission drive and a spacious, ergonomic cabin. This versatile vehicle is ideal for both gate pushback and routine maintenance towing.
| Performance Item |
Unit |
TDC-20 |
TDC-25 |
TDC-30 |
| Max. drawbar pull |
KN |
20 |
25 |
30 |
| Max. towed weight (One trailer) |
Kg |
25000 |
32000 |
38000 |
| Max. towed weight (Train of trailers) |
Kg |
39000 |
49000 |
59000 |
| Max. travel speed (Forward) |
Km/h |
25 |
25 |
25 |
| Min. turning radius |
mm |
5800 |
5800 |
5800 |
| Truck weight (no load) |
Kg |
3160 |
3600 |
4150 |
| Engine Model |
- |
Yanmar 9 (2899 cm³) |
| Transmission |
- |
Okamura Y43340D Automatic 2 speed |
S
Safety Protection Systems
✔ Safety interlock mounted on each hydraulic circuit.
✔ Limit switch ensures the interface between platform and aircraft.
✔ Warning buzzer alarms during van body & stabilizers operation.
✔ Emergency DC pump for engine or main pump failure.
✔ Manual hand pump for total power failure scenarios.
✔ External engine stop buttons on cab and control panels.
✔ In-cab warning lights for stabilizer status indication.
✔ Hydraulic pressure switch prevents raising unless stabilizers are deployed.
W
Why Choose Our Solutions
★ High-quality products offered at reasonable pricing.
★ Professional manufacturing expertise in aviation ground support.
★ Utilization of advanced production machinery.
★ Strict quality control systems for guaranteed reliability.
★ Dedicated Research & Development team.
★ Comprehensive one-step solution services.
?
Frequently Asked Questions
What types of aircraft is the WGQY15 suitable for?
The WGQY15 is designed specifically for pushback and maintenance towing of small to medium-sized commercial aircraft.
What are the power options available for this tractor?
This model can be configured with either a Diesel engine or an Electric motor depending on your operational requirements.
How does the tractor handle emergency power failures?
It is equipped with an emergency DC pump for engine failures and a manual hand pump for total power failure situations.
What is the maximum drawbar pull of the TDC-30 model?
The TDC-30 model offers a maximum drawbar pull of 30 KN, suitable for towing weights up to 59,000 kg with a train of trailers.
Does the tractor come with a cabin?
Yes, it features a spacious cabin design. The overall height is 1450mm without the cab and 1980mm when the cab is installed.
What transmission system is used in these tractors?
The series utilizes the Okamura Y43340D automatic 2-speed transmission for smooth and efficient power delivery.
