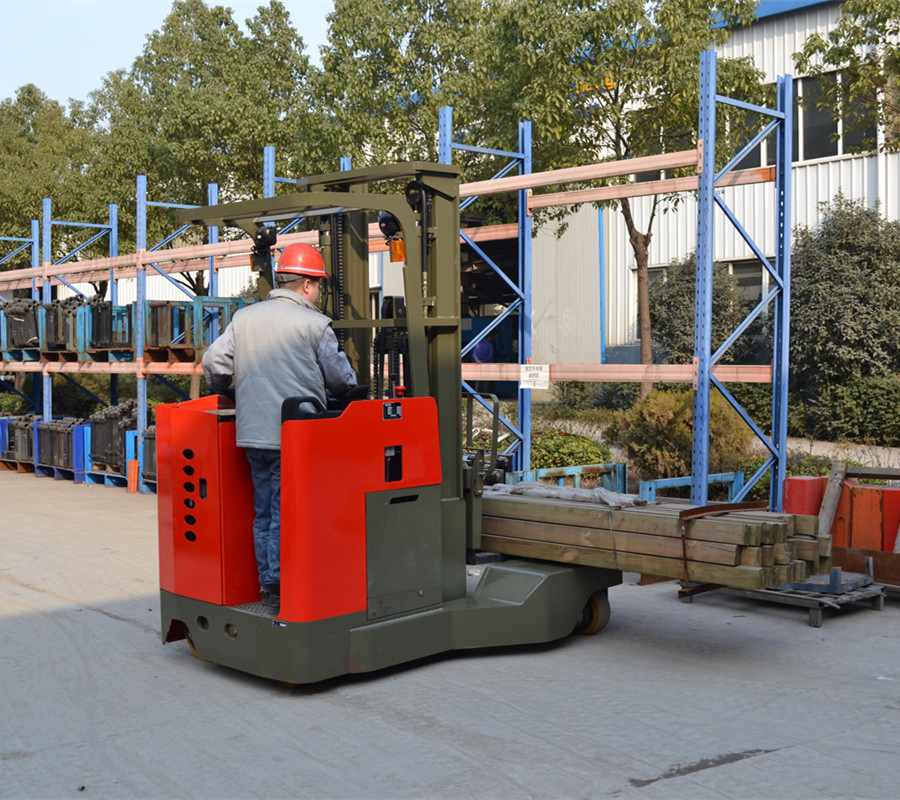

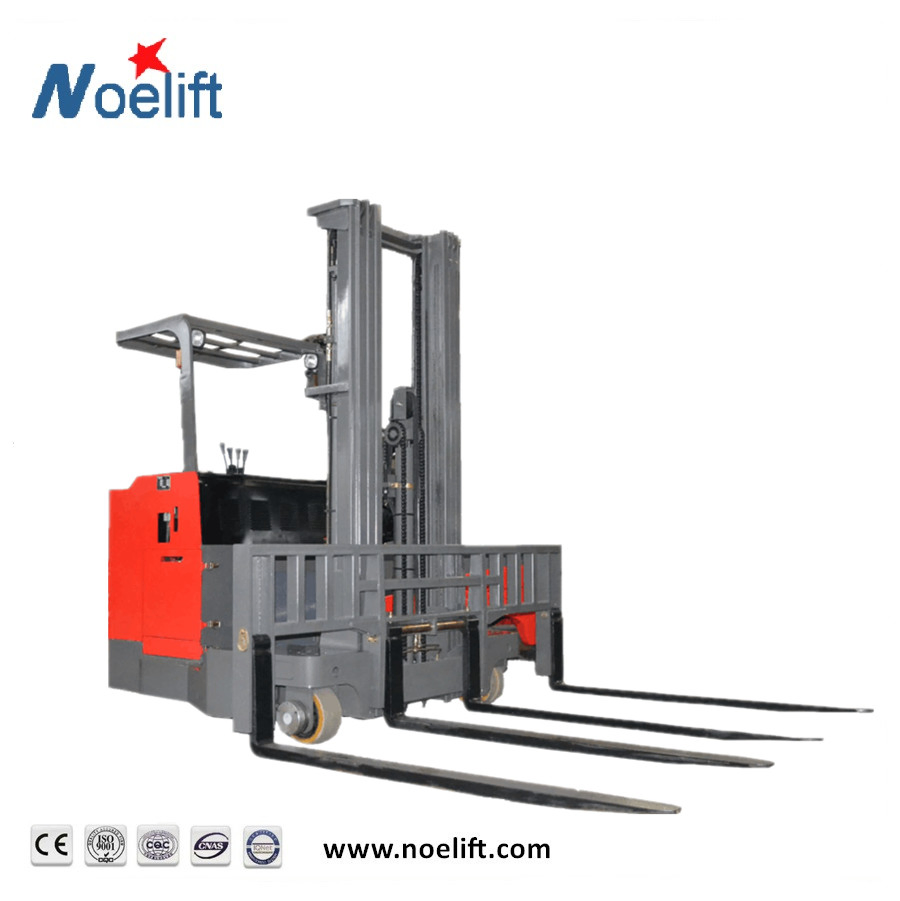

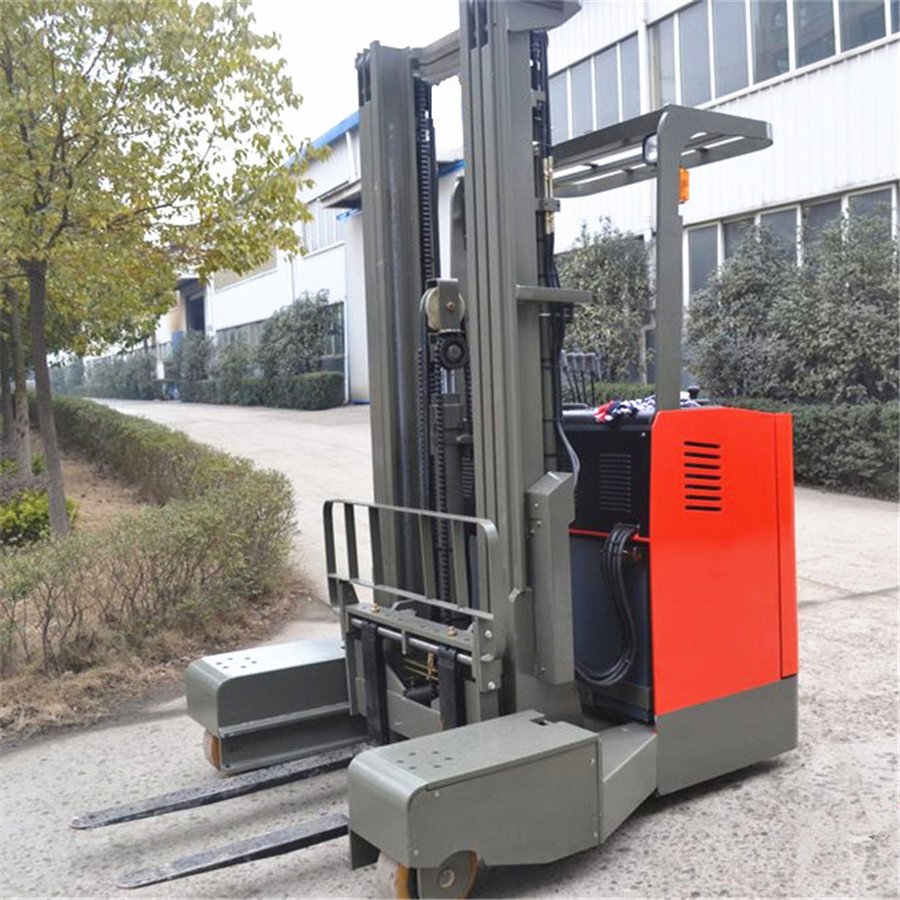

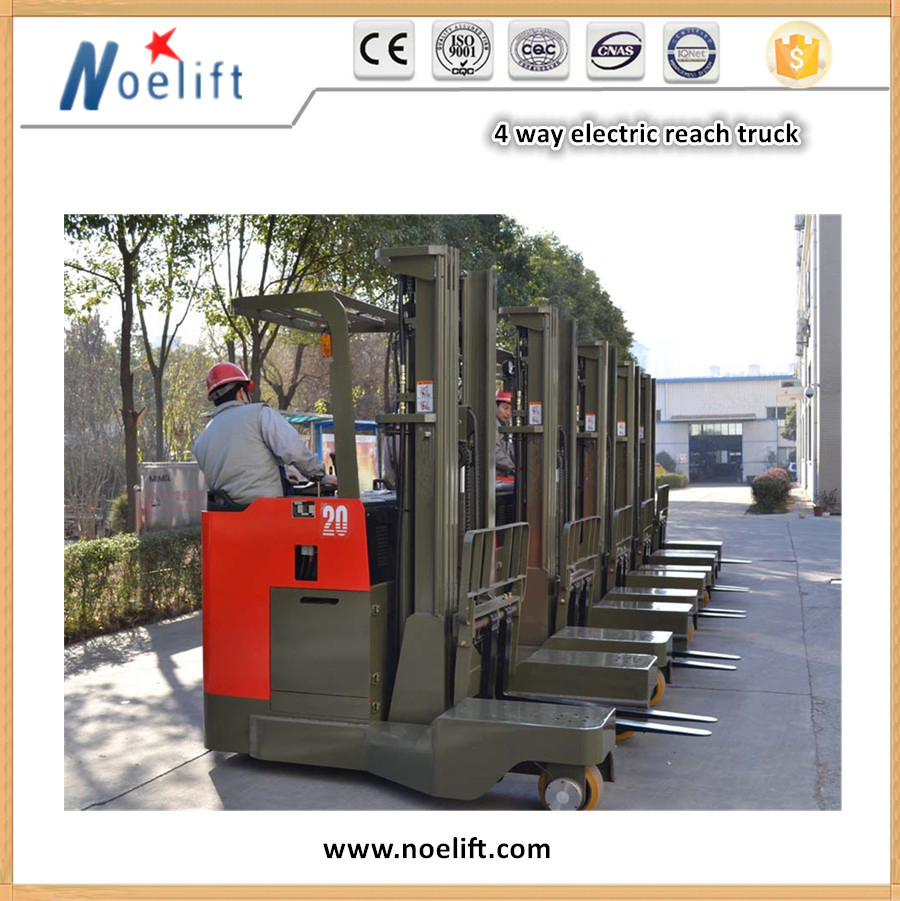

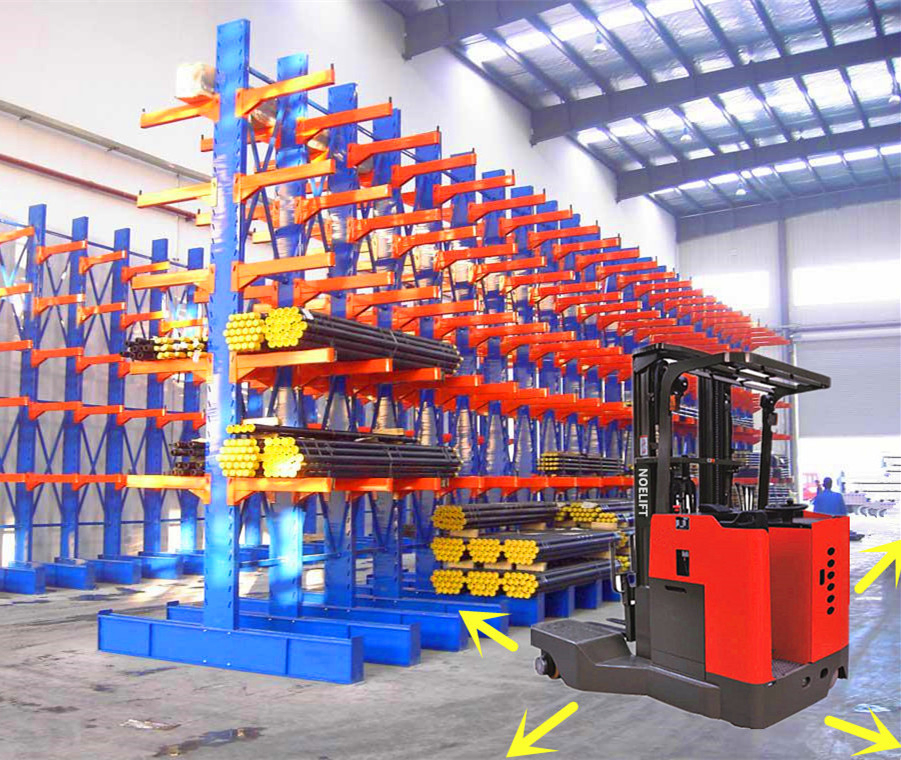

Long materials carrier 4-direction electric reach truck
1.5 tons, 2 tons, 2.5 tons. Optional lift height range: 3000-7200mm.

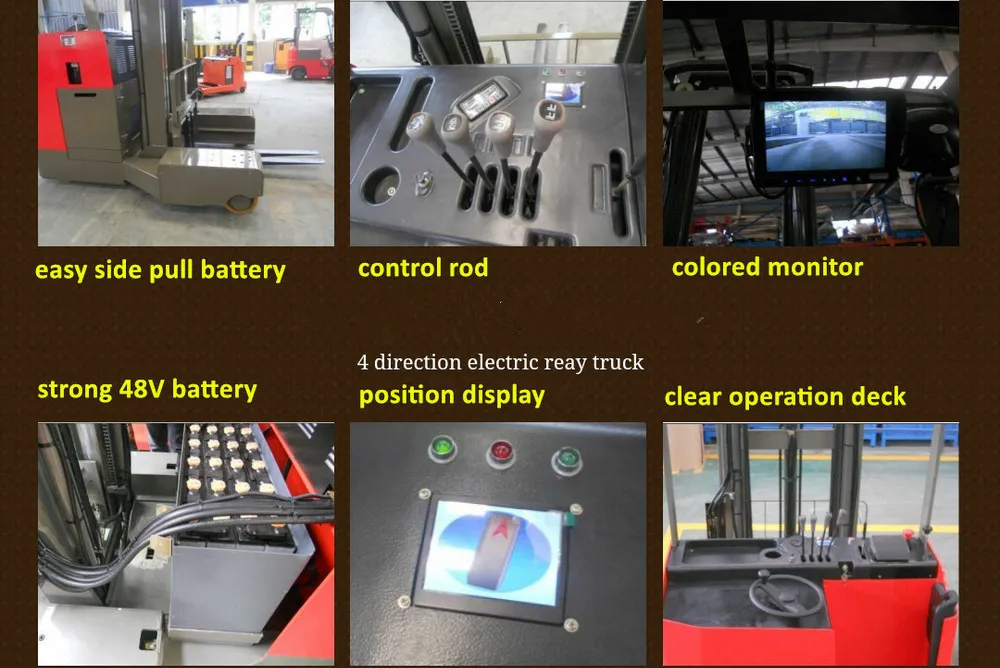

Low noise and non-pollution electricity energy adopted ensure an eco-friendly operation.
Brushless AC driving motor and side-pull battery ensure 30% energy saving and lower maintenance cost. Equipped with American imported CURTIS controller.
Strong industrial 48V battery and 5.5V driving motor ensure high efficiency and reduced labor intensity.
*Note: Color monitor and camera equipped when lift height ≥4.5m.
| Description | Model TFB15 | Model TFB20 | Model TFB25 |
|---|---|---|---|
| Loading capacity (Kg) | 1500 | 2000 | 2500 |
| Loading center (mm) | 500 | 500 | 500 |
| Lifting height (mm) | 3000 | 3000 | 3000 |
| Fork size (mm) | 1070×100×35 | 1070×100×45 | 1070×100×45 |
| Overall width (mm) | 1640 | 1800 | 1800 |
| Battery (V/Ah) | 48V/300Ah | 48V/400Ah | 48V/400Ah |
| Driving motor (Kw) | 5.5 (AC) | 5.5 (AC) | 5.5 (AC) |
| Mast Type | Lifting Height | Lowered Height | Free Lift | Capacity (TFB15) | Capacity (TFB20) |
|---|---|---|---|---|---|
| Duplex | 3000mm | 2120mm | 0mm | 1500kg | 2000kg |
| Duplex | 4000mm | 2620mm | 0mm | 1000kg | 1200kg |
| Triplex | 5000mm | 2340mm | 1670mm | 900kg | 1000kg |
| Triplex | 6000mm | 2680mm | 2000mm | 700kg | 800kg |
Our factory operates under ISO9001:2008 and CE norms. We provide a whole product range including diesel, gasoline, and LPG forklift trucks with capacities from 1 to 10 tons, alongside a comprehensive warehouse equipment line.
