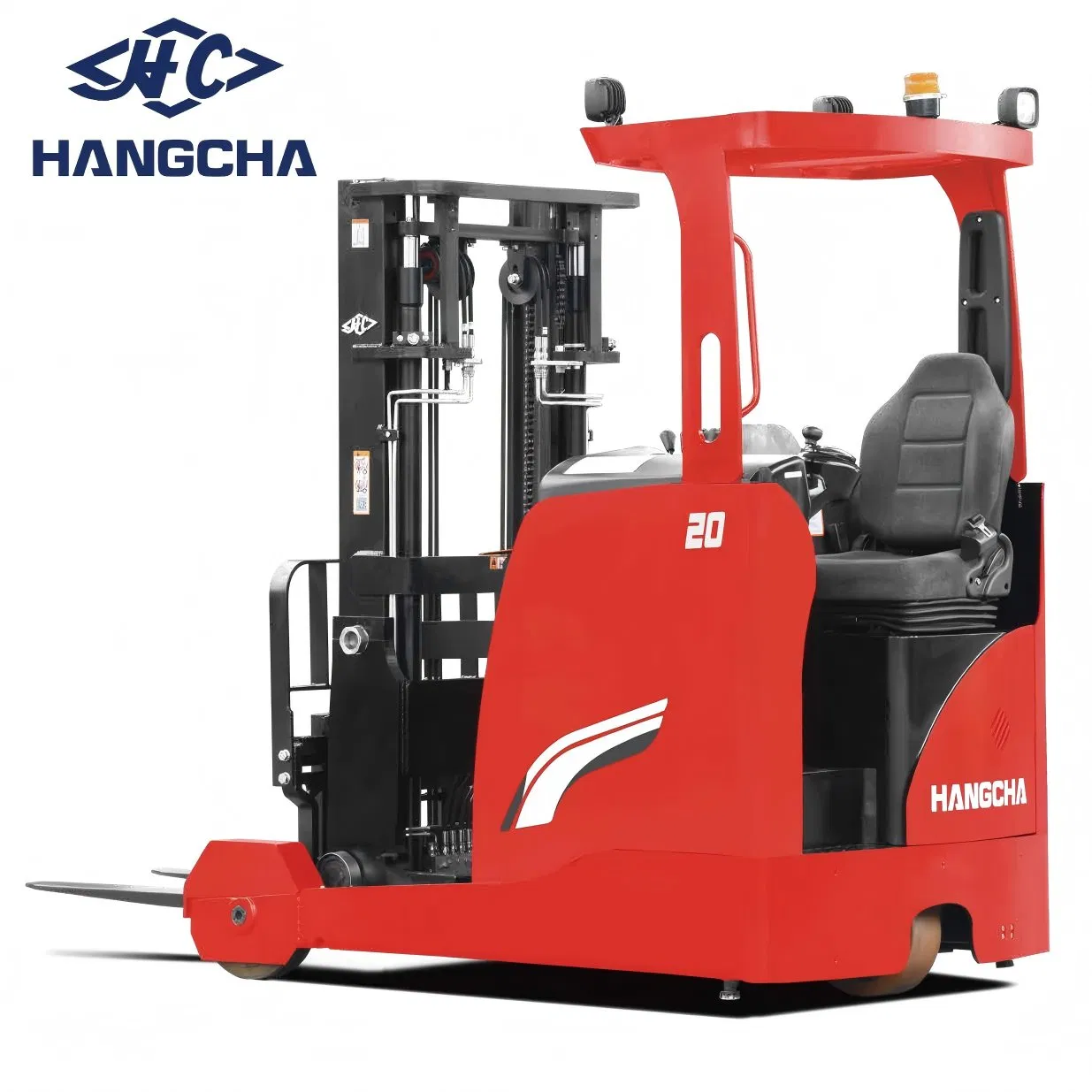

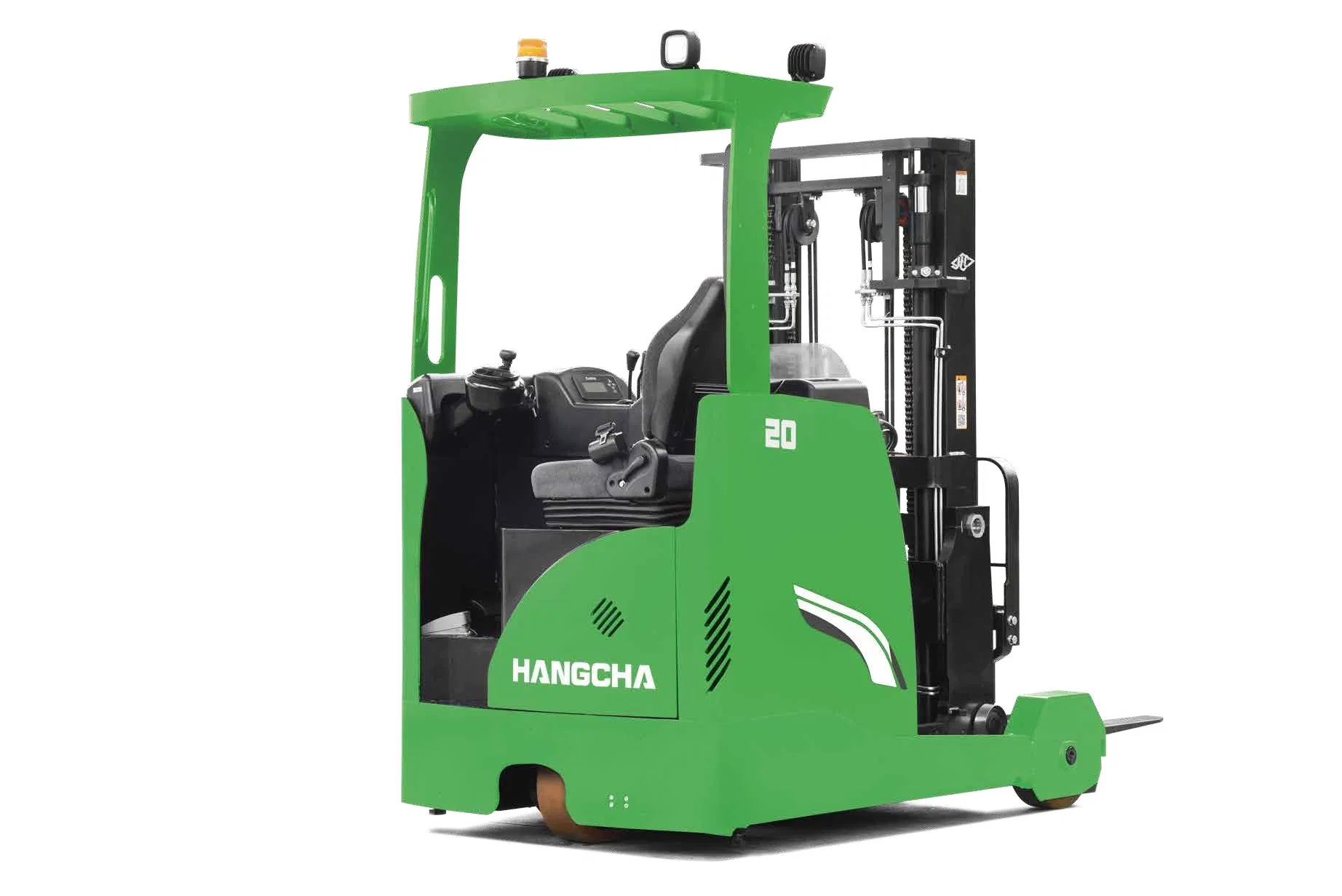

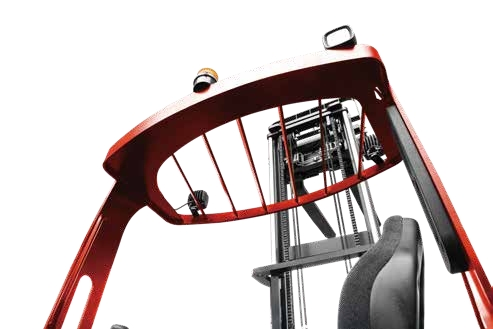

Hangcha a Series 1.2t-2t Reach Truck - High-Performance Equipment for Industrial Warehouse Narrow-Space Handling
Hangcha a Series 1.2t-2t Reach Truck - High-Performance Equipment for Industrial Warehouse Narrow-Space Handling
Hangcha a Series 1.2t-2t Reach Truck - High-Performance Equipment for Industrial Warehouse Narrow-Space Handling
Hangcha a Series 1.2t-2t Reach Truck - High-Performance Equipment for Industrial Warehouse Narrow-Space Handling
Hangcha a Series 1.2t-2t Reach Truck - High-Performance Equipment for Industrial Warehouse Narrow-Space Handling
1 / 5
Hangcha a Series 1.2t-2t Reach Truck - High-Performance Equipment for Industrial Warehouse Narrow-Space Handling
Hangcha a Series 1.2t-2t Reach Truck - High-Performance Equipment for Industrial Warehouse Narrow-Space Handling
Hangcha a Series 1.2t-2t Reach Truck - High-Performance Equipment for Industrial Warehouse Narrow-Space Handling
Hangcha a Series 1.2t-2t Reach Truck - High-Performance Equipment for Industrial Warehouse Narrow-Space Handling
Hangcha a Series 1.2t-2t Reach Truck - High-Performance Equipment for Industrial Warehouse Narrow-Space Handling

Hangcha a Series 1.2t-2t Reach Truck - High-Performance Equipment for Industrial Warehouse Narrow-Space Handling

Customization: Available
After-sales Service: 2 Year or 2000h Which Comes First
Warranty: 2 Year or 2000h Which Comes First
Send Inquiry

Product Description

i

Basic Information

Model NO.
CQD12-AC5
Type
Reach Forklift
Power
AC Motor
Load Capacity
1200-2000kg
Fuel
Electric
Load center
500mm
Lift height
2700mm-12500mm
Condition
New
Specification
1483*1270*2200
✓

Product Description

A Series Reach Truck
The reach truck is suitable for working in narrow passageway and confined space, with high lifting and load capacity, and is the ideal tool for loading, unloading, handling, and stacking in warehouse, supermarket, and workshop.

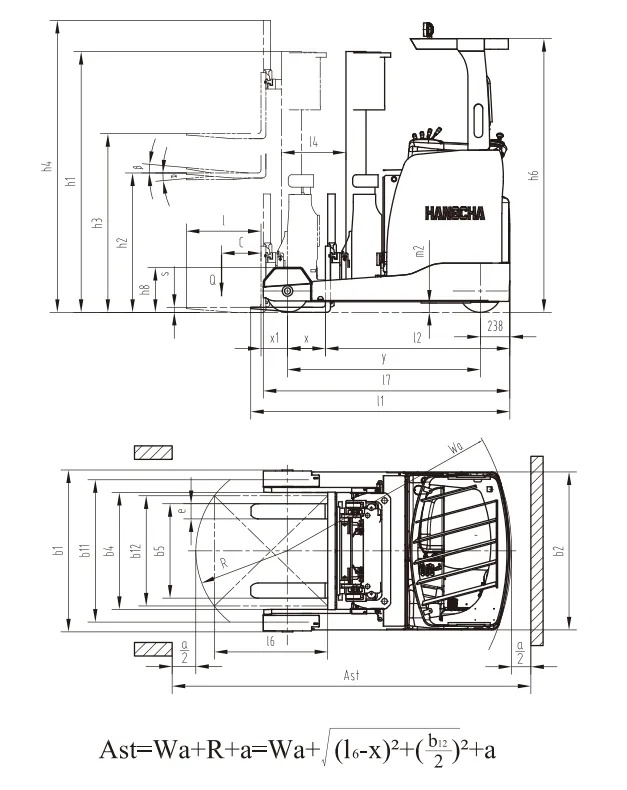

A Series Reach Truck Main View
⚙

Product Parameters

A Series Reach Truck Specification
Marking 1.2 Manufacturer's type designation CQD12-AC5 CQD14-AC5 CQD16-AC5 CQD18-AC5 CQD20-AC5
1.3 Drive: electric electric electric electric electric electric
1.5 Rated capacity Q(kg) 1200 1400 1600 1800 2000
1.6 Load centre distance c(mm) 600 600 600 600 600
Weight 2.1 Service weight (incl. battery) Kg 3130 3130 3320 3330 3340
Tyres 3.1 Tyre type Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane
3.2 Tyre size, front (mm) 0343×114 0343×114 0343×114 0343×135 0343×135
3.3 Tyre size, rear (mm) 0285×100 0285×100 0285×100 0343×108 0343×108
Dimensions 4.4 Lift height h3(mm) 3000 3000 3000 3000 3000
4.19 Overall length (mm) 2463 2463 2553 2553 2553
4.21 Overall width (mm) 1270 1270 1270 1286 1286
Engine 6.1 Drive motor rating kW AC6.5 AC6.5 AC6.5 AC6.5 AC6.5
6.2 Lift motor rating kW AC12.8 AC12.8 AC12.8 AC12.8 AC12.8
📷

Detailed Photos

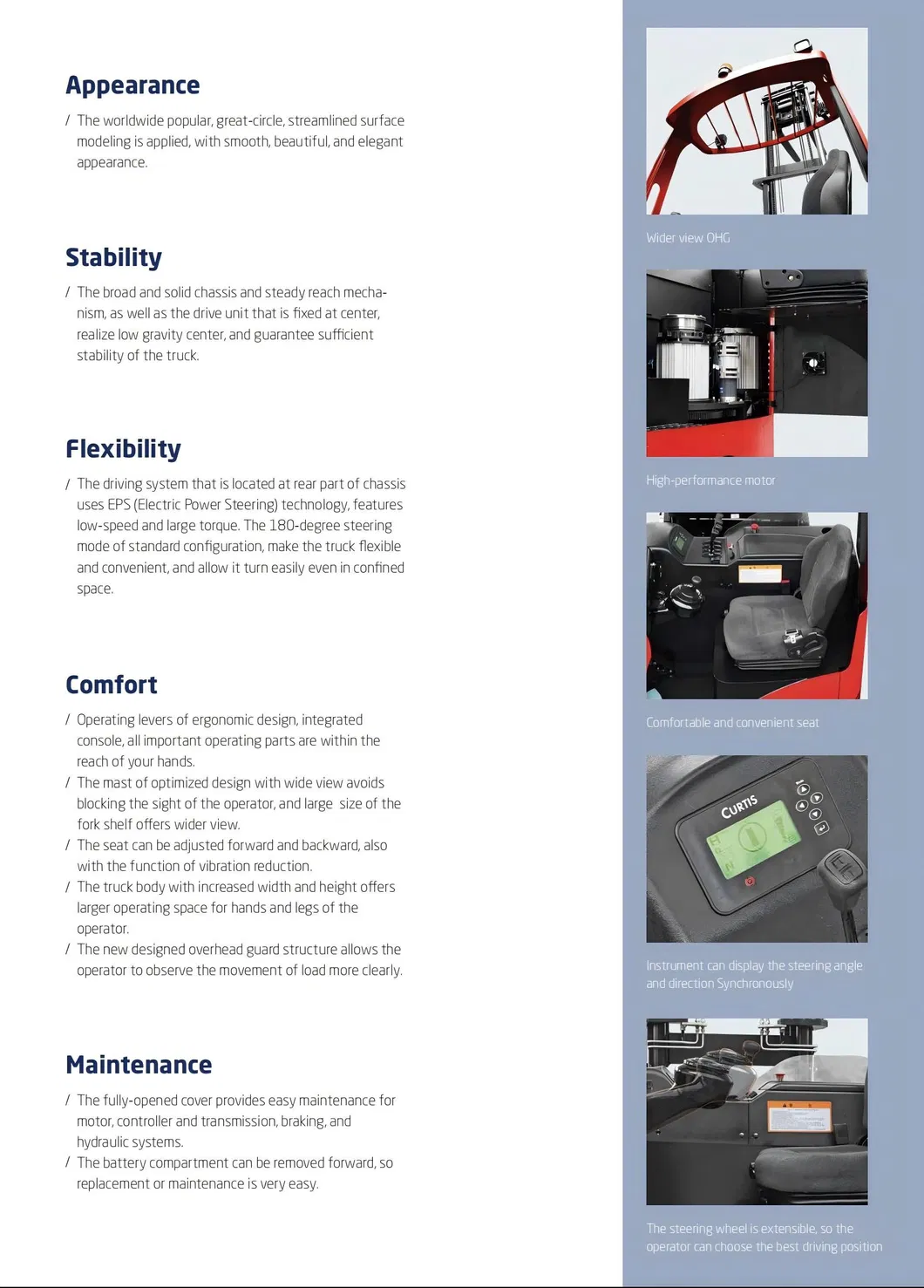

Reach Truck Detailed View 1

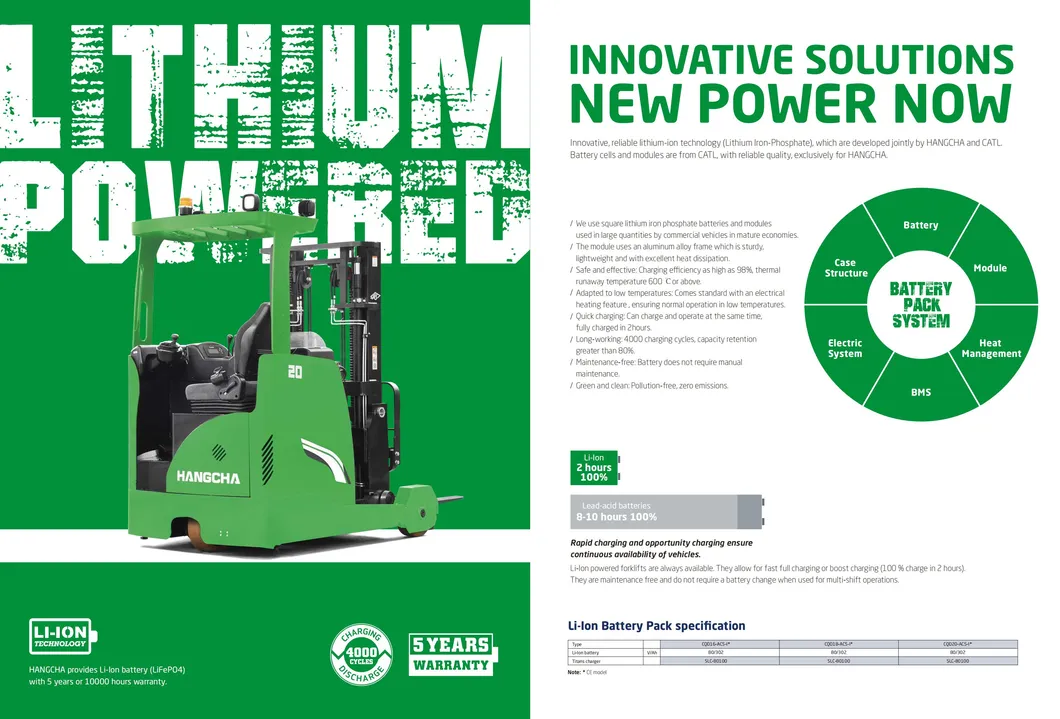

Reach Truck Detailed View 2

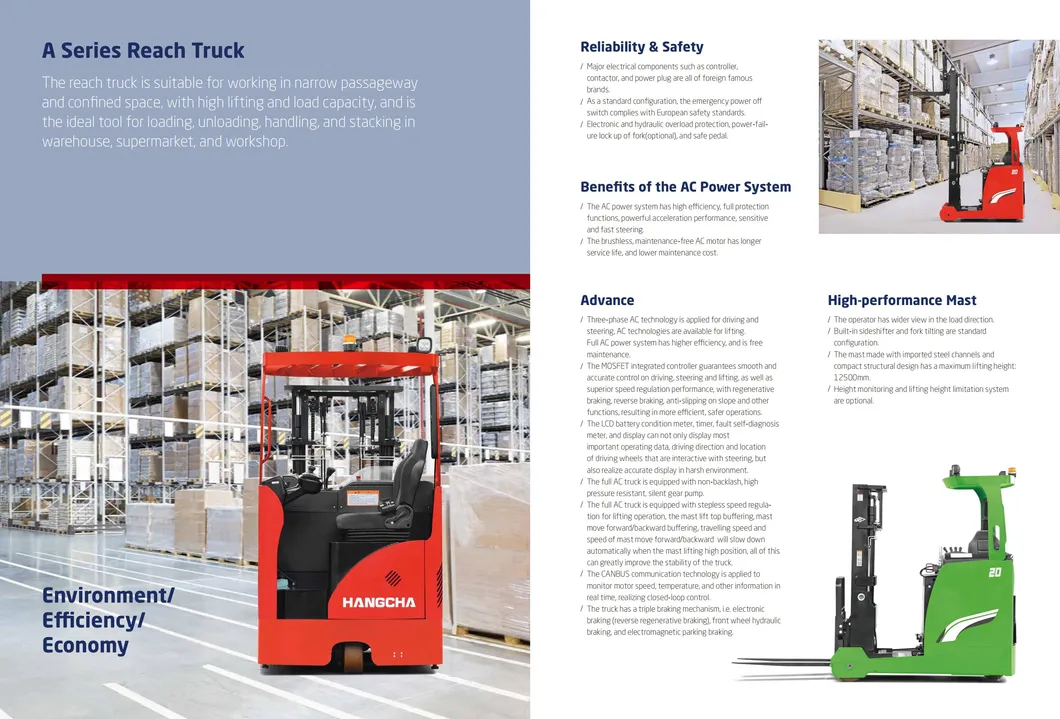

Reach Truck Detailed View 3

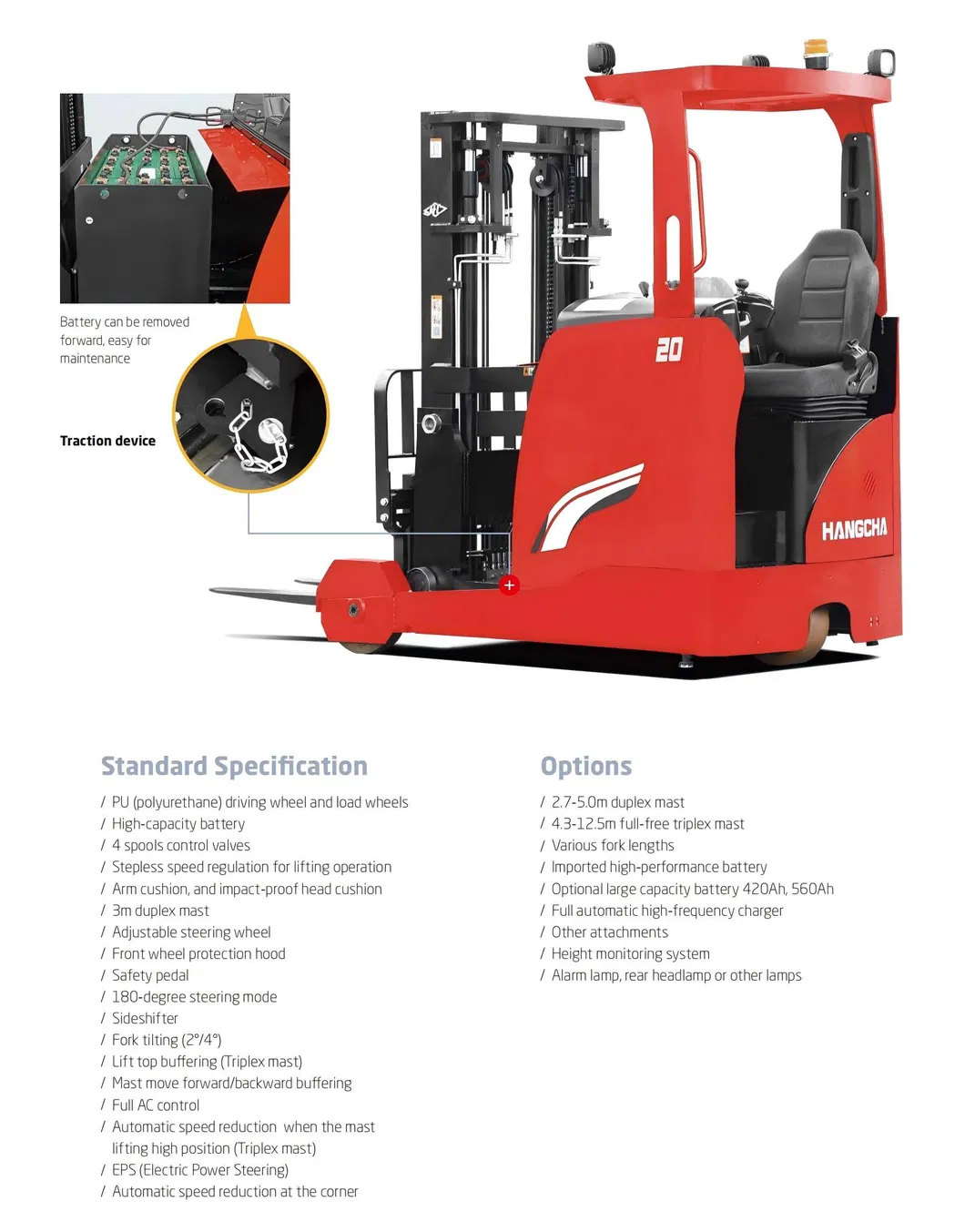

Reach Truck Operational View
📦

Packaging & Shipping

Standard export nude packing with iron/wooden block fixed on container ground. FCL/LCL shipping available to ensure safe delivery of the equipment.

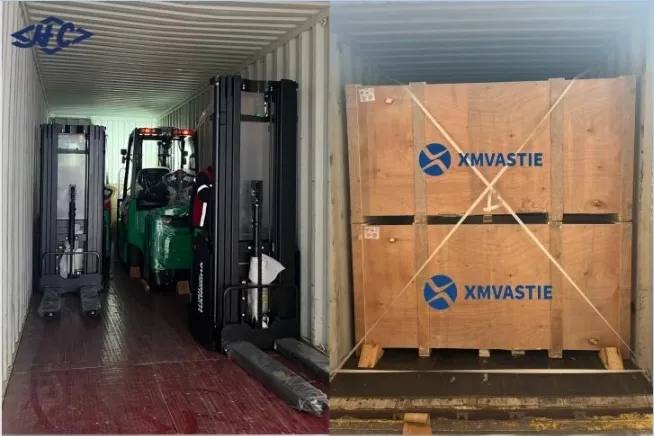

Packing Process 1

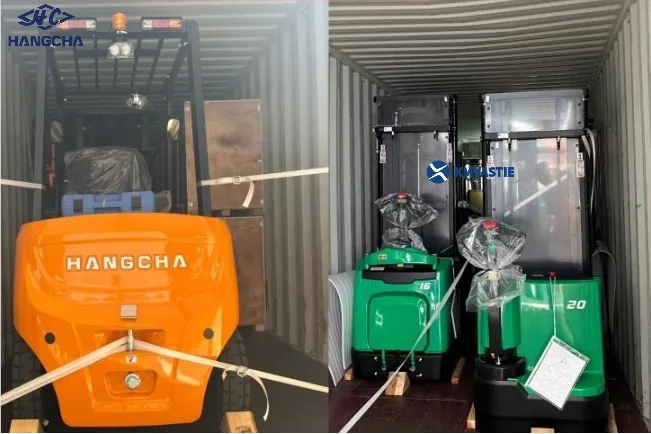

Shipping Preparation 2
?

Frequently Asked Questions

What applications are these reach trucks best suited for?
They are ideal for narrow passageways and confined spaces in warehouses, supermarkets, and workshops where high lifting and precision handling are required.
What is the typical load capacity for this series?
The A Series Reach Truck offers a rated load capacity ranging from 1200kg to 2000kg, depending on the specific model chosen.
What is the estimated delivery time for an order?
Standard specifications (1.5-3.5T) typically take 25-30 days. Larger capacities (4-10T) take 30-35 days, while heavy-duty models above 10T require 45-60 days.
Can I request special colors or logos?
Yes, we can accommodate special requests for different colors, logos, and other specific requirements to meet your operational needs.
What type of power system do these forklifts use?
The series is fully electric, powered by high-performance AC motors and controlled by CURTIS or INMOTION Full AC drive systems for maximum efficiency.
What is the maximum lift height available?
The lifting height is versatile, ranging from 2700mm to as high as 12500mm, allowing for efficient vertical stacking in high-rack warehouses.
