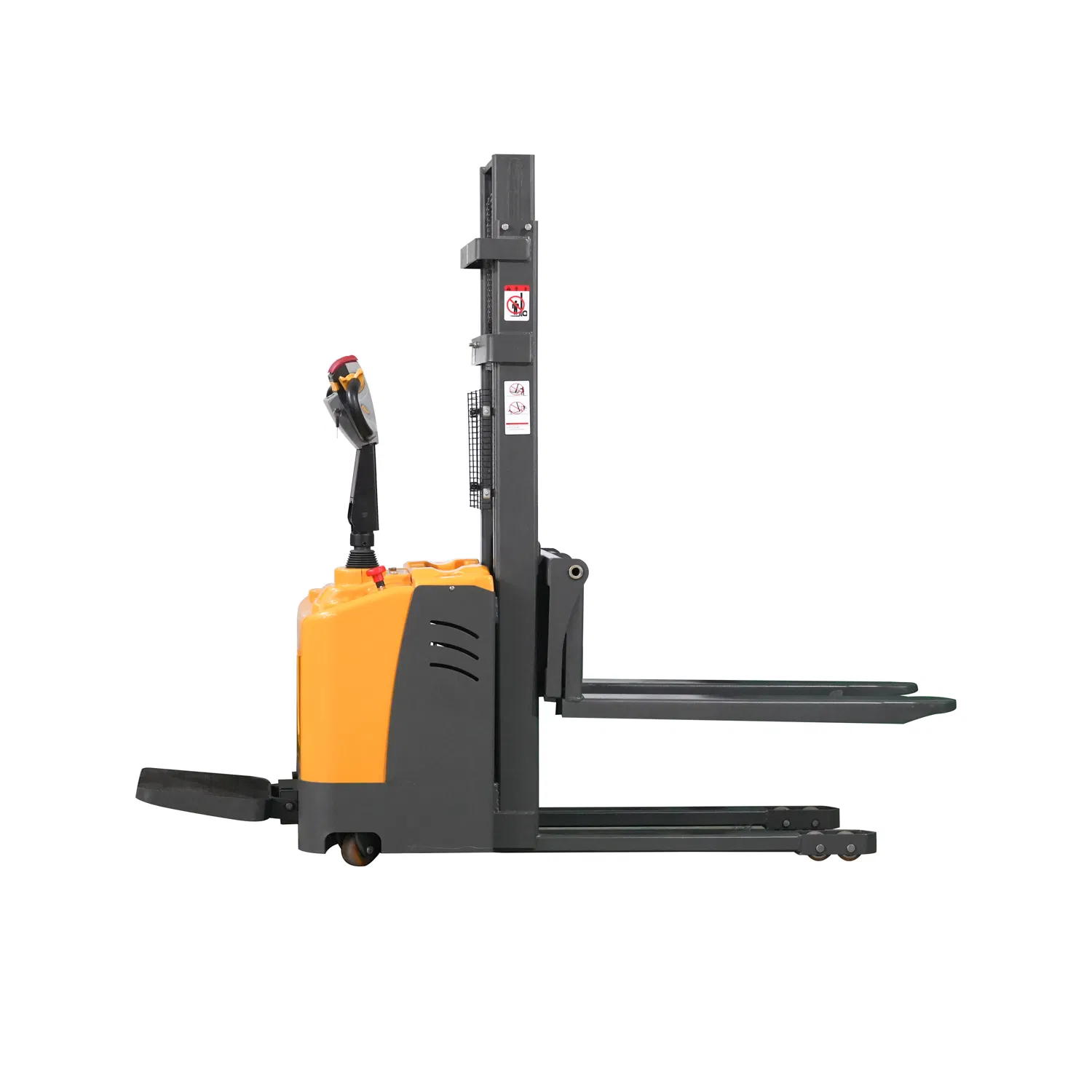

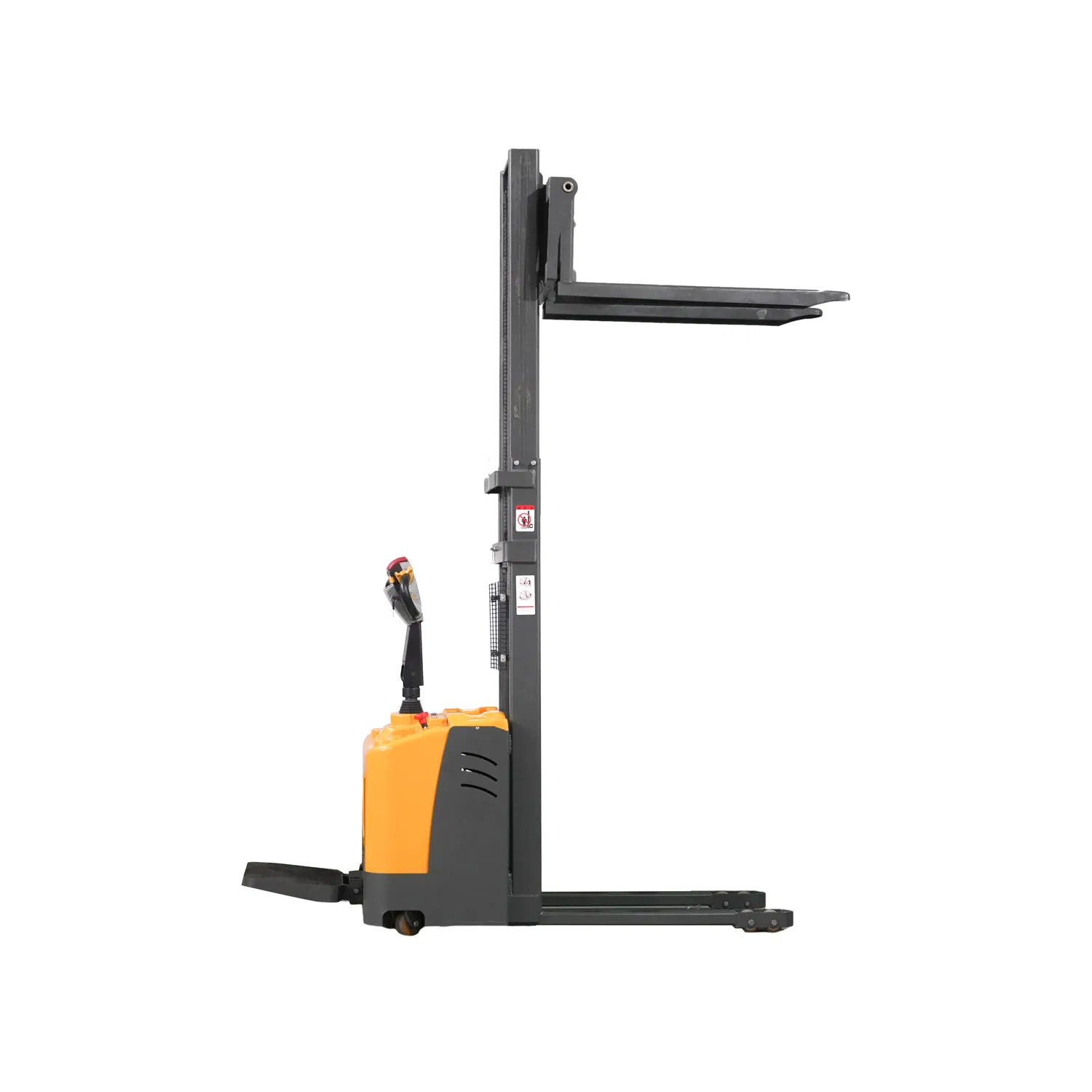

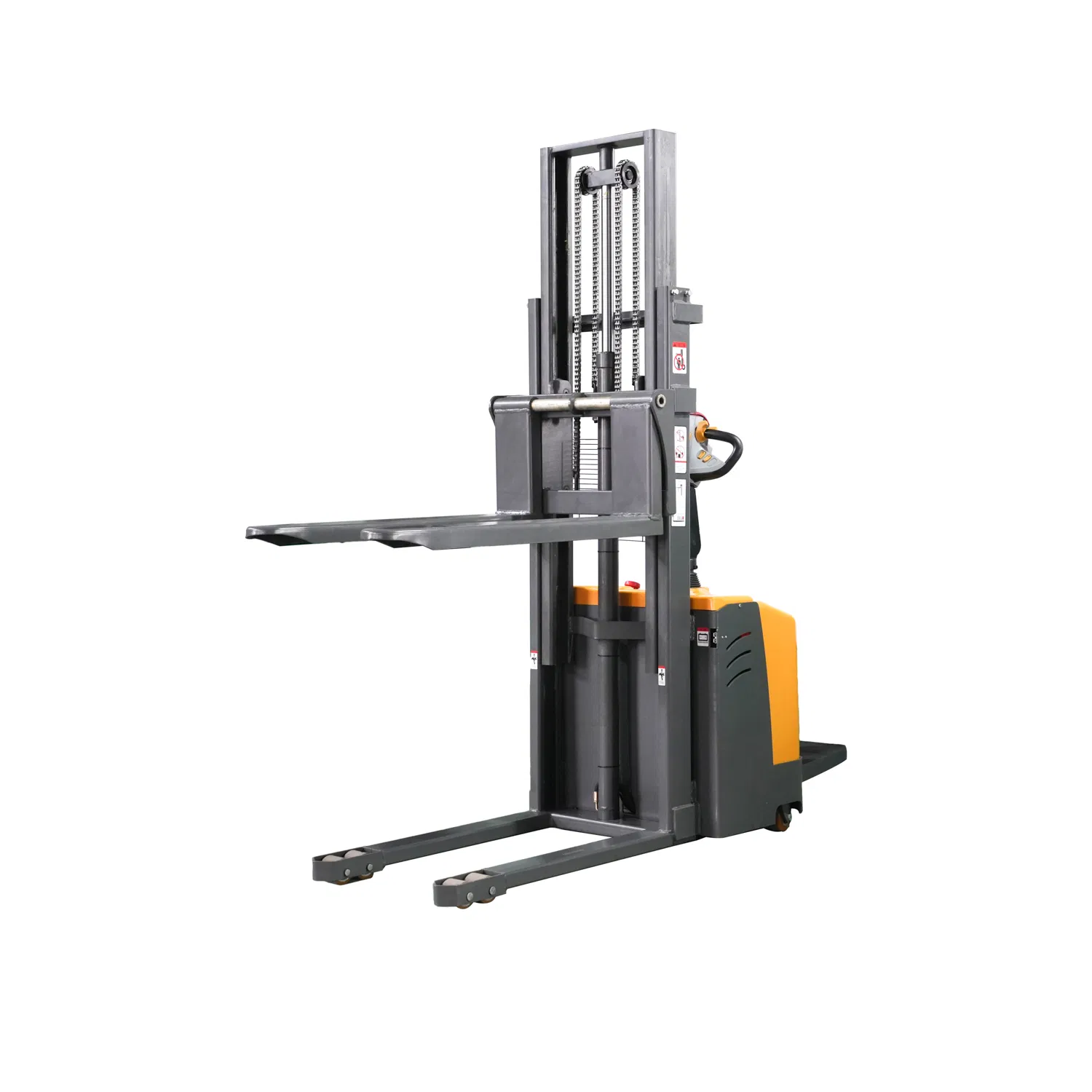

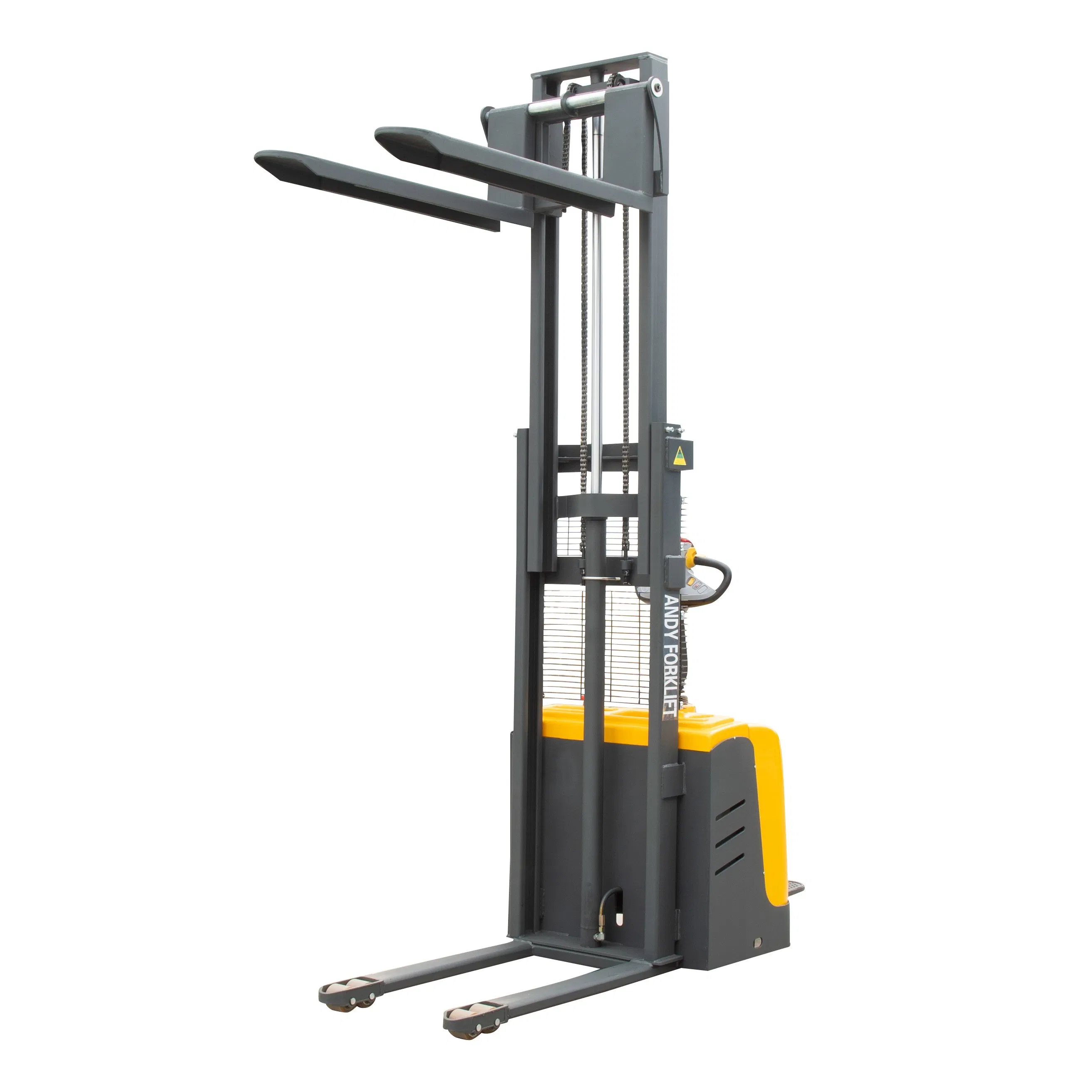

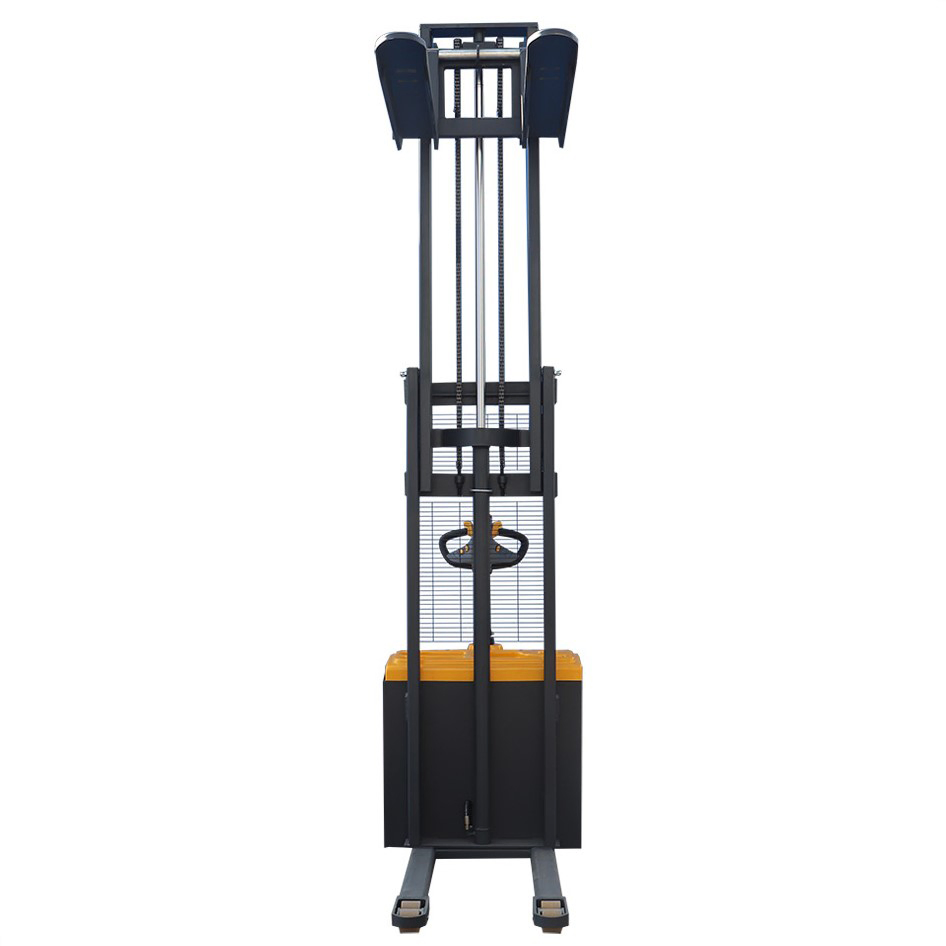

1.5ton 1500kg Lifting Height 3500mm Standing Fully Battery Operated Electric Powered Engine Pallet Reach Forklift Fork Lift Truck for Warehouse
1.5ton 1500kg Lifting Height 3500mm Standing Fully Battery Operated Electric Powered Engine Pallet Reach Forklift Fork Lift Truck for Warehouse
1.5ton 1500kg Lifting Height 3500mm Standing Fully Battery Operated Electric Powered Engine Pallet Reach Forklift Fork Lift Truck for Warehouse
1.5ton 1500kg Lifting Height 3500mm Standing Fully Battery Operated Electric Powered Engine Pallet Reach Forklift Fork Lift Truck for Warehouse
1.5ton 1500kg Lifting Height 3500mm Standing Fully Battery Operated Electric Powered Engine Pallet Reach Forklift Fork Lift Truck for Warehouse
1 / 5
1.5ton 1500kg Lifting Height 3500mm Standing Fully Battery Operated Electric Powered Engine Pallet Reach Forklift Fork Lift Truck for Warehouse
1.5ton 1500kg Lifting Height 3500mm Standing Fully Battery Operated Electric Powered Engine Pallet Reach Forklift Fork Lift Truck for Warehouse
1.5ton 1500kg Lifting Height 3500mm Standing Fully Battery Operated Electric Powered Engine Pallet Reach Forklift Fork Lift Truck for Warehouse
1.5ton 1500kg Lifting Height 3500mm Standing Fully Battery Operated Electric Powered Engine Pallet Reach Forklift Fork Lift Truck for Warehouse
1.5ton 1500kg Lifting Height 3500mm Standing Fully Battery Operated Electric Powered Engine Pallet Reach Forklift Fork Lift Truck for Warehouse

1.5ton 1500kg Lifting Height 3500mm Standing Fully Battery Operated Electric Powered Engine Pallet Reach Forklift Fork Lift Truck for Warehouse

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
CDD-B
Type
Stacker
Power
DC Motor
Load Capacity
1T - 5T
Fuel
Electric
Load Center
500mm
Lift Height
1600mm-3500mm
Condition
New
Colour
Red or Yellow
Fork Type
Fixed or Movable
Certification
CE
HS Code
8427900000
📦 Packaging & Delivery
Package Size
210.00cm * 80.00cm * 220.00cm
Package Gross Weight
600.000kg
Transport Package
Bubble Wrap
⚙️ Application Technology Characteristics
  • Emergency reverse device
  • Built-in unloading valve for overload protection
  • Emergency power off switch
  • Turtle-shaped slow speed switch
  • Infinitely variable speeds control
  • Foldable, thickened pedals and guard bar for safety
  • Side cylinder ensures wide field of view and stability
  • Balance wheel with spring adjustment for wear-resistance
📊 Technology Parameters
Model Unit CDD-B15/B20
Rated loadkg1500/2000
Load center distancec(mm)500
Weight (with battery)kg580-820
Wheel material-PU
Front wheel size(mm)φ250*75
Rear wheel size(mm)φ80*70
Lifting height of forkh3(mm)1600/2000/2500/3000/3500
Overall length (without/with pedal)l1(mm)2023/2419
Fork sizes/e/l(mm)60*170*1100
Radius of turning circlewa(mm)1619
Driving speed (full/no load)km/h4/5
Lifting motor powerkw2.2
Battery capacityah120ah/210ah
📷 Product Display
Electric Stacker 1

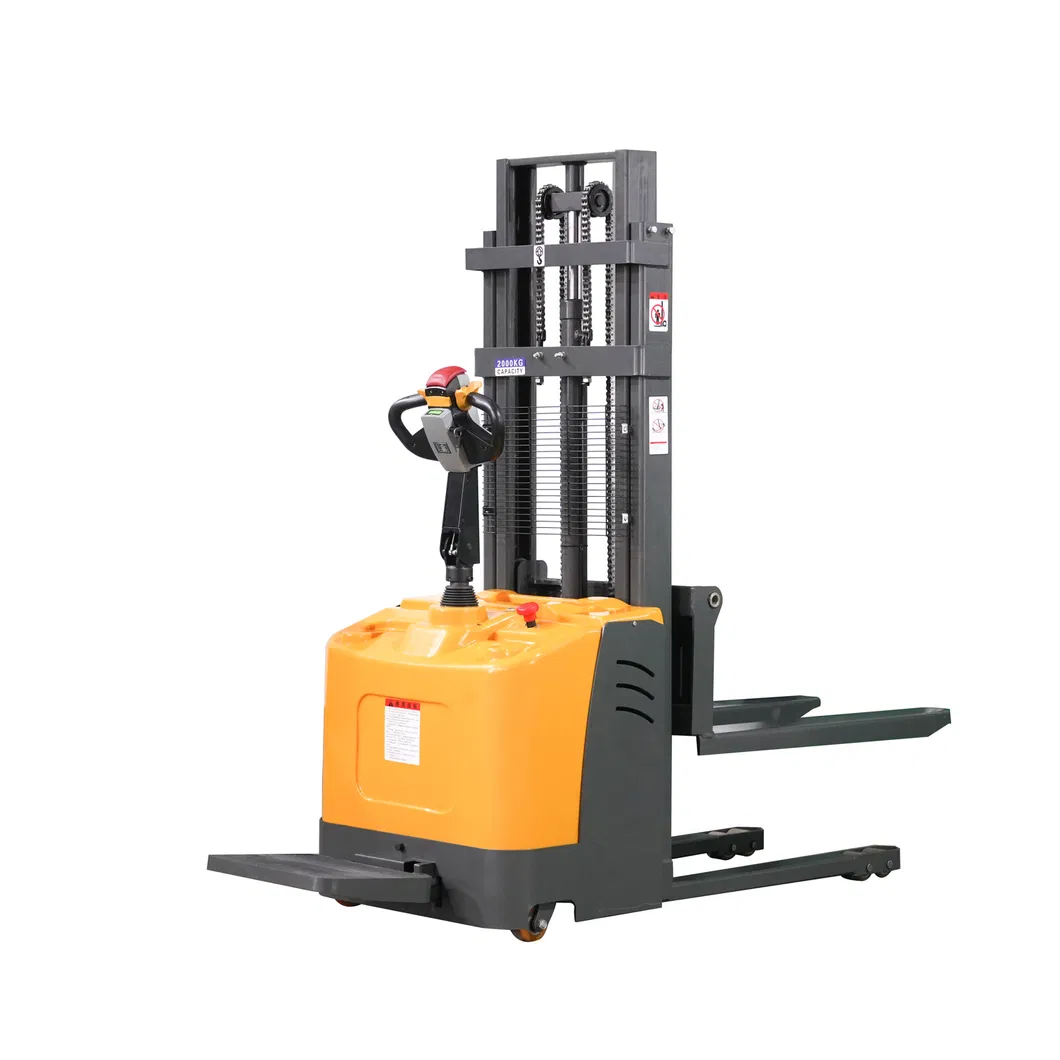

Electric Stacker 2

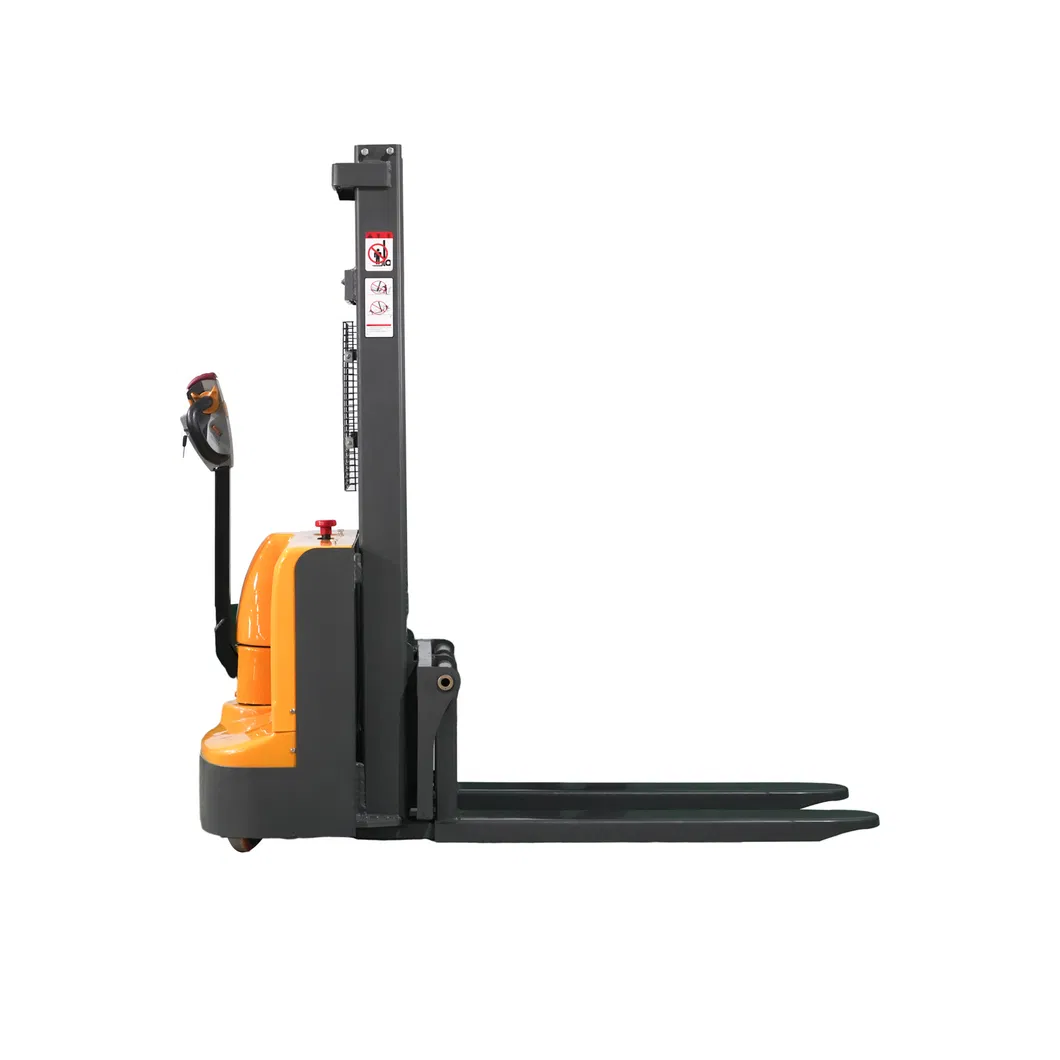

Electric Stacker 3

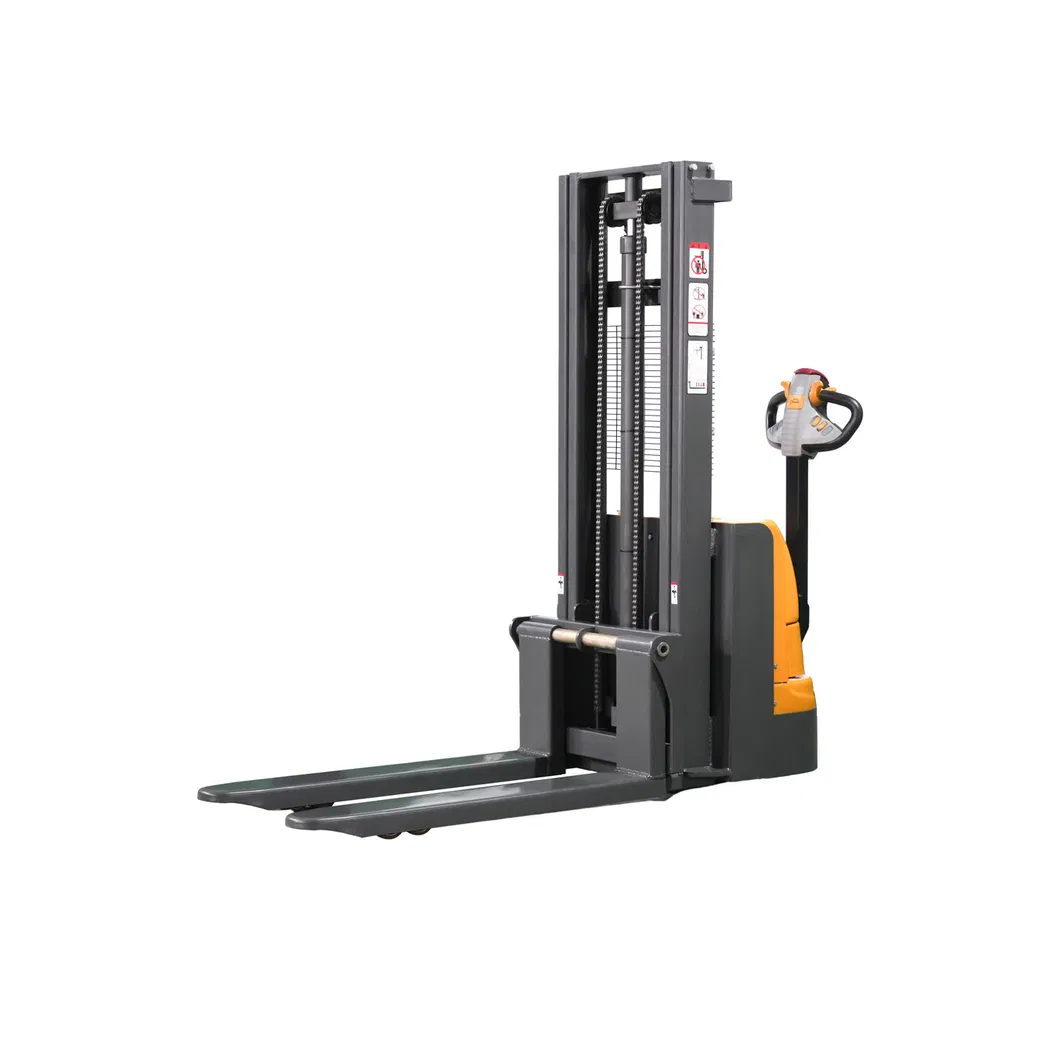

Electric Stacker 4
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Technical Drawing 5
❓ Frequently Asked Questions
How long is the warranty of your products?
Equipment provides 12 months or 2000 working hours warranty as standard, whichever comes first.
What payment terms are accepted?
Standard payment term is 30% in advance and 70% in balance by TT before delivery or original B/L copy.
How long does it take to finish an order?
15-20 days for classic forklifts, pallet trucks, and stackers; 5-10 days for spare parts.
Can you customize the configuration, logo, or color?
Yes, we can customize the configuration, logo, label, and color according to your requirements.
Do you accept small orders?
Yes, the MOQ is 1 unit for most products. For very small handling equipment, we check case by case.
What safety features are included in the stacker?
The stacker includes an emergency reverse device, emergency power off switch, and a built-in unloading valve for overload protection.
