Nauti Lift
1 / 5

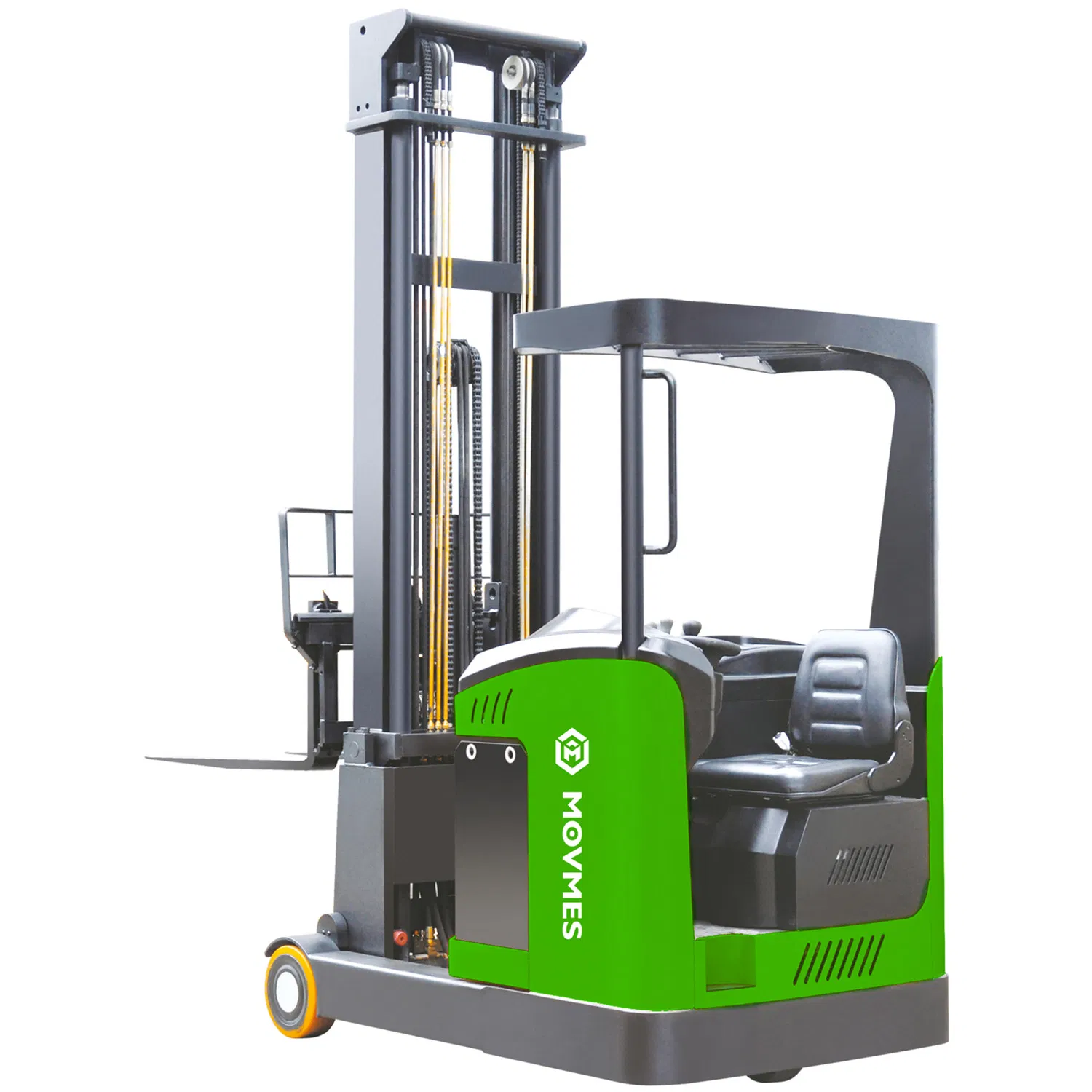

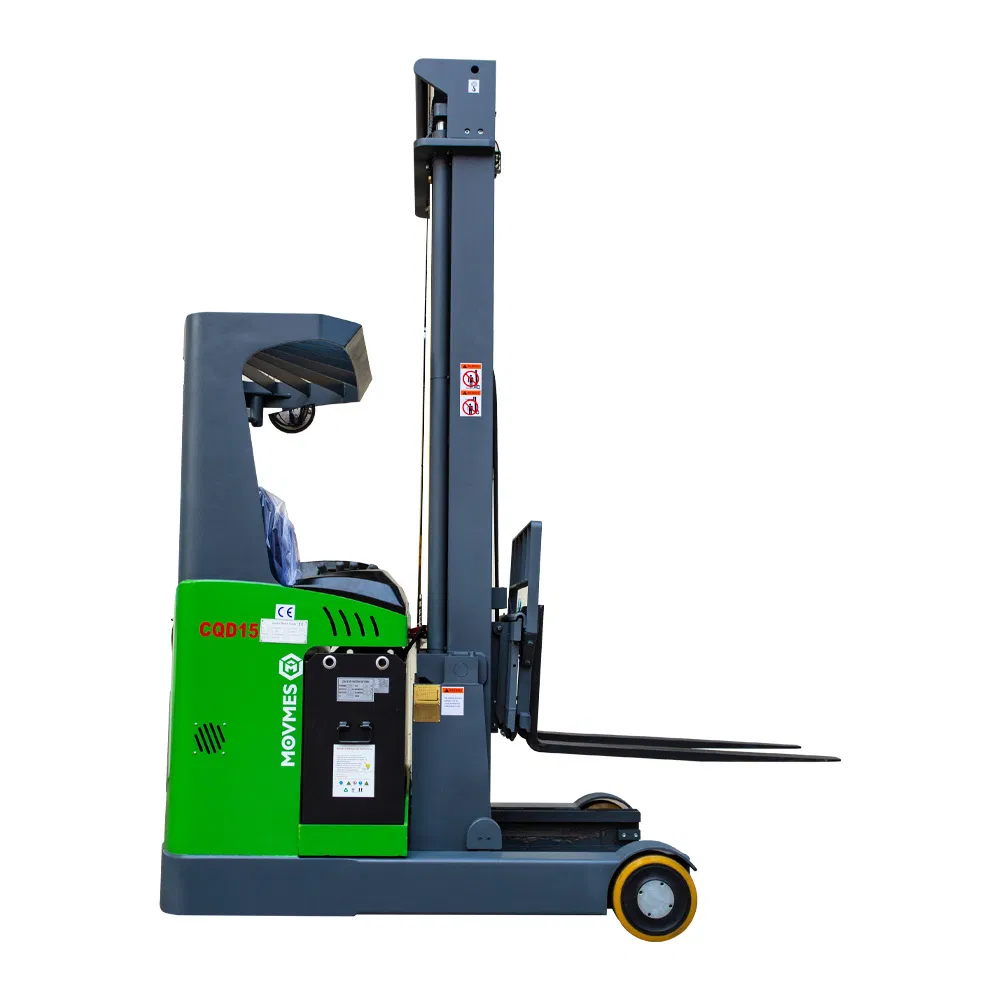

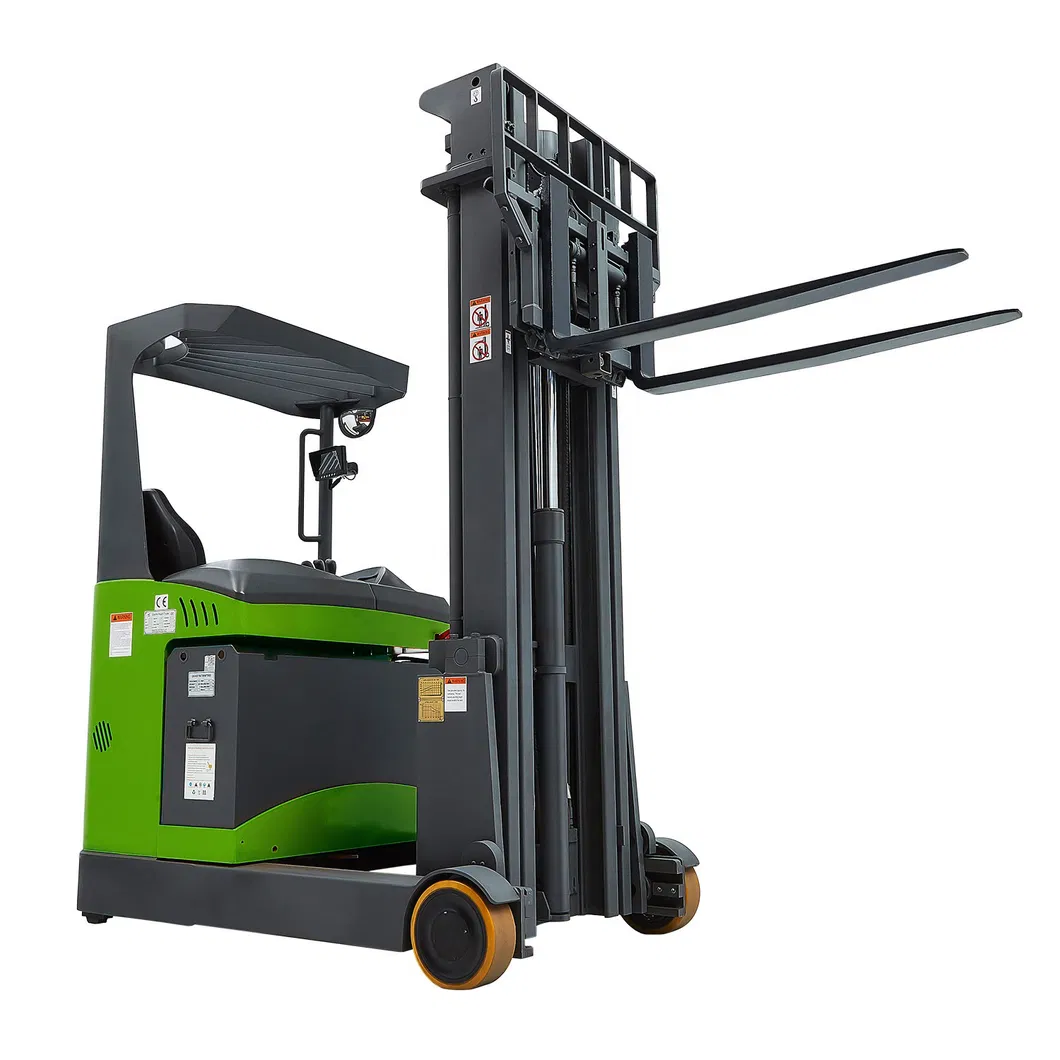

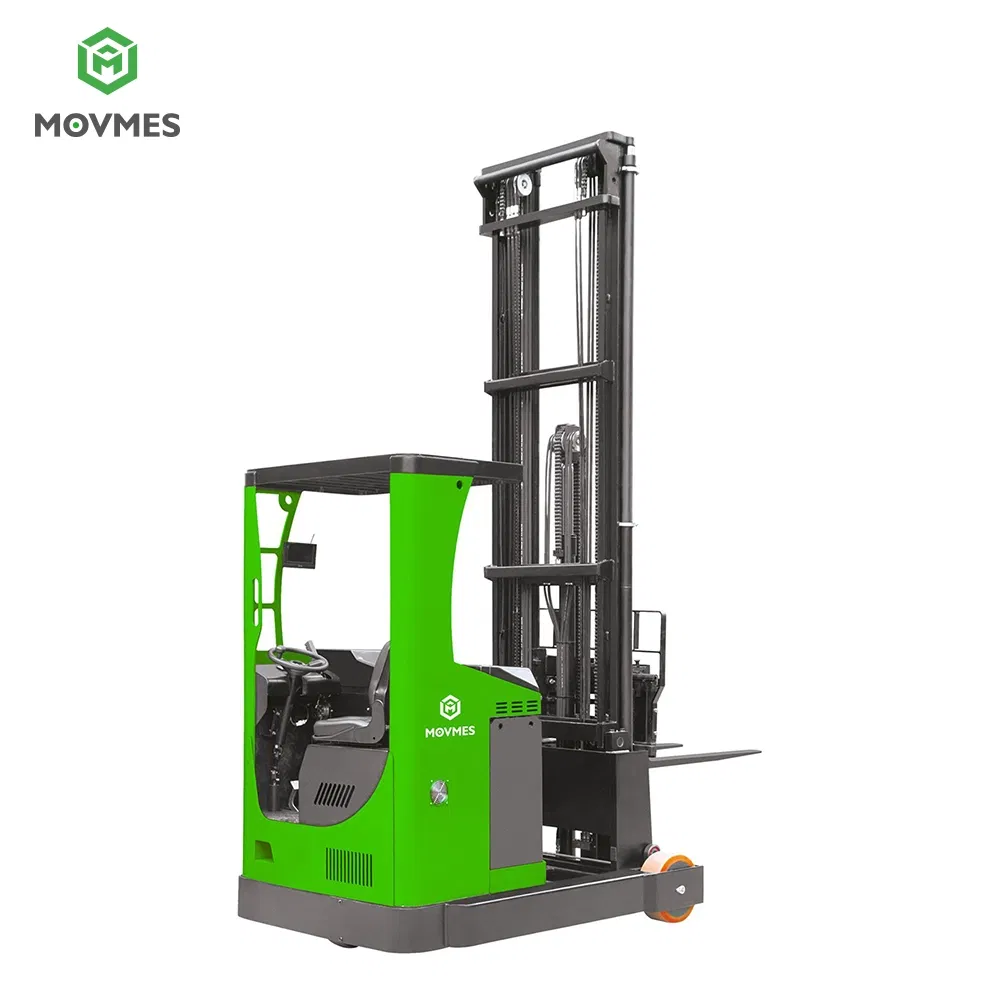

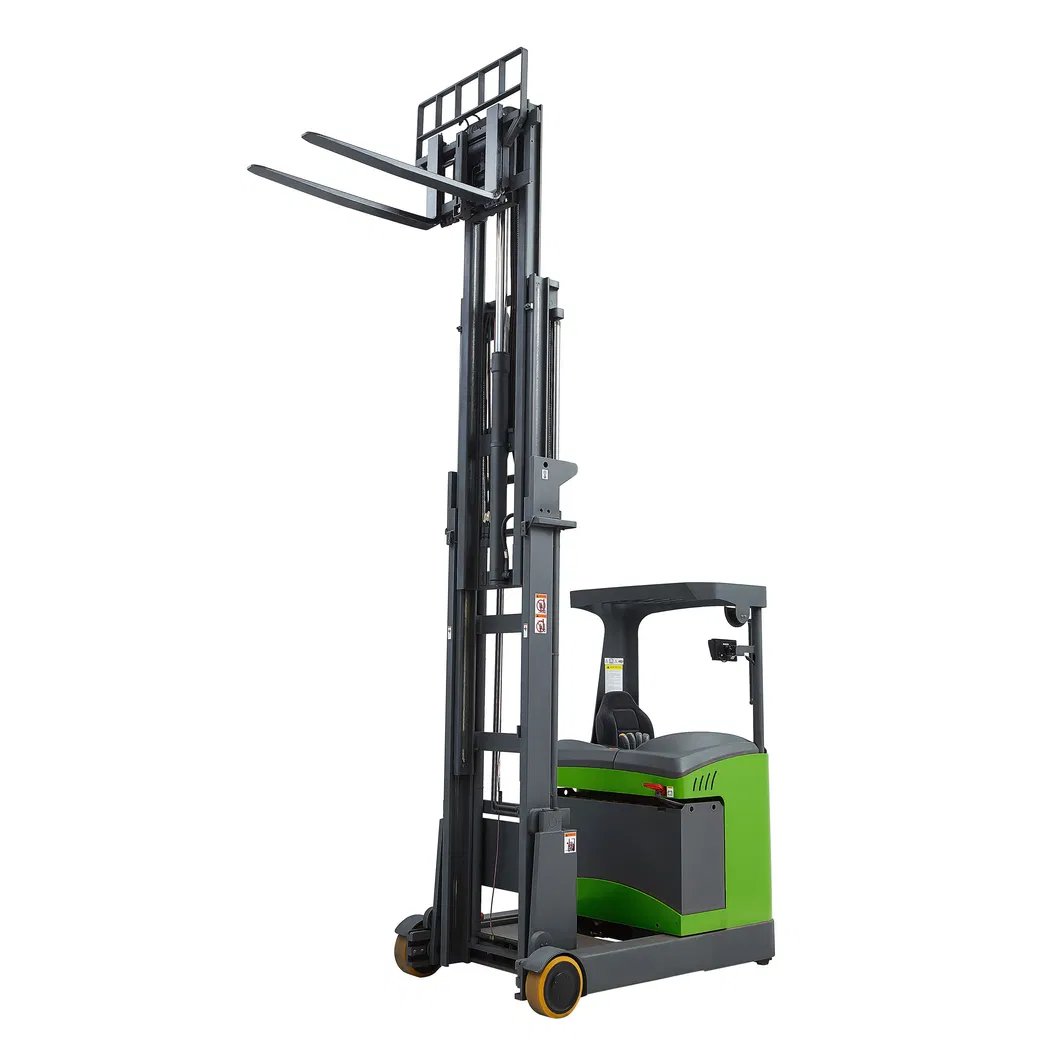

High-performance electric reach truck designed for narrow aisle warehouse operations, featuring a maximum lifting height of up to 14,000mm and a rated load capacity of 2,000kg.

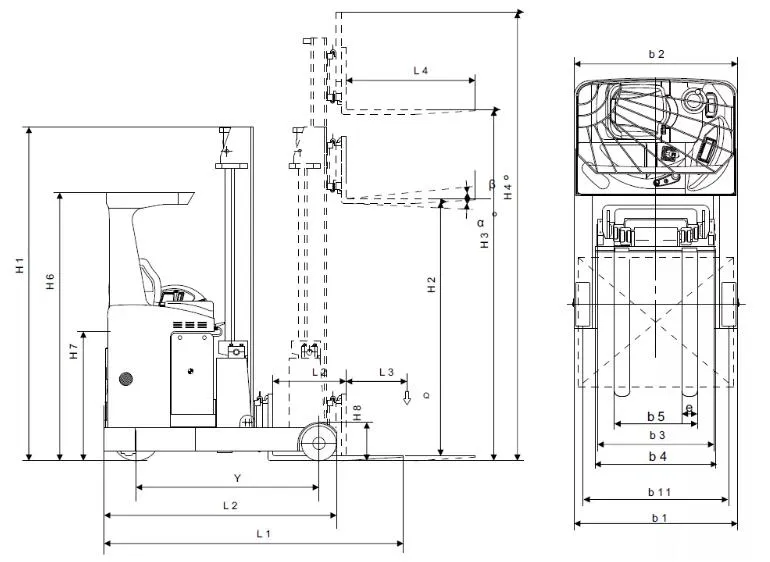

| Parameter Item | Unit | CQD15 Specifications |
|---|---|---|
| Capacity / Rated Load | Q (kg) | 1500 |
| Max Lift Height | h3 (mm) | 3000 / 5000 / 6200 / 7400 / 8000 |
| Load Centre Distance | C (mm) | 600 |
| Height, Mast Lowered | h1 (mm) | 2086 / 2240 / 2740 / 3190 / 3390 |
| Free Lift | h2 (mm) | 0 / 1700 / 2100 / 2500 / 2700 |
| Overall Length | I1 (mm) | 2370 |
| Overall Width | b1 (mm) | 1200 |
| Travel Speed (Laden/Unladen) | km/h | 8 / 8.3 |
| Lift Speed (Laden/Unladen) | m/s | 0.45 / 0.36 |

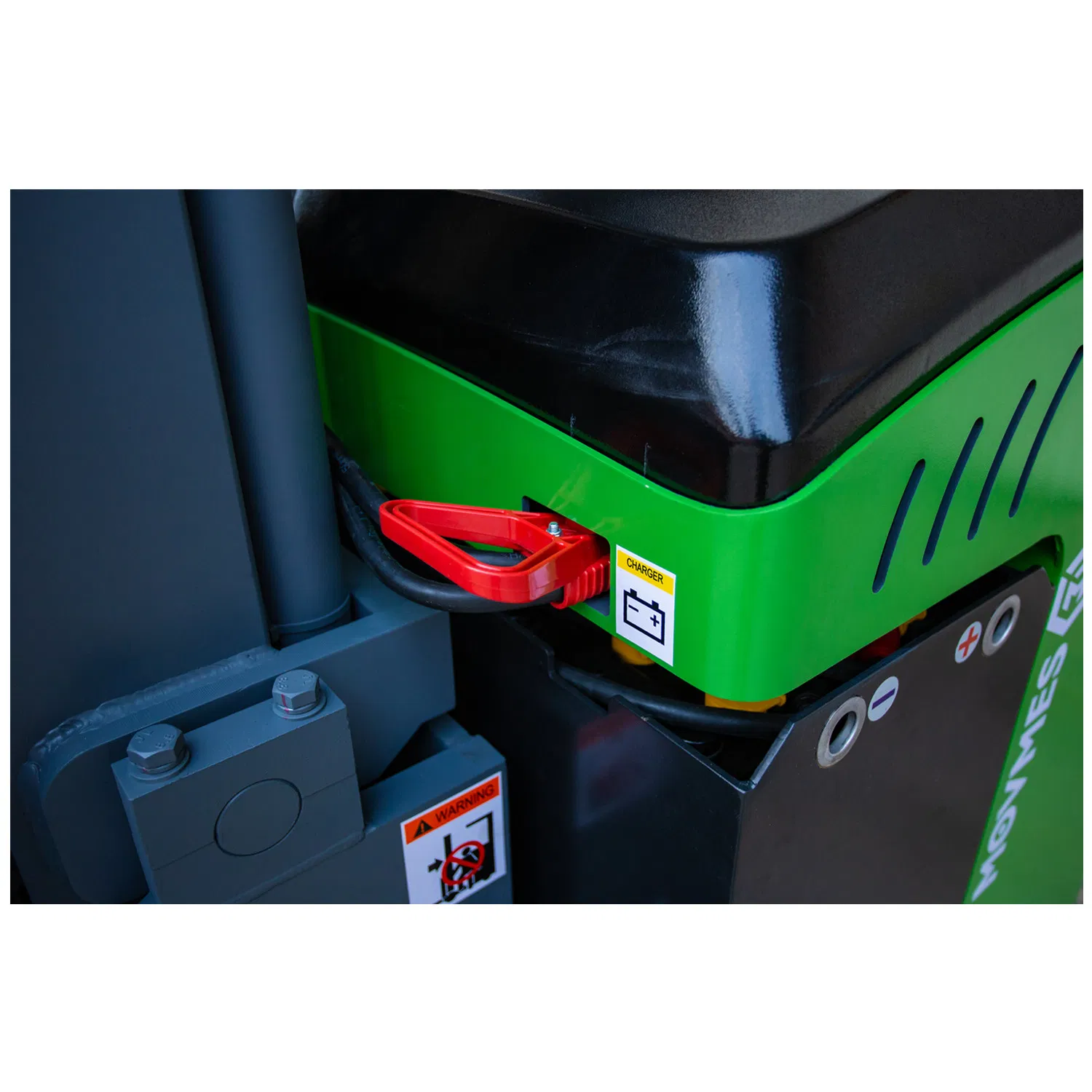

| Battery Voltage / Capacity | V/Ah | 48 / 400 |
Certifications: ISO9001:2008, ISO14001:2004, OHSAS18001:2007. Products meet TUV/GS/CE standards including ISO3691-1, EN1175-1, and EN16307-1.
 |
CDDR15 Walkie Electric Stacker 1.5 Ton capacity, 1600-3000mm lift height, DC motor, CURTIS controller. |
 |
CDDR15-III Walkie Electric Stacker 1.5 Ton capacity, 2500-5600mm lift height, 24V AC power, 24V200Ah battery. |
Each truck is carefully packaged according to delivery requirements. Photos and videos are provided for customer approval before dispatch. Production time is typically 30-45 days after receiving the advanced payment.
