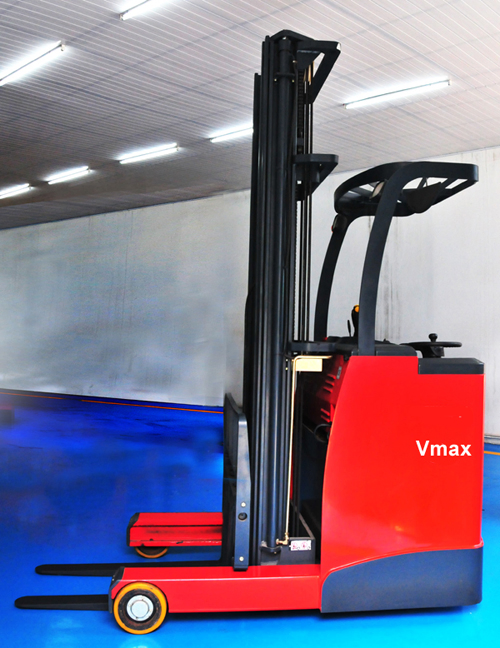

High Quality 1.5t 2t Stand-on Electric Reach Truck - Compact, Agile & High-Lift Warehouse Solution

1 / 5

High Quality 1.5t 2t Stand-on Electric Reach Truck - Compact, Agile & High-Lift Warehouse Solution

Customization:	Available
After-sales Service:	1 Years
Warranty:	1 Years

Send Inquiry

Product Description

● Basic Information

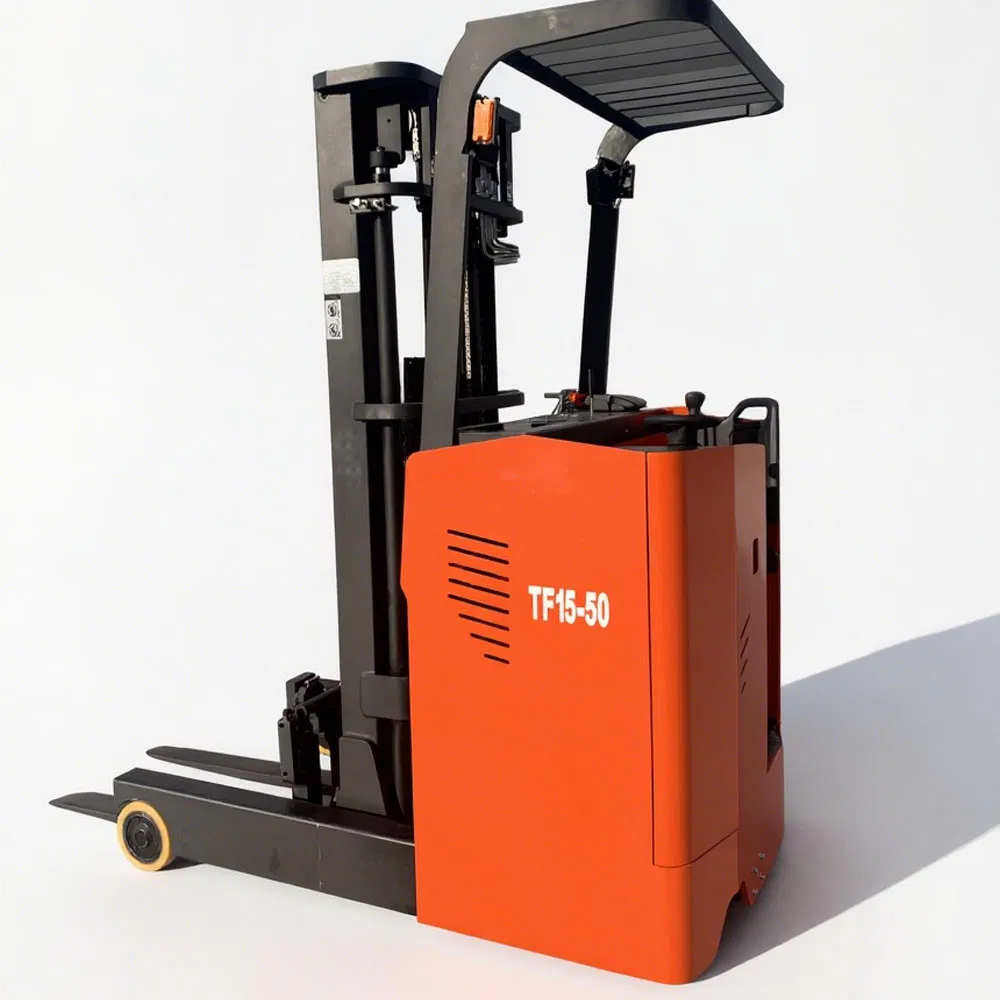

Model NO.

TF15-50

Type

Powered Pallet Truck

Power

DC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load center

500mm

Lift height

3000~5000mm

Condition

New

Operating Mode

Stand-on

Key Words

Electric Reach Forklift

Increase Height

HS Code

8427109000

● Packaging & Delivery

Package Size

254.50cm * 115.00cm * 217.00cm

Gross Weight

2670.000kg

● Product Description & Advantages

✓

Large inner & outer rail rollers provide additional capacity, less friction, and resistance to wear. Side thrust rollers reduce lateral stress and allow for external adjustment to maintain alignment.

✓

Fusion of international advanced technology ensuring superior safety, handling, and operator comfort.

✓

Streamlined design with low noise, low vibration, and zero pollution, embodying humanized environmental protection.

✓

Full hydraulic steering with adjustable speed and braking distance for personalized driving performance.

✓

Excellent lifting speeds and high-security door frame construction to significantly improve work efficiency.

✓

Compact turning radius for flexible operations in narrow warehouse spaces.

✓

Advanced imported electronic control system allows for smooth sliding when descending ramps.

✓

Automatic parking brake activates when stationary and releases automatically upon acceleration.

✓

Wide-field vision mast and overhead guard provide a panoramic view for faster and safer operations.

● Technical Parameters

Item	Model	Unit	TF10	TF13	TF15	TF18	TF20
Power	Battery	-	Electric Battery
Rated load capacity	-	kg	1000	1300	1500	1800	2000
Lift height	-	mm	3000
Load centre distance	-	mm	500
Travel speed (Laden)	-	km/h	7.7	7.5	9.5	9.2	9.0
Min. turning radius	-	mm	1420	1620	1725	1735	1775
Wheelbase	-	mm	1160	1360	1470	1470	1520
Overall width	-	mm	1045	1045	1200	1216	1216
Control system	-	-	Curtis/ZAPI

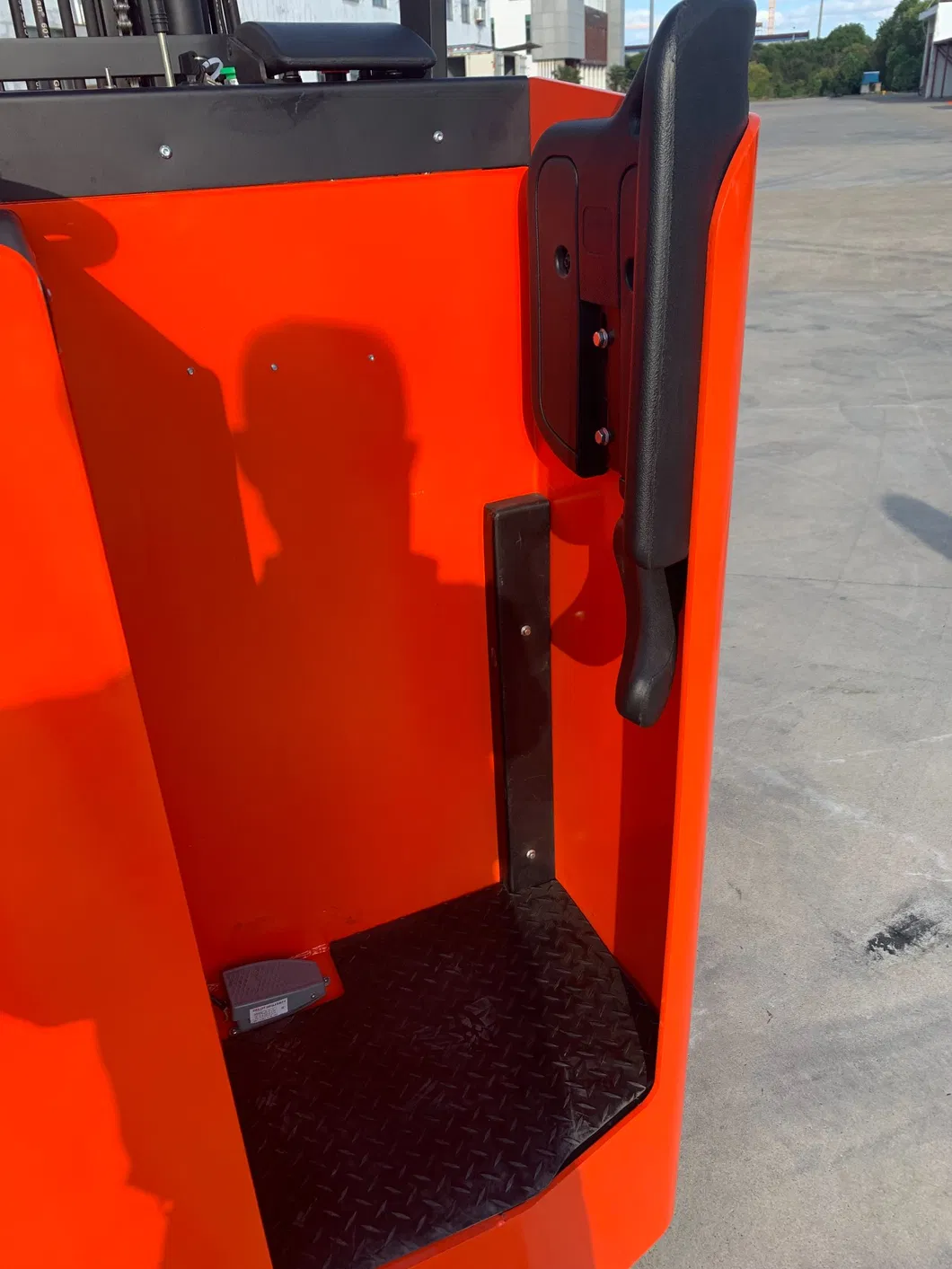

● Product Gallery

● Core Advantages

FAQ

Q: What is the load capacity range for this reach truck series?

A: This series offers a rated load capacity ranging from 1,000kg (1T) up to 2,000kg (2T), suitable for various warehouse needs.

Q: What type of power system does it use?

A: It is powered by a high-efficiency DC motor and lead-acid battery system, ensuring zero emissions and low noise operations.

Q: Is it suitable for use in narrow aisles?

A: Yes, with a minimum turning radius as small as 1420mm (on TF10 model), it is specifically designed for flexible operation in tight spaces.

Q: What control systems are installed in these forklifts?

A: We use world-renowned Curtis or ZAPI electronic control systems for precise handling and reliability.

Q: What safety features are included for the operator?

A: Features include an automatic parking brake, panoramic view mast, full hydraulic steering, and smooth ramp-descending electronic controls.

Q: What is the maximum lift height available?

A: The standard lift height is 3000mm, but configurations are available to increase the height up to 5000mm.
