| Model NO. | CQD15S |
| Type | Reach Forklift |
| Power | AC Motor |
| Load Capacity | 1T - 5T (Standard 1500kg) |
| Fuel | Electric |
| Lift height | 8000 - 9655mm |
| Battery Type | Lithium (48V420ah) |
| Turning Radius | 1765mm |
| HS Code | 8427109000 |

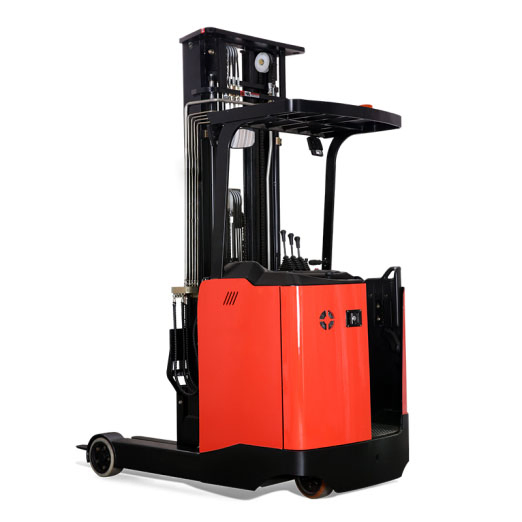

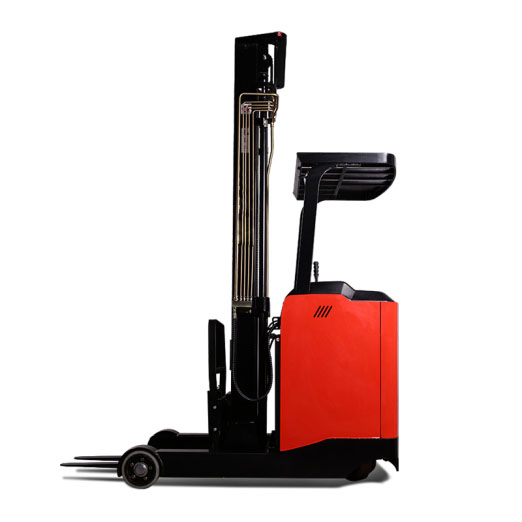

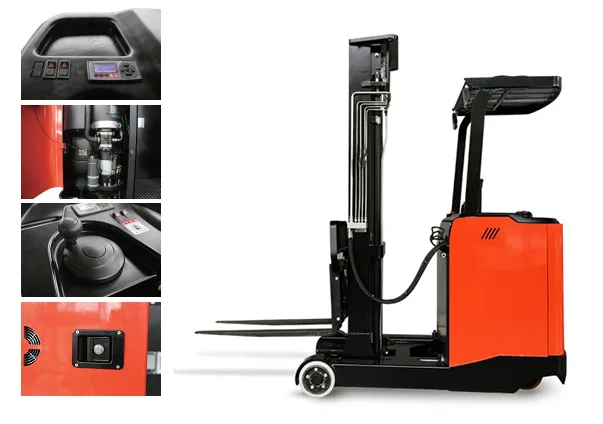

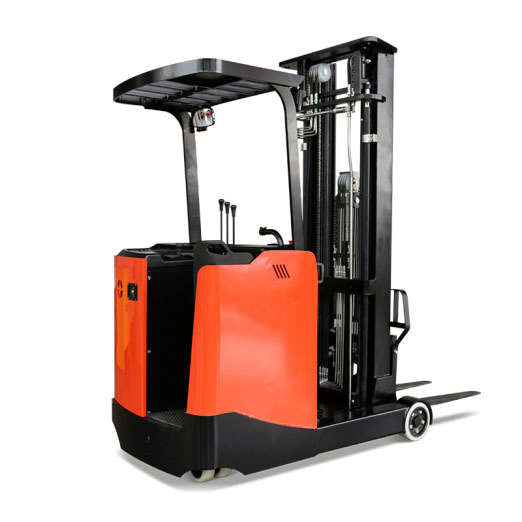

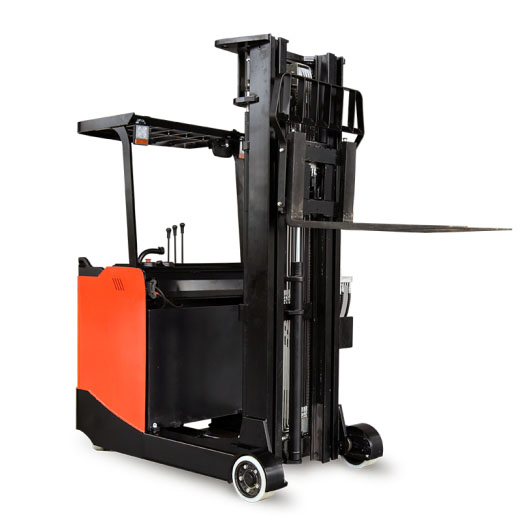

CQD15S: The Best Choice For Stacking In Narrow Aisles & High Picking.

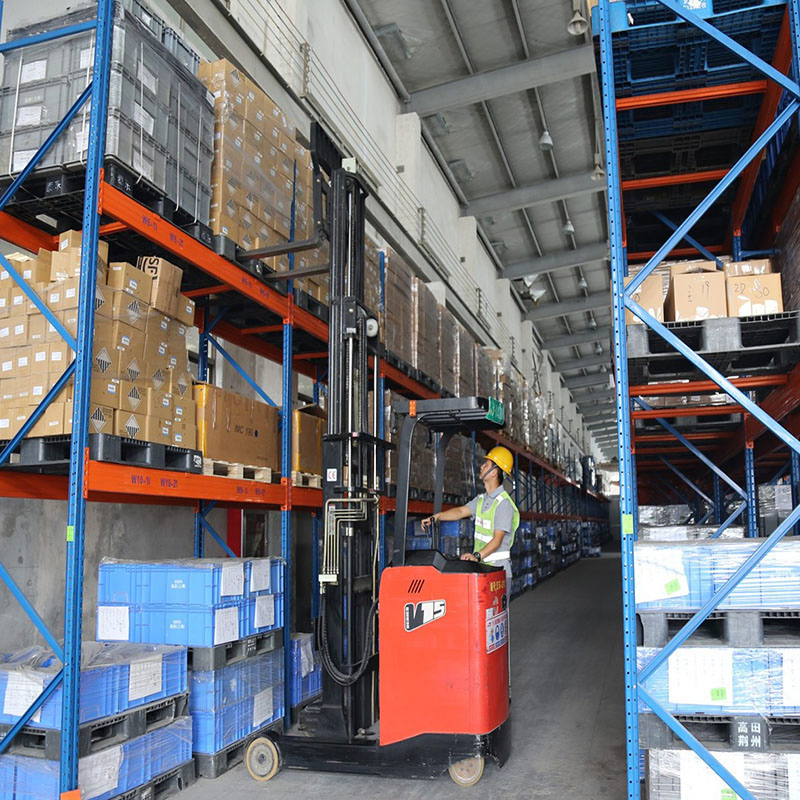

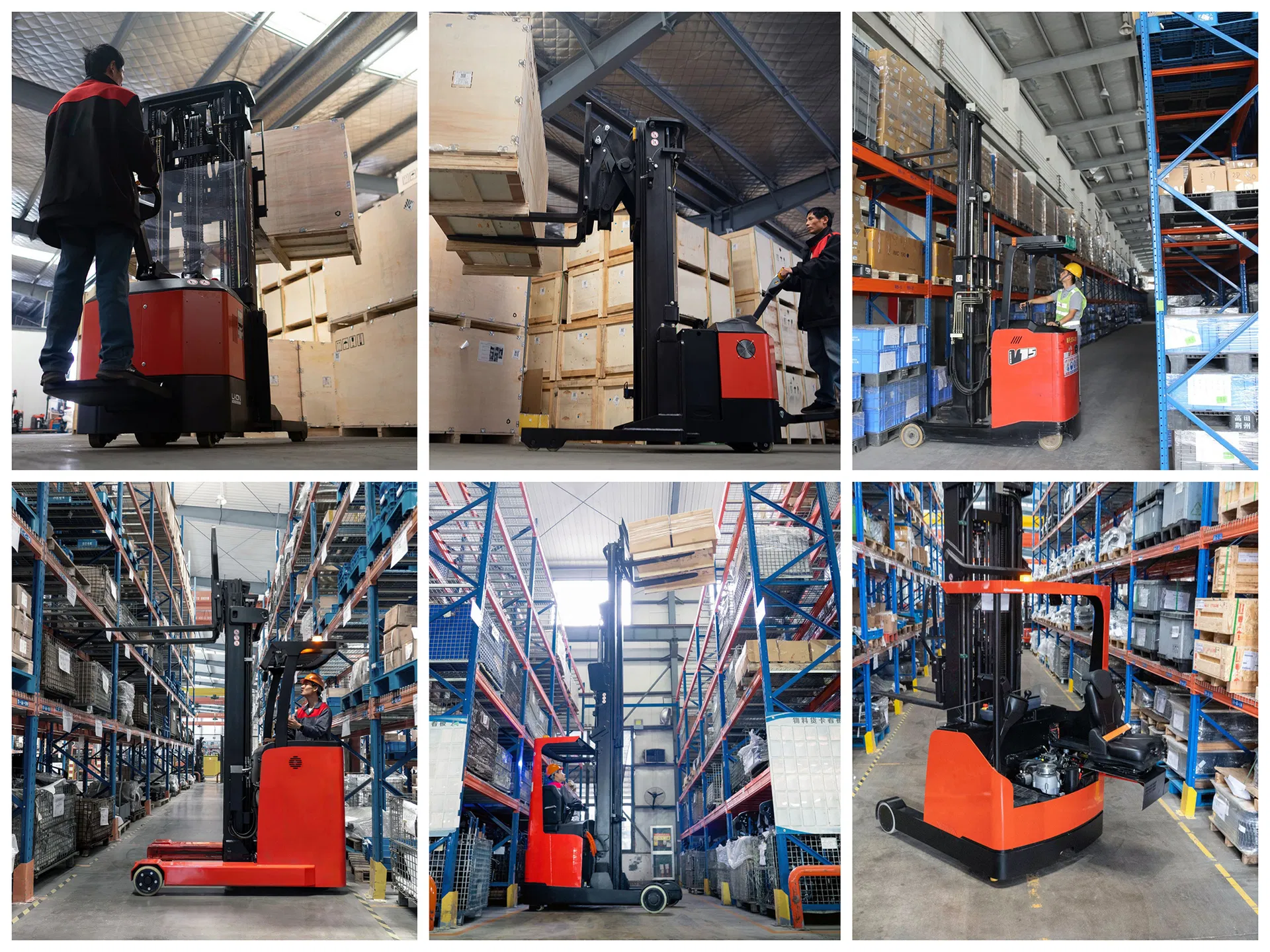

This reach truck is highly appreciated in large warehouses with racking systems, specifically designed for automotive sectors and high-density storage environments. As a stand-on reach truck, it excels in narrow aisles, providing superior efficiency for stacking and reaching tasks.
| Feature | Unit | Value |
| Drive Mode | - | Standing |
| Load Capacity | Q (kg) | 1500 |
| Load Center Distance | c (mm) | 600 |
| Service Weight | kg | 2370 |
| Height, Mast Lowered | h1 (mm) | 2050 |
| Lift Height | h3 (mm) | 3000 |
| Overall Length | l1 (mm) | 2335 |
| Overall Width | b1/b2 (mm) | 1078 / 1090 |
| Aisle Width (1000x1200 pallets) | Ast (mm) | 2745 |
| Battery Voltage/Capacity | V/Ah | 48V / 420Ah |

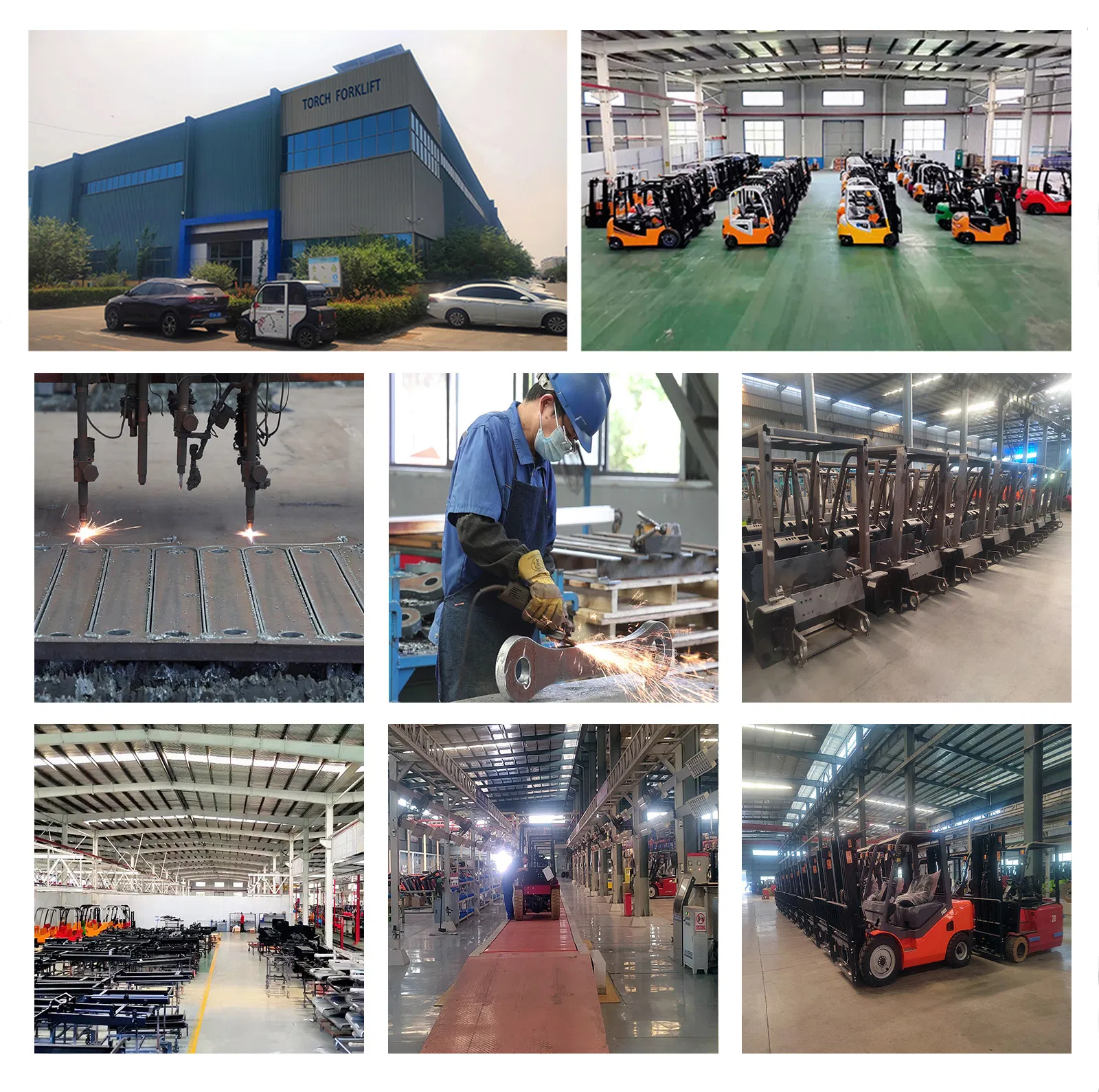

Established in 2020, we are a leading machinery manufacturer specializing in R&D, production, sales, and service of high-performance material handling equipment. Our product range includes electric forklifts, diesel forklifts, electric stackers, pallet trucks, material handling robots, industrial AGVs, and floor cleaning vehicles. Our equipment has been exported to more than 100 countries including the United States, Mexico, Canada, and Russia.
