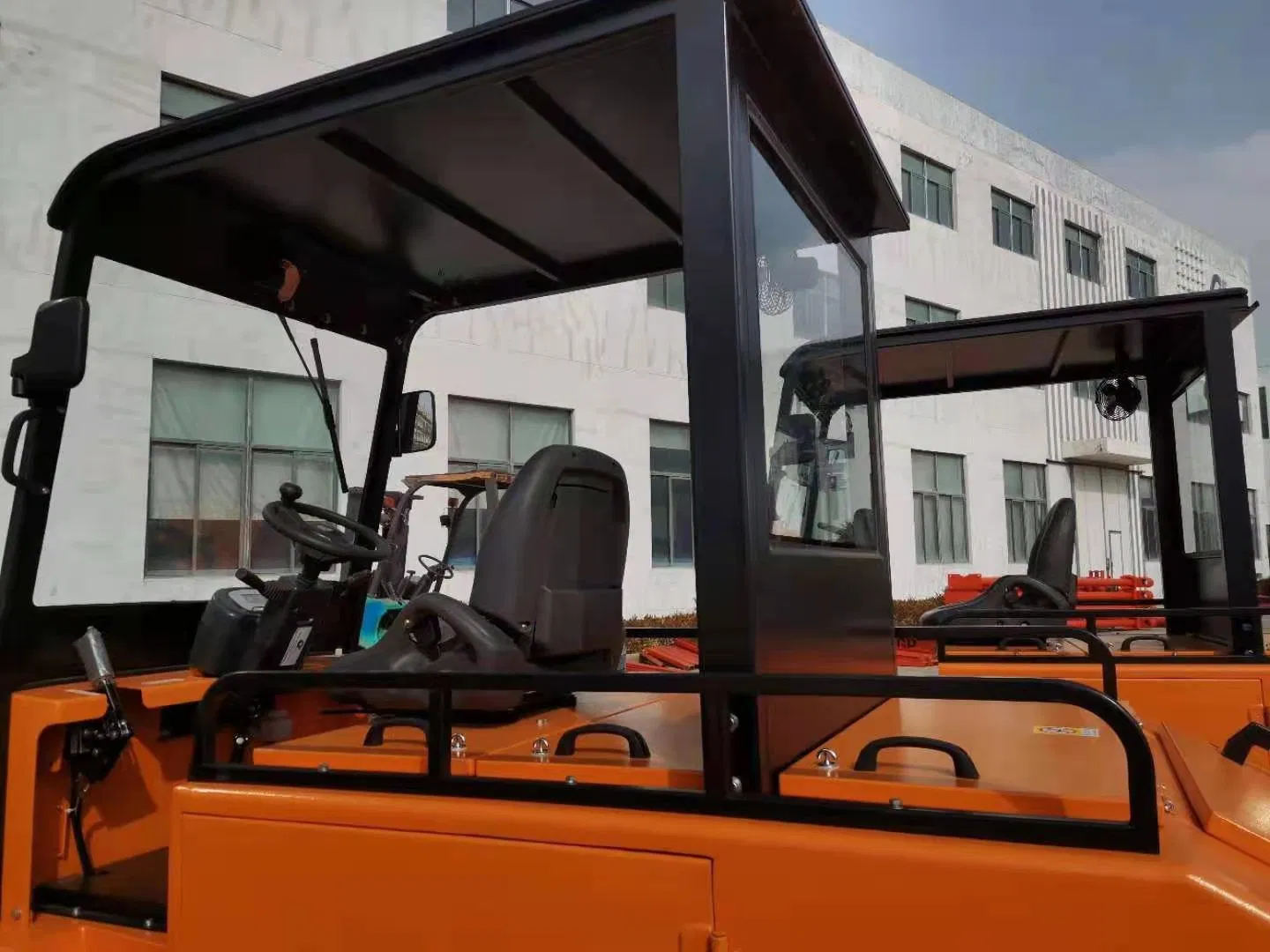

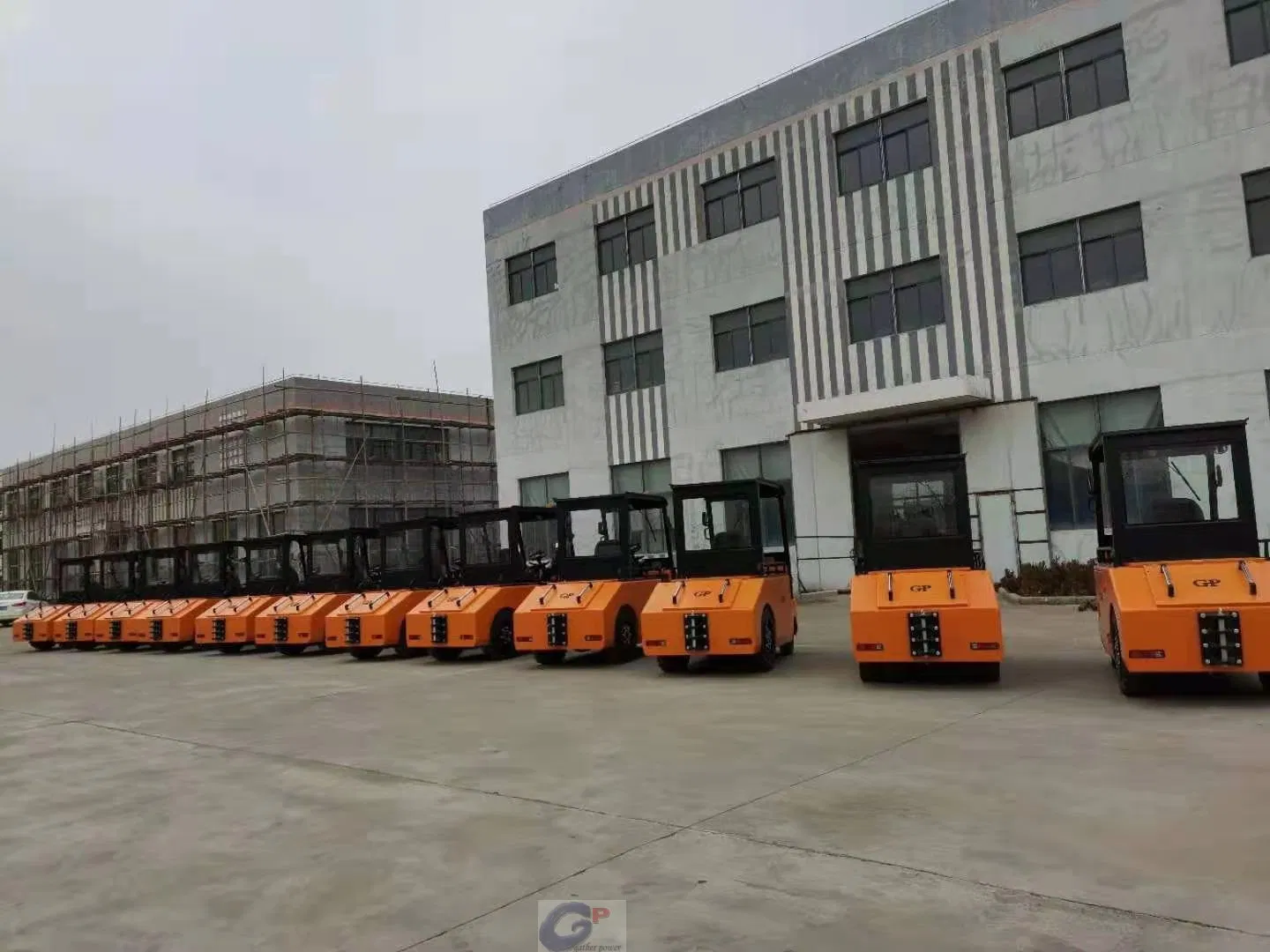

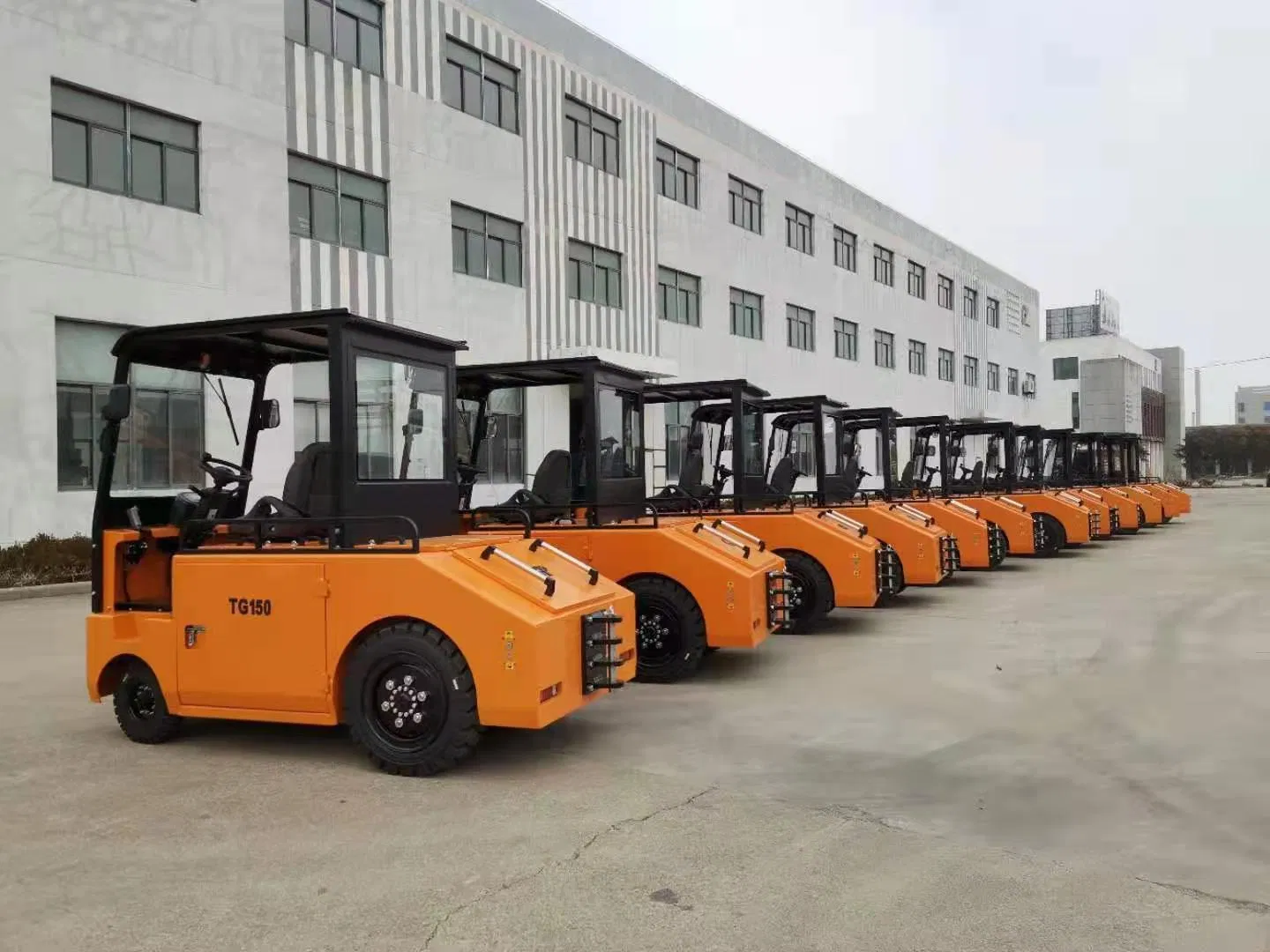

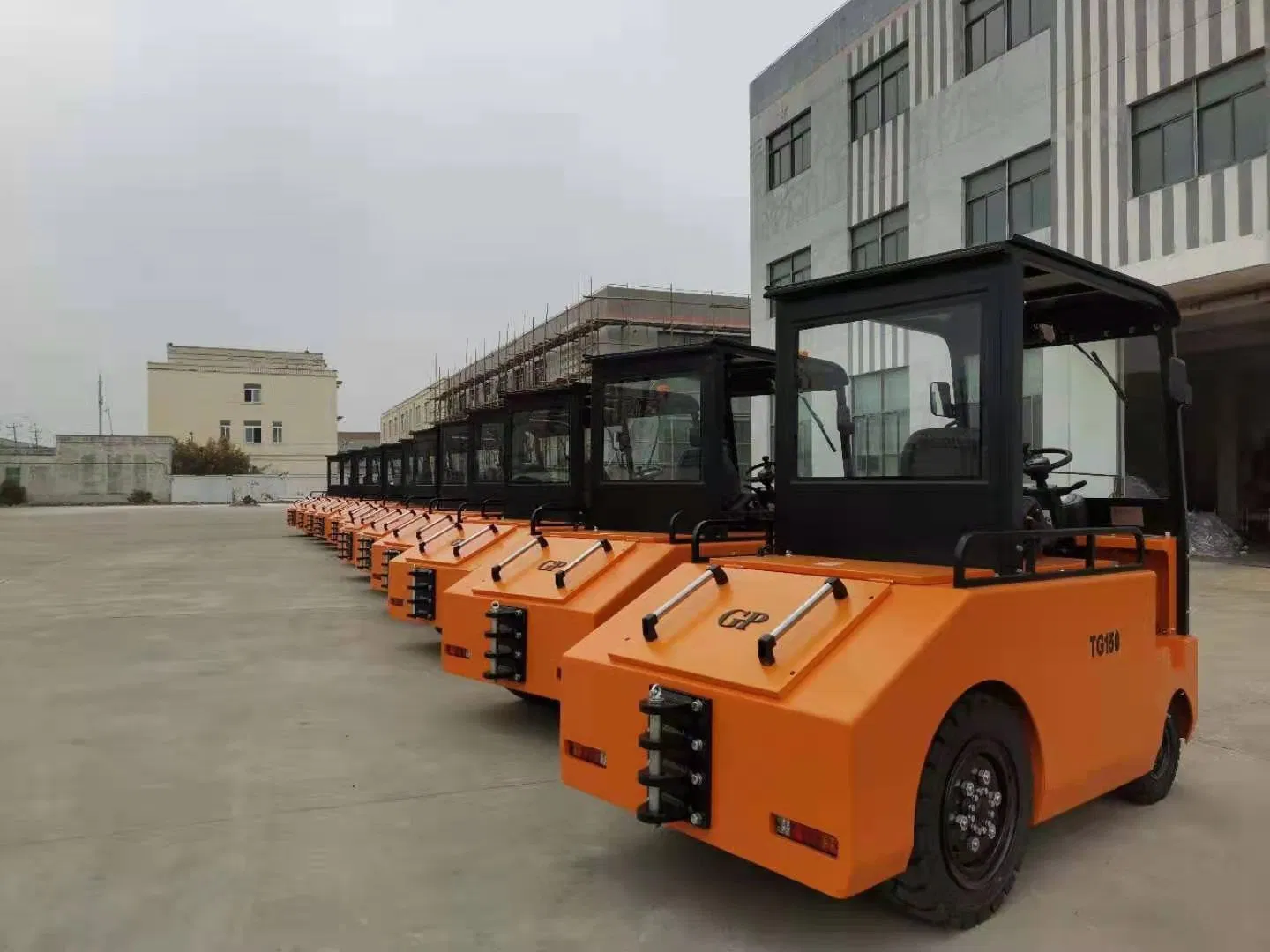

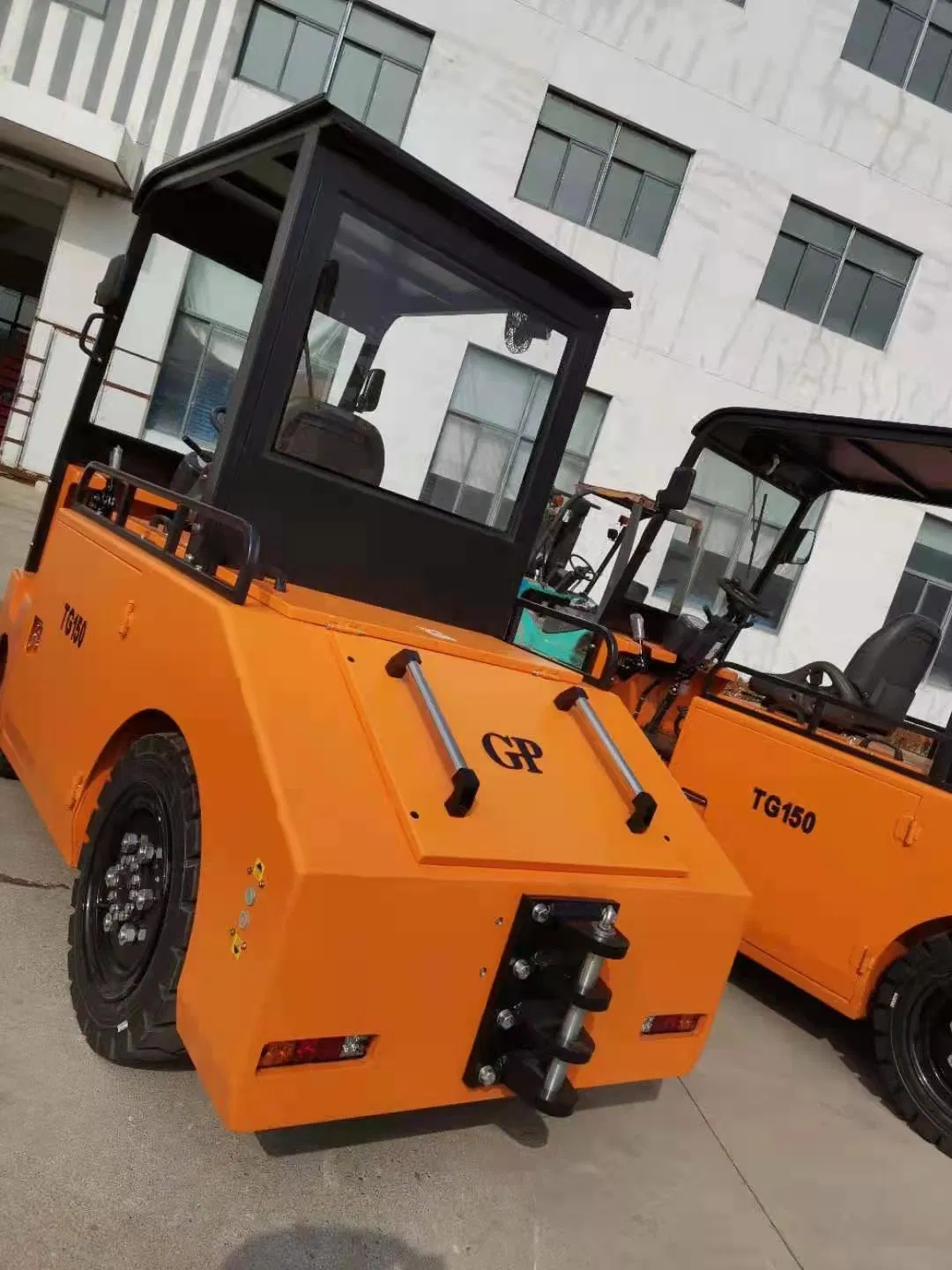

Warehouse Industrial Heavy Duty 8-10 Ton Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)
Warehouse Industrial Heavy Duty 8-10 Ton Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)
Warehouse Industrial Heavy Duty 8-10 Ton Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)
Warehouse Industrial Heavy Duty 8-10 Ton Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)
Warehouse Industrial Heavy Duty 8-10 Ton Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)
1 / 5
Warehouse Industrial Heavy Duty 8-10 Ton Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)
Warehouse Industrial Heavy Duty 8-10 Ton Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)
Warehouse Industrial Heavy Duty 8-10 Ton Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)
Warehouse Industrial Heavy Duty 8-10 Ton Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)
Warehouse Industrial Heavy Duty 8-10 Ton Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)

Warehouse Industrial Heavy Duty 8-10 Ton Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)

Customization: Available
After-sales Service: 2years
Warranty: 1.5 Years
Send Inquiry

Product Description

Basic Information
Model NO.
TG150
Type
Electric Towing Tractor
Power
AC Motor
Load Capacity
10T - 18T
Fuel
Electric
Load Center
>500mm
Lift Height
>5000mm
Tire Type
Solid
Controller
Curtis / Intaliasme
Production Capacity
50000 units / Year
Packaging & Delivery
Package Size
279.00cm * 125.00cm * 157.00cm
Gross Weight
3500.000kg
Product Description

Advanced Electric Tow Tractor Features:

  • Multi-function display: Real-time monitoring of battery status, hour meter, and error codes.

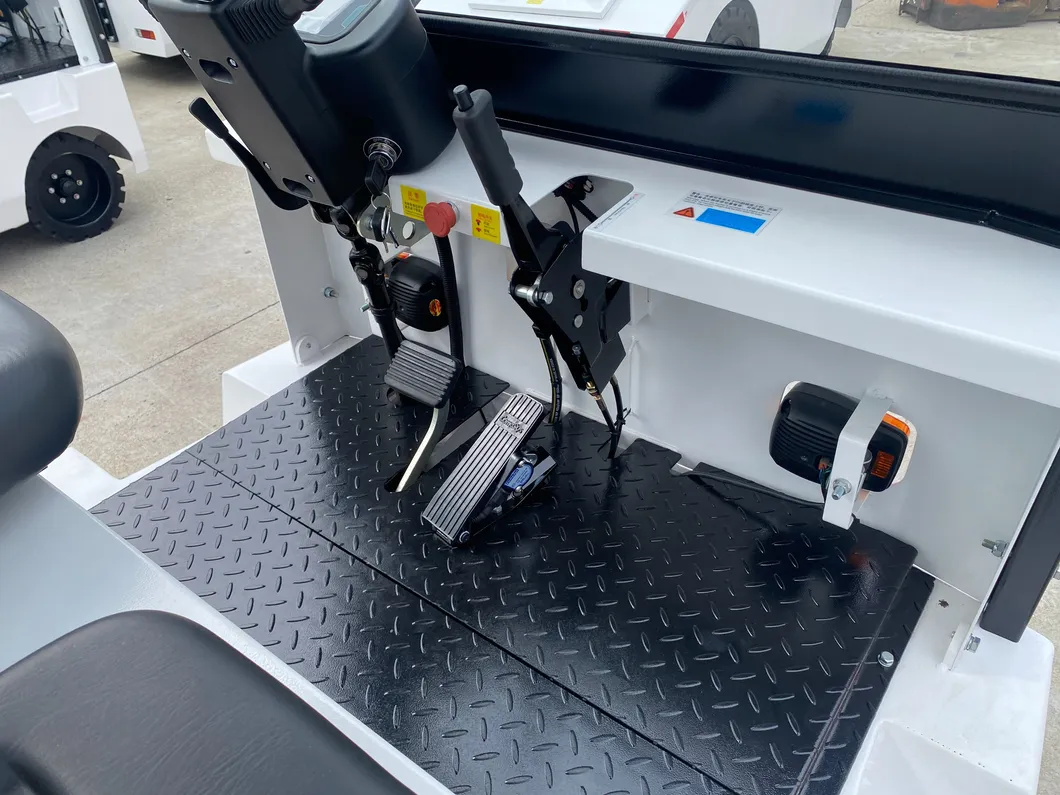

  • Enhanced Safety: Integrated hand brake and hydraulic brake systems for superior control.
  • Ergonomic Design: Equipped with an adjustable steering wheel to accommodate different operators.
  • Advanced Linking System: Designed with an orienting and fixing bracket for secure trailer attachment.
  • High Stability: Batteries positioned at the lowest part of the frame ensure a low center of gravity.
Model Unit TG100 TG150 TG200 TG250 TG300
Load Cap kg 10000 15000 20000 25000 30000
Dimensions (L×W×H) mm 2680×1250×1580 2880×1390×1580
Rated Traction KN 16 21 25 28 32
Walking Speed (Empty/Full) km/h 15/8 (Adjustable based on requirements)
Turning Radius mm ≤2500 (Hydraulic power steering) ≤3300 (Hydraulic power steering)
Braking Distance m ≤1.5 ≤2.0
Service Weight kg 2900 3500 4100 4700 5300
Driving Motor (AC) kw 11×1 16.6×1 19×1 23×1 31×1
Battery v/ah 80/440 80/550 80/600 80/790 80/960
Electric Tow Tractor 1
Electric Tow Tractor 2
Electric Tow Tractor 3

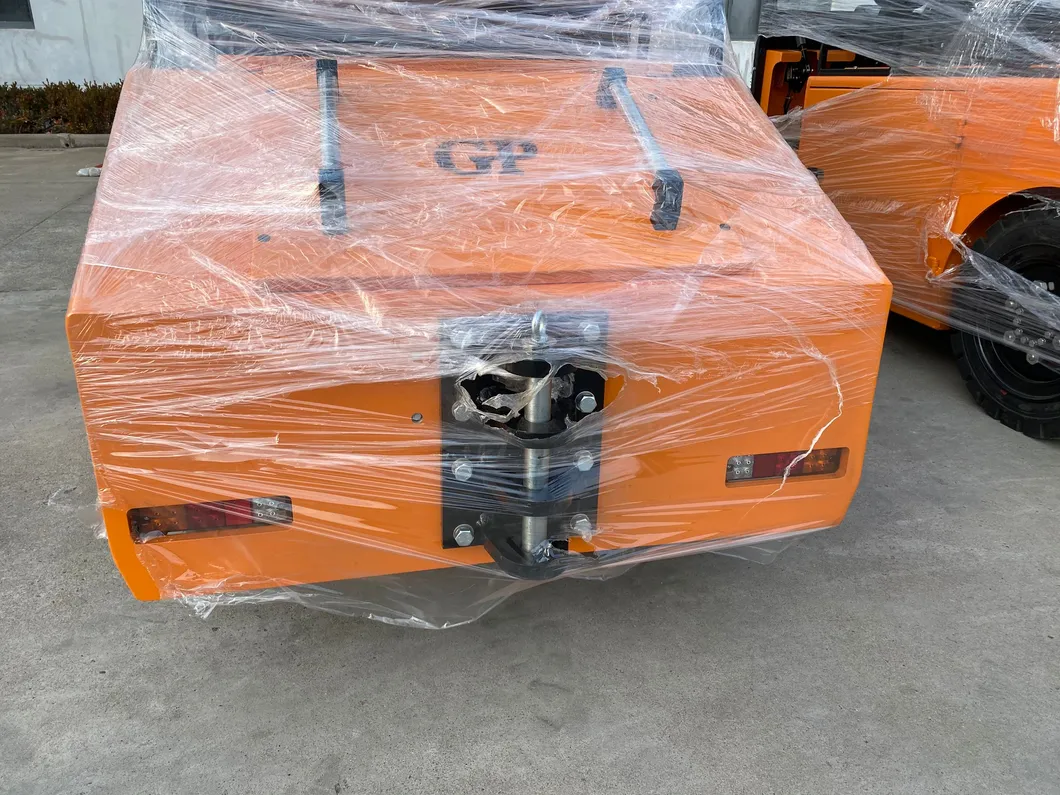

Electric Tow Tractor 4

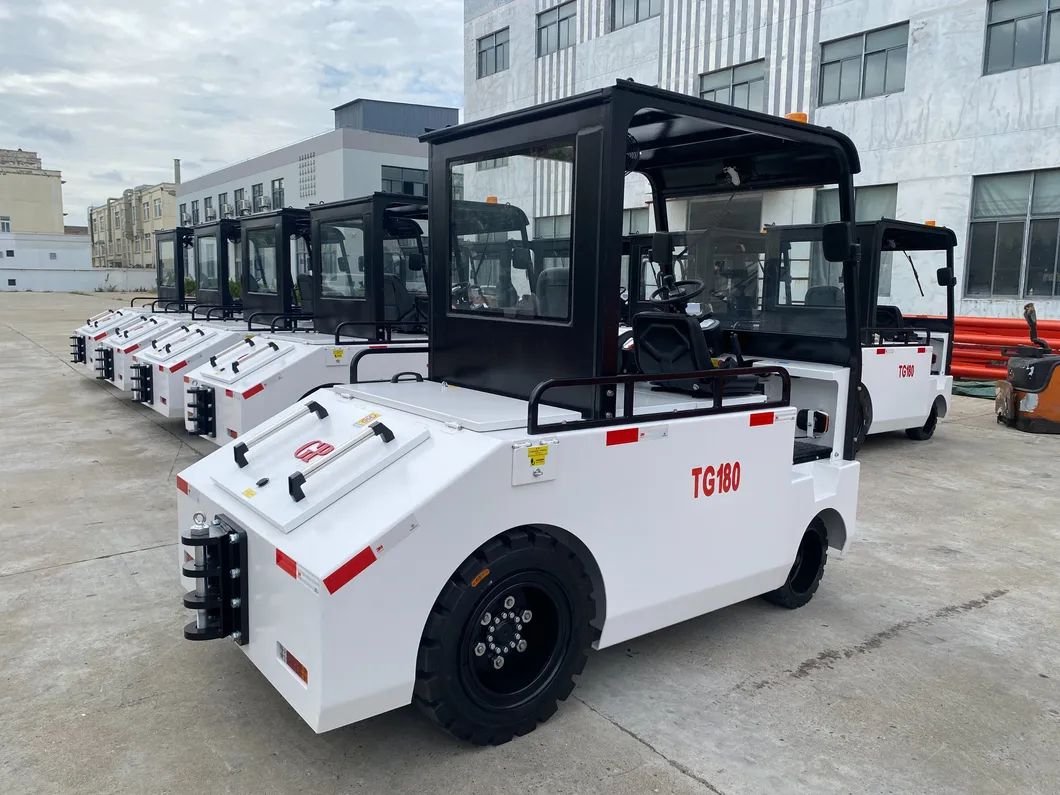

Electric Tow Tractor 5

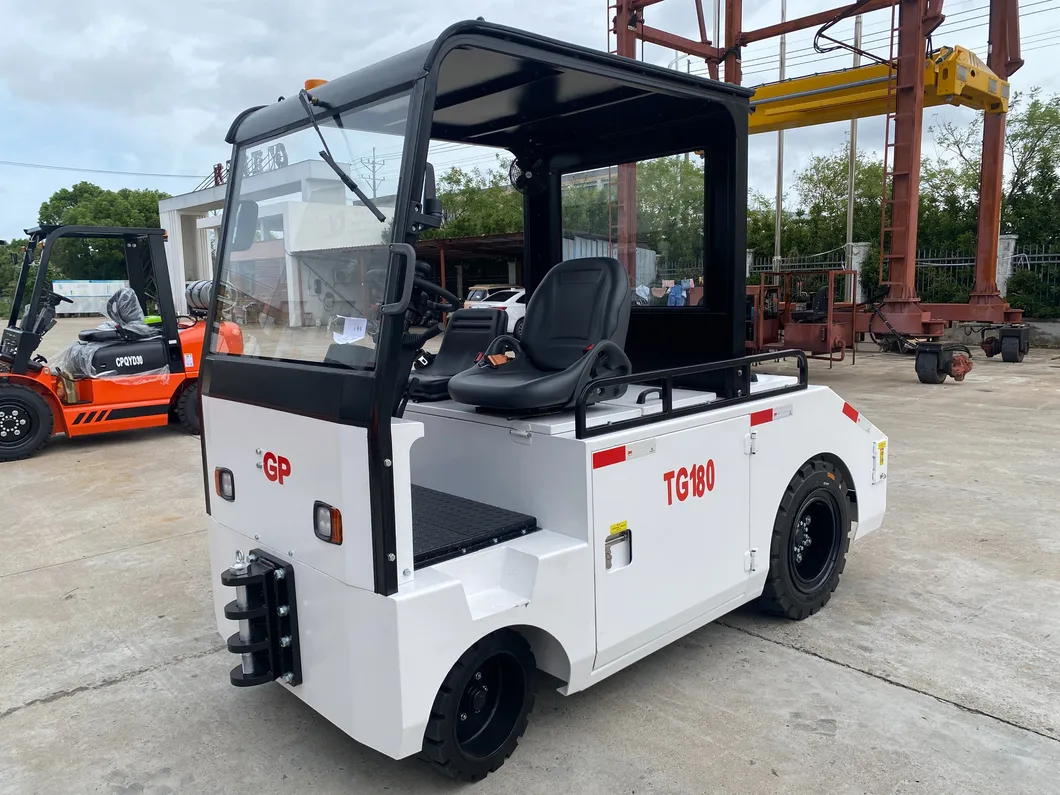

Electric Tow Tractor 6
Electric Tow Tractor 7

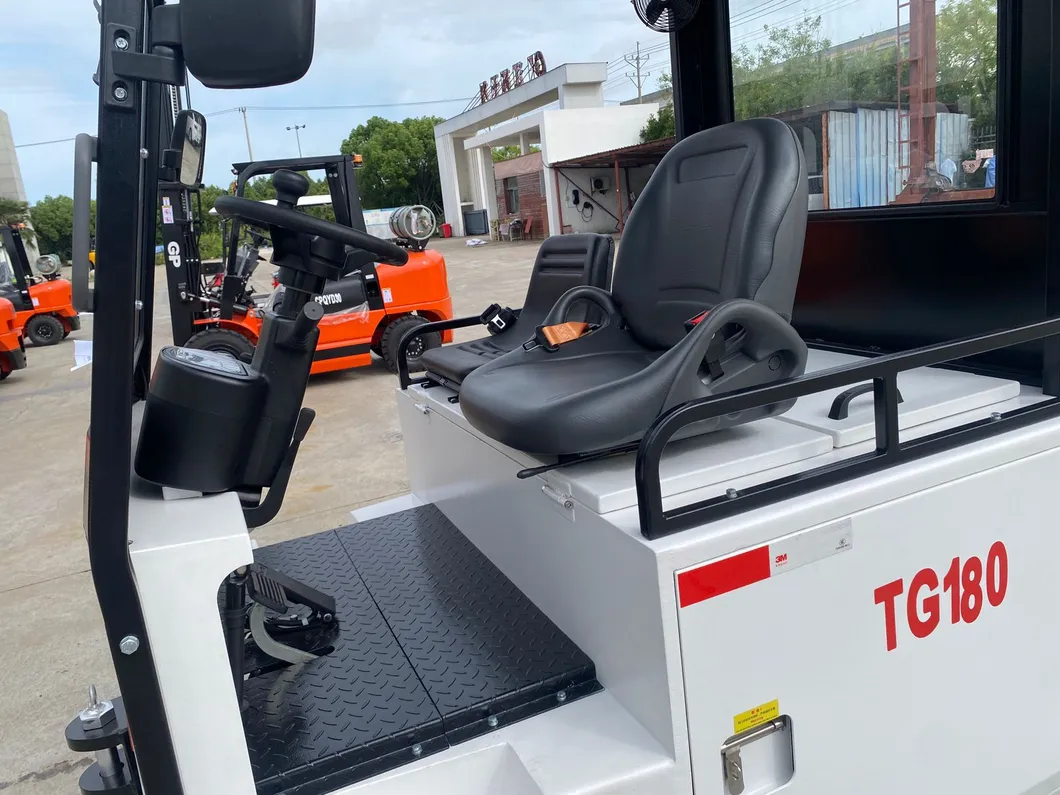

Electric Tow Tractor 8
Electric Tow Tractor 9
Electric Tow Tractor 10
Electric Tow Tractor 11
Electric Tow Tractor 12
Electric Tow Tractor 13
Electric Tow Tractor 14
Electric Tow Tractor 15
Electric Tow Tractor 16
Electric Tow Tractor 17
Frequently Asked Questions
What is the maximum towing capacity of this series?
The TG series offers a wide range of towing capacities, starting from 10,000kg (10T) up to 30,000kg (30T) depending on the specific model.
What kind of braking system does the tractor use?
It is equipped with a dual braking system including a hydraulic foot brake and a manual hand lever brake for maximum safety.
Is the steering adjustable for different operators?
Yes, the tractor features an adjustable steering wheel designed to adapt to the comfort requirements of different operators.
What information does the multi-function display provide?
The display provides critical data such as battery status, total hour meter usage, and error codes for easy maintenance and diagnostics.
How does the design ensure vehicle stability?
The batteries are strategically located in the lowest part of the frame, providing a very low center of gravity which ensures excellent stability during operation.
What type of motors and controllers are used?
The tractor utilizes high-performance AC driving motors paired with advanced controllers (such as Curtis or Intaliasme) for smooth and efficient power management.
