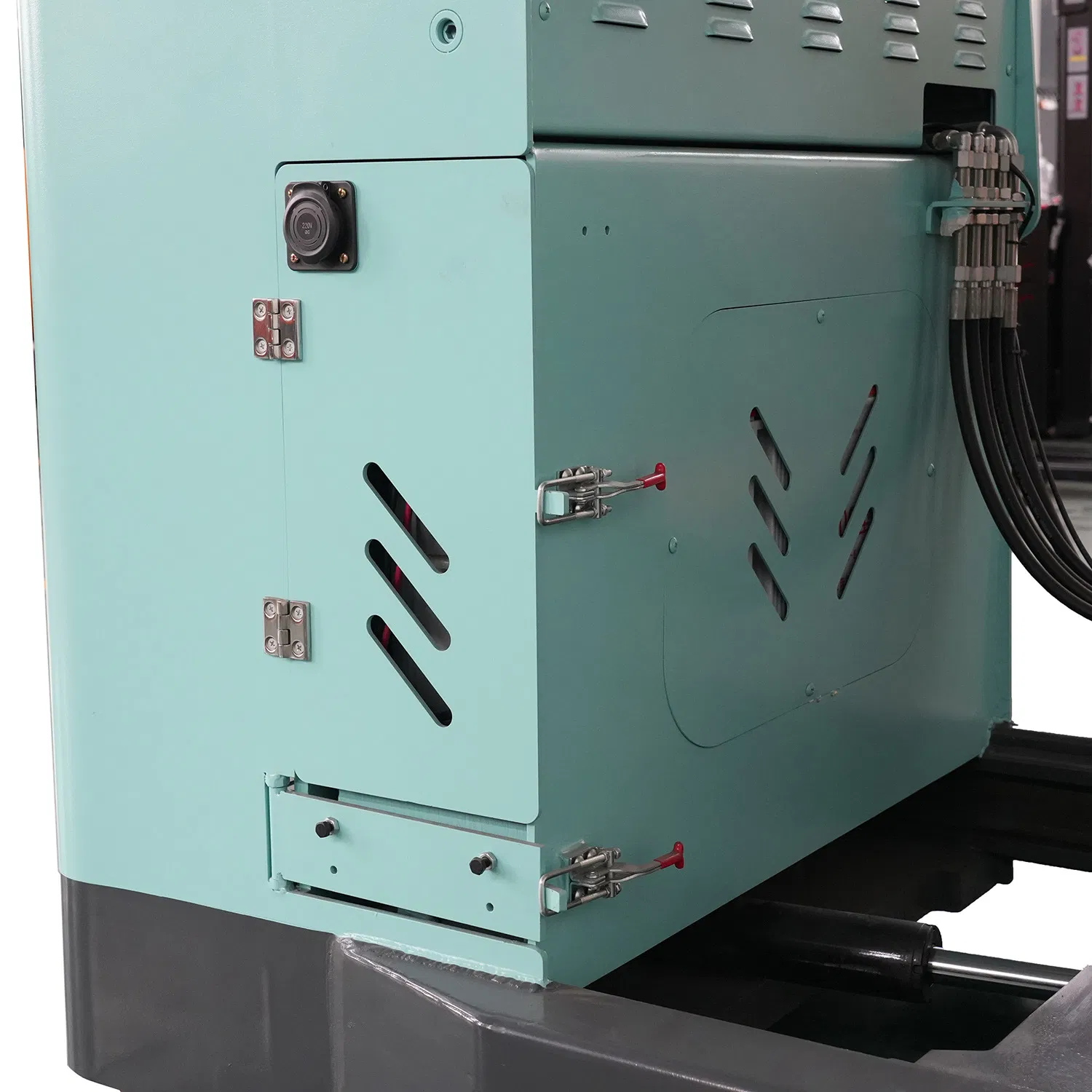

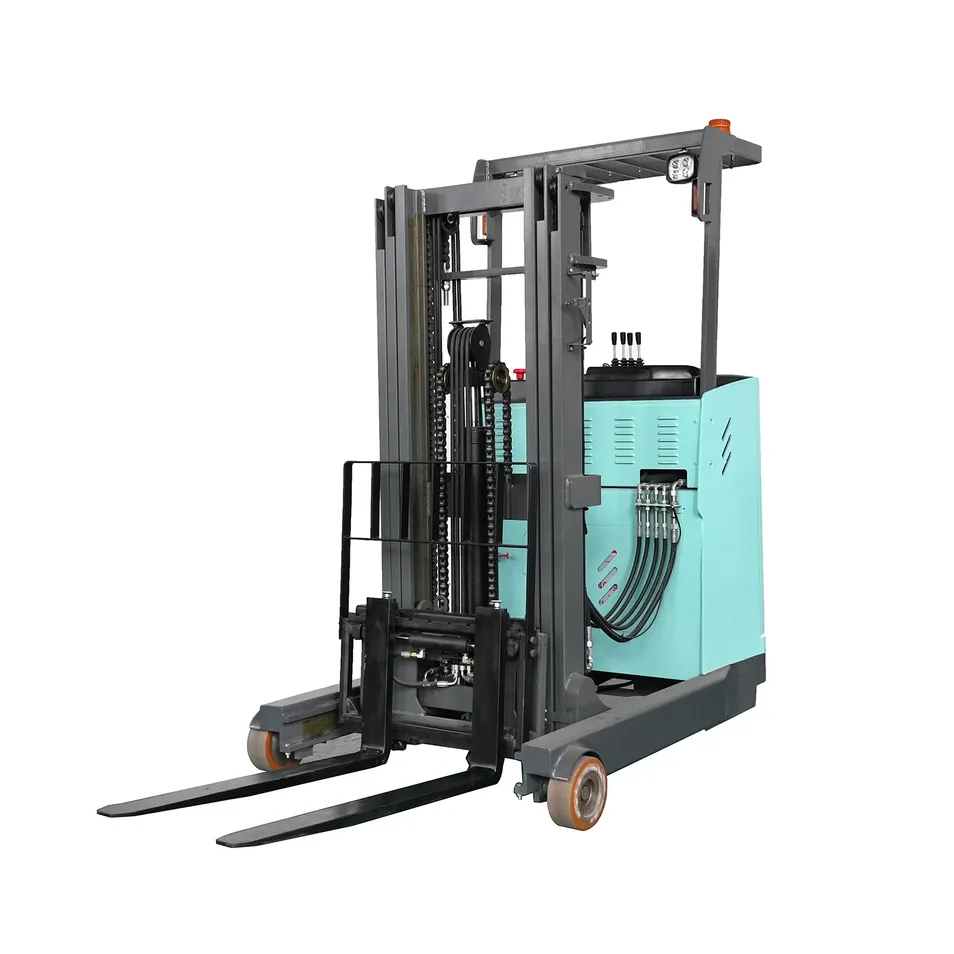

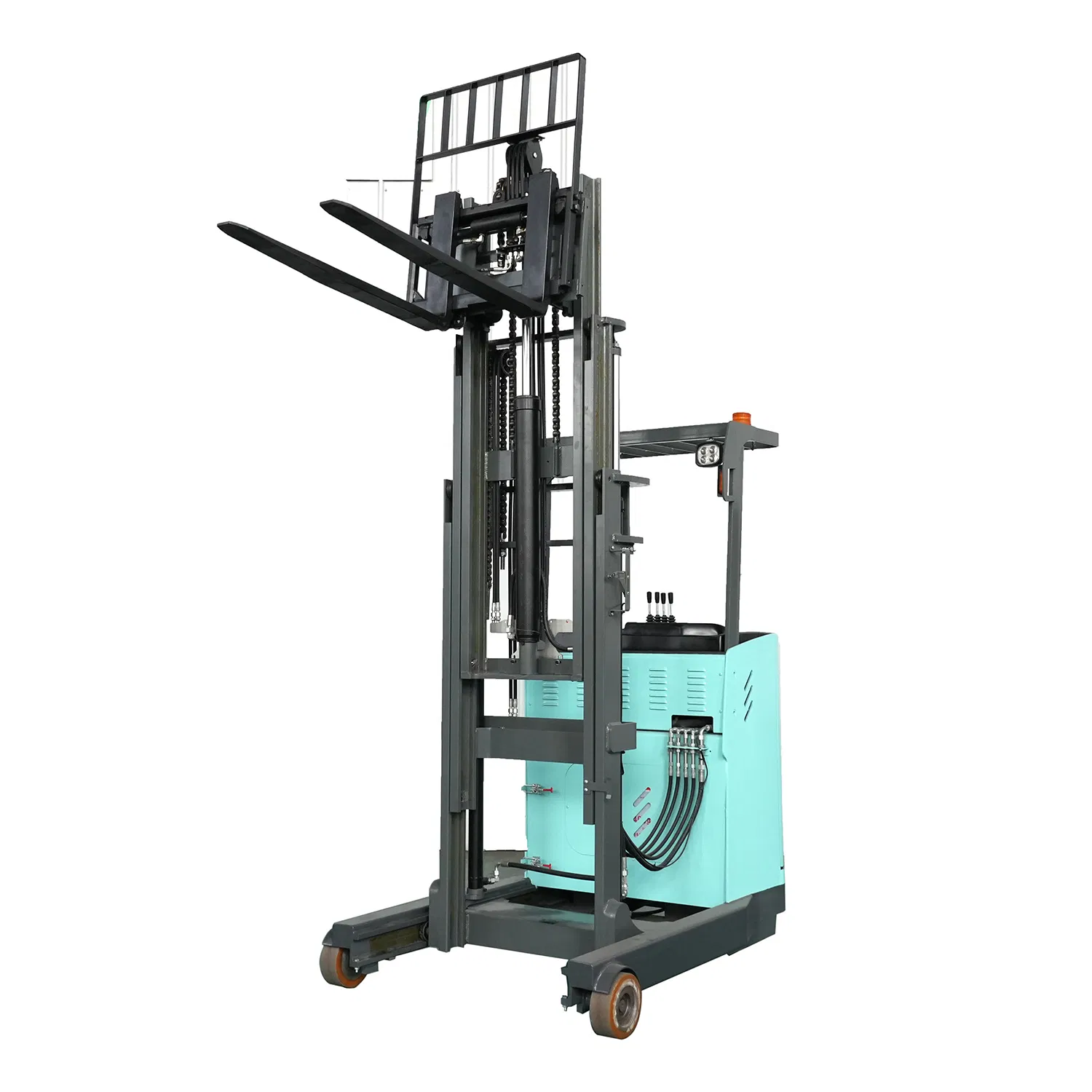

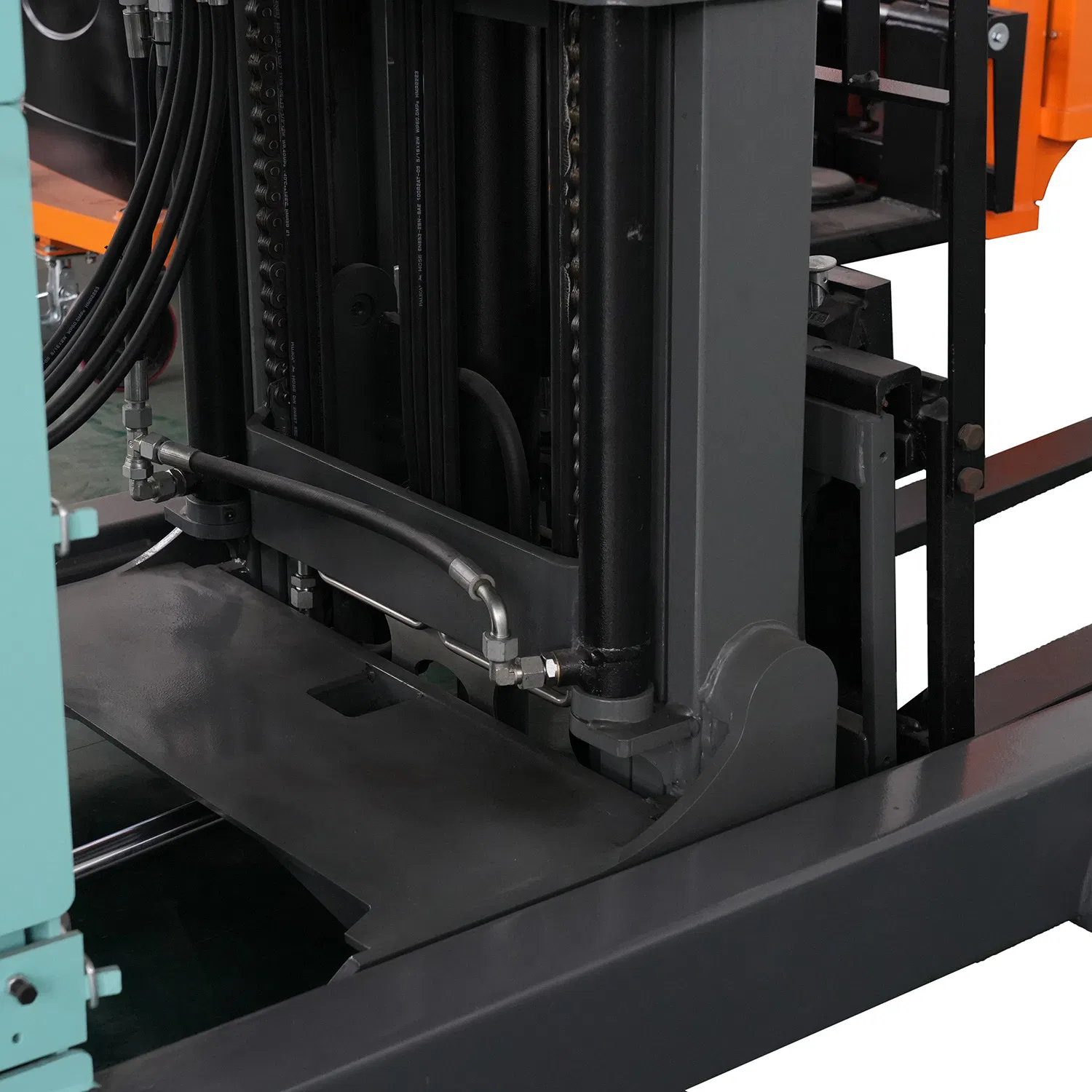

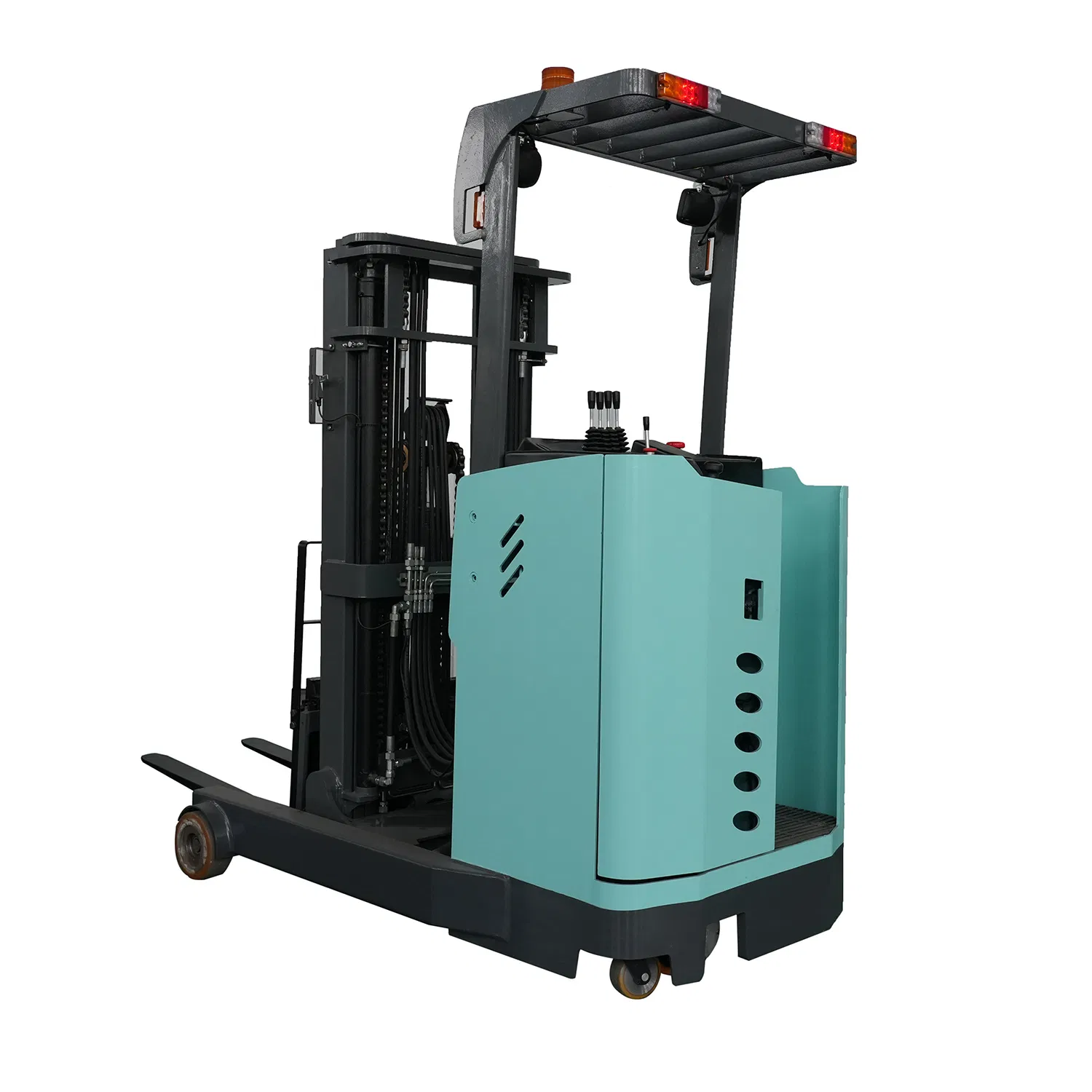

Stand-on electric reach truck with side-shift function, 3-meter lifting height, EPS buffer.

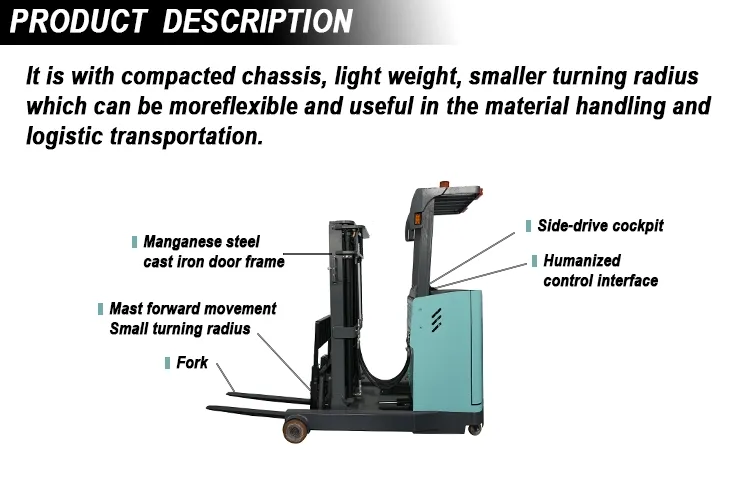

The reach forklift with side shift offers superior advantages in versatility and operational flexibility. Beyond the traditional reach forklift's capabilities, such as its adjustable mast and forks, which blend the benefits of electric stackers and counterbalanced forklifts, the side-shift feature allows for more efficient and precise handling in narrow or complex workspaces. This differentiation enables the reach forklift with side shift to excel in various material handling scenarios.
| Model | Unit | CQDS1530 | CQDS2030 |
|---|---|---|---|
| Load Capacity | kg | 1500 | 2000 |
| Lifting Height | mm | 3000 | 3000 |
| Load capacity at highest point | kg | 1000 | 1000 |
| Weight | kg | 2500 | 2800 |
| Overall length (forks retracted) | mm | 2570 | 2570 |
| Overall width | mm | 1100/1390 | 1100/1390 |
| Static height of gantry | mm | 2100 | 2100 |
| Height of roof rack | mm | 2200 | 2200 |
| Moving forward distance | mm | 600 | 600 |
| Minimum outside turning radius | mm | 1600 | 1600 |
| Maximum gradient with full load | % | 5 | 5 |
| Battery capacity | - | 280Ah/24V | 280Ah/24V |
