Electric Order Picker Factory Packing Equipment

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

ModelHXE5040TBAJ6

TypeSelf-propelled

CertificationISO9000, CE

Emission StandardEuro 2

Horsepower50HP

Fuel TypeDiesel

TransmissionAutomatic

Drive Wheel6x4

ConditionNew

Total Weight4495kg

Bucket Rated Weight400kg

Max Bucket Height32m

Product Description

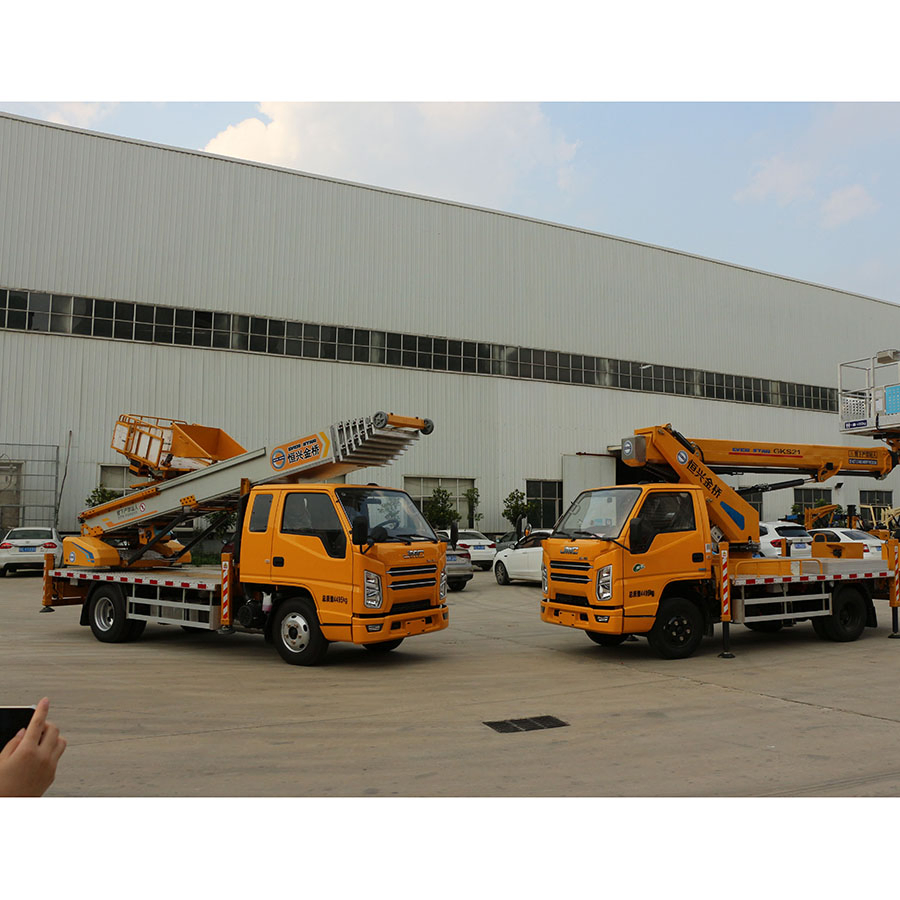

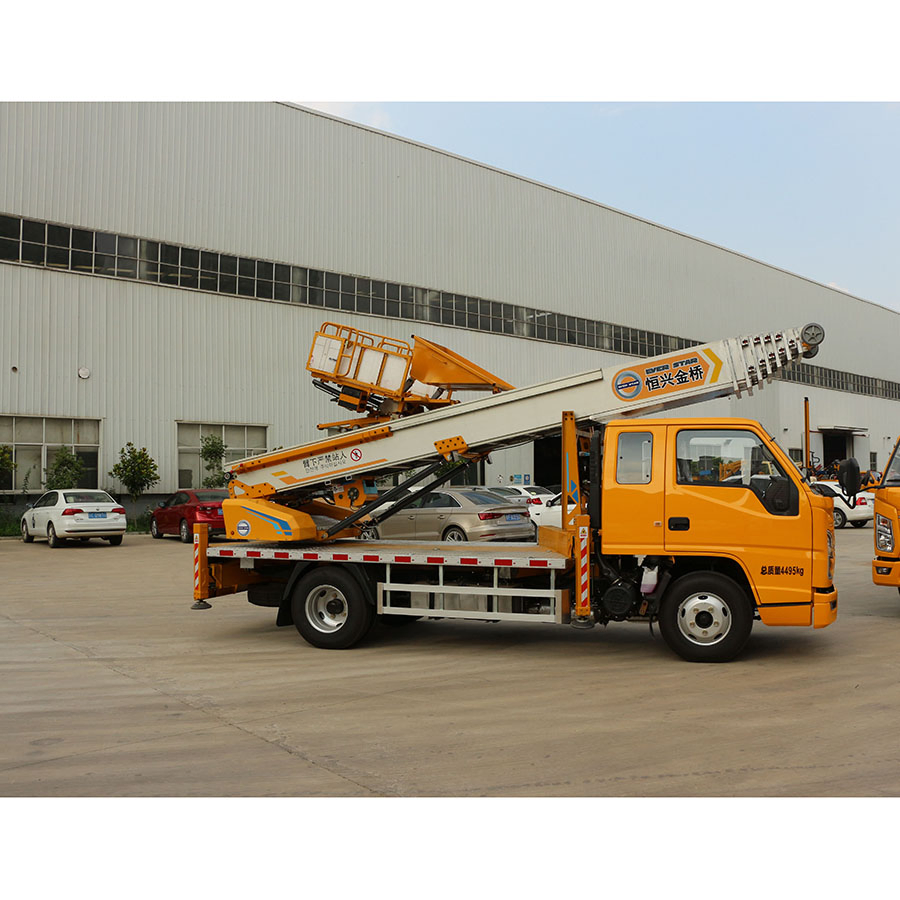

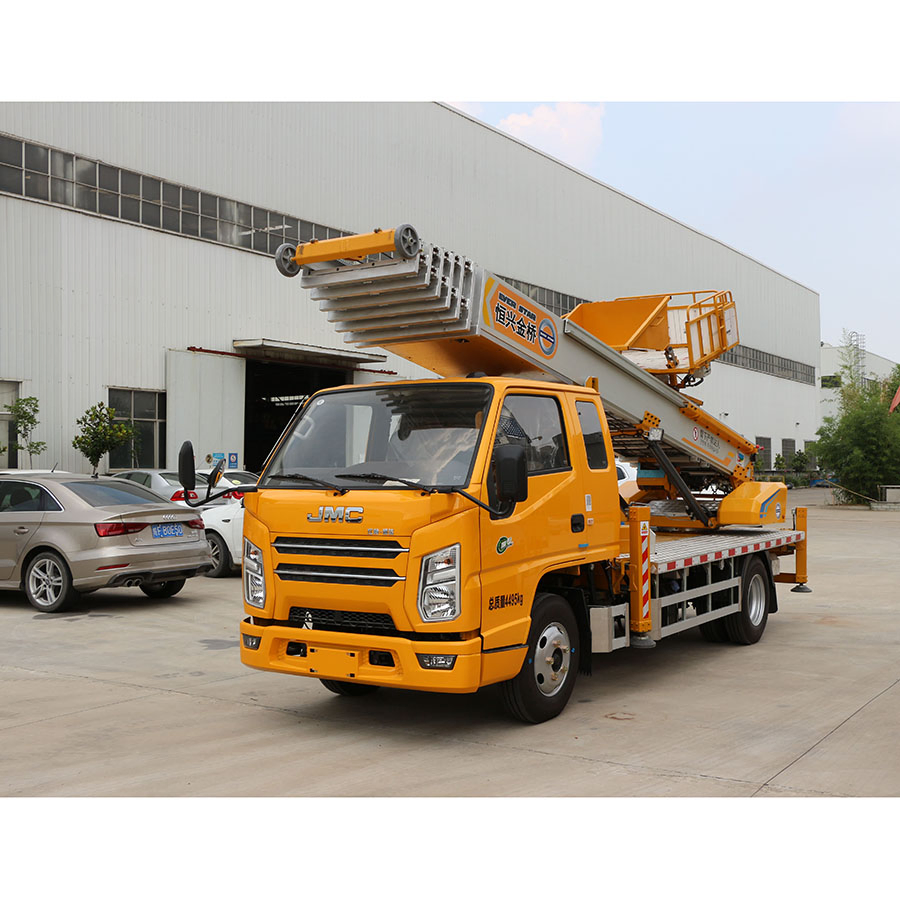

HXE5040TBAJ6 Aerial Ladder Truck

Technical Data Sheet		Value	Unit
Overall Dimension	Length	5995	mm
	Width	1960	mm
	Height	2850	mm
Weight & Capacity	Total Weight	4495	kg
Weight & Capacity	Passengers	2	People
Technical Data	Bucket Rated Weight	400	kg
	Max Working Height	32	m
	Max Working Span	13	m
	Max Driving Speed	100	km/h

Core Configuration

Chassis: JMC JX1041TG26 high-performance chassis.
Engine: JMC JX4D30B6H, Power: 85KW.
Ladder Arms: 7 sections of high-strength aluminum alloy ladder arms + 1 section of auxiliary ladder.
Boom System: BS700 high-strength box frame with ±100° discontinuous rotation.
Intelligent Control: Equipped with wireless handheld remote control (200m range) and intelligent controller for automatic positioning.
Bucket Design: Extendable baseplate (up to 1950x1400mm) with 800W hydraulic power station.

Safety & Functional Features

Wireless Control: Full action operation including ladder arm luffing, rotation, and telescopic movements via remote.

Smart Sensors: Automatic deceleration at high/low positions and top-position unloading to prevent lifting system overload.

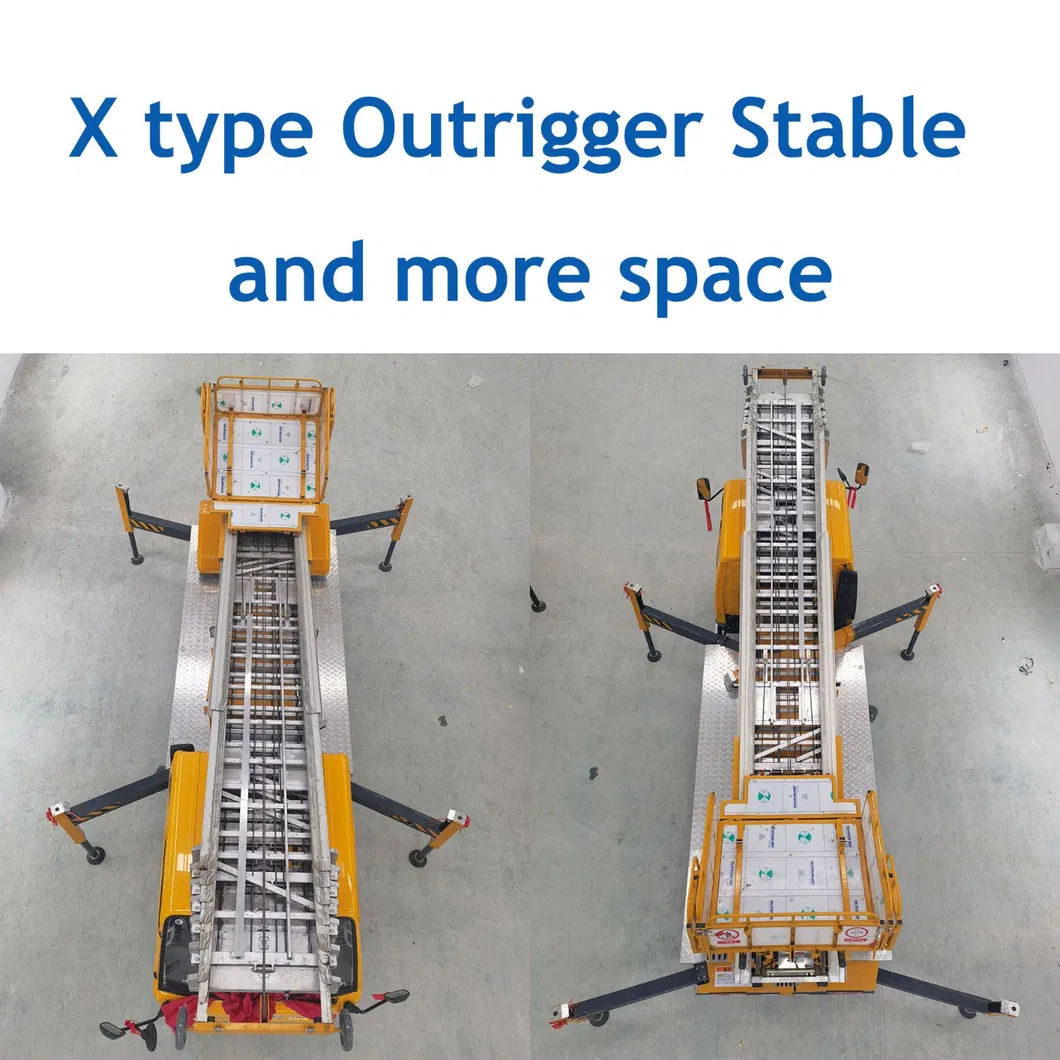

Stability: Front V + rear V BS700 high-strength steel outriggers with landing detection sensors.

Night Operation: High-brightness LED boom lighting for enhanced visibility.

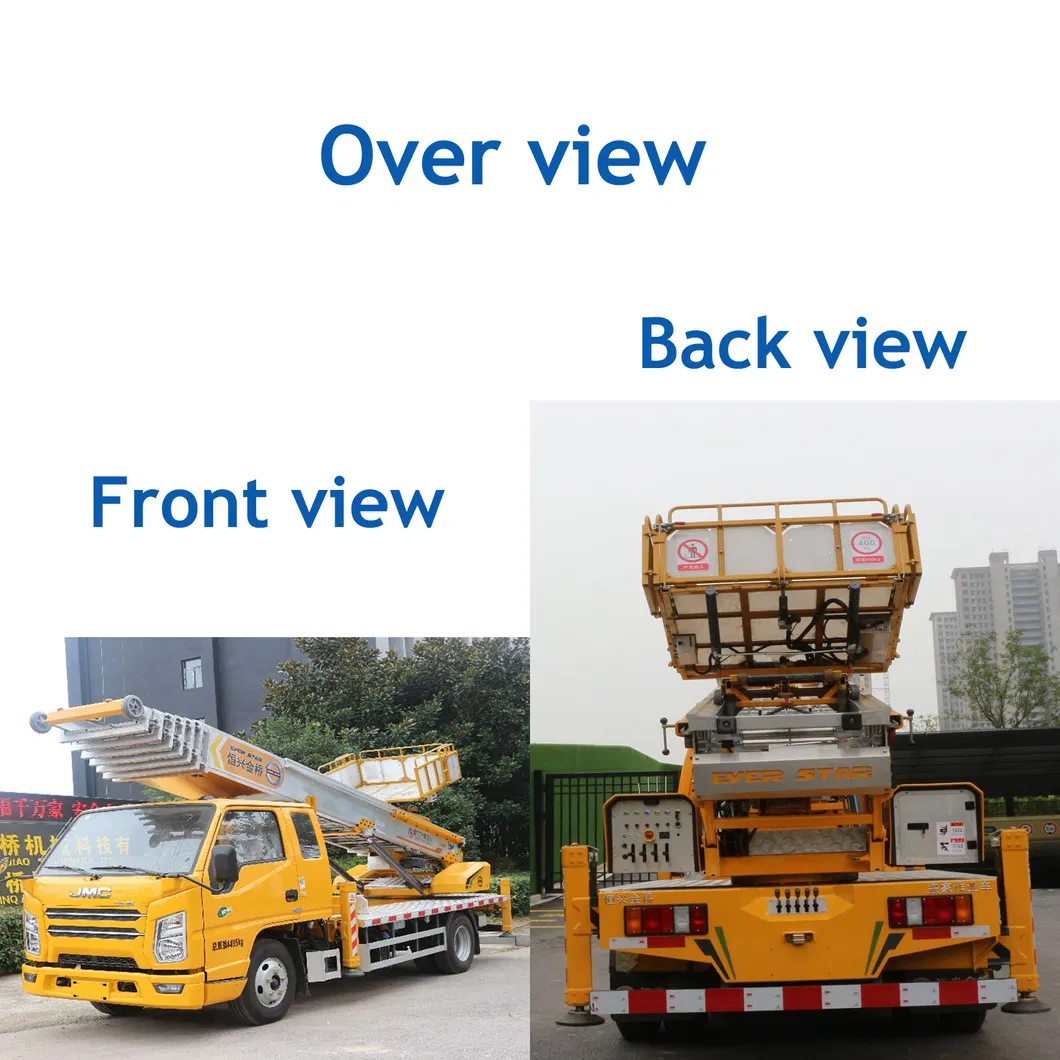

Visual Overview

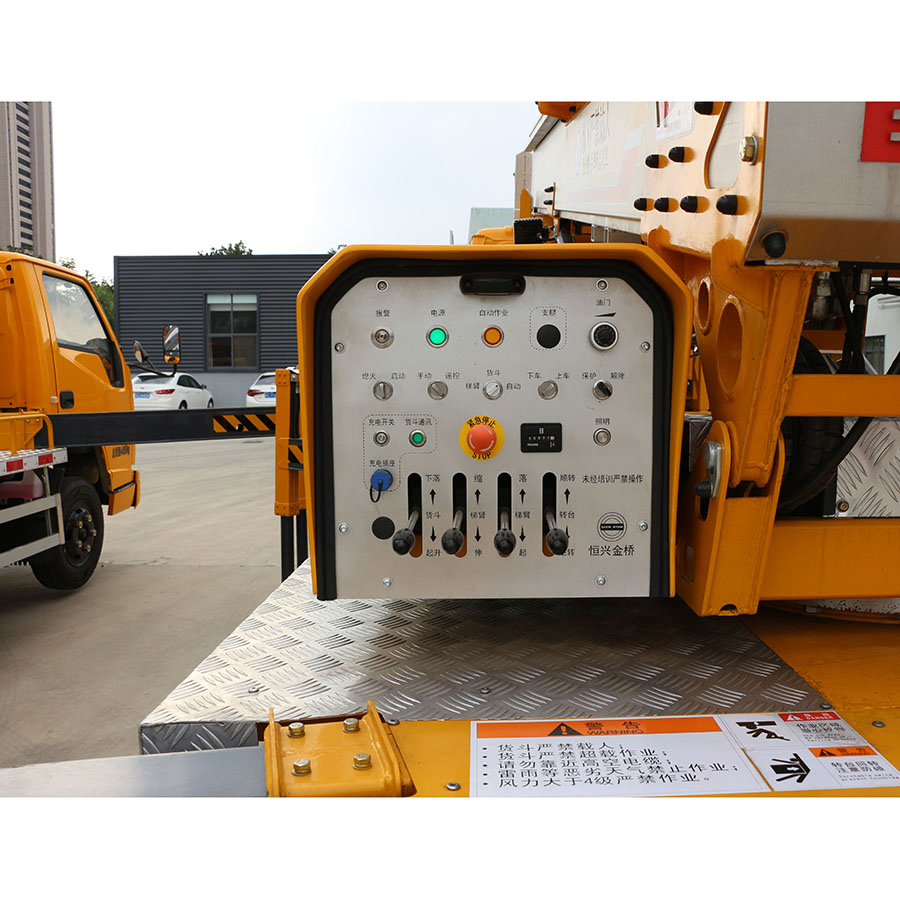

Outrigger & Control Systems

System Components

Frequently Asked Questions

What is the maximum working height of the HXE5040TBAJ6? The truck features a maximum bucket height of 32 meters and a maximum working span of 13 meters.

What is the payload capacity of the loading bucket? The bucket is rated for a maximum load of 400kg and features an extendable baseplate for larger items.

Does this aerial ladder truck support remote operation? Yes, it comes with a wireless handheld remote control that allows operation of the ladder arms and bucket from a distance of up to 200 meters.

What are the key safety features for the outriggers? It is equipped with outrigger landing detection and boom recovery detection. The system prevents operation if the support is not reliable or if the boom is not correctly recovered.

What kind of engine and chassis powers this vehicle? It uses a JMC JX1041TG26 chassis with a JX4D30B6H engine, providing 85KW of power and a maximum driving speed of 100km/h.

Is there an automatic mode for material handling? Yes, the intelligent controller supports automatic feeding, automatic deceleration at limits, and one-button telescopic movements.
