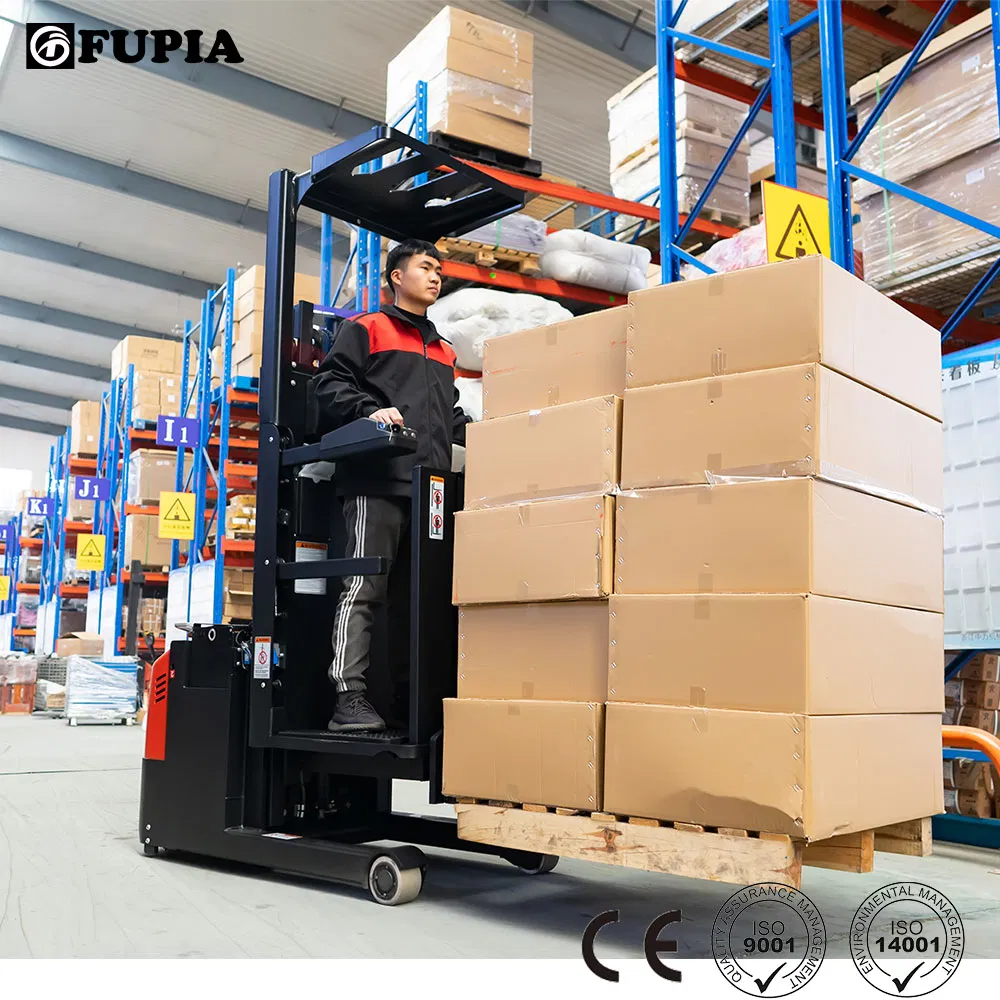

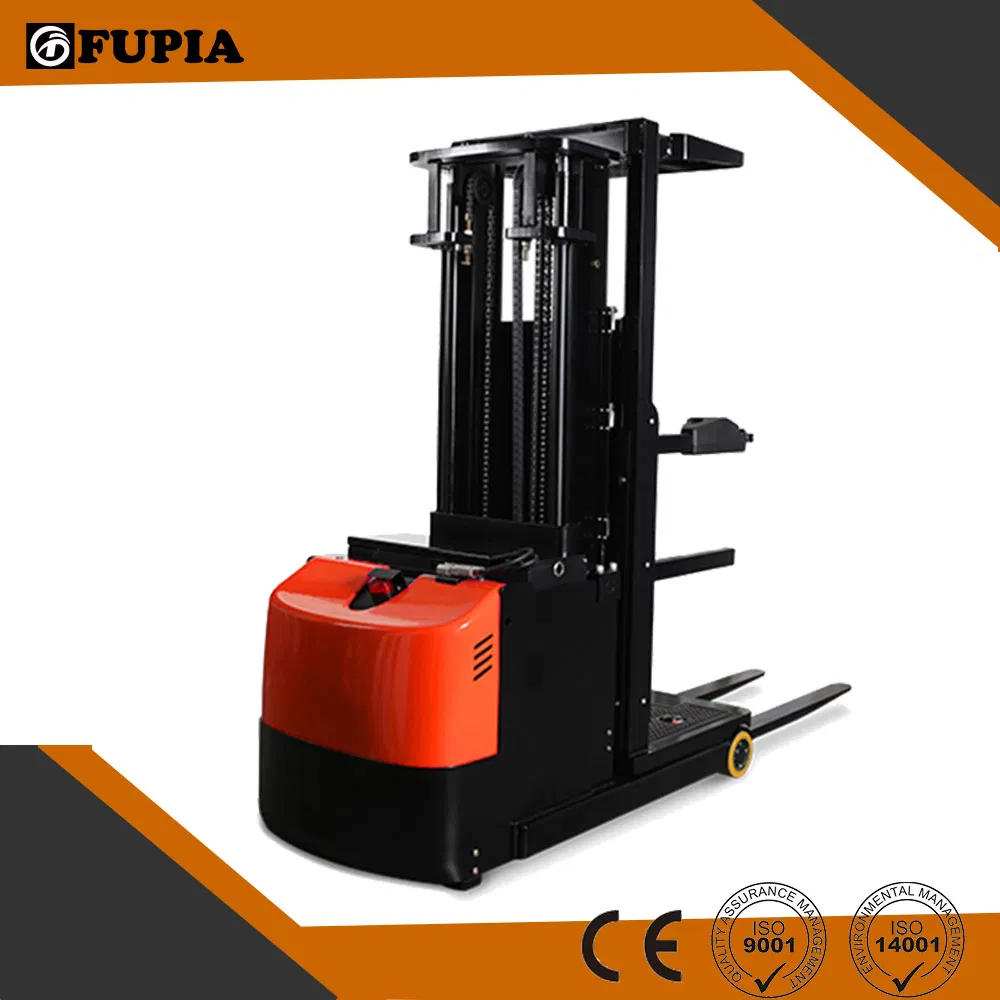

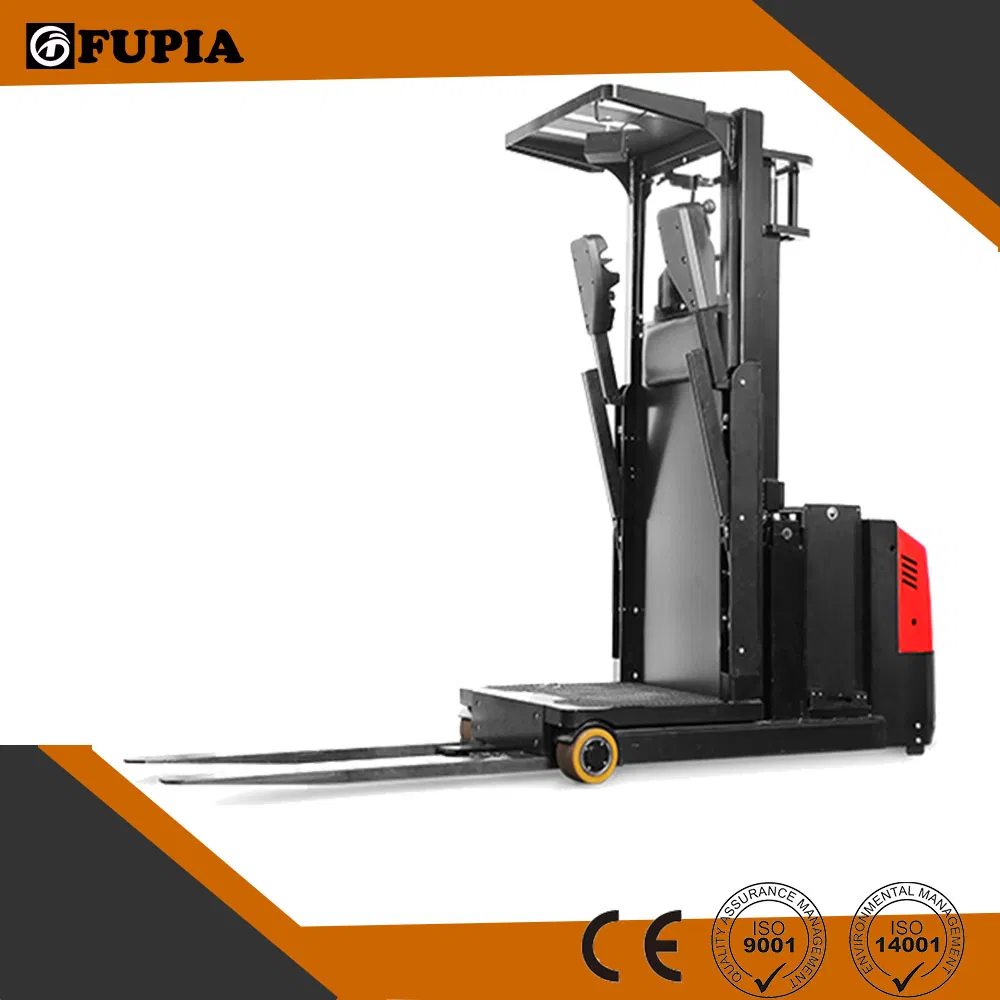

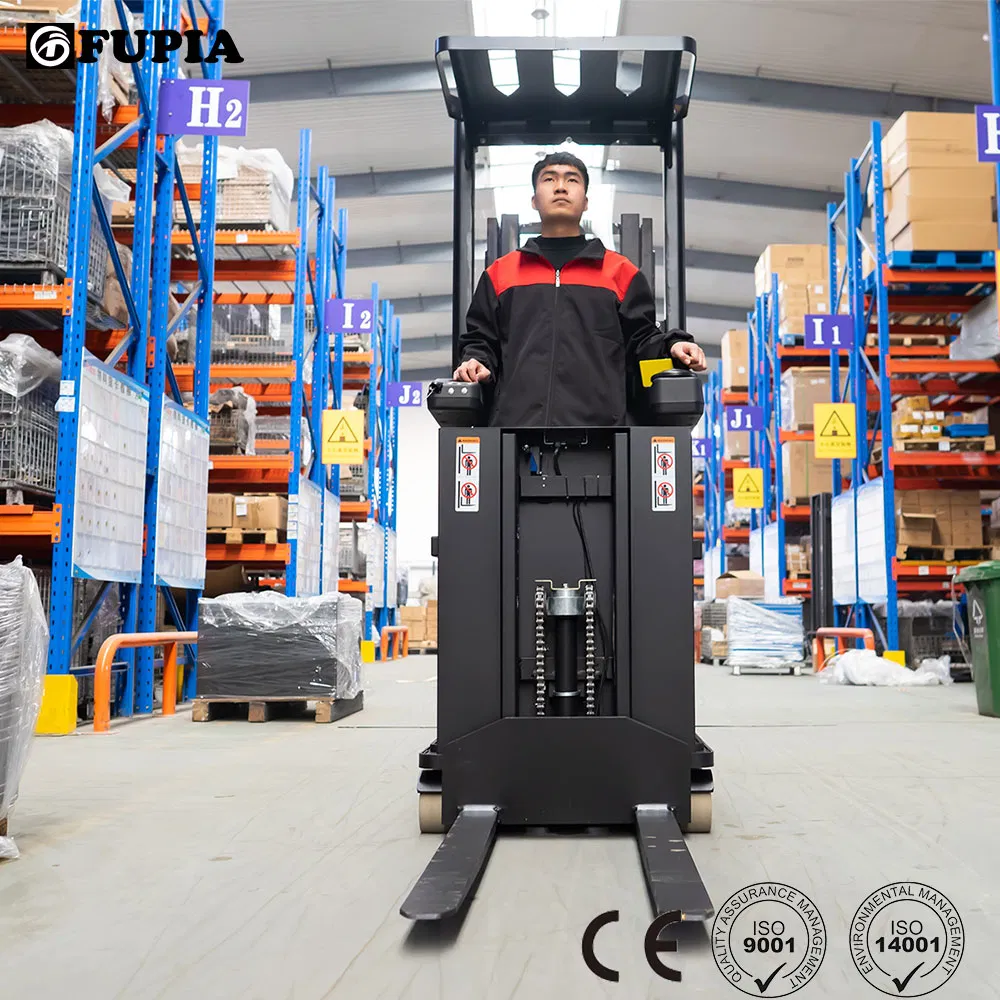

Warehouse Lifting Equipment 1 Ton Electric Order Picker

Customization: Available
After-sales Service: 7 Day X 24 Hours Online Service
Warranty: 1 Year

Product Description

Basic Product Information

Model:EOP10
Type:Order Picker
Power:AC Motor
Load Capacity:1000kgs
Fuel:Electric
Lift Height:3600mm
Condition:New
Material:Steel
Applications:Bookshops, Supermarkets, Warehouses
Certification:CE, ISO9001, ISO14001

Product Description

Electric Order Picker Overview

Order pickers are designed to make the order picking process as easy as possible for the operator. It extends the choice of truck configuration to provide the best solution for each application and to maximize pick face access and warehouse space utilization. The lift power technology allows operator input to optimize performance to suit operator skill level.

  • High Stability: Mast design provides excellent stability even at maximum heights.
  • Ergonomic Control: Fingertip controls for travel, lift, and lower functions provide intuitive drive characteristics.
  • EPS Steering: Electric powered steering combined with Powerdrive enables smooth control.
  • Lithium-ion Battery: Adopting compact design with maintenance-free operation and fast charging to increase productivity.

Detailed Photos

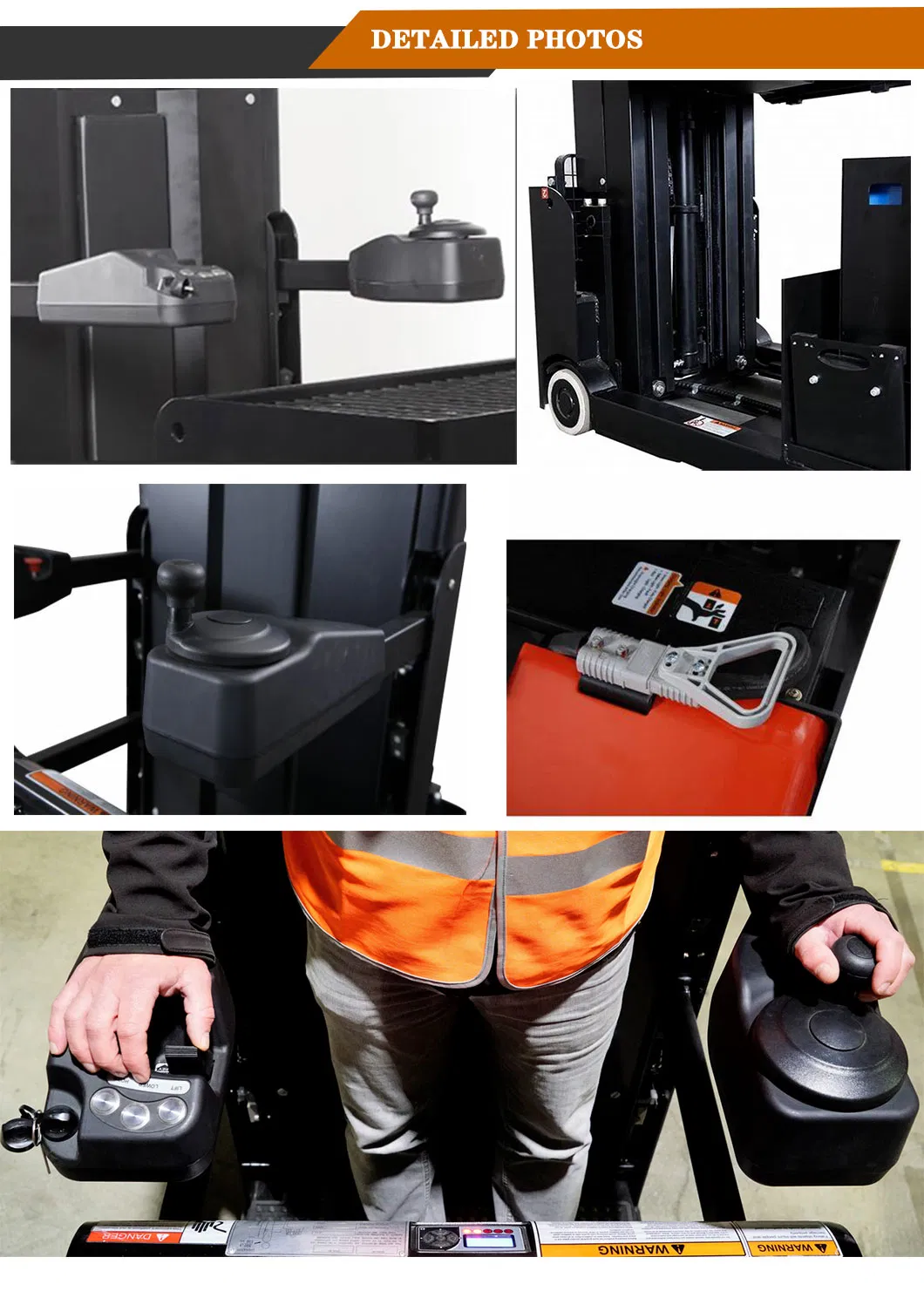

Detailed View of Order Picker

Product Parameters

No. Description Unit Specification
1Model-EOP10
2Power Type-Electric
3Operator Type-Standing
4Rated Capacitykg1000
5Load Centermm600
6Wheel Basemm1365
7Fork Lift Heightmm3200/3600
8Mast Lowered Heightmm2270/2380
9Overall Dimension (L*W*H)mm2750*860*2270
10Turning Radiusmm1600
11BatteryV/AH24V/360

Certifications & Quality Assurance

Product Certifications

Packaging & Shipping

Packaging and Logistics

Manufacturing & Service

Production Facility
After Sales Service

Frequently Asked Questions

What is the maximum load capacity of the EOP10 order picker?
The EOP10 model has a rated load capacity of 1000kg, making it ideal for various warehouse tasks.
What type of battery system does this equipment use?
It utilizes a 24V/360AH Lithium-ion battery system, which supports fast charging and is maintenance-free.
Is the steering system manual or electric?
The equipment features an EPS (Electric Powered Steering) system combined with Powerdrive for intuitive and smooth control.
What are the typical applications for this order picker?
It is widely used in bookshops, newspaper distribution centers, supermarkets, and general warehouse order picking environments.
Does the product meet international safety standards?
Yes, our equipment is certified with CE, ISO9001, and ISO14001 standards to ensure safety and quality.
What is the maximum lift height available?
The EOP10 offers a fork lift height of up to 3600mm, with a mast design that ensures stability at peak elevation.
