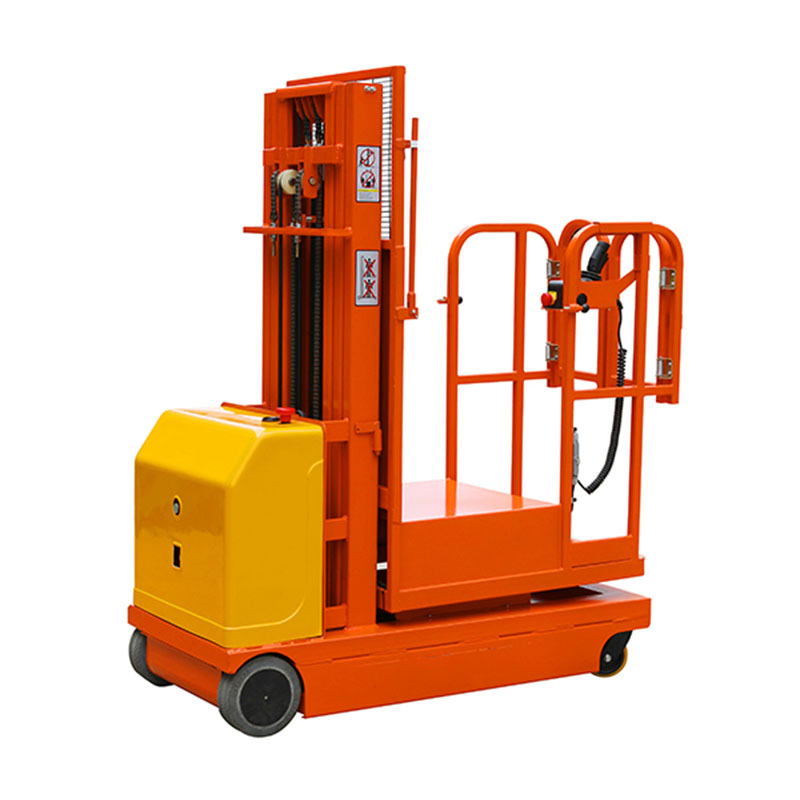

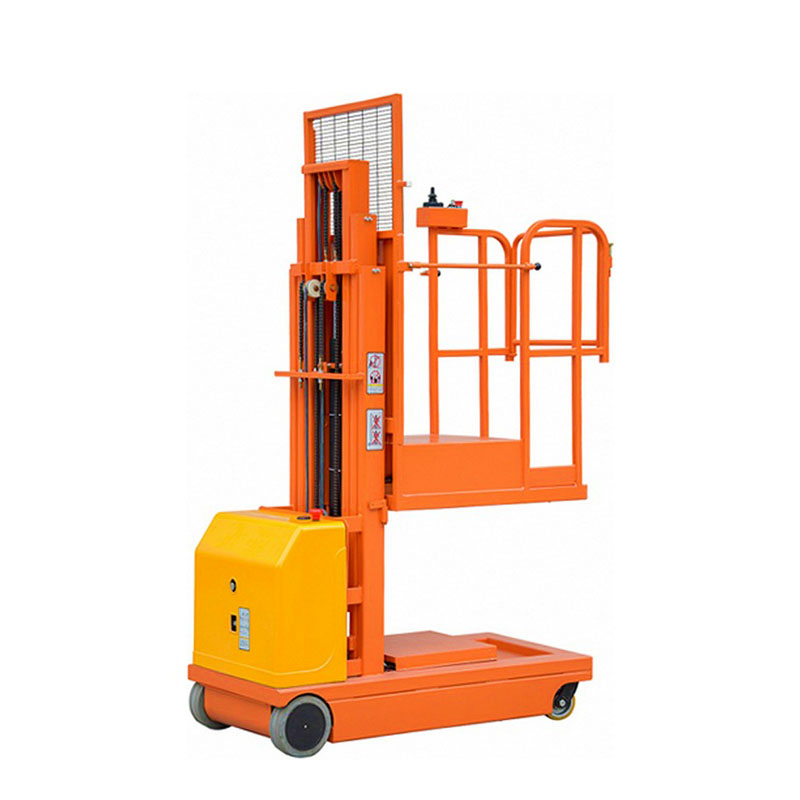

Advanced Order Picker Machine for Efficient Warehouse Operations

1 / 5

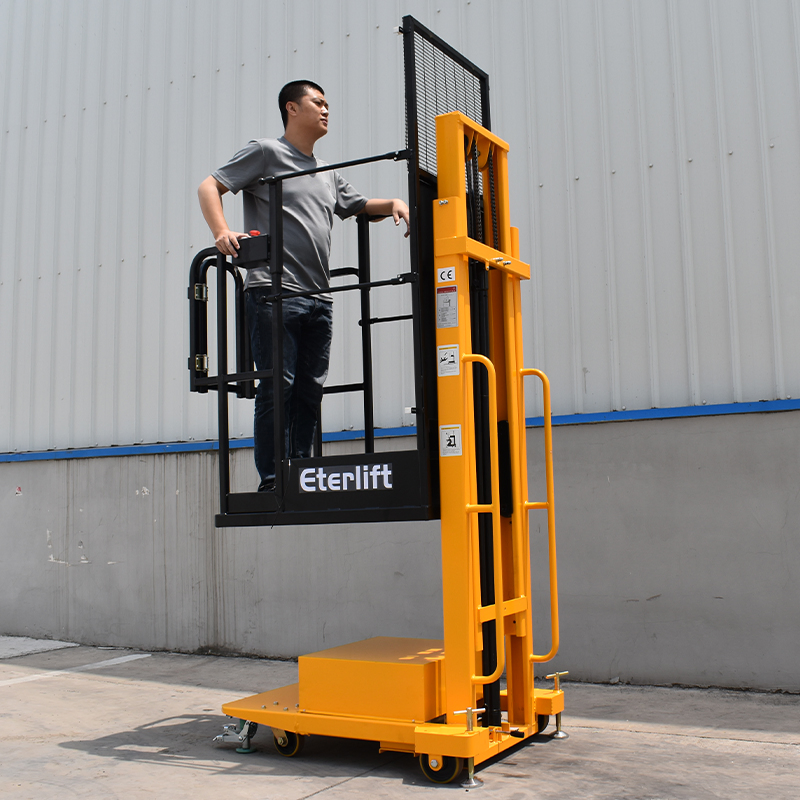

Advanced Order Picker Machine for Efficient Warehouse Operations

Customization:	Available
After-sales Service:	Online
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

OP0.2-3

Order Picker Type

Custom Order Picker Price

Application

Goods Order Picker

Function

Cargo Stacker Order Picker

Usage

Supermarket Warehouse Order Picker

Design

Small Aisle Order Picker

Operation

Full Electric Order Picker 3m

Market

Cheap Order Picker Made in China

Equipment Type

Reclaimer Order Picker

Stacker Height

Stacker Reclaimer 5m

Price Category

Order Picker Cheap Price

Lift System

Hydraulic Order Picker 4m

Power Source

Full Electric Order Picker

Battery Type

Battery Powered Order Picker

Product Description

Model	Unit	EOP3-2.7	EOP3-3.3	EOP3-4.0	EOP3-4.5
Max Platform height (H)	mm	2700	3300	4000	4500
Max Machine height (H1)	mm	4120	5000	5400	6000
Load capacity	kg	300	300	300	300
Platform size	mm	600x640	600x640	600x640	600x640
Max driving speed (lower)	km/h	4	4	4	4
Max driving speed (rise)	km/h	1.6	1.6	1.6	1.6
Min turning radius	mm	1600	1600	1600	1600
Max climbing ability	%	15~20	15~20	15~20	15~20
Drive wheel size	mm	Φ 230x80	Φ 230x80	Φ 230x80	Φ 230x80
Universal wheel size	in	6	6	6	6
Motor	v/kw	2x24/0.4	2x24/0.4	2x24/0.4	2x24/0.4
Lift motor	v/kw	24/1.6	24/1.6	24/1.6	24/1.6
Maintenance Free Battery	v/Ah	2x12/150	2x12/150	2x12/150	2x12/150
Charger	v/A	24/15	24/15	24/15	24/15
Overall size(AXBXC)	mm	1530x700x1830	1530x700x2130	1620x700x1840	1620x700x2000
Net weight	kg	430	450	660	680

Frequently Asked Questions

What is the maximum load capacity of this order picker?

The full electric order picker series has a standard load capacity of 300kg across all models.

What platform heights are available?

We offer four standard models with maximum platform heights of 2700mm, 3300mm, 4000mm, and 4500mm.

Is the battery maintenance-free?

Yes, the equipment is equipped with 2x12V/150Ah maintenance-free batteries, ensuring reliable operation without frequent servicing.

Can this equipment operate in narrow aisles?

Absolutely. With a minimum turning radius of only 1600mm and a compact width of 700mm, it is specifically designed for small aisle warehouse and supermarket operations.

What is the climbing ability of the machine?

The machine features a maximum climbing ability of 15% to 20%, making it suitable for facilities with slight inclines or ramps.

How is the product protected during shipping?

All order pickers are securely packed in professional wooden boxes to ensure they arrive in perfect condition.
