Product Description

Basic Info

Application

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Mechanism

Rack&Pinion

Carrying Capacity

Middle-Level

Moves

Moving

Driven Type

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

GS, CE, ISO 9001

Max. Platform Height

2.7 M - 4.5 M

Rated Capacity

160 Kg

Platform Size

495X690 mm

Warranty Period

1 Year

Origin

China

Production Capacity

3000/Month

Product Description

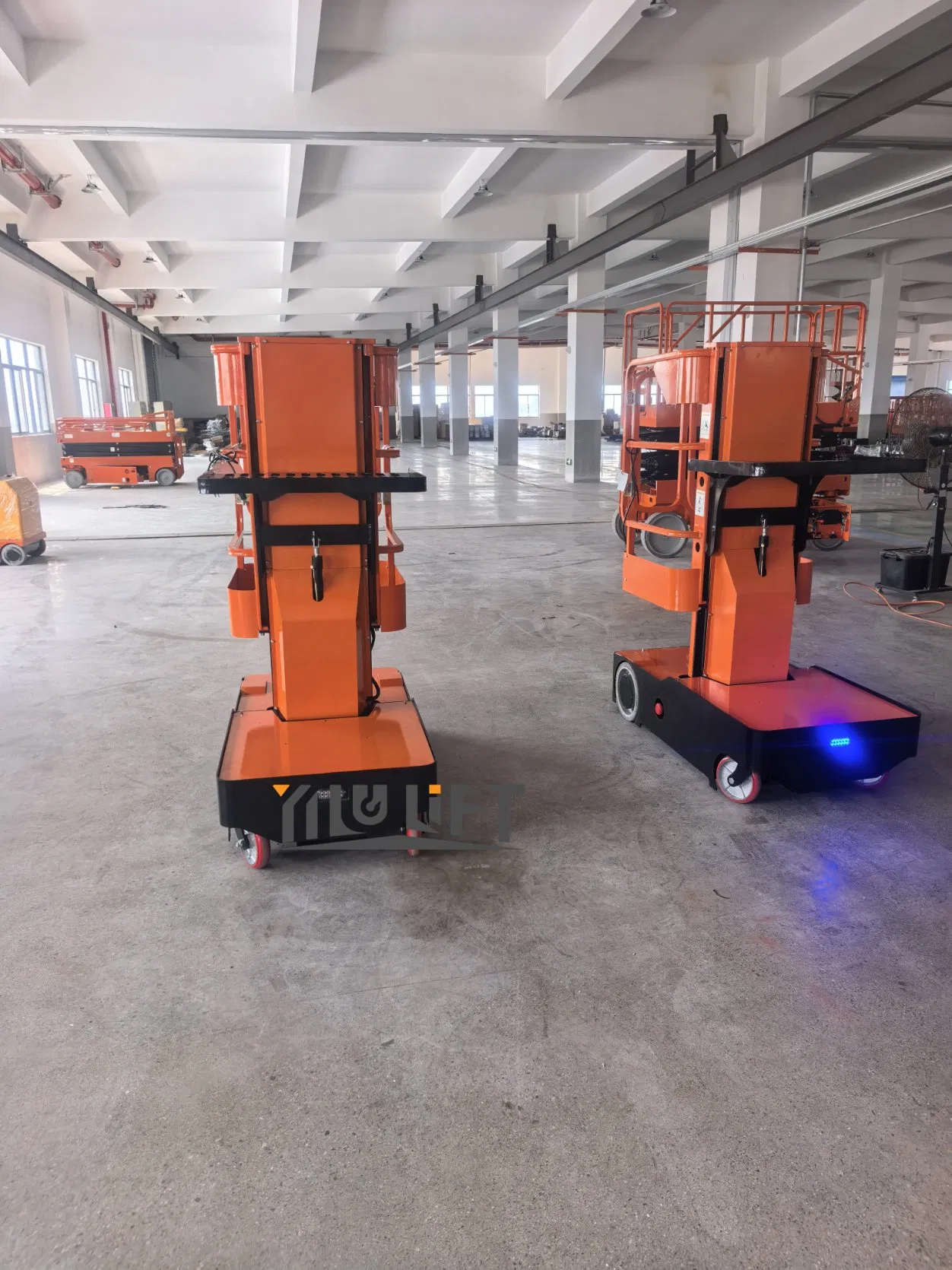

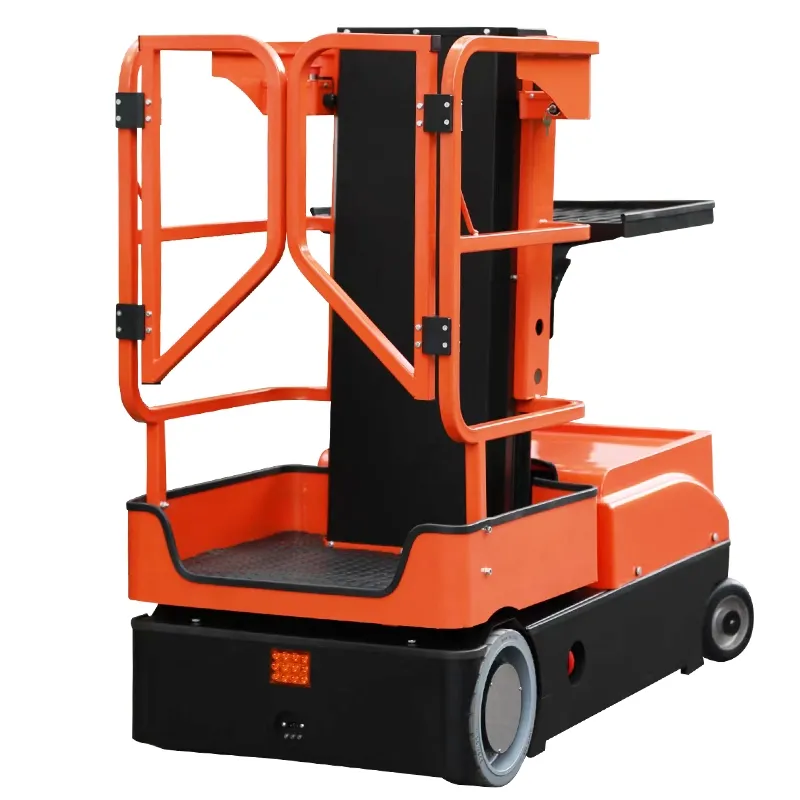

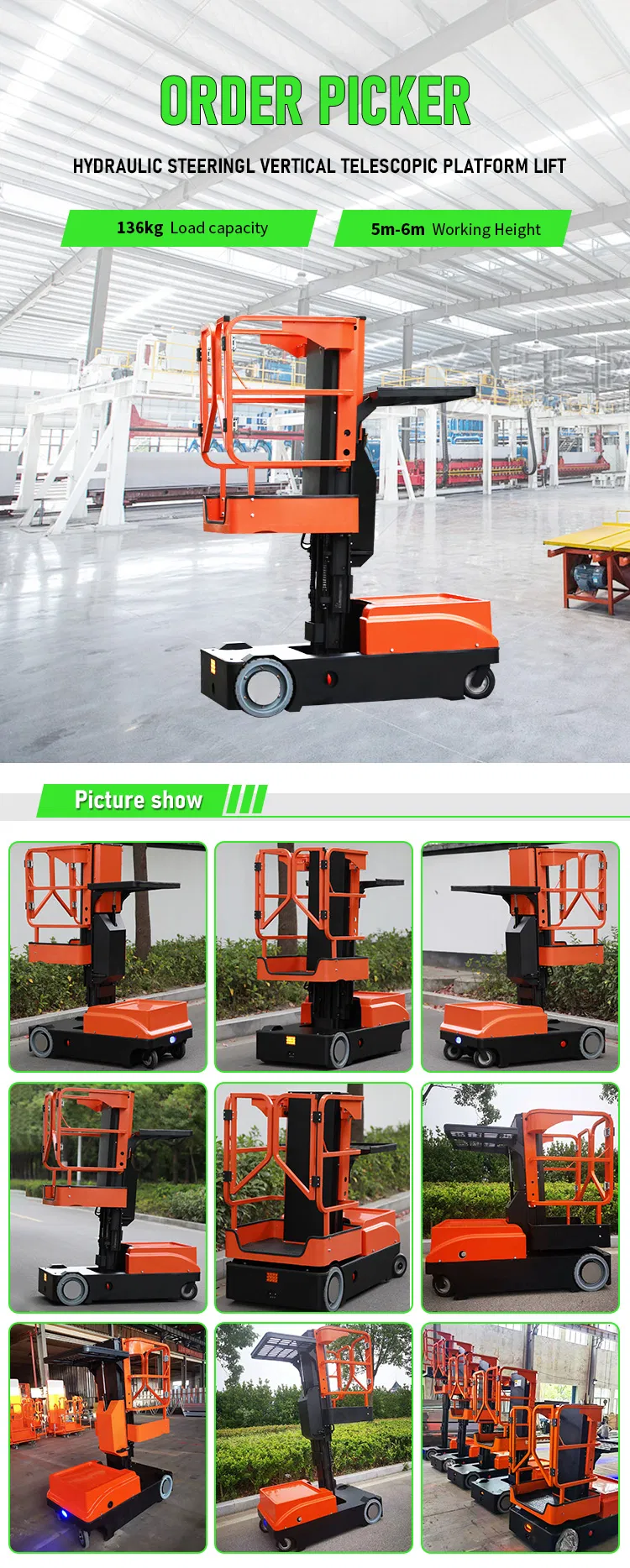

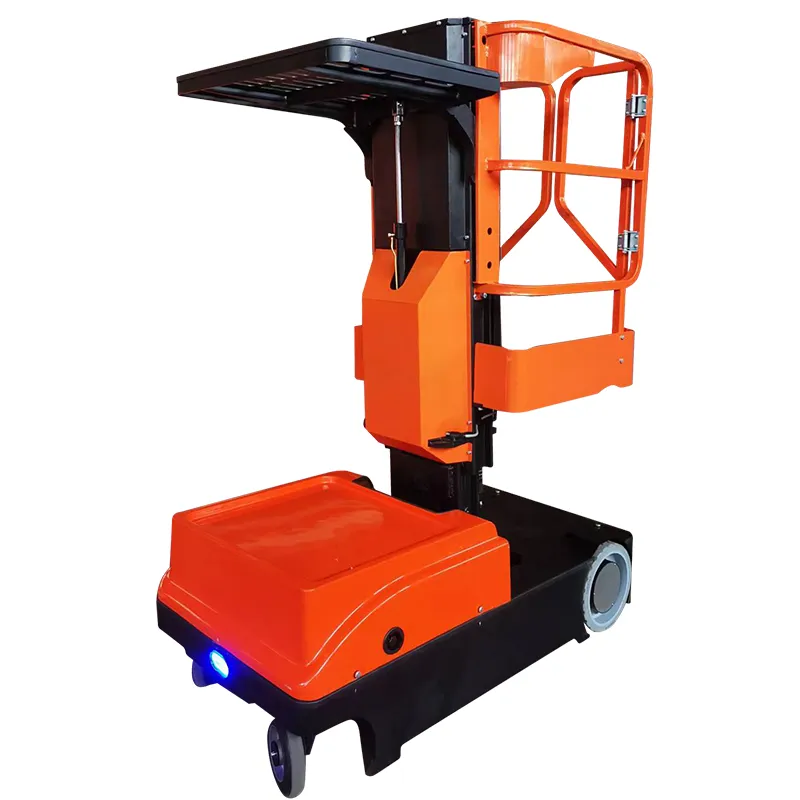

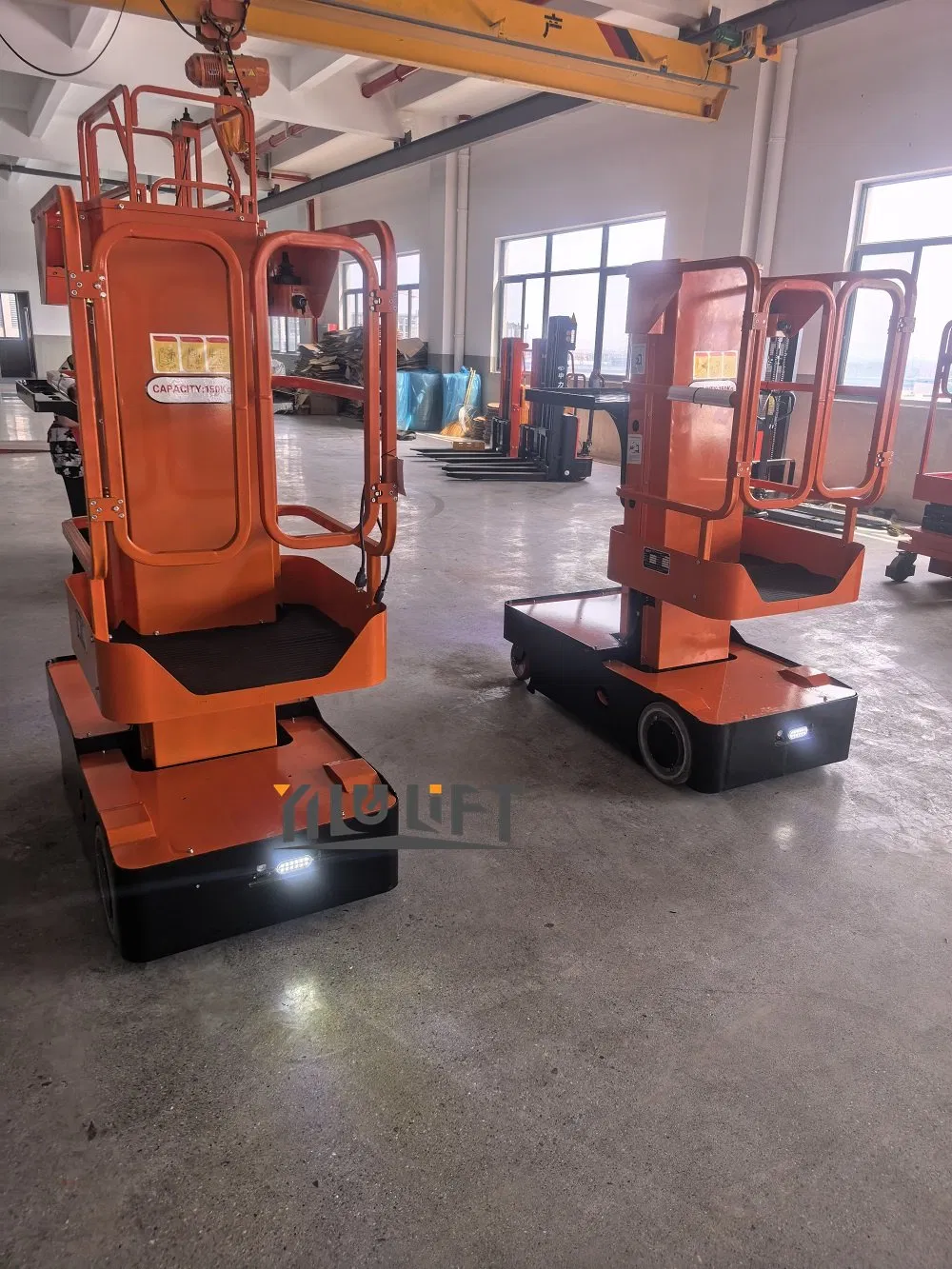

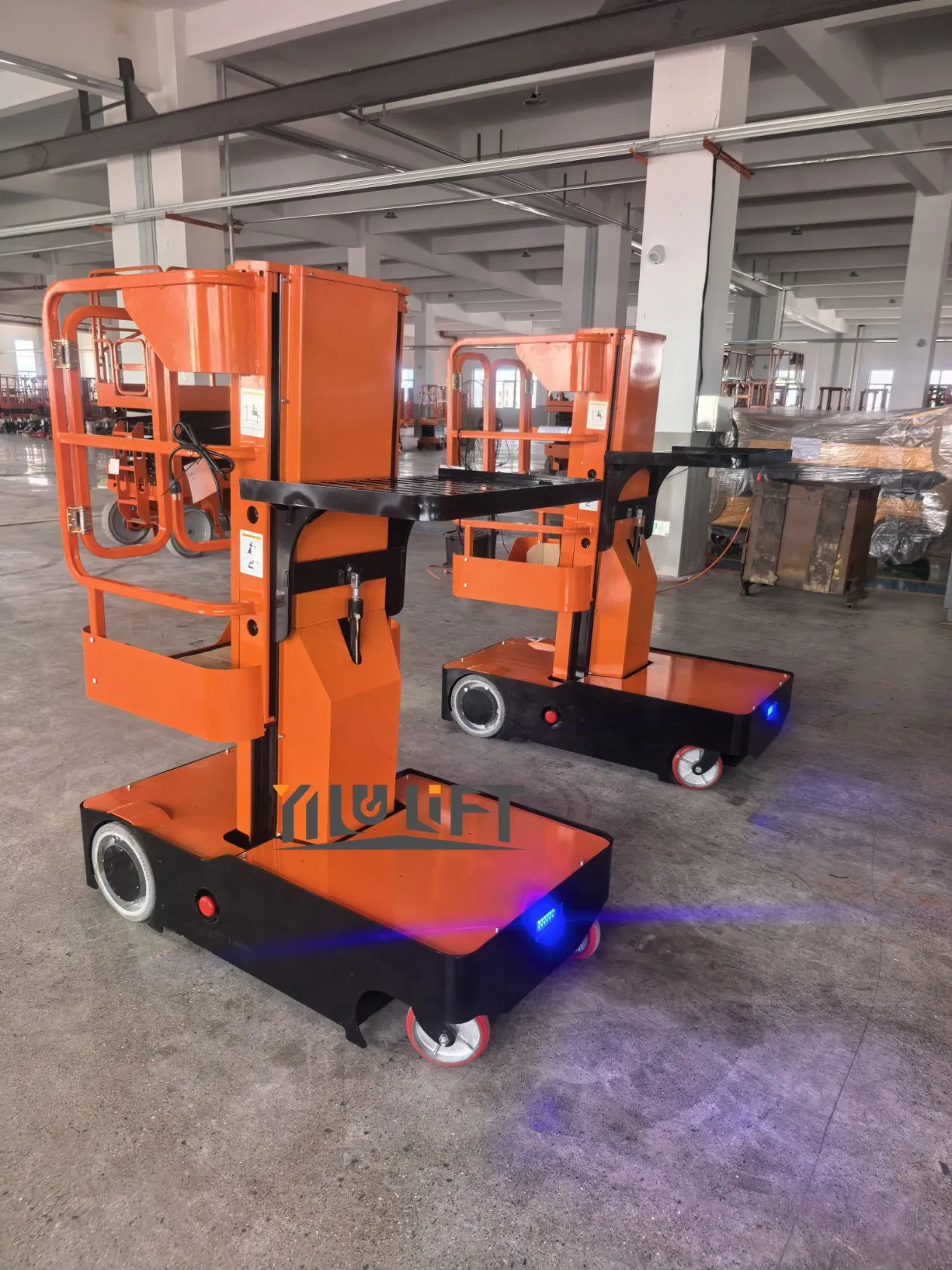

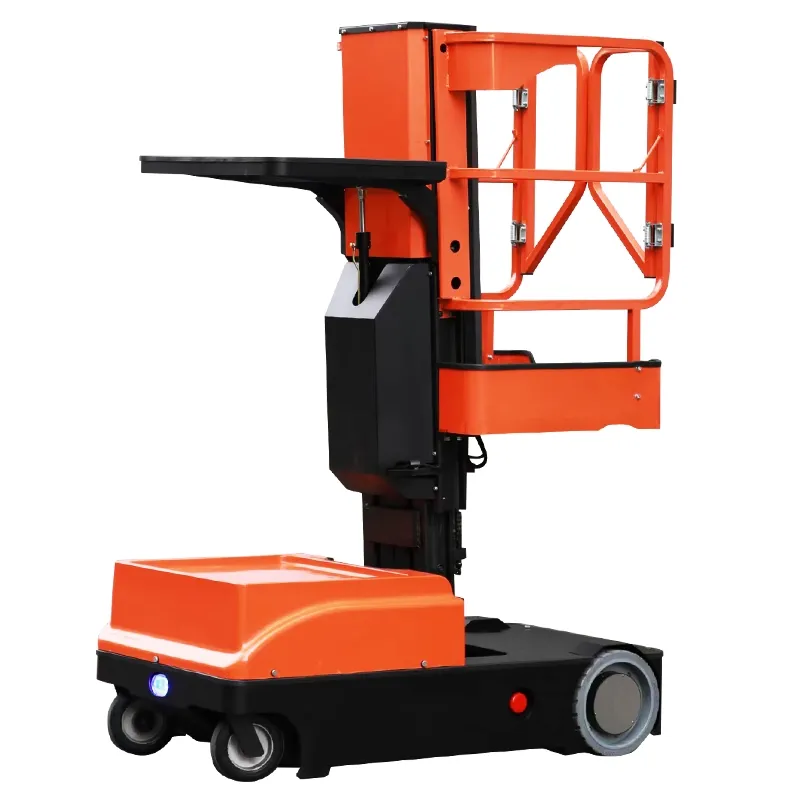

Self Propelled Order Picker is famous for its small compact body size, simple structure and very low failure rate. It moves and lifts all by battery power. Workers can stand on the platform to directly control the lifting and moving of equipment.

Full electric order picker is lighter in weight, easy to handle by single person, flexible and convenient to operate. It is the best choice for stacking and reclaiming warehouses and supermarkets.

Model Type	Unit	OPC03M	OPC04M

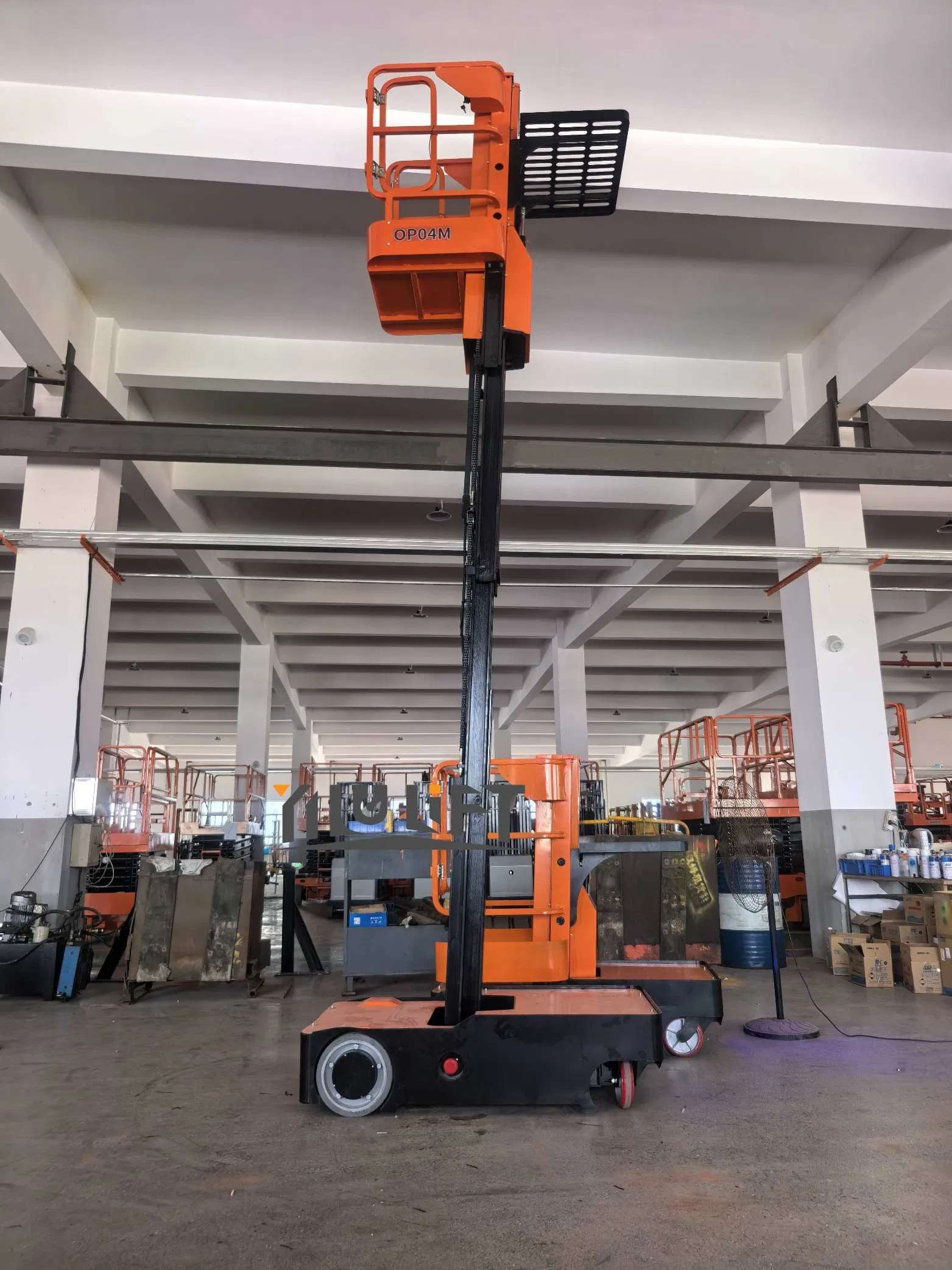

Max. Platform Height	mm	3050	4000
Max. Working Height	mm	4880	5880
Platform Size	mm	495X690	495X690
Min. turning Radius	mm	0.23	0.23
Max. Climbing Capacity	%	25%	25%
Battery	v/Ah	2X12V/100Ah	2X12V/100Ah
Platform Capacity	kg	160	160

Standard Specification & Features

⚙️ Planetary Gear Drive Motors

⬆️ Simultaneous Lift and Drive Capability

🕹️ One-hand Drive and Steer System

⚡ Proportional Drive

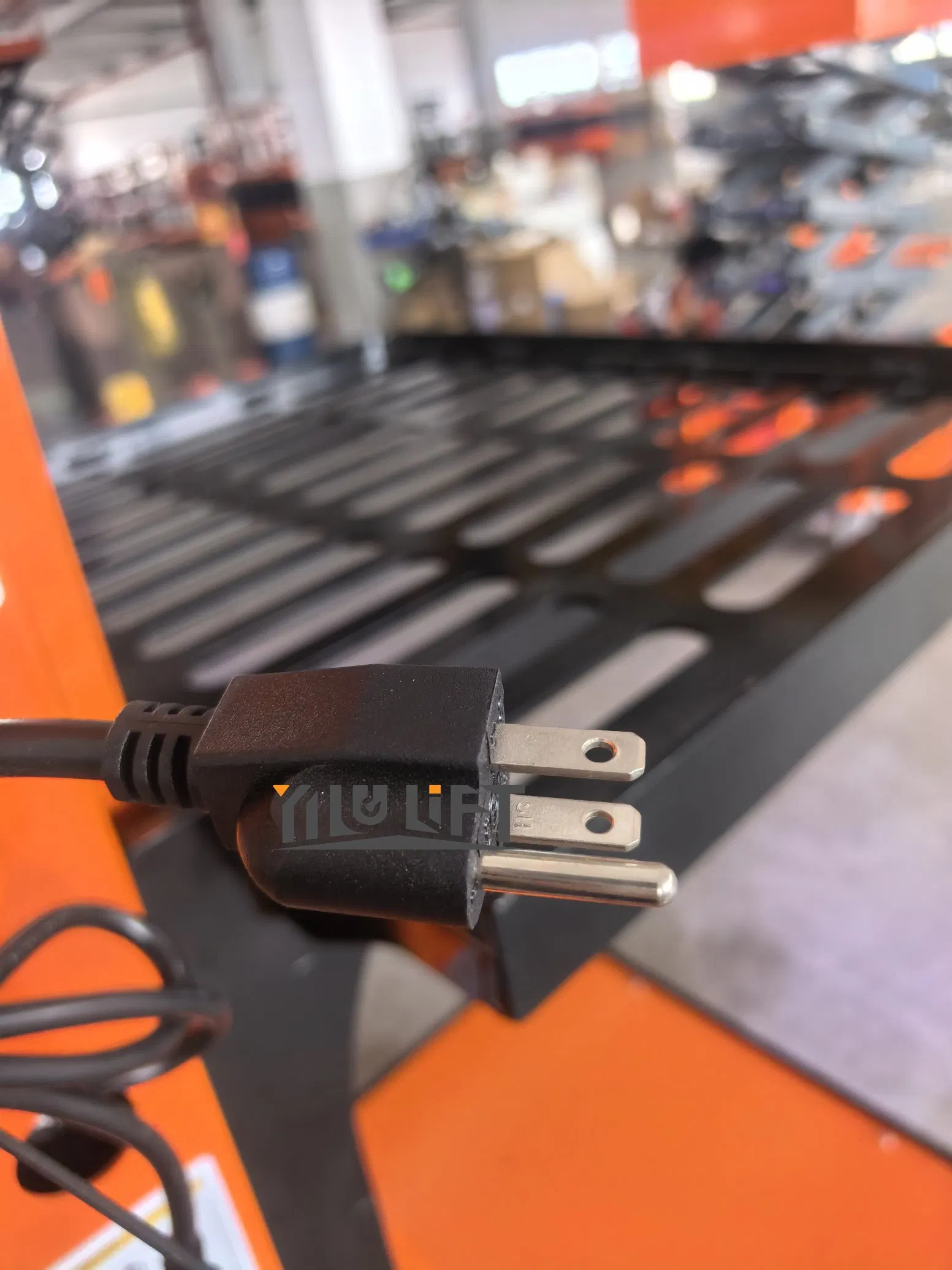

🔌 Automatic Five-Hour Battery Charger

🔋 Battery Discharge Indicator

🛡️ Maintenance-Free Mast System

🚨 Strobe Lights Front and Rear

🦶 Stand-on Foot Switch Enable Control

📥 Adjustable Height Material Tray

🔘 Non-Marking Tire Material

🔔 Horn and Hourmeter

Frequently Asked Questions

Q1: What is the primary use of a self-propelled order picker?

It is designed for stacking and reclaiming items in warehouses and supermarkets, allowing the operator to control both lifting and movement from the platform.

Q2: What is the maximum platform height available?

The maximum platform height ranges from 2.7 meters up to 4.5 meters depending on the specific model (OPC03M or OPC04M).

Q3: How is the equipment powered?

The unit is fully electric, powered by a DC battery system (2X12V/100Ah) and includes an automatic battery charger.

Q4: What safety features are included as standard?

Standard safety features include strobe lights, an emergency foot switch, platform gate interlocks, non-marking tires, and a horn.

Q5: Can it operate on slopes?

Yes, the order picker has a maximum climbing capacity of up to 25%, making it capable of handling standard warehouse gradients.

Q6: What is the warranty period for this product?

This self-propelled order picker comes with a standard 1-year warranty.
