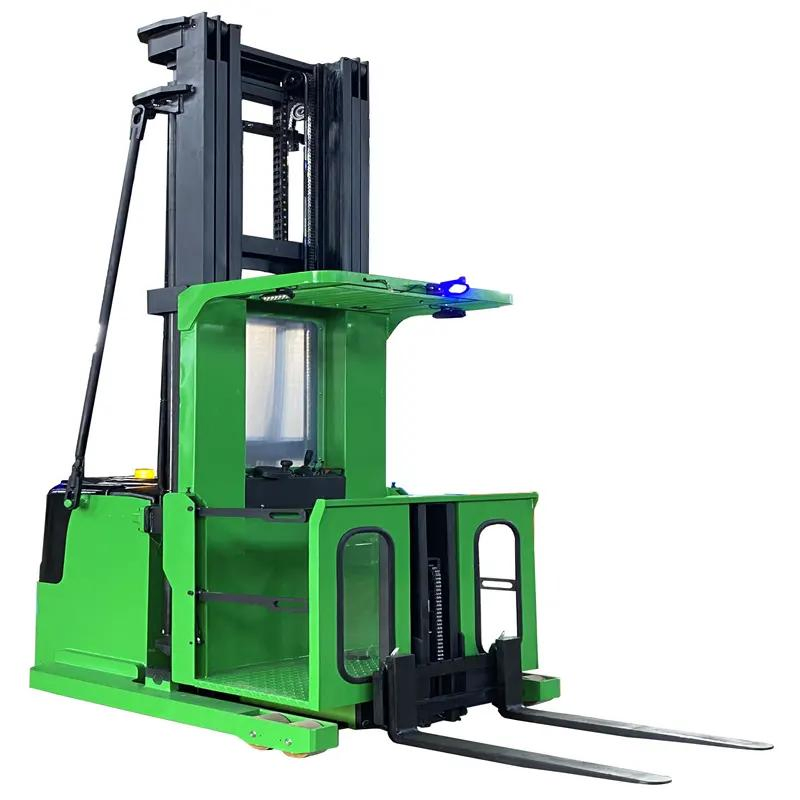

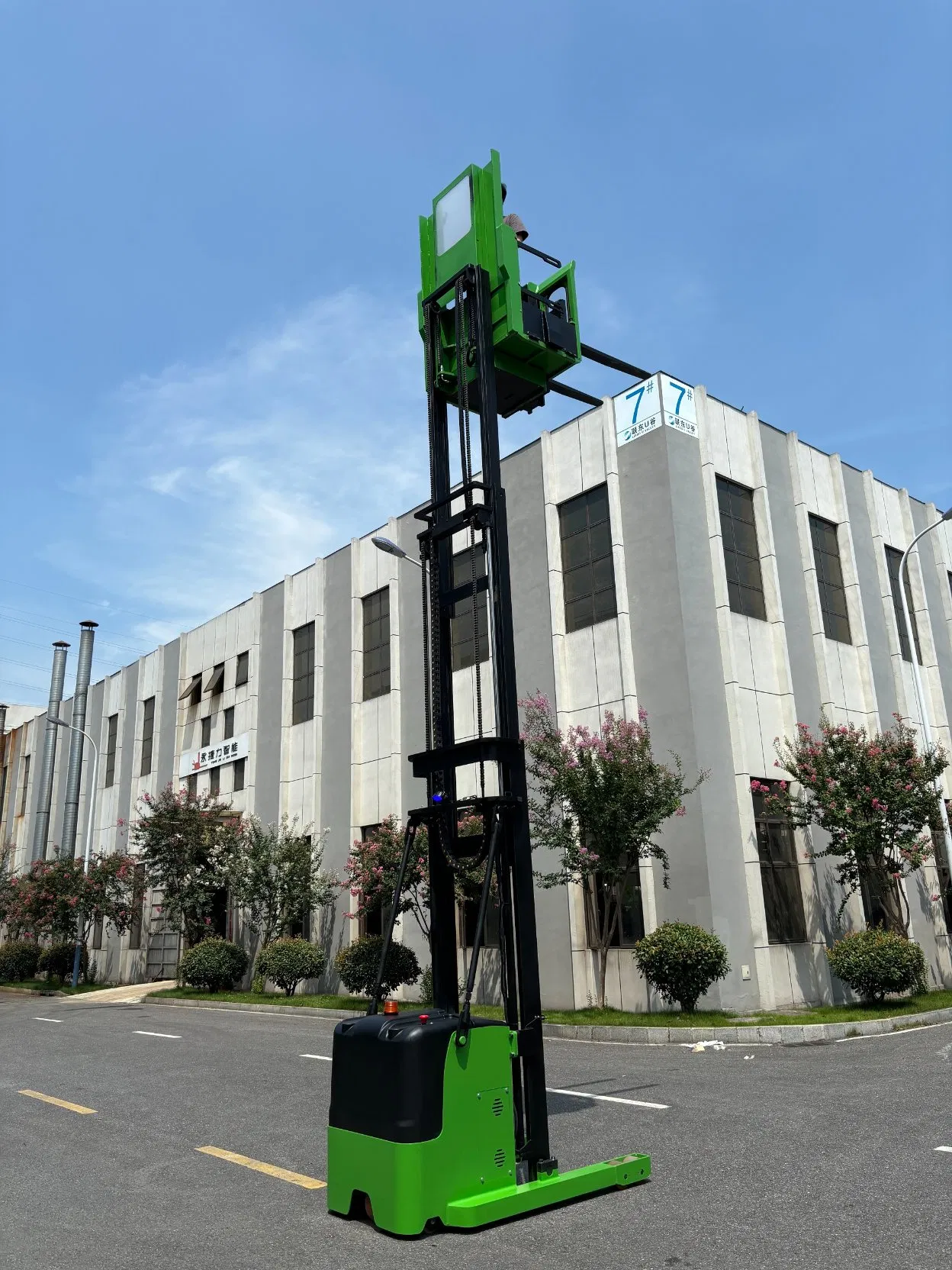

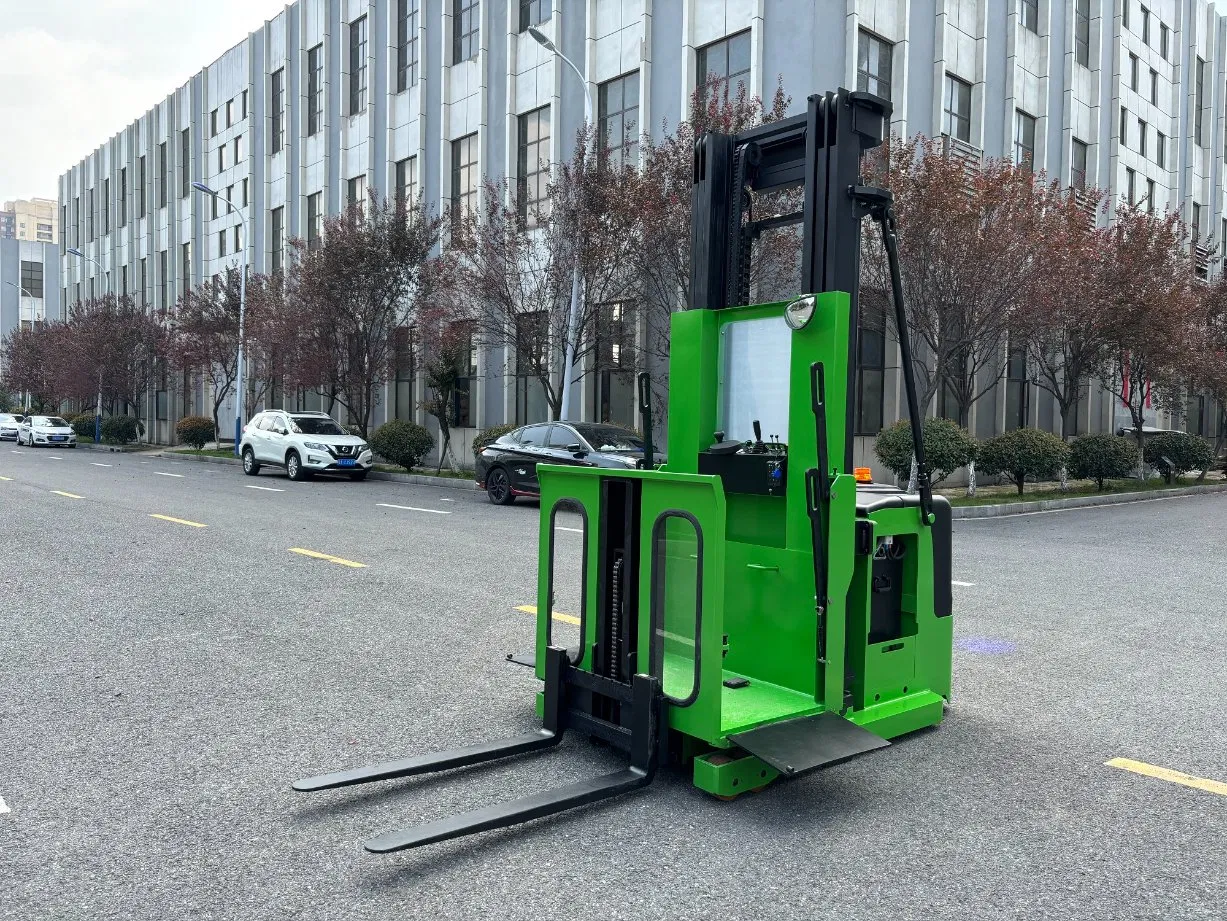

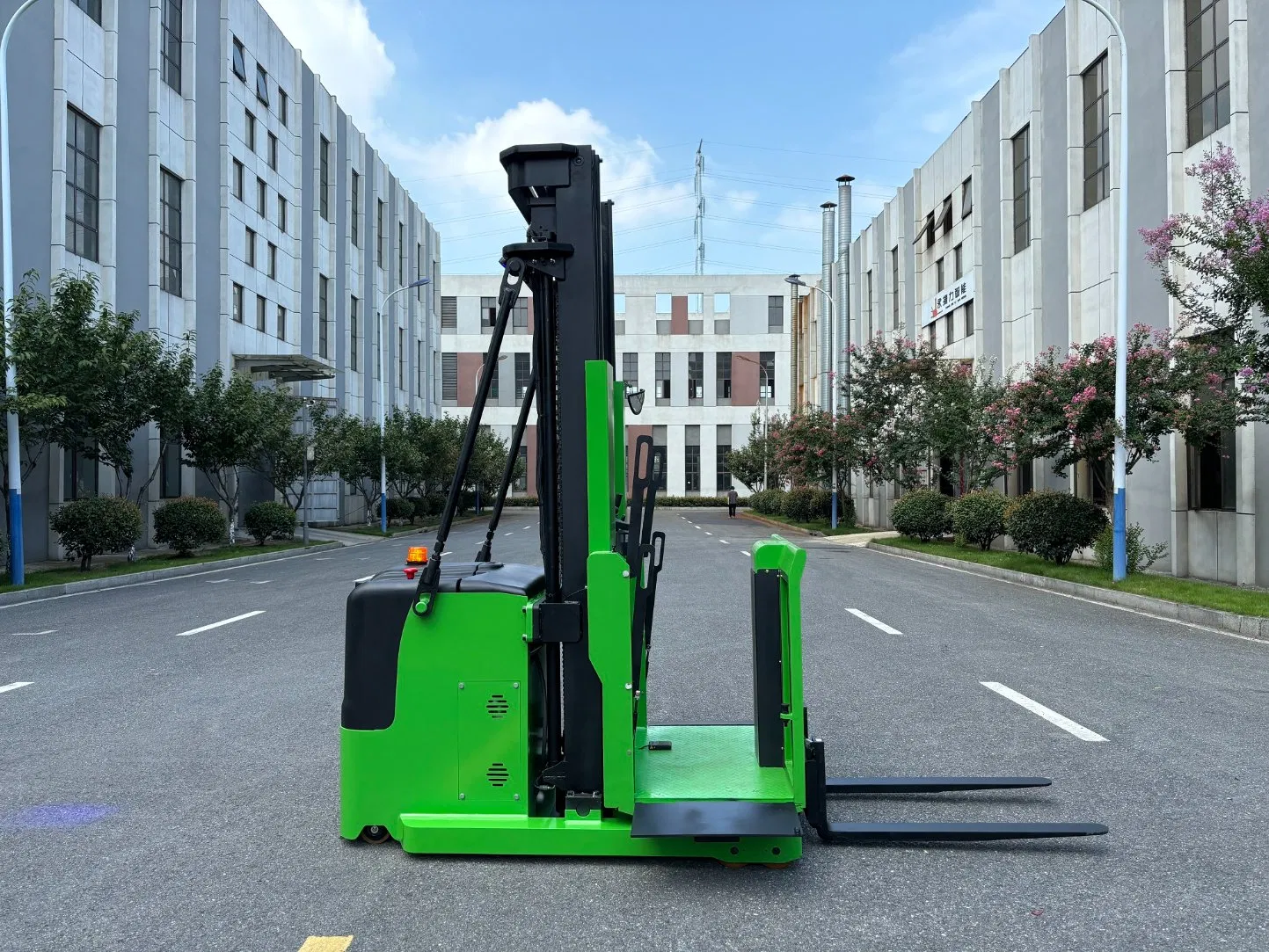

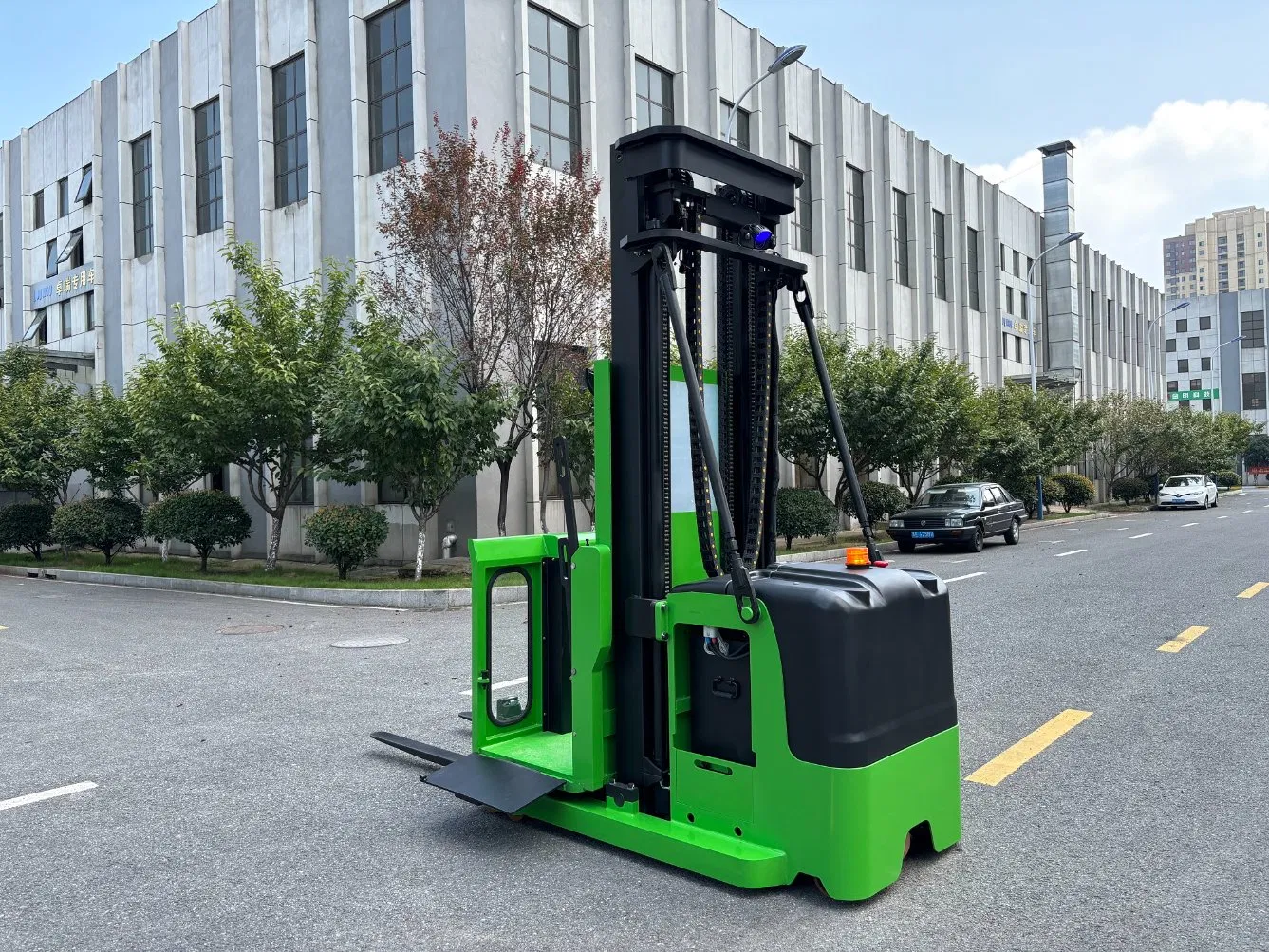

Order Picking Equipment Full Electric Aerial Order Picker

📋

Basic Specifications

Model NO.

CXD10-60

Type

Stacker

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Lift Height

3000-10000mm

Battery

Lead Acid/Lithium

Voltage/Capacity

24V/420ah

Turn Radius

1695 mm

Fork Size

1070*122*40 mm

⭐

Product Description

Electric stacker max load capacity is 3 ton, max lifting height is 10 meters.
Order-picking stacker battery can be optional: lead acid battery or lithium battery.
Equipped with high-performance South-central transmission.
Full electric order picking lift utilizes genuine USA Curtis brand controller.
Integrated low noise hydraulic pump and electromagnetic hydraulic valve.
Controller features a multiple automatic protection system for enhanced safety.

🔍

Detailed Features

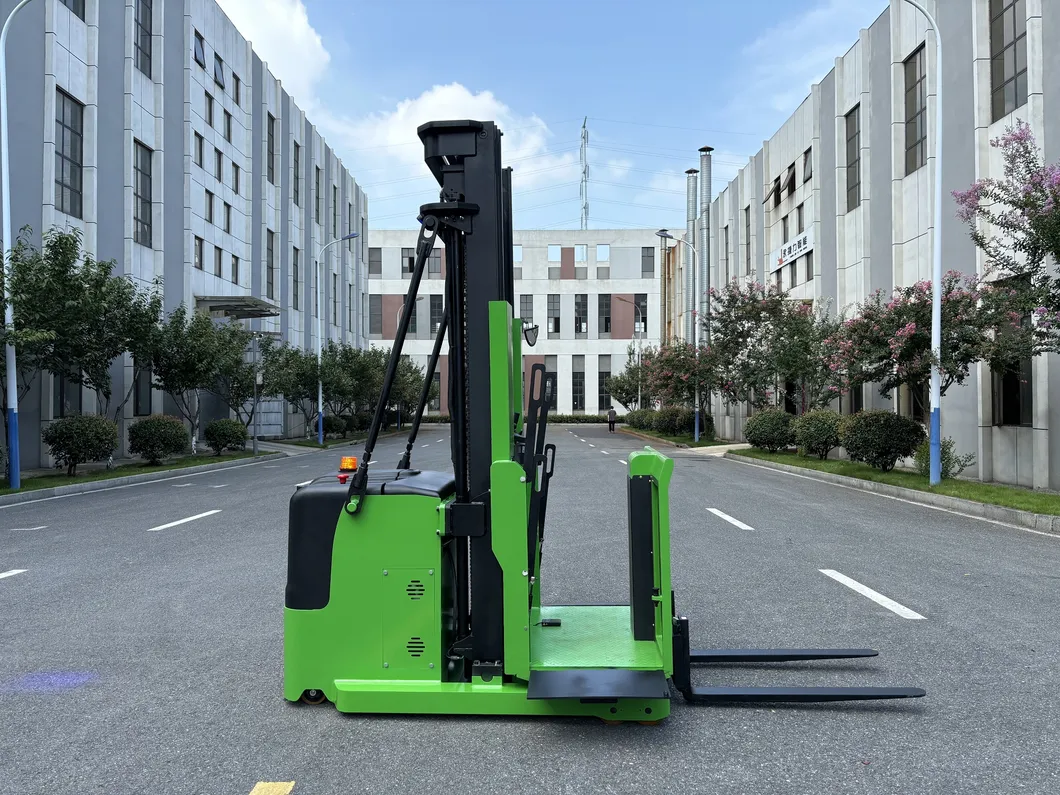

High Lifting Capacity with Stable Operations: Suitable for multi-level racking. The scissor mechanism ensures fork stability during elevated stacking.

Eco-Friendly and Fully Electric: Powered by efficient lithium or lead-acid batteries, offering zero emissions and low noise levels.

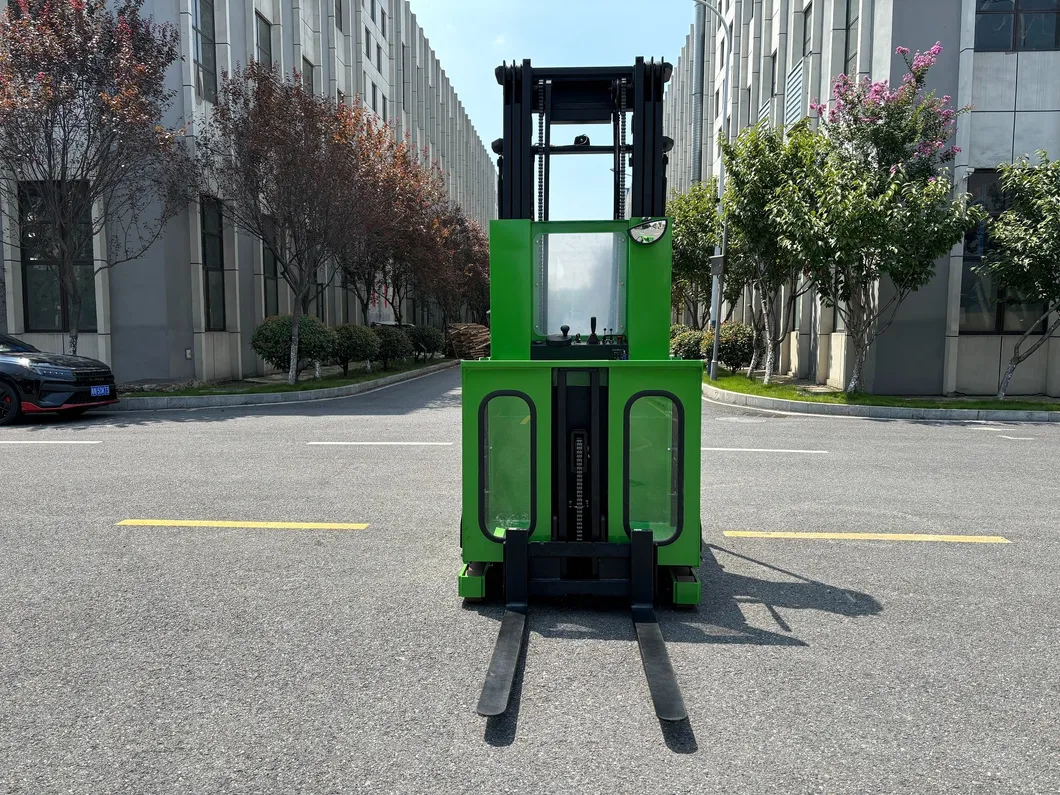

Smart Controls & Safety: Automatic speed limits, fork position correction, and overload protection enhance precision handling.

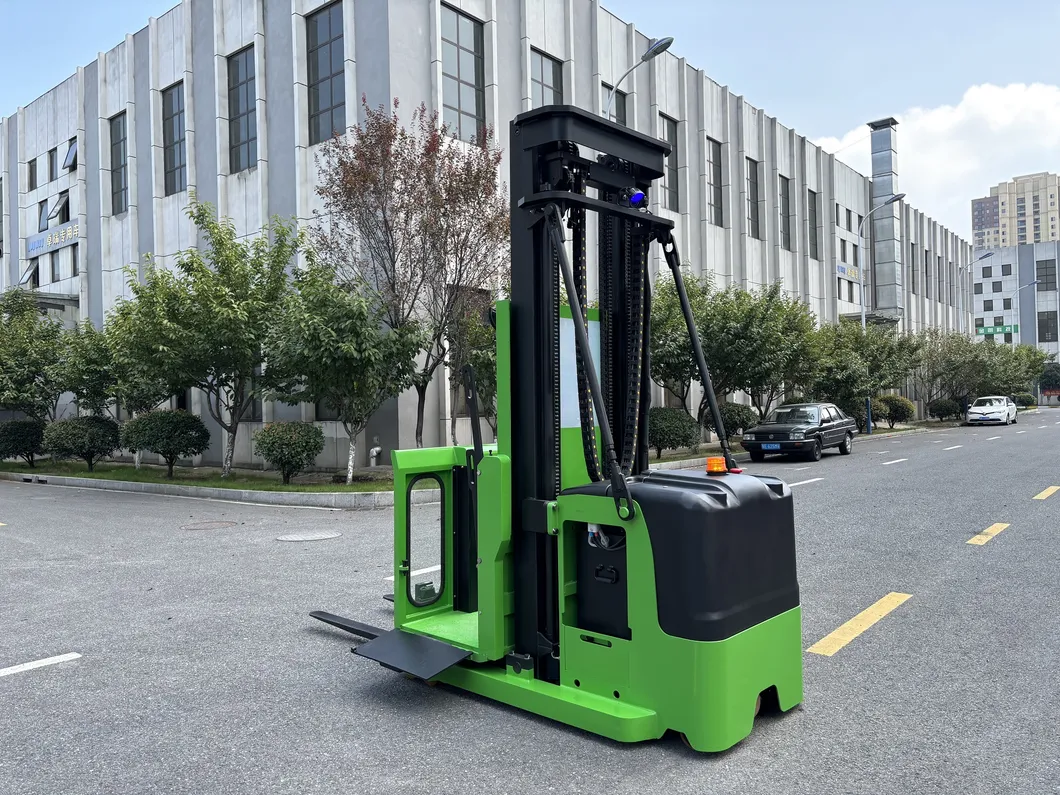

Flexible Maneuverability: Electric drive technology ensures emission-free movement in complex warehouse environments.

📊

Technical Parameters

Model Description	Unit	CXD15-60	CXD15-75
Rated load	Q(kg)	1500	1500
Overall length	L1(mm)	2770	3015
Overall width	b1/b2	900/1340	900/1340
Fork dimensions	t/w/l(mm)	920/122/40	1070/122/40
Mast closed height	h1(mm)	2890	3330
Max lifting height	h3(mm)	6000	7870
Battery voltage/capacity	V/Ah	24/420	24/420
Vehicle weight (with battery)	kg	3800	4080
Driving speed (full/no load)	km/h	4/5	4/5
Steering type	-	Electronic steering

🏭

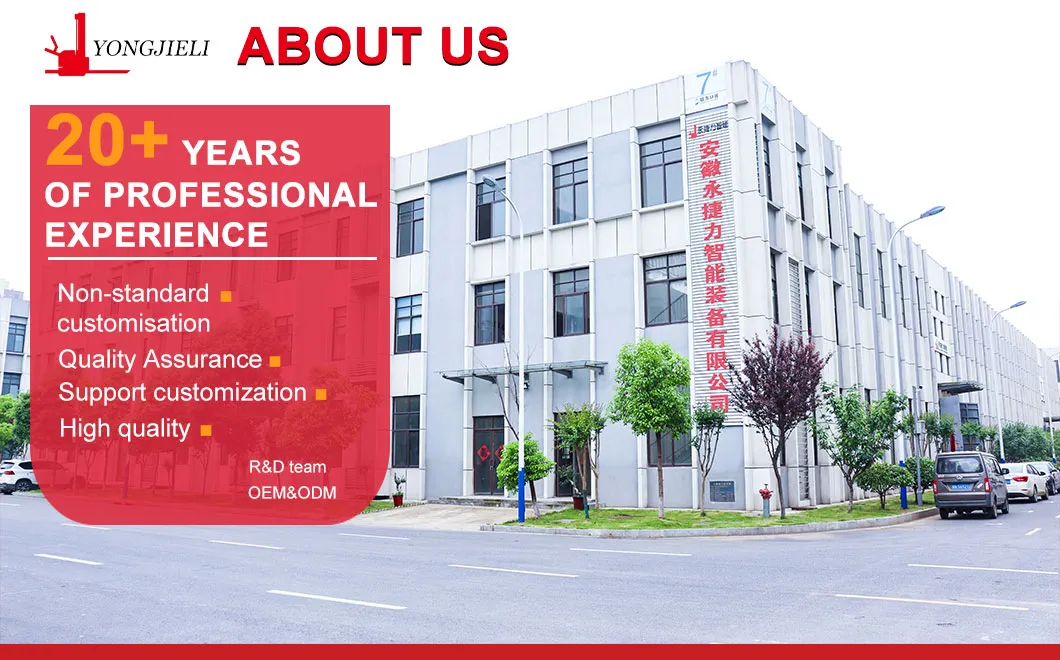

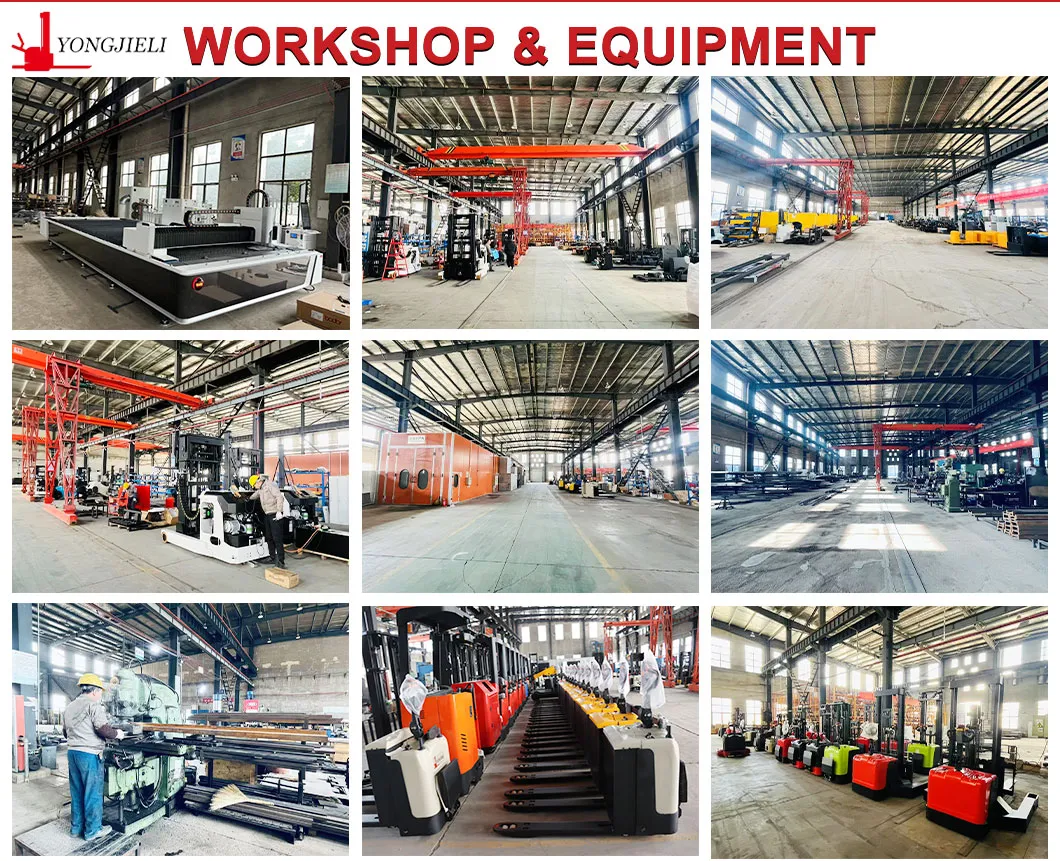

Production & Factory

We are a high-tech enterprise specializing in the research, development, and manufacturing of logistics handling equipment. Our facility covers over 11,000 square meters with a dedicated team of engineers and professionals providing tailored turnkey solutions for industrial material handling.

📜

Certifications & Exhibitions

🛠️

After-Sales Service

Available 7*24 Hours

12 months or 2000 hours warranty for the whole equipment.
12 months warranty for the motor and lead-acid battery.
60 months warranty for lithium batteries.
Lifelong maintenance and technical online support provided.

❓

Frequently Asked Questions

What certifications do your products have?

Our equipment meets ISO9001:2015, ISO45001:2018, and ISO14001:2015 standards. All products are CE & SGS certified, with some meeting EPA requirements.

How quickly can I get a quotation?

We usually provide a quote within 12 hours of receiving your inquiry. For urgent requests, please mention it in your message for priority processing.

Can I request a sample order?

Yes, we welcome sample orders to test and verify quality. Mixed samples are also acceptable.

Is there a Minimum Order Quantity (MOQ)?

No, we have no quantity limitation; you can order any number of products according to your needs.

Do you offer OEM services?

Yes, we accept all OEM orders. Simply contact us with your design, and we will provide a reasonable price and samples as soon as possible.
