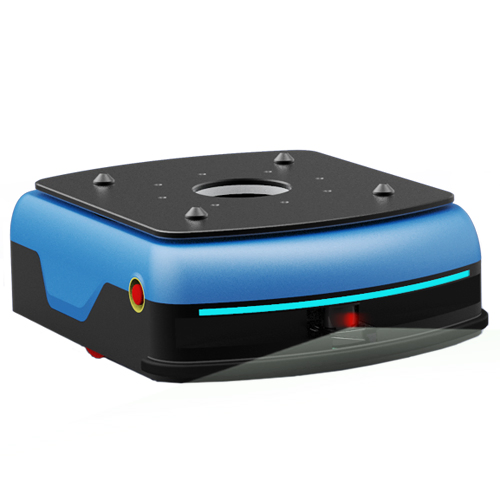

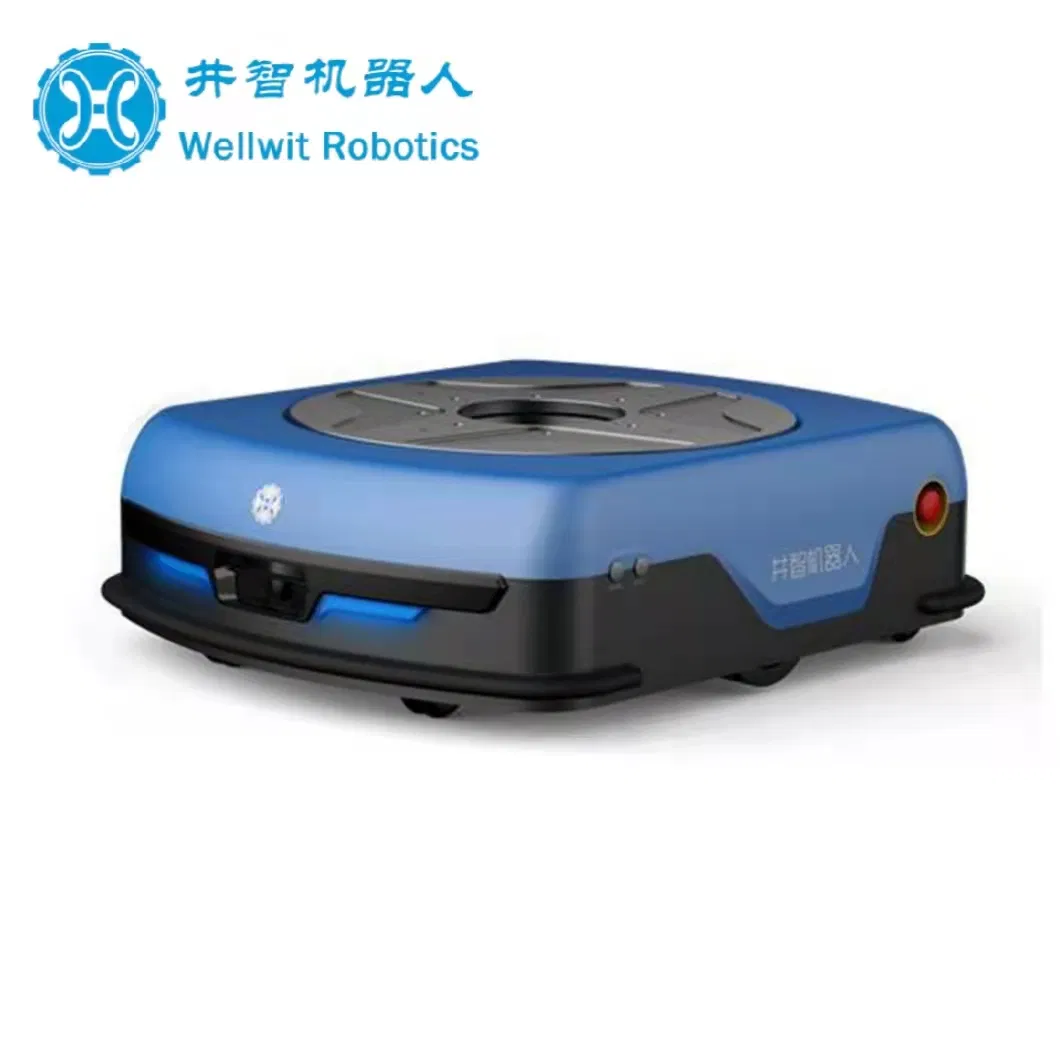

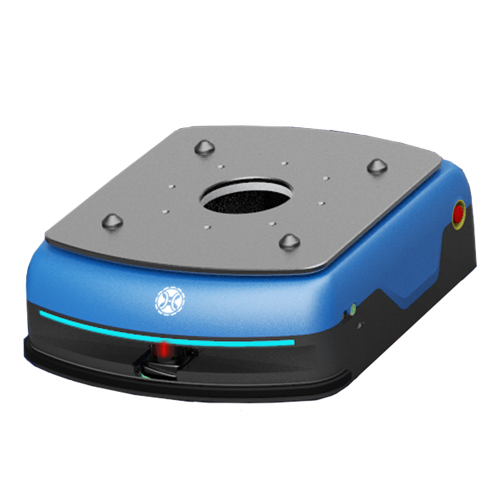

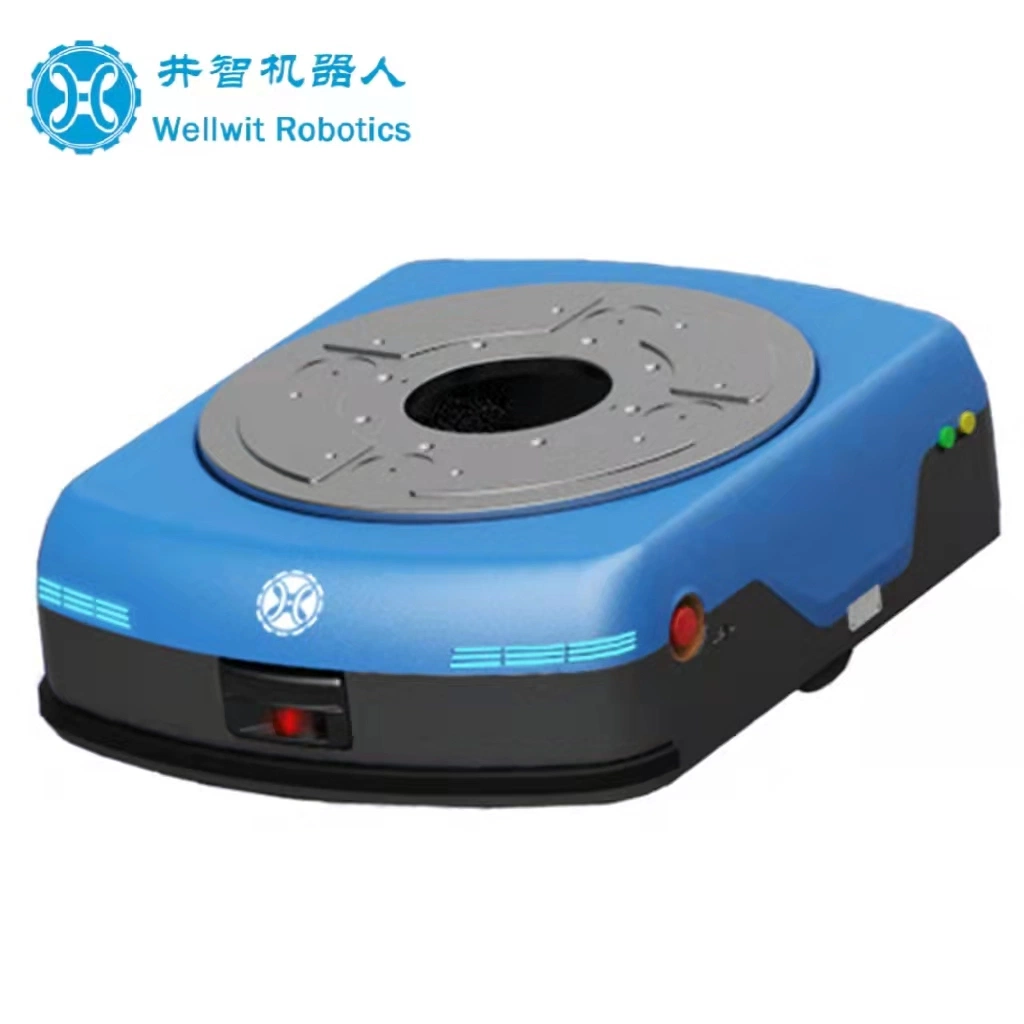

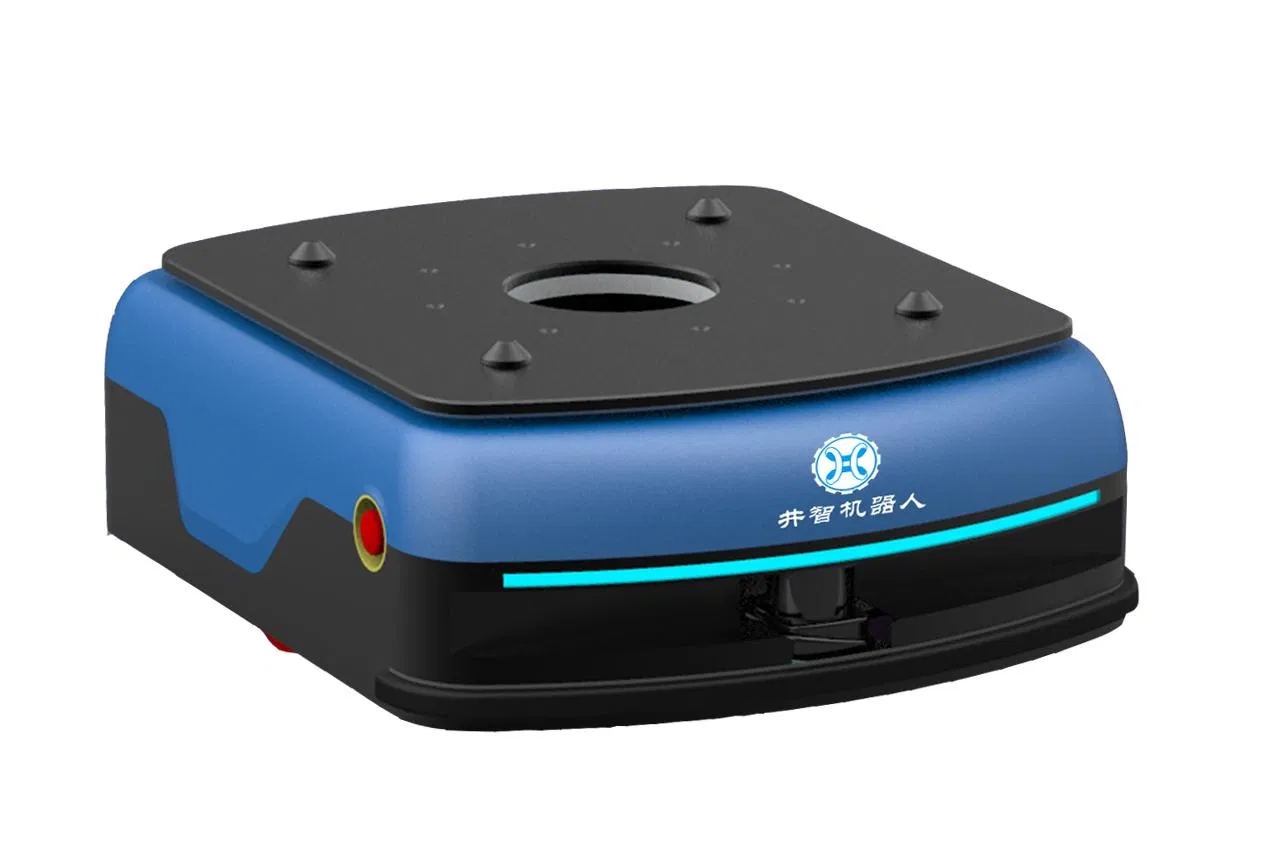

Wellwit Automated Guided Vehicle Laser Robot Agv Motor Handling Trolley

Customization: Available
Drive Mode: Electric
Mass: 180kg

Product Description

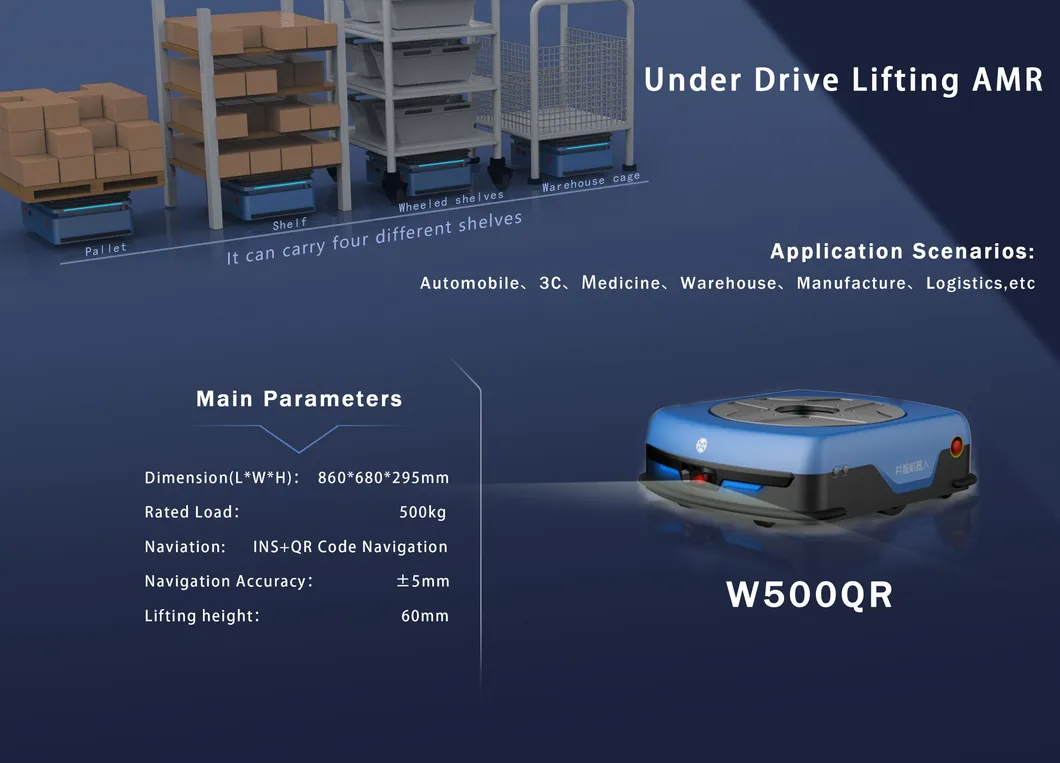

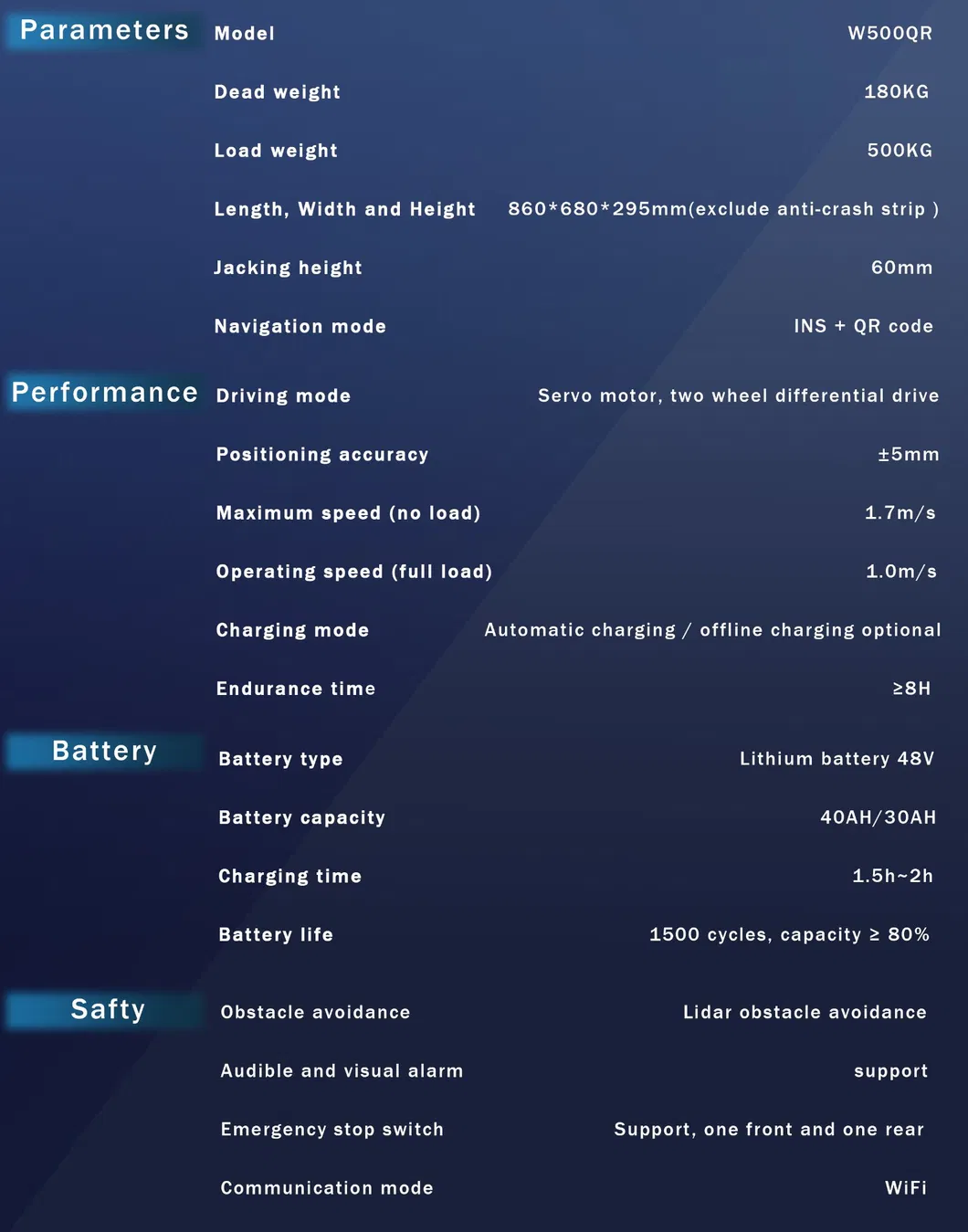

📊 Technical Specifications
Model NO.
W500QR
Payload
500kg
Jacking Height
60mm
Navigation
Ins+Qr Code
Positioning Accuracy
±10mm
Battery Endurance
≥8h
Charging Mode
Automatic/Offline
Charging Time
1.5~2h
Obstacle Avoidance
Lidar
Communication
WiFi
Specification
860*680*295mm
Certification
ISO, CE
🚀 Key Features
1
High Precision Navigation: Uses QR code navigation combined with inertial systems for ±10mm accuracy.
2
Powerful Loading: Supports up to 500kg weight capacity with jacking and rotating functions.
3
Modular Design: The whole machine adopts a modular structure for convenient assembly and maintenance.
4
Long Battery Life: Lasts ≥8 hours under full load with automatic low-power charging capabilities.
5

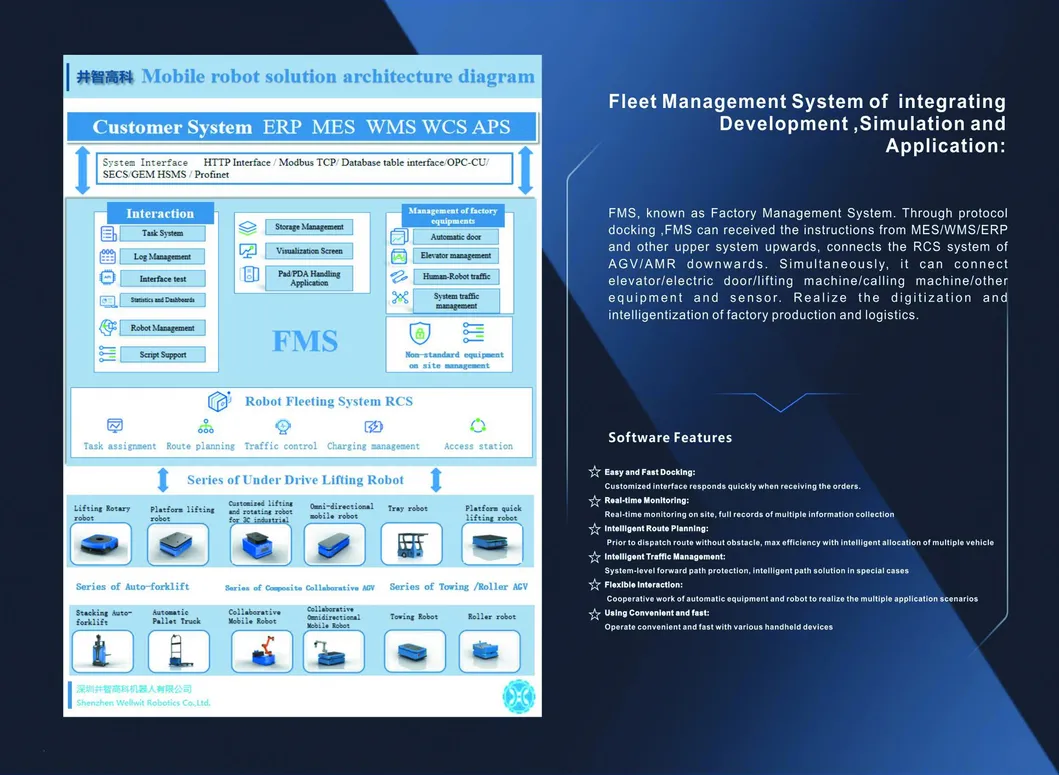

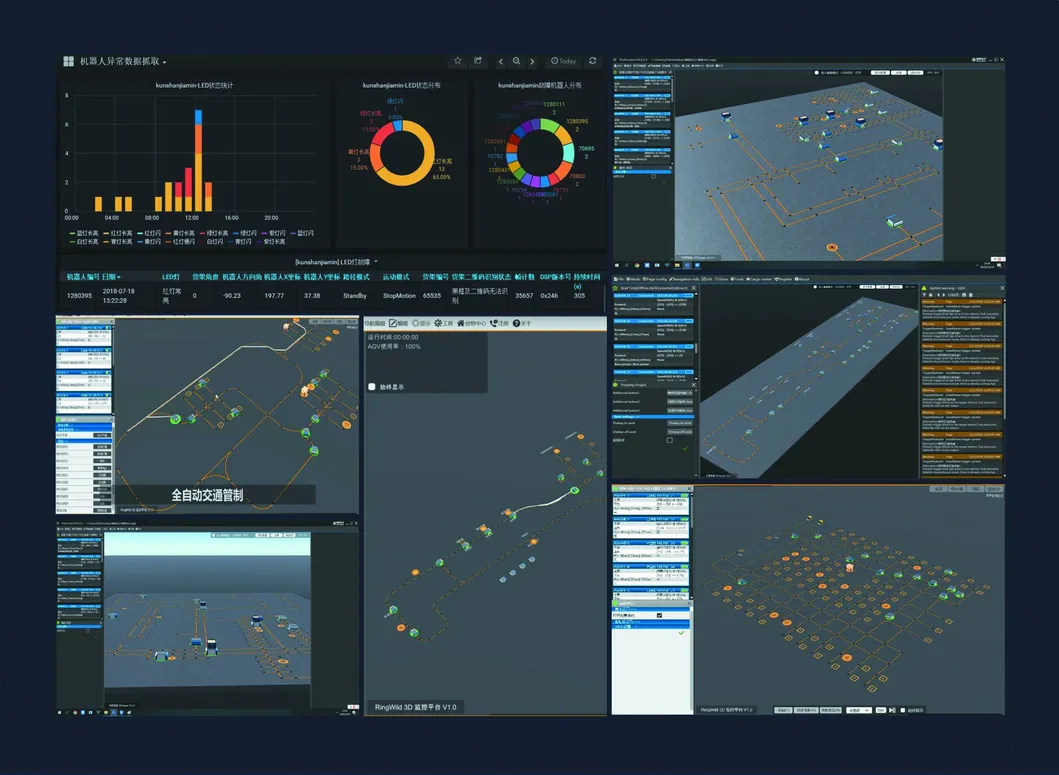

Smart Scheduling: View working status, energy, and location for all robots via a cluster control system.
6
Multi-layer Safety: Equipped with Lidar, anti-collision bars, and emergency stop buttons.
7
Unmanned Operation: Advanced path planning allows staff to manage operations via a simple control terminal.
📦 Packaging & Delivery
Package Size
86.00cm * 68.00cm * 29.50cm
Gross Weight
200.000kg
Frequently Asked Questions
What is the payload capacity of the W500QR?
The robot is designed to handle a maximum payload of 500kg.
How does the robot navigate in a warehouse?
It uses a combination of QR code navigation (ground markers) and an internal inertial navigation system (INS) for high-precision positioning.
What is the battery endurance and charging method?
The battery lasts for more than 8 hours on a full charge. It supports automatic charging, where the robot returns to the station when the battery is low.
Is the W500QR safe for environments with humans?
Yes, it features multiple safety protocols including Lidar obstacle avoidance, front contact anti-collision bars, and emergency stop buttons.
What is the positioning accuracy of this AGV?
The system achieves an extremely precise positioning accuracy of ±10mm.
Can multiple robots be managed simultaneously?
Yes, the cluster scheduling system allows you to monitor and control all robots' battery status, location, and tasks in real-time.
