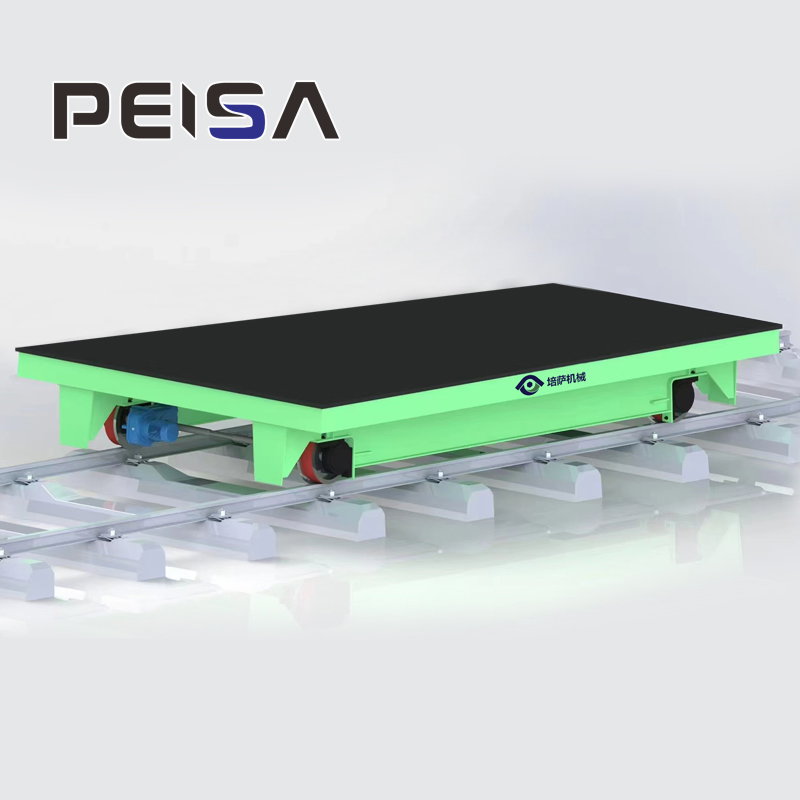

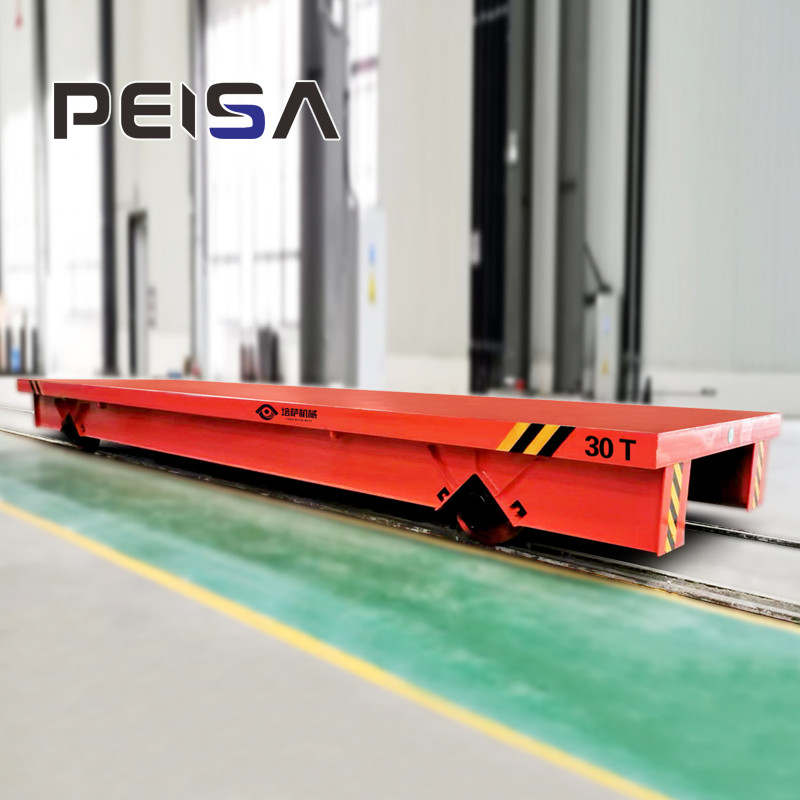

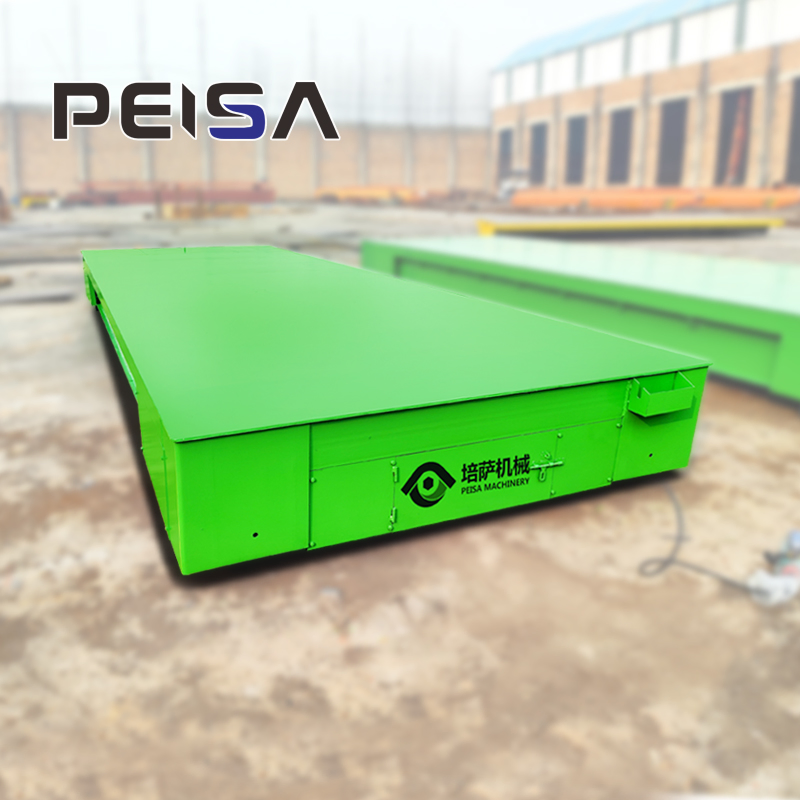

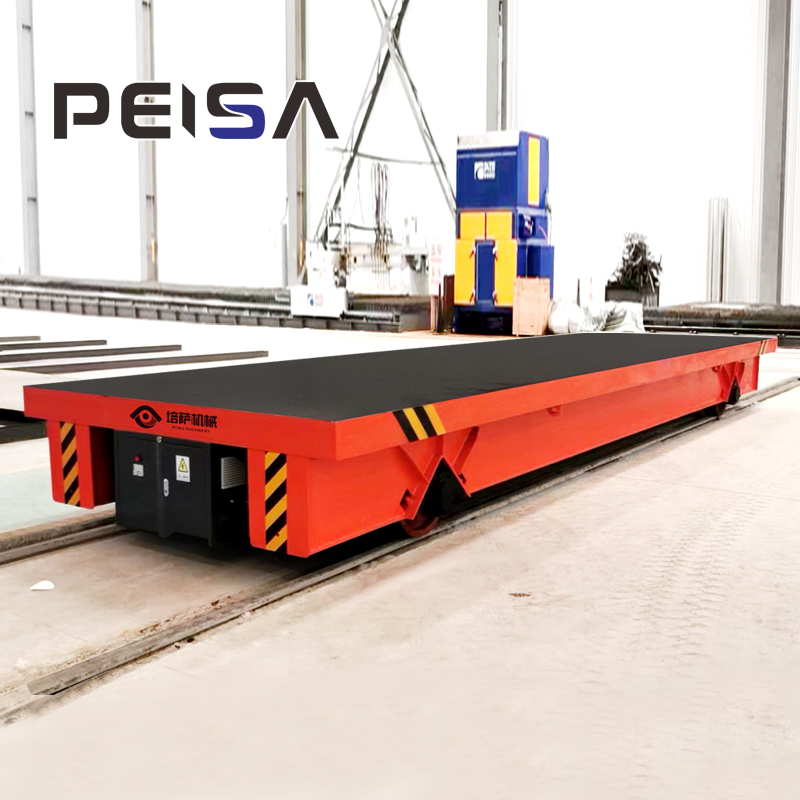

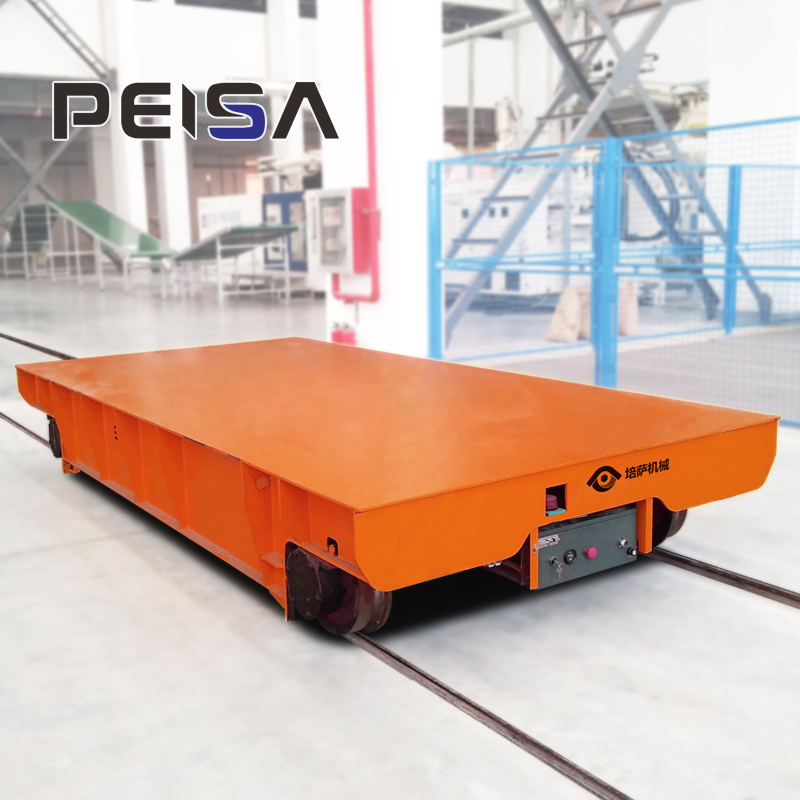

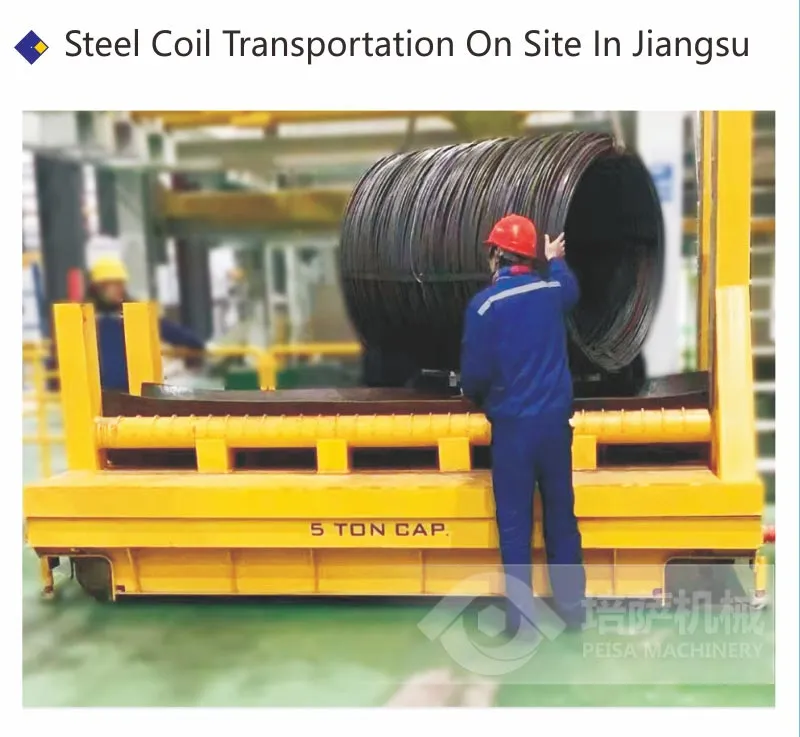

Low voltage rail transfer car (DDG) uses a low voltage rail system to obtain electricity, efficiently powering trolley operations within industrial environments.

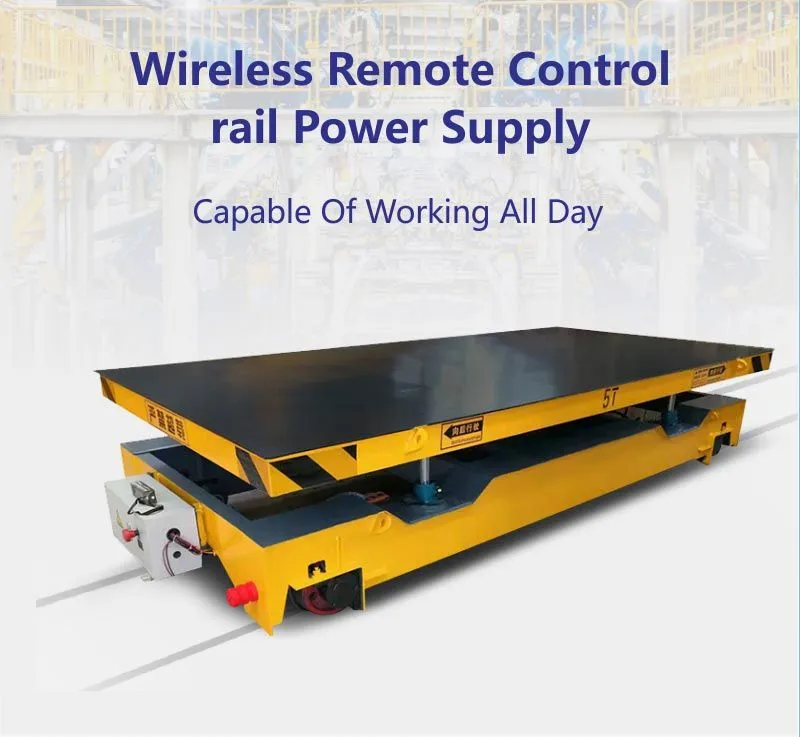

Working Principle: The workshop's 380v voltage is converted to 36v through a step-down transformer. This safe voltage is connected to the insulated tracks. The rail car wheels pick up this electricity and transfer it to the car's motor via electric take-up slides. Managed by remote control, the car can move forward, backward, and navigate turning tracks.
Configuration Types: Rail transfer carts are available in binomial or three-power supply systems based on load requirements. Binomial systems are ideal for loads up to 50 tons using two tracks, while three-power systems support large tonnage operations with three-track layouts.
| Model | DDG-2t | DDG-20t | DDG-50t | DDG-100t | DDG-150t |
|---|---|---|---|---|---|
| Rated Load (t) | 2 | 20 | 50 | 100 | 150 |
| Table Length (mm) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Table Width (mm) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height (mm) | 450 | 550 | 650 | 850 | 1200 |
| Wheel Base (mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Recommended Rail | P15 | P24 | P43 | QU100 | QU100 |
