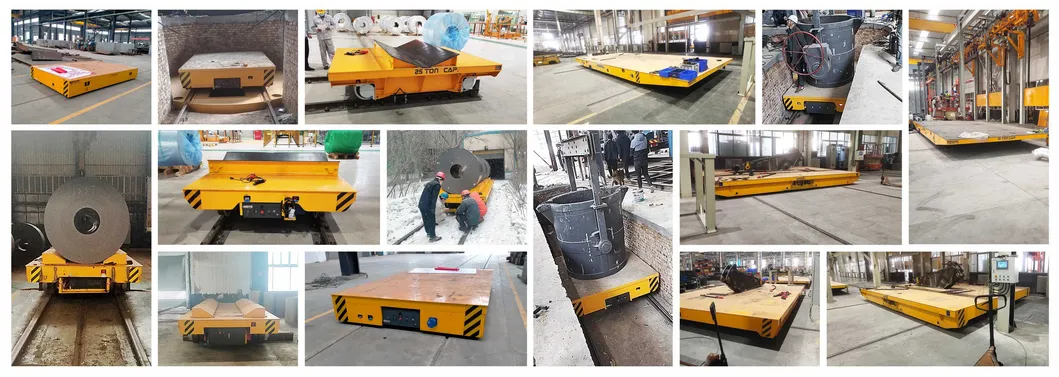

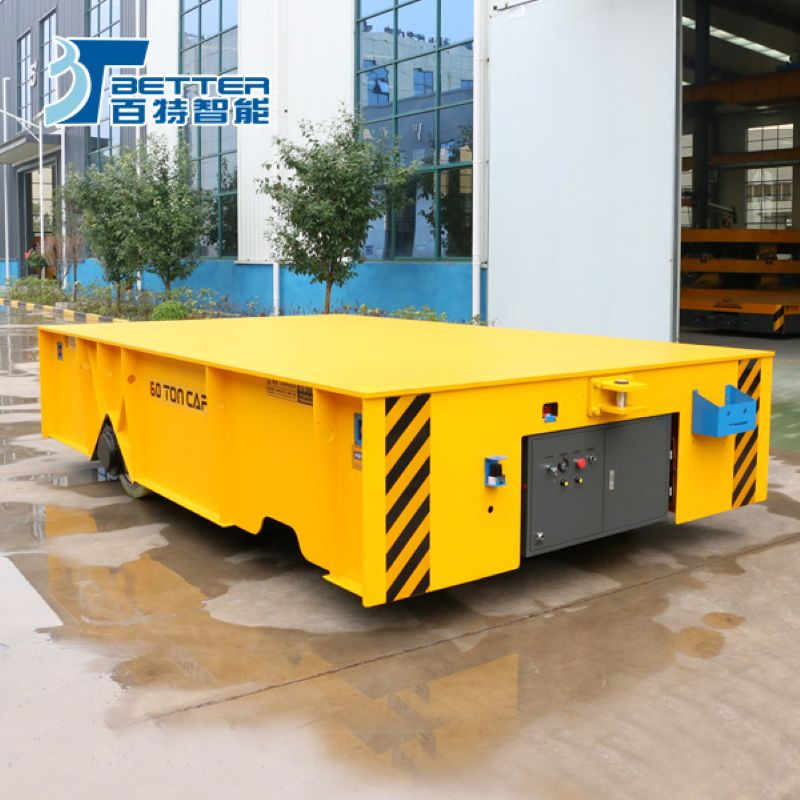

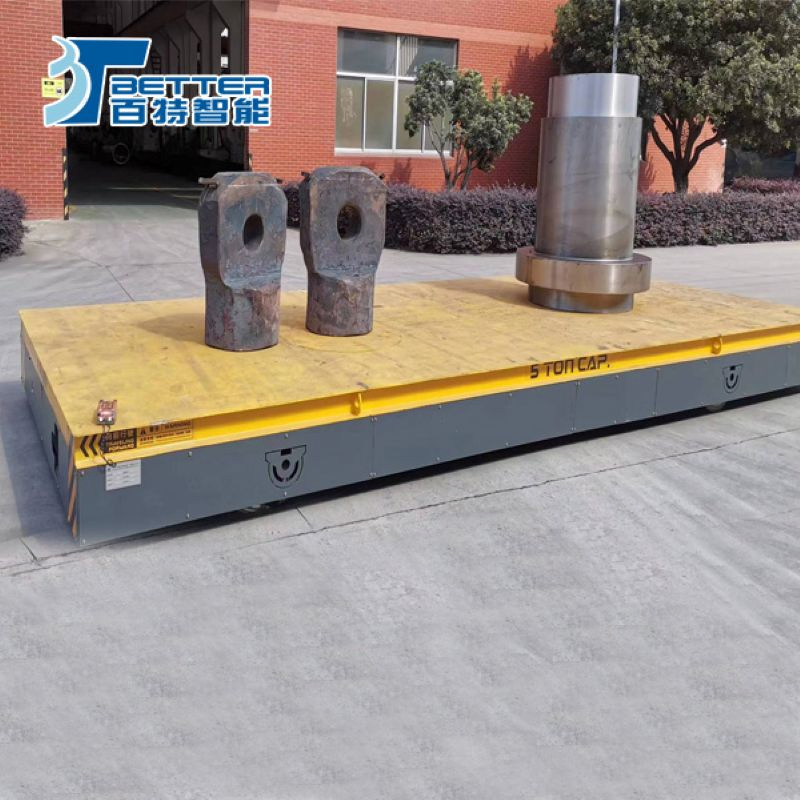

Industrial 50ton Electric Moving Motorized Transfer Trolley for Material Handling
This electric mobile material handling vehicle is a high-performance device specially designed for handling heavy materials in industrial environments. It is driven by a high-power motor and can easily carry large machinery and equipment, heavy molds or industrial raw materials weighing up to 50 tons, moving smoothly and efficiently in workshops and warehouses.
Its sturdy body structure and reliable transmission system ensure stable operation and precise control under heavy loads. The operator can flexibly command through the remote control or control panel to achieve forward, backward and turning.
We can customize various technical parameters based on the specific requirements of customers, such as load capacity, control mode, platform size and type, safety protection system, etc., to make the handling of heavy materials more convenient, safe and flexible.

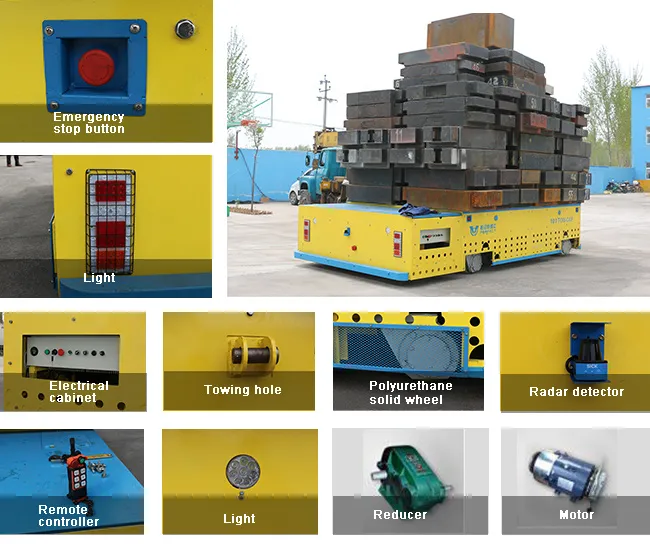

Trackless transfer flat car
Trackless lifting transfer flat car

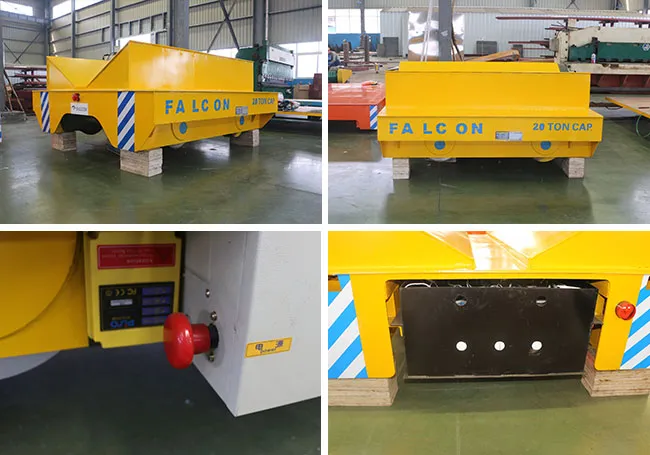

Coil transfer flat car
| Model | BXC-10t | BXC-20t | BXC-30t | BXC-50t | BXC-100t | BXC-150t |
|---|---|---|---|---|---|---|
| Rated Load (t) | 10 | 20 | 30 | 50 | 100 | 150 |
| Table Length (mm) | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Table Width (mm) | 2000 | 2000 | 2200 | 2500 | 2800 | 3000 |
| Height (mm) | 500 | 550 | 600 | 650 | 900 | 1200 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 8 |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Battery Capacity (Ah) | 180 | 220 | 260 | 330 | 440 | 600 |
For length less than 6m and width less than 2.2m, transportation is via 20ft container. Longer or wider units use 40ft containers, flat racks, or bulk cargo shipping based on dimensions.
