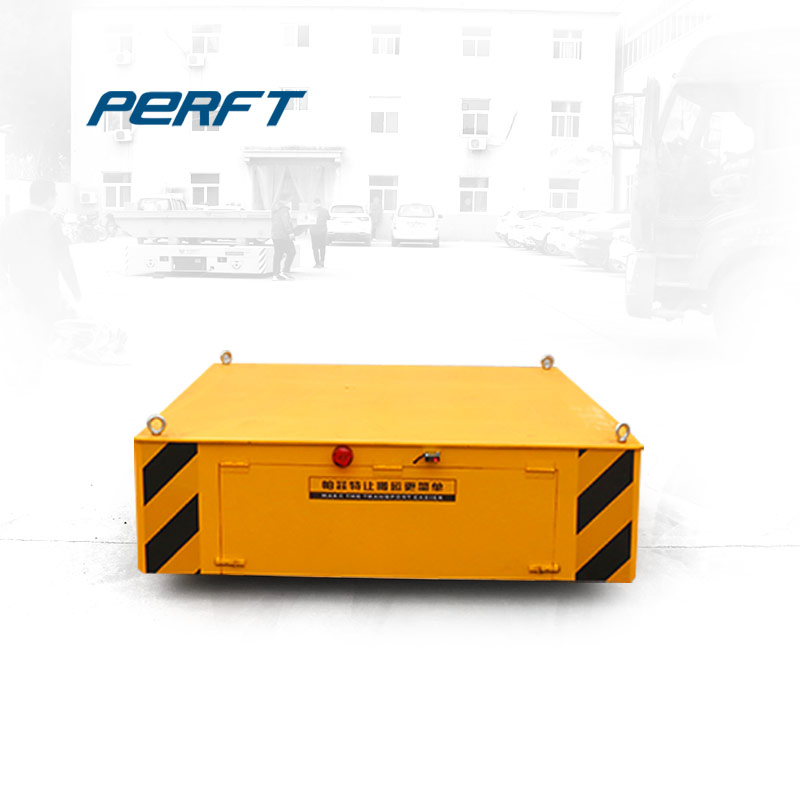

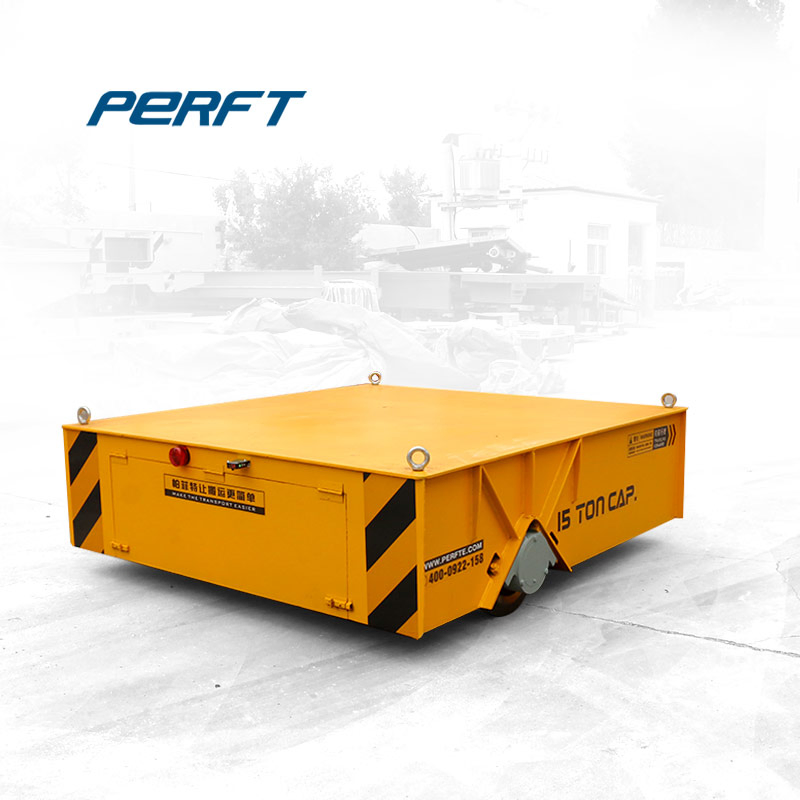

Material Handling Powered Transfer Battery Trolley

1 / 5

Material Handling Powered Transfer Battery Trolley

Customization:	Available
Color:	Yellow
Product Name:	Transfer Battery Trolley

Send Inquiry

Product Description

Overview

Model NO.BWP

UsageHeavy Duty Material Transportation

ApplicationSteel Industry, Factory, Warehouse, Port

Load Capacity1-300 Ton

Special FunctionAnti-Explosion, Heat-Resistant, Lifting, Dumpling

Control ModePendant/Remote/PLC Control

Power ModeBattery, Cable, Conductive Rails

MaterialSteel

HS Code84289090

Package Size2000cm * 1000cm * 400cm

Product Description

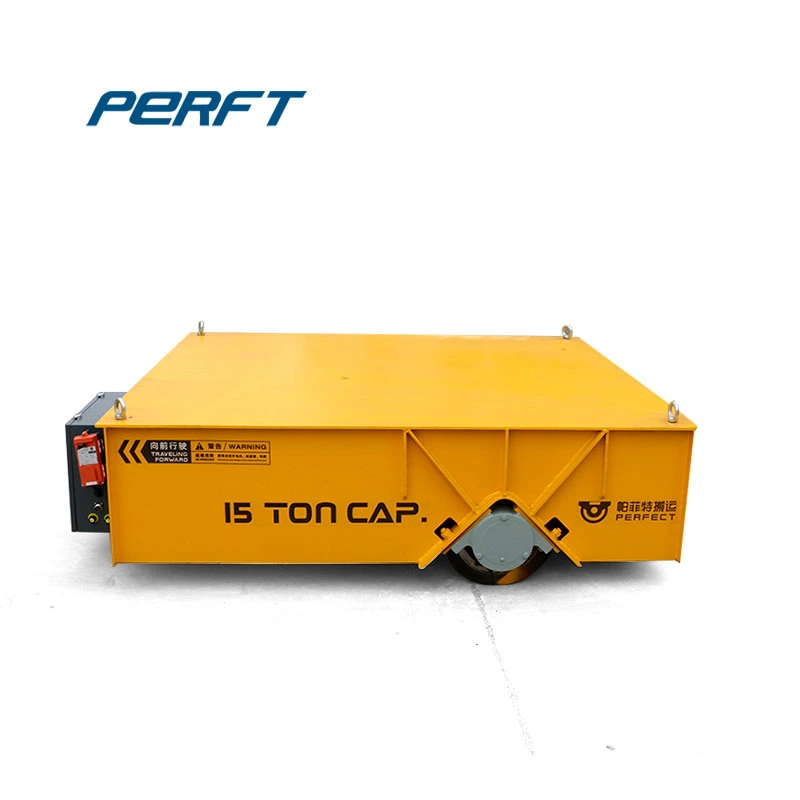

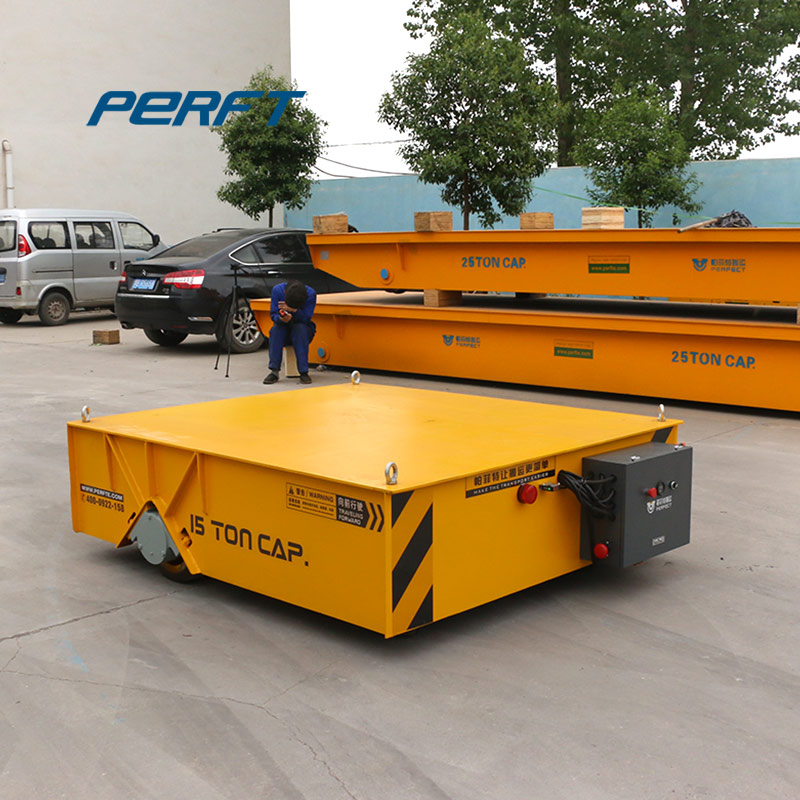

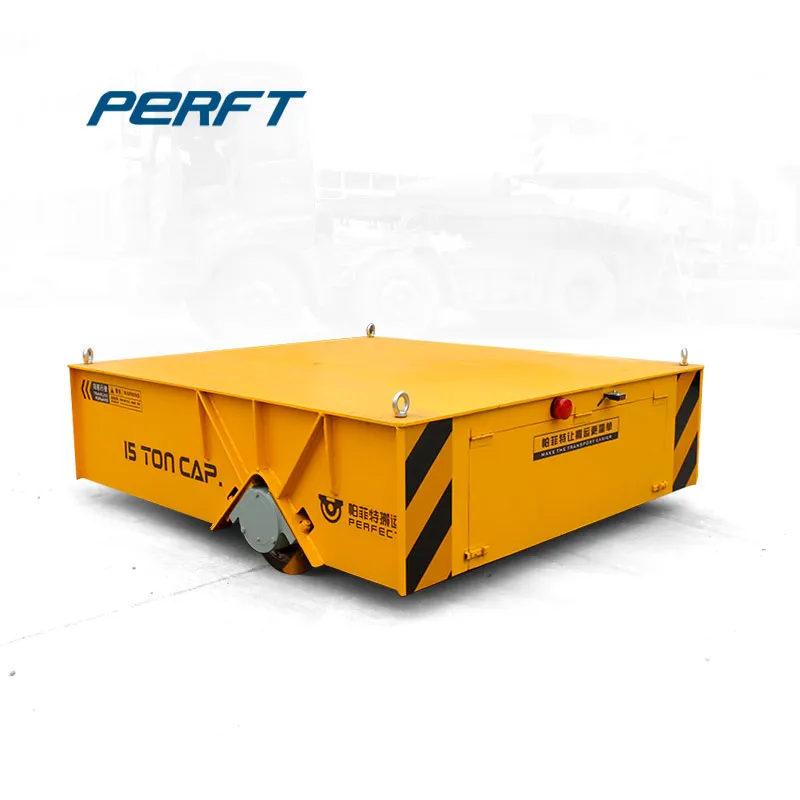

Material Handling Powered Transfer Battery Trolley

Battery transfer trolleys are movable platforms used for the horizontal movement of materials, assemblies and other items. It is powered by storage battery, which is installed on the transfer carts. The transfer carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. Usually the vehicles are used to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These cargo loading trolleys are designed to operate on floor or rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.

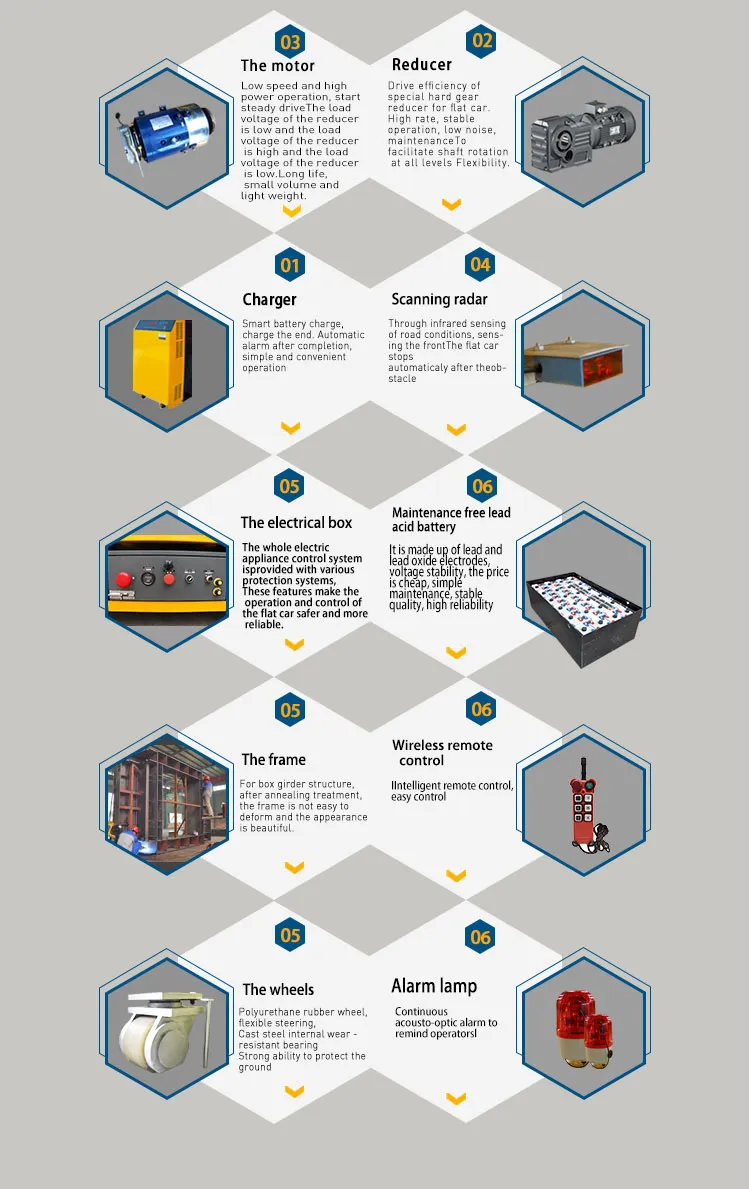

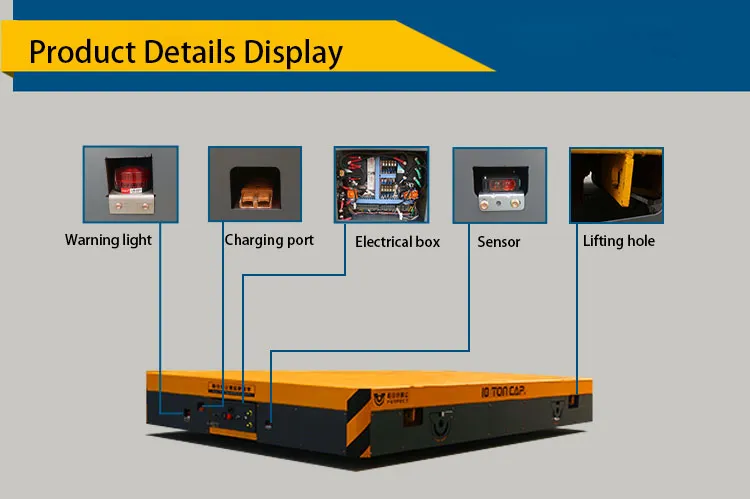

Detailed Photos

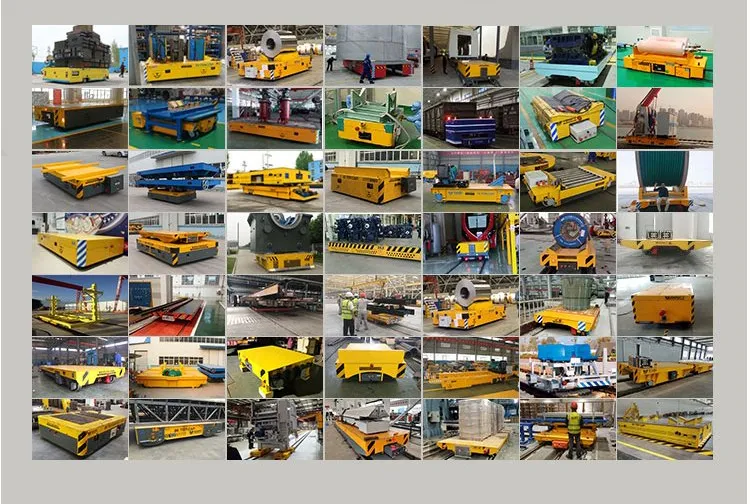

Application & Sites

For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. The cargo transfer vehicles are used:

To carry loads along assembly lines
Transfer material from one work station to the next
Store and transport an entire shift worth of production
Stable yet moveable machine base

Applicable industrial fields: Metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!

Technical Parameters

Technical Parameters for Electric Transfer Carts
Rated Load (t)	5	10	15	20	30	40	50
Impacted Rated Load (t)	7.5	15	22.5	30	45	60	75
Frame Structure	Steel plates welded, beam structure
Steel Plate Thickness (mm)	8	10	12	14	14	16	16
Running Speed (m/min)	0-15					0-12
Brake Principle	Electric magnetic brake
Radar Control	3-0.3m Automatic stop for obstacles

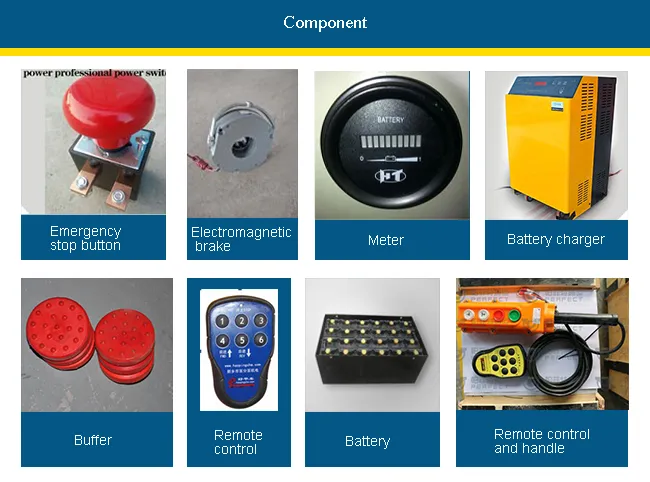

Operation and Components

Drive systems include gear reducer, axle drives and individual wheel drives. Typically equipped with a hand-held pendant control used by the operator to control movement. Travel speed averages 20m/min. Semi-automatic and fully automatic control systems are also available.

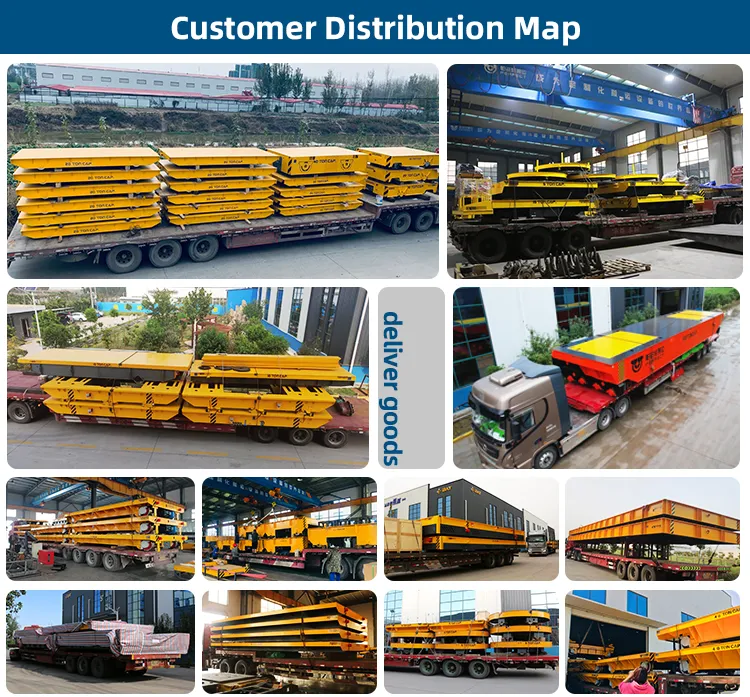

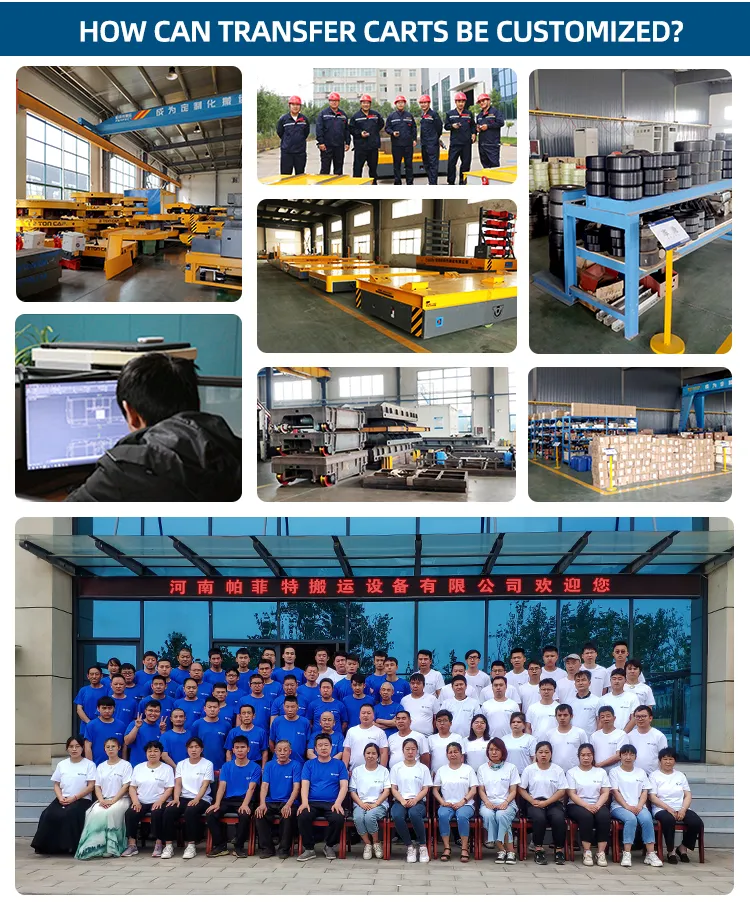

Factory and Transportation

Specialized in electric transfer trolleys, railway guided motorized transfer trolleys, battery transfer carts, rail turntables, material transfer cars, coil carts, die carts, and industrial trailers.

Certifications & After Sales

Frequently Asked Questions

Q1: Will a transfer cart be a good solution for my facility? Transfer carts are excellent moveable platforms for horizontal movement of materials. They are an affordable and compact choice for handling heavy loads, especially in areas with limited floor space or restrictive passages.

Q2: What are the main advantages of using these carts over lift trucks? They are more accommodating for moving long loads through doorways, have a compact design for limited floor area, and the cart deck can be customized to suit specific load requirements like V-grooves for coils.

Q3: What kind of load applications can they handle? Common applications include handling coils, tanks, assemblies, sub-assembly shuttles, maintenance support for motors/pumps, and material shuttles for steel tubing.

Q4: How much weight can these battery trolleys transport? These specialized drive systems make it possible to easily and safely move materials up to 200 tons (rated capacities range from 1 to 300 tons depending on model).

Q5: What safety features are integrated into the trolleys? The carts include sound and light warning equipment, and advanced radar control that provides automatic stopping when obstacles are detected within a 3 to 0.3-meter range.

Q6: How is the vehicle controlled during operation? Units are typically equipped with a hand-held pendant or remote control. They can also be integrated with PLC systems for semi-automatic or fully automatic operation.
