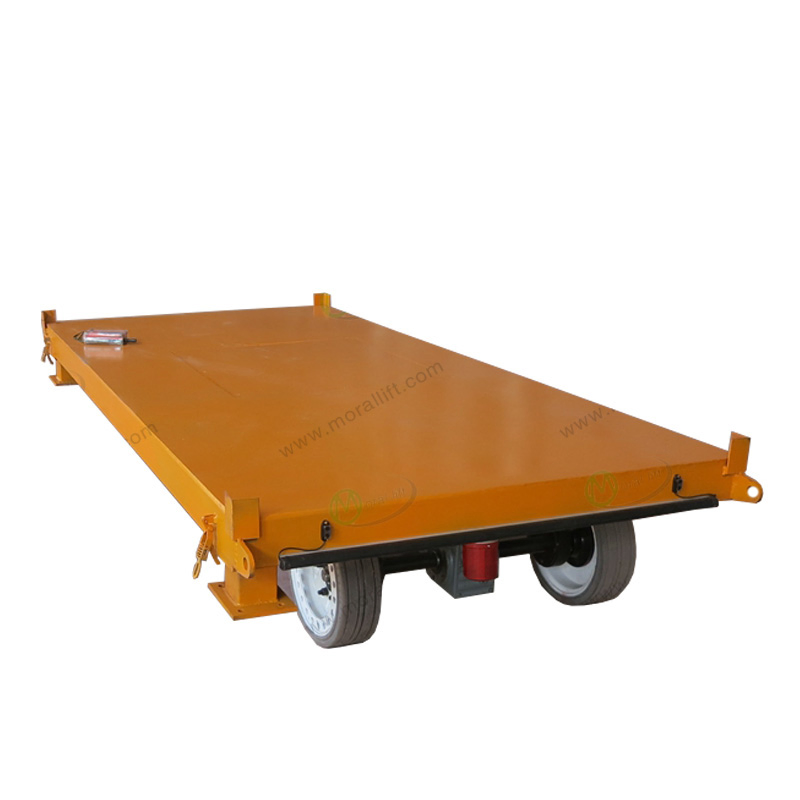

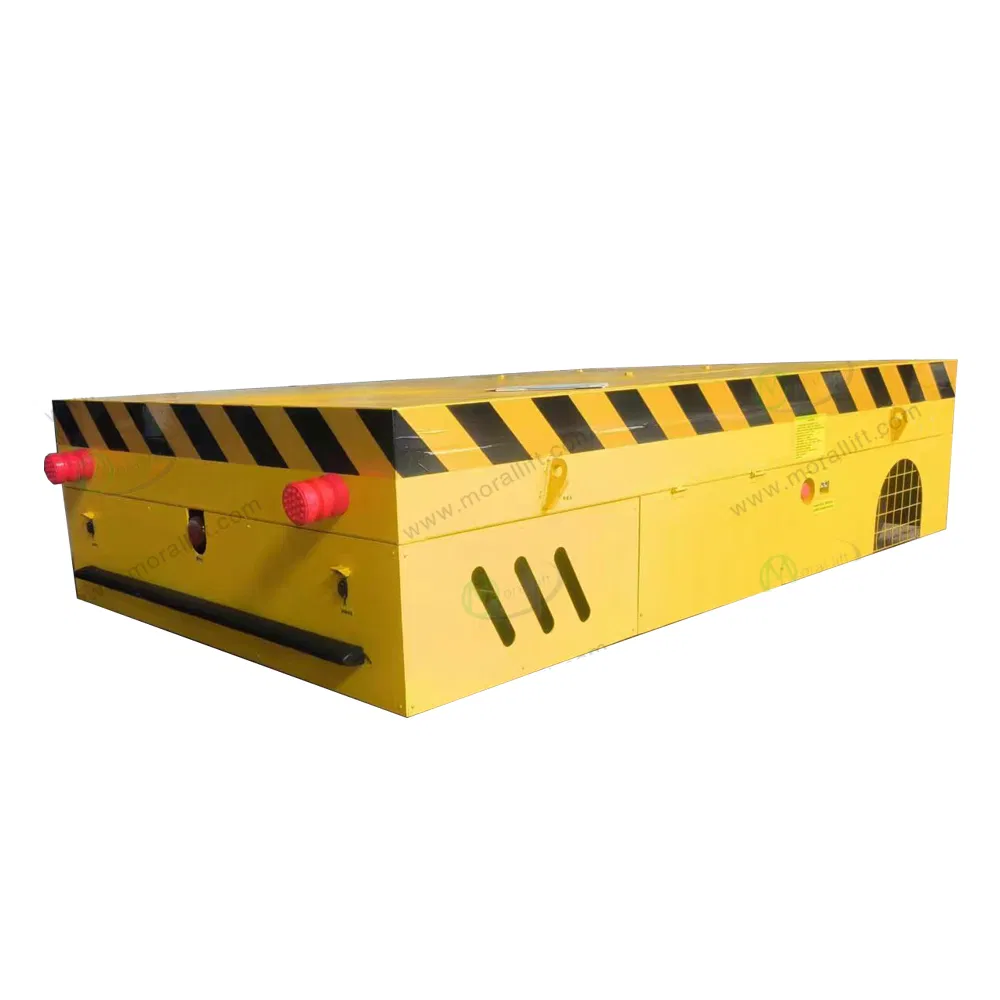

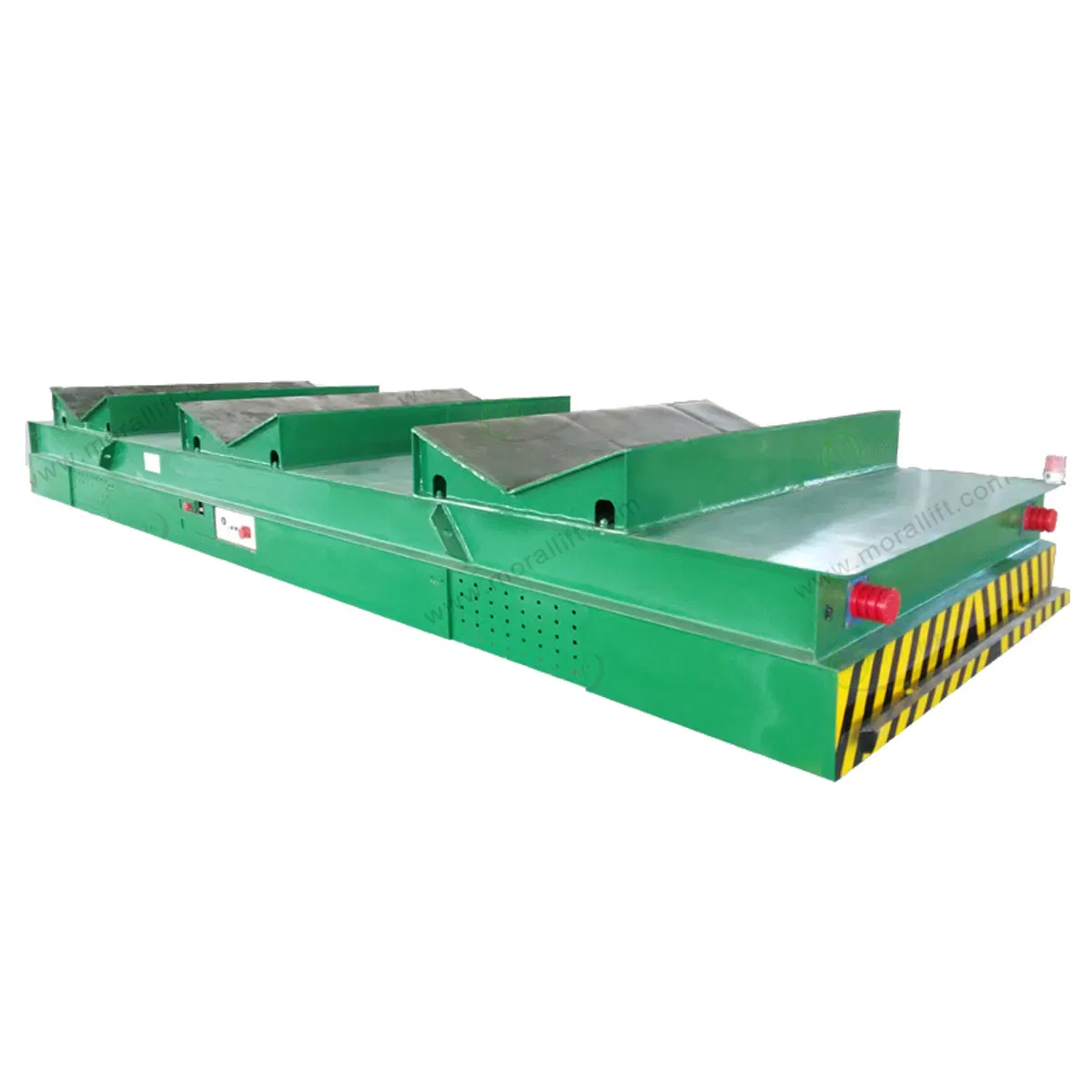

Motorized material handling equipment 15T transfer trolley

Customization: Available
Color: Customized
Warranty: 1 Year

Product Description

Basic Information
Platform frame:22# U-steel
Power:Battery, 24pcs
Control:Button/Remote
Steering:Hydraulic pump + Cylinder
Height:600-900mm
Load Capacity:10T/20T/30T/50T Customized
Platform Size:4*2m/5*2.2m/Customized
Drive Motor:4.0kw/5.5kw/7.5kw
Reducer:R series
Wheel:Solid tyre, 4pcs
Package Size:400cm * 200cm * 800cm
Gross Weight:4000.00kg
Product Description

This Rail Transfer Heavy Load Mover is powered by a high-capacity battery within the cart. The DC motor and gear reducer are managed by a specialized DC control system to drive wheels, enabling smooth starts, stops, forward/backward movement, and variable speed control. While KPX series operate on "S" and arc-shaped railways, the KPW series offers total flexibility for use anywhere without the need for rails.

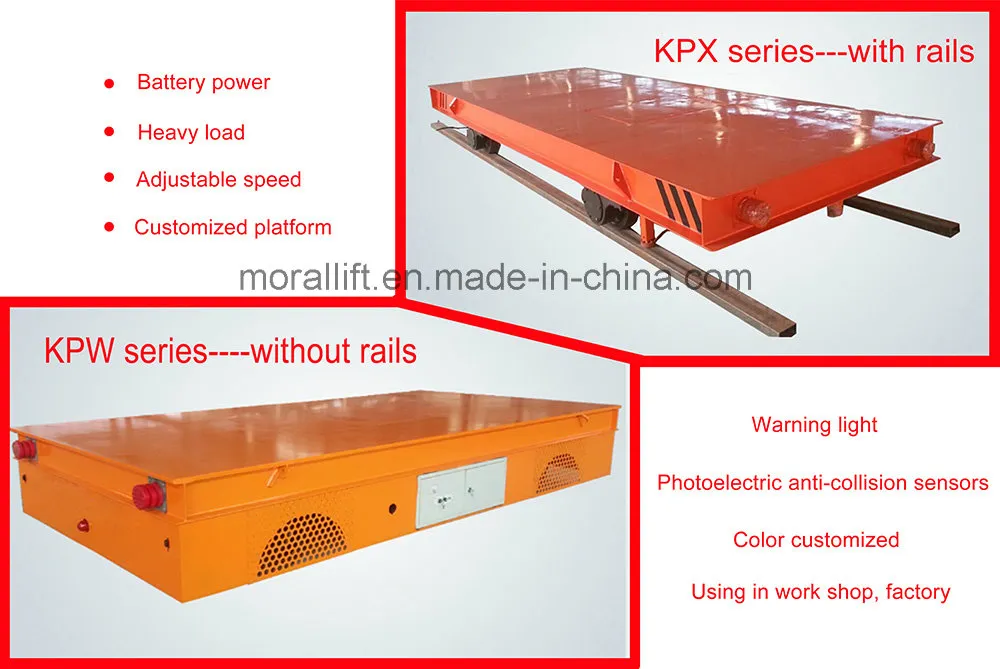

Rail Transfer Heavy Load Mover
Key Characters
  • Highly safe and flexible operation.
  • Minimal requirements for railway construction.
  • No limit on running distance.
  • Safe and convenient with no external wiring.
  • Fully adjustable running speed.
Suitable Applications

Ideal for various industries including steel mills for transferring structures, pipes, billets, ladles, and coils. Also suitable for paper roll plants, painting shops (transferring workpieces to painting rooms), sandblasting rooms, shipbuilding, quarries, warehouses, and multi-bay workshops.

Technical Parameters
Model KPX(W)-10 KPX(W)-20 KPX(W)-50 KPX(W)-100 KPX(W)-150
Rated Load (t)102050100150
Length (mm)200040005500650010000
Width (mm)15002200250028003000
Height (mm)4505506508501200
Wheel Base (mm)12002800320049007000
Running Speed (m/min)2520202018
Motor Power (kw)22.55.51115
Battery Voltage (v)4848484848
Detailed Photos & Specifications

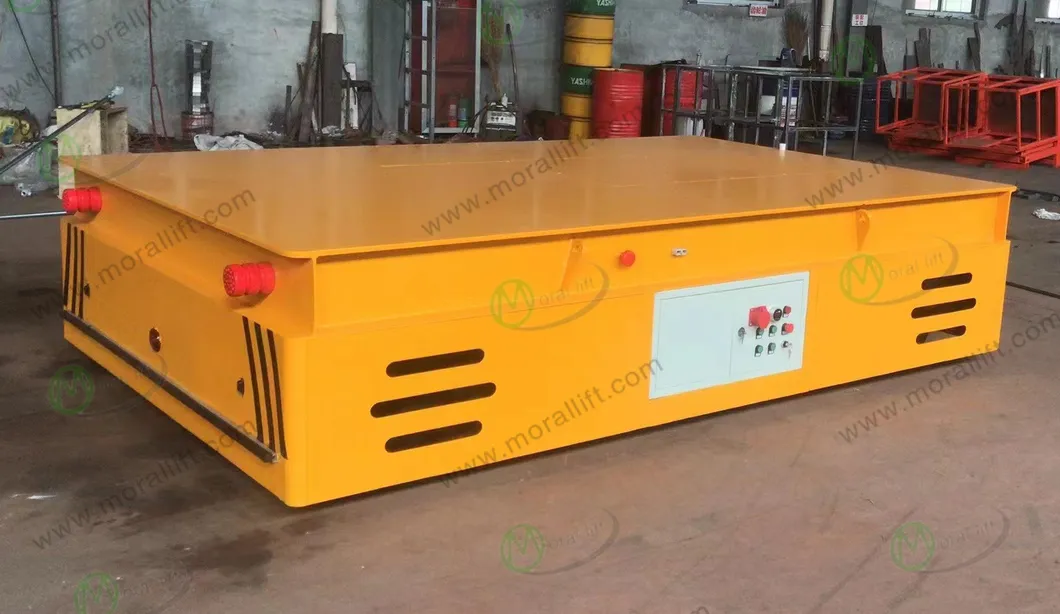

Trackless transfer cart
Trackless Transfer Cart Specs:
• Load capacity: 10T to 50T customized
• Platform size: 4000*2000mm / customized
• Height: 600-900mm
• Drive motor: 4kw/5.5kw/7.5kw
• Hydraulic cylinder steering
• Safety: Safety edge, photoelectricity, sound & light warning

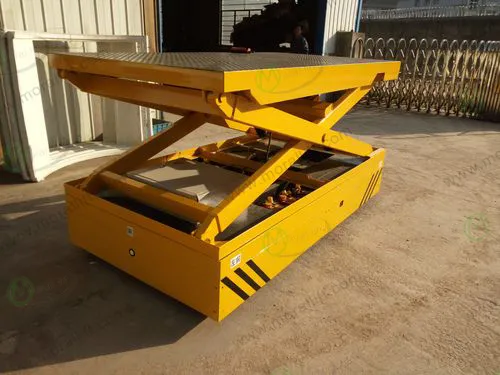

Detail 1

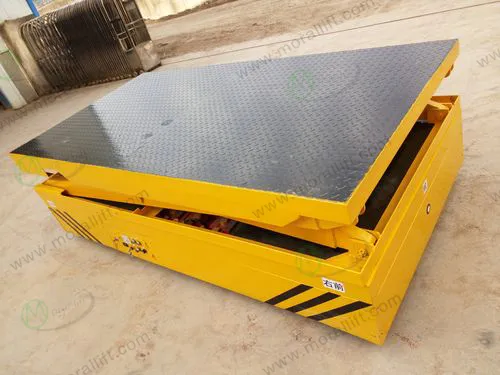

Detail 2

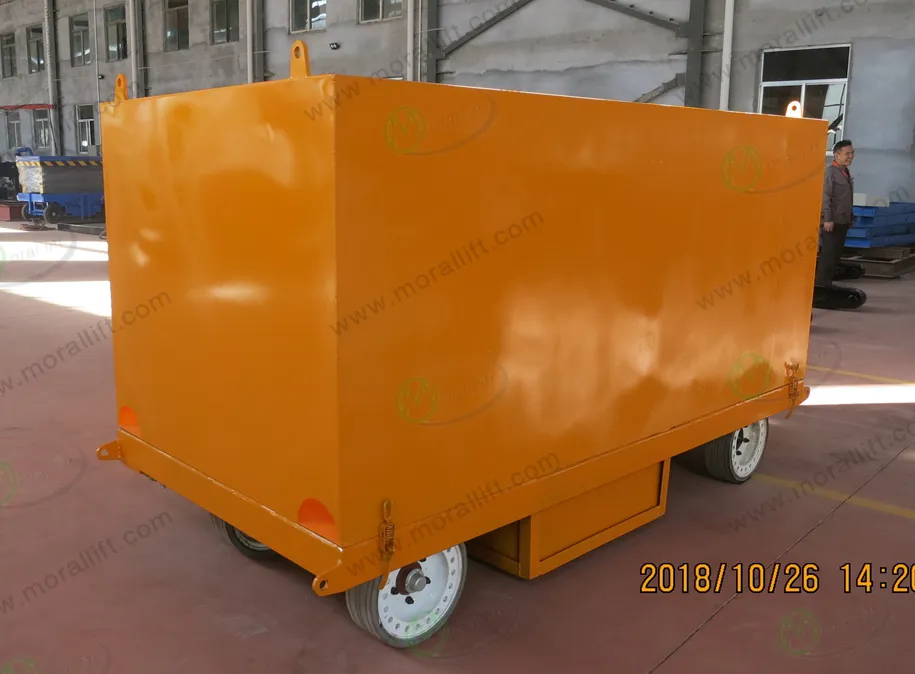

Detail 3

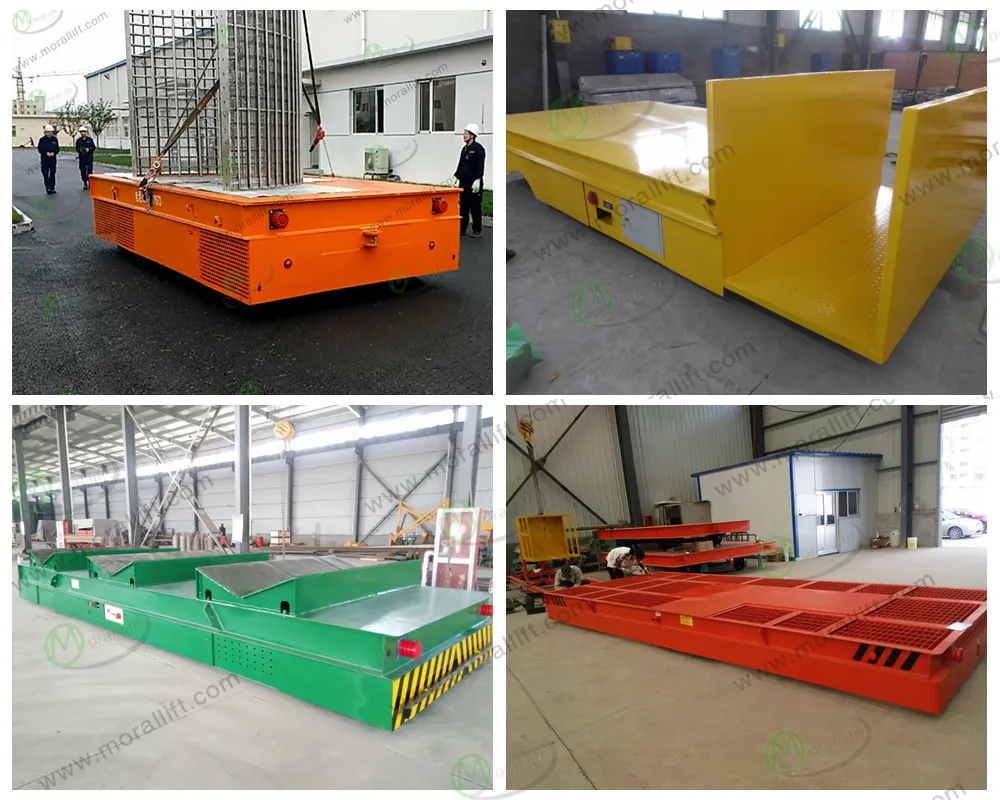

Chassis Detail

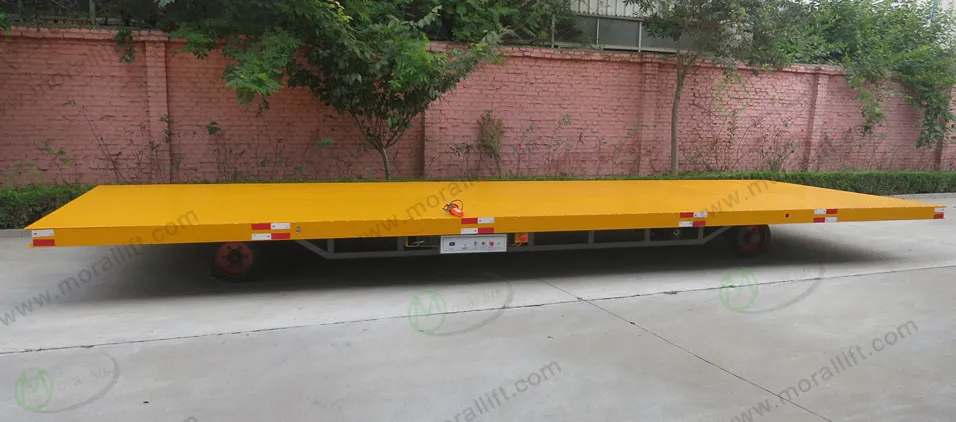

Wheel System

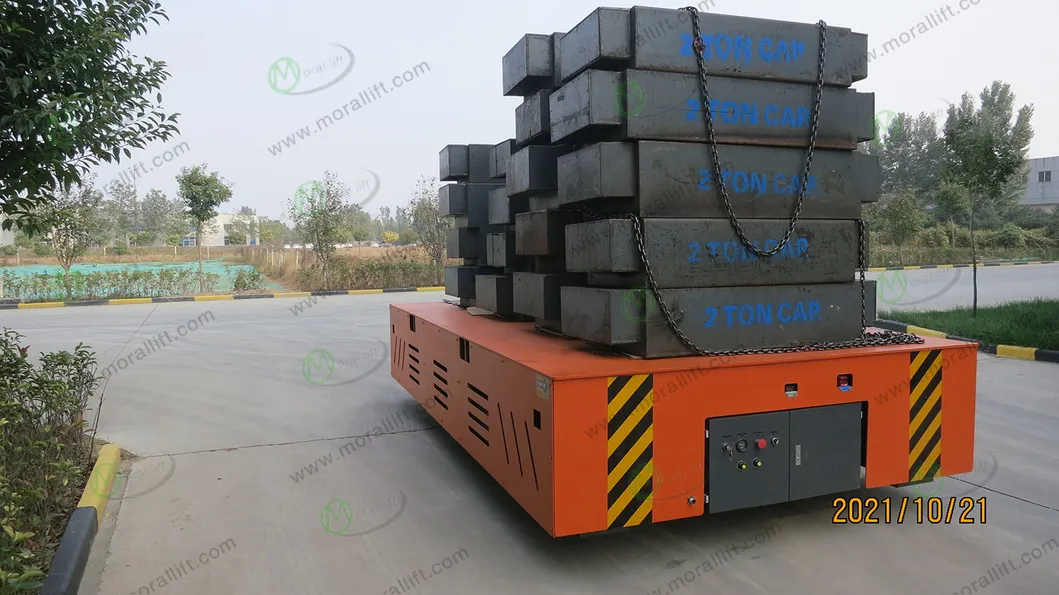

Workshop 1
Workshop 2
Shipping & Logistics

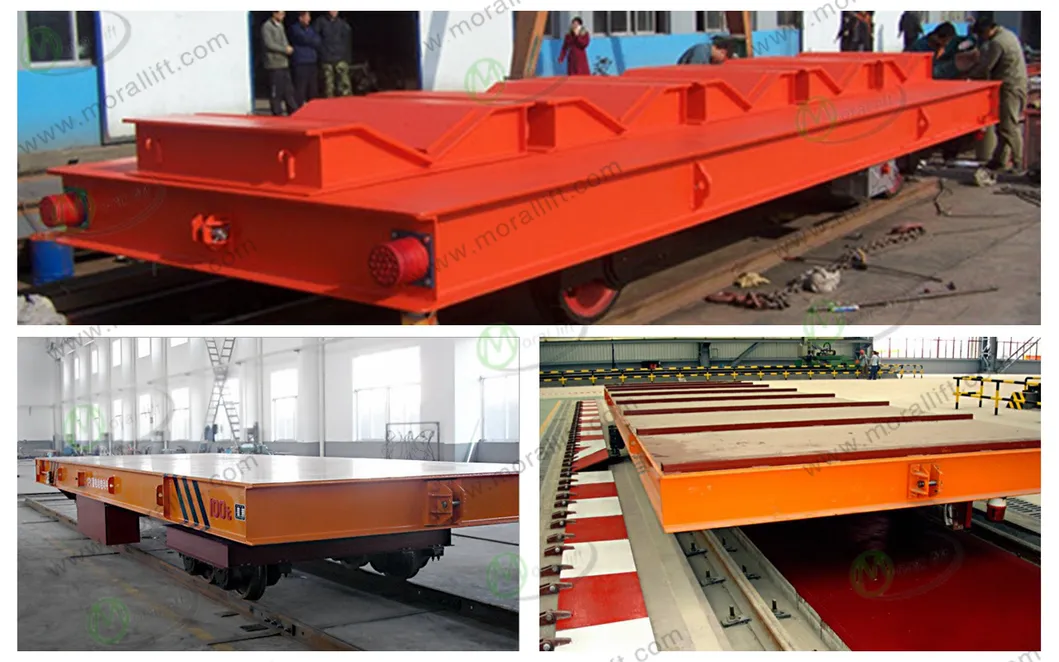

Packaging

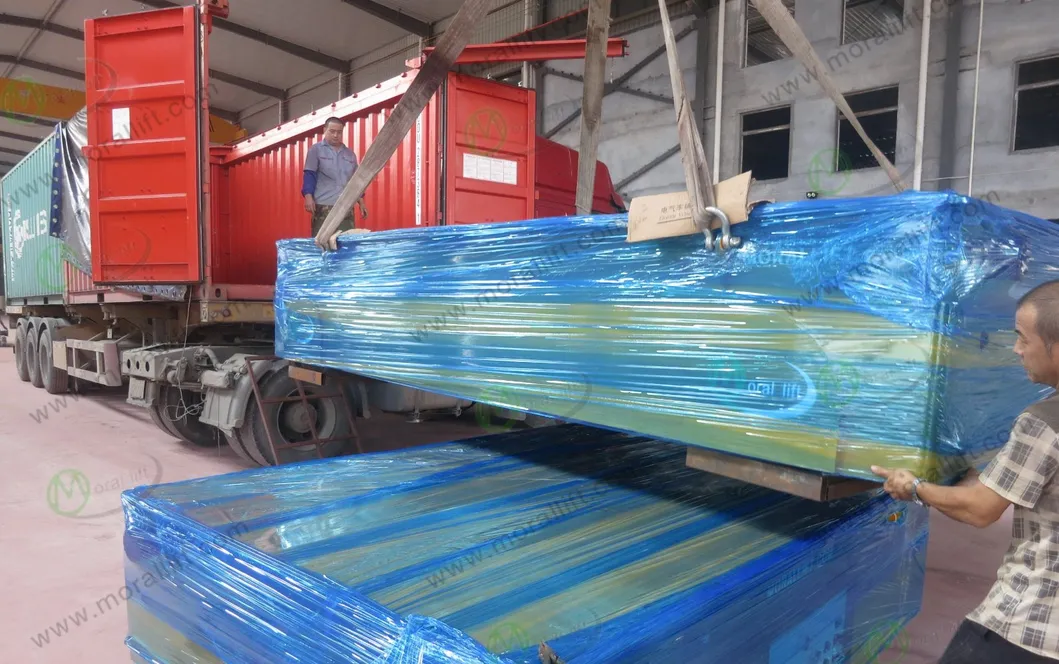

Shipping 1

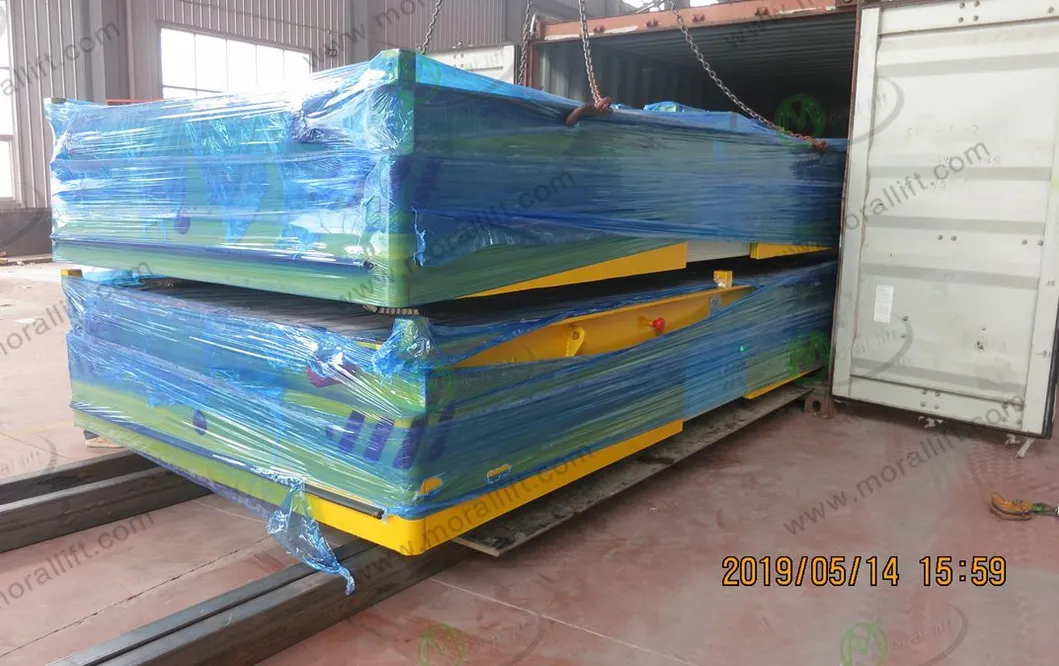

Shipping 2
Professional Service & Quality Control

We are a professional manufacturer dedicated to providing high-quality transfer carts with CE certification. Our commitment is "Quality First, Customer Above."

Why Choose Us
  • Professional design drawings provided for confirmation to prevent misunderstandings.
  • Production strictly follows CE quality management systems.
  • 100% testing of all lead rail lifts before delivery.
  • Detailed rust removal and powder coating process.
  • 5-year warranty for the main structure and 1-year for electrical components.
After-Sales Support
  • User-friendly English manuals for installation and maintenance.
  • Free replacement parts for non-human factor issues during the warranty.
  • 24-hour technical support via online communication channels.
  • Rapid response within 2 hours for any inquiries.
Buying Tips

To provide the best price, please confirm the following parameters:

1. Load Capacity (kg) | 2. Platform Size (mm)

Customization is available for all specific industrial requirements!

Frequently Asked Questions
1. What is the Minimum Order Quantity (MOQ)? The MOQ is 1 set.
2. What is the typical delivery time? Delivery usually takes 15-20 working days after receipt of payment.
3. Can the platform size and load capacity be customized? Yes, both platform size and load capacity can be customized according to your specific needs.
4. What power source options do you offer? We offer both electric (cable) and battery-powered options depending on your operational requirements.
5. Do the machines undergo testing before shipment? Yes, all machines undergo a full testing process and a 100% qualification check before they are shipped.
6. Is technical support available internationally? Yes, we provide 24-hour technical support via email, video, or phone. If necessary, engineers can be dispatched to your location.
