Nauti Lift
1 / 5

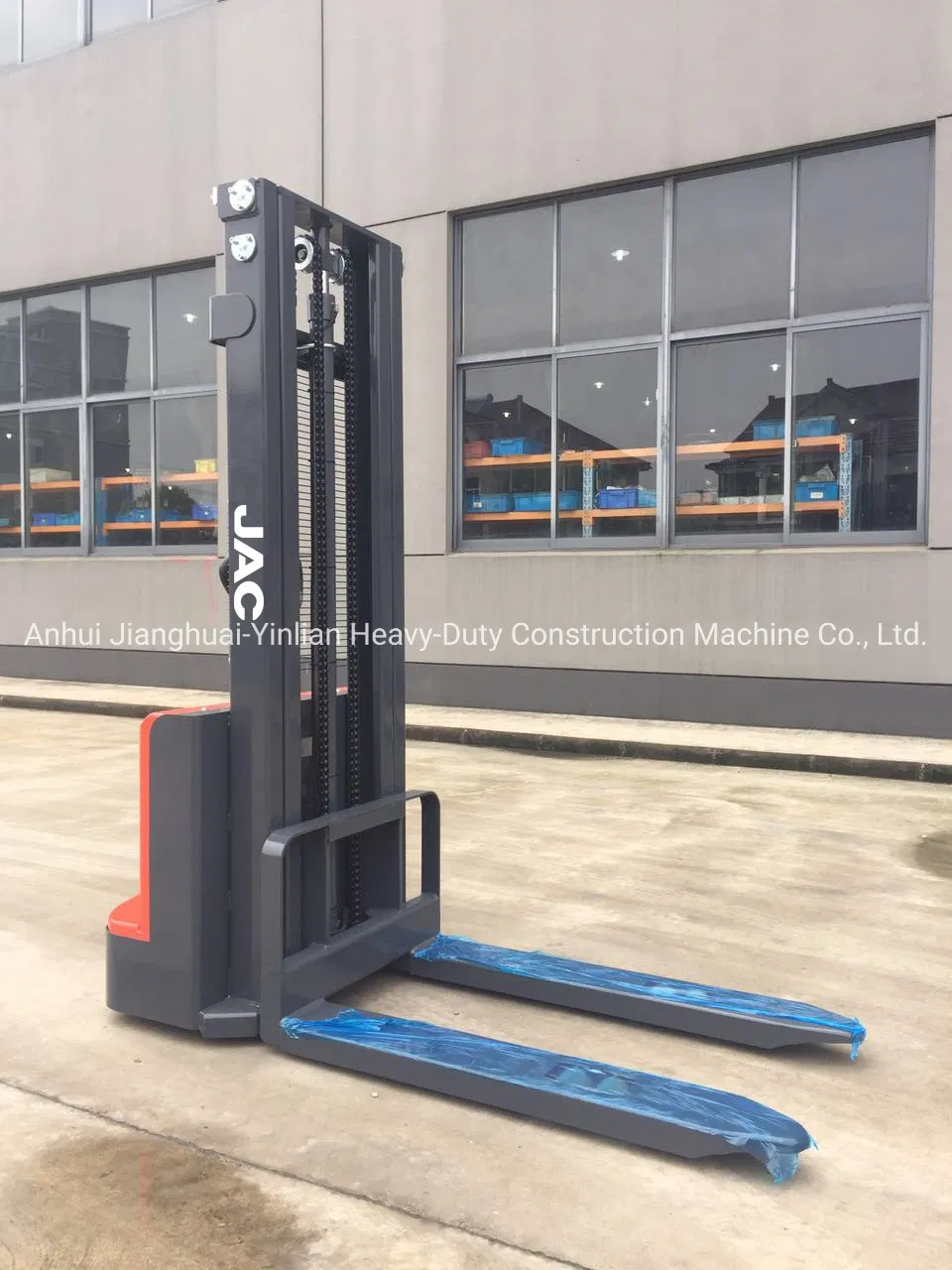

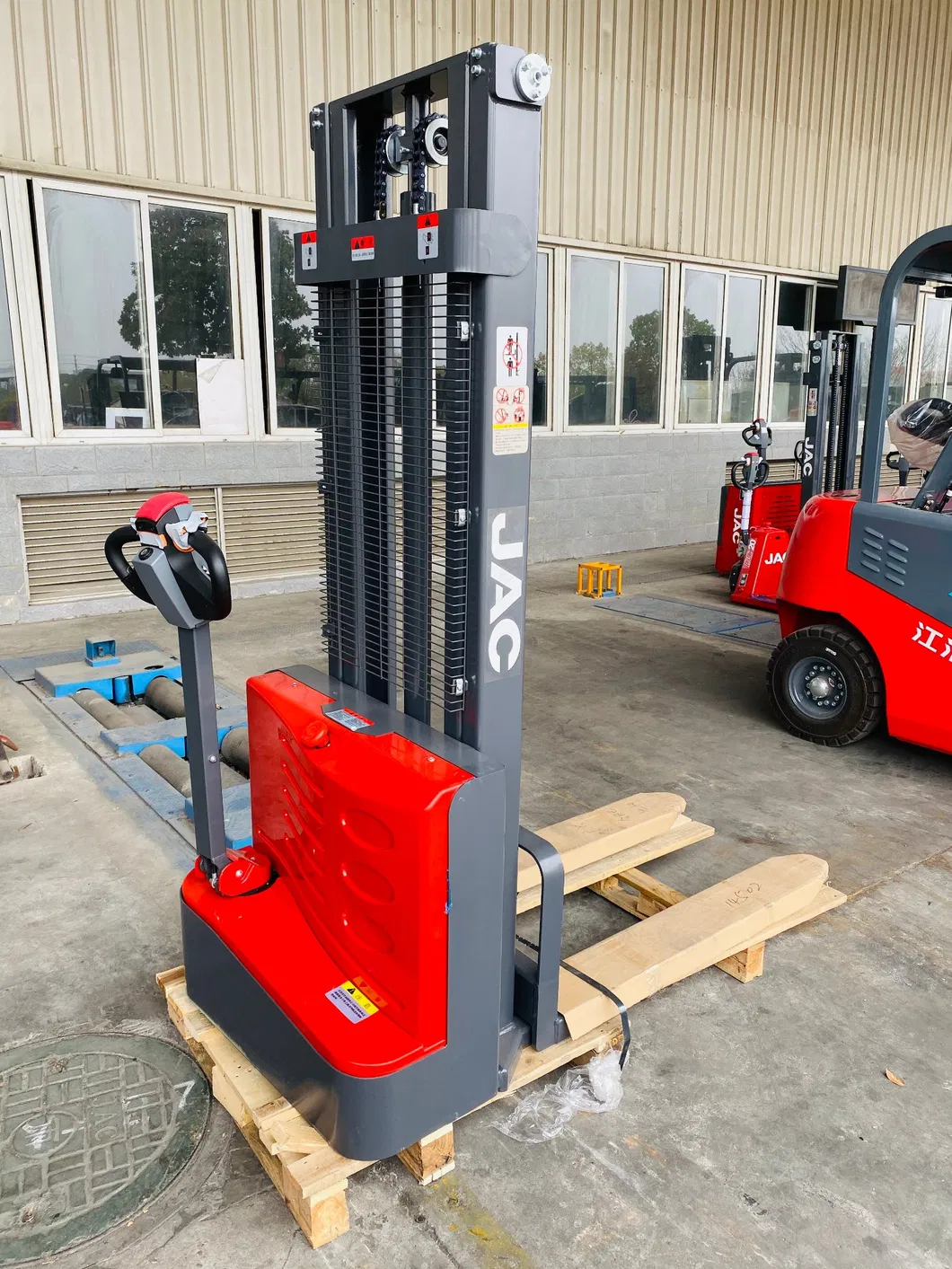

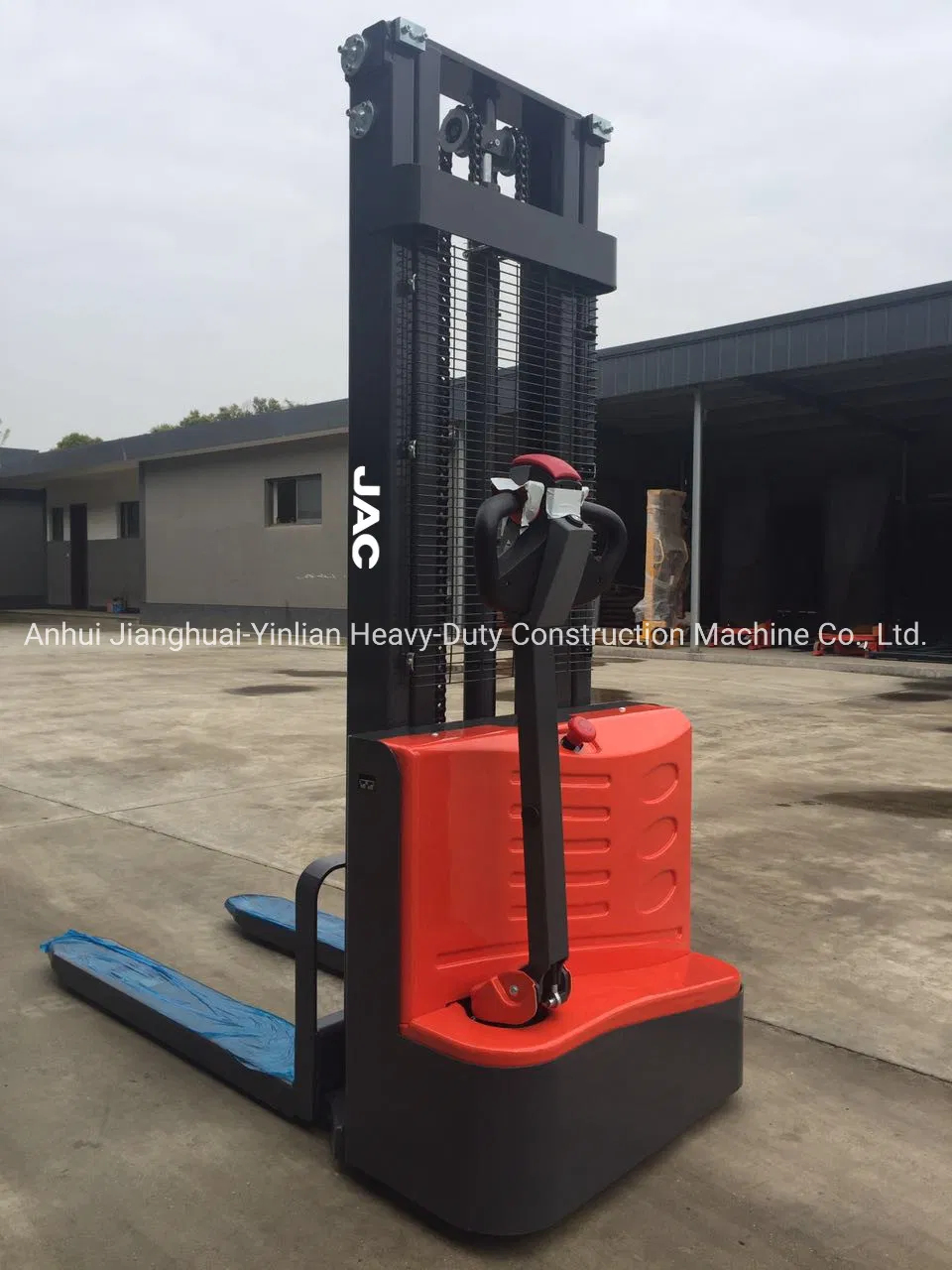

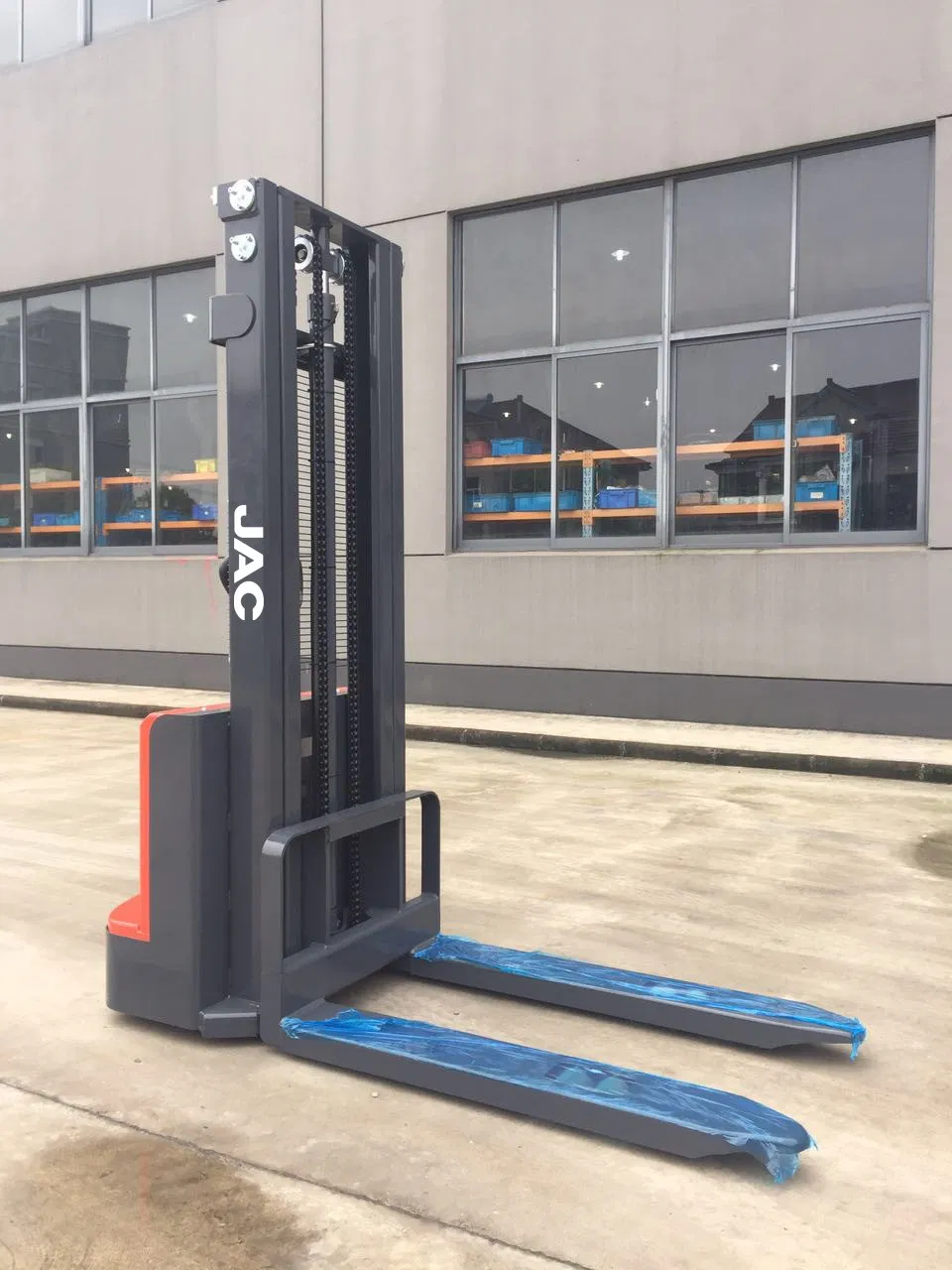

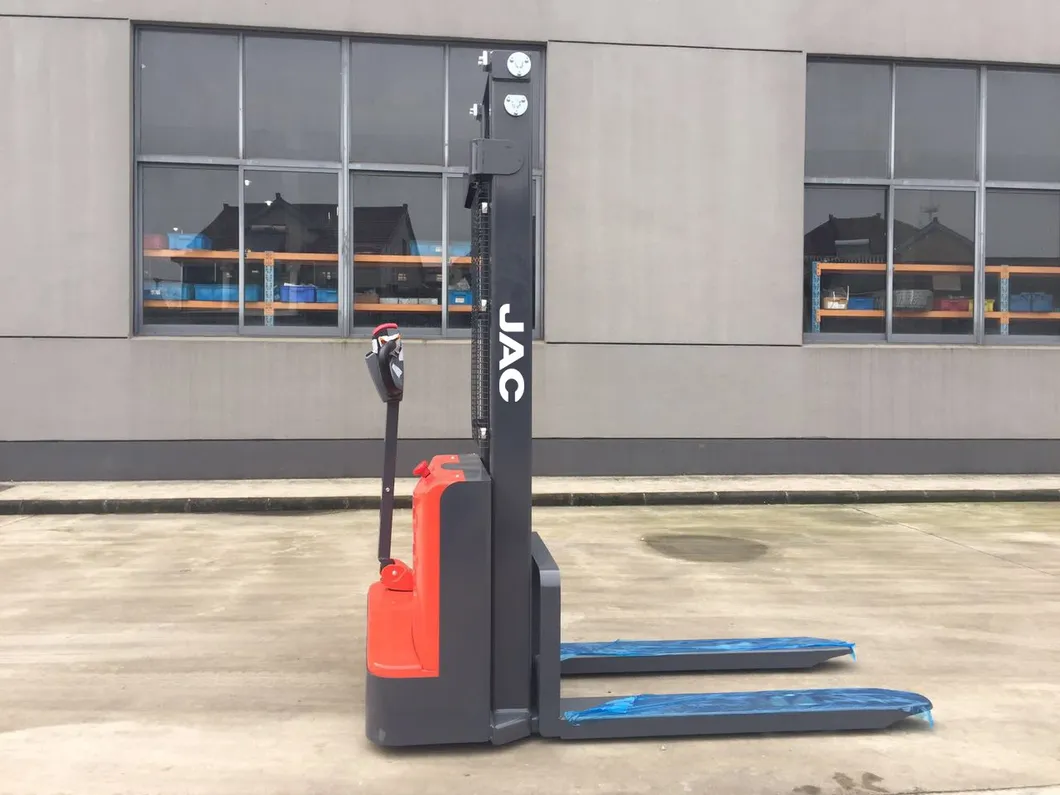

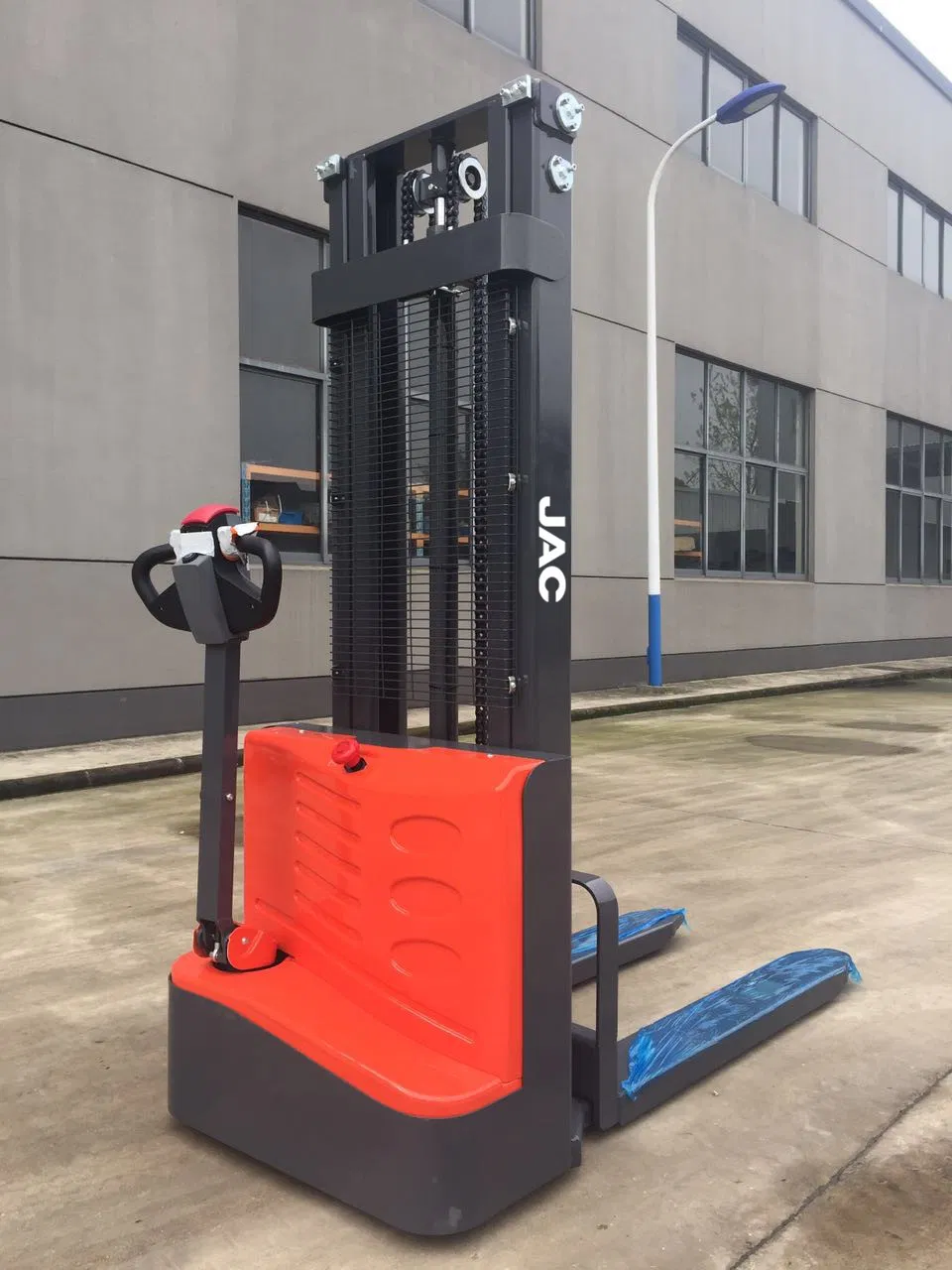

| Category | No. | Description | Unit | Data (CDD15J) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Characteristics | 1.3 | Power unit | - | Electric | ||||||
| 1.4 | Operation | - | Pedestrian | |||||||
| 1.5 | Rated weight | kg | 1500 | |||||||
| Weights | 2.1 | Service weight (with battery) | kg | 415 | 460 | 477 | 495 | 503 | 515 | 525 |
| Max Lifting Heights per Weight Variant | mm | 1600 | 2000 | 2500 | 3000 | 3300 | 3500 | 4000 | ||
| Wheels/Tyres | 3.1 | Tires | - | PU (Polyurethane) | ||||||
| 3.2 | Driving wheel size | mm | Φ210×70 | |||||||
| 3.3 | Bearing wheel size | mm | Φ80×70 | |||||||
| Dimensions | 4.7 | Lowered fork height | mm | 86 | ||||||
| 4.8 | Overall length | mm | 1740 | |||||||
| 4.10 | Overall width | mm | 795 | |||||||
| 4.16 | Min. Turning radius | mm | 1342 | |||||||
| Performance | 5.1 | Travel speed, laden/unladen | km/h | 4.0/4.2 | ||||||
| 5.2 | Lifting speed, with/without load | mm/s | 92/136 | |||||||
| 5.5 | Service brake | - | Electromagnetic braking | |||||||
| Drive/Battery | 6.1 | Drive motor rating | kW | 0.75 | ||||||
| 6.4 | Battery voltage/capacity | V/Ah | 2×12 / 100 | |||||||
