■ Basic Information
Transport Package
Nude Package
Production Capacity
300 Pieces/Year
■ Technical Specifications
| Model |
CDD1520 |
CDD1525 |
CDD1530 |
CDD1535 |
CDD1540 |
| Order Number |
2.00011 |
2.00012 |
2.00013 |
2.00014 |
2.00015 |
| Load Capacity (kg) |
1500 |
1500 |
1500 |
1500 |
1500 |
| Max. Lift Height (mm) |
2000 |
2500 |
3000 |
3500 |
4000 |
| Battery (V/Ah) |
24/165 |
24/165 |
24/180 |
24/180 |
24/210 |
| Charger (V/A) |
24/20 |
24/20 |
24/25 |
24/25 |
24/30 |
| Lift Motor (kw) |
1.6 |
1.6 |
1.6 |
2.5 |
2.5 |
| Drive Motor (kw) |
AC1.5 |
AC1.5 |
AC1.5 |
AC1.5 |
AC1.5 |
| Weight (kg) |
562 |
562 |
562 |
562 |
562 |
| Fork Size (mm) |
2000*850*1560 |
2000*850*1780 |
2000*850*2050 |
2000*850*2300 |
2000*850*2550 |
| Service Brake |
Electromagnetic Braking |
| Travel Speed (km/h) |
4/6 (Loaded/Unloaded) |

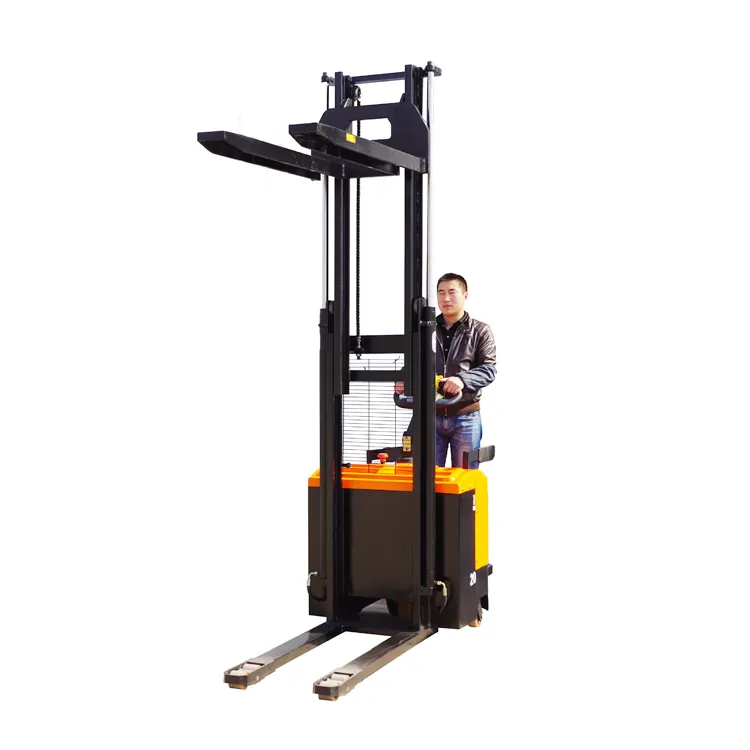

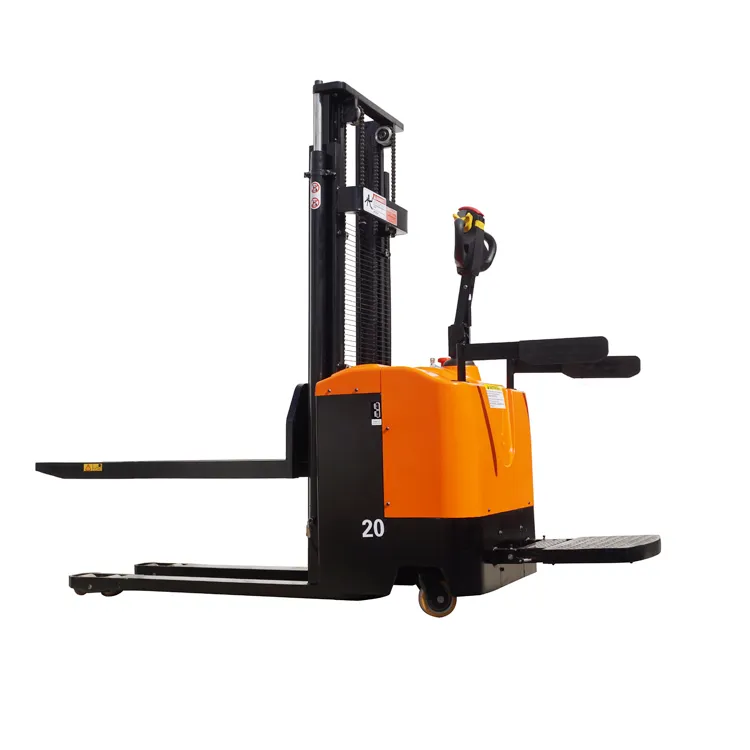

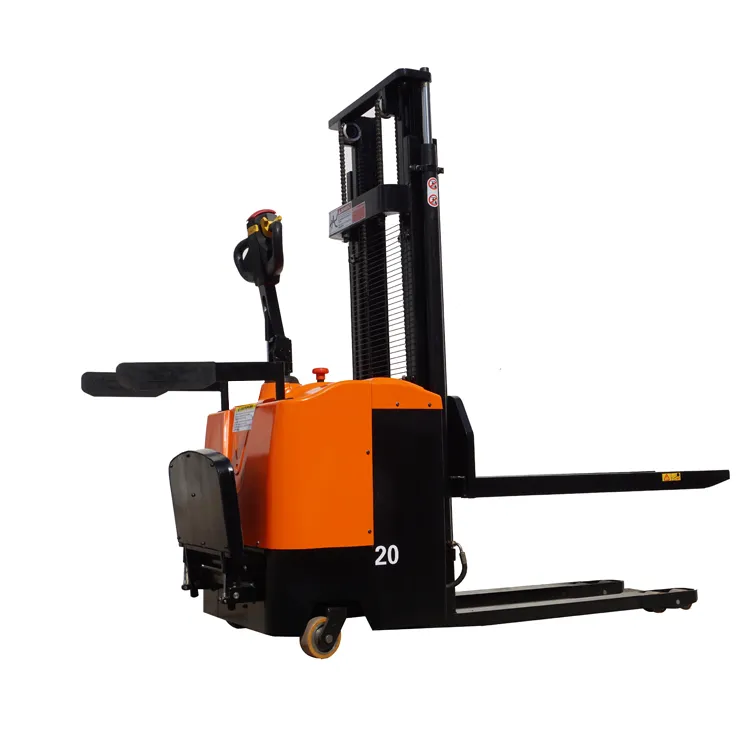

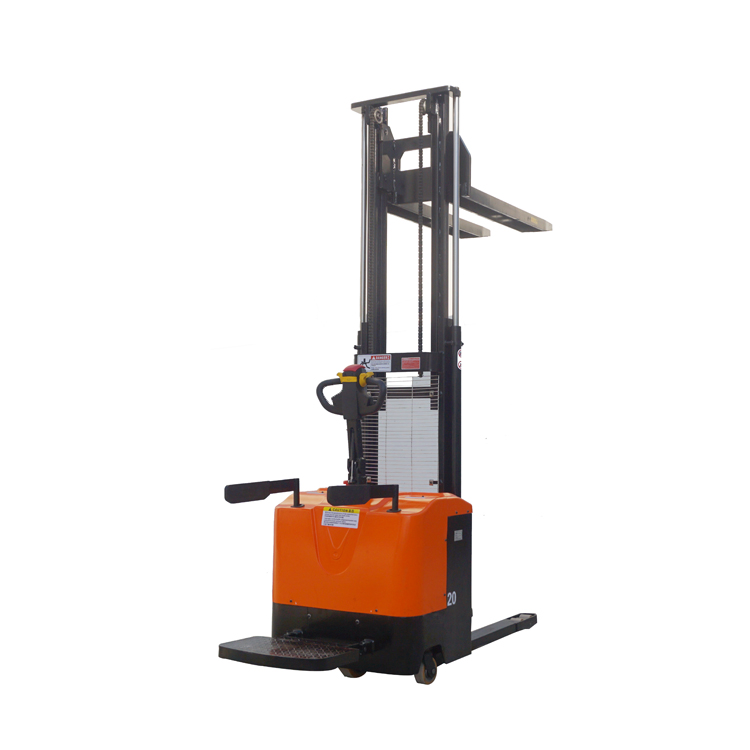

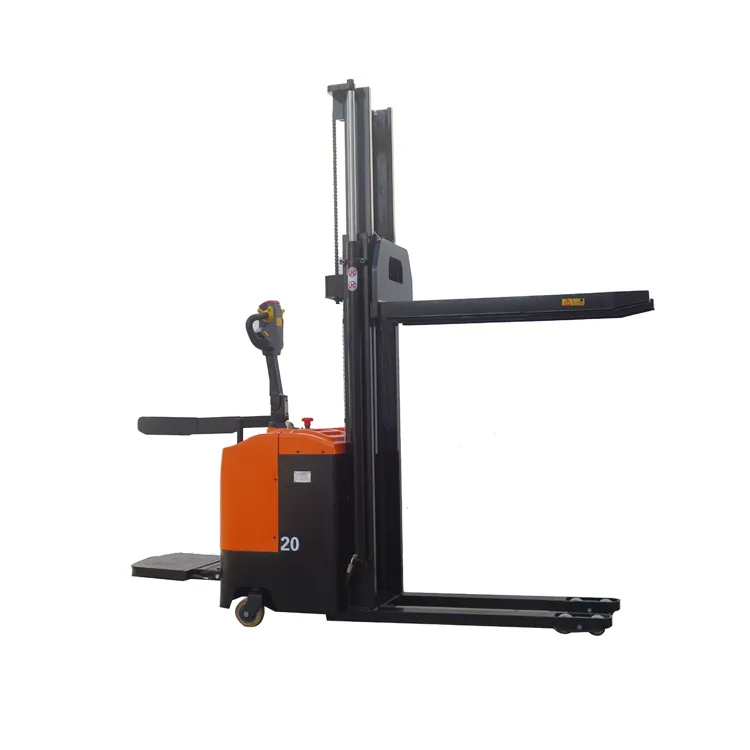

■ Product Visuals
■ Product Features
-
✓
European Standards: Fully compliant with EN1757-1:2001 and EN1727 for guaranteed quality and safety.
-
✓
High-Strength Construction: The mast is fabricated from 25MnV high-strength channel steel, offering superior durability and safety.
-
✓
Advanced Power System: Equipped with a high-capacity lead-acid battery for extended continuous operation.
-
✓
Ergonomic Control: Designed with an ergonomic handle and optional standing pedal for easy operation and maneuverability.
-
✓
Reliable Hydraulics: Features a premium lift pump system providing stable, noiseless, and environmentally friendly performance.
-
✓
Precision Control: Utilizes a rapid-response electric control assembly for high reliability and simple operation.
-
✓
Safety First: Built-in anti-explosion valve prevents sudden load drops in the event of hydraulic hose failure.
Frequently Asked Questions
What is the maximum lift height for this series?
The electric pallet stacker series offers various models with maximum lift heights ranging from 2000mm up to 4000mm to suit different warehouse needs.
What safety certifications does the equipment hold?
This equipment is built in compliance with European safety standards, specifically EN1757-1:2001 and EN1727.
What type of motor and battery system is used?
The stacker uses a high-performance AC drive motor (1.5kw) and is powered by a durable 24V lead-acid battery with capacities up to 210Ah.
Is there a safety mechanism for hydraulic failure?
Yes, it is equipped with an anti-explosion valve that ensures the load will not fall down directly even if the hydraulic hose fails.
What is the load capacity of these stackers?
Standard models support a load capacity of 1000kg, while the CDD15 series can handle up to 1500kg.
What are the travel and lifting speeds?
The travel speed is approximately 4-6 km/h, and the lifting speed is between 45-50 mm/s depending on the load condition.
