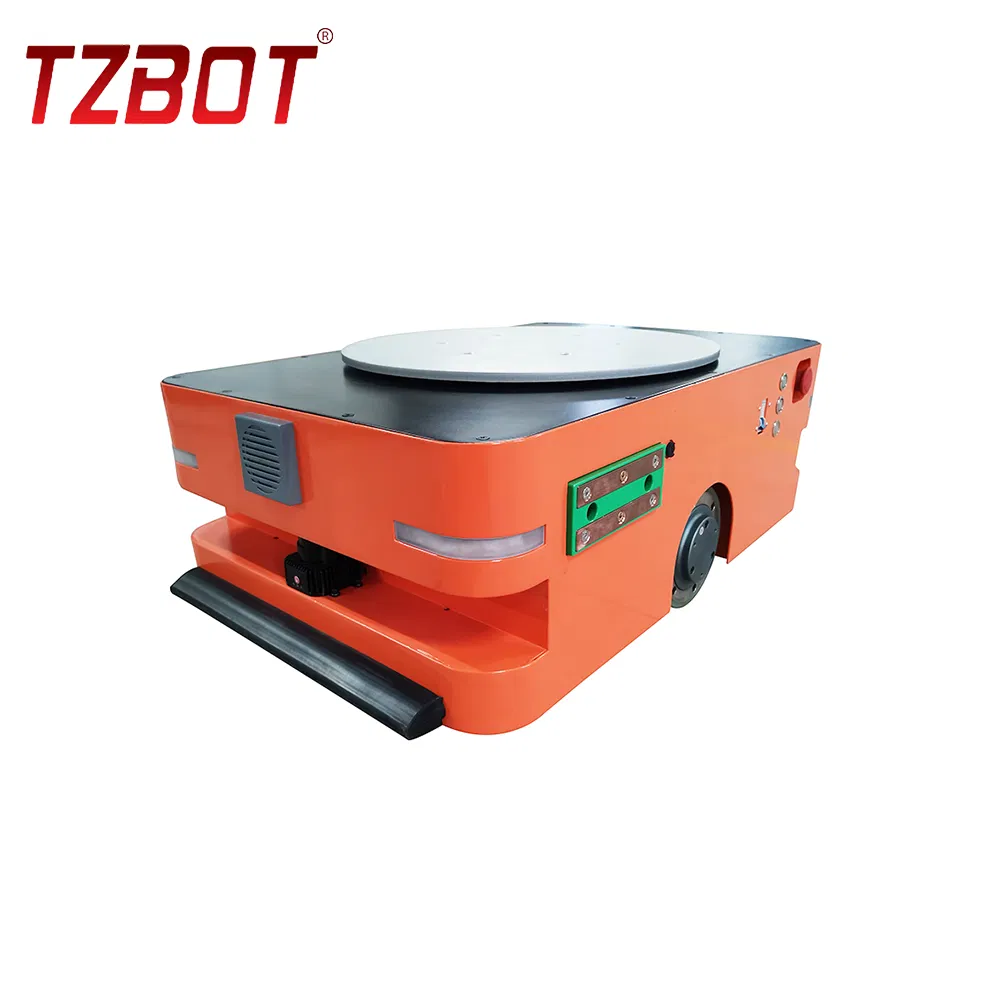

Heavy Load Automated Guided Vehicle Warehousing 200kg Capacity Material Handling Equipment Way Agv with Fast Agv Chassis and Good Agv Price (TZAGV-DSB02)

Customization: Available
Control Mode: Magnetic Navigation
Drive Mode: Motor

Product Description

📊 Basic Info & Overview
Model NO.TZAGV-DSB02

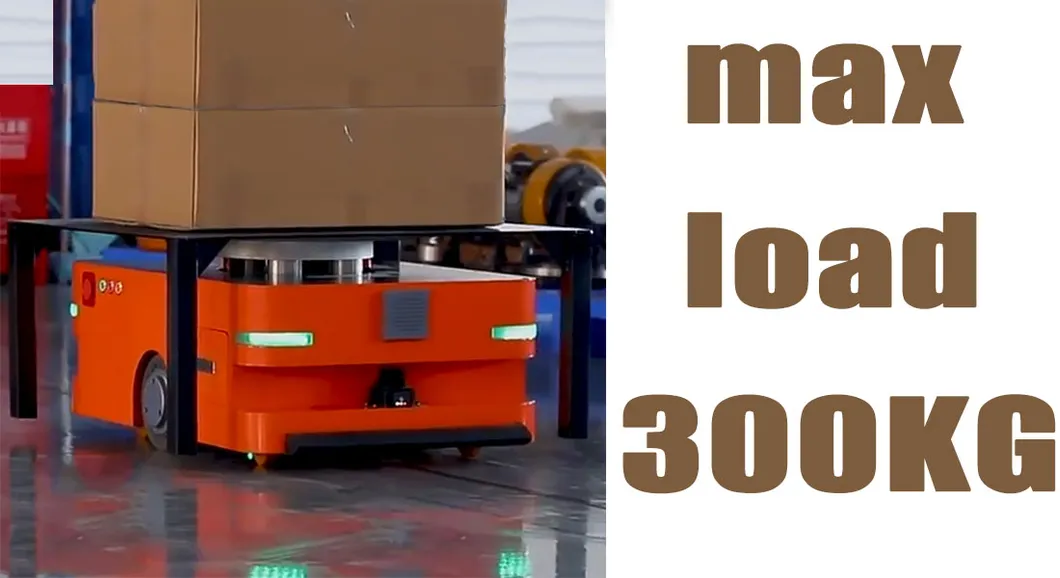

Load Capacity300kg
Navigation MethodMagnetic Tape and RFID Tags
Positioning AccuracyAbout 5mm

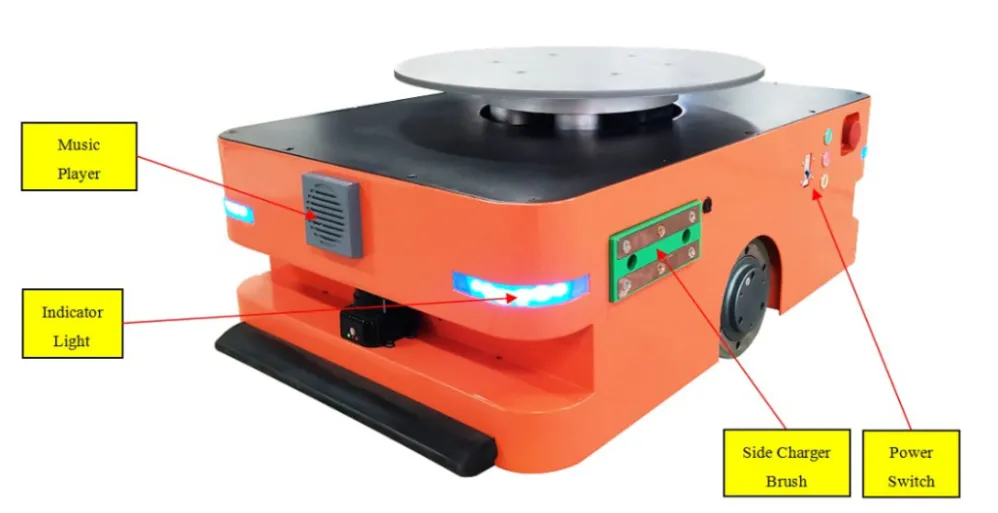

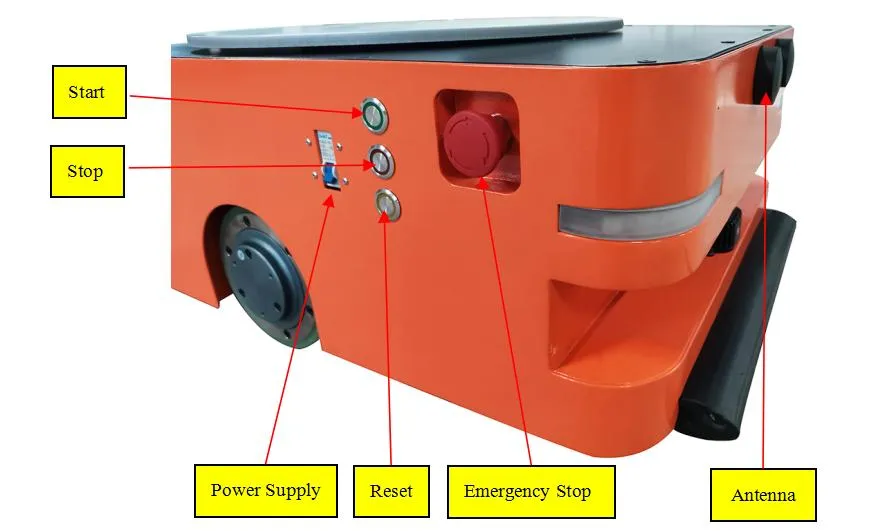

Safety ProtectionLaser Obstacle Sensor + Safety Bumper Switch
Delivery MethodAgv Lifting Device Handling Rack
Vehicle Size880X560X310mm(L*W*H)
Rated SpeedMax 1.1m/S
Jacking Distance50mm
CertificationCE
Warranty1 Year
⚙️ Product Description

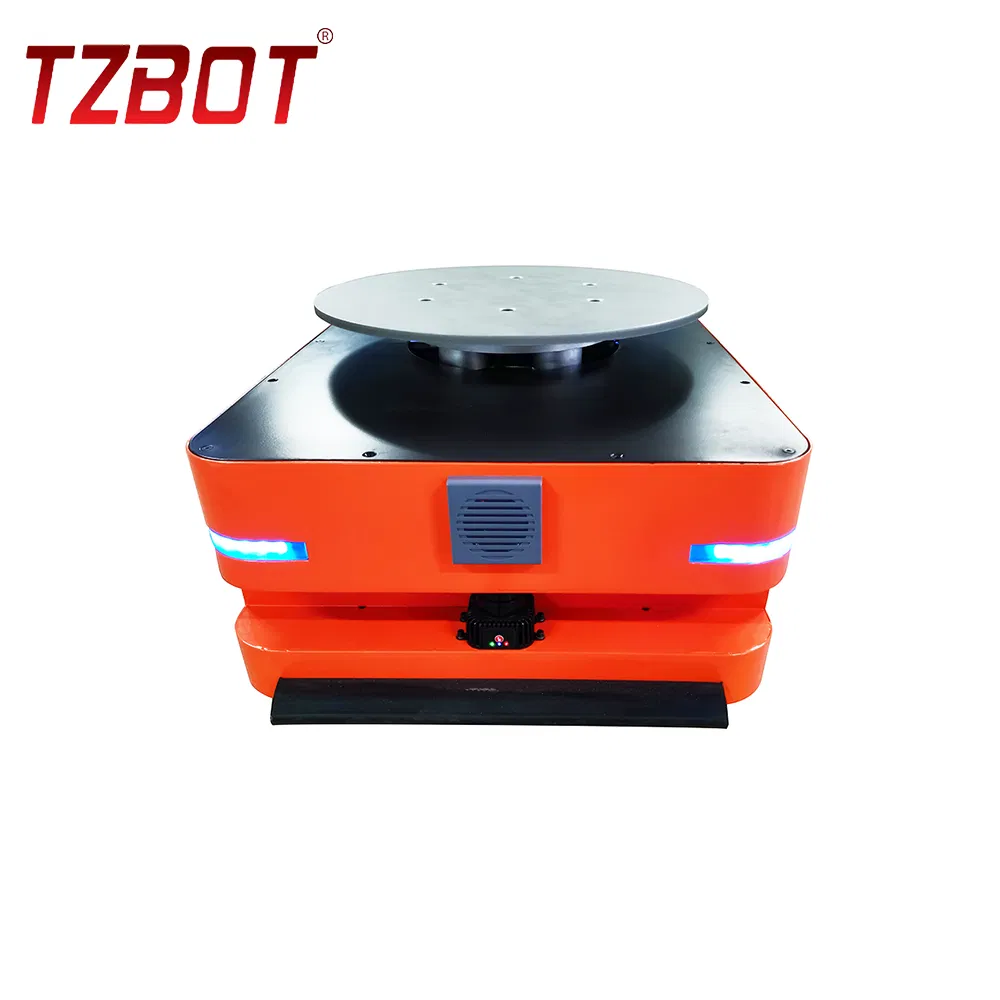

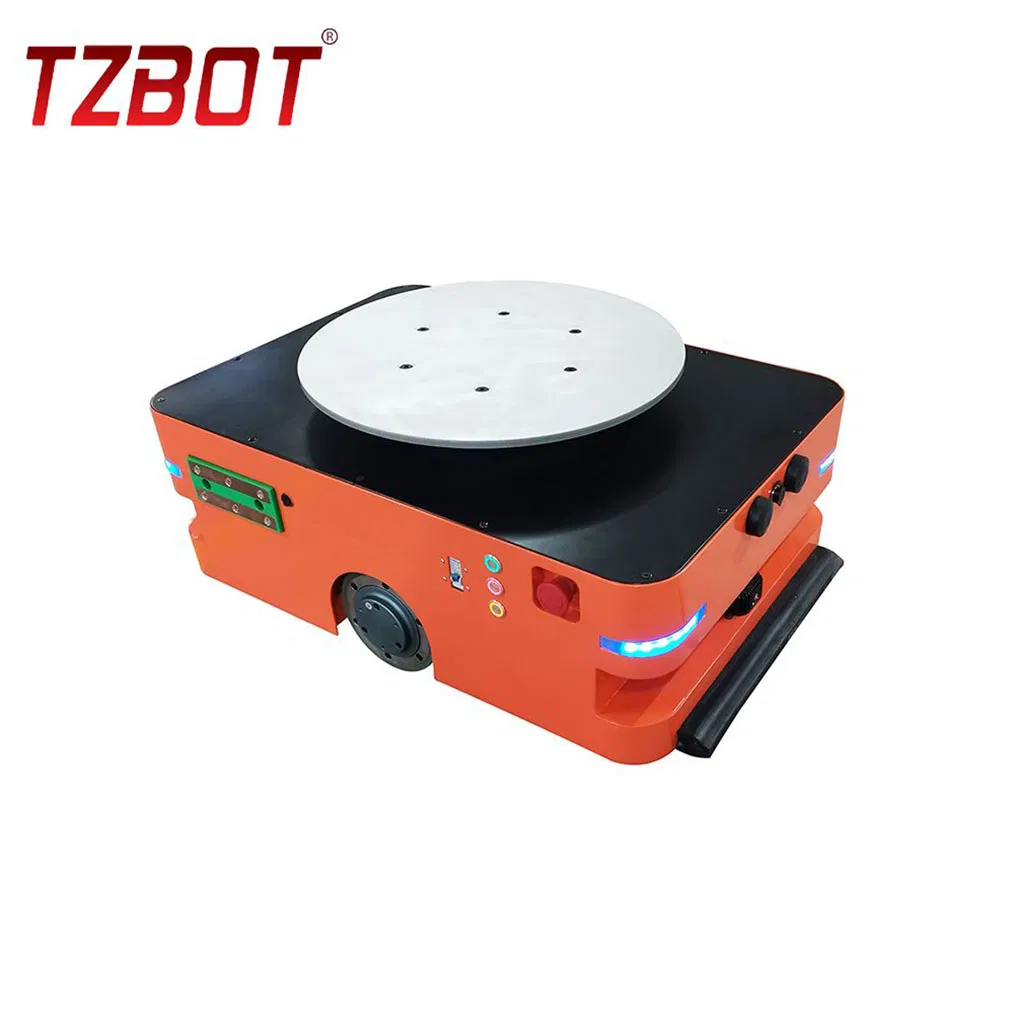

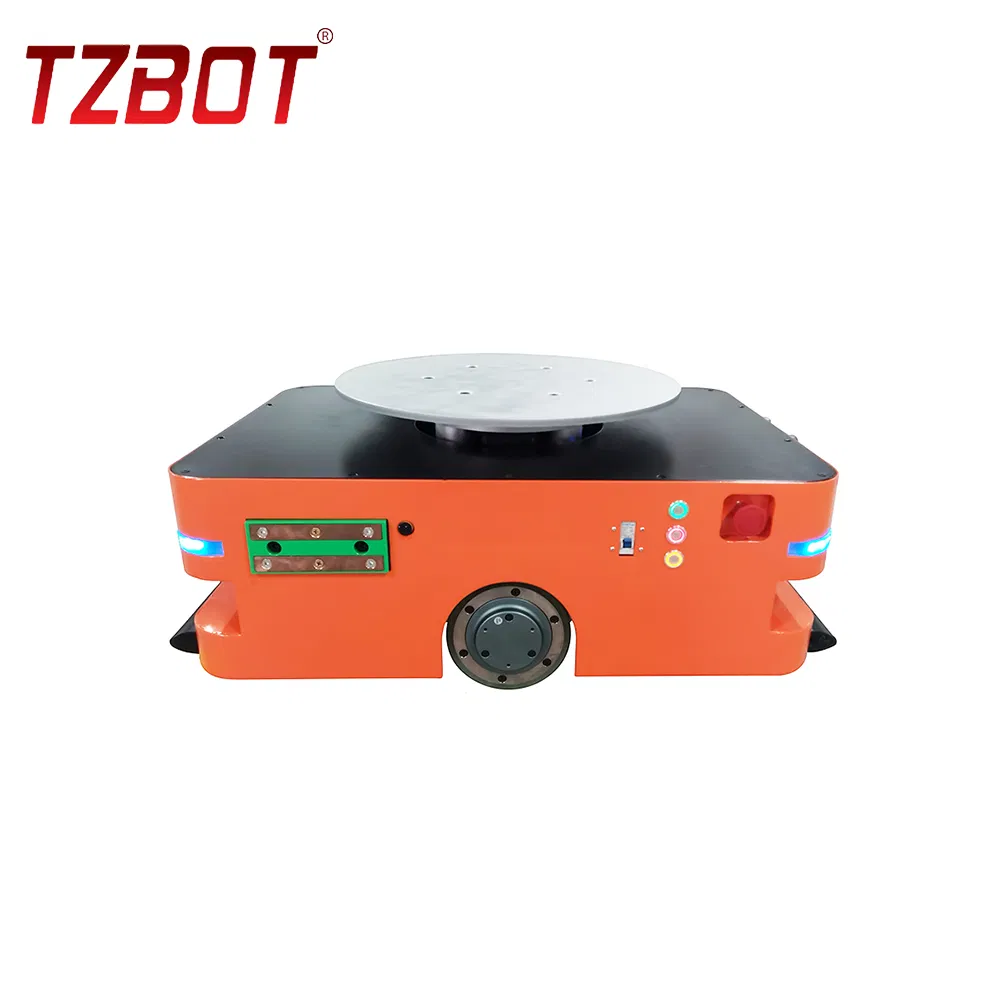

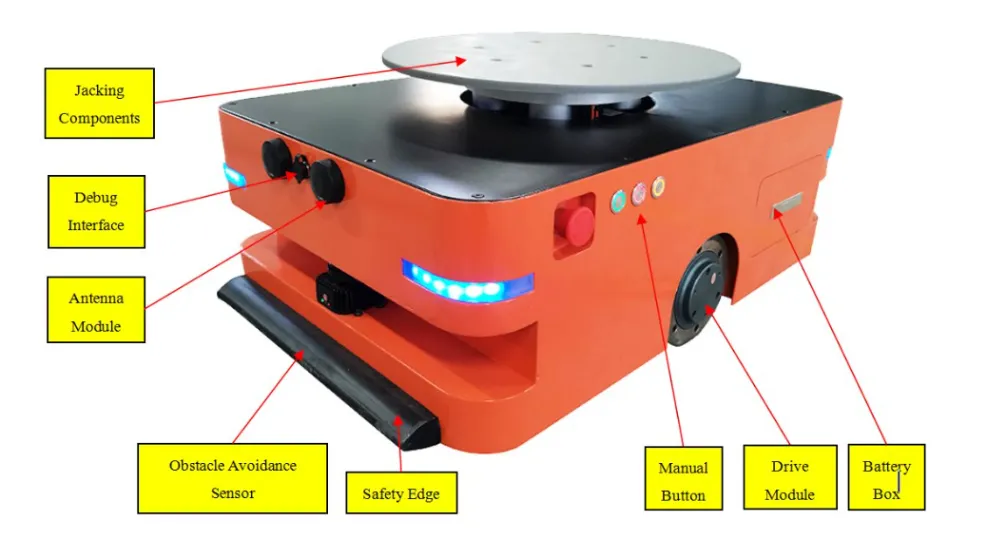

TZAGV-DSB02 Two-way Lurking Jack-up AGV

The TZAGV-DSB02 is equipped with an electromagnetic guidance device, enabling it to travel along specified guidance paths with integrated safety protection and transfer functions. As a sophisticated industrial transportation device, it utilizes rechargeable batteries as its power source. Its travel routes and tasks are managed via computer control or electromagnetic tracks, significantly optimizing work efficiency and saving time.

Technical Specifications
Vehicle Weight≤150kg
Traction Motor Power400W*2
Drive Wheel Diameter160mm
Jacking Maximum Load200Kg
Battery Capacity48V 30AH
Charging Voltage54.75V

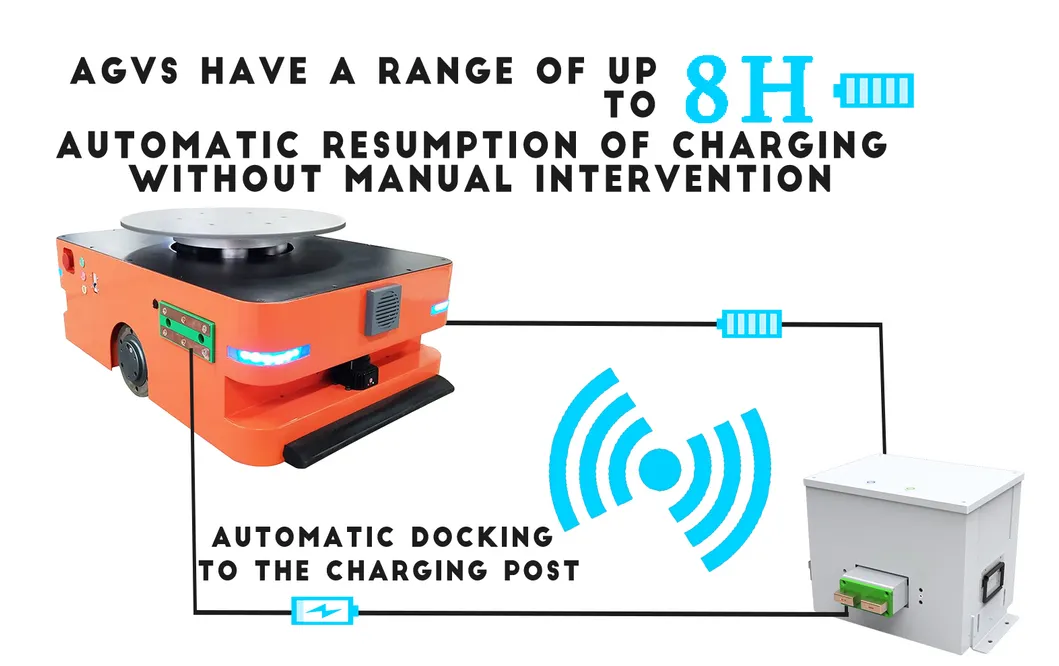

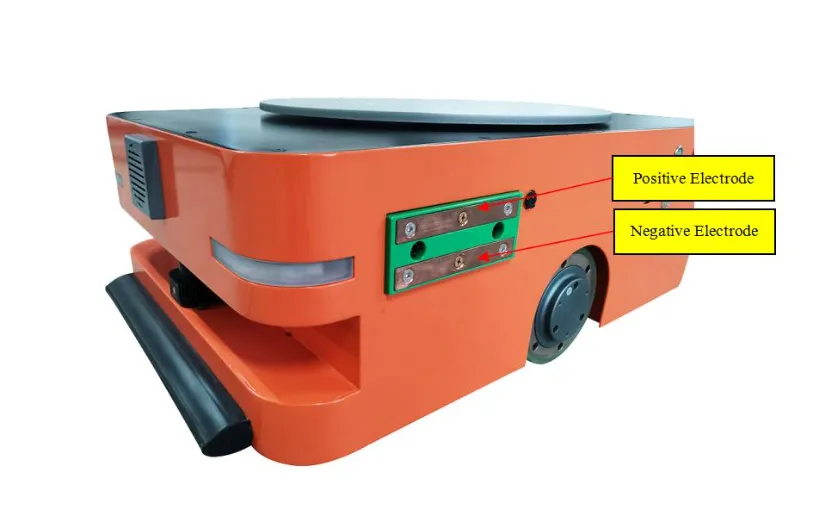

Charging MethodManual / Auto Charge / Battery Replacement
📏 Dimensions

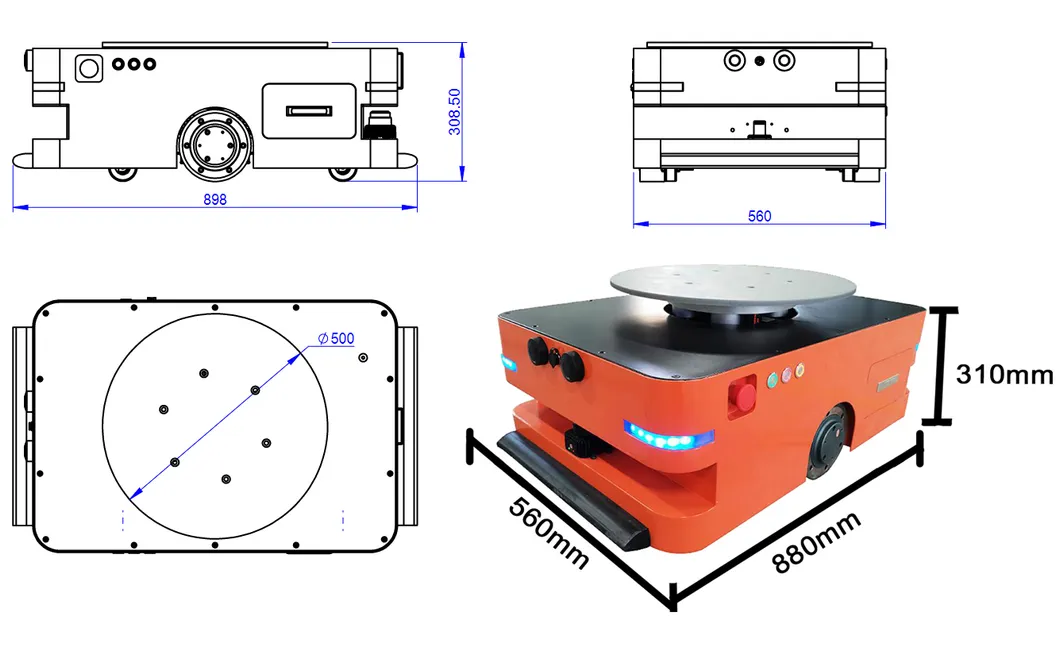

Dimensions Map
Product Advantages

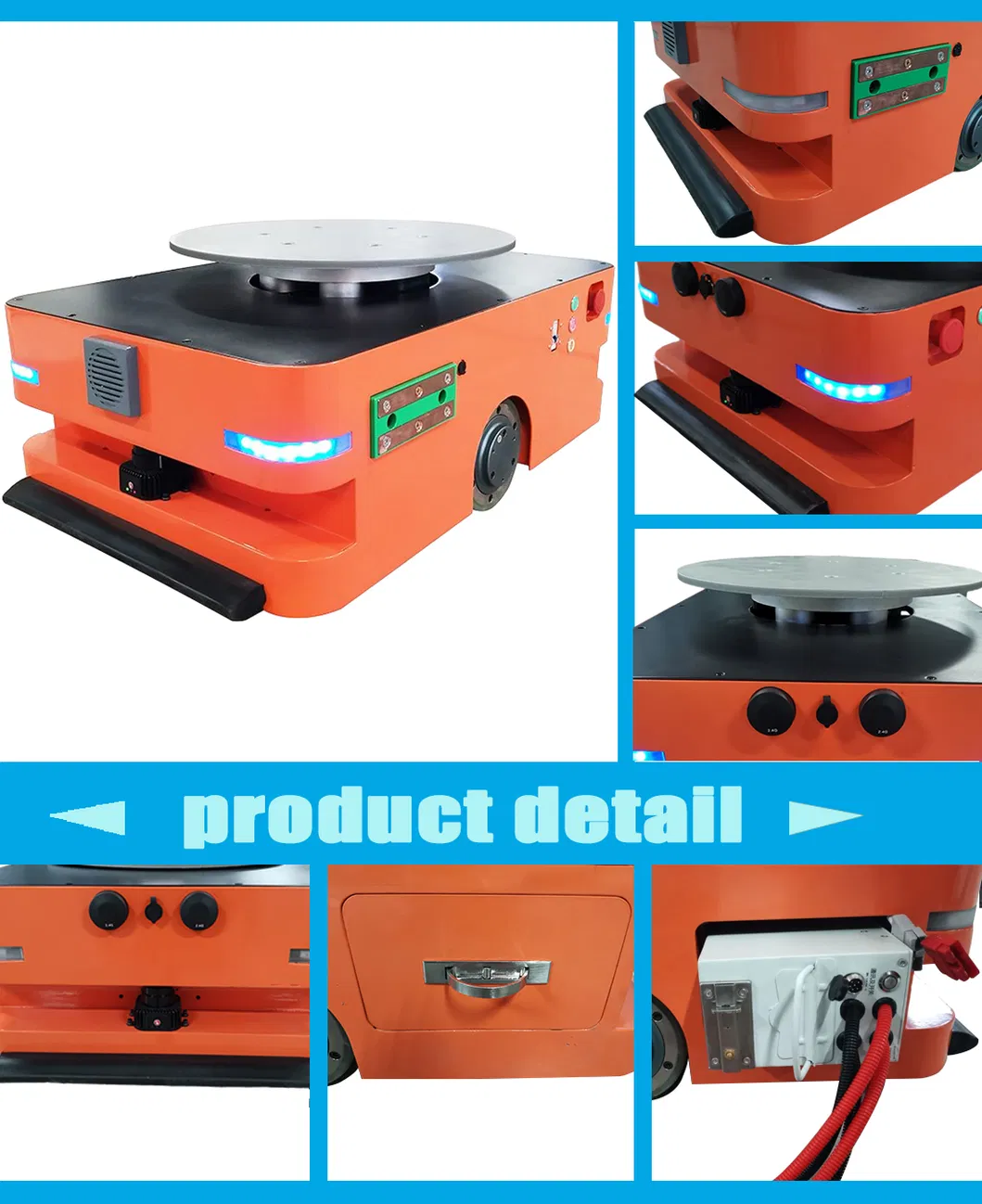

Advantage Checklist
💡 Tips & Applications
Usage Tips

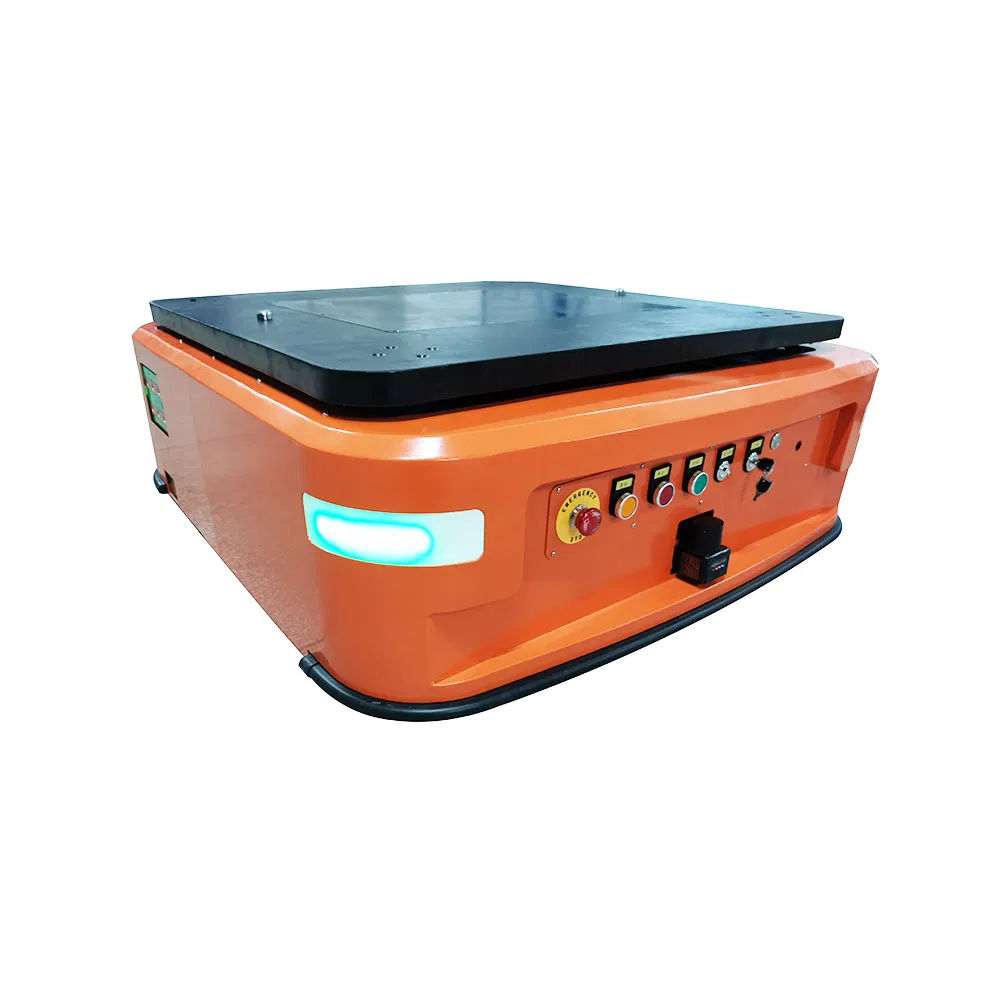

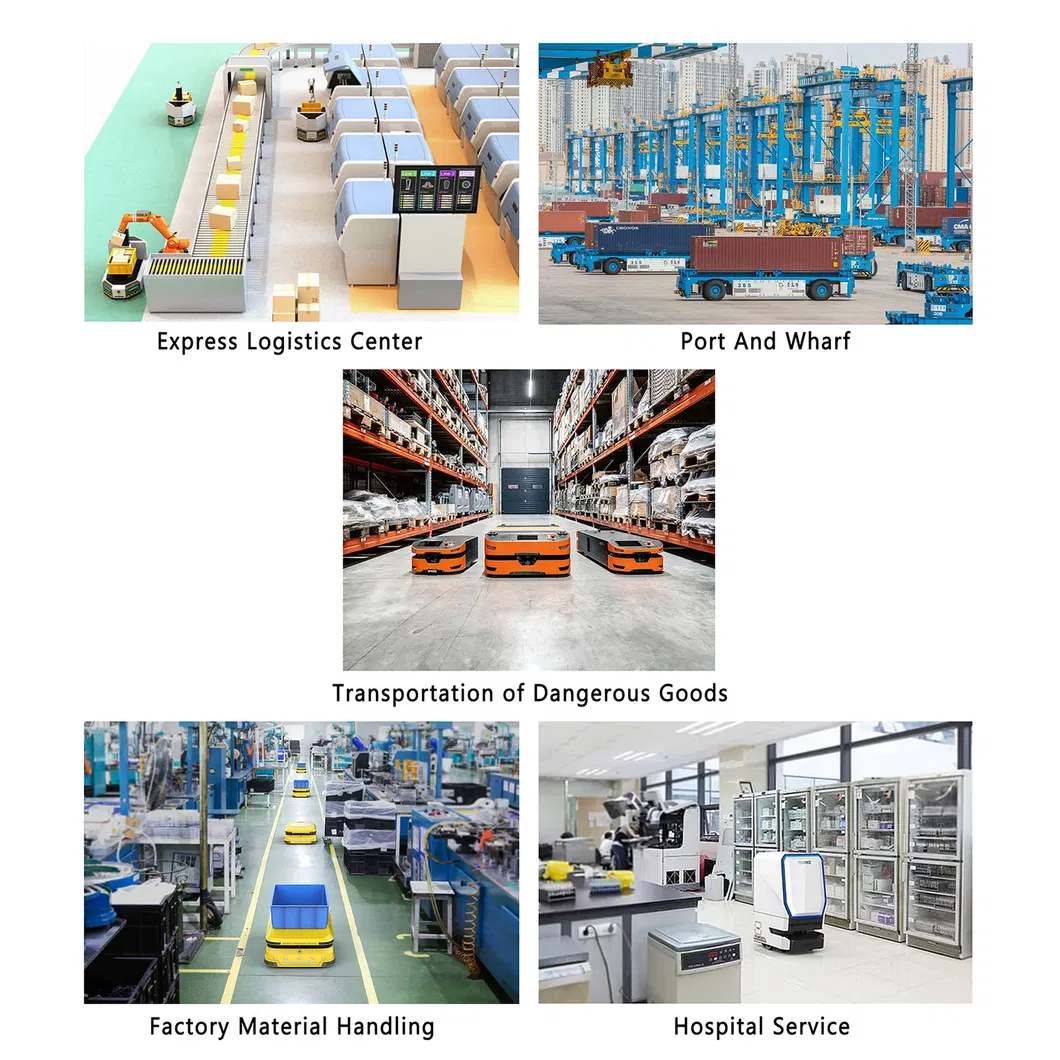

This AGV Robot is widely used in warehouses and factories for material handling. Known as a "mobile robot," it facilitates unmanned delivery, creating a highly convenient logistics workflow.

🏢 Enterprise Overview

Founded in 2015, the company designs, manufactures, and sells AGVs, driving wheel assemblies, DC/AC motors, encoders, reducers, and controllers worldwide. With a strong commitment to technological innovation and ISO9001:2015 certification, we provide excellent customization for automated equipment across various industries including forklifts, aerial platforms, and medical devices.

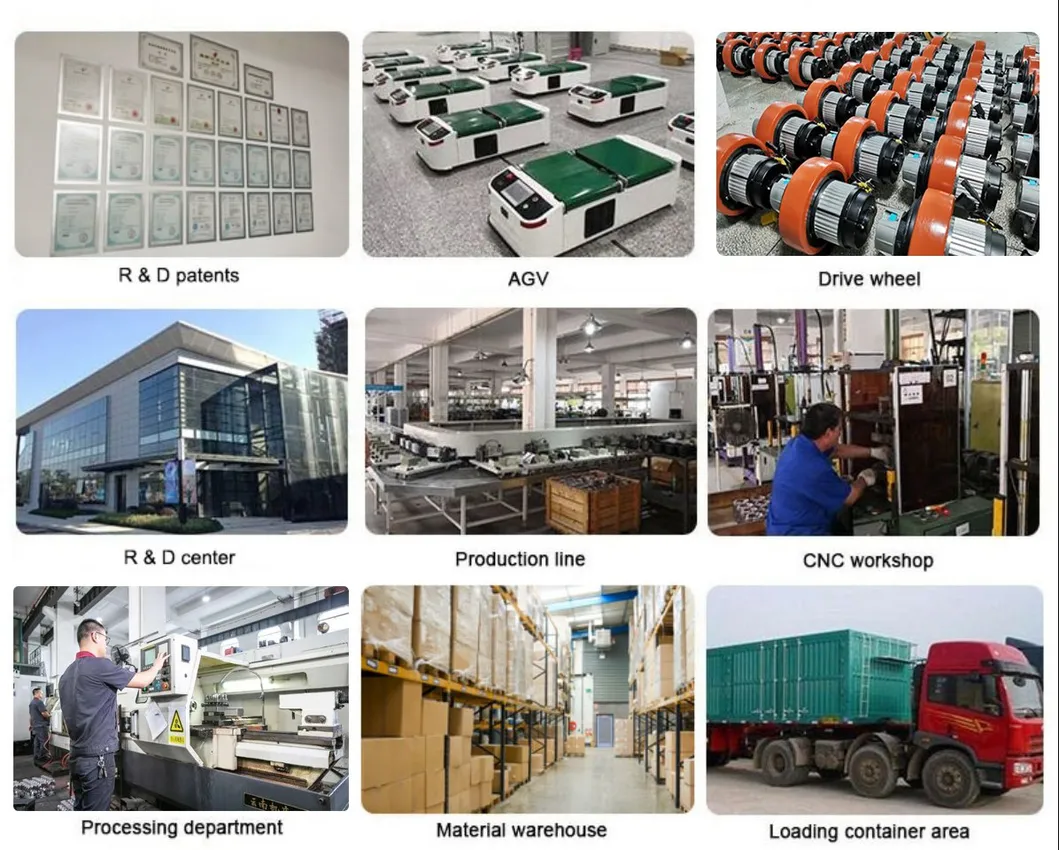

Factory Overview
Frequently Asked Questions
Q1: What is the load capacity of the TZAGV-DSB02?
The standard load capacity is 300kg, with a jacking maximum load of 200kg.
Q2: How accurate is the positioning of this AGV?
The navigation system provides a high positioning accuracy of approximately ±5mm.
Q3: What safety features are integrated into the vehicle?
It includes a laser obstacle sensor and a physical safety bumper switch to ensure safe operation in shared workspaces.
Q4: What are the available payment terms?
We accept T/T, Paypal, West Union, Trade Assurance, L/C, and D/P.
Q5: How is after-sales technical support handled?
We provide online technical support and a 1-year warranty. Our technical team offers full pre-sale consulting and after-sale guidance.

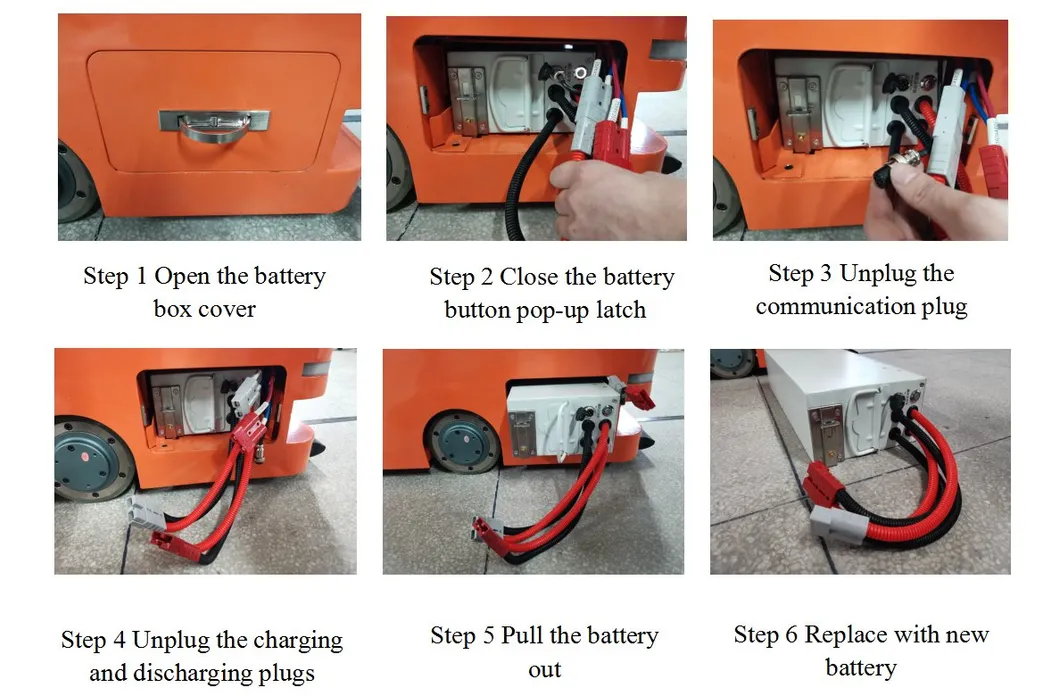

Q6: Can the battery be replaced manually?
Yes, the system supports battery replacement, as well as automatic and manual charging methods.
