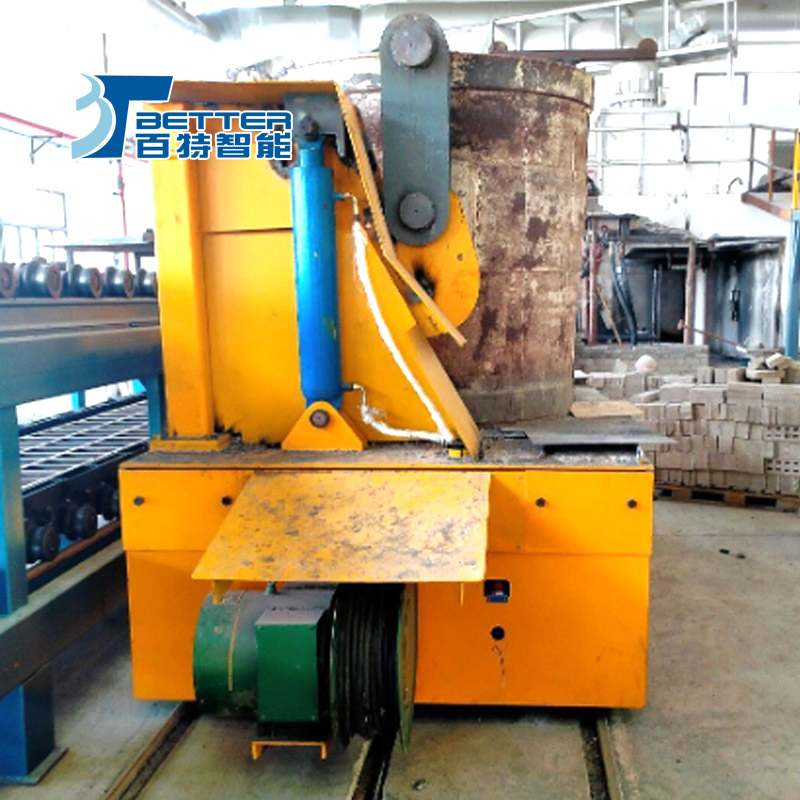

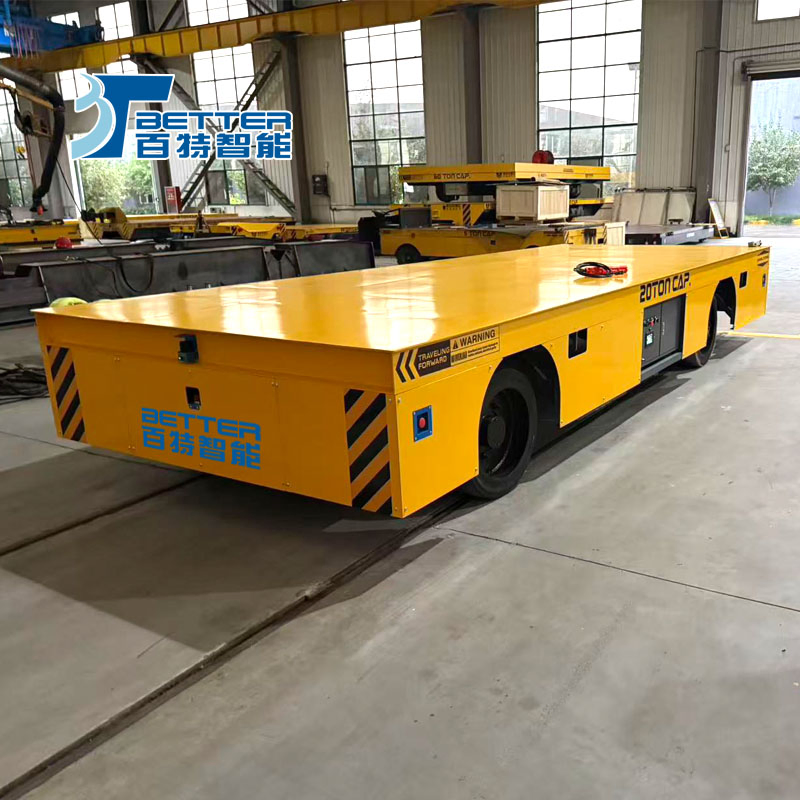

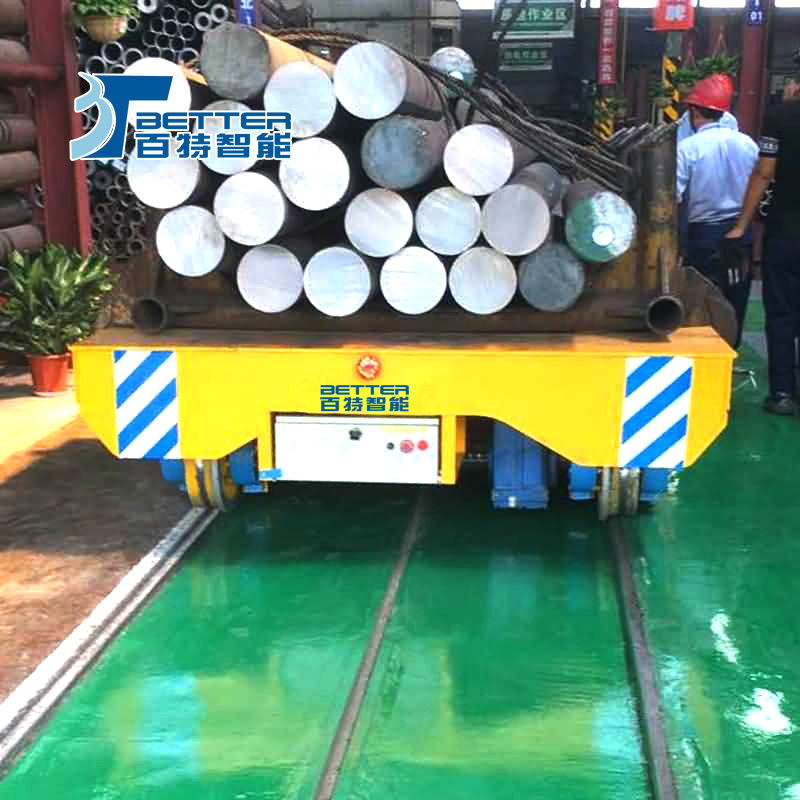

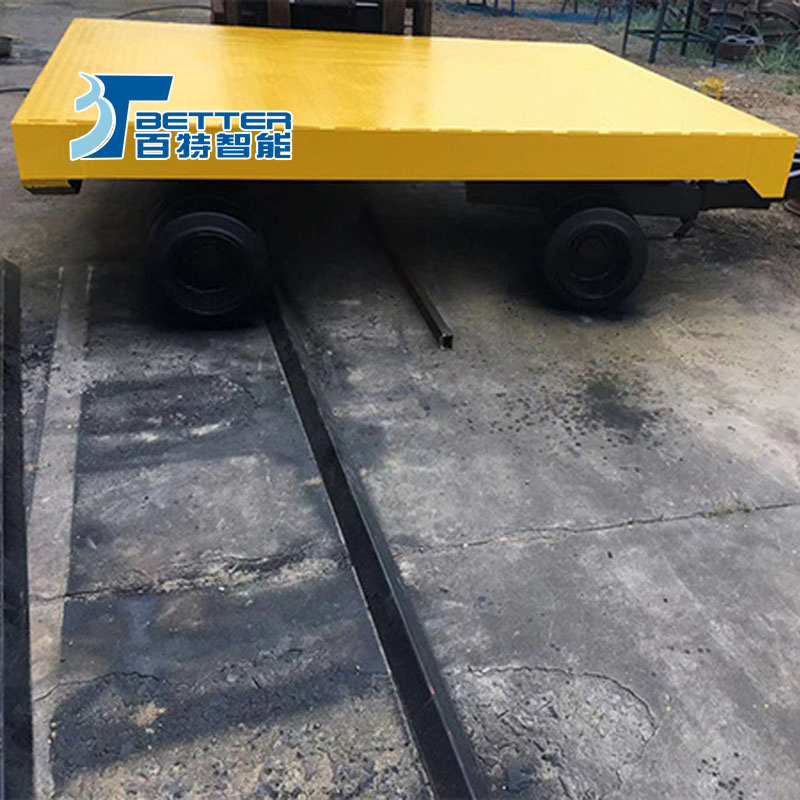

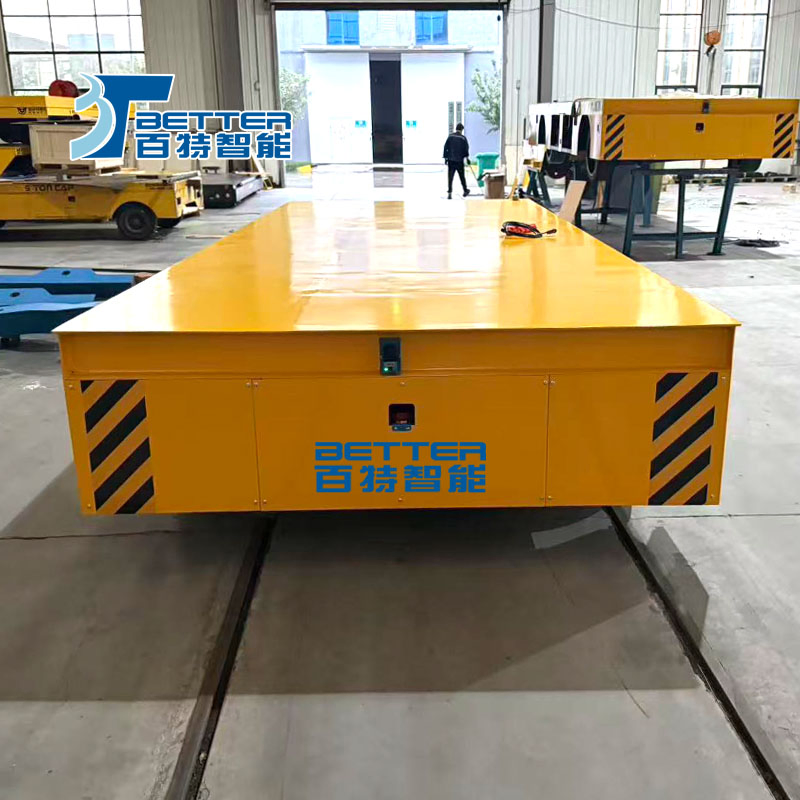

Electric Driven Railway Material Handling Transfer Trolley
This electric track car is an in-plant transportation equipment that runs on fixed tracks, specifically designed for efficient and reliable handling of heavy materials. It achieves fixed-point transportation of raw materials, semi-finished products or equipment between different workshops and workstations by traveling on preset tracks.
The flat car is driven by electricity, running smoothly and pollution-free. Operators can easily control its start, stop and precise positioning through a remote control. Its load-bearing capacity can be designed according to requirements, ranging from several tons to hundreds of tons, and it can easily handle various heavy loads such as steel, machinery, and large molds.
Customization: All our products are customized as specific requirements, including load capacity, steel structure design, power offer method, wheels materials, safety protection system, hydraulic lifting system, operate system, and others.
| Model | BDG-2t | BDG-10t | BDG-20t | BDG-30t | BDG-50t | BDG-100t | BDG-150t |
| Rated Load(t) | 2 | 10 | 20 | 30 | 50 | 100 | 150 |
| Table Length (mm) | 2000 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Table Width (mm) | 1500 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (kw) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 11 | 15 |
| Recommended Rail | P15 | P18 | P24 | P38 | P43 | QU100 | QU100 |

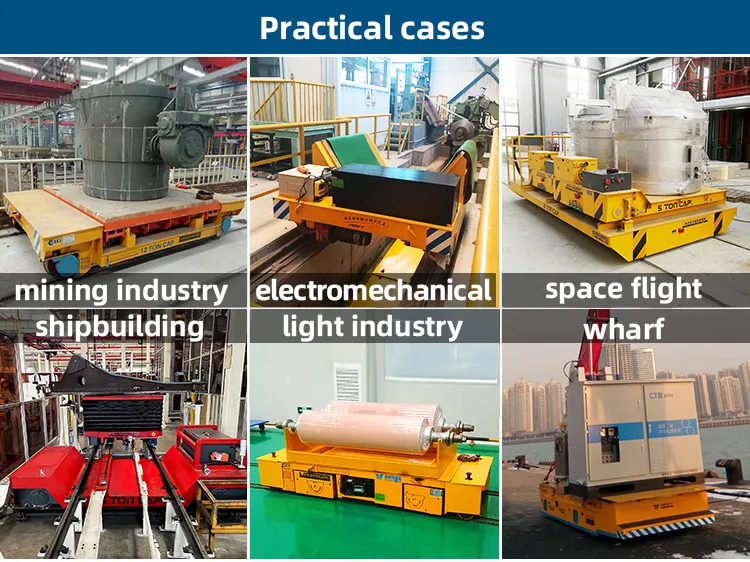

Transfer carts are ideal for moving long loads through restrictive passages or doorways. They are excellent for handling heavy loads in areas with limited floor space. Common applications include:
⭐ Low Noise: Operates with minimal noise levels for a better working environment.
⭐ Maximum Safety: Offers guaranteed safety for operators and materials handled.
⭐ Easy Operation: Simple to drive and implement into existing manufacturing processes.
⭐ No Permanent Installation: Operates on standard floors without complex infrastructure.
⭐ High Payload: Capable of handling loads up to 300 tons per trolley.
For lengths less than 6m and widths less than 2.2m, transportation is via 20ft container. Longer or wider units are handled by 40ft containers, flat racks, or as bulk cargo depending on dimensions.
