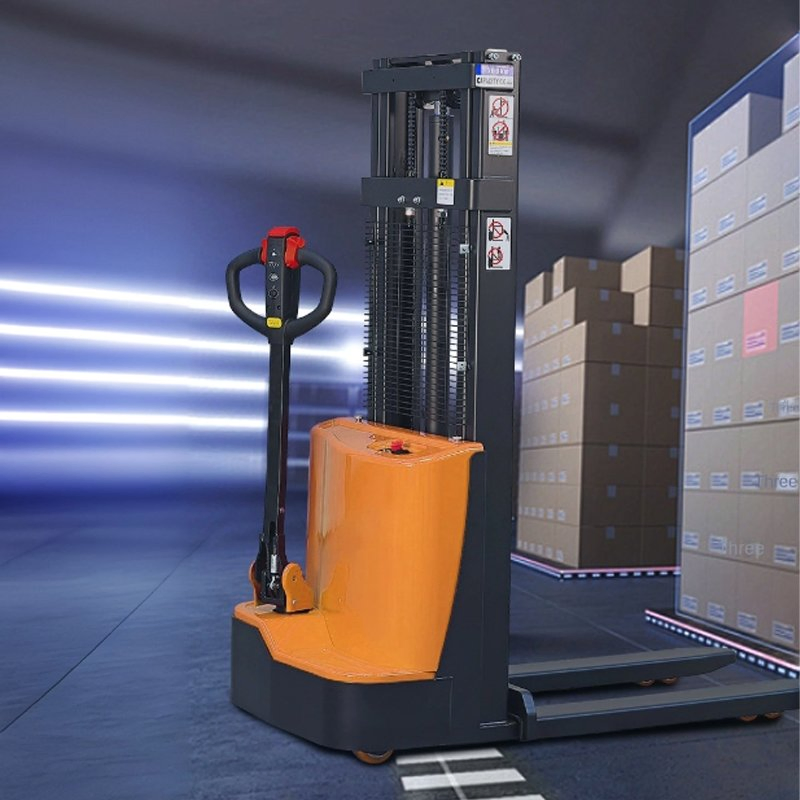

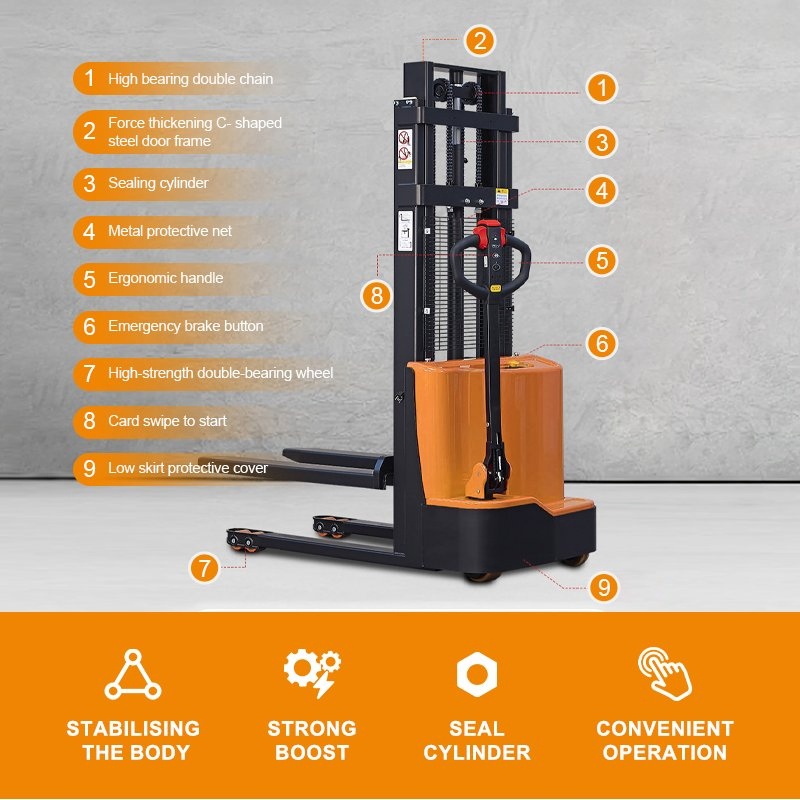

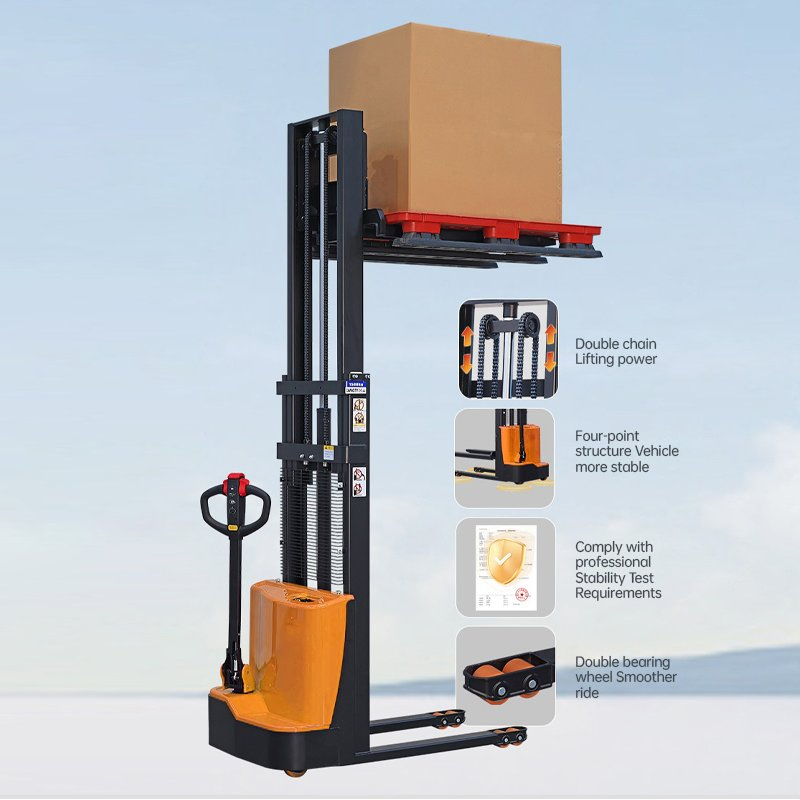

Nrt Load Capacity 1.5t Lifting Height 1600/2000/3000mm Electric Pallet Stacker

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	1 Years

🔷

Product Overview

Model NO.	ND15Q01LD
Type	Stacker
Power	DC Motor
Load Capacity	1.5t
Fuel	Electric

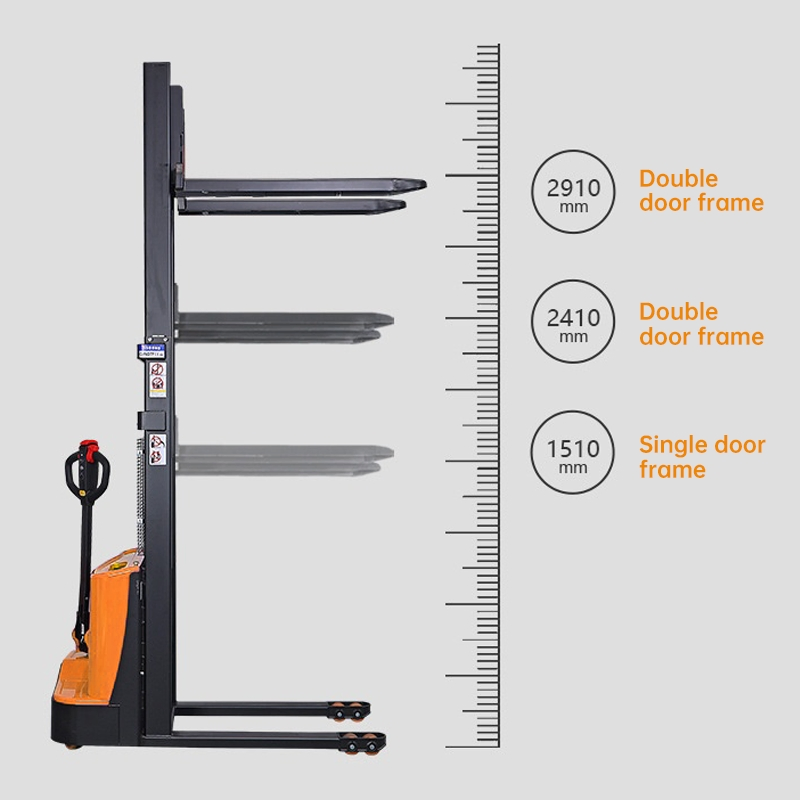

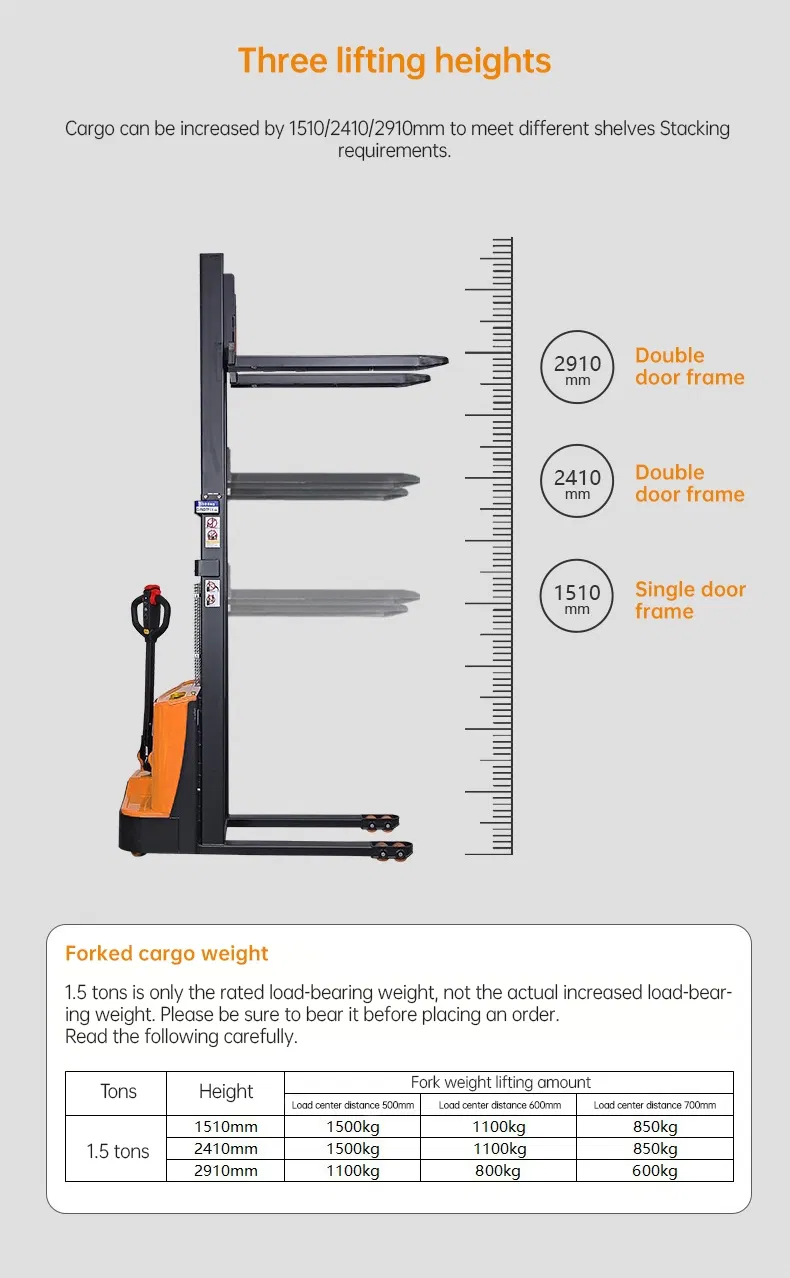

Lift Height	1510/2410/2910mm

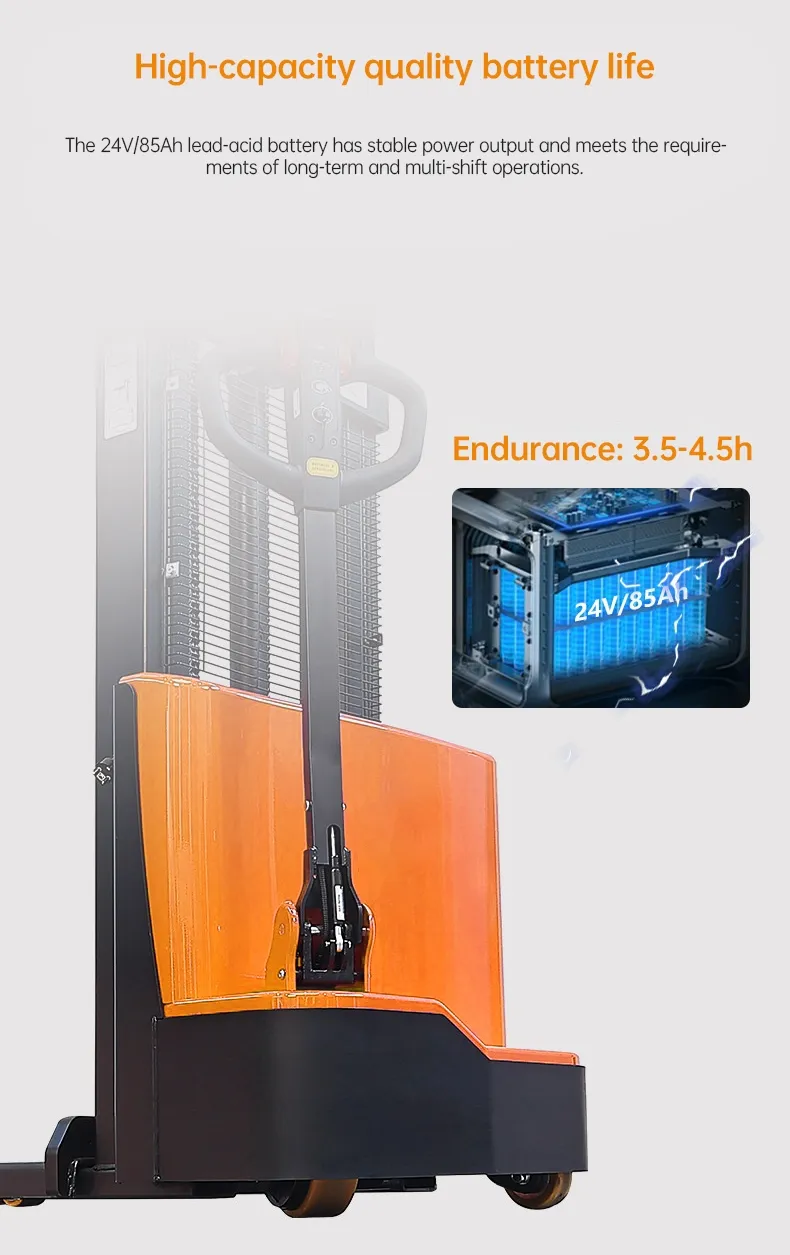

Battery Model	Lead Acid Battery (24V/85Ah)
Certification	CE, PSE
Application	Warehouse, Supermarket, Material Handling

📝

Product Description

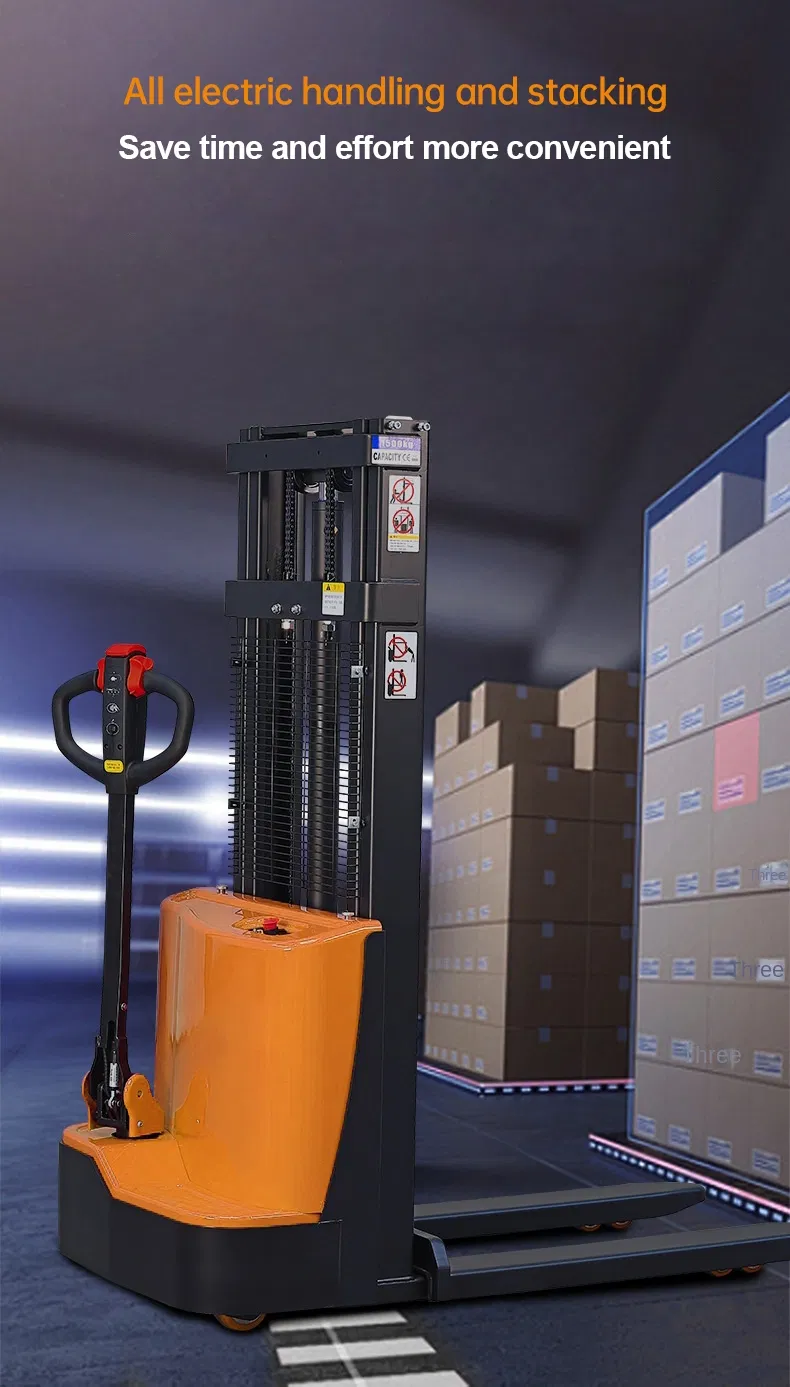

ND15Q01LD 1.5T Electric Pallet Stacker is a professional walk-behind solution designed for efficient warehouse stacking. Equipped with a high-performance 24V85Ah battery, it ensures long operational life with low-power protection features.

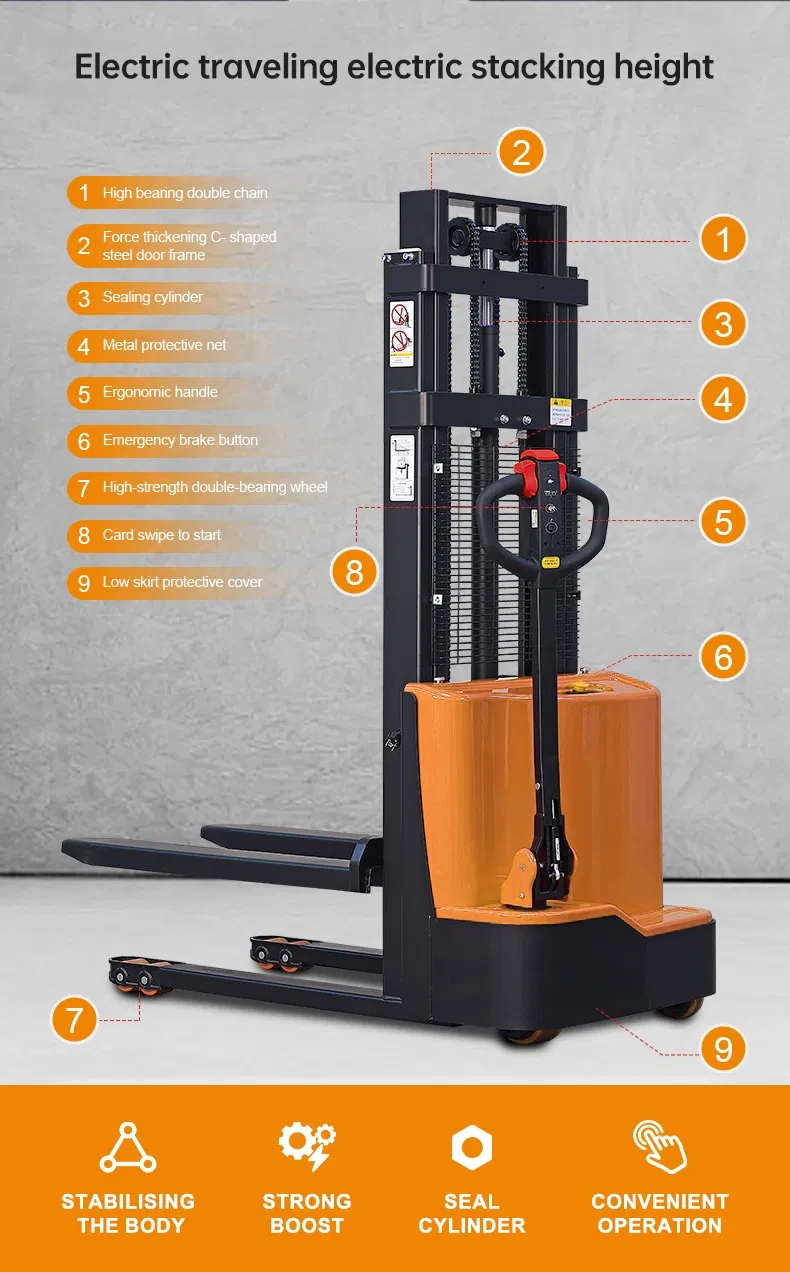

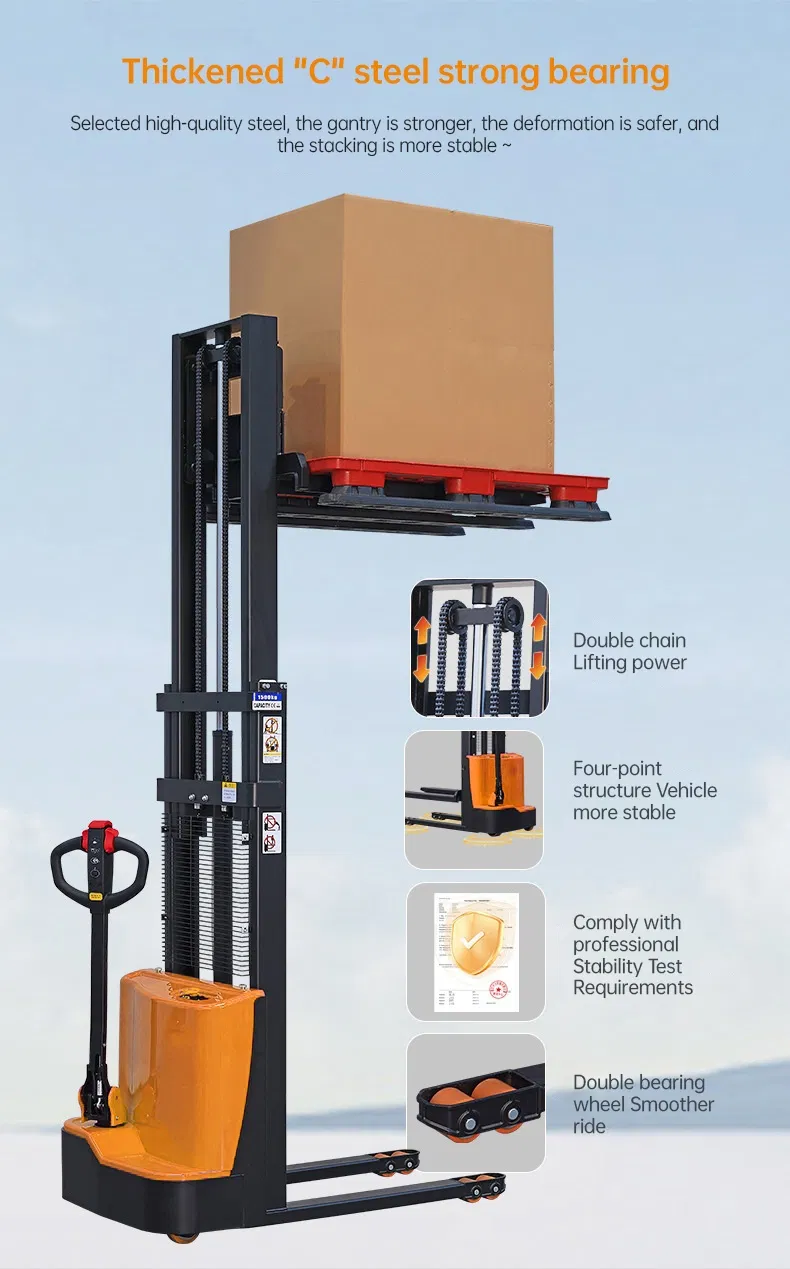

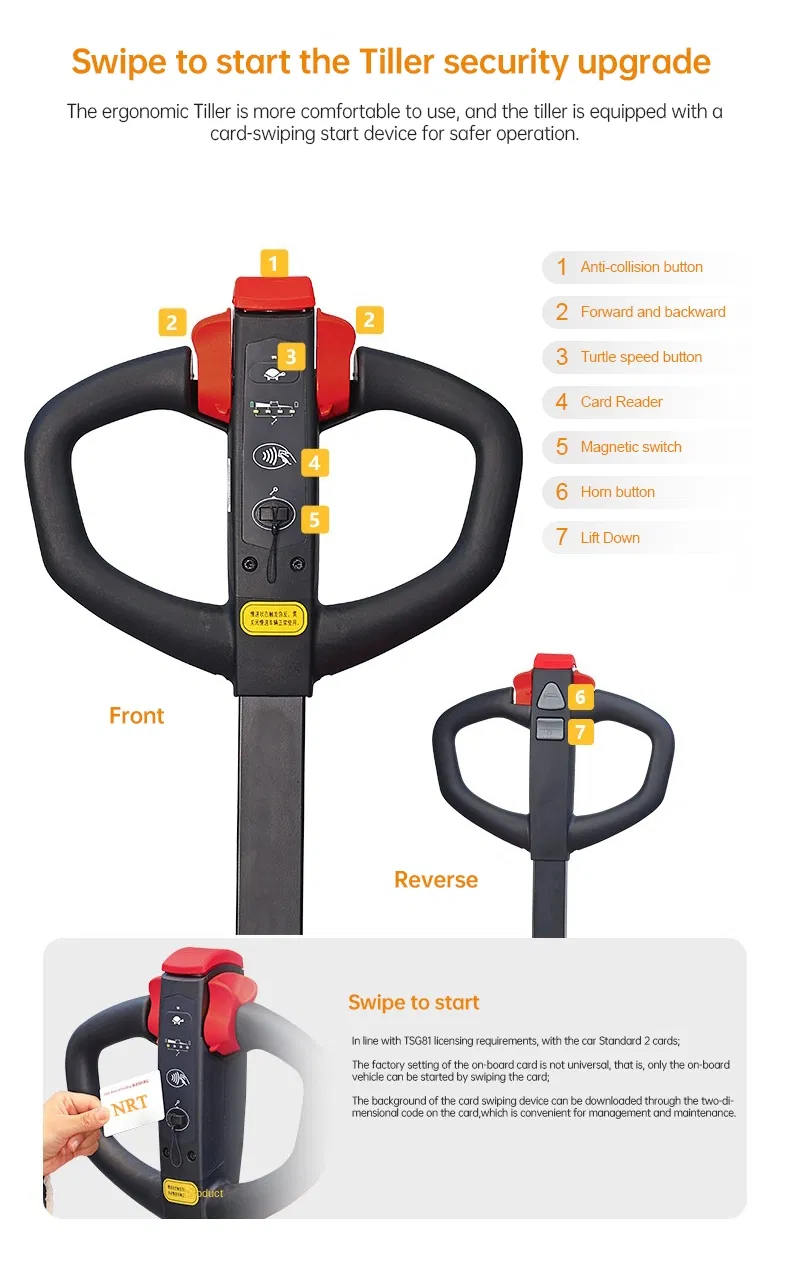

Key features include a 0.75kW drive motor and a 2.2kW lifting motor, achieving speeds up to 4km/h. The integrated rubber-coated handle offers a one-click creep speed function for precise maneuvering in narrow spaces. For safety, it utilizes magnetic card startup and a durable C-type alloy steel mast compliant with GB/T 26949.1 standards.

⚙️

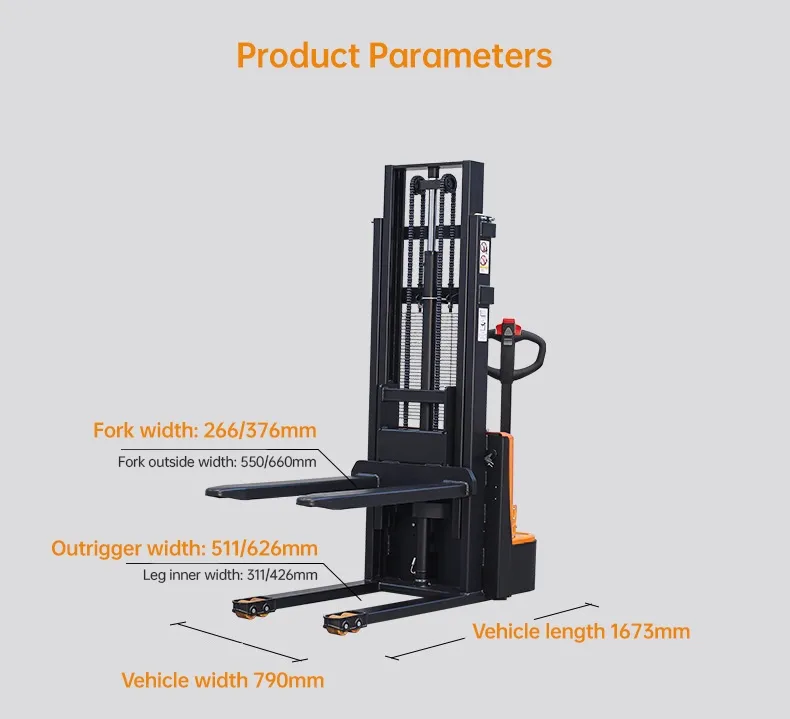

Product Parameters

Rated Load	1500kg
Fork Size	60x142x1150mm
Turning Radius	1357mm
Driving Speed (Full/No Load)	3.5 / 4 km/h
Climbing Grade	3% (Full) / 10% (No Load)
Battery Cycle Times	400 times
Charging Duration	8 Hours
Weight	470kg

🖼️

Detailed Display

📦

Packaging & Delivery

Package Size	167.30cm * 66.00cm * 209.00cm
Gross Weight	470.000kg
Lead Time	31 days (1 unit); To be negotiated (> 1 unit)

❓

Frequently Asked Questions

How long is the warranty for these products?

We provide a warranty of 12 months or 1000 hours, whichever comes first, from the date of shipment.

What is the typical delivery time?

For standard products, we often have stock for immediate delivery. Typically, production time is 15-20 days after receiving the advance payment.

What is the continuous working time and charging duration?

Continuous working time is approximately 3-6 hours depending on battery capacity. A full charge usually takes 8-12 hours. Chargers are automatic and stop once the battery is full.

Are customized OEM or ODM products available?

Yes, we can provide customized products based on your requirements. Both OEM and ODM options are available to meet special requests.

What are the specifications of the chargers?

Our chargers support various voltages (110V, 220V, 240V, 380V, 415V) and power plugs can be customized to USA, UK, Australia, or European standards.

Can we request a specific color for the equipment?

Yes, we can accommodate requests for specific colors to match your branding or preference.
