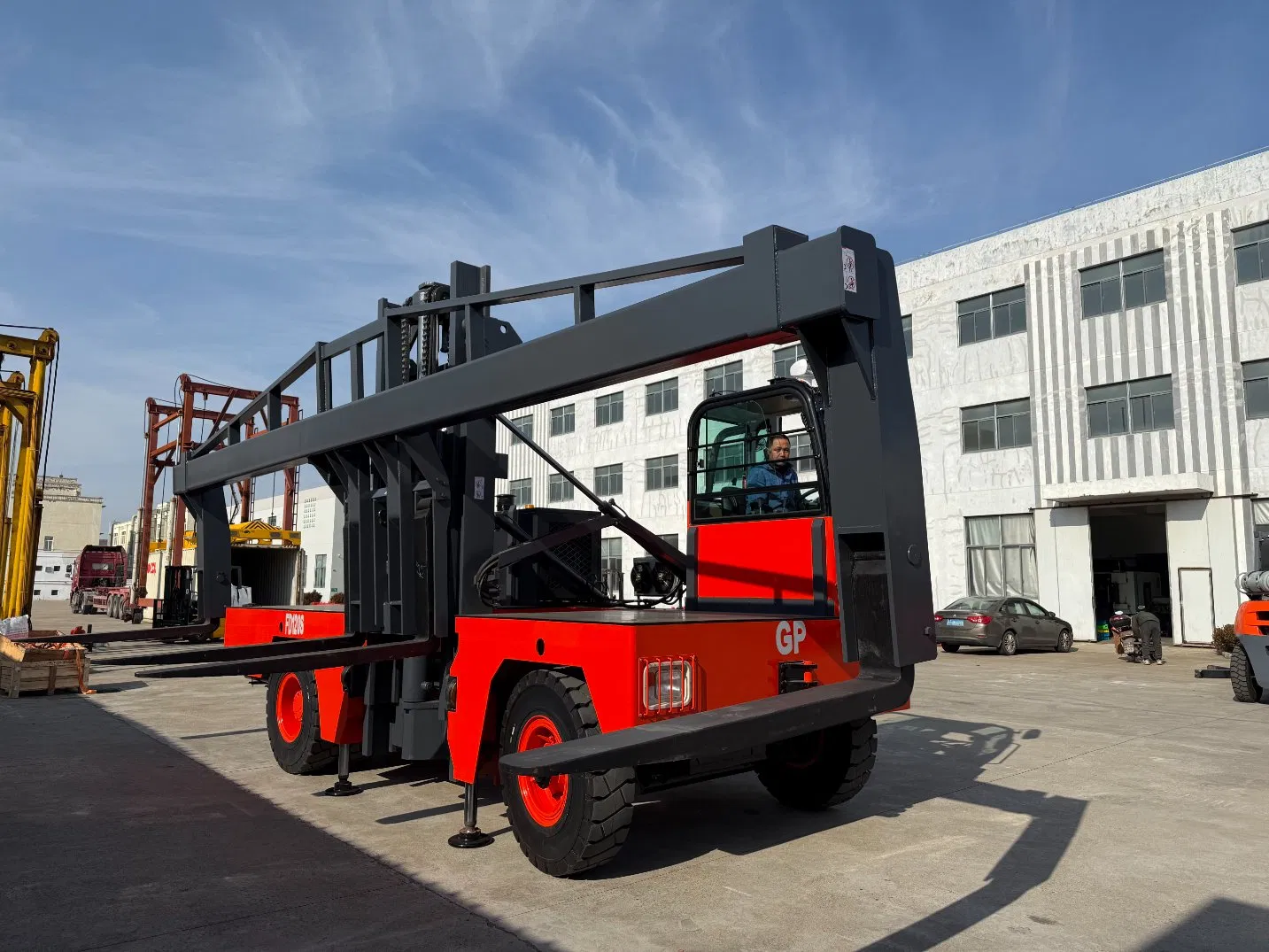

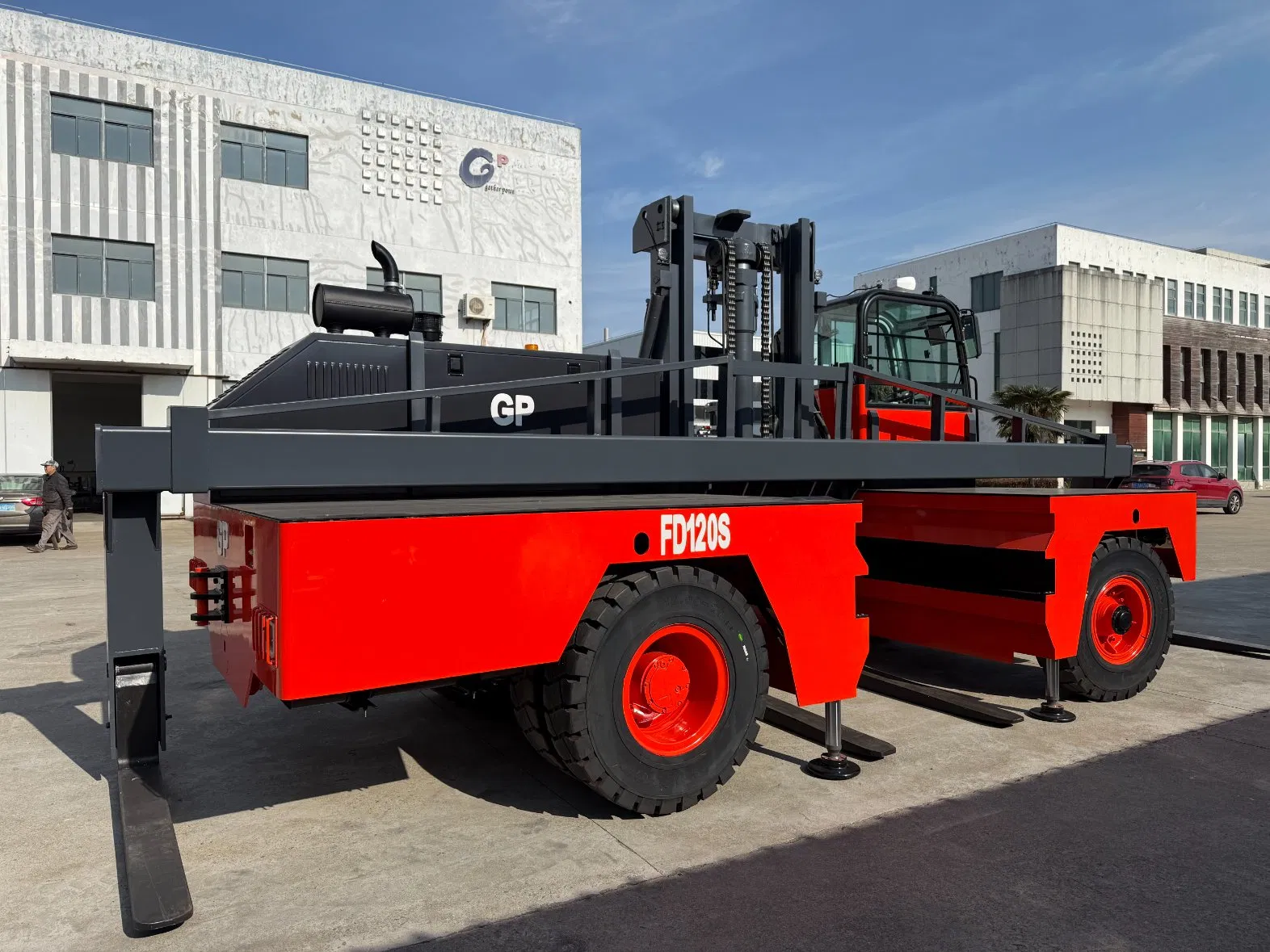

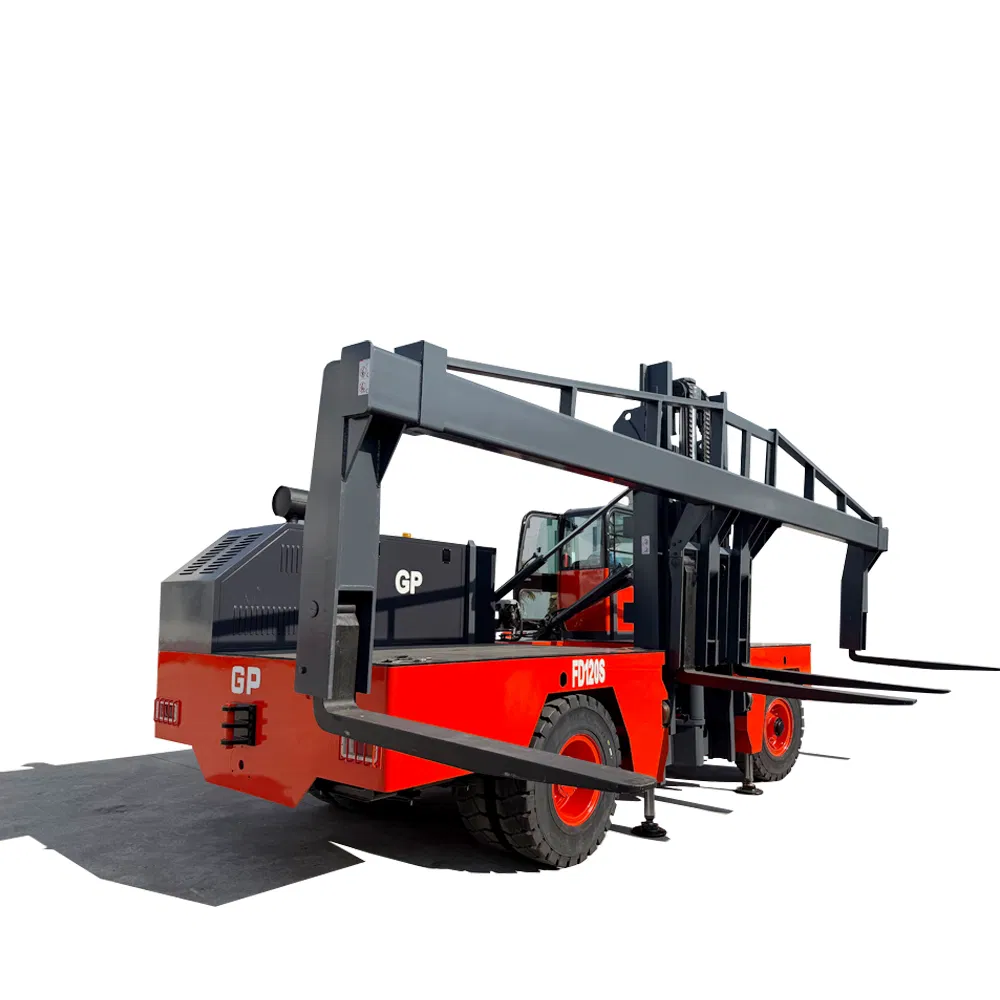

Diesel Engine 12 Ton Side Forklift Loader with 6m Lifting Height ISO Certified for Construction and Machinery Repair Shops

Customization: Available
After-sales Service: 2years
Warranty: 2 Years

Product Description

i

Basic Specifications

Model NO.
FD120S
Type
Side Forklift
Power
Diesel Engine
Load Capacity
12t
Lift Height
3000~5000mm
Load Center
>500mm
Tyre Type
Pneumatic
Fork Size
1520*180*100
Wheel Base
3700mm
Dimensions
6250*2620*2960mm
!

Product Overview

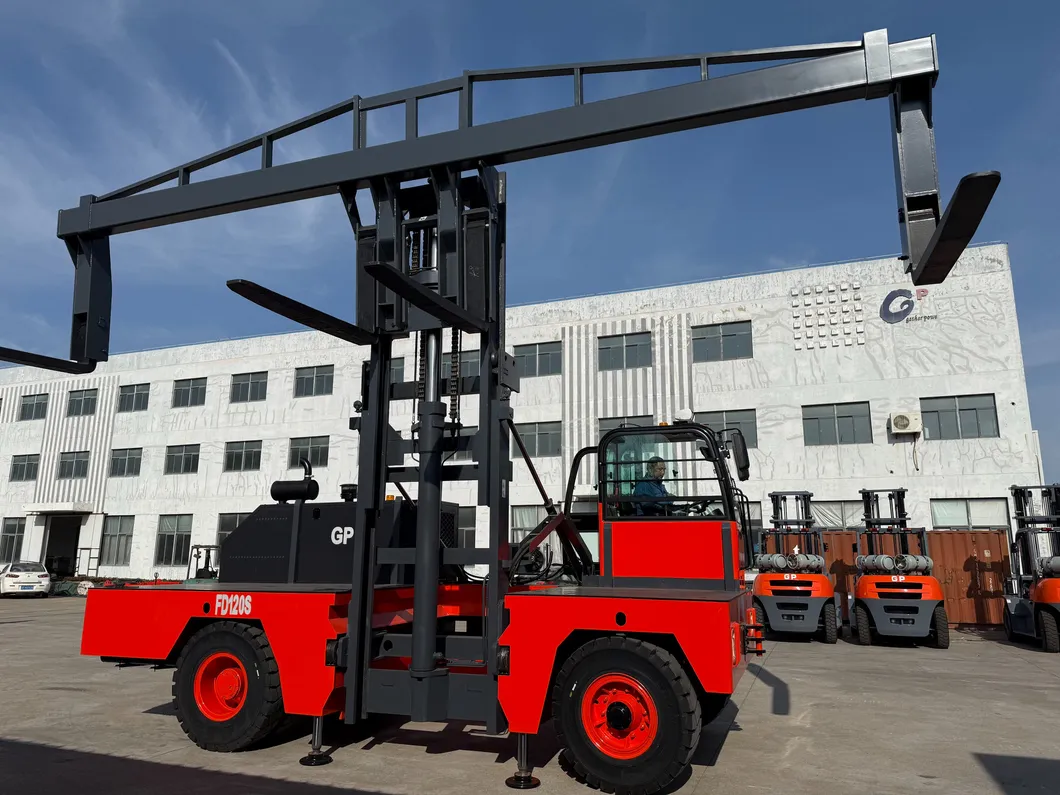

The side forklift truck is a specialized material handling solution designed for efficiency. Unlike traditional counterbalanced forklifts, the forks are mounted on the side of the body. In addition to lifting and tilting, the forks can traverse to the right side of the truck frame and retract back into the middle section. This unique design allows long cargoes to be loaded directly onto the truck deck and transported safely in limited spaces.

By piling long cargoes lengthwise along the platform, the required passageway width is remarkably reduced. This makes the side forklift particularly suitable for handling timber, section steels, line poles, cement tubes, plastic pipes, and other bulky or over-length cargoes. It is widely applied in railway stations, oilfields, harbors, warehouses, and construction sites.

T

Technical Parameters

Main Parameters & Specification Unit FD100S FD120S
Rated load capacityKg1000012000
Load centremm600600
Maximum Lifting Heightmm35003600
Maximum Lifting Speed (laden)mm/s350315
Tilting Angle of Fork (up/down)°5°/3°5°/3°
Grade Ability (laden)%20%20%
Overall dimension (L*W*H)mm6250*2620*29606250*2620*2960
Width of platformmm18001800
Size of Fork (L*W*T)mm1520*175*851520*180*100
Self-Weightkg1560015800
EngineRated outputKw84.6/250092/2500
Displacementcc57855785
P

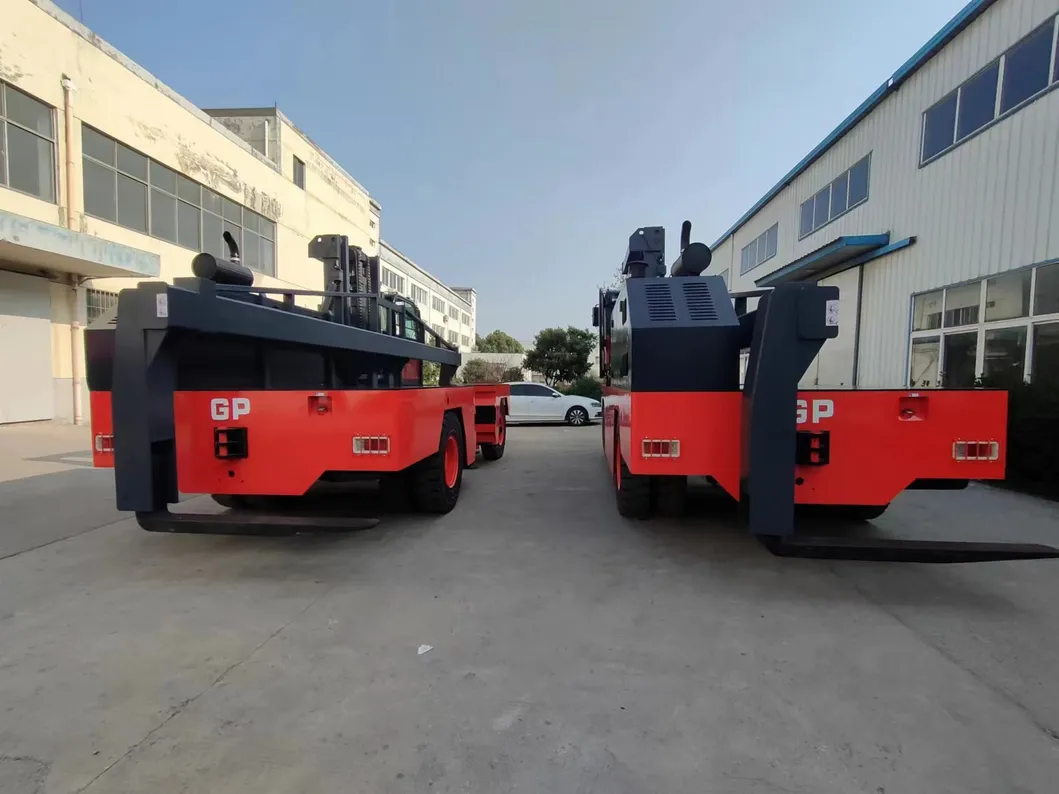

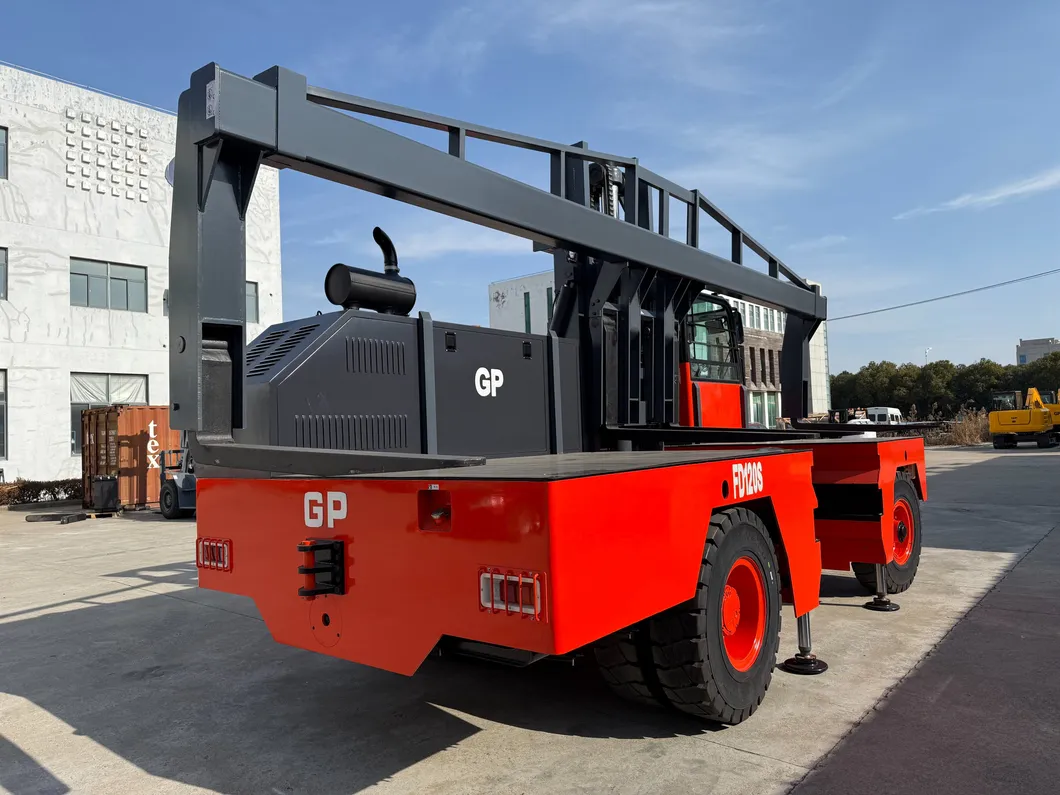

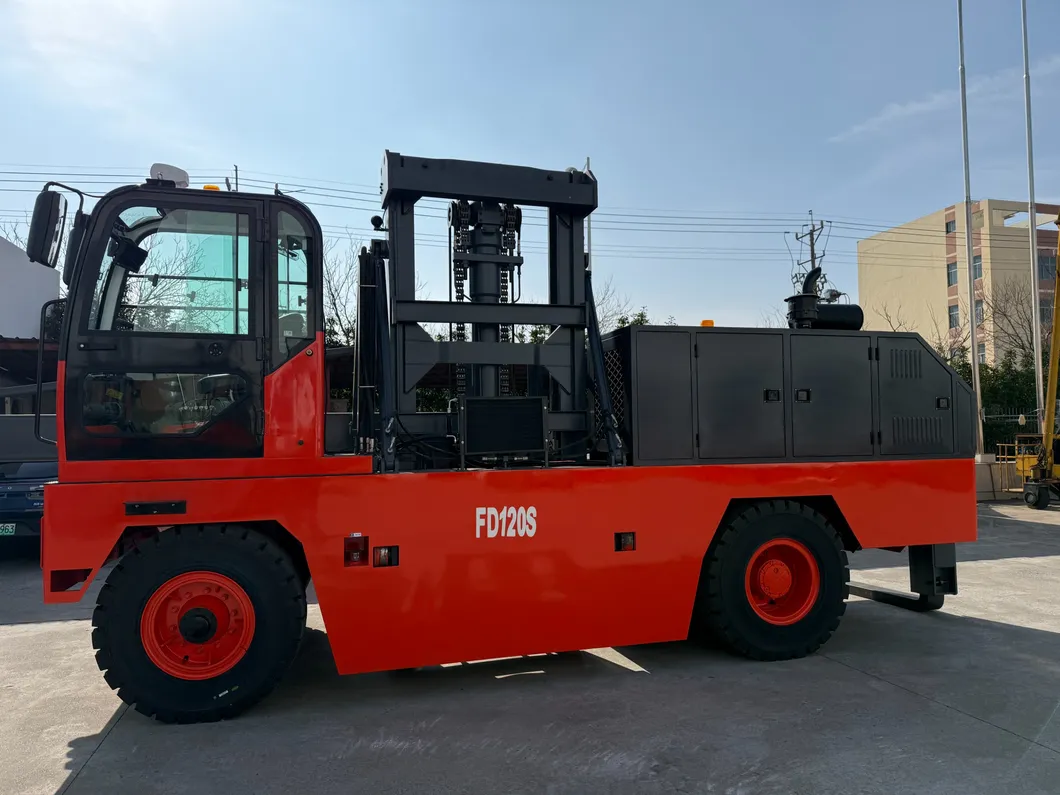

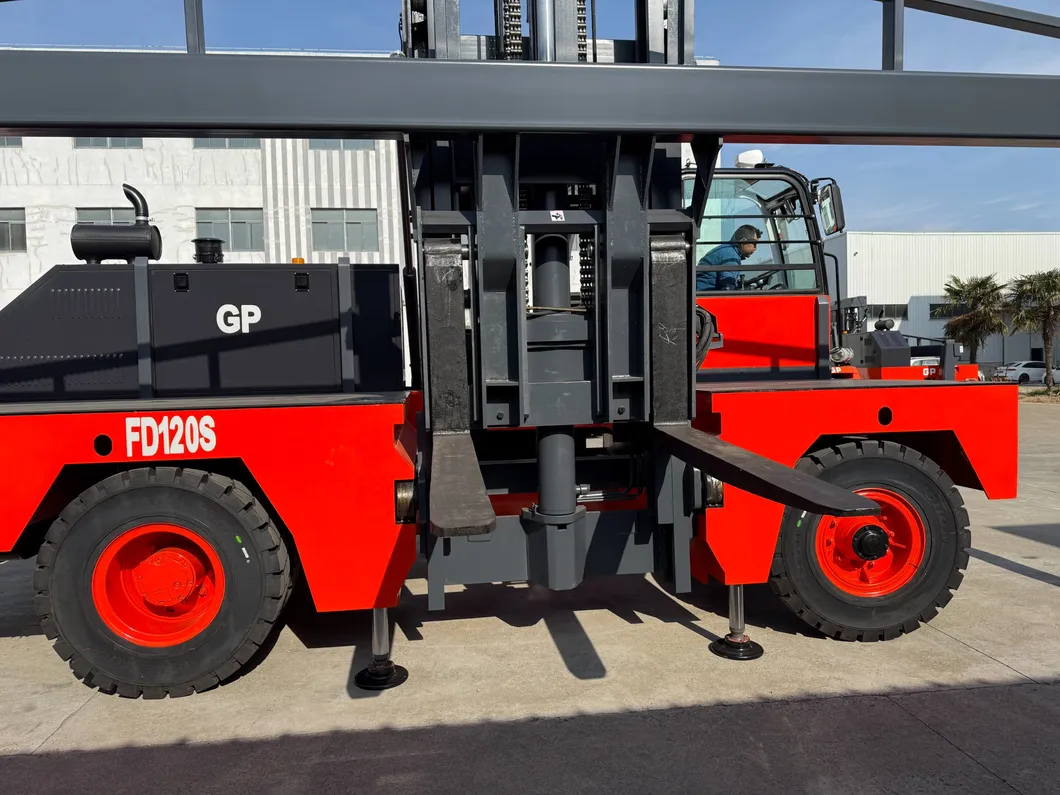

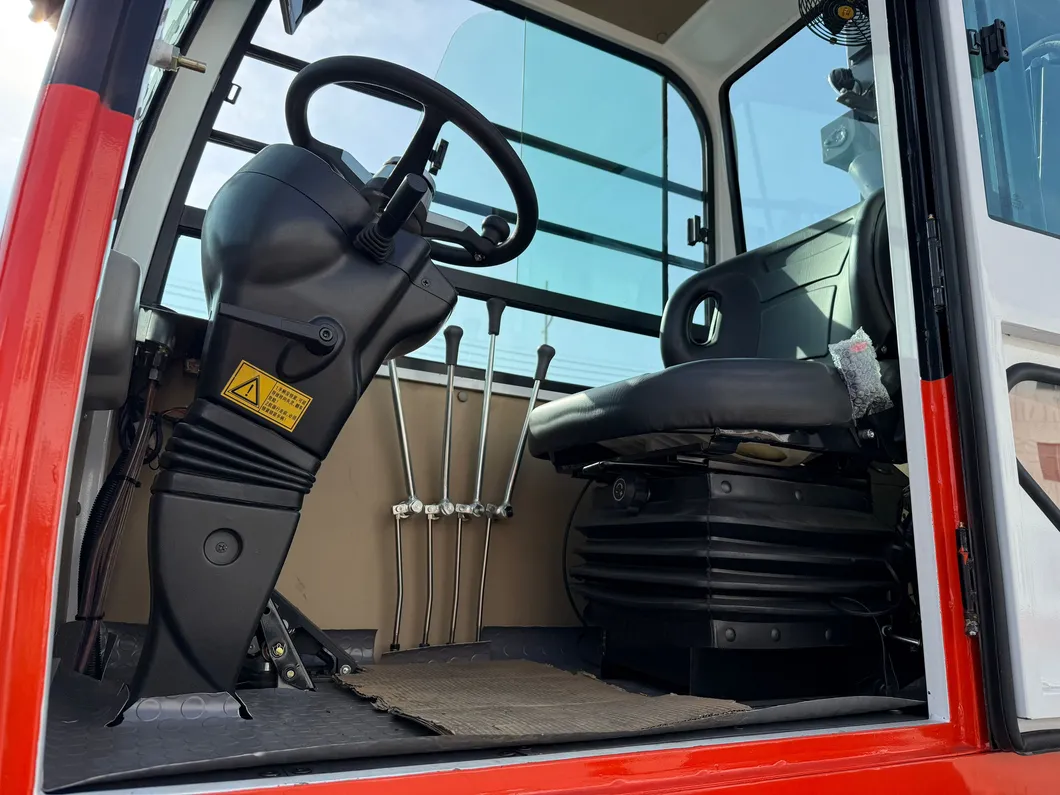

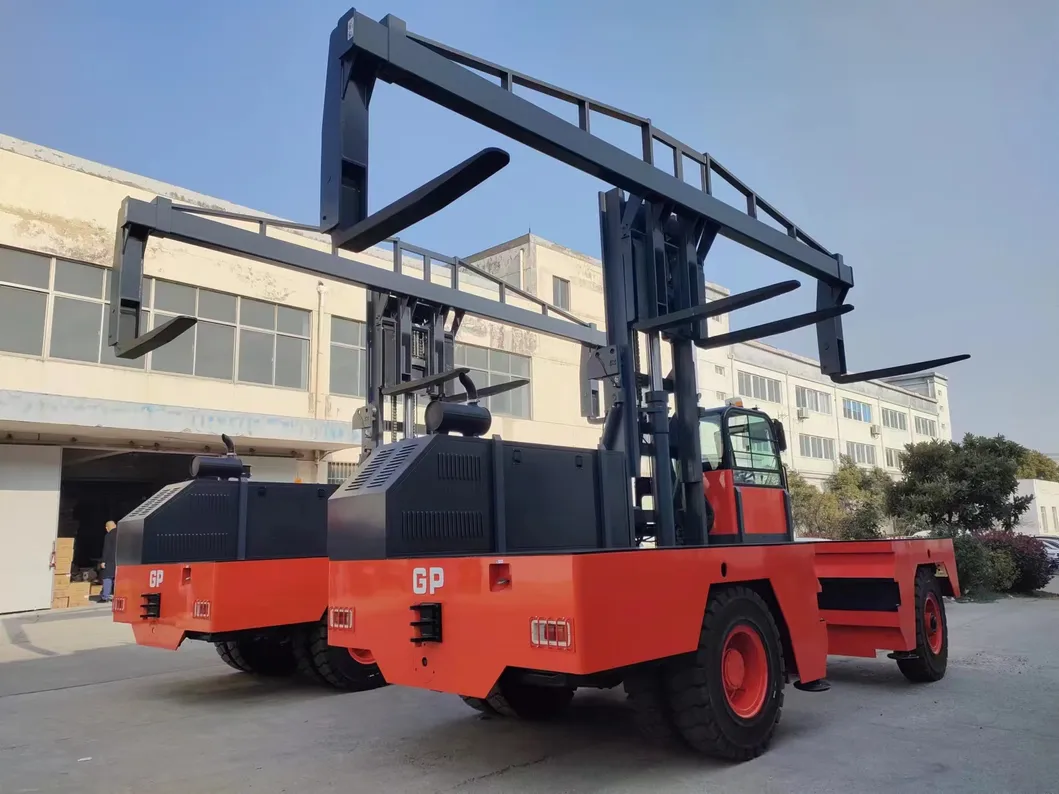

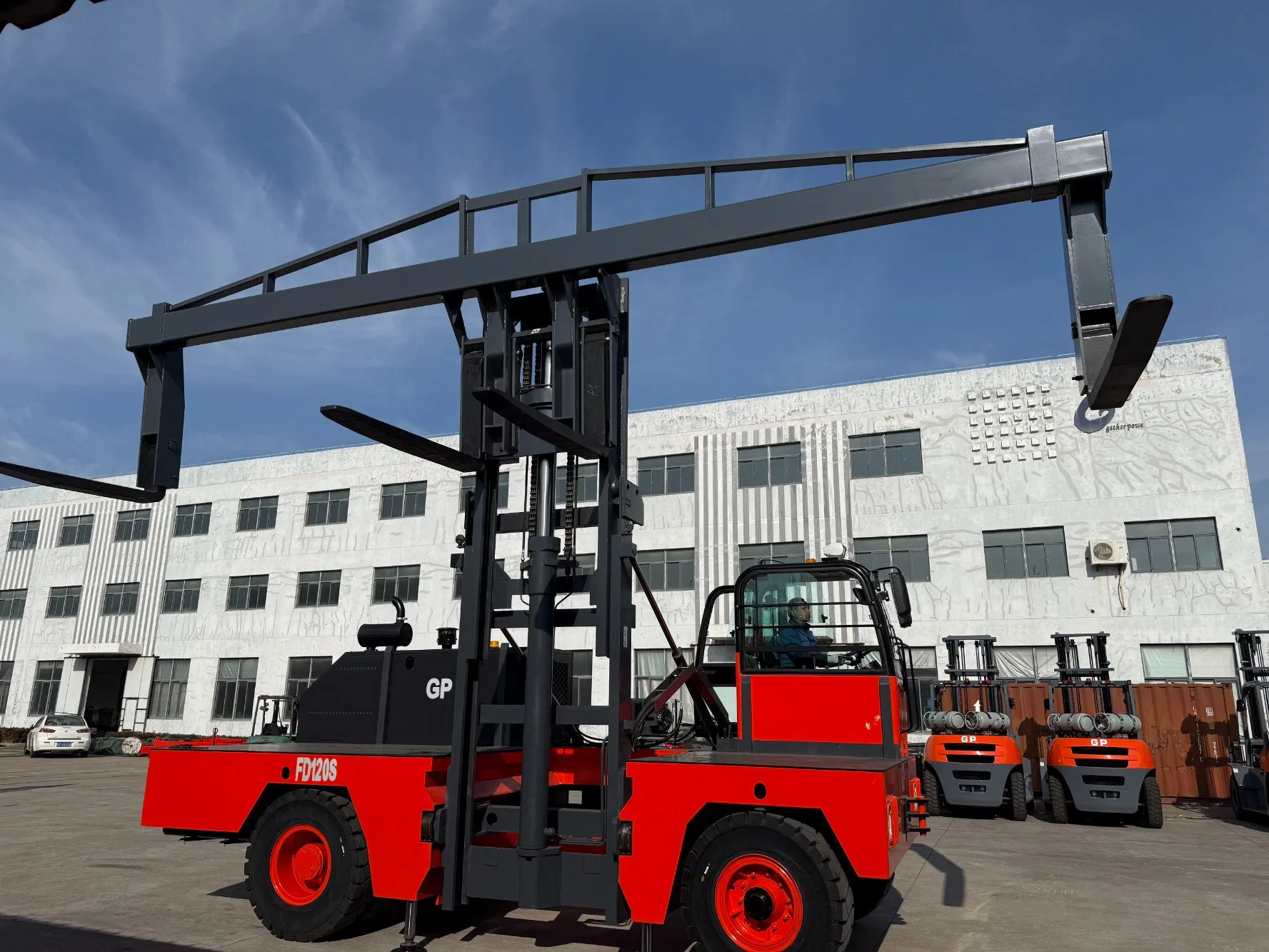

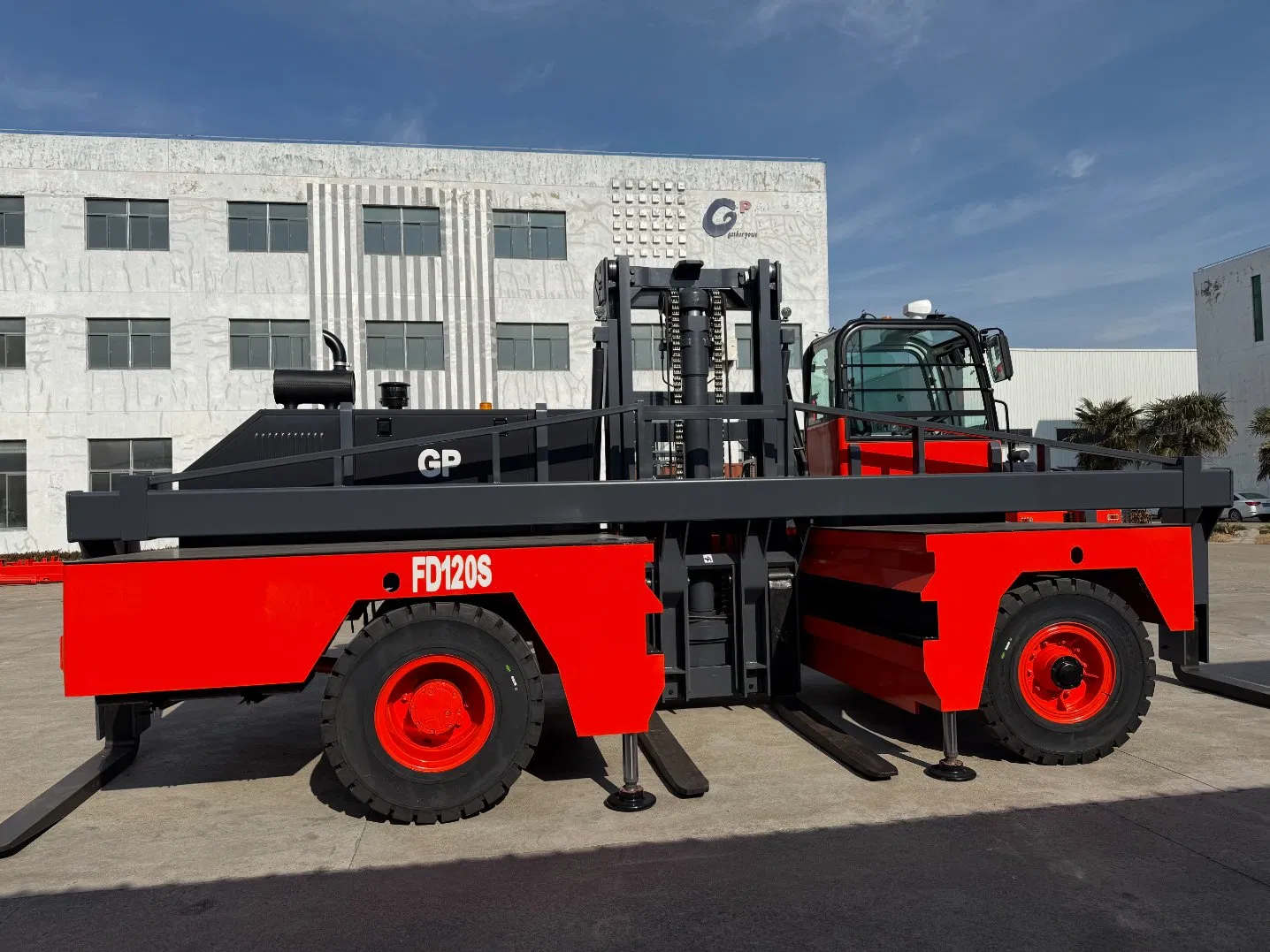

Product Gallery

?

Frequently Asked Questions

What is the primary advantage of a side forklift?
The main advantage is its ability to handle long and bulky cargoes in narrow aisles. Since the load is carried lengthwise on the truck's platform, it requires significantly less space for maneuvering compared to traditional forklifts.
What types of materials are best suited for the FD120S?
It is ideal for timber, section steels, line poles, cement tubes, plastic pipes, and any other over-length materials that are difficult to transport with standard front-loading forklifts.
What is the maximum load capacity of this model?
The FD120S model has a rated load capacity of 12,000 kg (12 tons), while the FD100S model supports up to 10,000 kg.
Where can these side forklifts be used?
They are widely used in forestry departments, railway stations, oilfields, harbors, warehouses, factories, and construction sites where long-load handling is required.

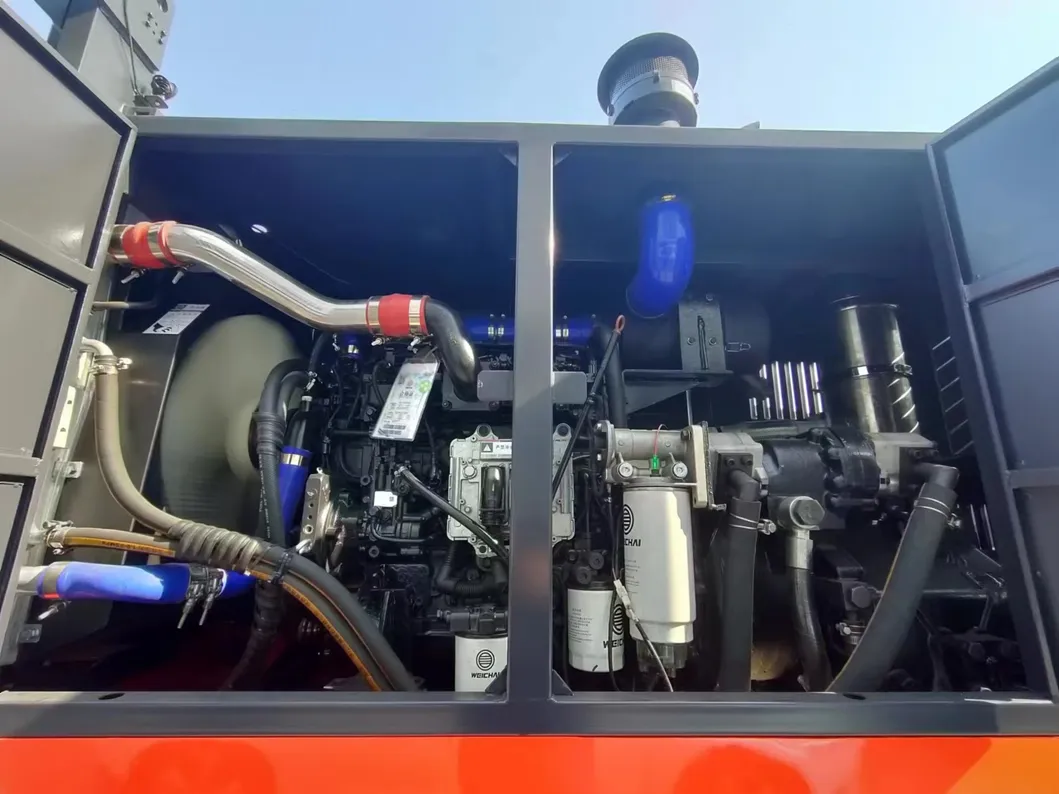

Are the engines customizable?
Yes, the engine options are flexible and can include domestic or international brands such as Weichai or Cummins, depending on specific requirements.
What is the standard lifting height for the FD120S?
The standard maximum lifting height is 3,600mm, but it can be configured within a range of 3,000mm to 5,000mm based on the application.
