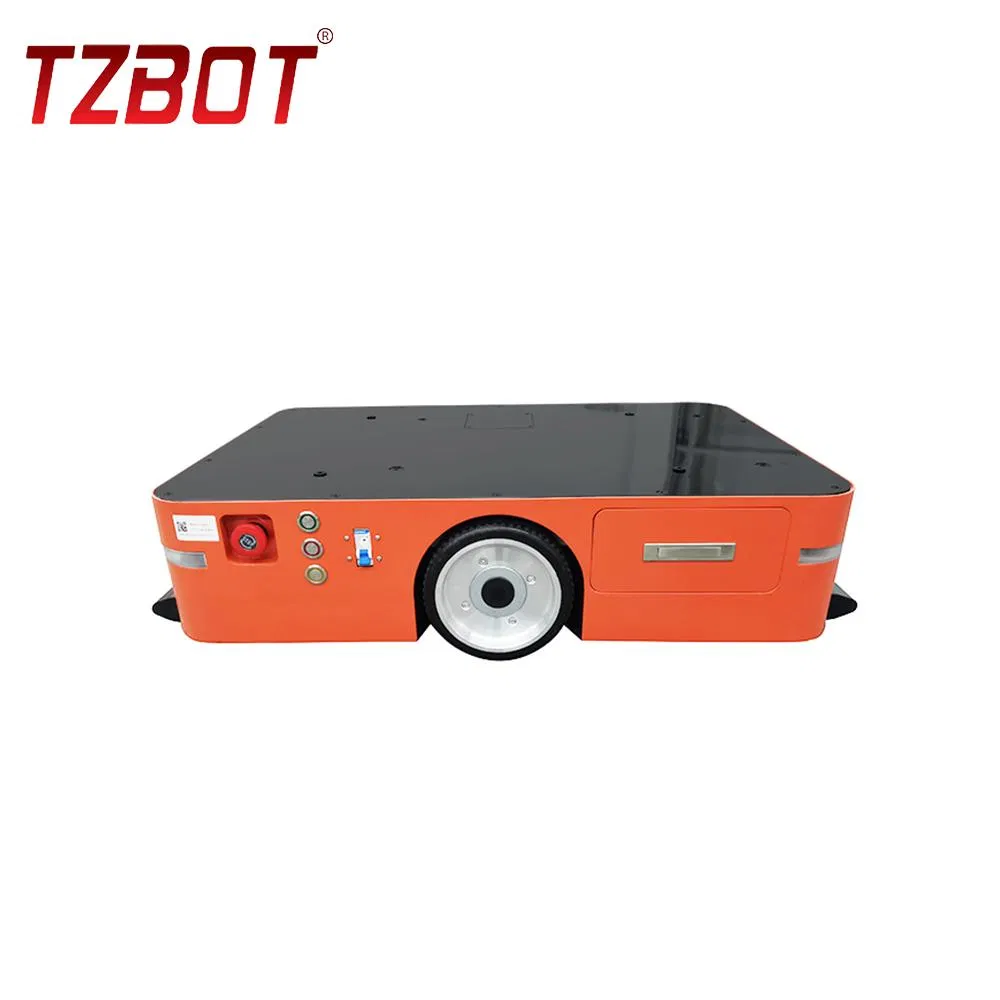

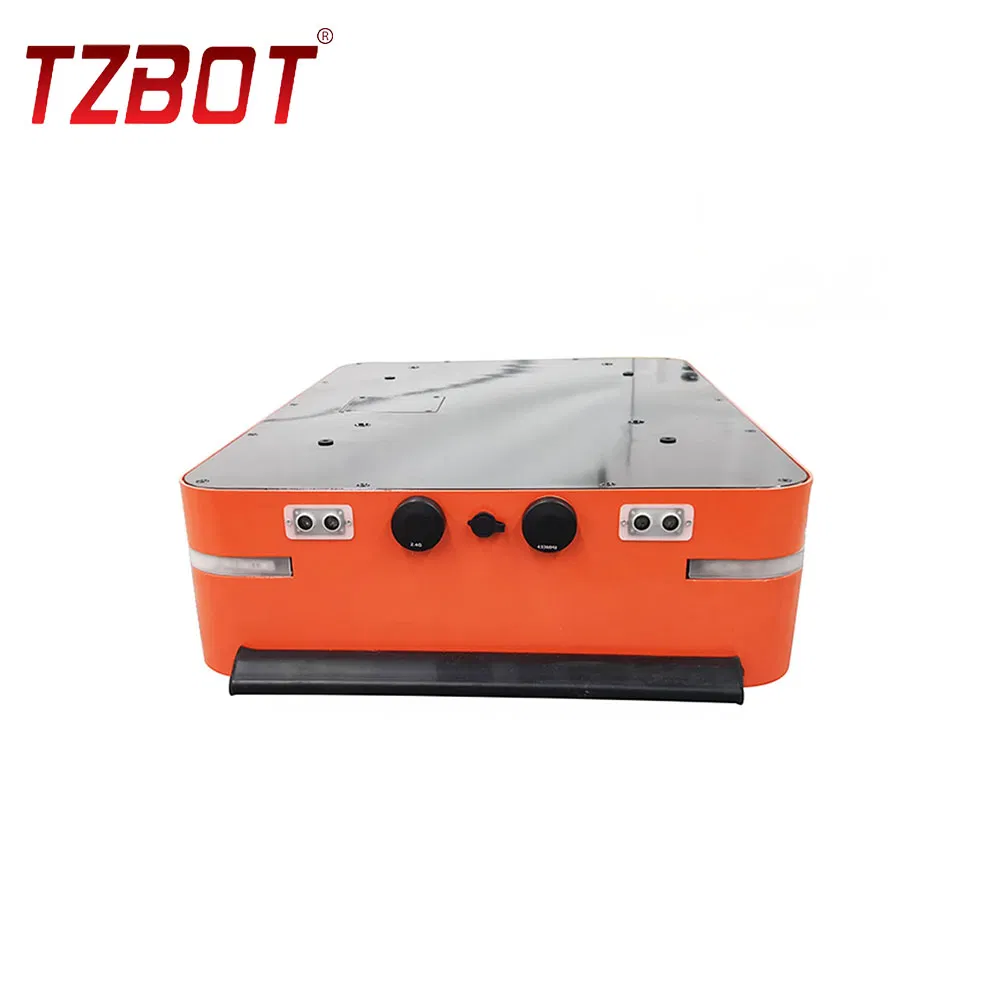

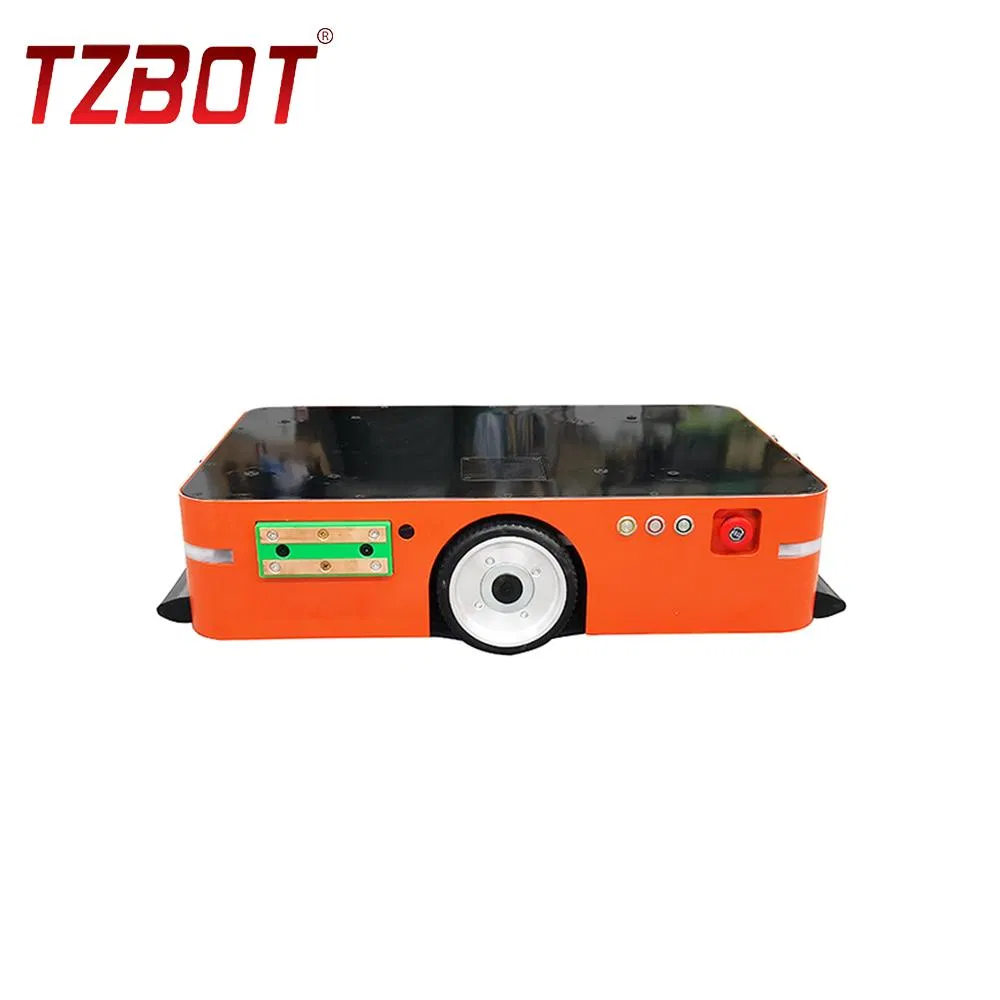

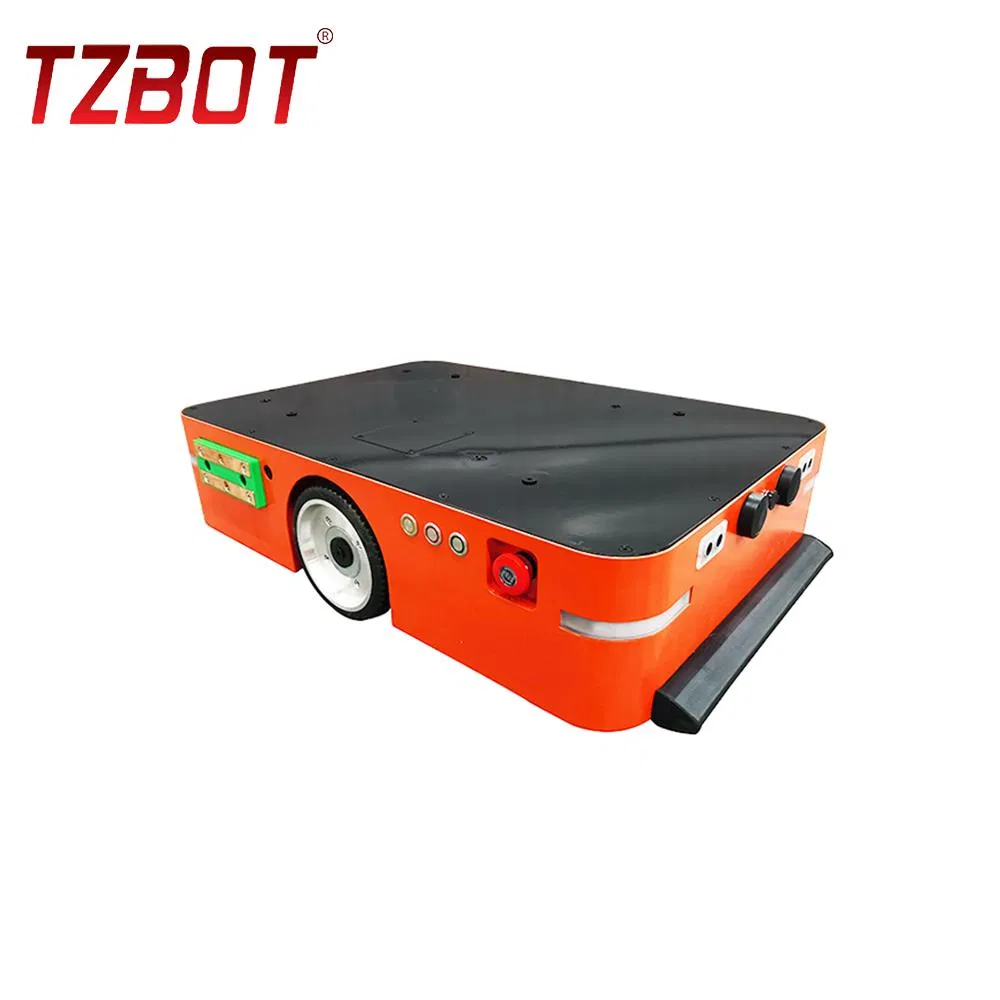

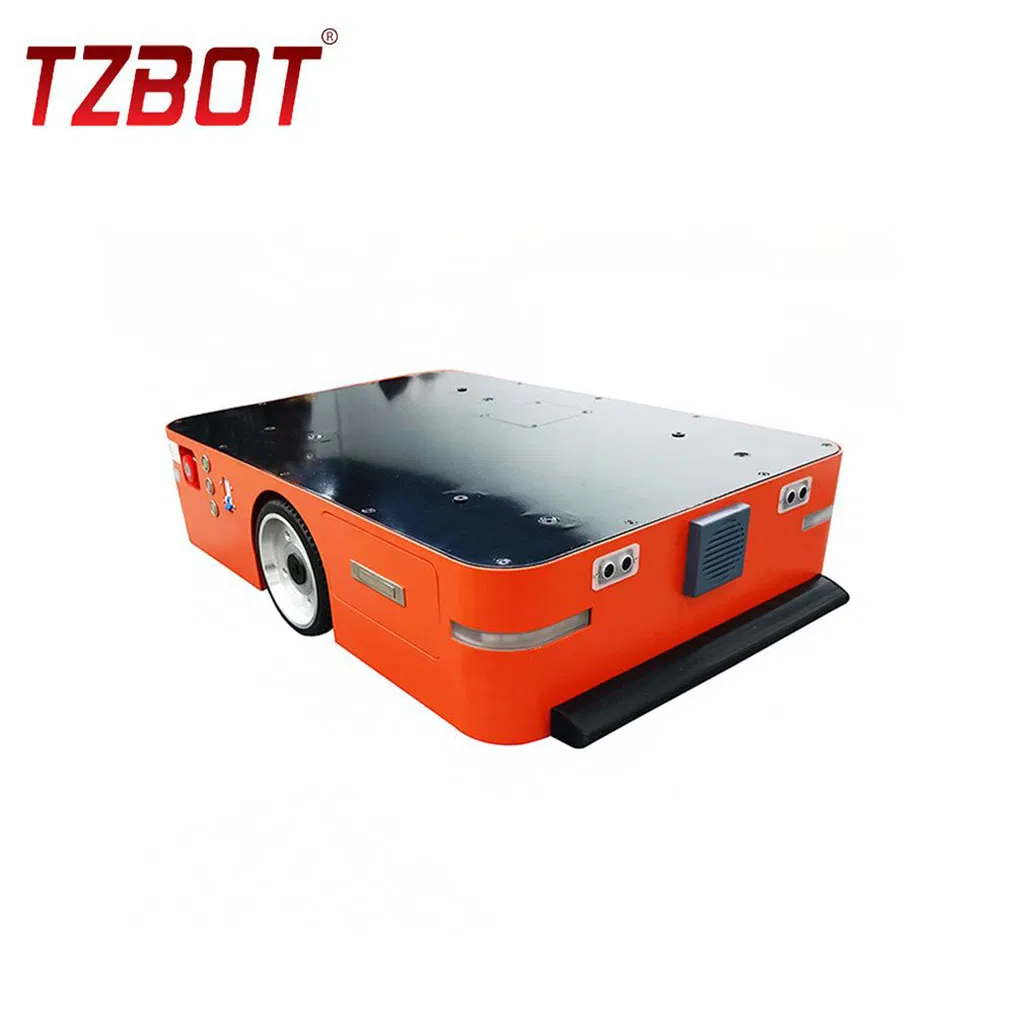

Backpack Agv Move Forward and Backward Two Way Small Industry Mobile Chassis Agv with 200kg Load Industry Automated Guided Vehicle (TZAGV-B02)
Backpack Agv Move Forward and Backward Two Way Small Industry Mobile Chassis Agv with 200kg Load Industry Automated Guided Vehicle (TZAGV-B02)
Backpack Agv Move Forward and Backward Two Way Small Industry Mobile Chassis Agv with 200kg Load Industry Automated Guided Vehicle (TZAGV-B02)
Backpack Agv Move Forward and Backward Two Way Small Industry Mobile Chassis Agv with 200kg Load Industry Automated Guided Vehicle (TZAGV-B02)
Backpack Agv Move Forward and Backward Two Way Small Industry Mobile Chassis Agv with 200kg Load Industry Automated Guided Vehicle (TZAGV-B02)
1 / 5
Backpack Agv Move Forward and Backward Two Way Small Industry Mobile Chassis Agv with 200kg Load Industry Automated Guided Vehicle (TZAGV-B02)
Backpack Agv Move Forward and Backward Two Way Small Industry Mobile Chassis Agv with 200kg Load Industry Automated Guided Vehicle (TZAGV-B02)
Backpack Agv Move Forward and Backward Two Way Small Industry Mobile Chassis Agv with 200kg Load Industry Automated Guided Vehicle (TZAGV-B02)
Backpack Agv Move Forward and Backward Two Way Small Industry Mobile Chassis Agv with 200kg Load Industry Automated Guided Vehicle (TZAGV-B02)
Backpack Agv Move Forward and Backward Two Way Small Industry Mobile Chassis Agv with 200kg Load Industry Automated Guided Vehicle (TZAGV-B02)

Backpack Agv Move Forward and Backward Two Way Small Industry Mobile Chassis Agv with 200kg Load Industry Automated Guided Vehicle (TZAGV-B02)

Customization: Available
Control Mode: Magnetic Navigation
Drive Mode: Motor
Send Inquiry

Product Description

Basic Info.
Model NO.
TZAGV-B02
Load Capacity
200kg
Walking Direction
Forward, Steer, Back
Battery
Lithium Battery
Control System
Agv Controller
Charging Method
Manual / Auto
Security System
Ultrasonic & Bumper
Moving Speed
Max 0.9m/S
Communication
Can/RS232/RS485/Io/WiFi
Certification
CE
Product Description
💡
Smart Multifunctional Two-way AGV (TZAGV-B02)
This industrial AGV robot features a compact structure, low profile, and small footprint. It supports secondary development, allowing for custom programming to meet specific industrial requirements.
Name Specification
ModelTZAGV-B02
DimensionsL880*W560*H212 (mm)
Navigation MethodMagnetic navigation
Carrying Capacity200KG
Moving SpeedMax 0.9m/s
Positioning Accuracy±5mm
FunctionMap editing/scripting/task chain editing/API support
Dimensions

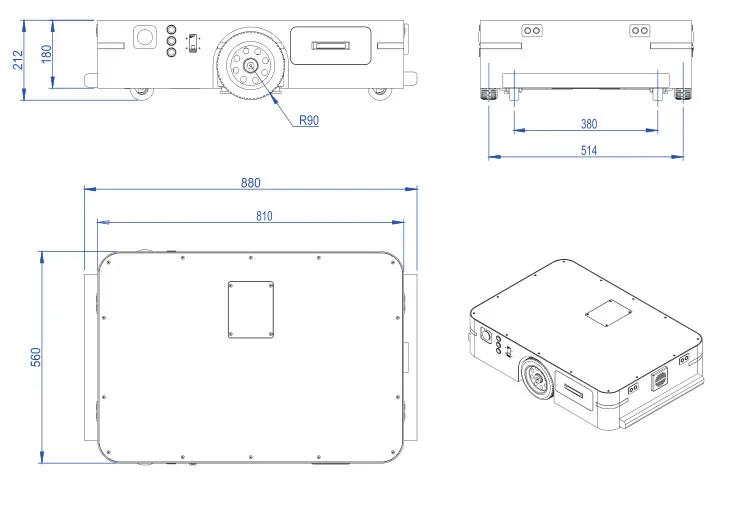

AGV Dimensions
AGV Controller

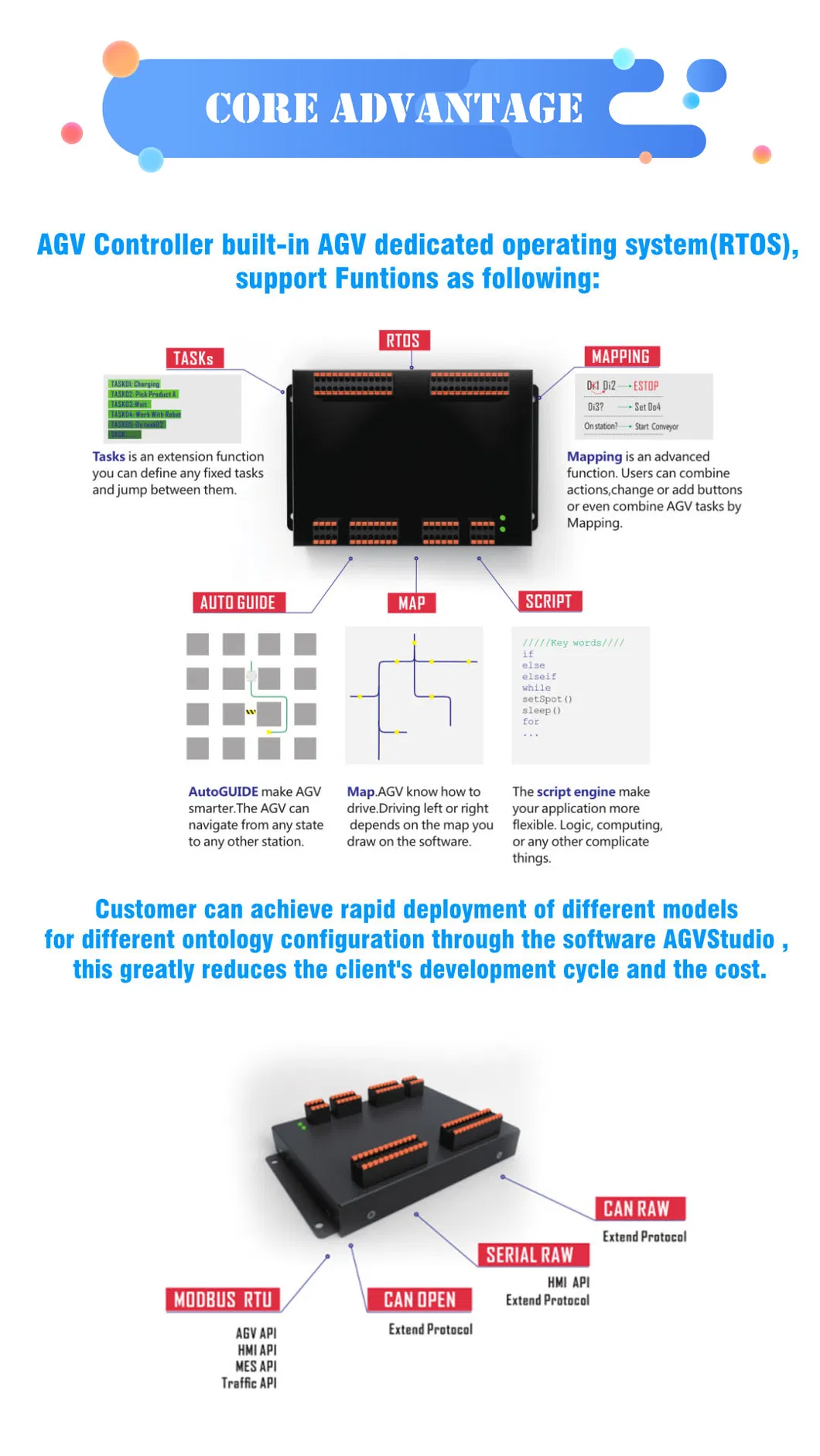

AGV Controller System
Product Advantages
⚡
Efficient Movement: Maximum speed of 0.9m/s for fast material handling.
🔊
Double Warning System: Integrated sound and light alerts for enhanced safety.
🔄
Agile Navigation: Supports forward and backward movement with 90°/180° turns.
🔋
Flexible Charging: Easy battery replacement and support for automatic charging.
🛡️
Reliable Safety: Front and rear obstacle avoidance sensors (Ultrasonic & Bumper).
Industry Presence

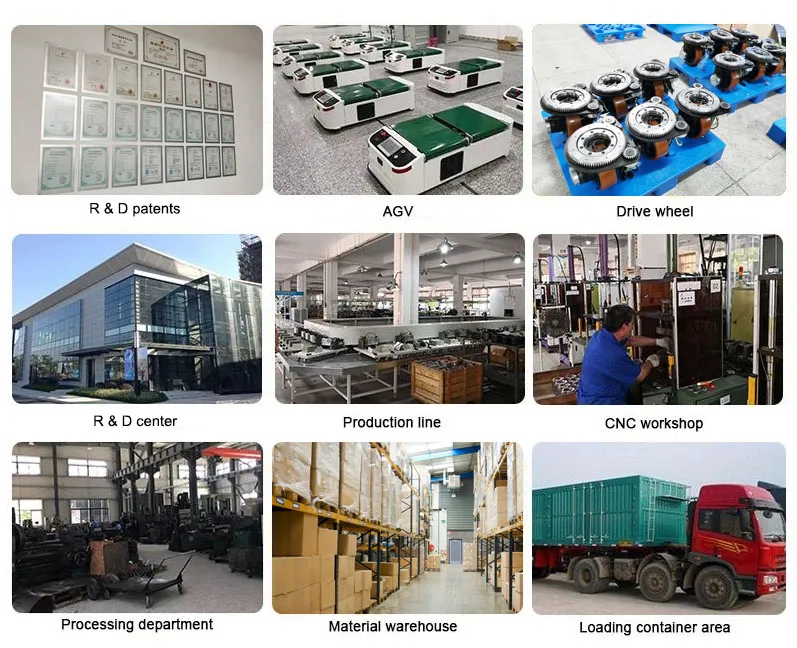

Manufacturing Capability

A specialized designer and manufacturer of AGVs, driving wheel assemblies, motors, and controllers. The core focus is providing technological innovation and customizable solutions for automated equipment across the globe.

Each product is utilized in various applications including Forklifts, AGVs, Aerial Platforms, Airport Machines, Agricultural Machines, and Medical Devices. Prototypes undergo extended testing to ensure quality and durability before mass production.

Certifications
Product Certifications
Frequently Asked Questions
1. What is the maximum load capacity of the TZAGV-B02?
The TZAGV-B02 is designed to carry a maximum load of 200kg, making it suitable for various material handling tasks.
2. Which navigation method does this AGV use?
This model utilizes reliable magnetic navigation for precise movement along pre-defined paths.
3. What safety features are integrated into the vehicle?
The AGV is equipped with a dual security system, including ultrasonic sensors and mechanical bumper sensors for effective obstacle avoidance.
4. Can this AGV be customized or programmed for specific tasks?
Yes, it supports secondary development, map editing, scripting, and various API integrations for custom task chain management.
5. What communication protocols are supported?
The vehicle supports multiple communication interfaces including CAN, RS232, RS485, IO, and WIFI.
6. What payment and technical support services are available?
We accept T/T, PayPal, and L/C. We provide full pre-sale consulting and 24-hour online technical guidance for all products.
