Automated Guided Vehicle Trackless Electric 10 Ton Agv for Factory

1 / 5

Automated Guided Vehicle Trackless Electric 10 Ton Agv for Factory

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.AGV

Product NameDie Handling Cart

Capacity1-1,000 Tons (Customized)

MaterialSteel (Q235B Material)

StyleSteel Box and Girder

Wheel TypePU Wheel / Caster / Tyre

Power SupplyBattery Power

Operation TypeHand Pendant + Remote Control

Safety FacilityWarning Lamp, Buffer, Limit Switch

HS Code8428909090

Product Description

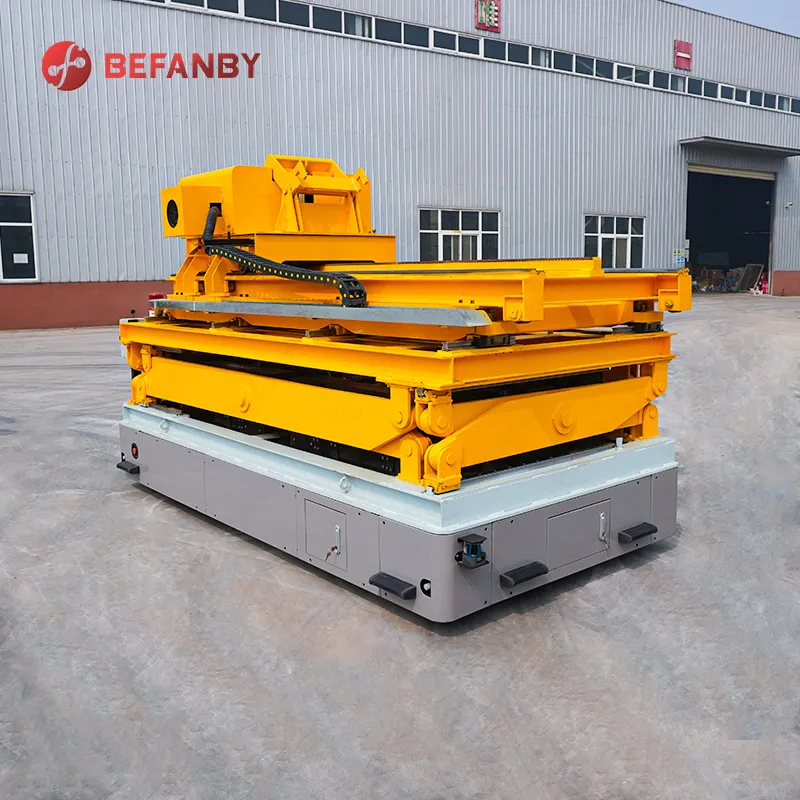

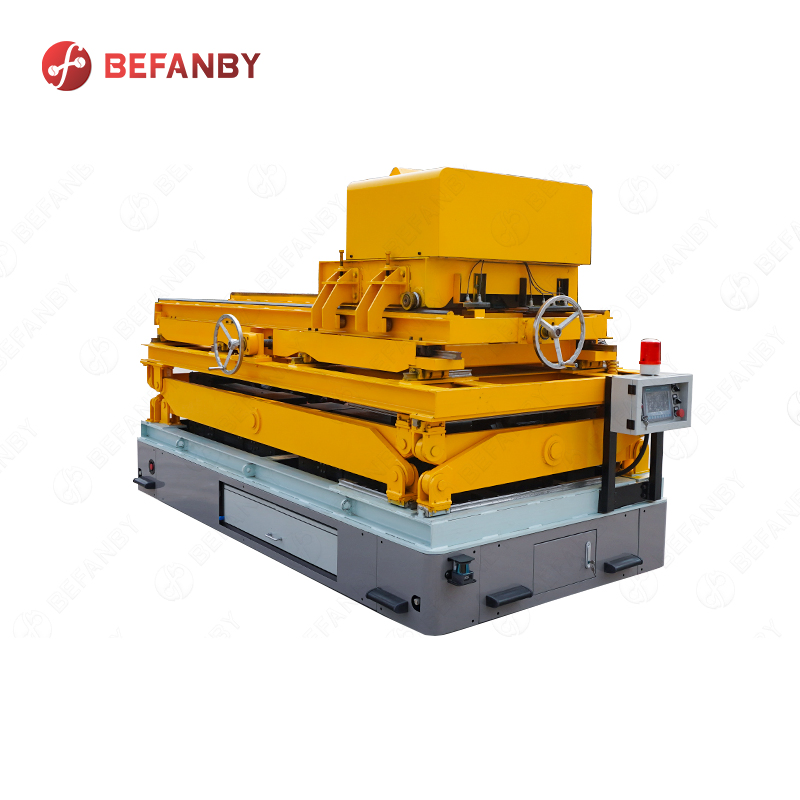

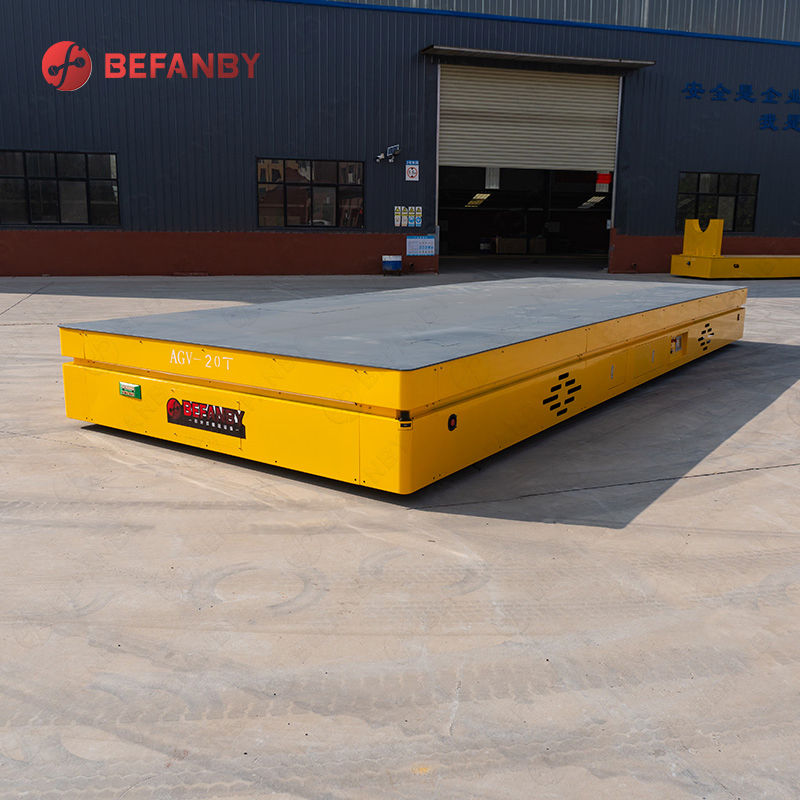

Automated Guided Vehicle Trackless Electric 10 Ton Agv for Factory

The battery power trackless transfer cart is an alternative transfer cart for rail transfer cars. It overcomes many inconveniences of rail-type electric transfer carts. These carts can finish free-turning without rails in the workshop, providing high flexibility. Since there is no need to lay rails, it does not affect traffic or hinder production, making operations more humanized.

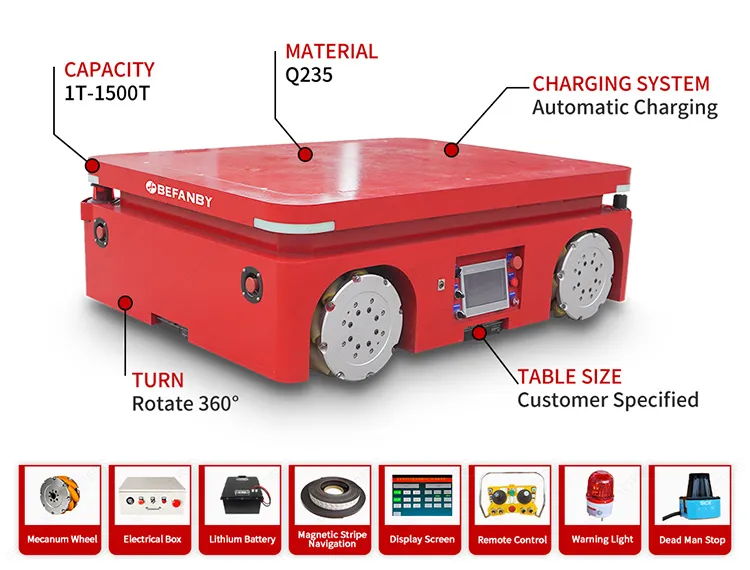

Key Features

✔Not restricted by tracks; can travel freely on level ground with 360-degree turning capability.
✔Suitable for all environments, including indoors, outdoors, and high-temperature explosion-proof areas.
✔Ideal for long-distance operations with high efficiency.
✔Fully customized: table size, operating speed, and load capacity tailored to your specific requirements.
✔Equipped with safety warnings and automatic stop devices for secure material handling.

Technical Parameters

Model	BWP-2T	BWP-10T	BWP-20T	BWP-30T	BWP-50T	BWP-150T
Rated Load (T)	2	10	20	30	50	150
Table Size (L*W)	2000*1500	3600*2000	4000*2200	4500*2200	5500*2500	10000*3000
Height (mm)	450	500	550	600	650	1200
Wheel Diameter	Φ270	Φ300	Φ350	Φ400	Φ500	Φ600
Running Speed (m/min)	0-25	0-25	0-20	0-20	0-20	0-18
Motor Power (Kw)	1	1.6	2.2	3.5	5	15
Battery Voltage (V)	24	48	48	48	48	72

Note: All parameters are for reference and can be customized according to actual demands.

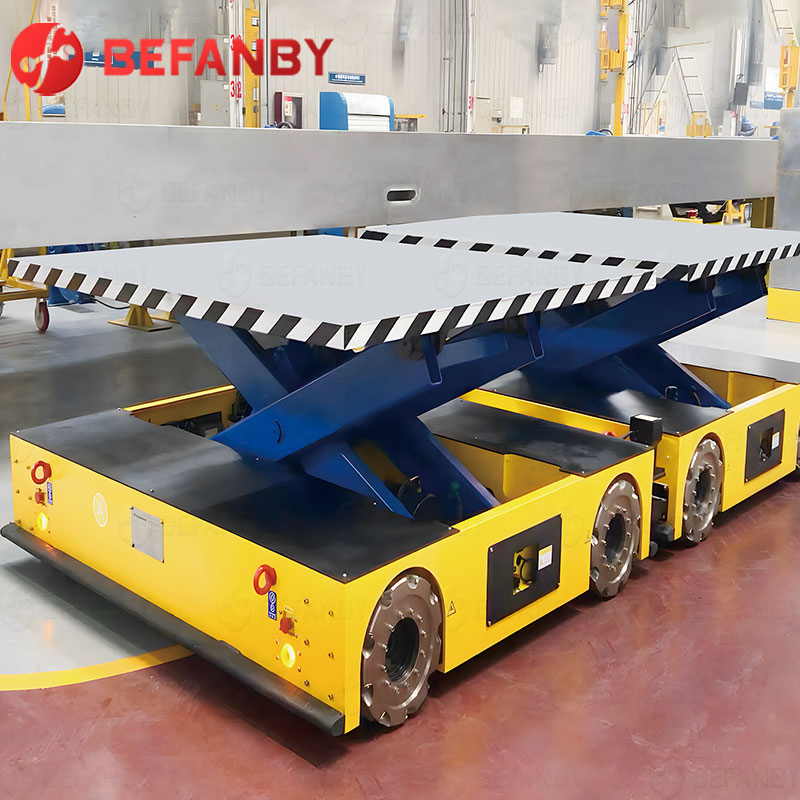

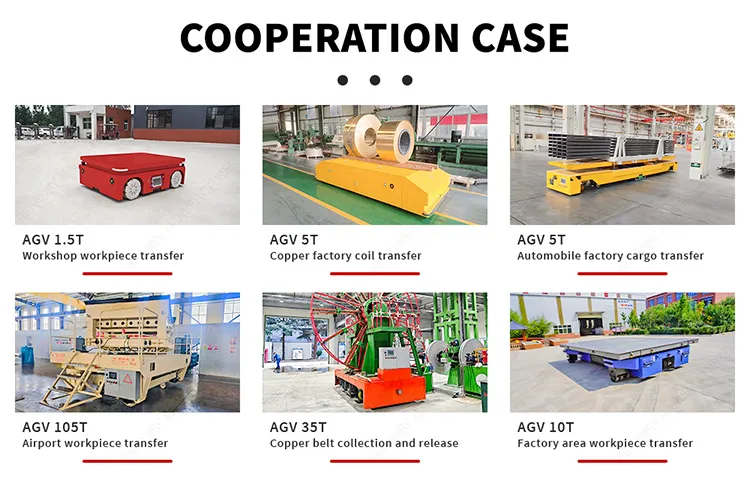

Visual Display & Applications

Frequently Asked Questions

What is the maximum load capacity of the trackless transfer cart?

The capacity ranges from 1 ton up to 1,000 tons, and it is fully customizable based on your specific industrial needs.

How does the cart steer without rails?

It uses specialized PU wheels or caster wheels and a dual-motor drive system that allows for 360-degree rotation and flexible steering on flat workshop floors.

What power source does the AGV use?

The system is primarily powered by high-capacity maintenance-free batteries, suitable for long-shift operations.

Is it safe to use in a crowded factory?

Yes, it is equipped with multiple safety features including warning lamps, buffers, and automatic limit switches to ensure safe operation around personnel and equipment.

Can the table size and height be customized?

Absolutely. We customize the table length, width, and height to match the dimensions of the dies or materials you need to transport.

What kind of maintenance is required?

Since it uses a DC motor and maintenance-free batteries, maintenance is minimal, primarily involving periodic inspections of the wheels and safety sensors.
