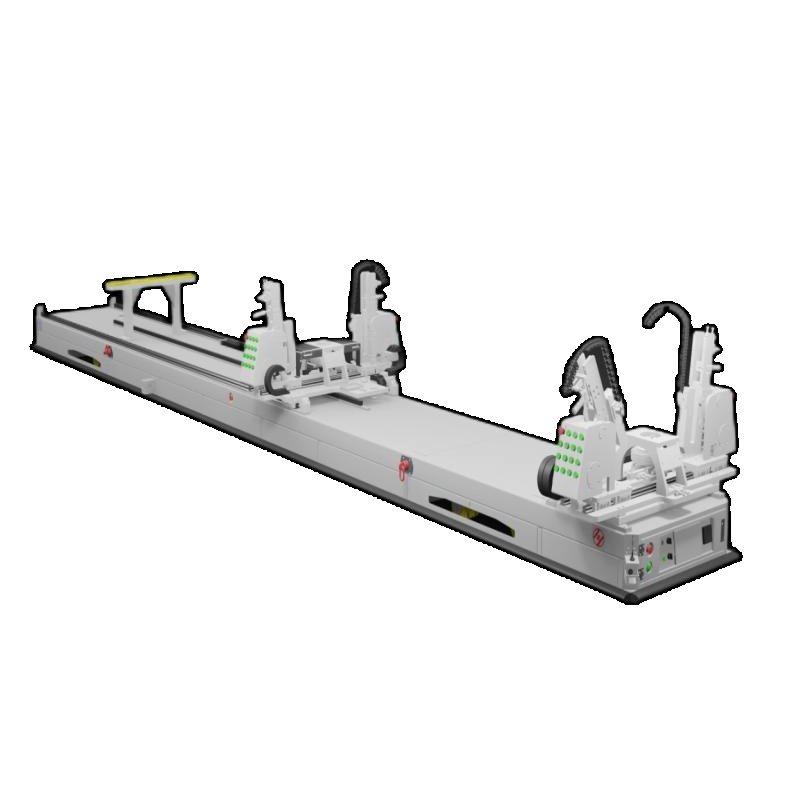

Automated Guided Vehicle Manufacturers Transport Cart Heavy Duty Agv

Customization: Available
Control Mode: Low Voltage Servo Motor + Independent Servo Contro
Drive Mode: Low Voltage Servo Motor + Independent Servo Contro

Product Description

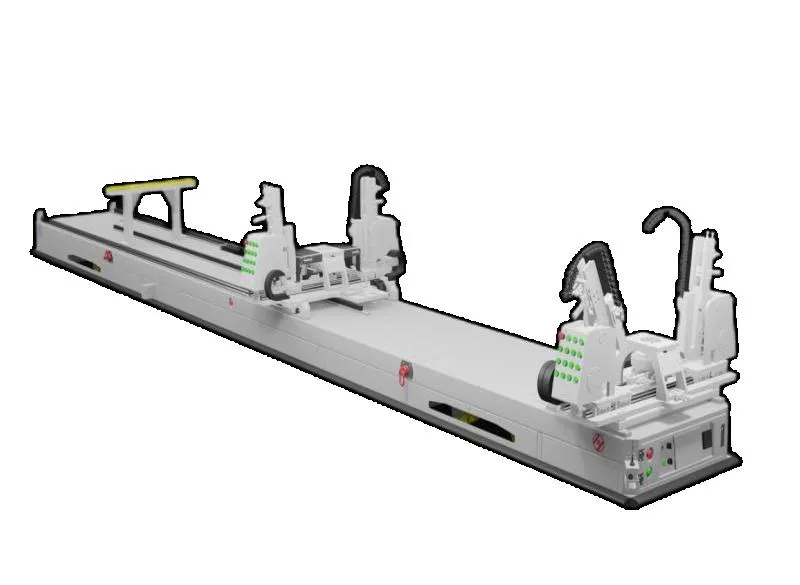

Heavy Duty AGV Overview

Basic Information

Model NO.
LY-2-3T-24-B
Load Capacity
3000kg
Type
AGV (Automated Guided Vehicle)
Navigation
Magnetic Stripe Navigation
Walking Speed
0-20m / Min
Navigation Accuracy
±10mm
Climbing Ability
≤ 3°
Battery
Lithium Iron Phosphate, 58.4V/100ah
Safety Features
Laser Scanner, Collision Avoidance, Emergency Stop
Production Capacity
2000 Pieces/Year

Technical Specification

Parameter Details
ModelLY-2-5T-24-B
Rated Load3,000 kg
Equipment Weight3,500 kg
Body Dimensions9160 mm * 1660 mm * 1110 mm
Longitudinal Adjustment6000mm - 12000mm
Horizontal Outer Width780mm / 865mm
Body StructureDifferential Drive
Drive Motor TypeLow voltage Servo Motor + Independent Servo Controller
Braking DistanceFull load ≤500mm, No-load ≤300mm
Protection LevelIP54

Industry Applications

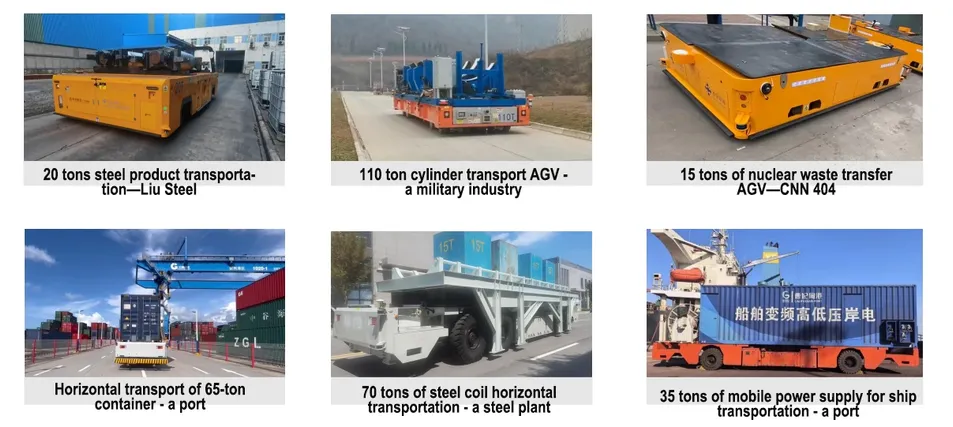

AGV Application 1

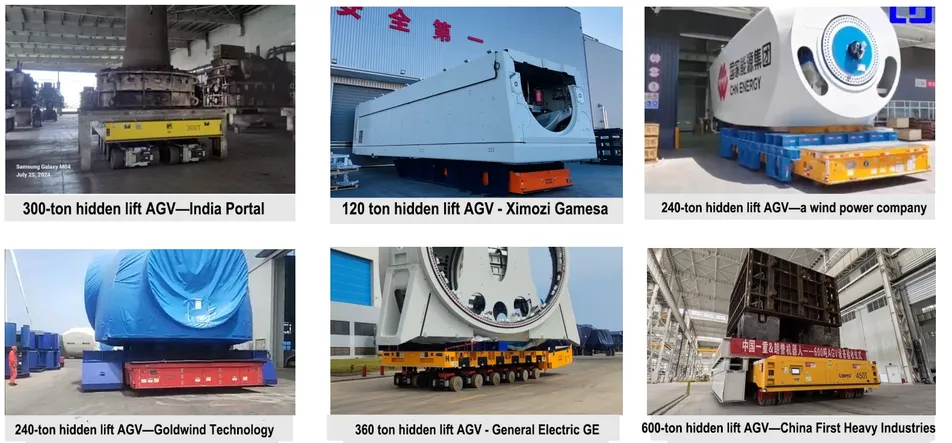

AGV Application 2

Heavy-duty AGVs are specifically designed for the production, assembly, and transportation of large workpieces in demanding industries. Key sectors include aviation, aerospace, high-speed rail, wind power, metallurgy, engineering machinery, ships, ports, airports, heavy trucks, and hydropower equipment. These vehicles provide a robust solution for handling over-long and over-weight objects.

Professional Capability

With years of technical accumulation starting from 2012, our heavy-duty AGV technology has successfully delivered solutions with vehicle loads ranging from 10 to 1,000 tons. Our systems are indispensable hardware platforms for realizing digitalization and intelligence in heavy industrial production, ensuring efficient movement of overweight objects in the Industrial Internet of Things.

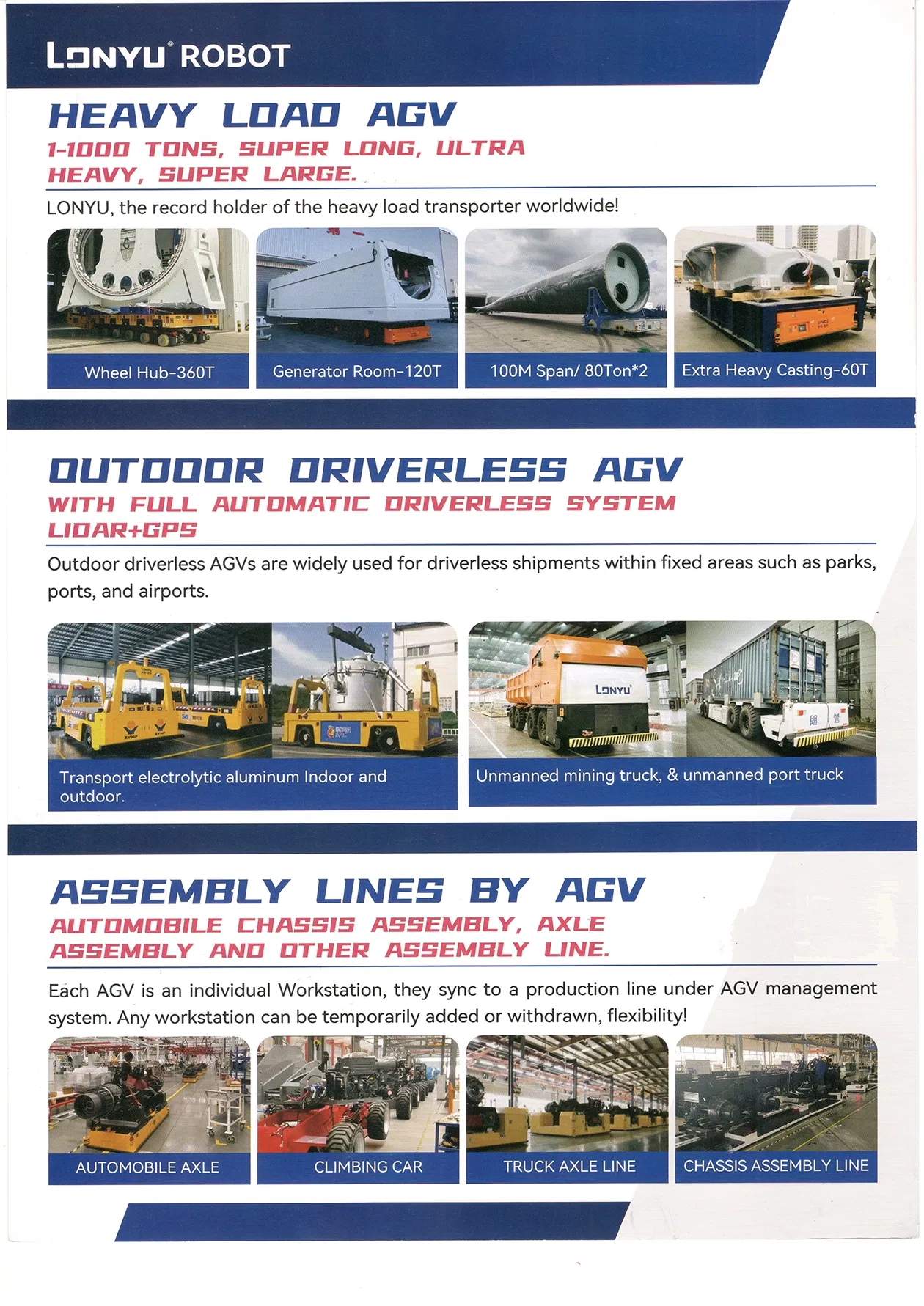

AGV Production

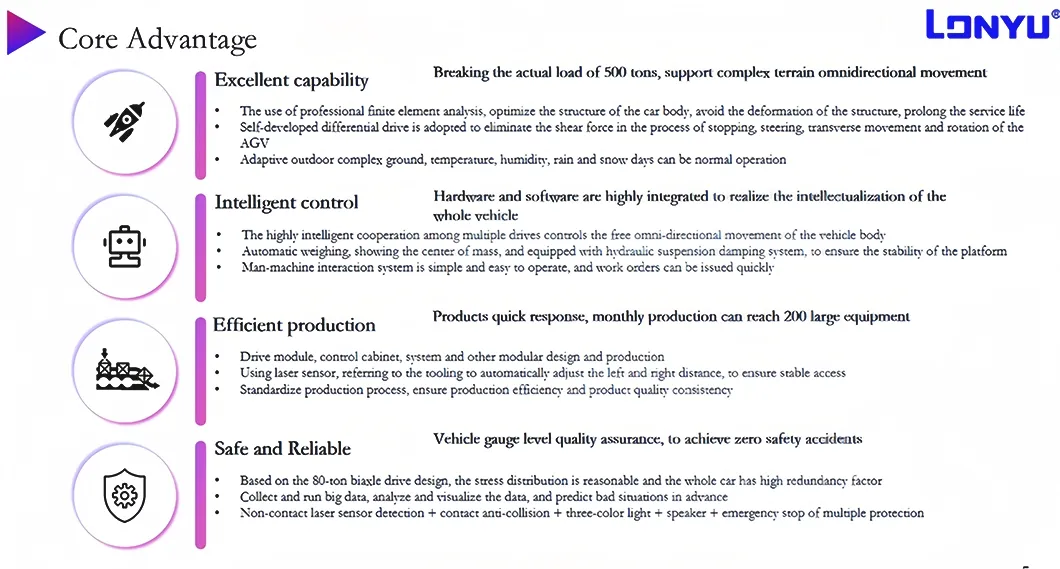

AGV Testing
AGV Facility
Technical Details

Frequently Asked Questions

Would an AGV be a good solution for my facility?
An AGV is an excellent choice for moving materials and components horizontally. You must consider the load weight and specific travel requirements of your application to determine if it's the right fit for your workflow.
What are the primary benefits of using heavy-duty AGVs?
They offer high safety, stable operation, and ease of use. Features like hydraulic independent suspension, automatic leveling, and all-round steering allow them to adapt to uneven ground and navigate restricted passages efficiently.
Which industries typically use these transfer vehicles?
They are mainly used in warehousing, manufacturing, ports, airports, and hazardous environments to automate the handling of overweight or over-long materials, reducing labor intensity and increasing turnover.
What is the navigation accuracy and safety protection of this AGV?
The vehicle achieves a navigation accuracy of ±10mm. Safety is ensured through laser obstacle avoidance sensors, contact collision avoidance, sound and light warnings, and emergency stop buttons.
What kind of power system does the heavy-duty AGV use?
It utilizes a high-capacity Lithium Iron Phosphate battery (58.4V/100AH) paired with a low-voltage servo motor and an independent servo controller for precise movement.
Can the AGV handle uneven floors and climbing?
Yes, the AGV features a passive spring suspension system that ensures reliable performance and even stress on multiple wheels. It has a climbing ability of up to ≤ 3°.
