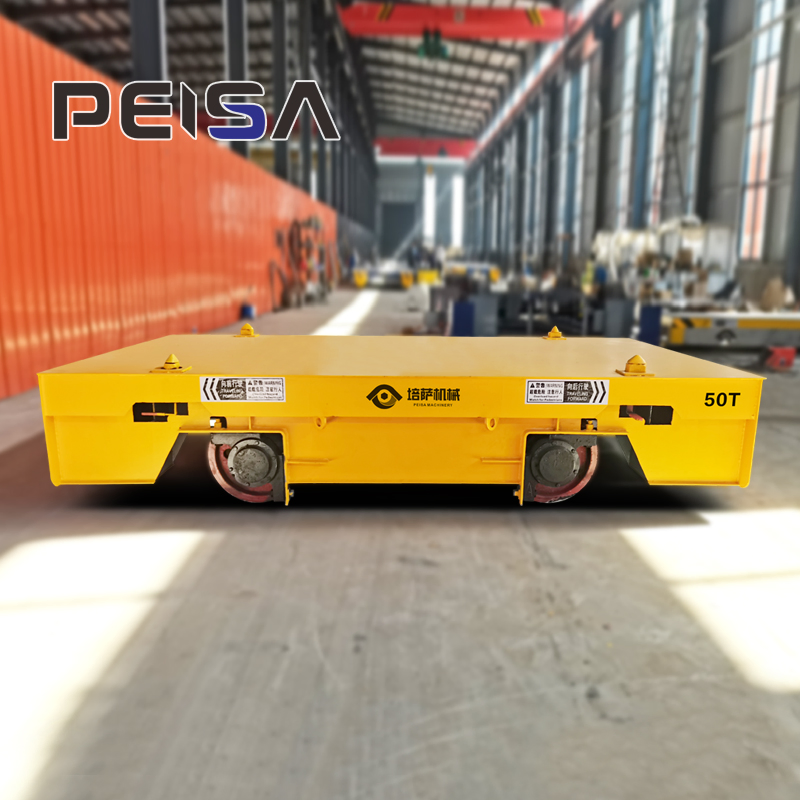

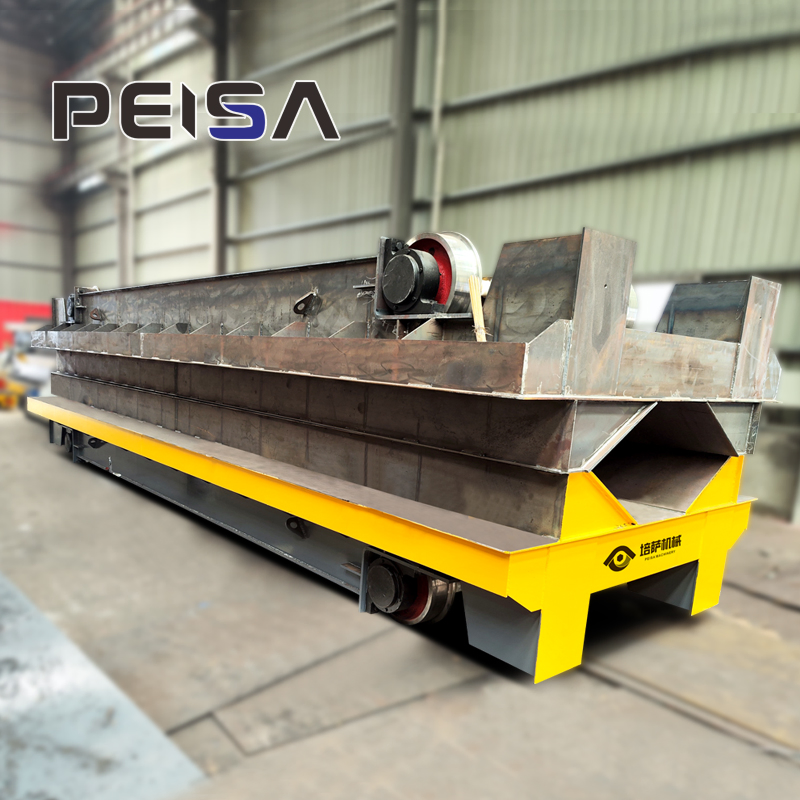

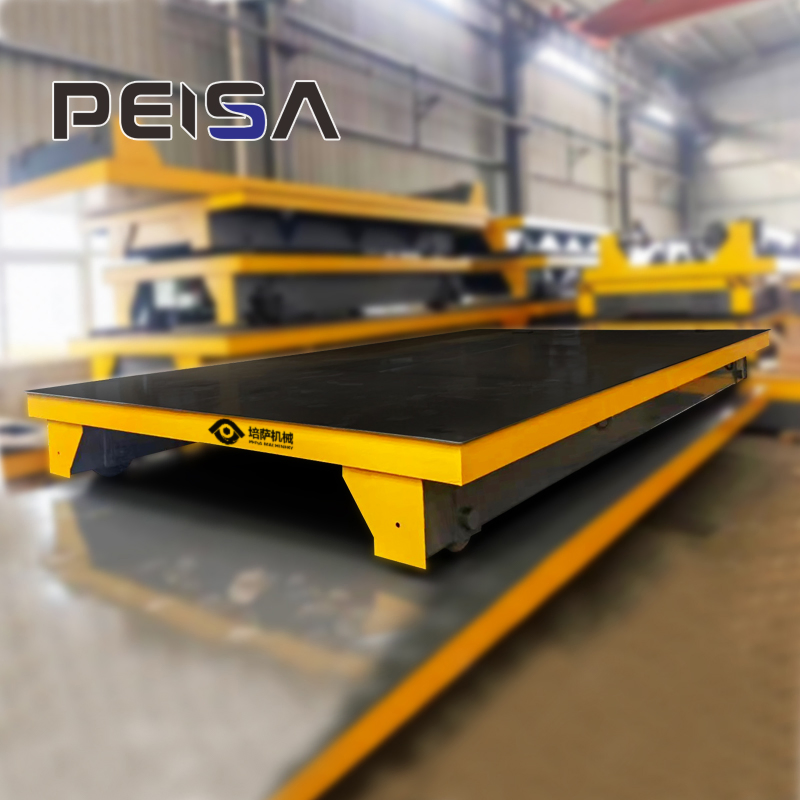

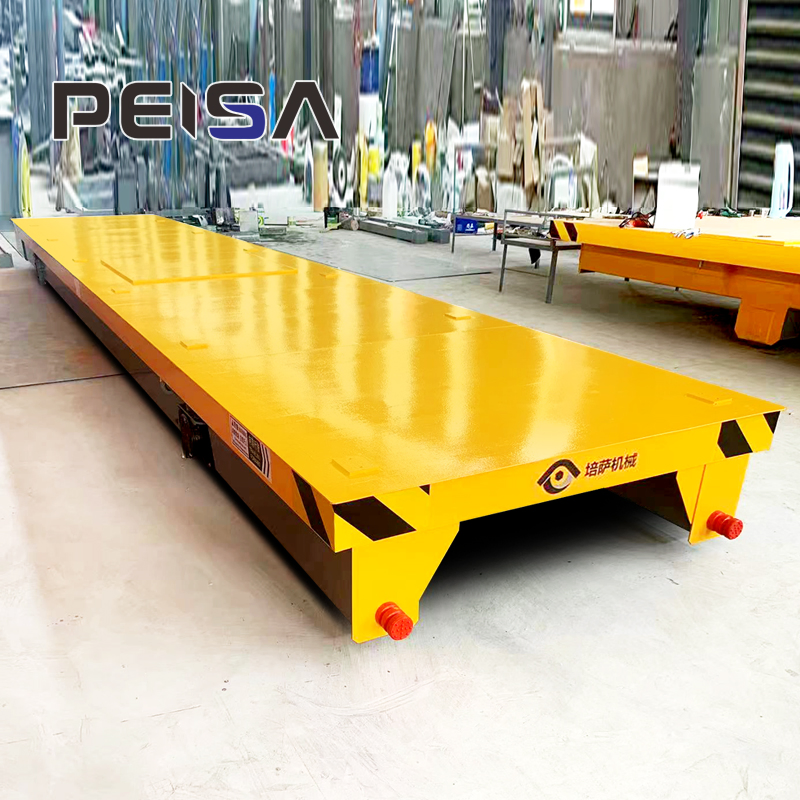

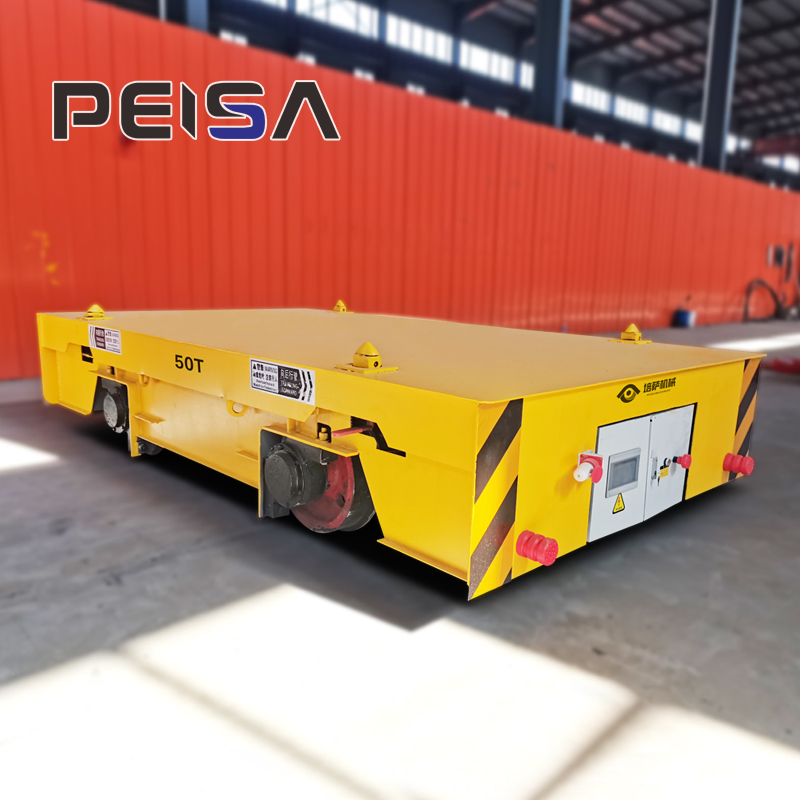

Adjustable Materials Handling Equipment 30 Ton Modular Electric Transfer Trolley

🔷 Basic Information

Model NO.DPX

Load CapacityCustom

Transport PackageTarp Packing

Specification5500*4000mm (custom)

HS Code8428909090

Production Capacity50 Sets/Month

Package Size350x200x50cm

Gross Weight4500.00kg

⚙️ Product Description

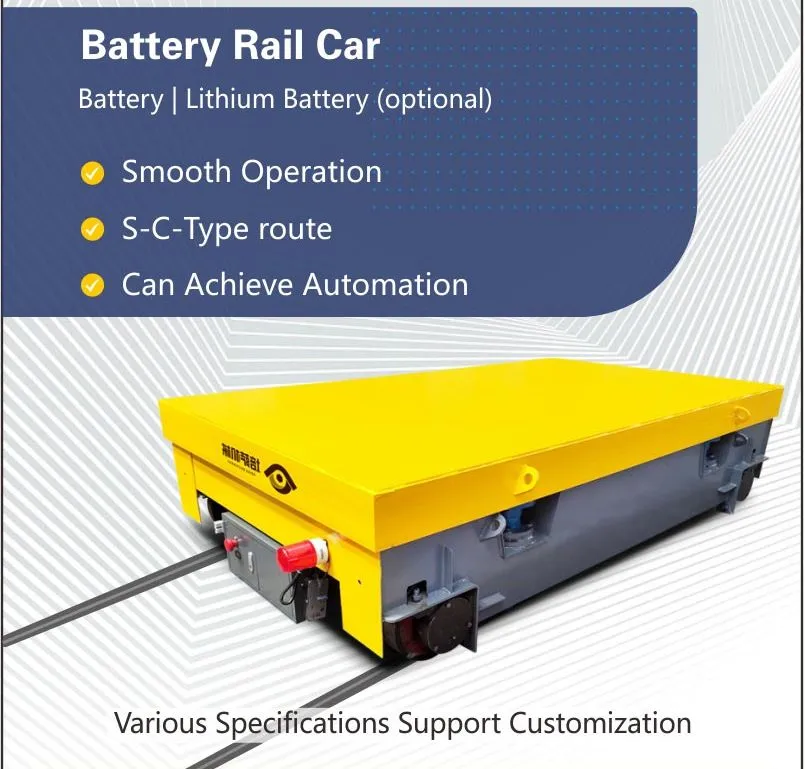

The DPX Electric Rail Transfer Cart is designed with a simple structure and high carrying capacity. It is engineered to withstand harsh industrial environments, offering durability against dirt and impact. Its practicality and ease of maintenance make it the preferred solution for moving heavy loads along fixed itineraries between factory buildings.

📊 Technical Parameters

Model		DPX-2T	DPX-10T	DPX-20T	DPX-30T	DPX-50T	DPX-63T	DPX-150T
Rated load (T)		2	10	20	30	50	63	150
Table Size (mm)	Length (L)	2000	3600	4000	4500	5500	5600	10000
	Width (W)	1500	2000	2200	2200	2500	2500	3000
	Height (H)	450	500	550	600	650	700	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	4300	7000
Motor Power (Kw)		1	1.6	2.2	3.5	5	6.3	15
Battery Voltage (V)		24	48	48	48	48	48	72

✅ Key Advantages

✔

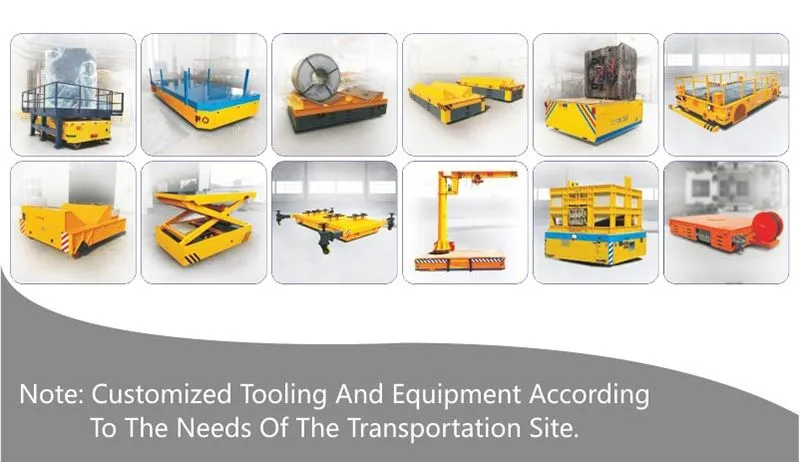

Customization: Supports vertical cross rails, L-shaped, S-shaped, curved rails, and ferry operations.

✔

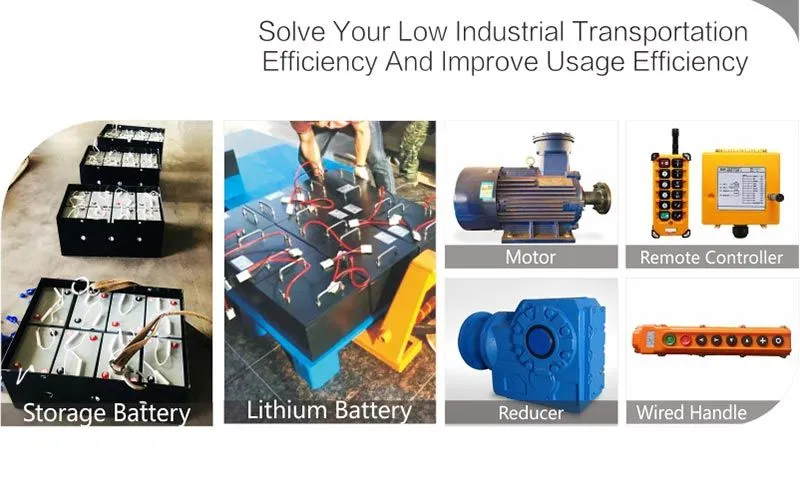

Advanced Drive: DC motor provides stable starting, large torque, and low impact on the reducer.

✔

Unlimited Distance: No restriction on running distance, making it ideal for long-range transport.

✔

Safety & Flexibility: High safety standards with flexible operational control.

✔

Low Maintenance: Battery requires no daily maintenance with a long service life of approx. 3.5 years.

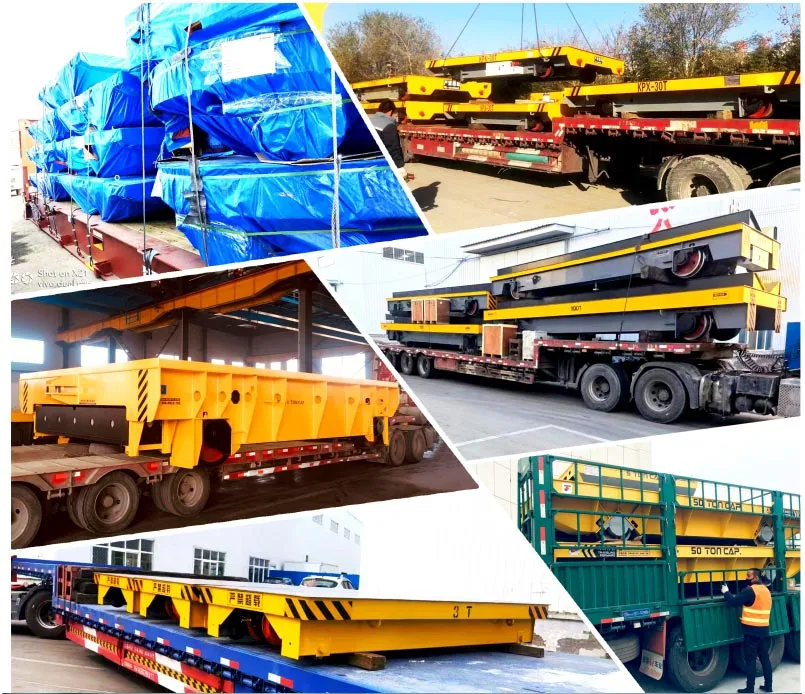

📦 Packaging & Shipping

To provide you with a detailed quote, please confirm:

🔹 What material will you transport?
🔹 Required load capacity?
🔹 Preferred table size?
🔹 Daily working hours and operation frequency?
🔹 Any other specific technical requirements?

❓ Frequently Asked Questions

1. What is the maximum load capacity of the DPX series? The DPX series is highly customizable, with standard models ranging from 2 tons up to 150 tons or more based on specific project requirements.

2. Can this transfer cart operate on curved or S-shaped tracks? Yes, our rail carts can be customized to run on vertical cross rails, L-shaped rails, S-shaped rails, and curved tracks.

3. How long does the battery last on a single charge? Depending on the load, the running time is approximately 3 to 4.8 hours of continuous operation. The battery typically requires 5-6 hours for a full charge.

4. What are the advantages of the DC motor used in these carts? The DC motor offers a stable start, high starting torque, and a small impact force on the reducer, which extends the overall service life of the mechanical components.

5. Is there a limit to the running distance? Unlike cable-powered carts, the battery-powered DPX series has no running distance limitations, making it ideal for long-distance factory transportation.

6. What is the expected lifespan of the battery? The battery is designed for approximately 1000 charge cycles, with a general service life of about 3.5 years before replacement is recommended.
