Factory Official Xc6-4517 4.5ton 17m Telescopic Handler

1 / 5

Factory Official Xc6-4517 4.5ton 17m Telescopic Handler

Customization:	Available
Cab Location:	Adjustable
Type:	Stacker

Send Inquiry

Product Description

⚙️ Basic Specifications

Model NO.

XC6-4517

Power

Diesel Engine

Load Capacity

5T - 10T

Fuel

Diesel

Lift height

3000~5000mm

Rated Load

4500 Kg

Maximum Forward Reach

12600 mm

Overall Length

6960 mm

Wheelbase

3900 mm

Production Capacity

100 units/Week

📄 Product Overview

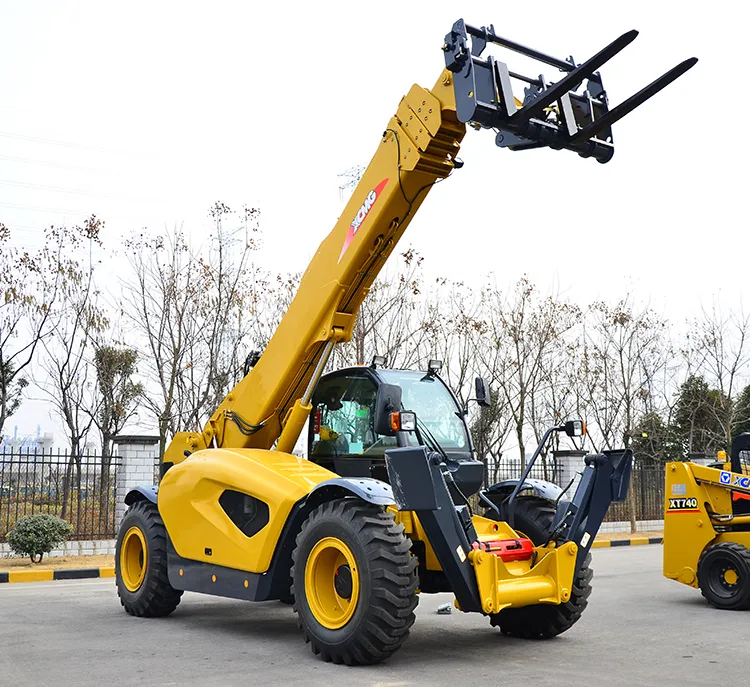

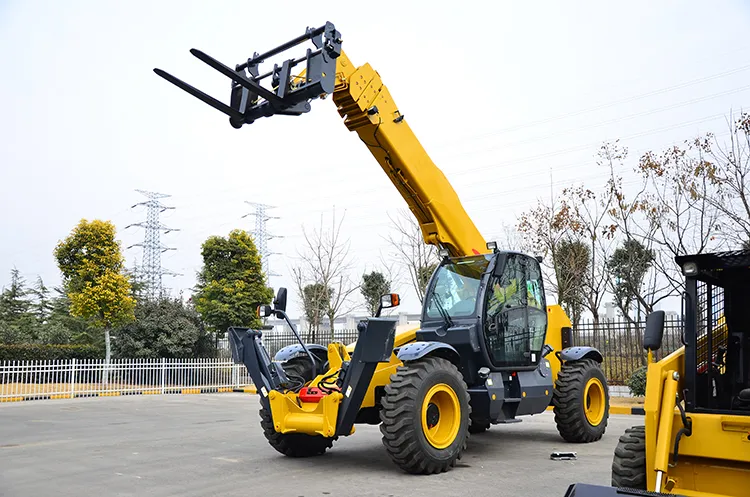

XC6-4517K 17m 4.5 Ton Telescopic Handler Telehandler

XC6-4517K telescopic handler is a representative product of our K series telescopic handlers. This product is equipped with imported Cumins engine of strong and reliable power and imported axles and transmission of stable drive. The full hydraulic wet brake is applied to ensure driving safety. The four-section telescopic boom structure features flexible operations, accurate forklifting, and automatic leveling, with the maximum lifting height up to 16.7m. It's a multifunctional high-efficiency small-sized construction machinery product.

🌟 Advantages and Highlights

✓ Powerful international brand engines and special CAR-RARO transmissions and axles for smooth drive.

✓ International top-level full-hydraulic wet brake system guarantees driving safety and stability.

✓ Four-wheel drive and multiple steering modes (four-wheel, two-wheel, and crab steering) for super-strong off-road capability.

✓ Frame leveling function (10° swing left/right) for powerful site adaptability.

✓ Special overload control system guarantees operation safety and reliability.

✓ Electrohydraulic proportional control for accurate, stable, and efficient operations.

📊 Technical Parameters

Parameter Item	Unit	XC6-4517K Data
Gross weight	kg	13500
Engine power	kW	82(CUMMINS)/74.9(DDE)
Rated load	kg	4500
Maximum lifting height	mm	16700
Maximum forward reach	mm	12600
Center distance of load	mm	600
Luffing angle	°	-4~73
Fork angle	°	-90~18
Maximum traction force	kN	≥70
Gradeability	°	≥25
Maximum traveling speed	km/h	36
Turning radius	mm	≤5000
Overall Dimensions (LWH)	mm	696025002850
Fork length	mm	1200

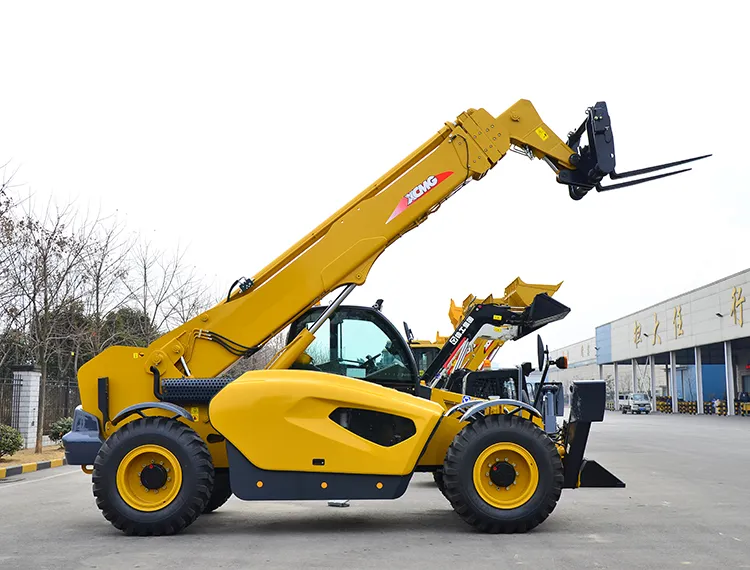

📸 Product Show

❓ Frequently Asked Questions

What is the maximum lifting height of the XC6-4517K?

The XC6-4517K telescopic handler features a four-section boom structure that allows for a maximum lifting height of up to 16.7 meters.

What type of engine is equipped in this telehandler?

This model is equipped with a powerful and reliable imported Cummins engine, providing strong performance for demanding construction tasks.

What steering modes does the XC6-4517K support?

It supports multiple steering modes to adapt to different site conditions, including four-wheel drive, two-wheel steering, and crab steering modes for superior maneuverability.

How does the machine handle uneven terrain?

The machine is equipped with a frame leveling function, allowing the body to swing 10° in both leftward and rightward directions, ensuring site adaptability and safety on diversified working conditions.

What safety systems are included in the XC6-4517K?

Safety is prioritized with an international top-level full-hydraulic wet brake system and a special overload control system to guarantee reliable operations.

Can different attachments be used with this telehandler?

Yes, the XC6-4517K is highly versatile and can be equipped with optional aerial working platforms, buckets, and various other tools to meet specific customer needs.
