Logistics Essentiallogistics Essential High-Performance Telescopic Handler

1 / 5

Logistics Essentiallogistics Essential High-Performance Telescopic Handler

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

Loader

Certification

ISO

Condition

New

Rated Load

6-9t

Transmission

Power

Walking Mode

Wheeled

Type

Large Loader

Power

Diesel Engine

Load Capacity

1t-5t

Lift Height

>5000mm

Package Size

210.00cm * 90.00cm * 125.00cm

Gross Weight

1000.000kg

Product Description

Main technical parameters of fork loading of telescopic arm:

Rated load	kg	3500
Maximum lift height	mm	10000
Maximum reach	mm	5000
Maximum traction force	kn	≥70
Minimum ground clearance	mm	420
Overall dimensions (L×W×H)	mm	5700×2230×2400
Minimum width (outriggers open)	mm	3400
Wheelbase	mm	3670
Turning radius (outer wheel)	mm	≤4500
Maximum travel speed	km/h	30
Tire model	/	16/70-20
Steering type	/	4 wheel drive, 3 steering modes (Front, Crab, Four Wheel)
Transmission type	/	Closed piston pump + walking motor + gearbox + drive axle
Service brake	/	Oil-immersed multi-disc hydraulic brake
Weight (with forks)	kg	9500
Engine Model	/	CYD
Engine Power	kw/r/min	85
Standard fork (L x W x D)	mm	1200 x 125 x 50

Core Advantages

◈ Compact structure, flexible operation, stable lifting, and precise fork transportation.
◈ High-performance engine with low noise, low emissions, and large torque reserve.
◈ Torque limit system ensures operational safety under extreme conditions.
◈ Automatic flow compensation for fork leveling during boom movement.
◈ Horizontal frame leveling for strong adaptability to complex terrain.
◈ 4WD with three steering modes: Front-wheel, Crab, and Four-wheel steering.

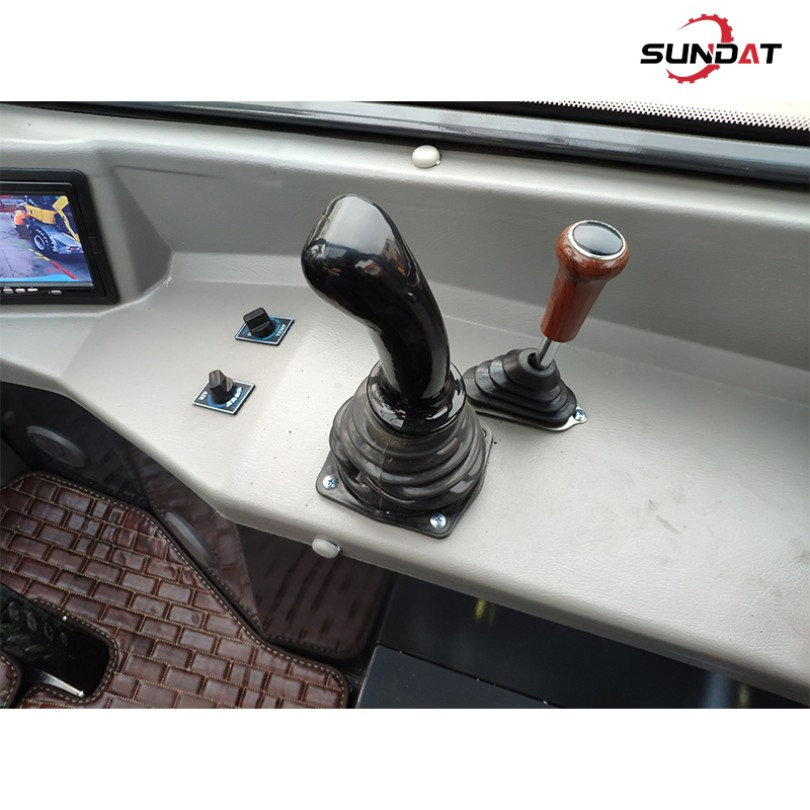

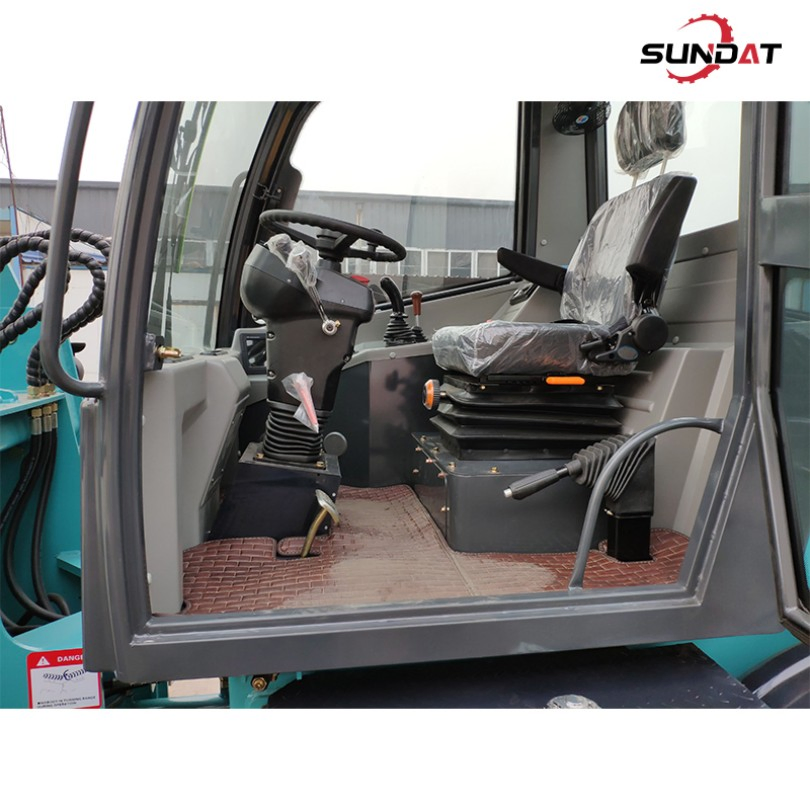

◈ Advanced human-computer interaction with full instrument monitoring and alarm systems.
◈ Versatile configuration options including high-altitude platforms and buckets.

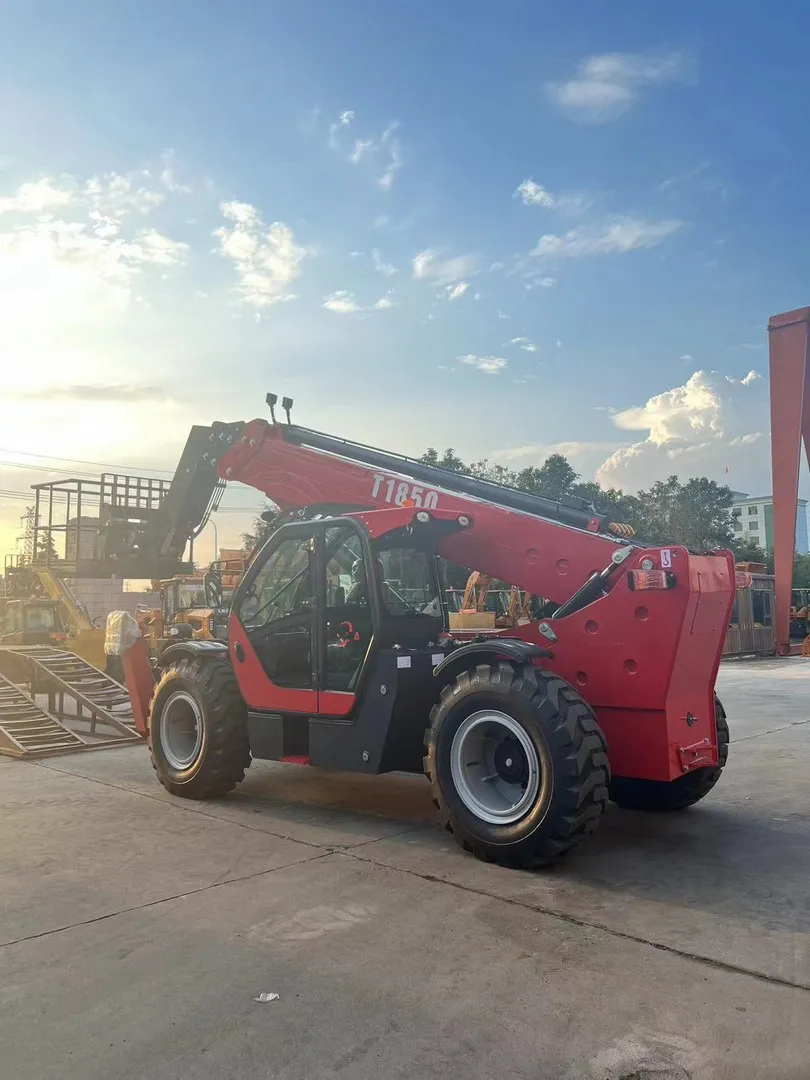

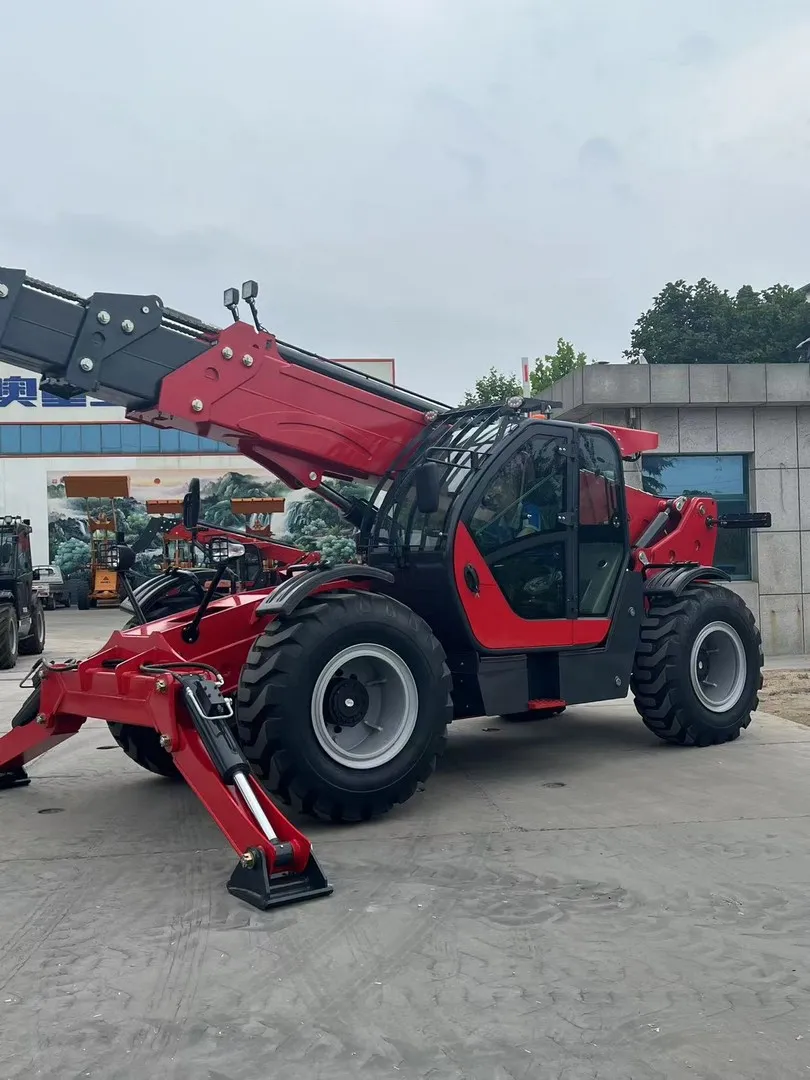

Detailed Photos

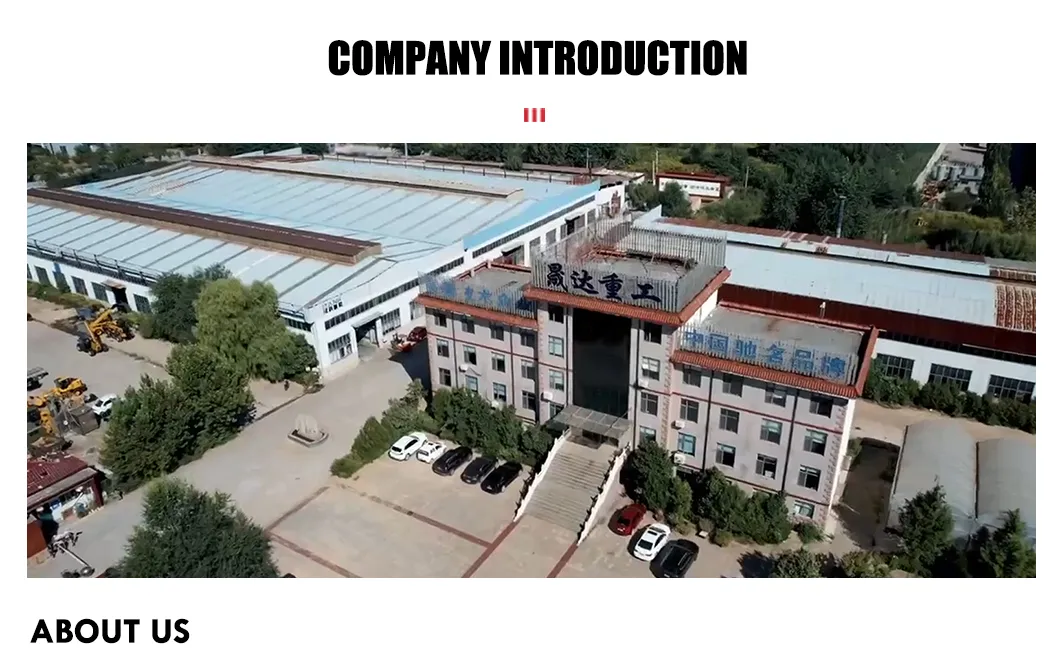

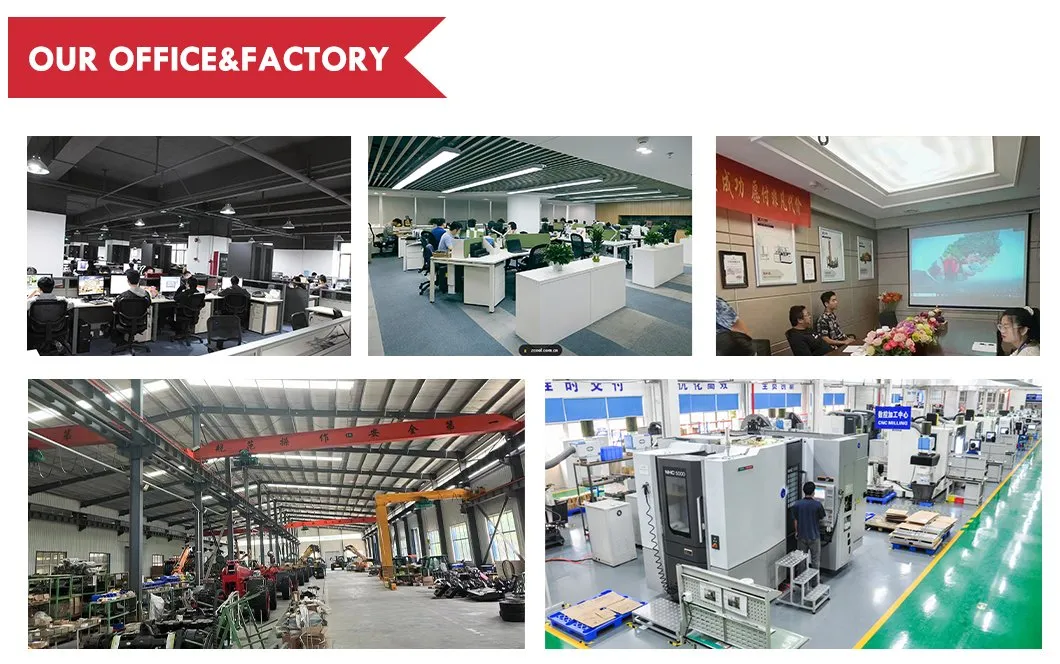

Profile Overview

Variety of products are offered to meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" and always do our best to satisfy potential needs. We are sincerely willing to cooperate with enterprises worldwide to realize a win-win situation in the era of economic globalization.

Frequently Asked Questions

What is the maximum lifting capacity and height?

The equipment has a rated load capacity of 3500kg and can reach a maximum lifting height of 10,000mm (10 meters).

What kind of steering modes are available?

It features a versatile steering system with three modes: Front Wheel Steering, Crab Steering for lateral movement, and Four Wheel Steering for a tight turning radius.

Is the machine suitable for off-road conditions?

Yes, with four-wheel drive (4WD), a minimum ground clearance of 420mm, and frame leveling capabilities (+/- 9°), it is designed for strong site adaptability and complex terrains.

What safety systems are integrated into the loader?

It is equipped with a torque limit system to prevent overloading, an automatic leveling system for the forks, and a multifunctional handle with integrated overload protection.

Can I use different attachments with this telescopic handler?

Yes, the machine can be configured with various tools including standard forks, high-altitude platforms, buckets, and other customized attachments to meet specific user needs.

What are the engine specifications?

The standard model uses a CYD diesel engine providing 85kw of power, designed for high transmission efficiency and low noise emissions.
