Wolf 1240 Mini Compact 4WD Telescopic Handler for Sale

1 / 5

Wolf 1240 Mini Compact 4WD Telescopic Handler for Sale

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

1240

Certification

Condition

New

Rated Load

1-3t

Transmission

Hydraulic

Type

Medium-sized Loader

Operating Weight

2750kg

Engine Model

Perkins 403j-11t

Rated Power

18.4kw

Bucket Capacity

0.45m³

Lifting Height

4300mm

Wheelbase

1930mm

Product Description

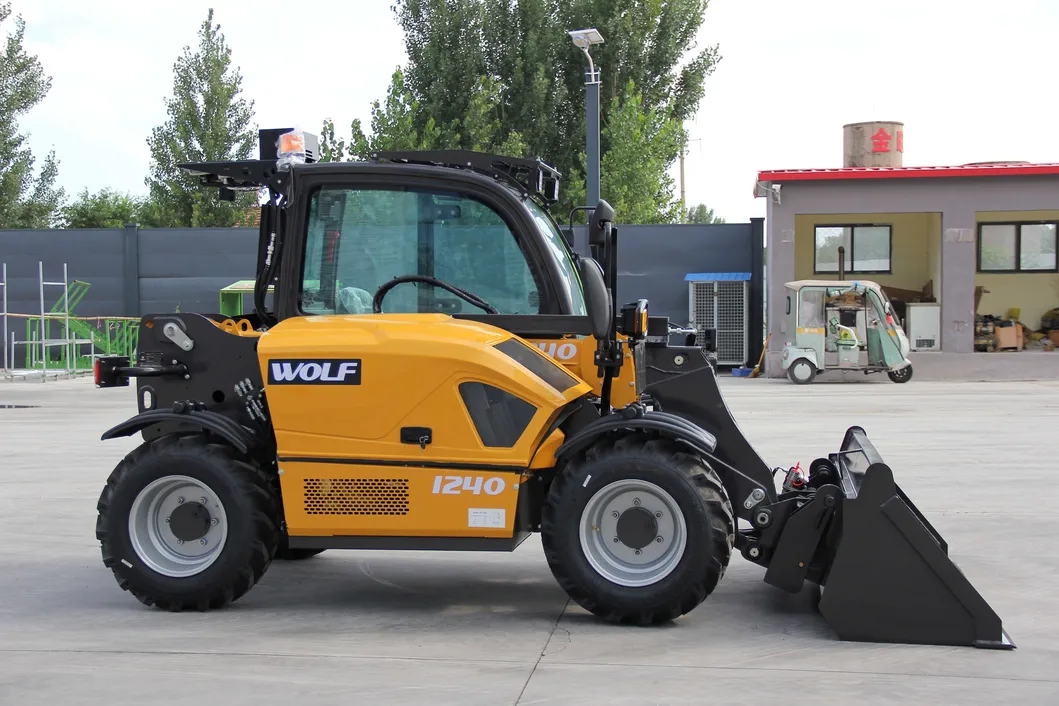

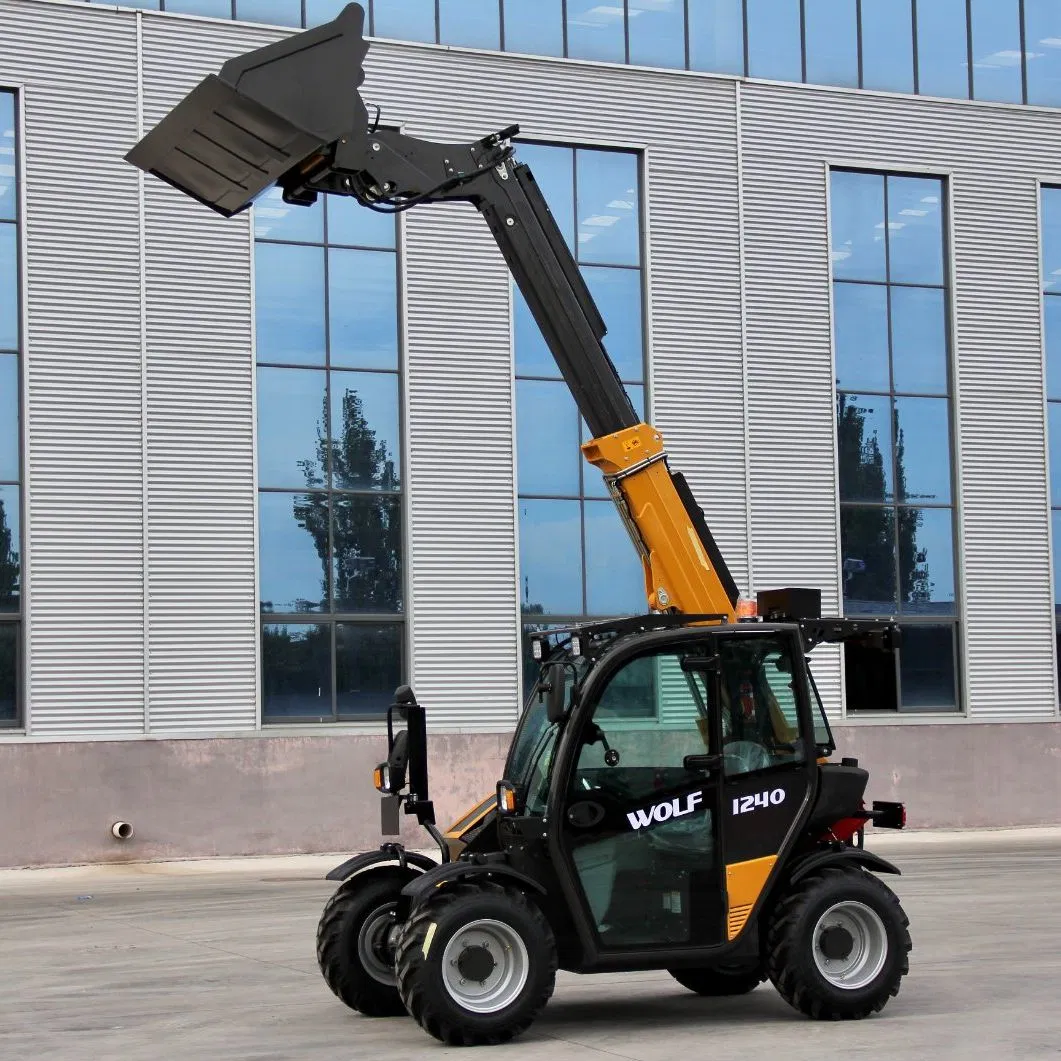

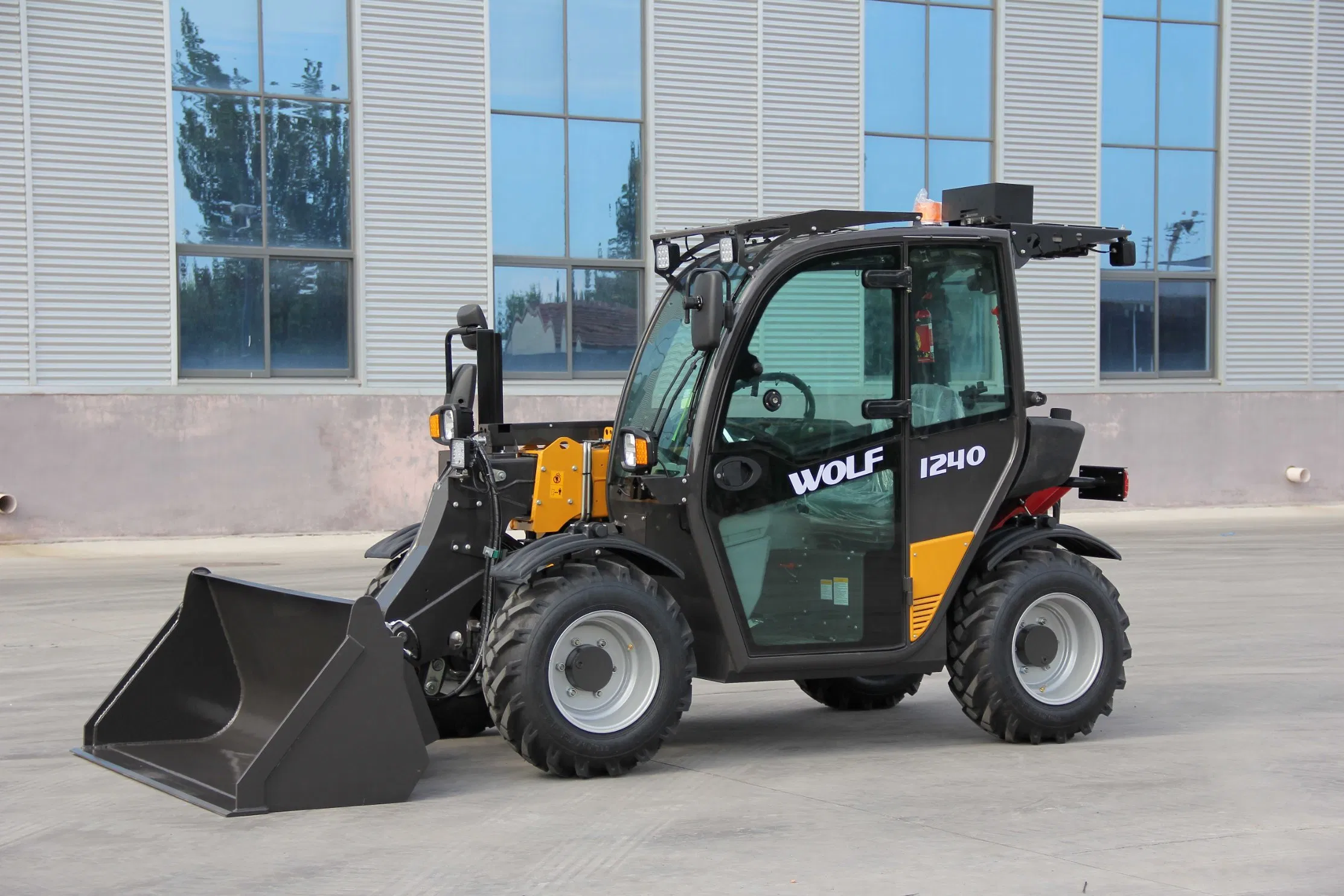

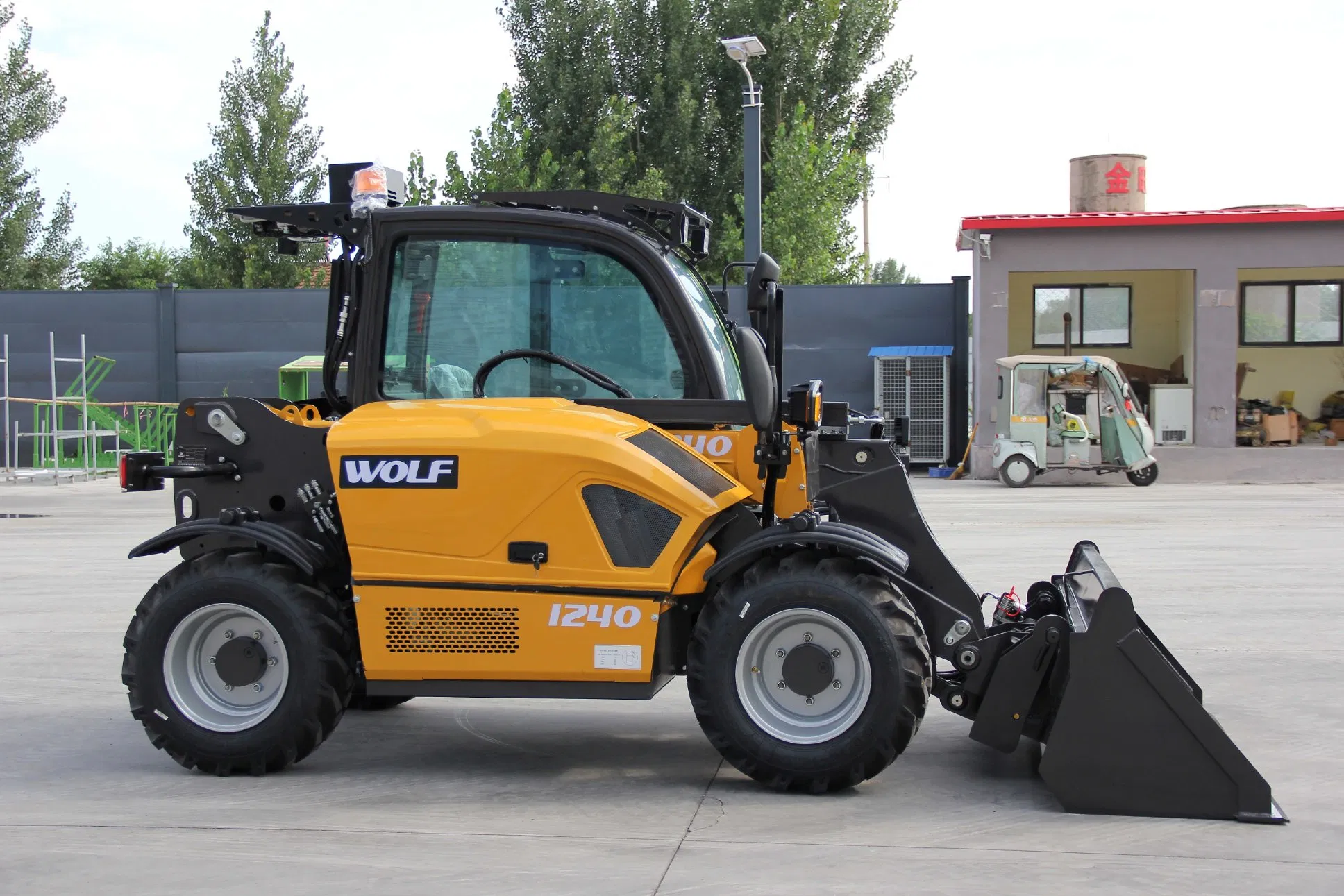

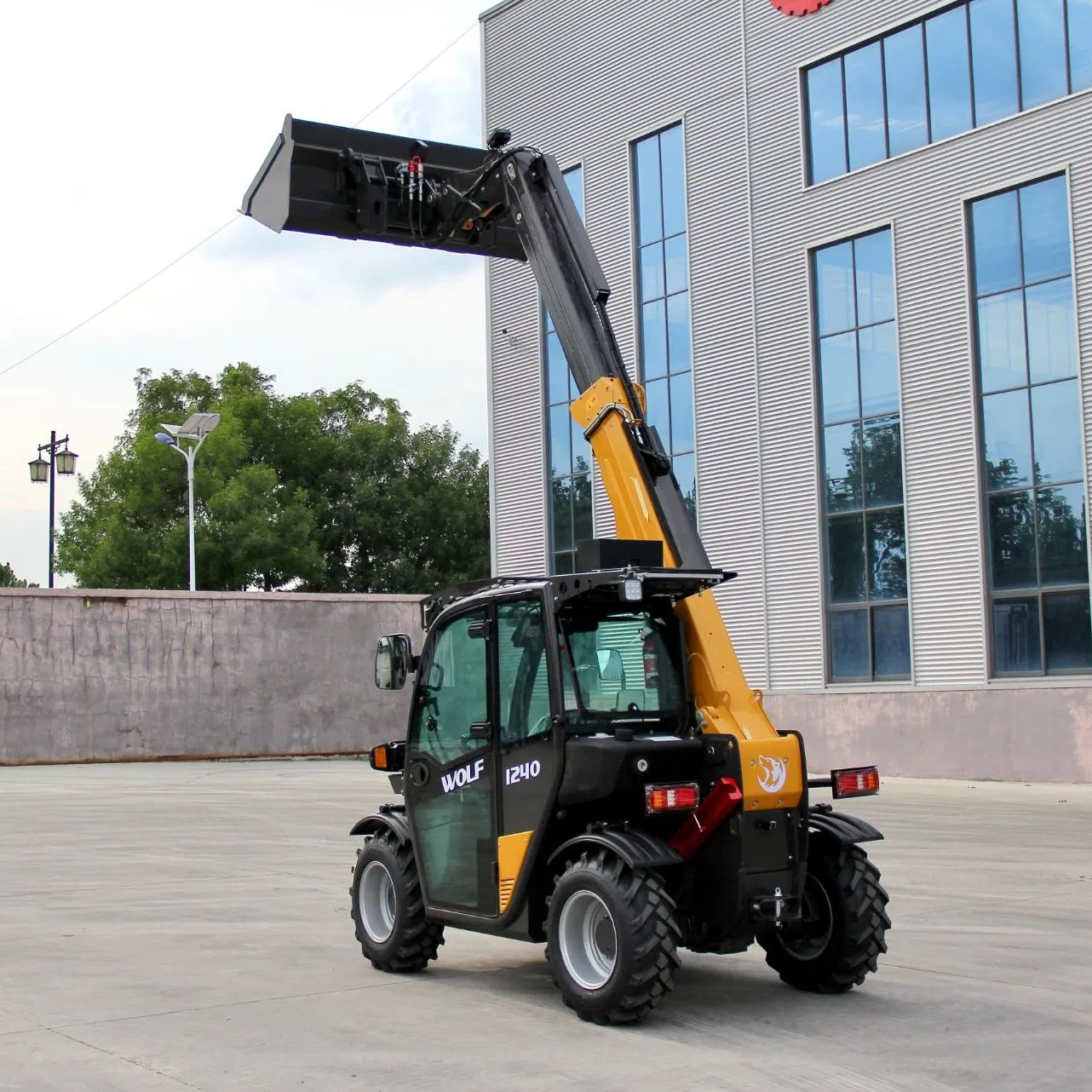

1.2 Ton Mini Telehandler 1240

Elevate your construction and agricultural operations with our advanced telescopic handler. Designed for modern work sites, this machine features a robust lifting capacity of 1.2 tons and an impressive lift height of up to 4.3 meters, handling diverse tasks with efficiency.

Efficient Lifting & LoweringThe VLS system ensures vertical operations with auxiliary support. High-speed lifting reduces cycle times.

Ergonomic ComfortSpacious cabin with wide visibility. Features ergonomic controls and optional air conditioning.

Multi-Mode SteeringInnovative four-wheel steering: All-wheel for tight turns, front-wheel for travel, and crab for lateral movement.

Safety StandardsElectric parking brake with holding function and full CE certification compliance.

DurabilityHigh-quality materials and robust construction ensure long-term economic efficiency.

Eco-FriendlyHighly efficient drive system optimized for low energy consumption.

Standard Configuration:

Rated load: 1200kg / Lifting height: 4300mm
Engine: Perkins 403J-11T Euro5/EPA, 18.4kw
Air conditioning & 4 wheel steering
Hydraulic quick hitch & Pallet fork included
Rear video camera

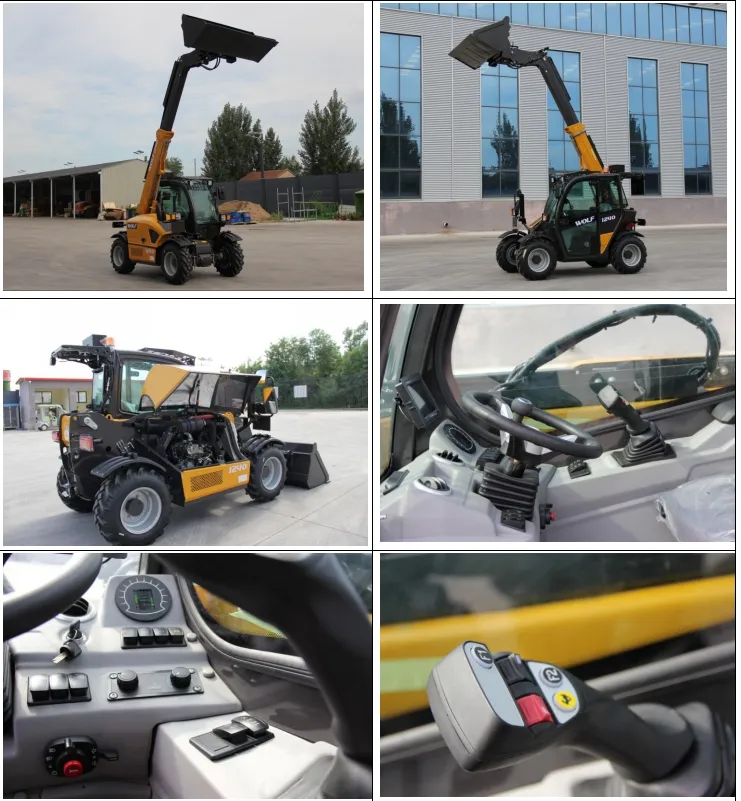

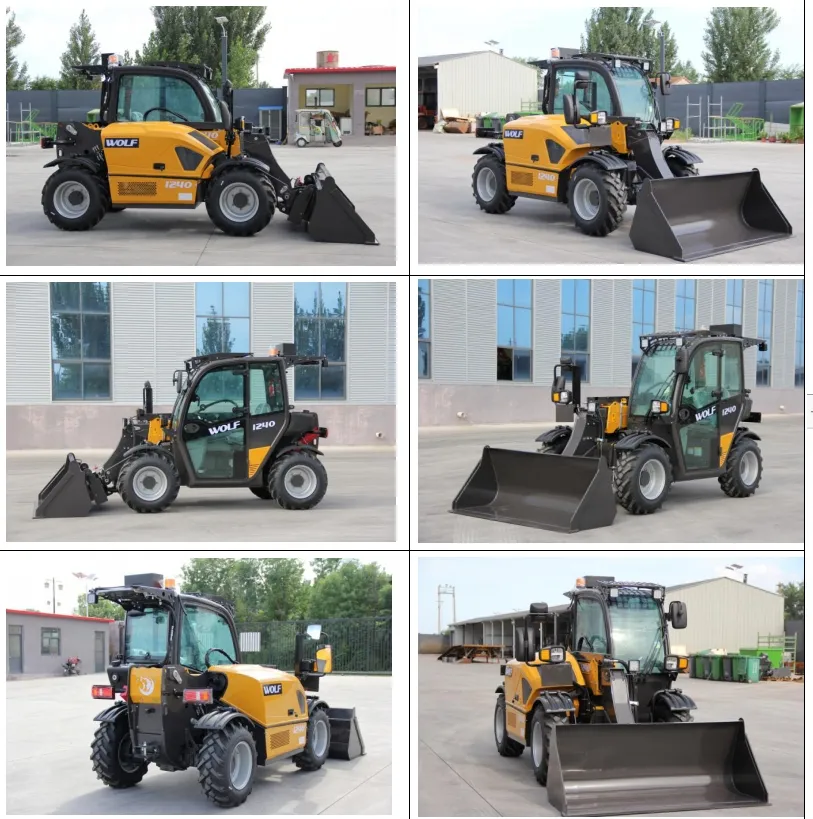

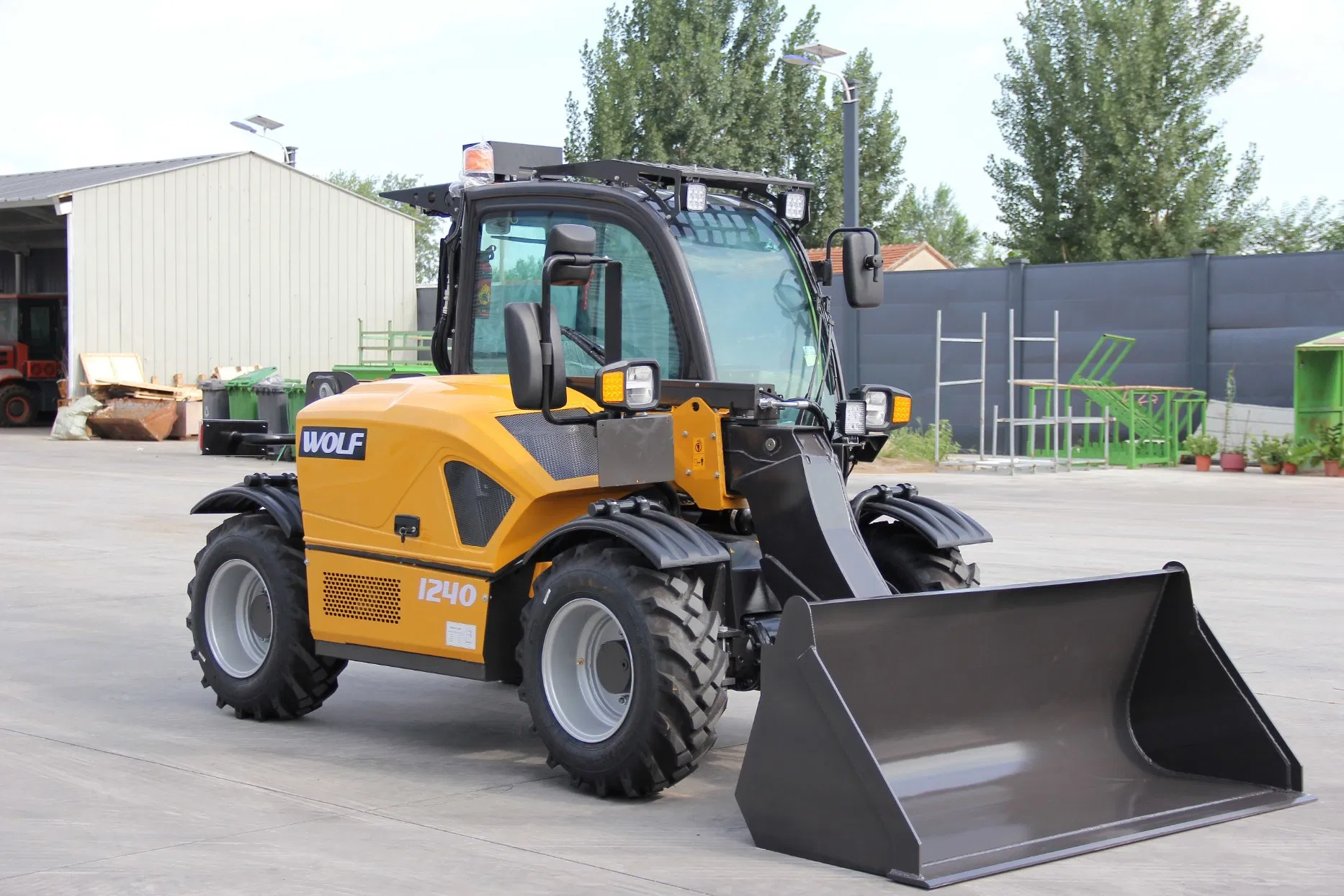

Detailed Photos

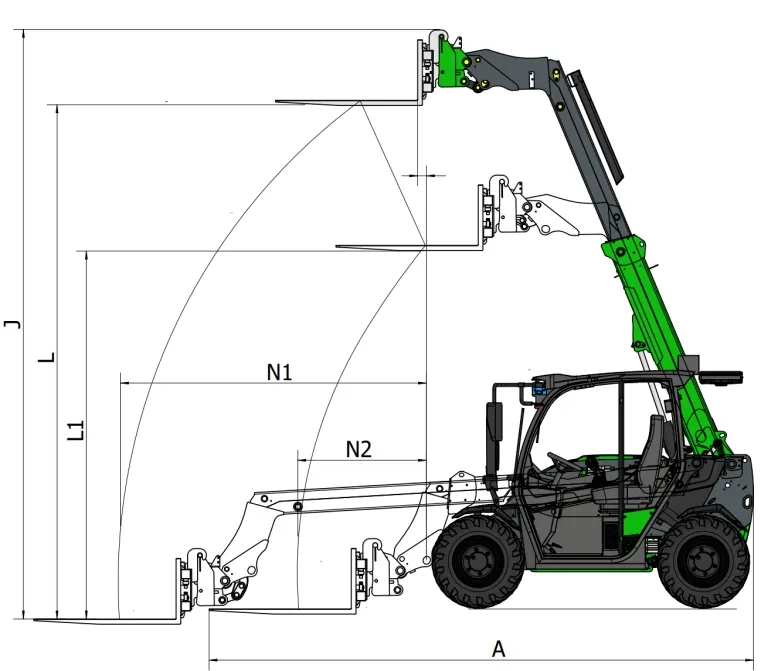

Product Parameters

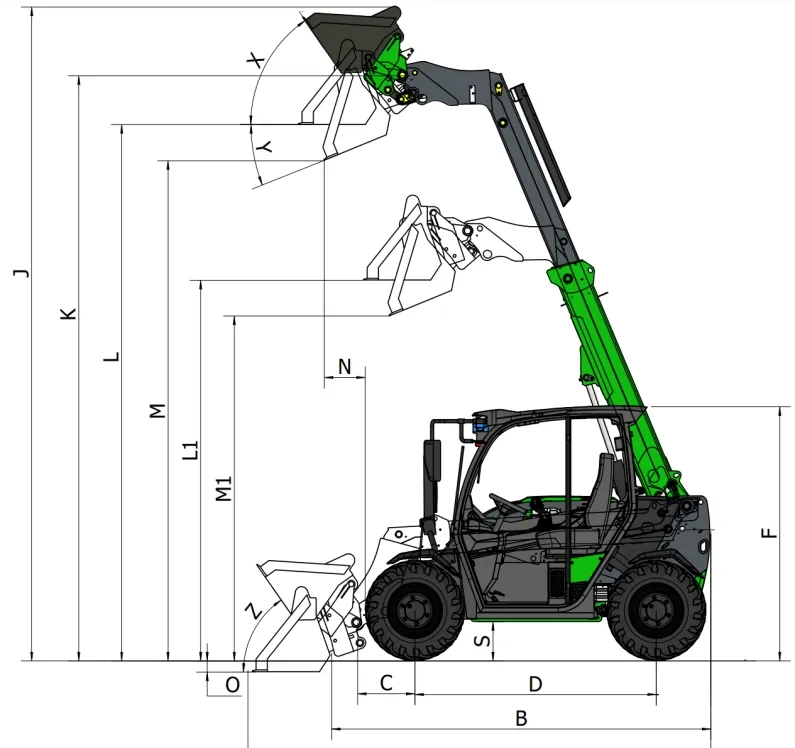

Pos.	Designation (English)	Data (mm)
A	Total length with standard bucket	3945
A2	Total length with pallet fork	4080
D	Wheelbase	1930
F	Height above cabin	1995
J	Total working height with bucket	5280
K	Max height of bucket pivot point	4537
L	Overloading height (Pallet fork extended)	4300
M	Max dumping height (extended)	3570
P	Total width	1564
S	Ground clearance	295

OPERATIONAL DATA	1240 Specifications
Max. payload	1200 KG
Bucket capacity	0.45 m³
Operating weight	2750 KG
Engine Manufacturer	Perkins
Engine Model	403J-11T (Turbocharged)
Rated power	18.4kW / 2800r/min
Transmission Type	Hydrostatic
Travel Speed	0-16 km/h
Fuel tank	33 L

Factory & Delivery

Customers Feedback

Frequently Asked Questions

Q1: What is the maximum lifting capacity of the 1240 mini telehandler?

A: The 1240 model has a rated lifting capacity of 1200kg (1.2 tons), making it ideal for various light to medium-duty tasks.

Q2: How high can the telescopic boom extend?

A: The machine offers a maximum lifting height of 4300mm (4.3 meters) with the pallet fork and a total working height of up to 5280mm with the bucket.

Q3: What kind of engine powers this machine?

A: It is equipped with a high-performance Perkins 403J-11T Euro5/EPA engine, providing 18.4kW of power at 2800r/min.

Q4: Does the telehandler support different steering modes?

A: Yes, it features an innovative four-wheel steering system with three modes: all-wheel steering for tight turns, front-wheel steering for travel, and crab steering for lateral movement.

Q5: Is the cabin comfortable for long working hours?

A: Absolutely. The machine features a spacious cabin with an ergonomic design, wide visibility, and an optional air conditioning system for a comfortable environment.

Q6: What attachments are included in the standard configuration?

A: The standard package includes a hydraulic quick hitch and a pallet fork. A standard bucket with a capacity of 0.45m³ is also compatible.
