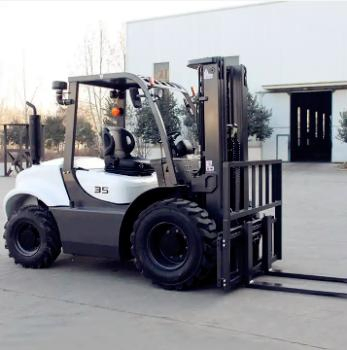

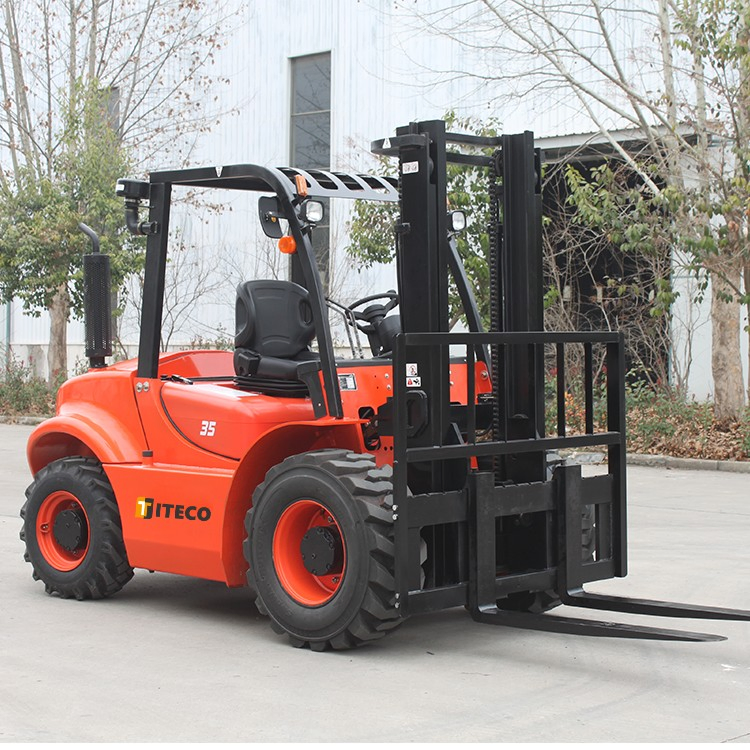

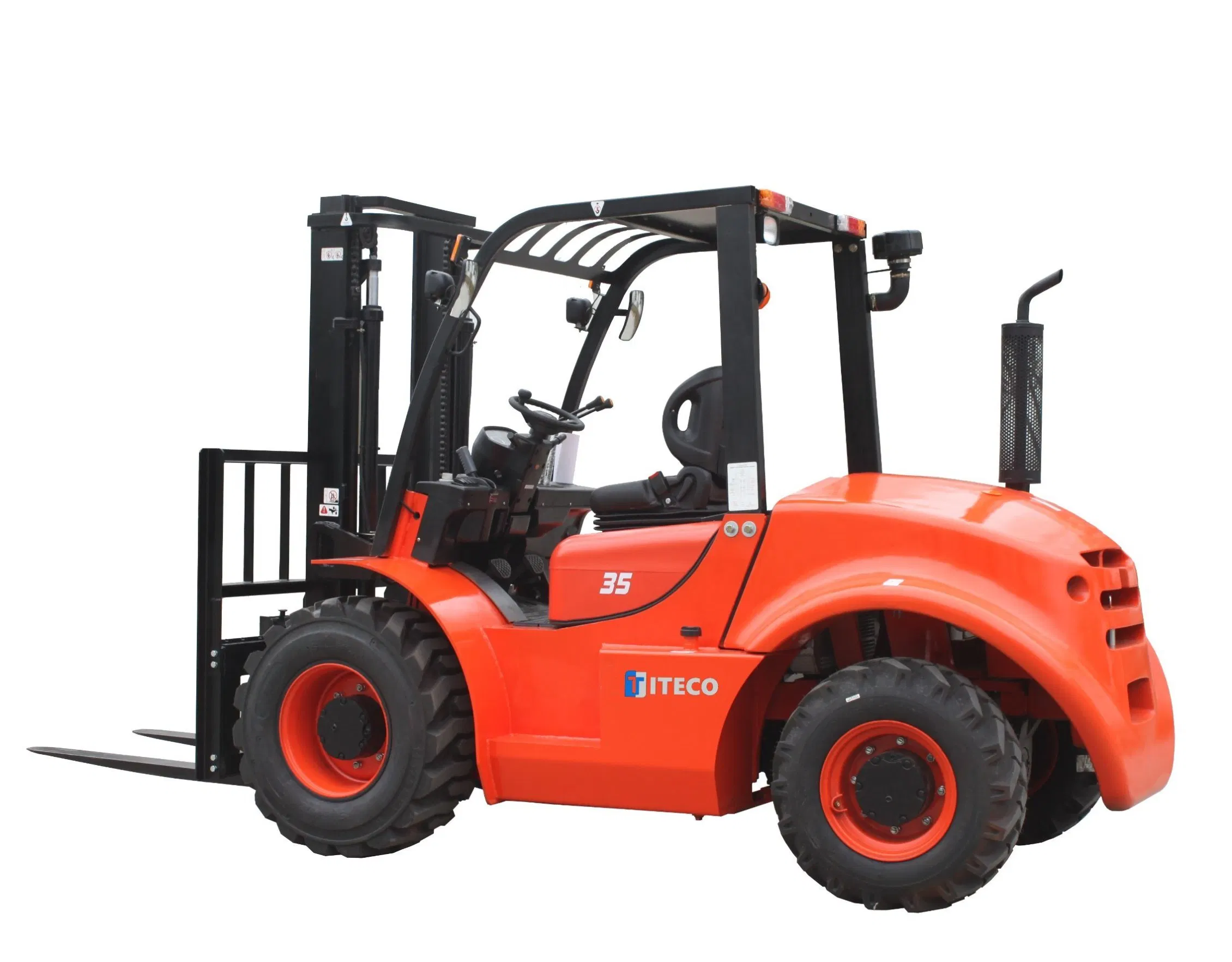

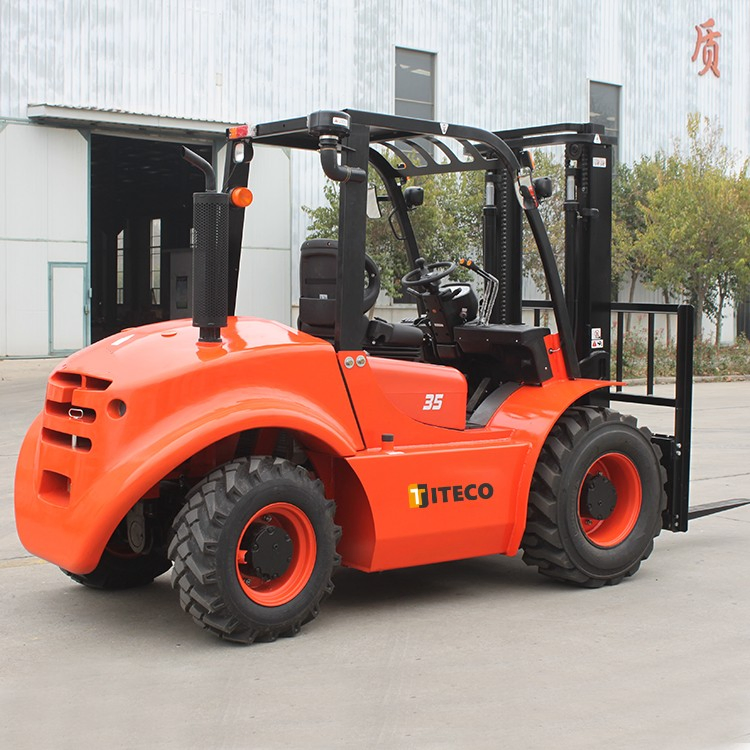

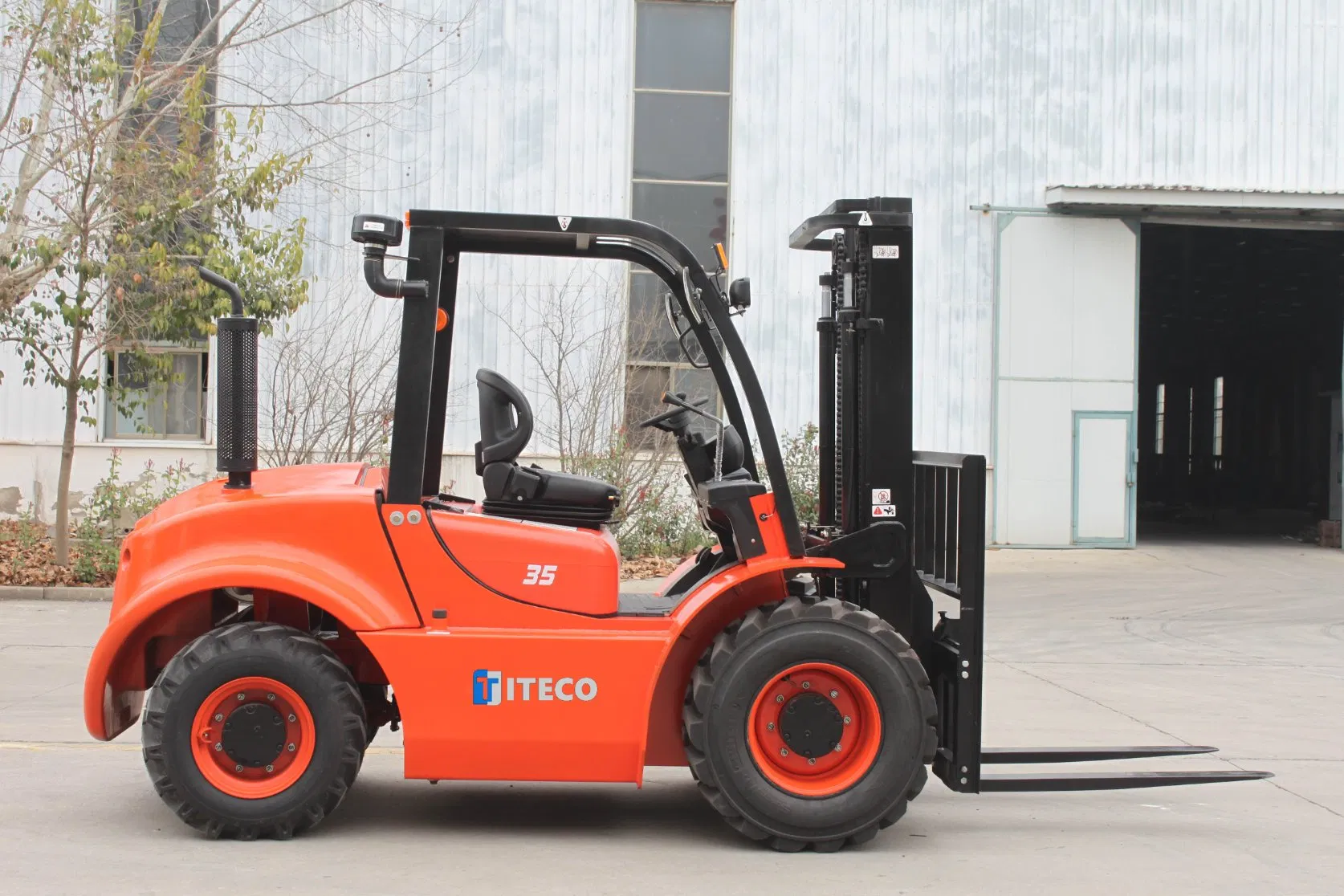

Titeco 2ton-4ton Ride-on Rough Terrain Fork Lift Trucks Mountain Forest Transport off-Road Forklift with Side Shifter/Closed Cabin/Toyota Suspension Seat

1 / 5

Titeco 2ton-4ton Ride-on Rough Terrain Fork Lift Trucks Mountain Forest Transport off-Road Forklift with Side Shifter/Closed Cabin/Toyota Suspension Seat

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

CPCD20Y

Type

Diesel Forklift

Power

Diesel Engine

Load Capacity

Load Center

500mm

Lift Height

3000~5000mm

Ground Clearance

230mm

Weight

4600kg

Turning Radius

2950mm

Drive Type

4WD

Detailed Technical Parameters

Feature	Unit	CPCD20Y	CPCD25Y	CPCD30Y	CPCD35Y	CPCD40Y
Load capacity	kg	2000	2500	3000	3500	4000
Load center	mm	500	500	500	500	500
Max.lifting speeds	Mm/s	545	545	440	440	400
Max.driving speeds	Km/h	17/19	17/19	18/20	18/19.8	17.8/19.5
Total Weight	kg	4600	4900	5400	5600	5850
Gradeability	%	45	45	45	45	45
Min.turning radius	mm	2950	2950	3250	3250	3250
Overall length	mm	4165	4165	4435	4435	4435
Overall width	mm	1500	1500	1600	1600	1600
Drive type	-	4WD	4WD	4WD	4WD	4WD

Product Performance Features

Rugged Terrain Optimization Professional steering axle and 4WD system specifically designed for muddy roads and harsh working environments.

High Ground Clearance Features 280mm mast clearance and 320mm chassis clearance with a 30-degree departure angle for superior passage ability.

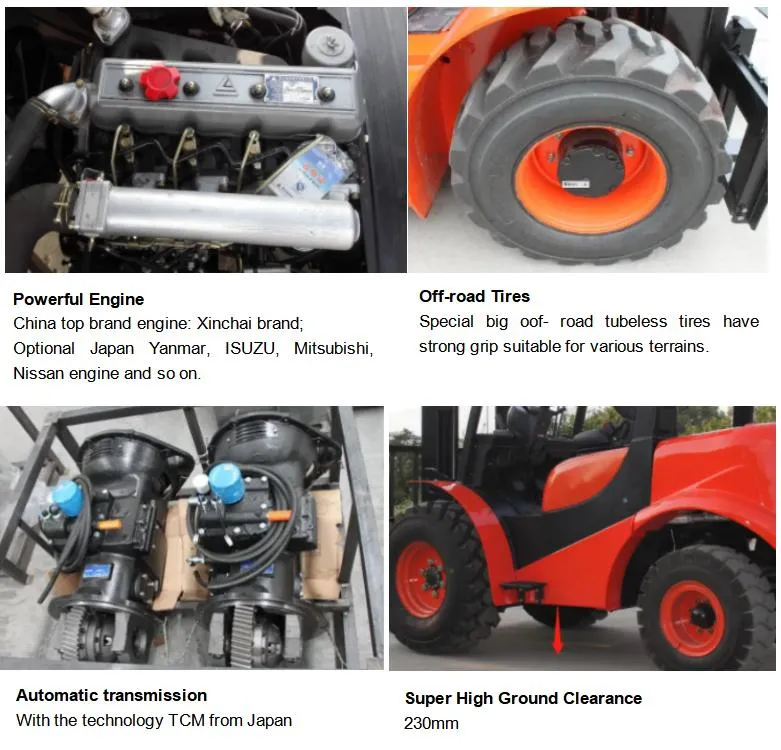

Advanced Engine System Low emission engine with high reliability and excellent low-temperature starting performance.

Enhanced Safety Systems Includes a preventing slope sliding function to ensure safe operation when restarting on inclines.

Superior Cooling Equipped with an enlarged water tank (1.25x standard size) to prevent overheating during intensive use.

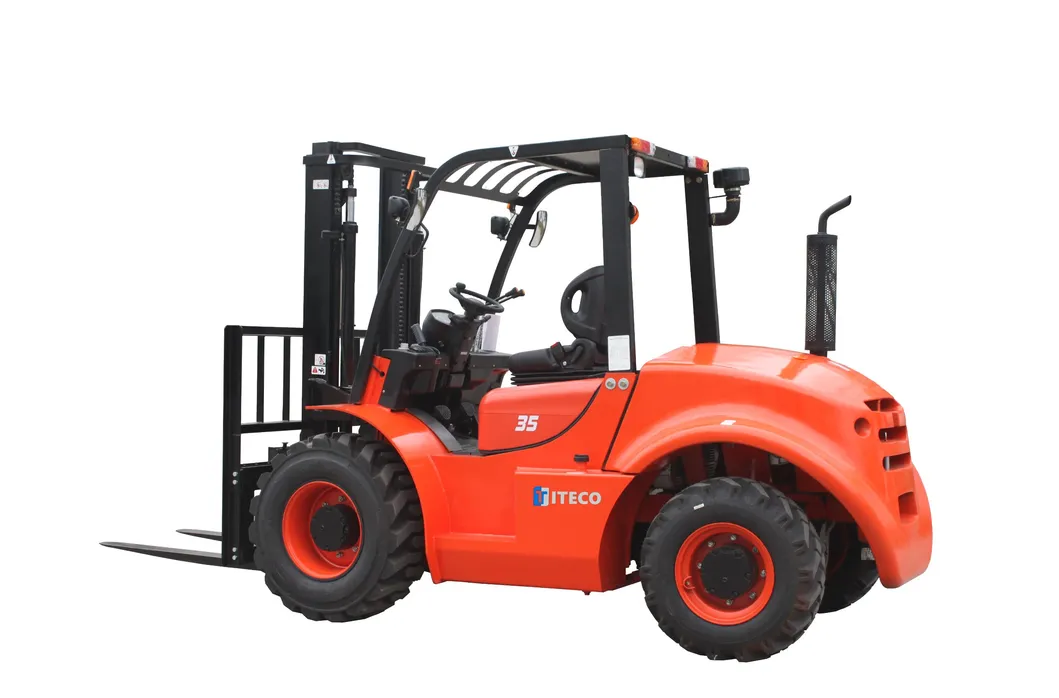

Product Gallery

Frequently Asked Questions

1. What makes this forklift suitable for rough terrain?

The forklift is equipped with 4WD, a professional steering axle for mud roads, high ground clearance (up to 320mm for the chassis), and wide tires with deep treads for excellent skid resistance and stability.

2. What are the available load capacities for this series?

The series offers a range of load capacities including 2000kg (2t), 2500kg, 3000kg, 3500kg, and 4000kg models to suit different industrial needs.

3. How does the safety system handle slopes?

It features a specialized "preventing slope sliding function" that effectively prevents the vehicle from sliding when restarting after a stop on an incline, ensuring operator safety.

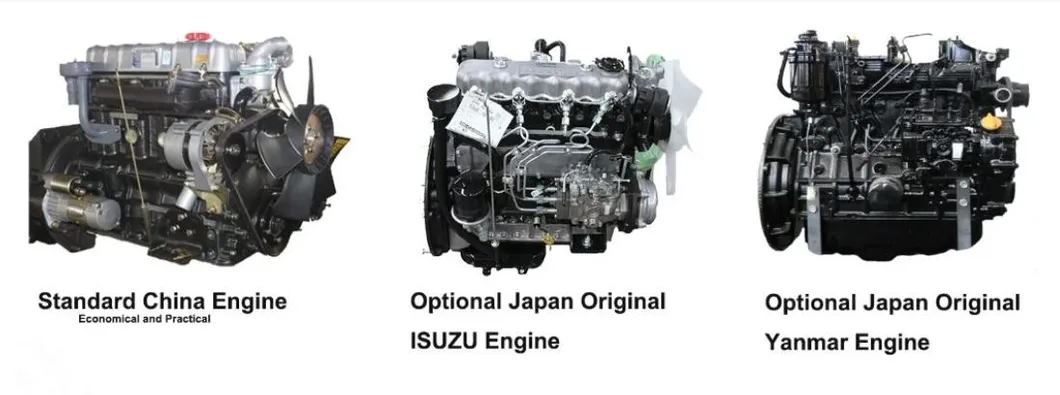

4. Can I choose the engine type?

Yes, these rough terrain lift trucks can be equipped with various engine options, including high-quality engines from China or Japan (such as Yanmar 4TNE98).

5. How does the forklift perform in high-temperature environments?

The forklift uses a super cooling system with a water tank that has a cooling area 1.25 times larger than similar products, preventing overheating even during heavy operation.

6. What is the maximum gradeability of the machine?

All models in this series feature a gradeability of 45%, allowing them to climb steep inclines in mountain or forest environments efficiently.
