Basic Info.

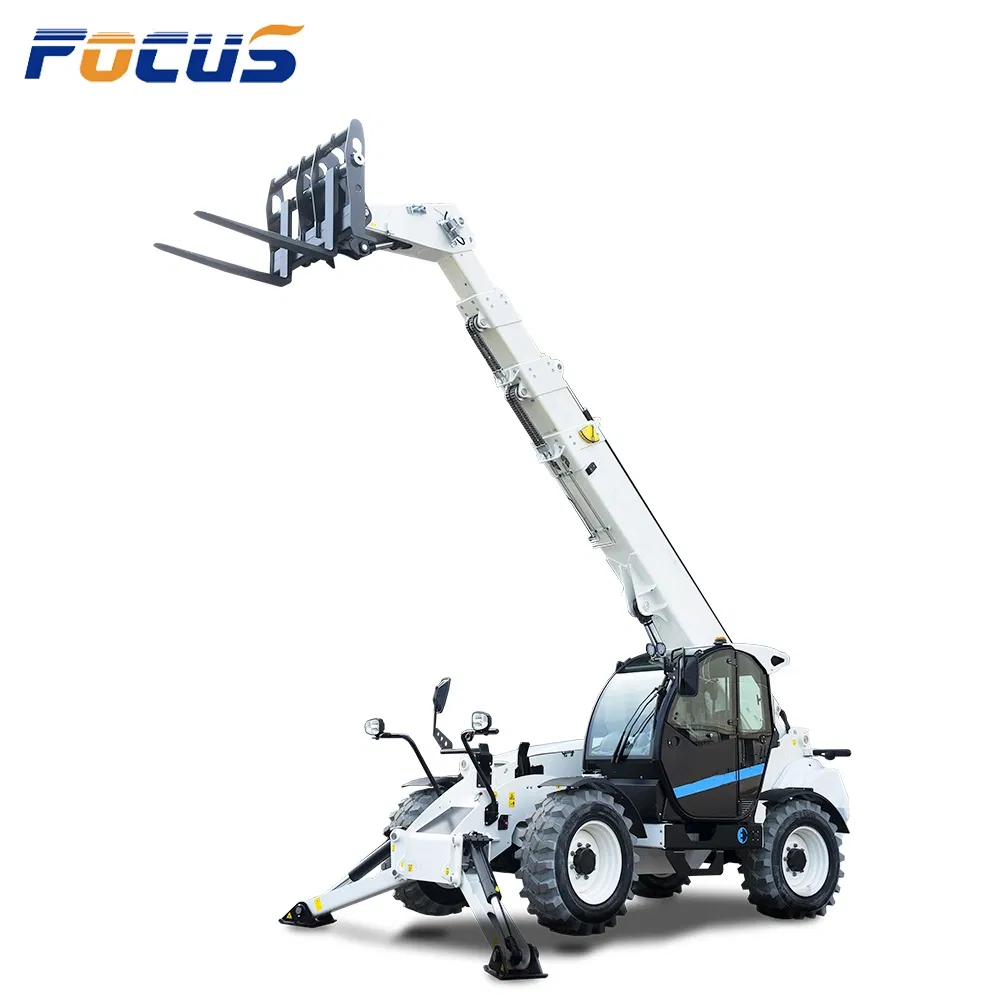

Model NO.FOCUS-3-5t Telescopic Handlers
CertificationISO, RoHS, CE
ConditionNew
Rated Load3-6t
TransmissionHydraulic
Load and Unload ModeFront Discharge
Walking ModeWheeled
TypeMedium-sized Loader
Machine Weight7450kgs
Engine Power90kw
Maximum Lifting Height6950mm
Maximum Forward Reach3690mm
Center Distance of Load500mm
Maximum Traveling Speed40km/H
Wheelbase2850mm
Wheel Tread1920mm
Fork Length1000mm
Specification4820*2355*2460mm
Product Description

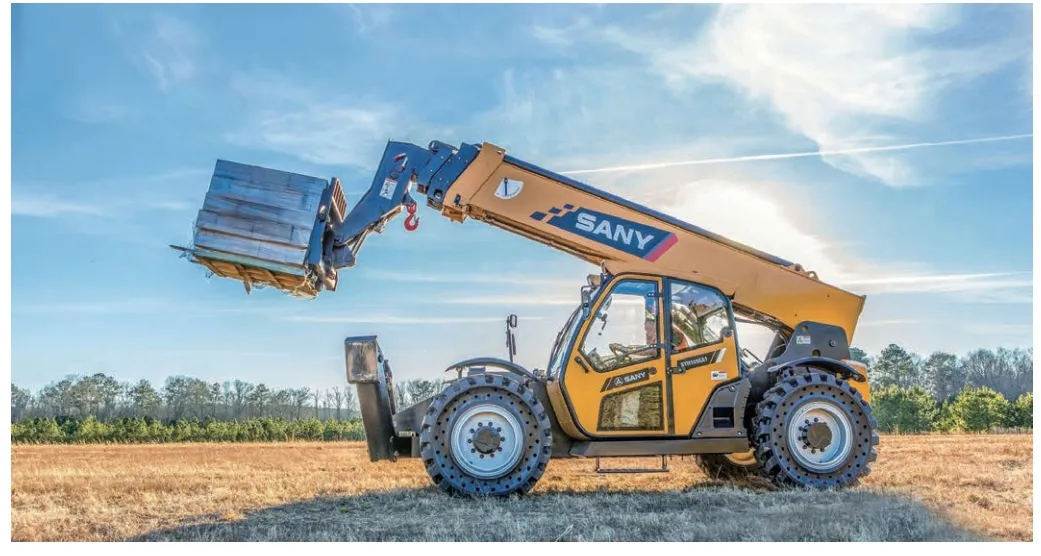

Telehandler Overview
A telescopic handler, also called a telehandler, teleporter, reach forklift, or zoom boom, is a machine widely used in agriculture and industry. It is somewhat like a forklift but has a boom (telescopic cylinder), making it more a crane than a forklift, with the increased versatility of a single telescopic boom that can extend forwards and upwards from the vehicle. The boom can be fitted with different attachments, such as a bucket, pallet forks, muck grab, or winch.

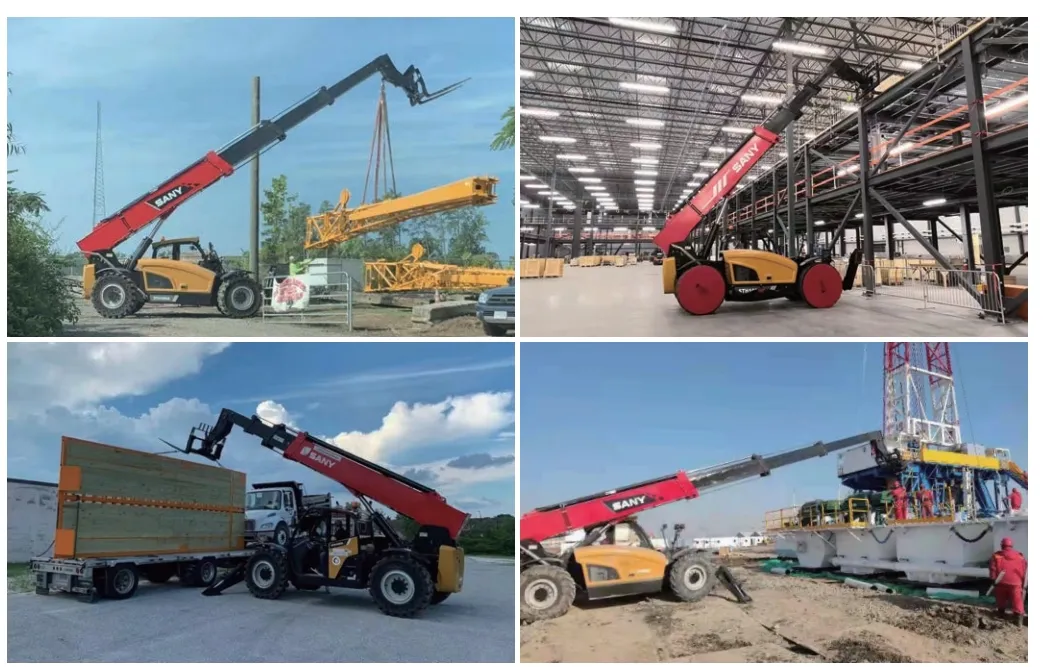

Versatility & Capability
The telehandler has a range of capabilities, making it suitable for various work environments:
✔Construction Projects
✔Agriculture Material Handling
✔Waste and Recycling Facilities
By swapping attachments, it can function as a forklift, crane, or other lifting equipment. The quick hitch design allows operators to change attachments efficiently, minimizing downtime.
Core Models & Features

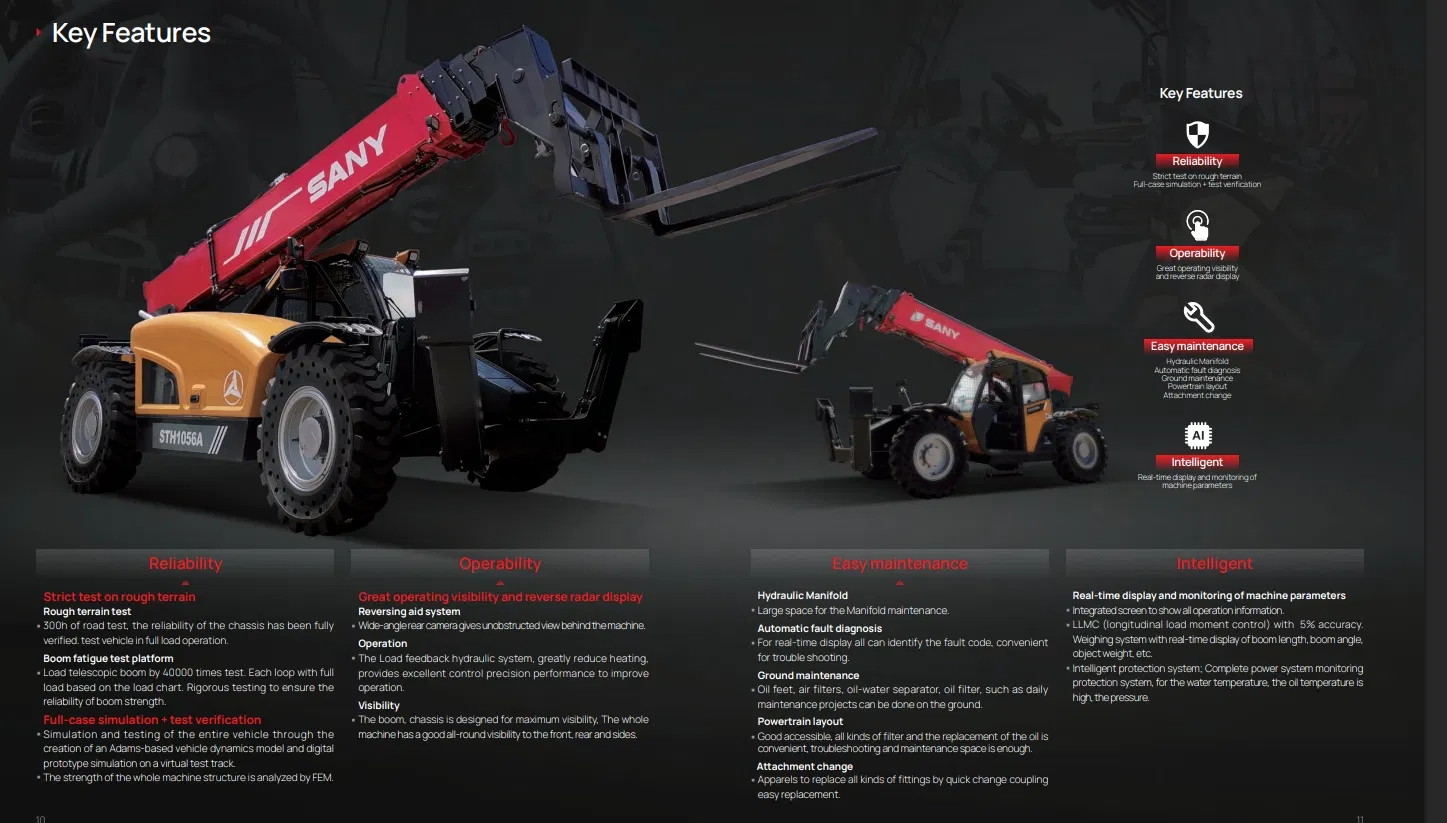

Technical Highlights
1. Hydrostatic walking system: Four-wheel drive, high efficiency and energy saving.
2. Flow-sharing working system: Allowing compound action with accurate all-electric proportional control.
3. Intelligent Control: Multifunctional handle for driving and automatic fork leveling.
4. Steering Modes: Front wheel steering, four-wheel steering, and crab walking mode.
5. Safety Monitoring: Real-time display of load torque and vehicle status.
Technical Specifications
| Specifications |
FCS-ZTH4525R |
FCS-ZTH4018 |
FCS-ZTH3513 |
FCS-ZTH4014 |
| Overall length | 9.28m | 6.48m | 5.84m | 6.31m |
| Overall width | 2.48m | 2.28m | 2.28m | 2.28m |
| Overall height | 3.15m | 2.57m | 2.55m | 2.57m |
| Wheelbase | 3.07m | 3.07m | 3.07m | 3.07m |
| Rated capacity | 4500kg | 4000kg | 3500kg | 4000kg |
| Max lift height | 24.8m | 17.6m | 12.7m | 13.8m |
| Max forward reach | 19m | 13.4m | 8.75m | 9.3m |
| Weight | 17000kg | 12700kg | 9880kg | 11800kg |
| Transmission | Hydrostatic | Hydraulic | Hydrostatic | Hydrostatic |
Service & Maintenance
Our Service Promise
📍24-hours service hot line for quality and extended support.
📍Lifelong free technical guidance.
📍On-site instruction for bulk quantity first-time buyers.
📍Free technical training for correct usage and maintenance.
Maintenance Tips
Proper maintenance ensures the longevity of your telehandler. Key points include:
▪Never overload the machine beyond rated capacity.
▪Check ground conditions before operation.
▪Perform a thorough operation check before each use.
▪Inspect wheels, axles, and lifting controls every six months.
▪Always lower forks to the lowest position after work is completed.
Frequently Asked Questions
What steering modes does the telehandler support?
The telehandler features three steering modes: front-wheel steering for road travel, four-wheel steering for tight spaces, and crab walking mode for lateral positioning.

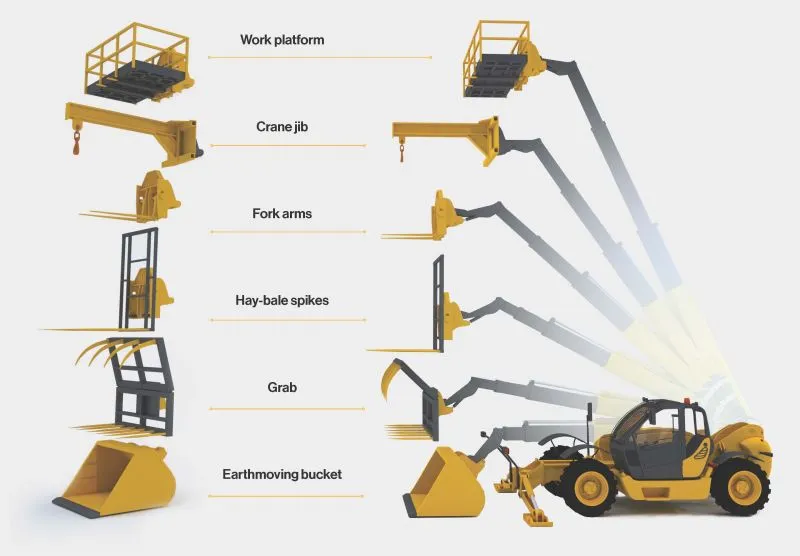

Can different attachments be used with the boom?

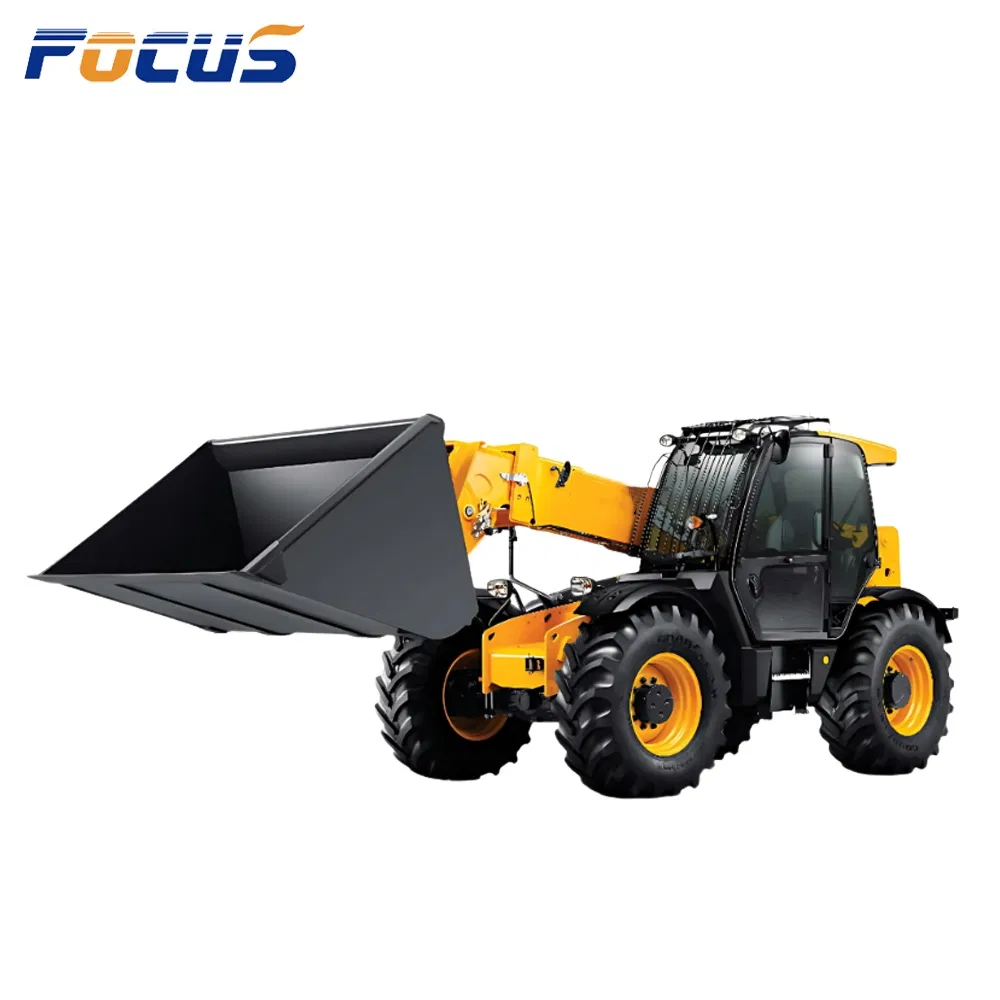

Yes, the telescopic boom is highly versatile and can be fitted with various attachments including buckets, pallet forks, muck grabs, and winches.
What is the advantage of a hydrostatic walking system?
The hydrostatic system provides high efficiency, energy savings, and allows for automatic driving control with reasonable distribution of working power across the four-wheel drive.
What is the maximum lifting height of these models?

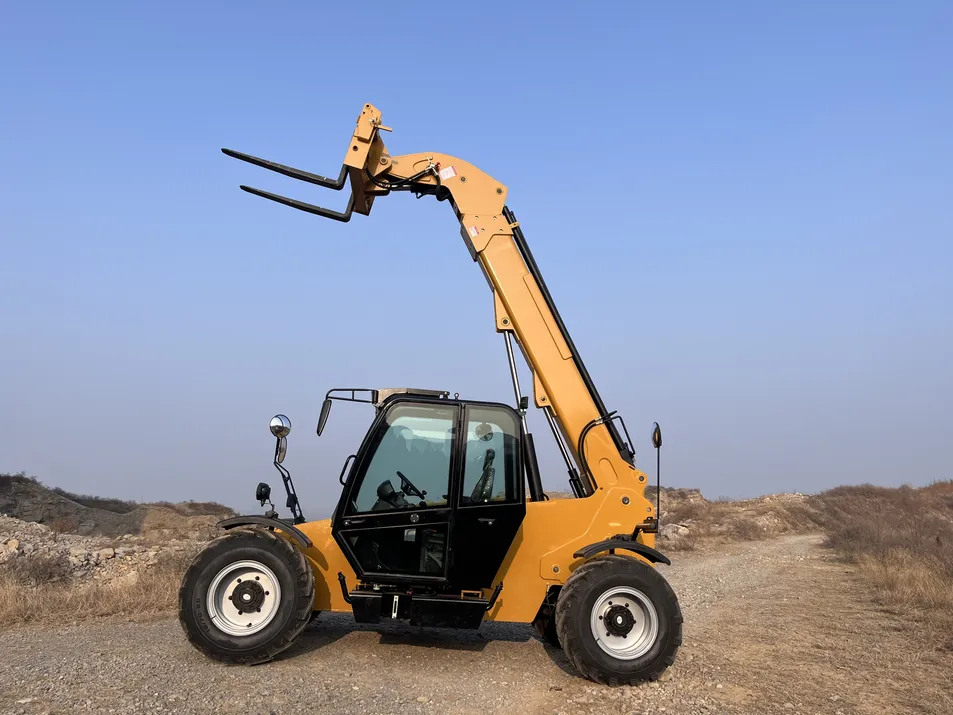

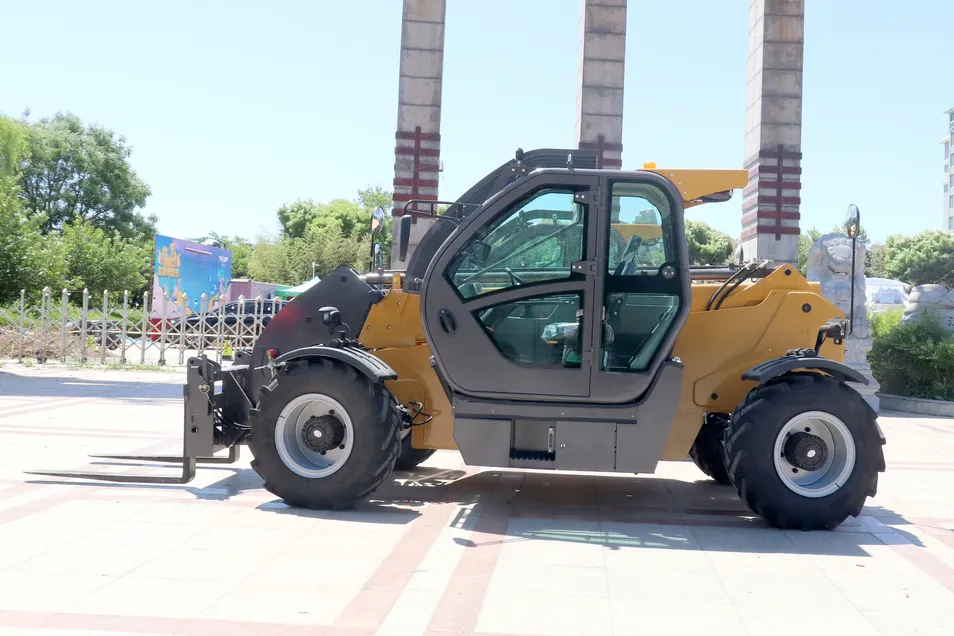

Depending on the specific model, lifting heights range from 7 meters (T3007/T3507K) up to 24.8 meters (FCS-ZTH4525R).
What safety features are included for load management?
The machines include a load torque real-time display and an instrument monitor to track the status of the entire vehicle during operation.
What materials are used in the construction of the boom?
The telescopic booms are manufactured using high-strength BS1000 manganese steel plate to ensure durability and lifting stability.
