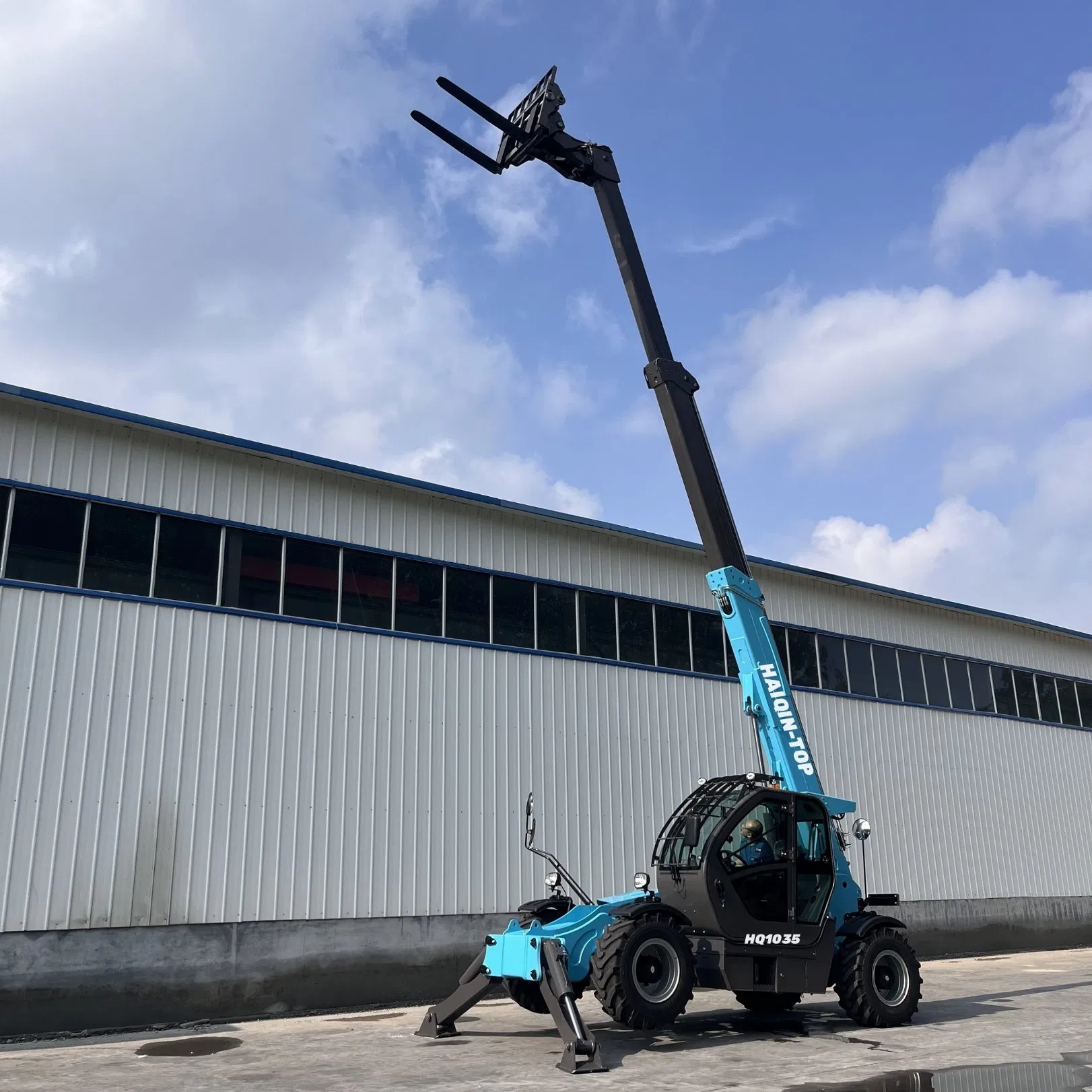

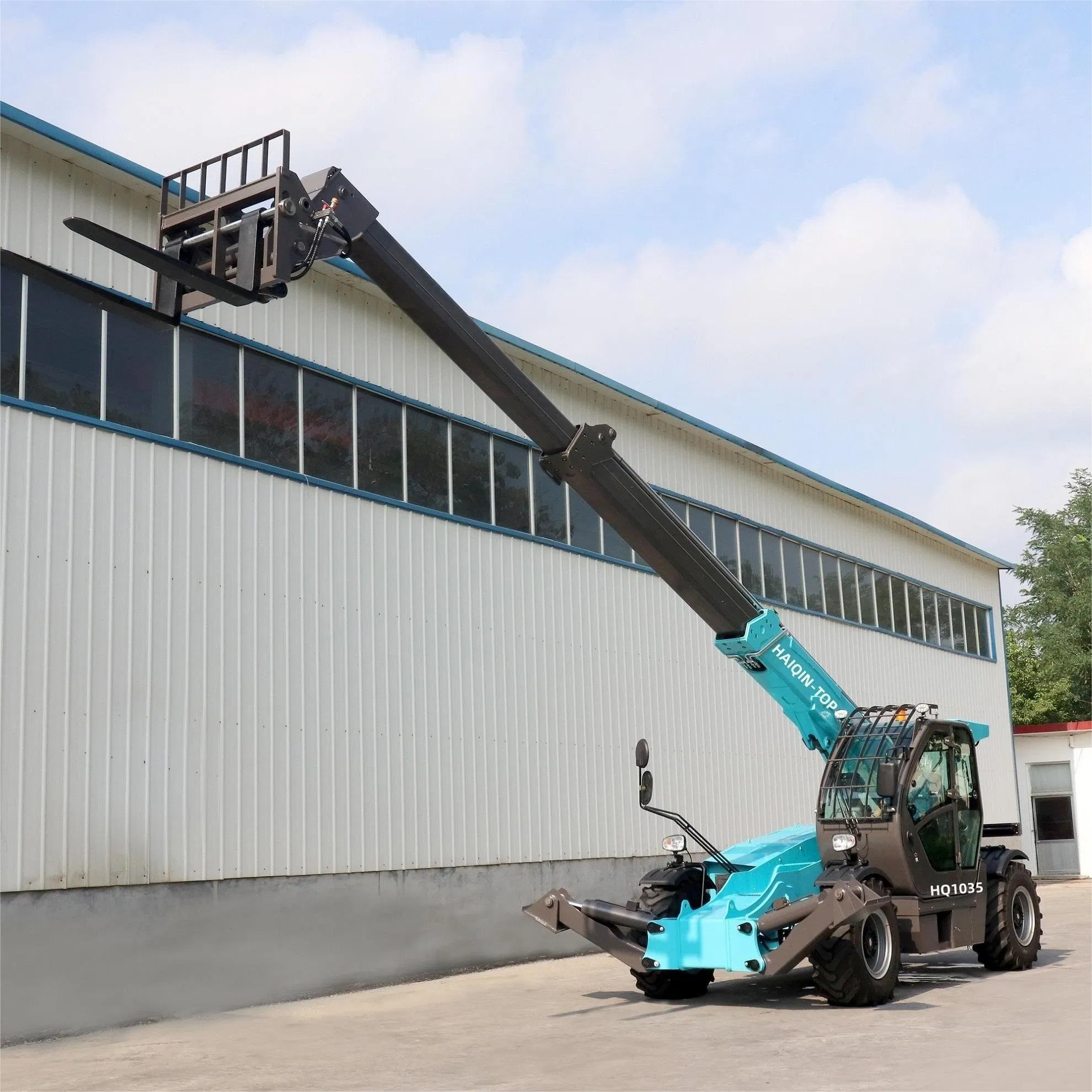

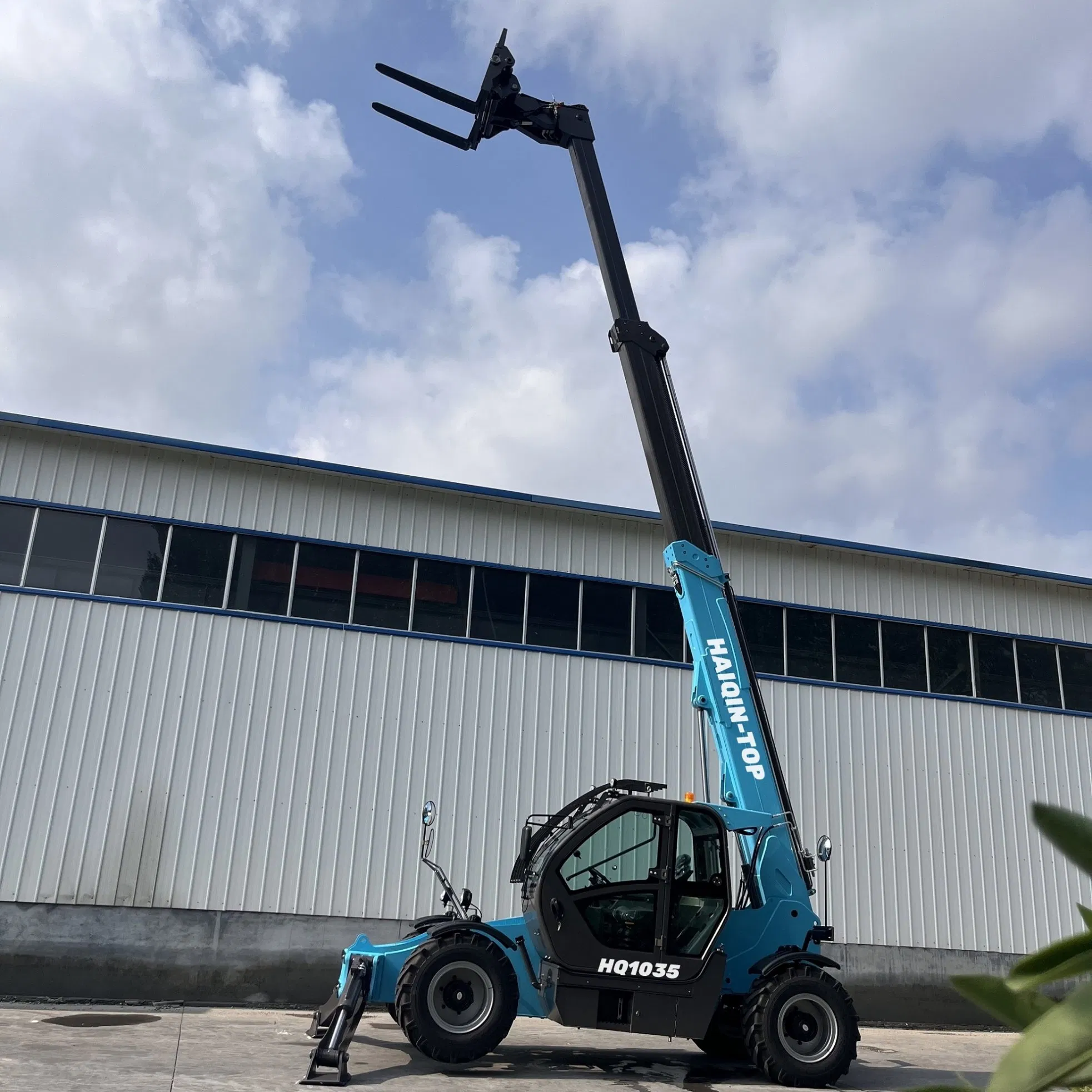

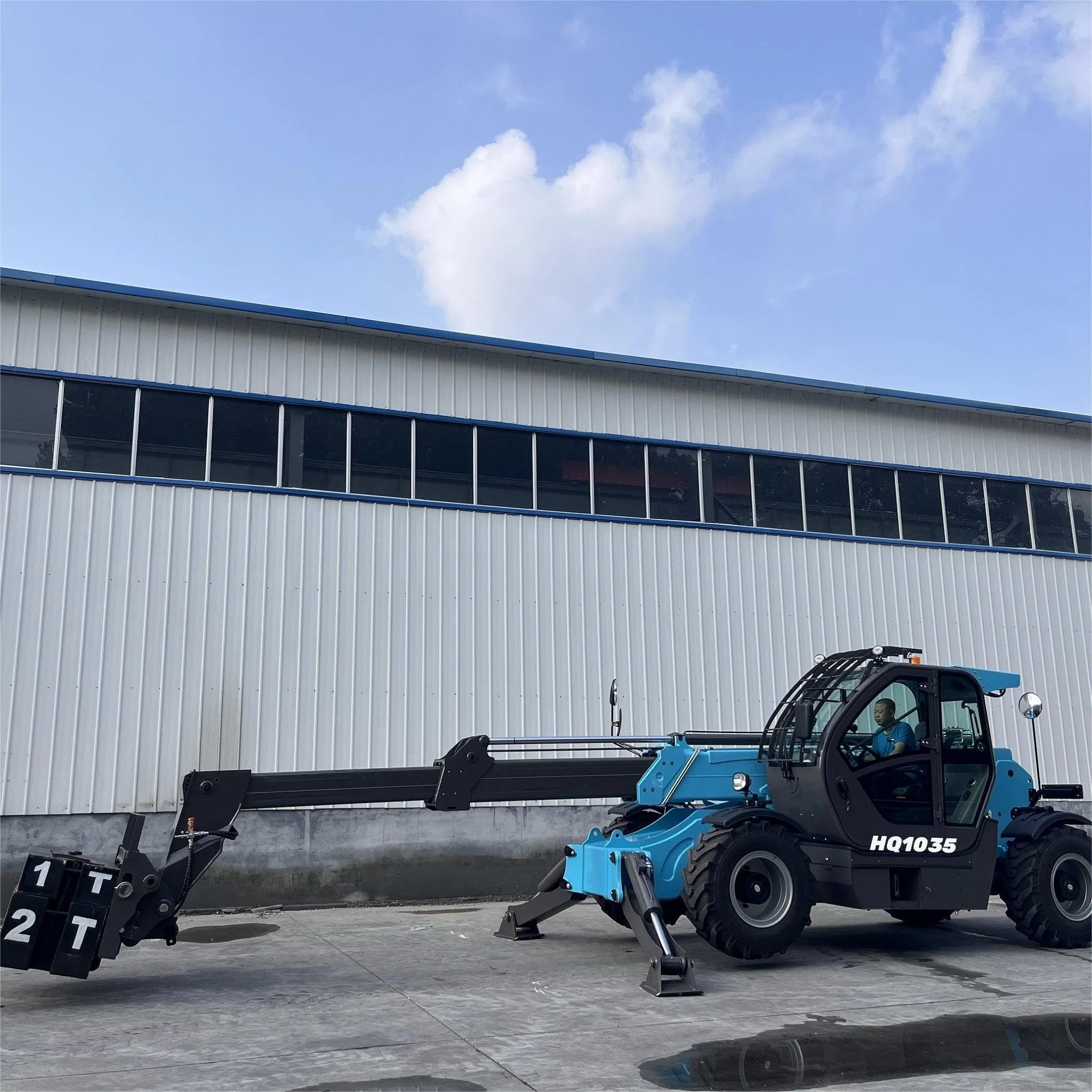

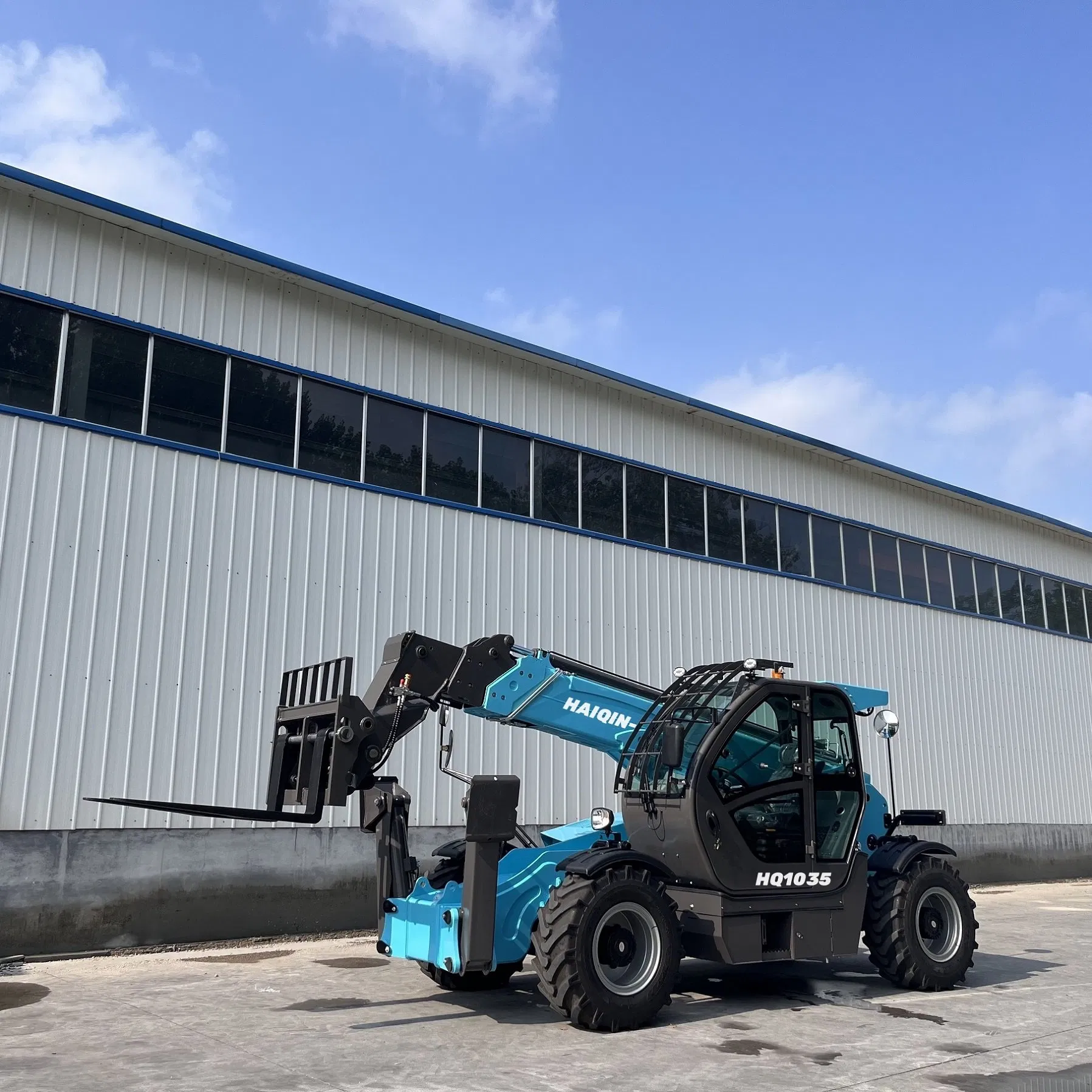

Made in China with CE, SGS (HQ1035) Telescopic Handler

Made in China with CE, SGS (HQ1035) Telescopic Handler

Made in China with CE, SGS (HQ1035) Telescopic Handler

Made in China with CE, SGS (HQ1035) Telescopic Handler

Made in China with CE, SGS (HQ1035) Telescopic Handler

1 / 5

Made in China with CE, SGS (HQ1035) Telescopic Handler

Made in China with CE, SGS (HQ1035) Telescopic Handler

Made in China with CE, SGS (HQ1035) Telescopic Handler

Made in China with CE, SGS (HQ1035) Telescopic Handler

Made in China with CE, SGS (HQ1035) Telescopic Handler

Made in China with CE, SGS (HQ1035) Telescopic Handler

Customization:	Available
After-sales Service:	24 Hours Every Day of Technology and Parts Service
Warranty:	12 Months

Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.

HQ1035

Type

Diesel Forklift / Telescopic Handler

Load Capacity

3500kg (1T - 5T Range)

Max Lift Height

10.5m

Engine

Yuchai / Cummins / Perkins

Engine Power

85kw

Power Type

Diesel Engine

Drive

4 Wheel Drive

Operation

Joystick Handle

Dimensions

5800mm*2200mm*2500mm

Condition

New

Certification

CE, ISO, SGS, ROPS & FOPS

📋

Product Description

The HQ1035 Telescopic Handler is a powerful 4-wheel drive machine designed for lifting 3500kg up to a height of 10.5m. Also known as a forklift loader, this mechanical equipment integrates loading, unloading, handling, and stacking functions seamlessly.

Widely used in modern industry and logistics, it offers high efficiency, flexibility, and versatility. The compact design allows for flexible operation in narrow spaces, while the sturdy body and stable chassis ensure safety in high-intensity environments.

Telescopic Handler HQ1035

Warranty

15 months or 1500 working hours

⚙️

Technical Dimensions & Performance

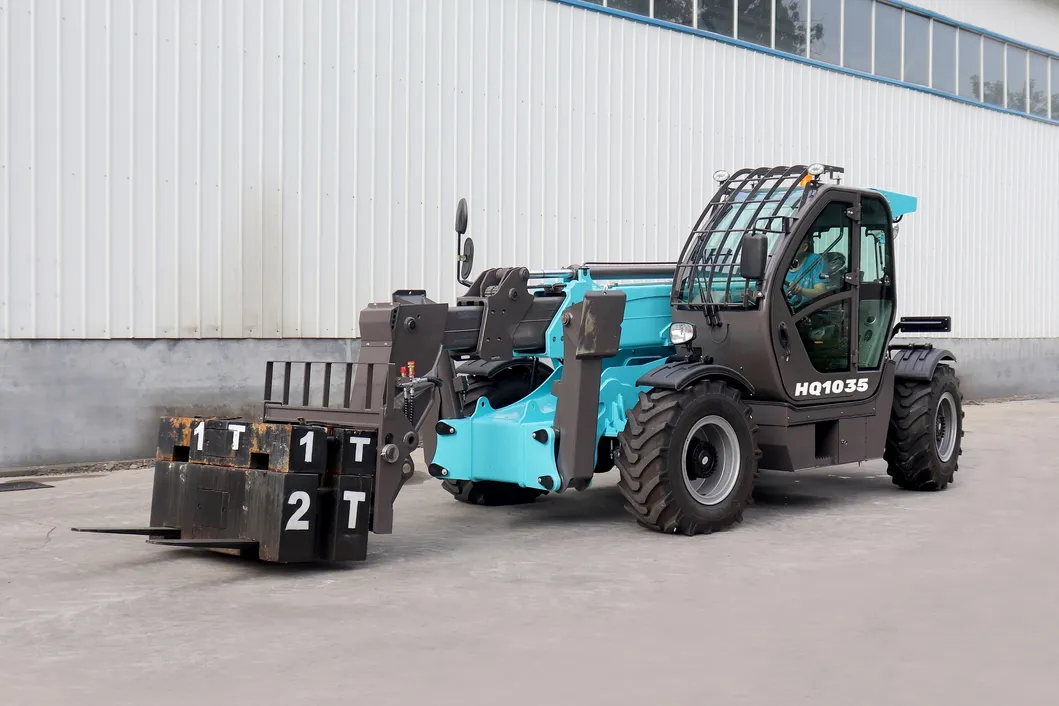

Dimensions View

🔹 Weight: 9650 kg
🔹 Max Load: 3500 kg
🔹 Lift Height: 10500mm
🔹 Boom: 3-Section
🔹 Rise Time: 4.5 - 9.5 sec

📸

Detailed Specifications Gallery

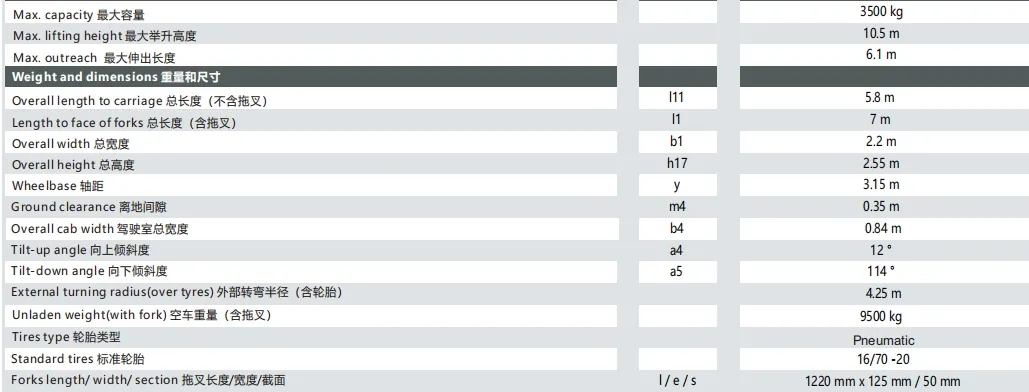

Spec 1

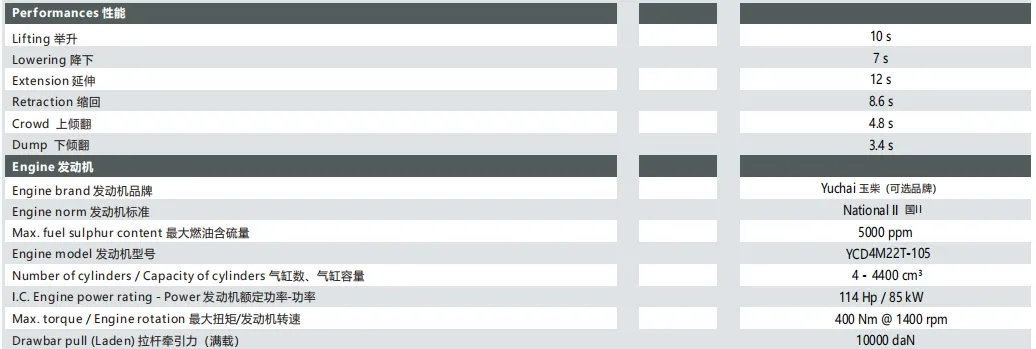

Spec 2

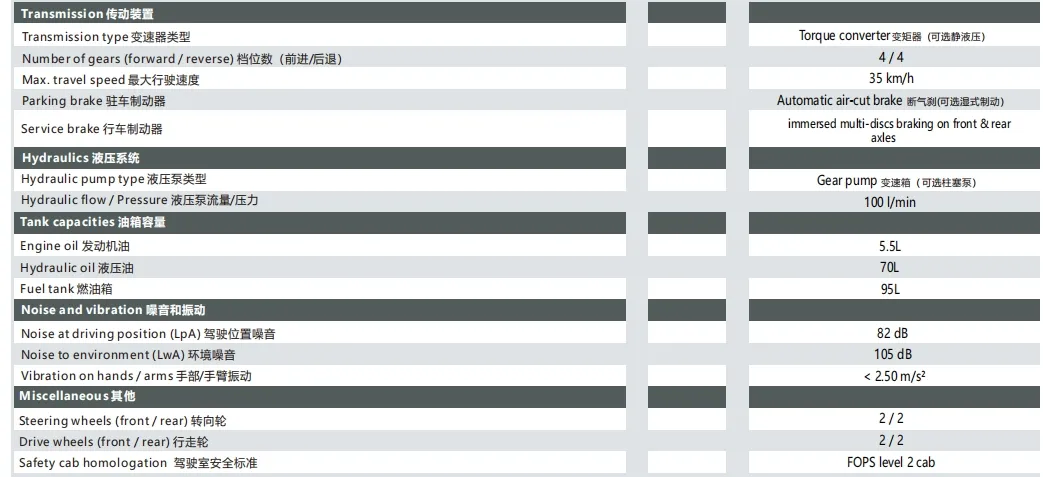

Spec 3

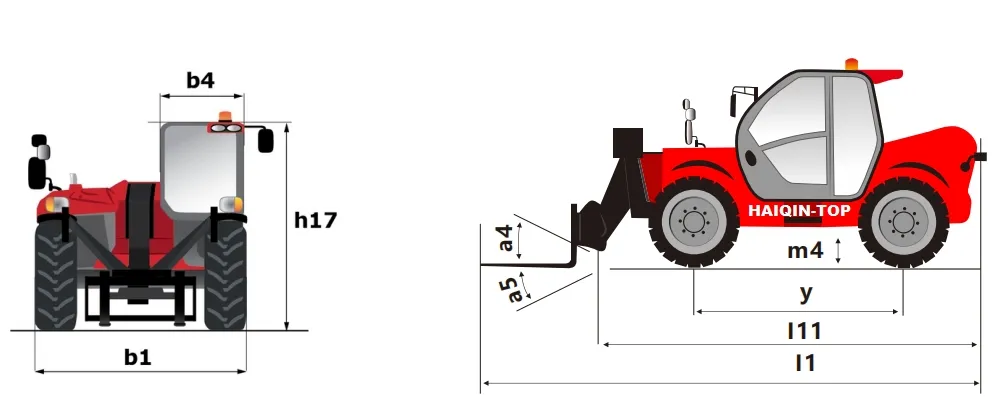

Spec 4

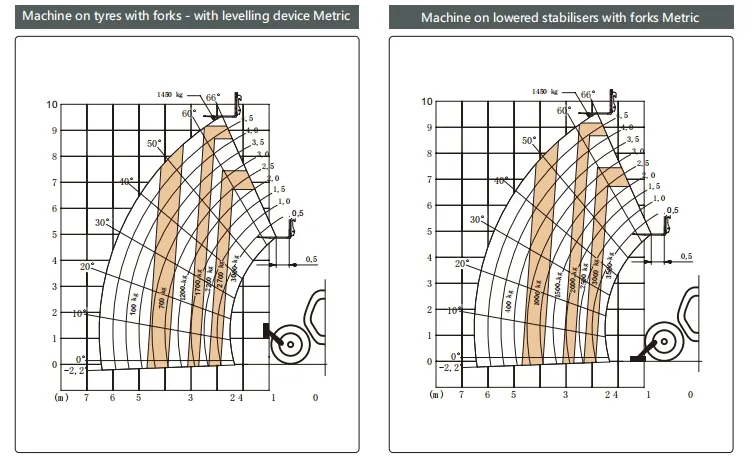

Spec 5

🌟

Main Features & Production

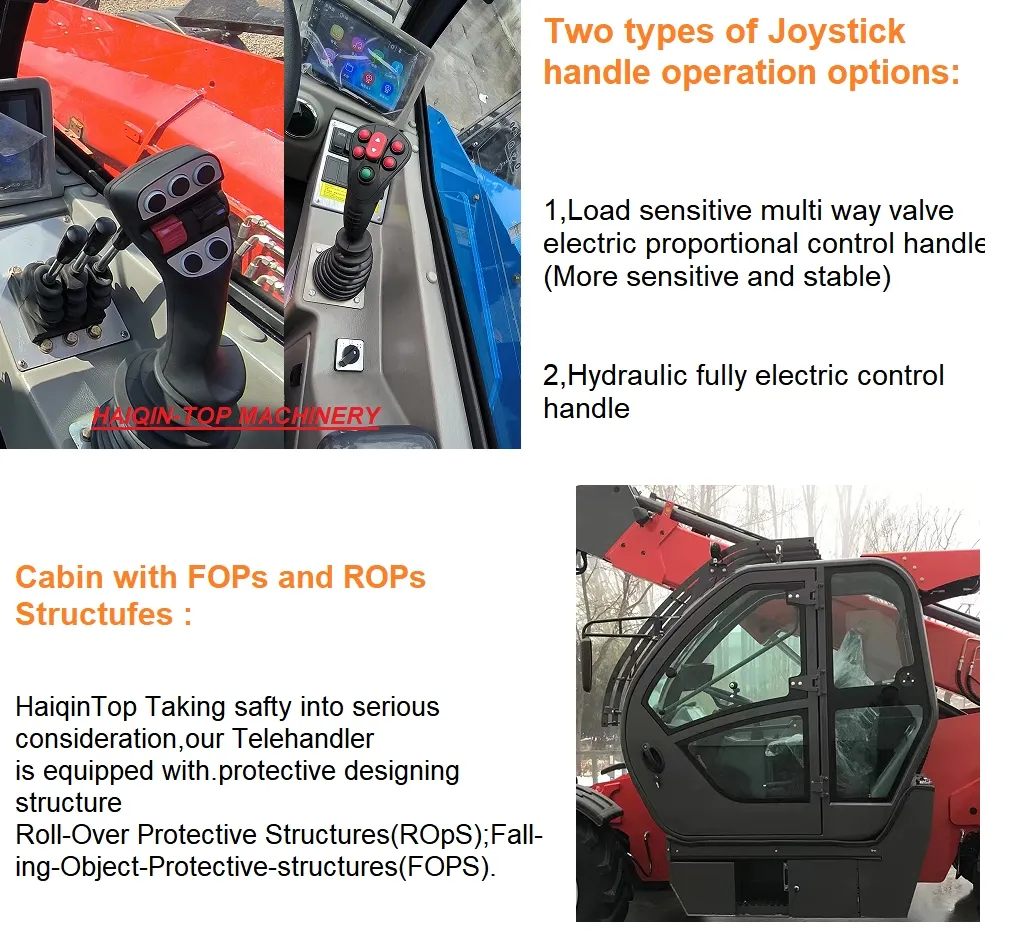

Feature 1

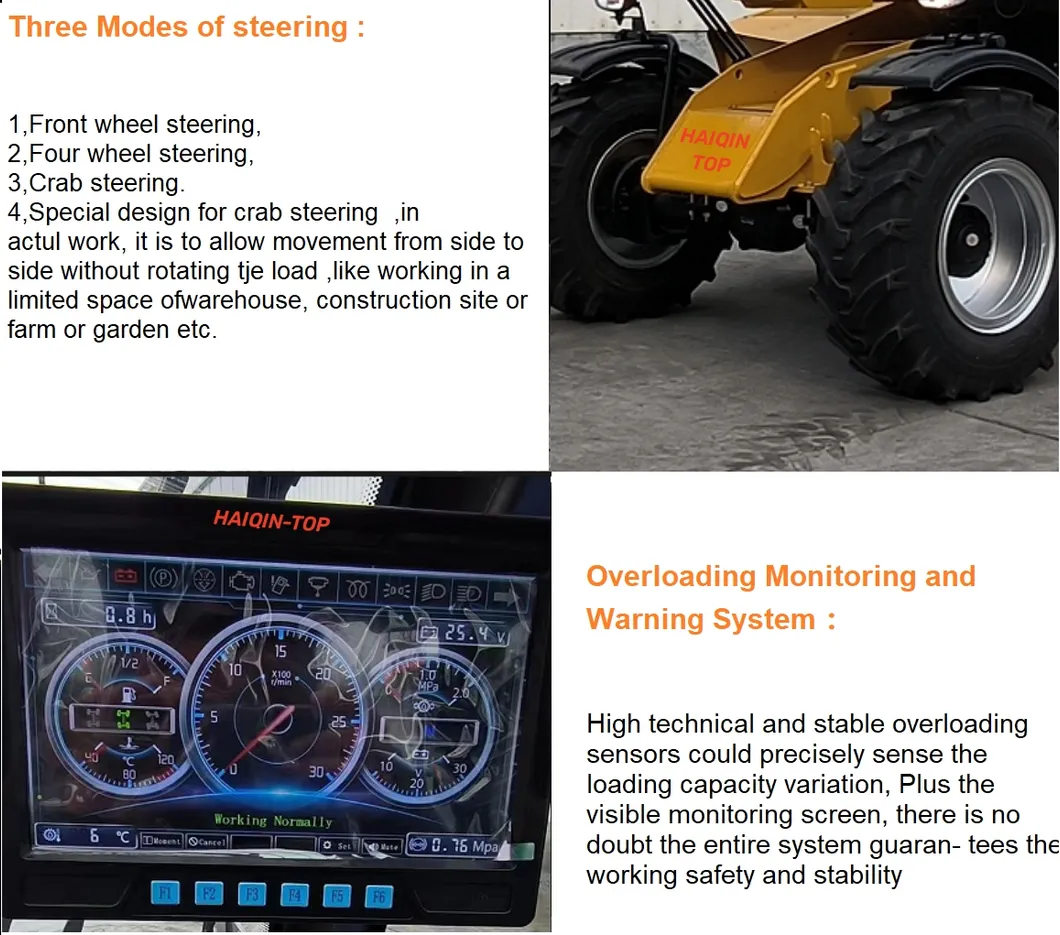

Feature 2

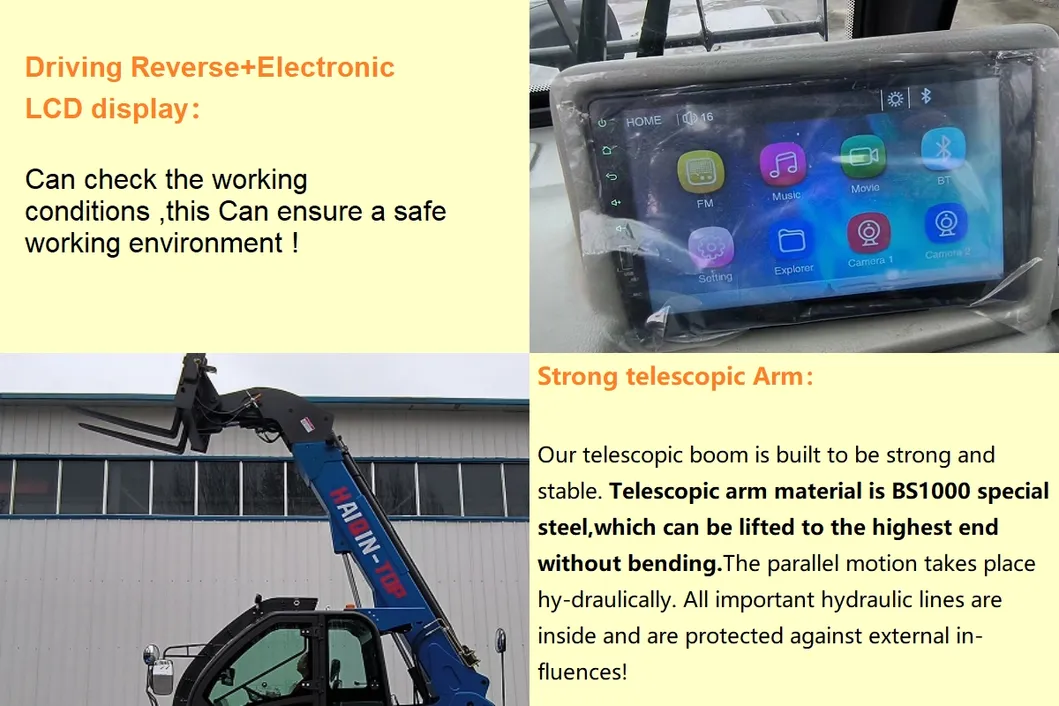

Feature 3

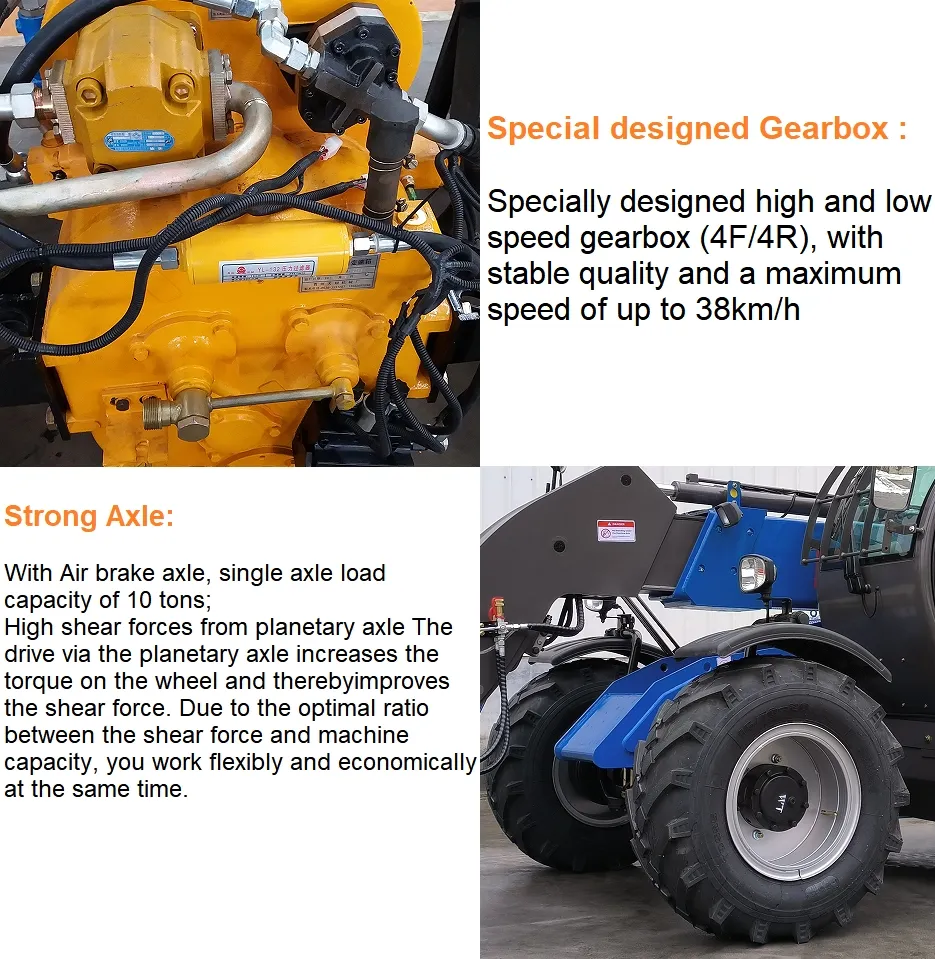

Feature 4

Business Objectives

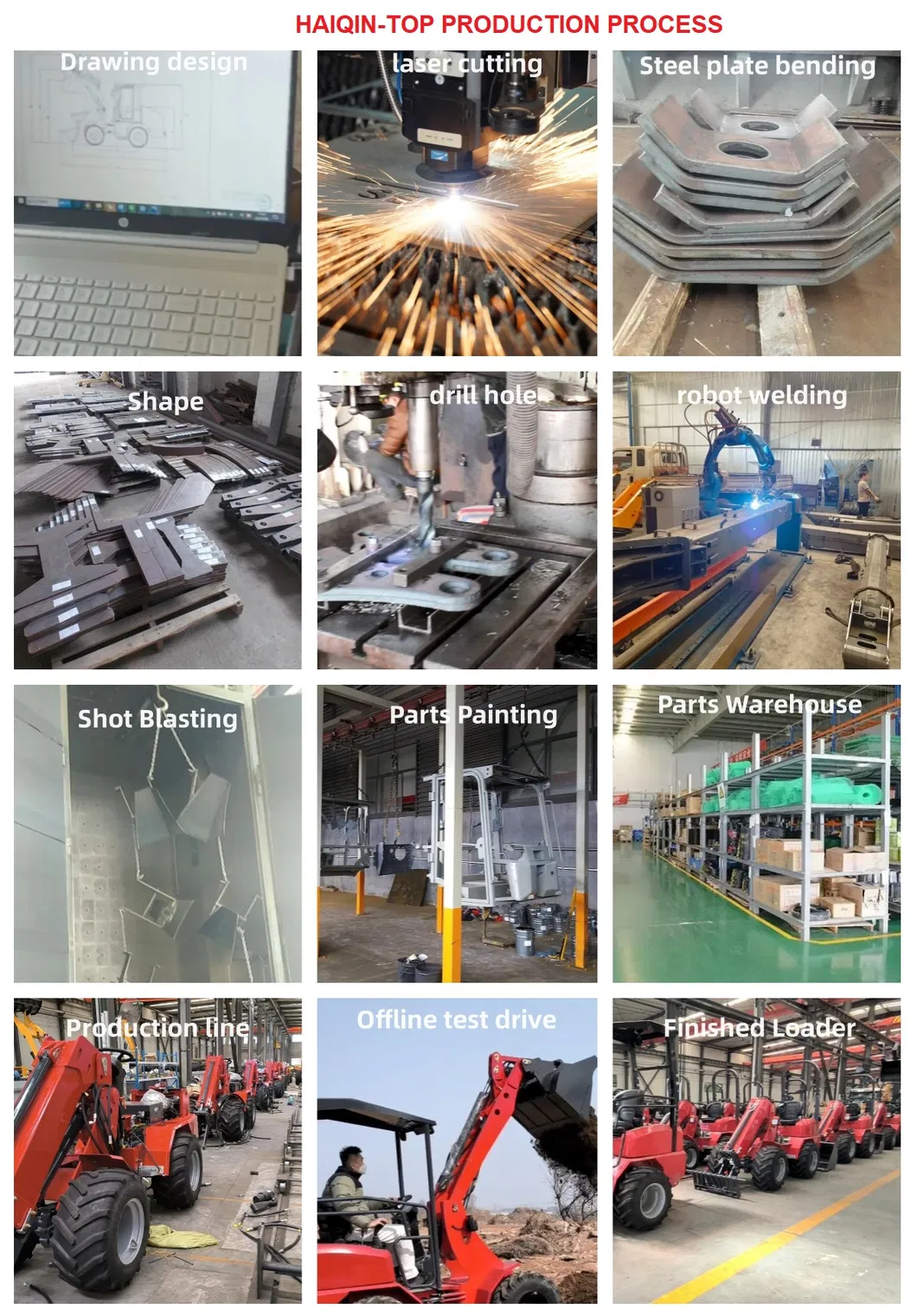

Production Process

🌍

Global Presence & Quality

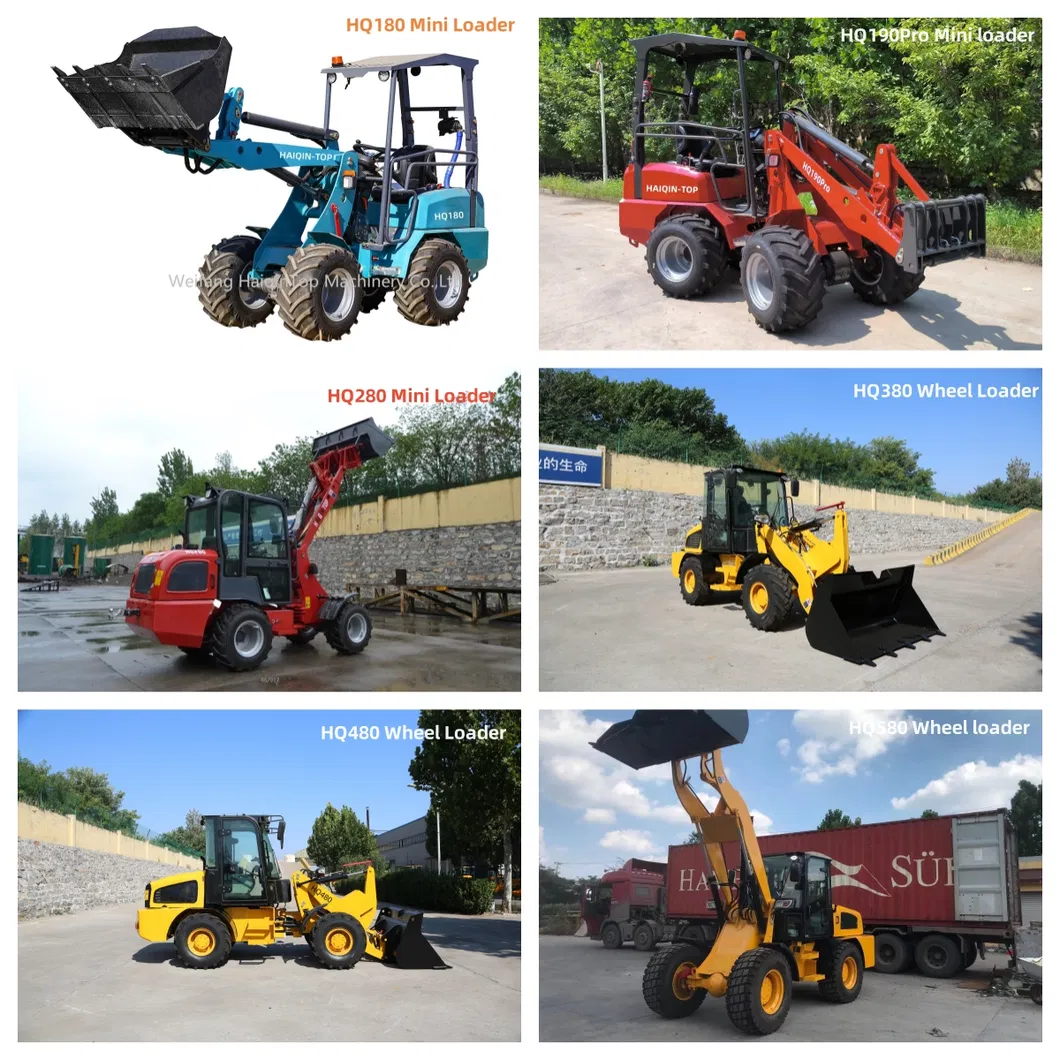

Loader H Series 1

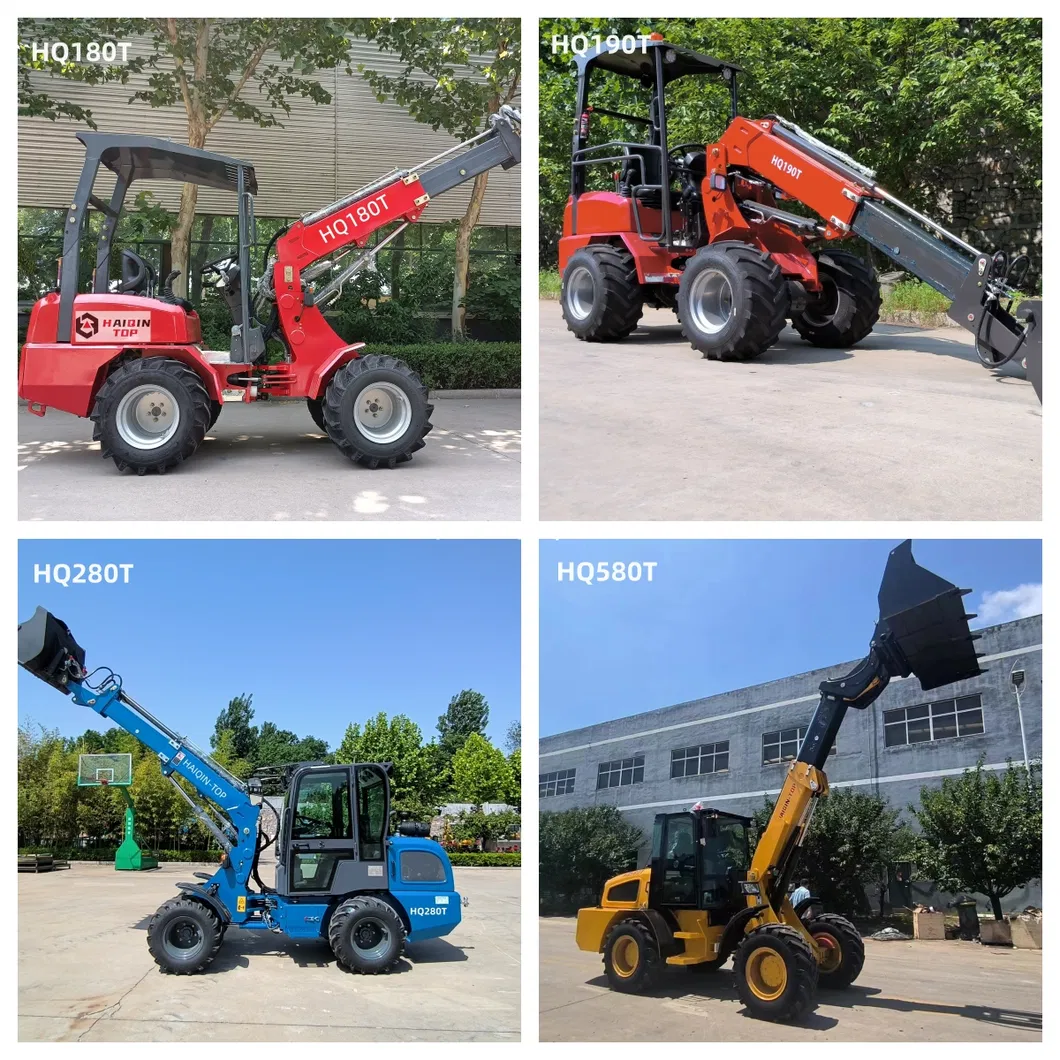

Loader H Series 2

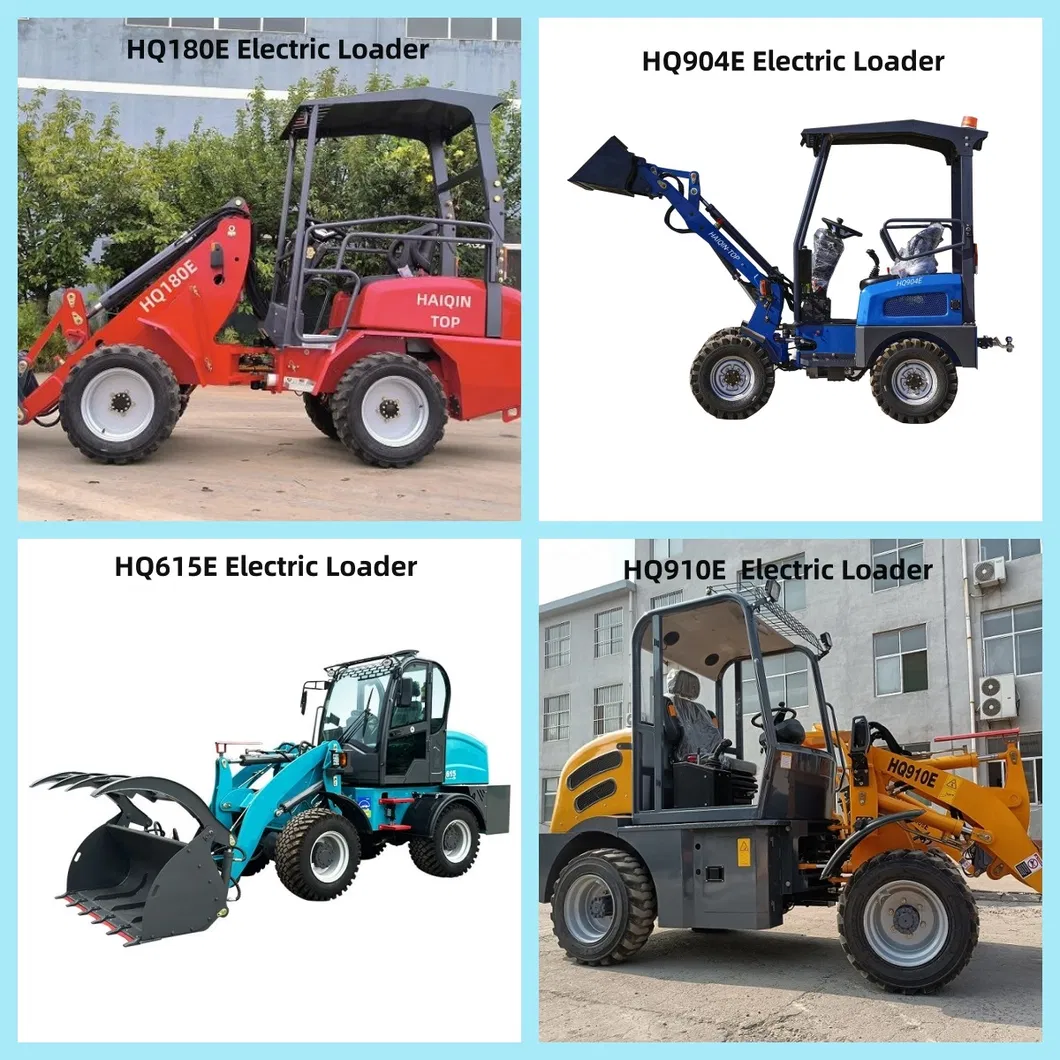

Loader H Series 3

Exhibition

Customer Feedback

Certificates

📦

Packaging & Delivery

Package Size

600.00cm * 220.00cm * 250.00cm

Gross Weight

11000.000kg

Transport

2 Units in a HQ40 Container

❓

Frequently Asked Questions

1. What is the maximum lifting capacity of the HQ1035?

The HQ1035 telescopic handler has a maximum load capacity of 3500kg.

2. How high can the telescopic boom reach?

The maximum lift height for this model is 10.5 meters (10500mm).

3. What engine options are available for this machine?

Customers can choose between Yuchai, Cummins, or Perkins diesel engines with a power output of 85kW.

4. What is the warranty coverage?

We provide a warranty period of 15 months or 1500 working hours, whichever comes first.

5. Is the telehandler suitable for rough terrain?

Yes, it features a 4-wheel drive system and a sturdy chassis, making it ideal for high-intensity and diverse working environments.

6. What certifications does this equipment hold?

The HQ1035 is certified by CE, ISO, and SGS, and includes ROPS & FOPS protection for operator safety.

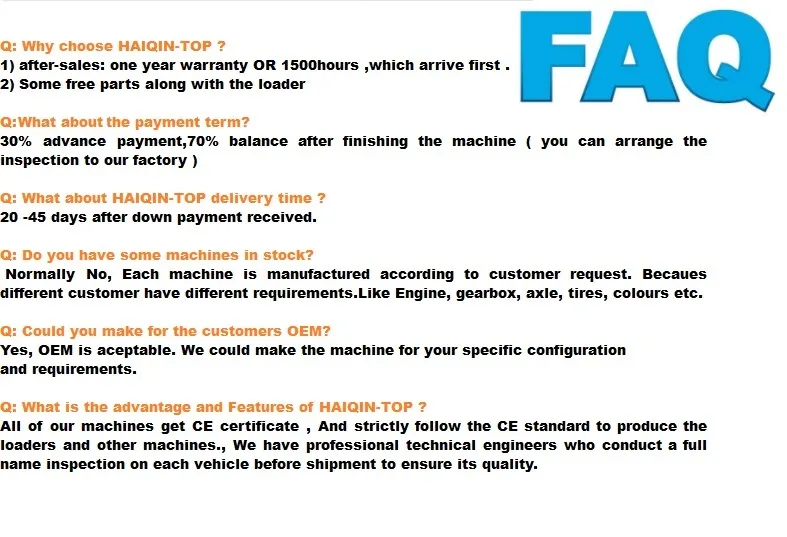

General Questions
