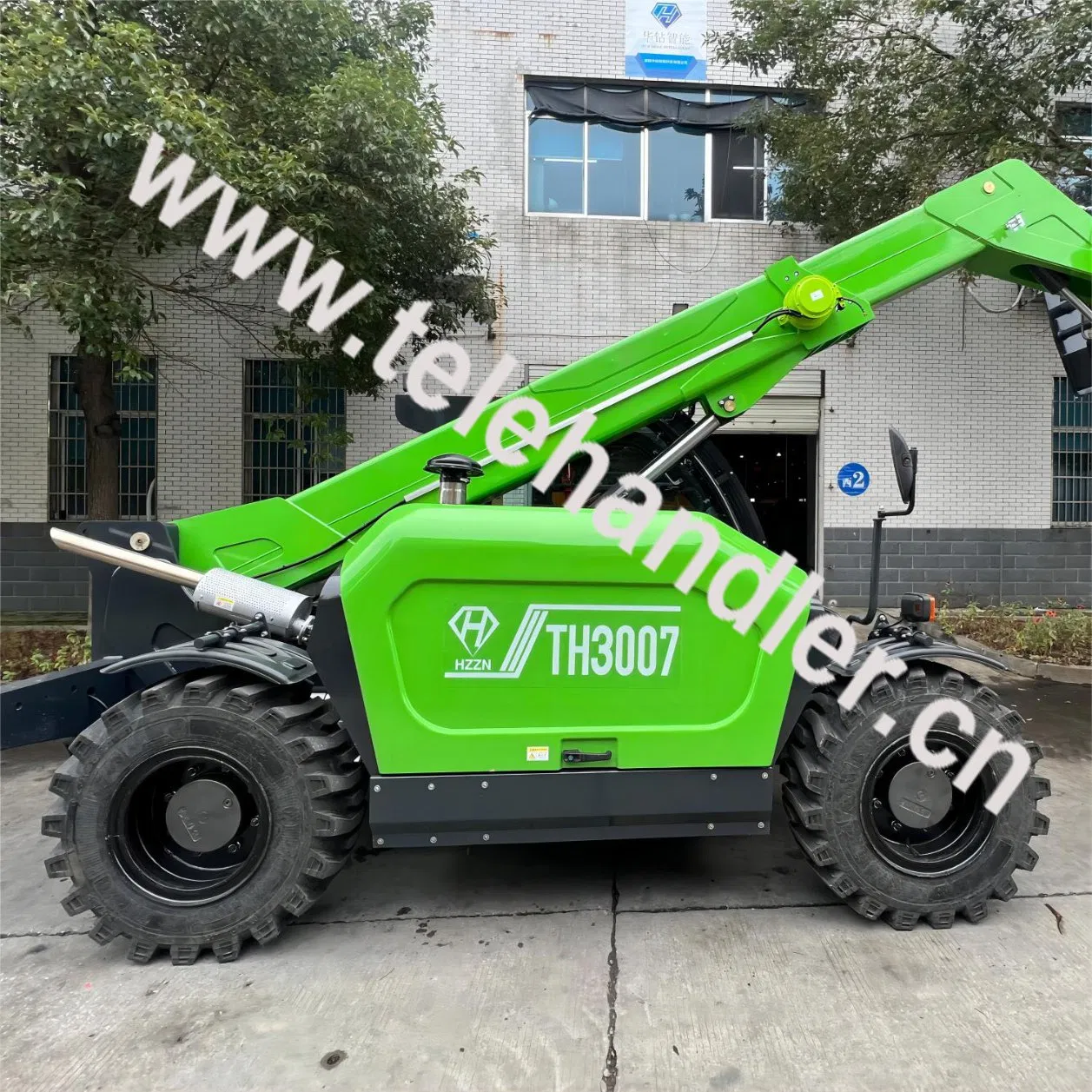

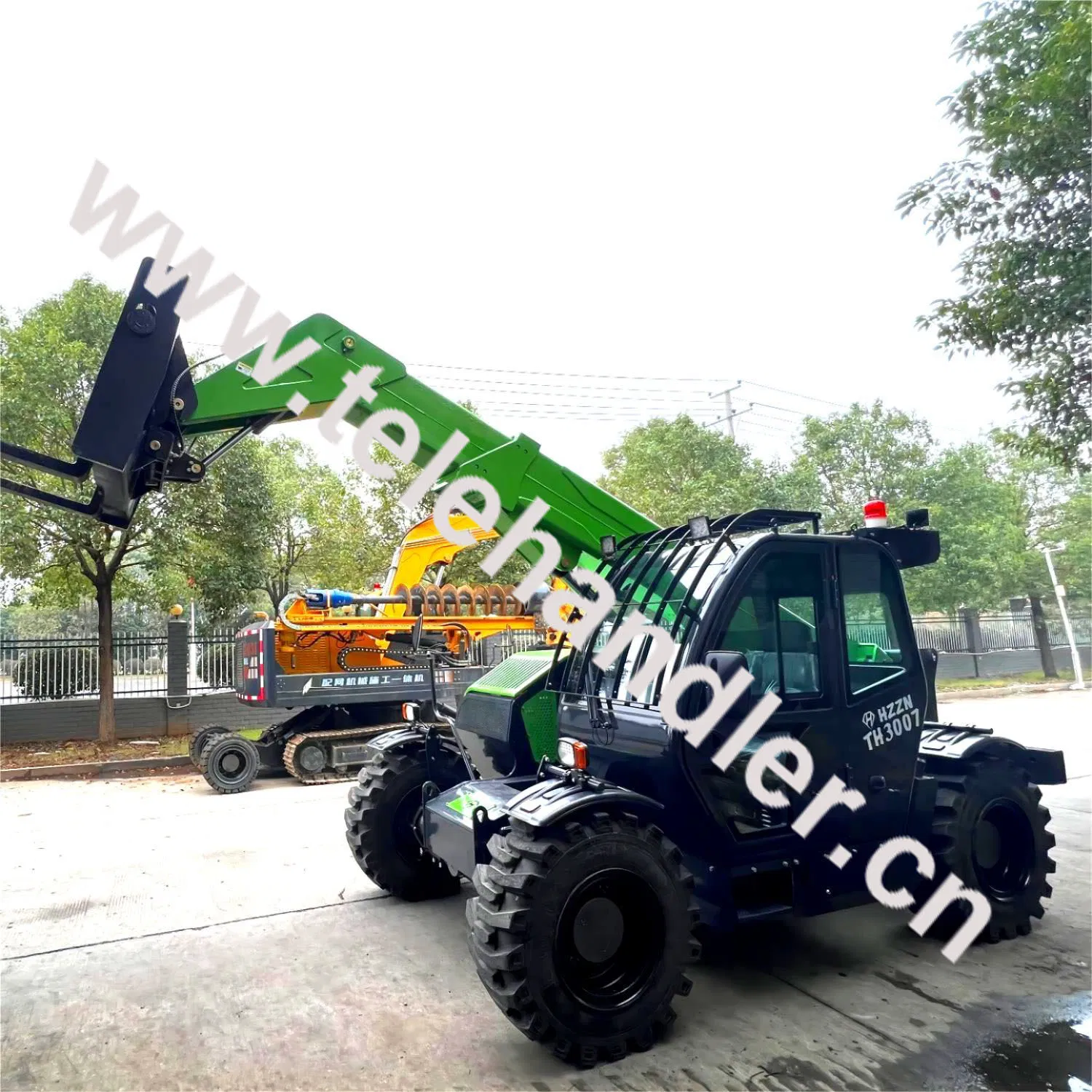

Hzth3007 Telescopic Handler Forklift with 7meter Lifting Height
Hzth3007 Telescopic Handler Forklift with 7meter Lifting Height
Hzth3007 Telescopic Handler Forklift with 7meter Lifting Height
Hzth3007 Telescopic Handler Forklift with 7meter Lifting Height
Hzth3007 Telescopic Handler Forklift with 7meter Lifting Height
1 / 5
Hzth3007 Telescopic Handler Forklift with 7meter Lifting Height
Hzth3007 Telescopic Handler Forklift with 7meter Lifting Height
Hzth3007 Telescopic Handler Forklift with 7meter Lifting Height
Hzth3007 Telescopic Handler Forklift with 7meter Lifting Height
Hzth3007 Telescopic Handler Forklift with 7meter Lifting Height

Hzth3007 Telescopic Handler Forklift with 7meter Lifting Height

Customization: Available
After-sales Service: by Dealer,Online Talk Service,DHL Free Parts.
Warranty: 2500 Working Hours or 1 Year.
Send Inquiry

Product Description

Basic Information
Model NO.
HZTH3007
Cab Location
Left (Customizable)
Type
Telehandler
Power
Diesel Engine
Load Capacity
3000kg
Load center
600mm
Lift height
>5000mm
Condition
New
Engine
Cummins, Deutz, Weichai
Color
Green
Dead Weight
6150kg
Fuel Tank Capacity
130L
Specification
L4300mm*W2200mm*H2410
Origin
China
HS Code
8427209000
Product Description

3 ton telehandler, 7m/6m Lifting Height

  • Powerful performance and versatility with excellent manoeuvrability
  • State of the art design ensures strength, durability, and reliability.
  • Easy to use cab controls with excellent visibility and operator comfort.
  • Extremely low operator costs and high residual value.
  • Standard limited slip differential and 4WD for traction in difficult conditions.

The telehandler HZTH3007 consists of a dedicated 4x4 chassis, boom system, leveling system, power transmission, electrical control, and hydraulic system. Hydrostatic transmission allows for precise manoeuvring in cramped spaces.

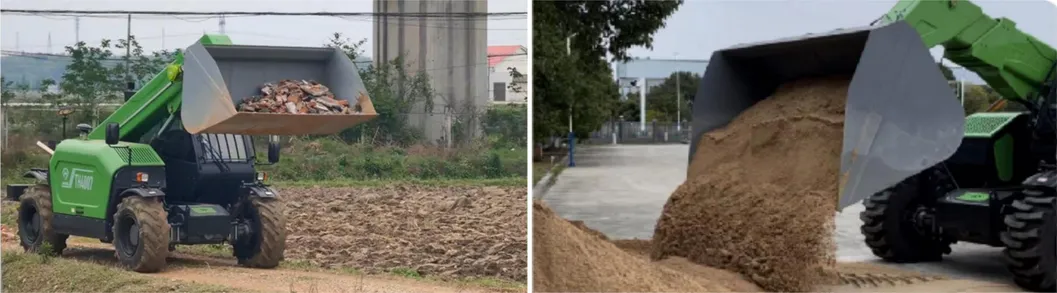

Telescopic Handler Forklift
Added buckets help customers manage waste, while forks enable different material handling functions.
Powerful enough to withstand all kinds of muddy road conditions, moving bricks and building materials on site.

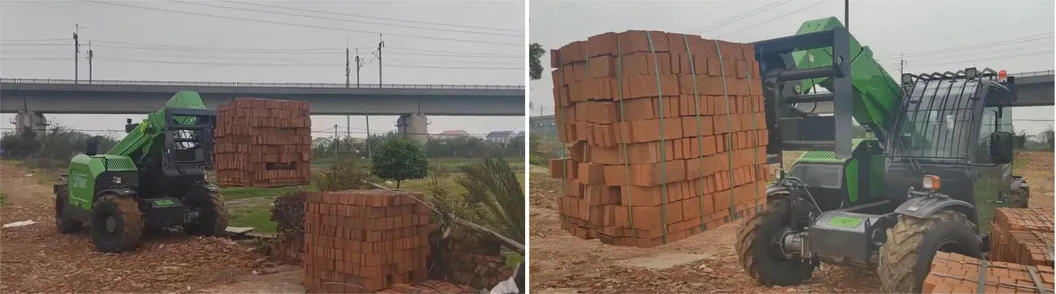

Telehandler site operation

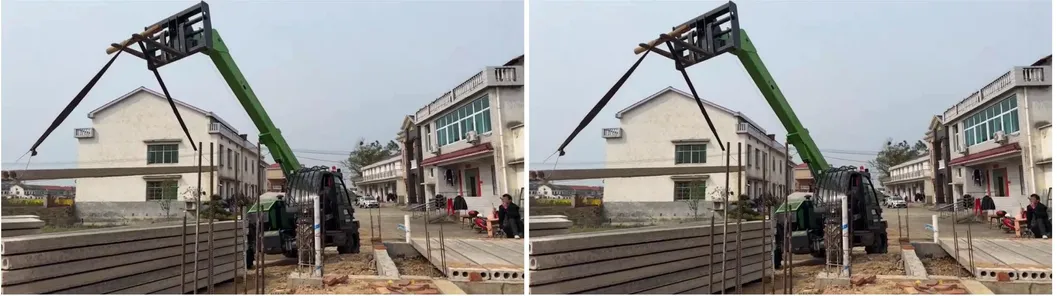

Construction site use
The telescopic arm solves complex reach problems on construction sites effectively.
Steering and Control Features

Three selectable 4-wheel steering modes:

  • Two-wheel steer: Perfect for roading.
  • Four-wheel steer: Great manoeuvrability in tight spaces.
  • Crab steer: Helps edge closer to or away from obstacles.

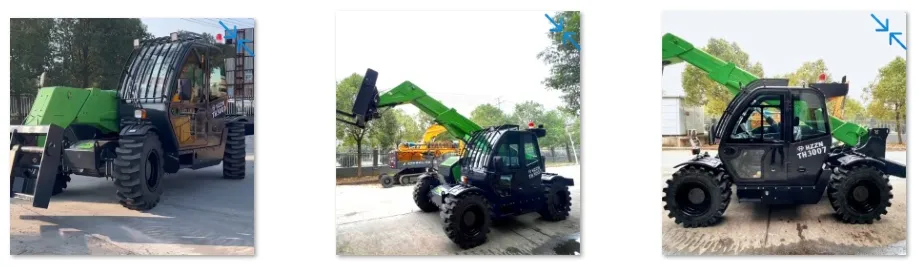

Control and steering indicators
Technical Parameters
Items Unit HZTH3007
Outline Lengthmm4300
Outline Widthmm2200
Outline Heightmm2410
Dead Weightkg6150
Wheelbasemm2600
Rated Capacitykg3000
Max Lifting Heightmm7010
Max weight at full heightkg1800
Max full extension distancemm3750
Capacity at full extensionkg1000
Engine Powerkw74 / 2200rpm
Grade Ability%40%
Tire Spec-12-16.5-12pr

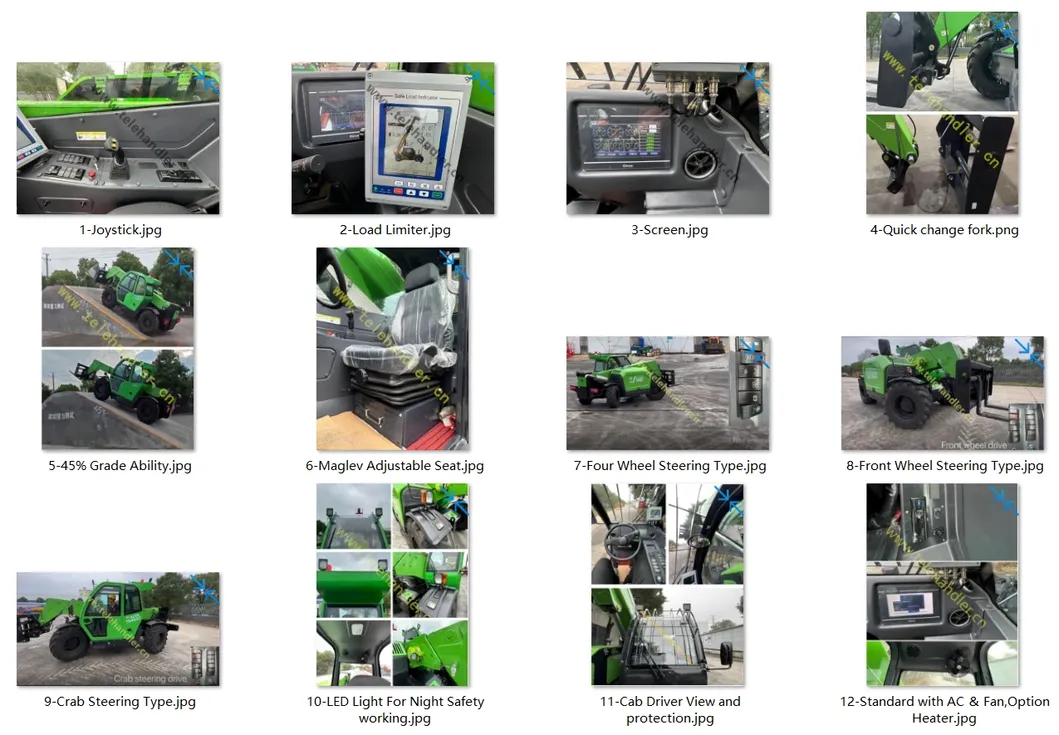

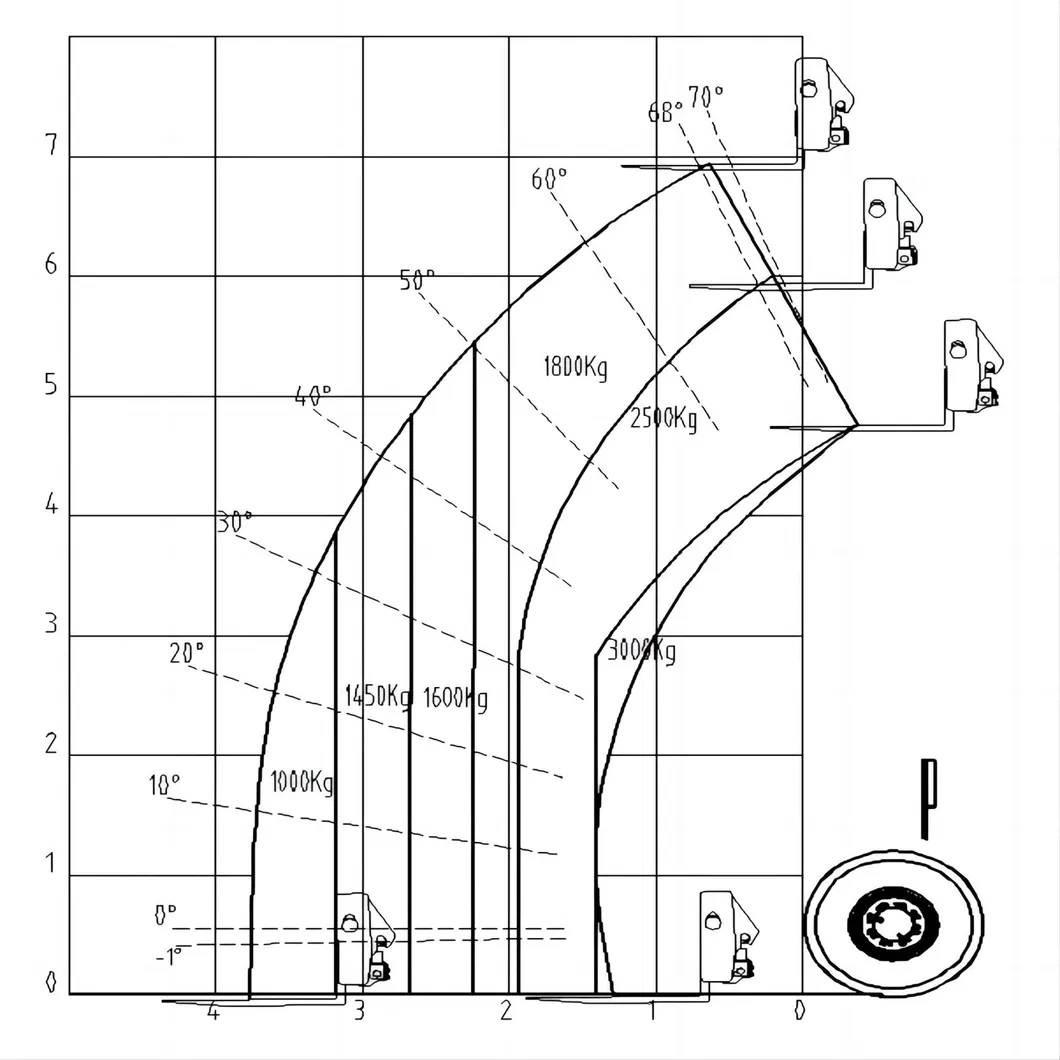

Load Chart
Certifications

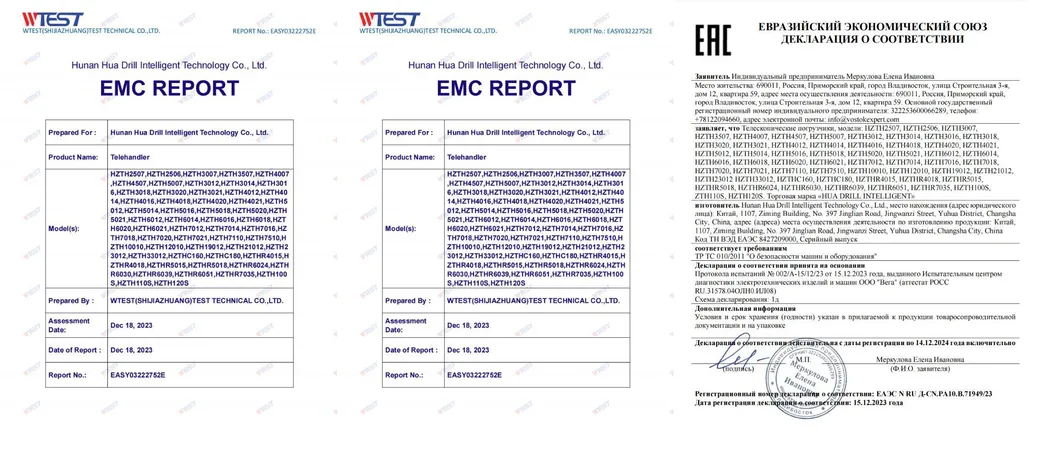

Certificate 1

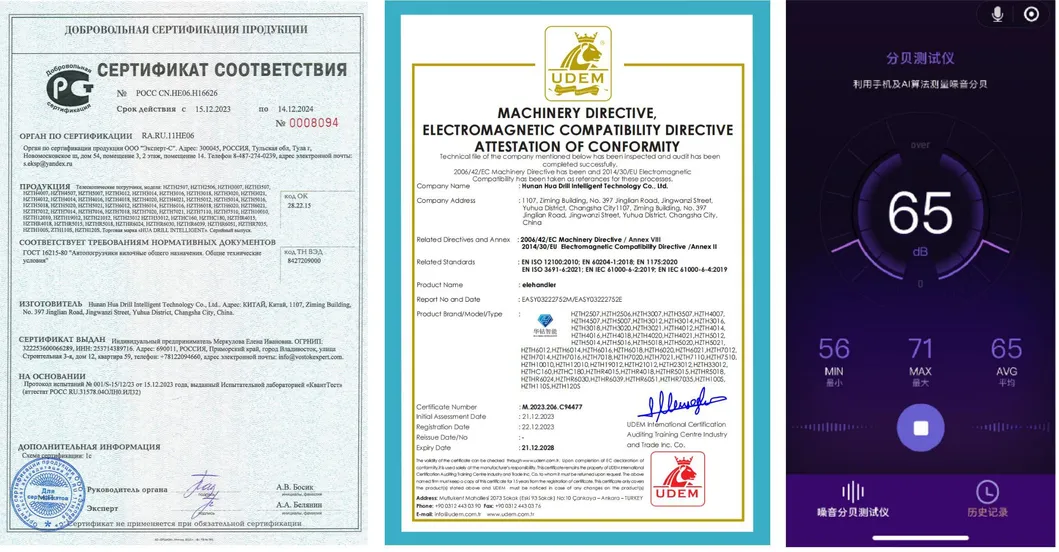

Certificate 2
Equipment Overview
Full View

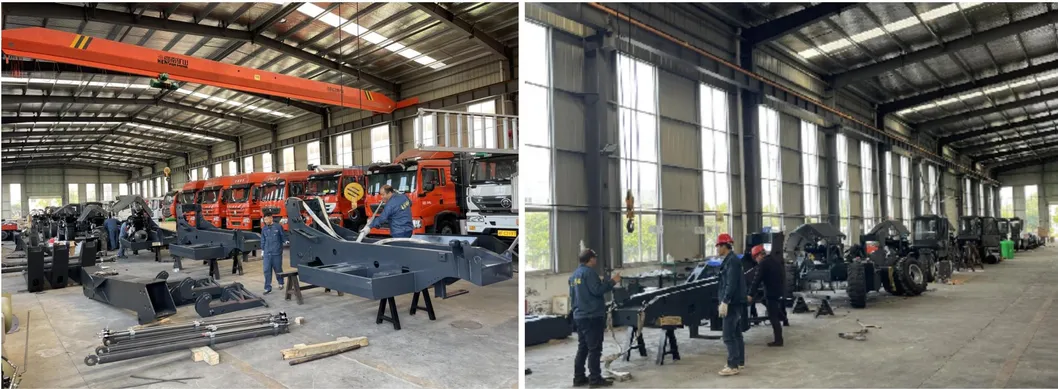

Operational View 1

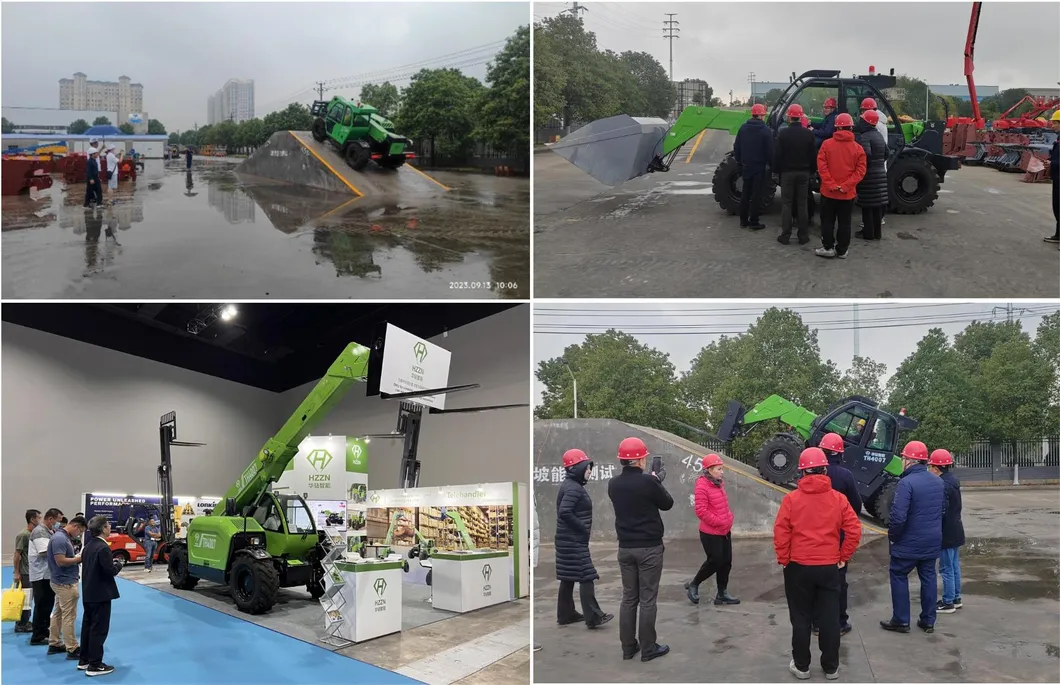

Operational View 2
Frequently Asked Questions
What is a telehandler?
Telehandlers are multi-purpose machines that lift, move and place material. They accept different attachments like forks, buckets, and hooks to handle bricks, gravel, or lumber.
Can a telehandler be used as a crane?
While not designed specifically as cranes, most rotating rough-terrain forklifts fall under crane regulations when using a hook attachment for lifting operations.
What about the delivery time?
The standard delivery time is approximately 60 days after receiving the initial deposit.
What about the warranty period?
The equipment comes with a warranty of 12 months after shipment or 2500 working hours, whichever occurs first.
What type of transmission is used?
Standard units use a hydrostatic type transmission. An engine with a torque converter is available as an optional configuration.
What is the maximum climbing capacity?
The machine features a maximum gradeability (climbing capacity) of 45%.
