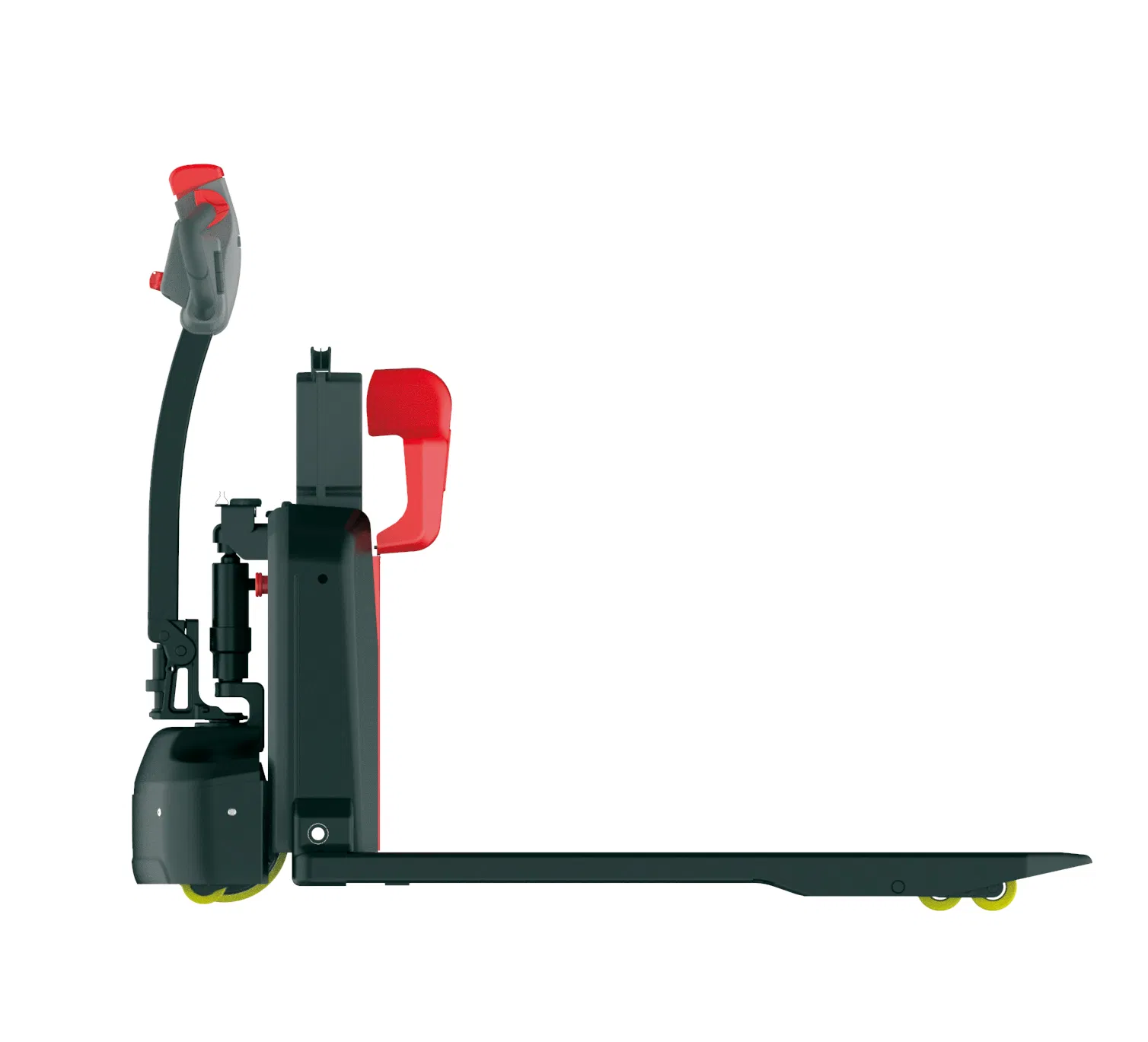

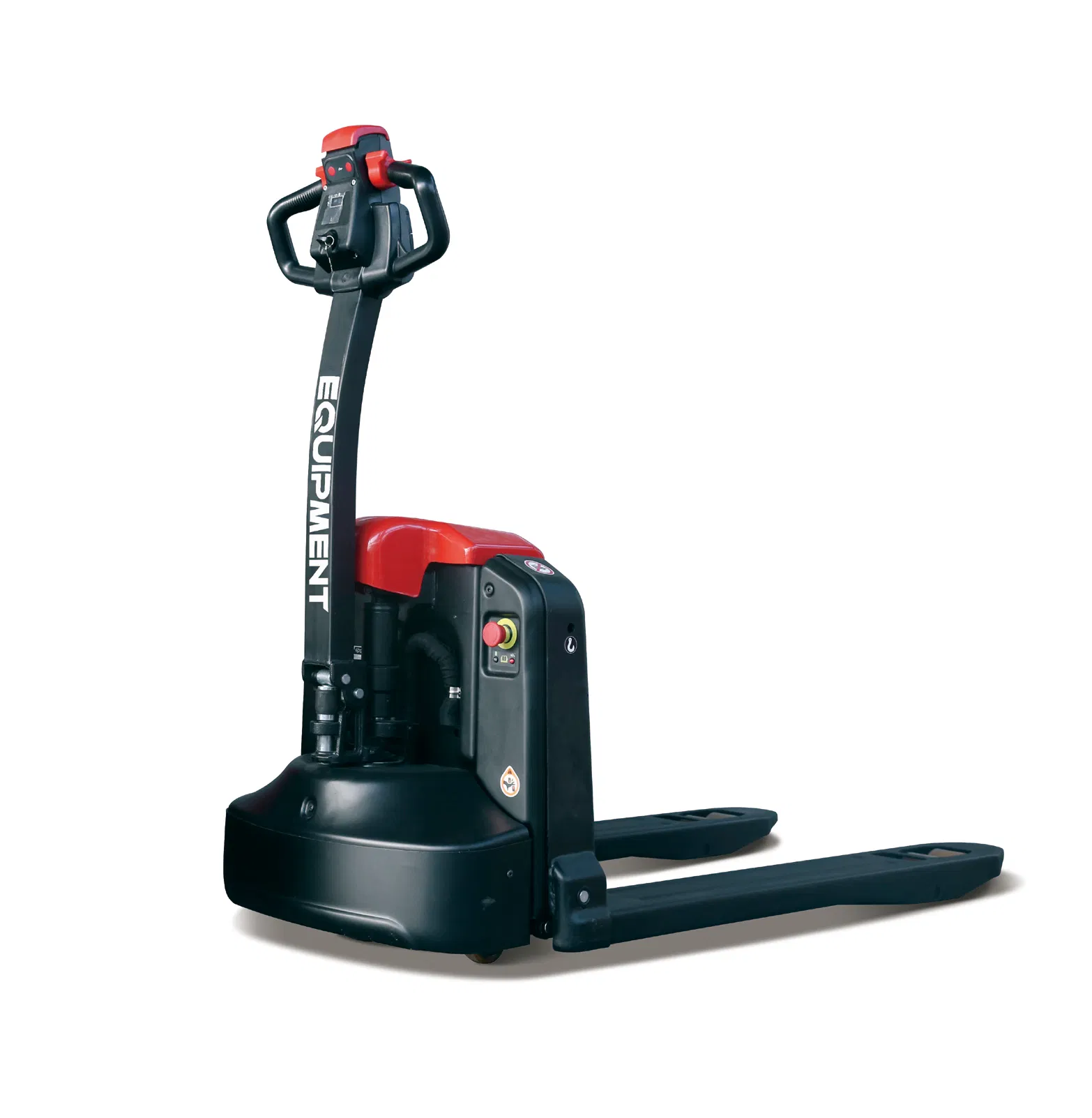

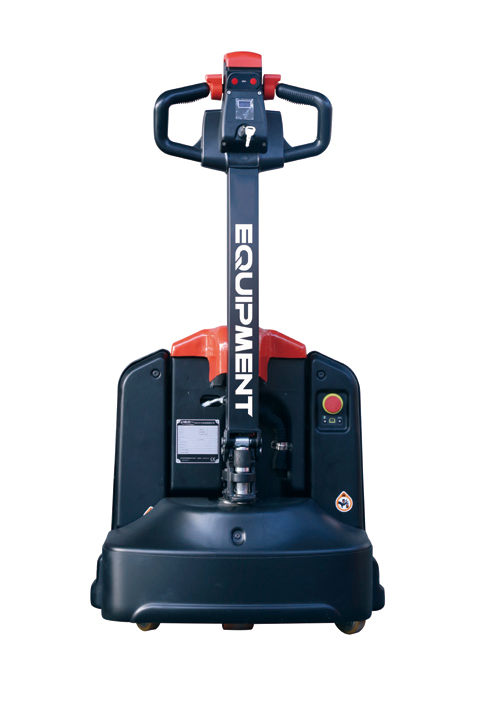

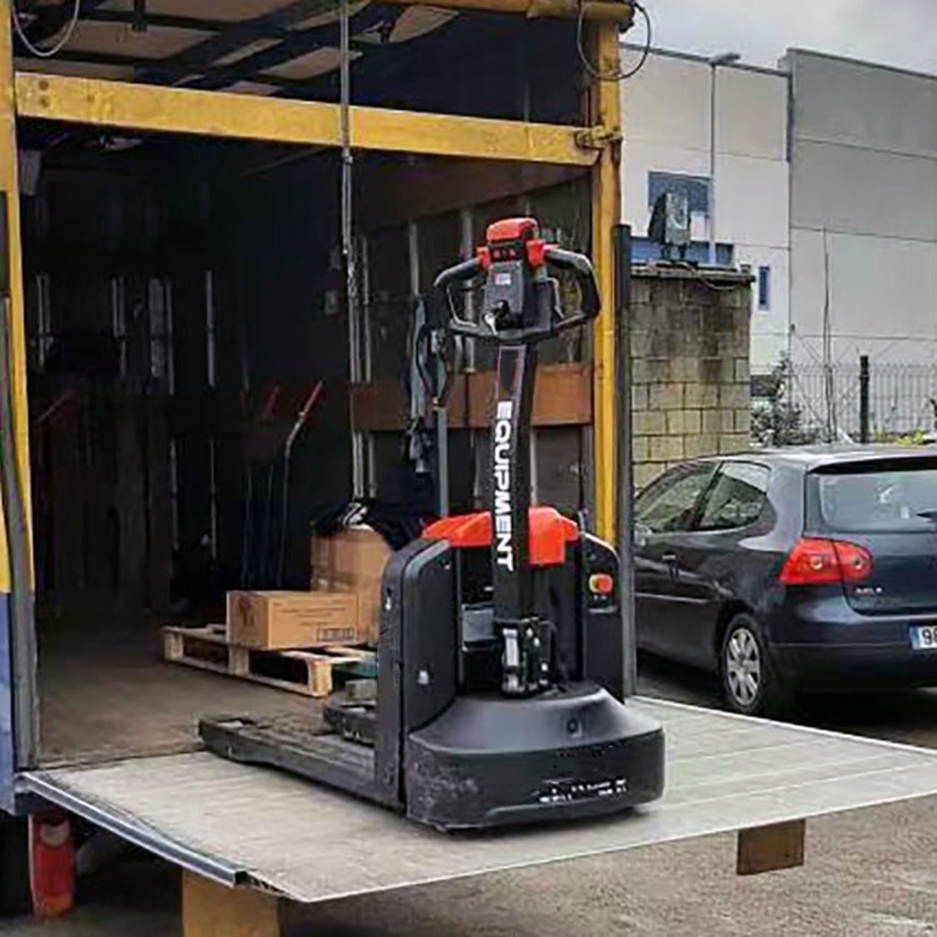

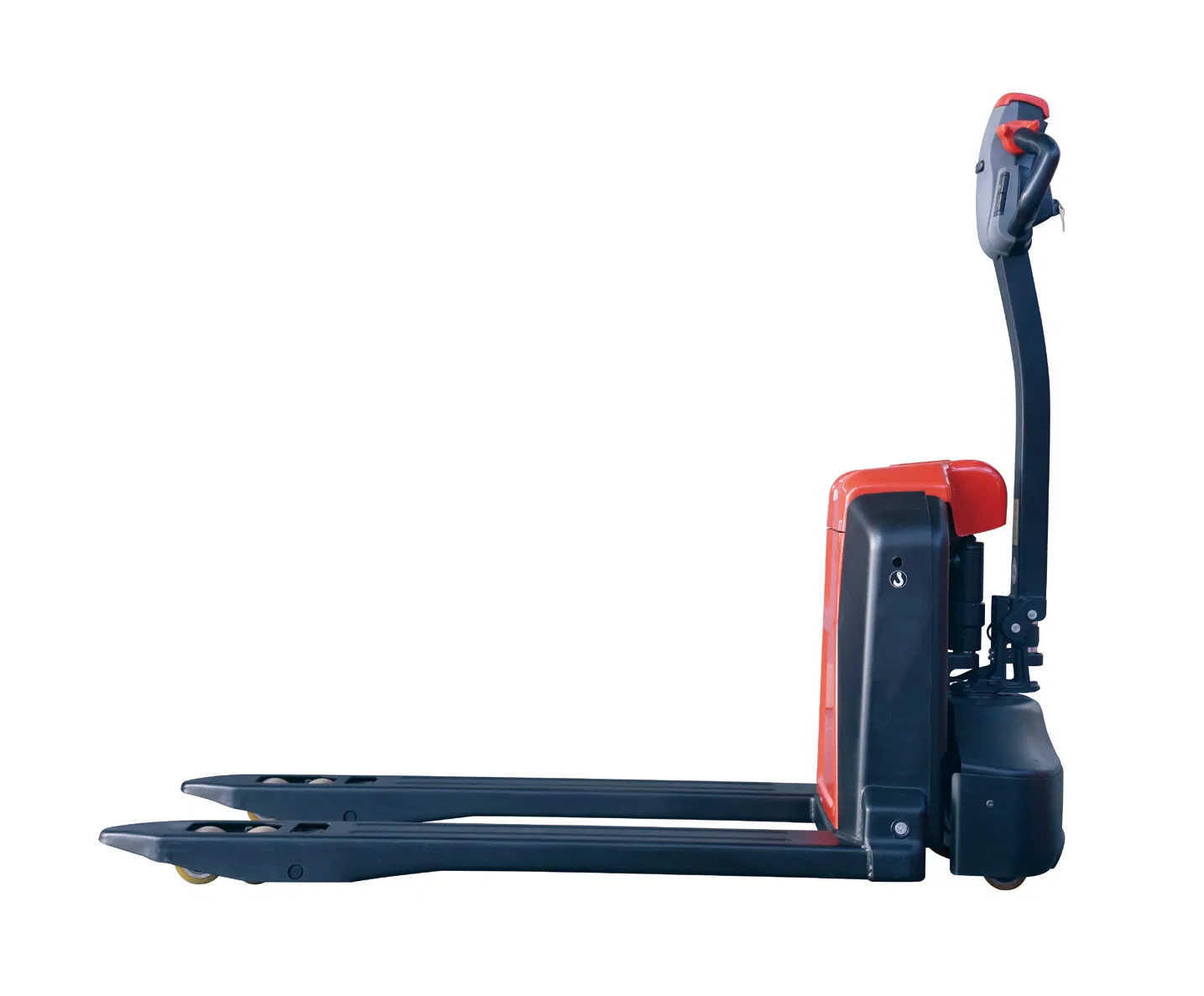

Semi Electric Hydraulic Hand Pallet Truck with Lithium Battery for Warehouse Forklifts

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Specifications

Model NO.
EPL154
Type
Pallet Jack
Power
DC Motor
Load Capacity
1.5ton
Fuel
Electric
Lift height
115mm
Fork Size
50X150X1150mm
Battery
24V/30ah

Product Description

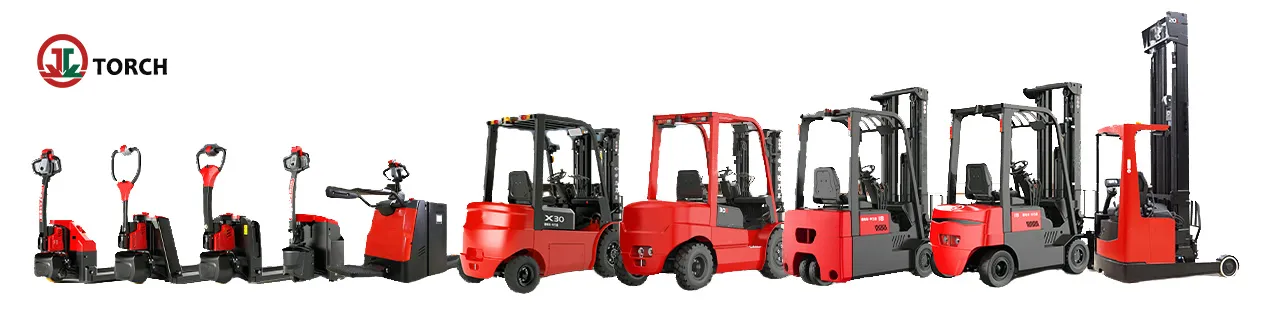

Electric Pallet Truck Overview

Semi Electric Lithium Battery Hydraulic Pallet Truck

The EPL 154 & EPL 185 represents the next generation of electric pallet trucks. Designed based on a decade of industry learnings, these trucks are equipped with a newly developed Li-Ion battery and integrated chargers for maximum flexibility. With a compact chassis of only 400mm to the face of the forks, these trucks are perfect for standard applications in warehouses, logistics, and industrial environments.

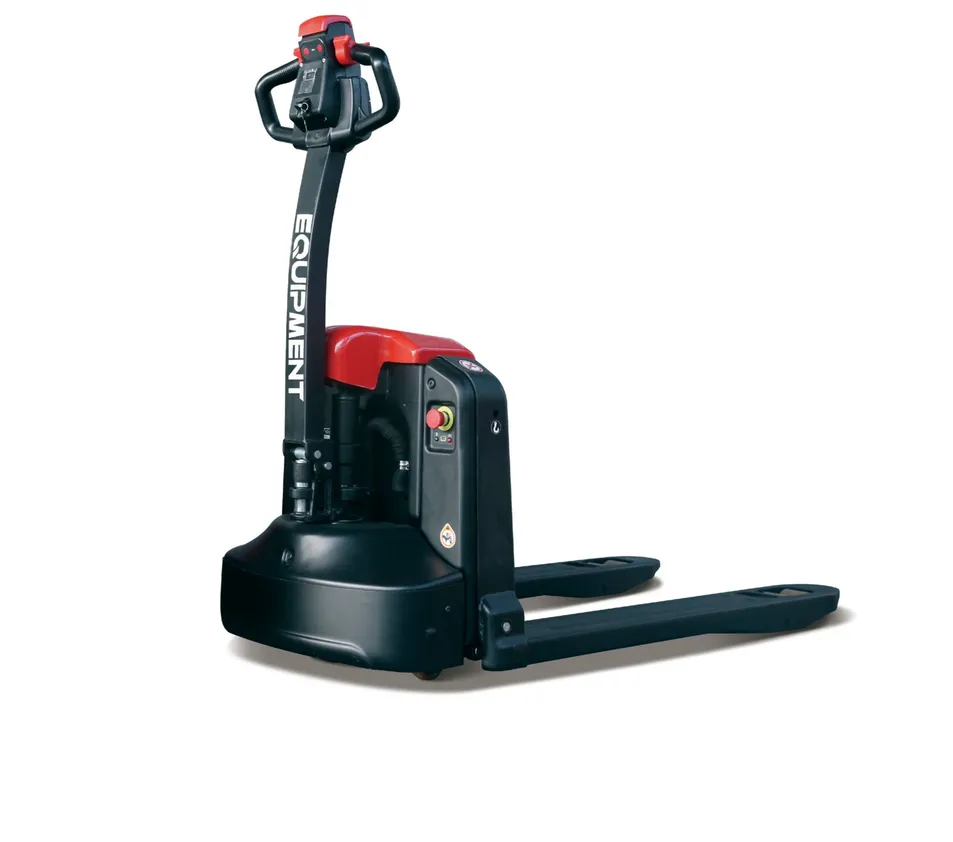

Pallet Truck Feature 1
Pallet Truck Feature 2
  • Secure Battery Design: The battery cover can be flipped open and closed for better security and reduced accidental unplugging.
  • On-board Charging: Charge anywhere, anytime with integrated chargers and a 30Ah Li-Ion battery equipped with a BMS (Battery Management System).
  • Superior Passability: Equipped with industrial floating universal wheels as standard.
  • Reliable Performance: Features a mature drive system capable of 10% gradeability even with a 1000kg load.
📋

Technical Specification

ModelEPL154
DriveElectric (Pedestrian)
Load Capacity1500 kg
Load Center Distance600 mm
Service Weight160 kg
Lift Height115 mm
Lowered Height80 mm
Overall Length1550 mm
Overall Width610 / 695 mm
Fork Dimensions50 x 150 x 1150 mm
Turning Radius1330 mm
Travel Speed (Laden/Unladen)4.5 / 5.0 km/h
Battery Voltage/Capacity24V / 30Ah

Application & Versatility

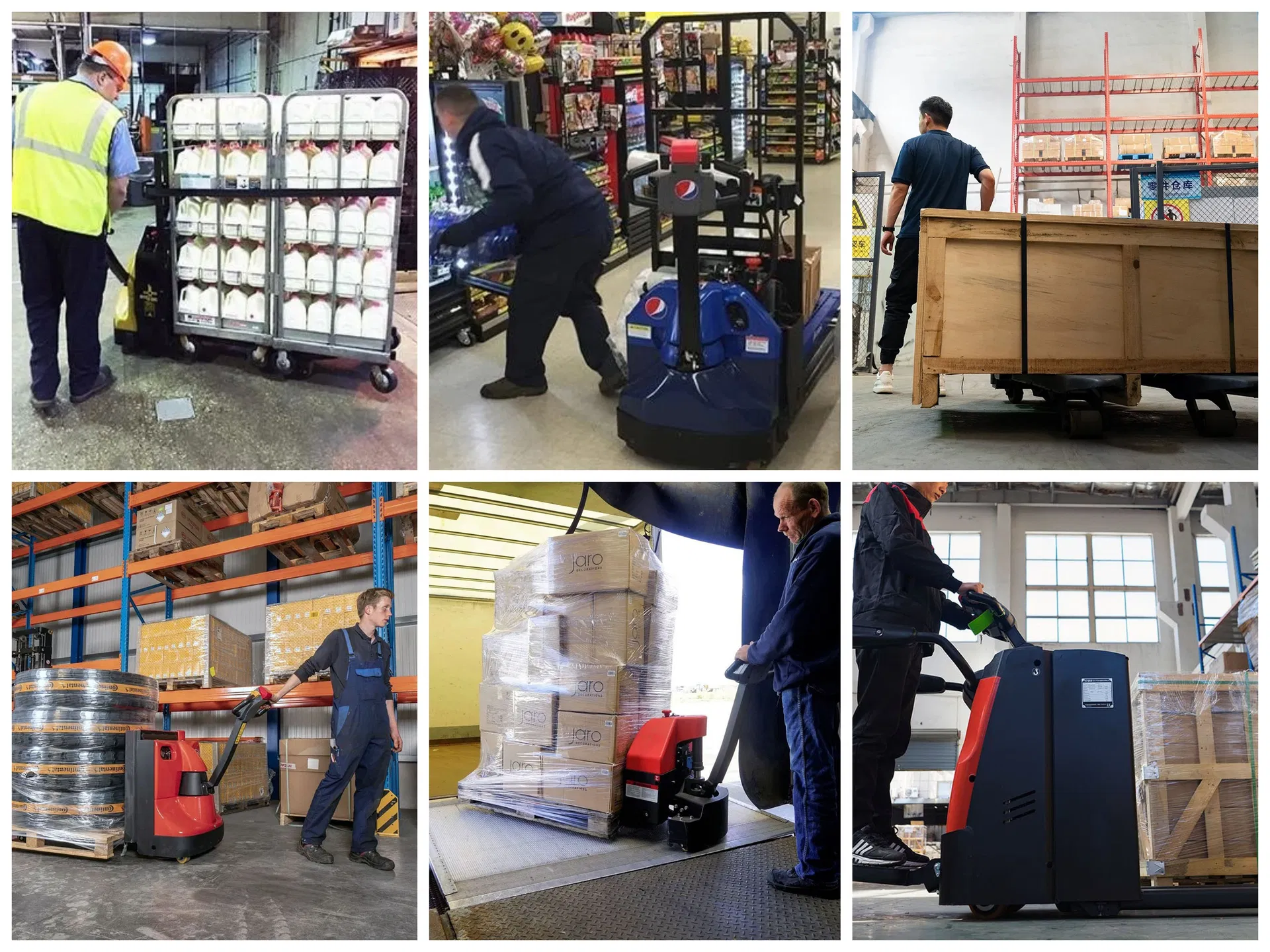

Application Scenario

EPL154 has evolved with higher speeds, stronger motors, and stabilizing wheels. This battery-operated pallet truck is highly versatile, making it perfect for logistics, delivery applications, and rigorous industrial environments. It is one of the most adaptable trucks in the professional portfolio.

Explore More Products

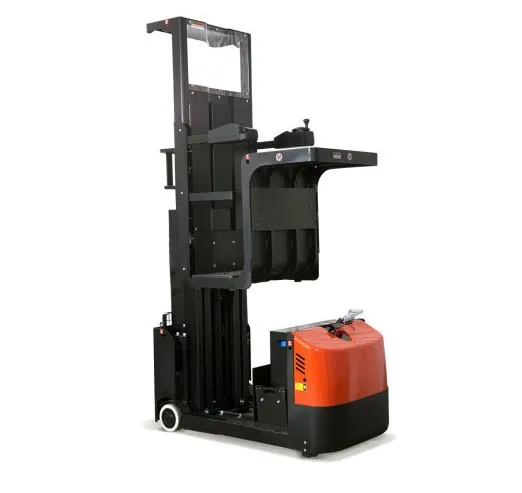

Order Picker

ORDER PICKER

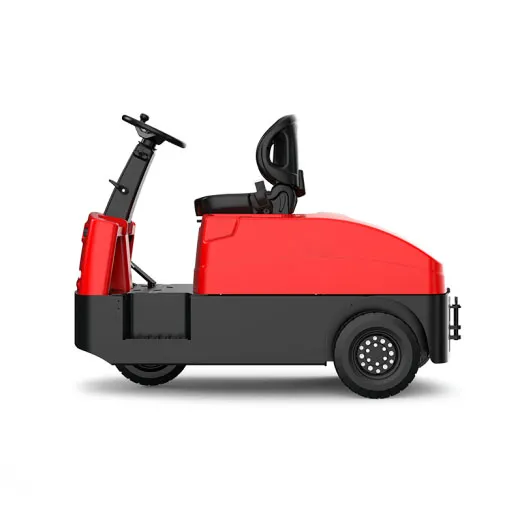

Tow Tractor

TOW TRACTOR

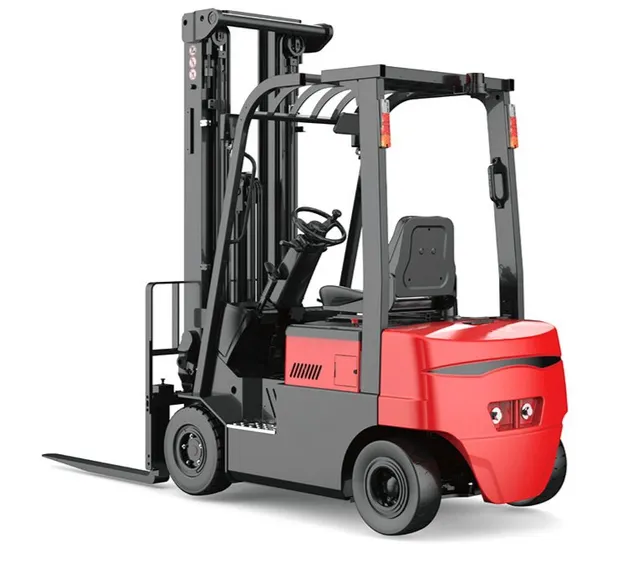

Forklift

FORKLIFT

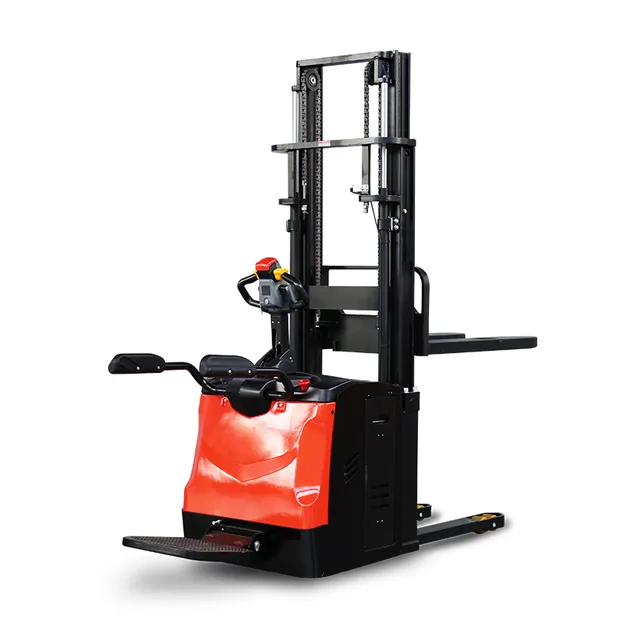

Electric Stacker

ELECTRIC STACKER

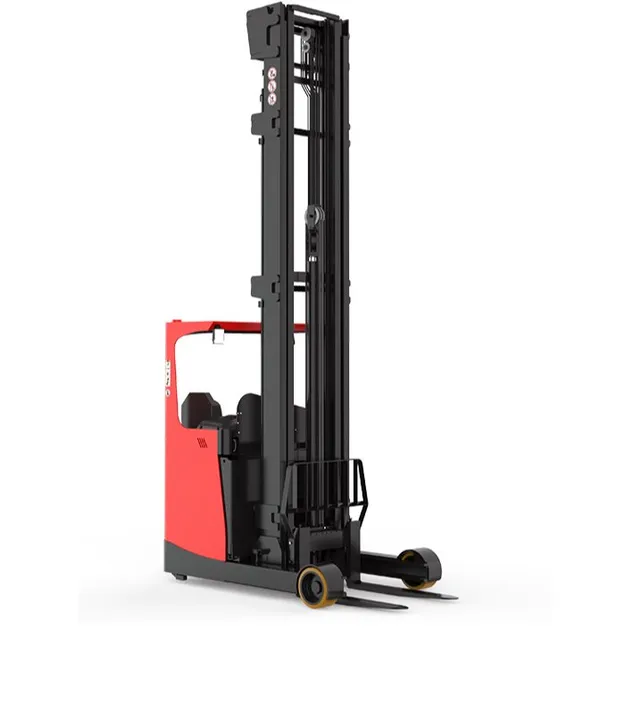

Reach Truck

REACH TRUCK

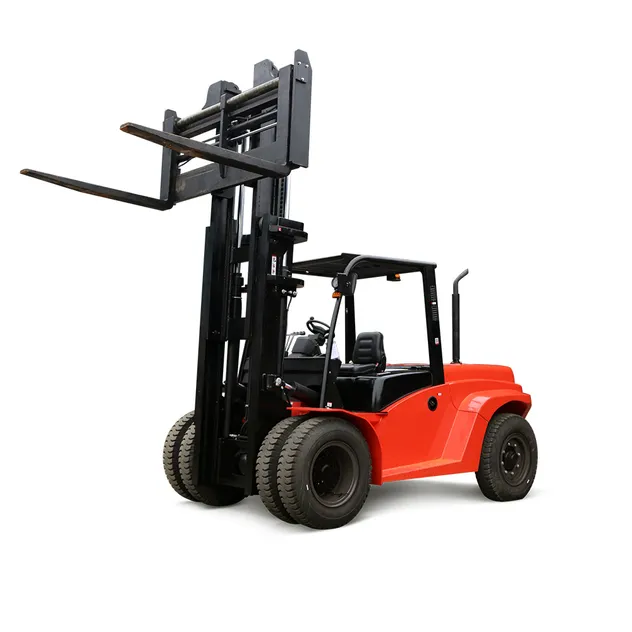

Diesel Forklift

DIESEL FORKLIFT

🏢

Professional Manufacturing

Specializing in R&D, production, sales, and service of high-performance material handling equipment, we offer a comprehensive range of electric forklifts, diesel forklifts, stackers, pallet trucks, and industrial AGVs. Our equipment is exported to more than 100 countries including the United States, Mexico, Canada, and Russia.

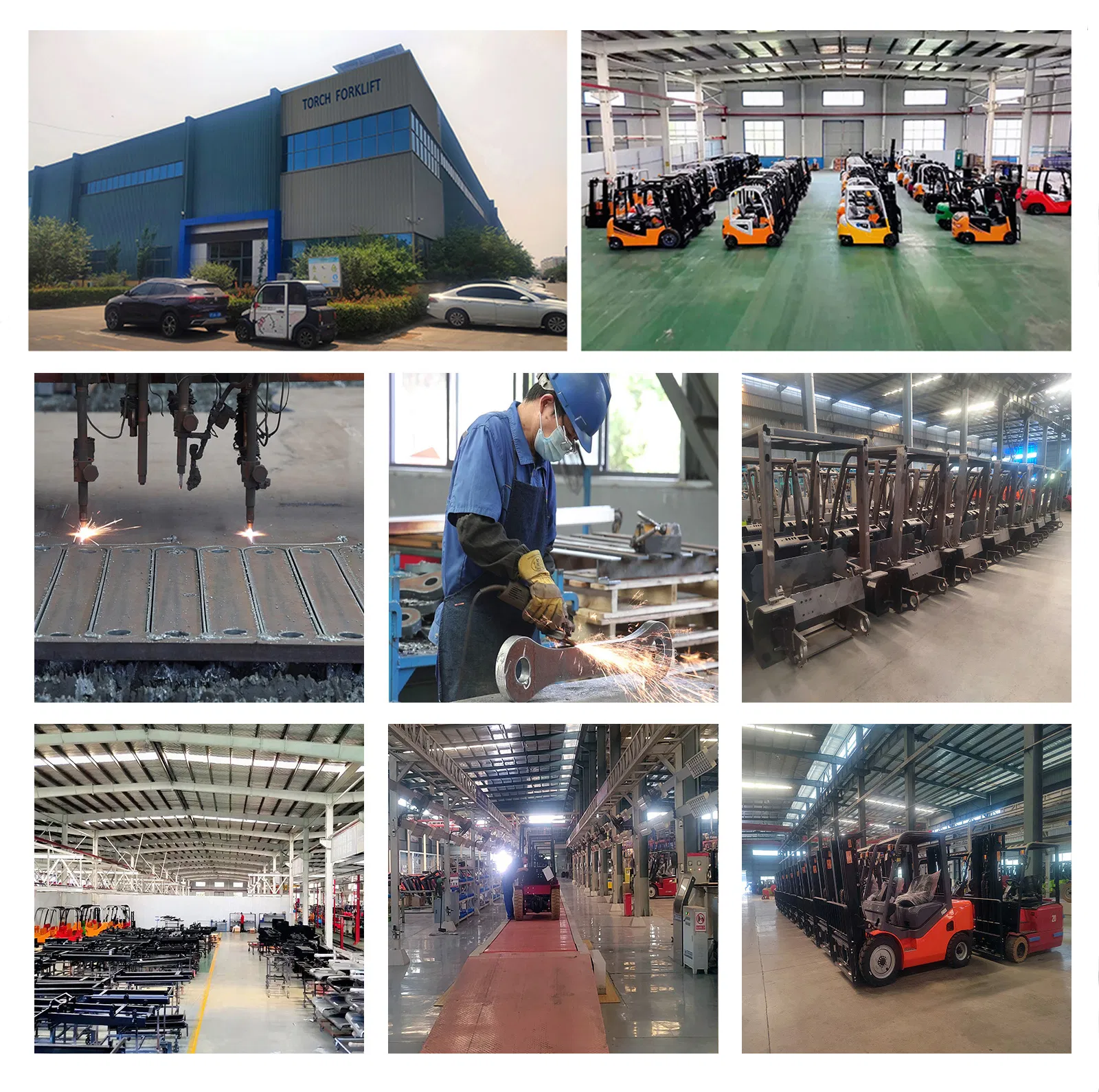

Facility
Customers
Certifications

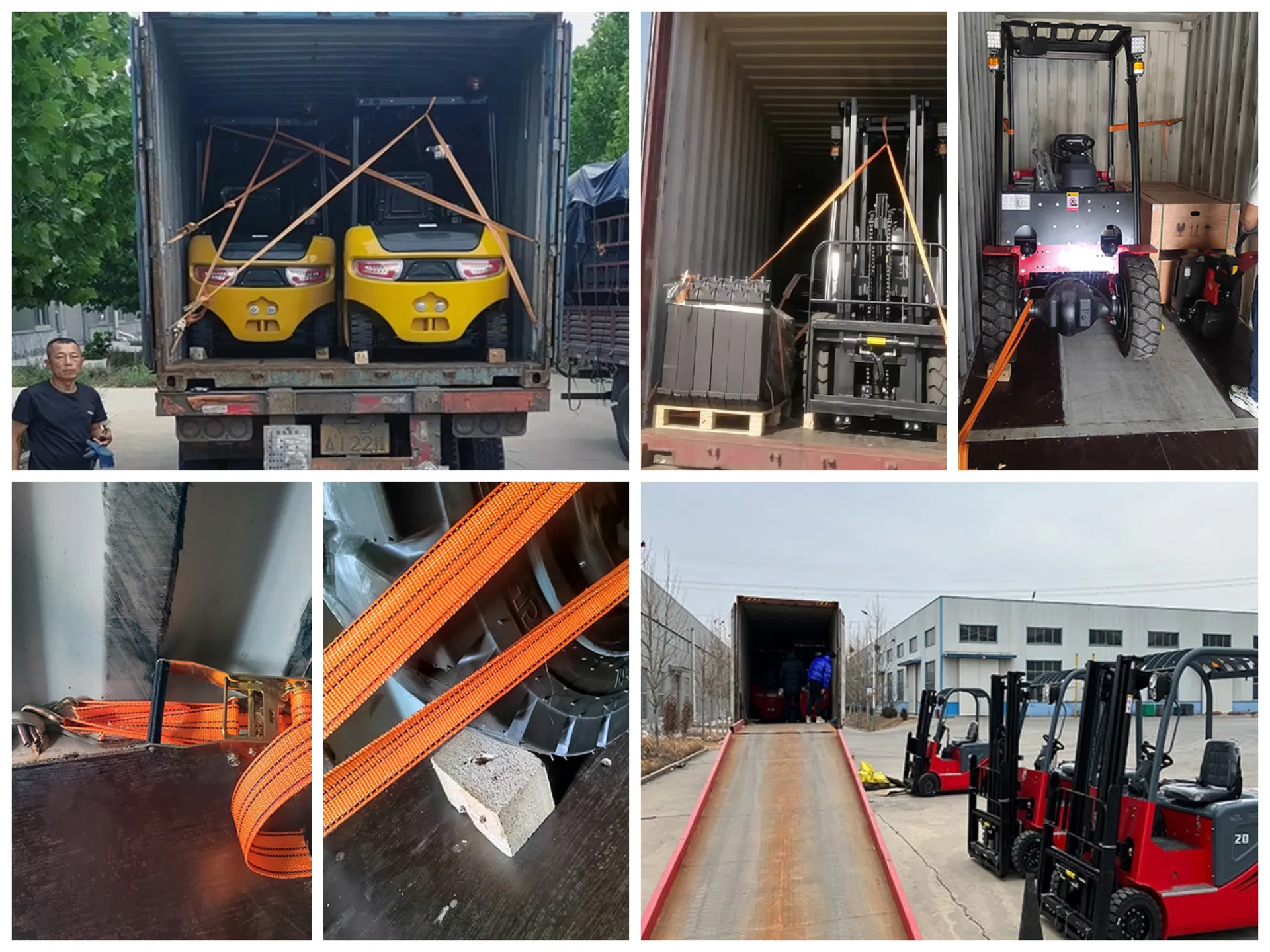

Packing
?

Frequently Asked Questions

How is the quality of the products ensured?
We implement a five-step inspection process: material inspection, 100% in-production check, 100% assembly inspection, pre-shipment inspection, and optional buyer inspection.
What is the standard lead time for orders?
Normally, the lead time is approximately 30 days.
What kind of guarantee or warranty is provided?
We provide a 12-month guarantee. If issues arise from the factory side, we supply free spare parts. For customer-caused issues, we provide technical support and reasonably priced spare parts.
What are the available payment terms?
We typically accept T/T (Telegraphic Transfer) and L/C (Letter of Credit).
What makes your product pricing competitive?
We focus on a win-win strategy, ensuring high-quality builds with honest capacity ratings (no overstated stickers). We aim for long-term business relationships through reasonable pricing.
How quickly can I expect a response to inquiries?
Inquiries are generally processed within 24 hours during standard workdays.
