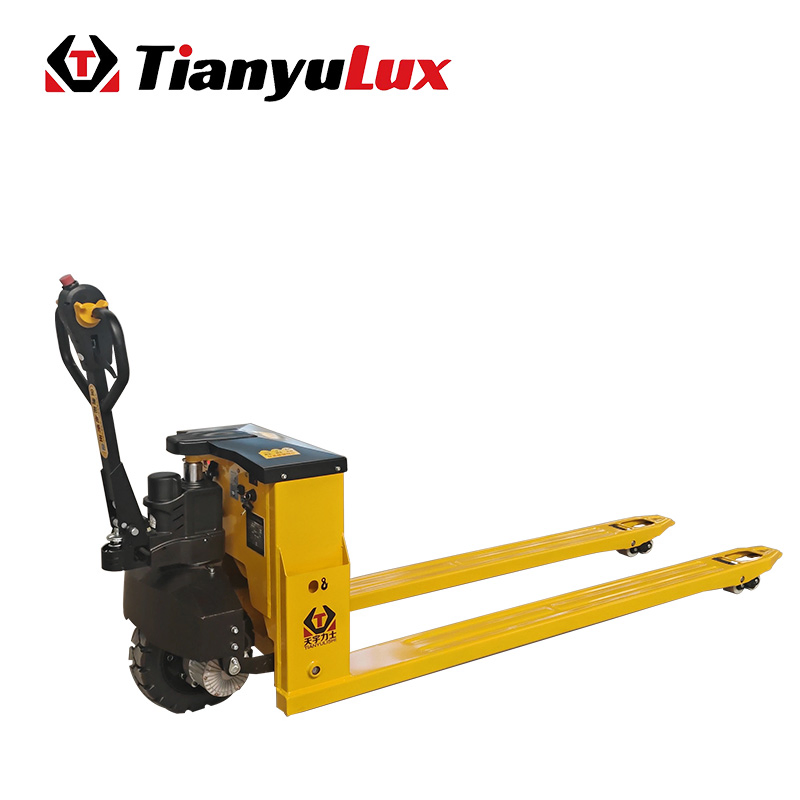

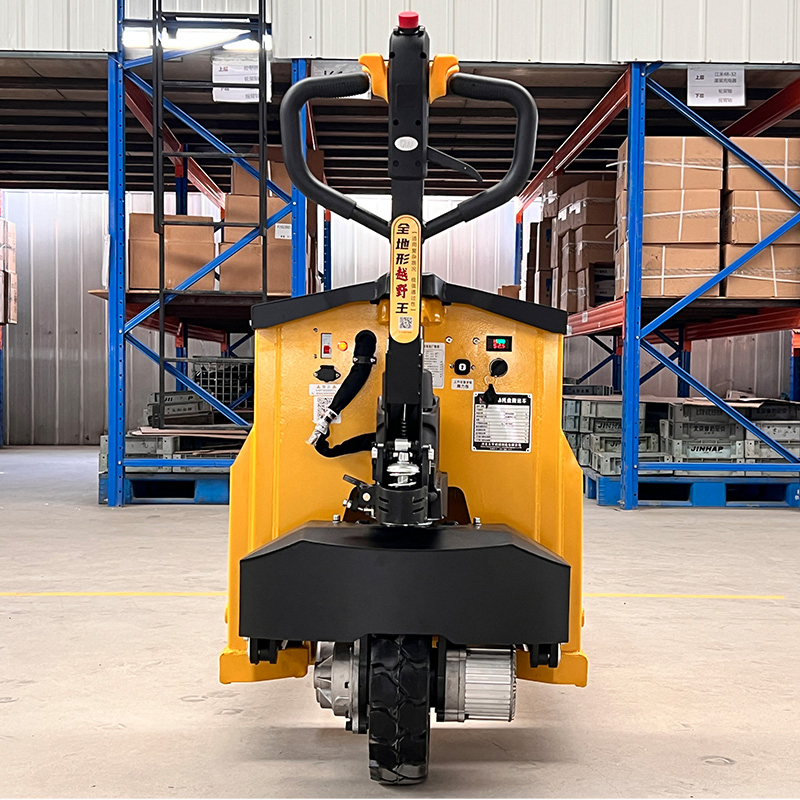

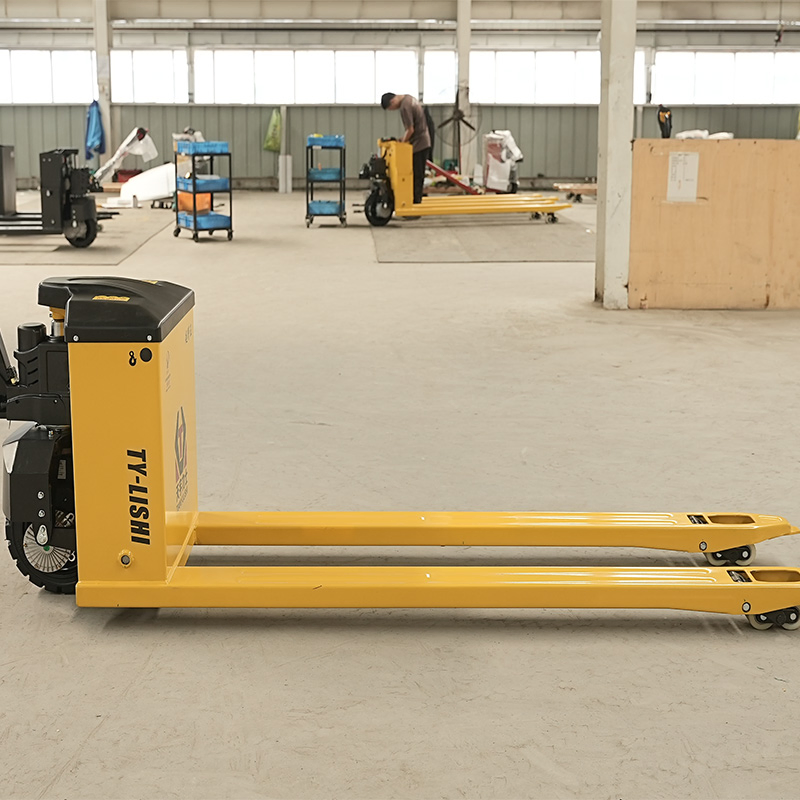

48 V Motor CE Extended Fork Electric Pallet Truck, Power Pallet Truck

Still deciding? Get samples of $ !
Order Sample

Product Description

Electric Pallet Truck Banner
📋 Basic Specifications
Parameter Details Parameter Details
Model TYA30 Type Powered Pallet Truck
Power Source DC Motor / Electric Load Capacity 1T - 5T (Rated 3000kg)

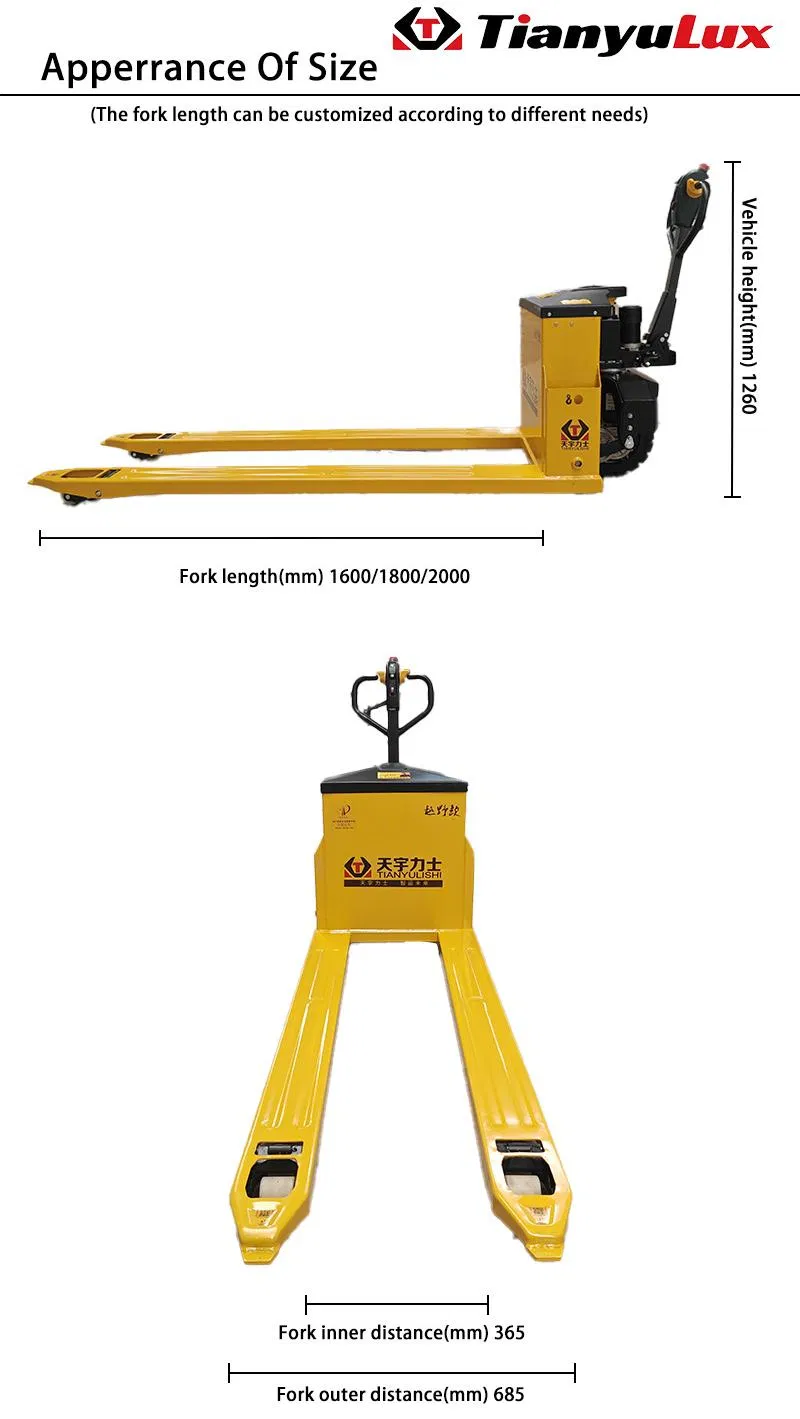

Lift Height 115mm - 200mm Fork Length 1600 / 1800 / 2000 mm
Fork Width 685mm (Outer) Fork Thickness 60mm
Travel Speed 4 / 4.5 Km/H Lifting Speed 15 / 19 mm/S
Drive Motor 1.0 kw Lifting Motor 0.8 kw
Battery 48V 32Ah Brake Type Electromagnetic Brake
Turning Radius 2000 - 2400 mm Net Weight 253 - 275 Kg
🔍 Product Details & Design

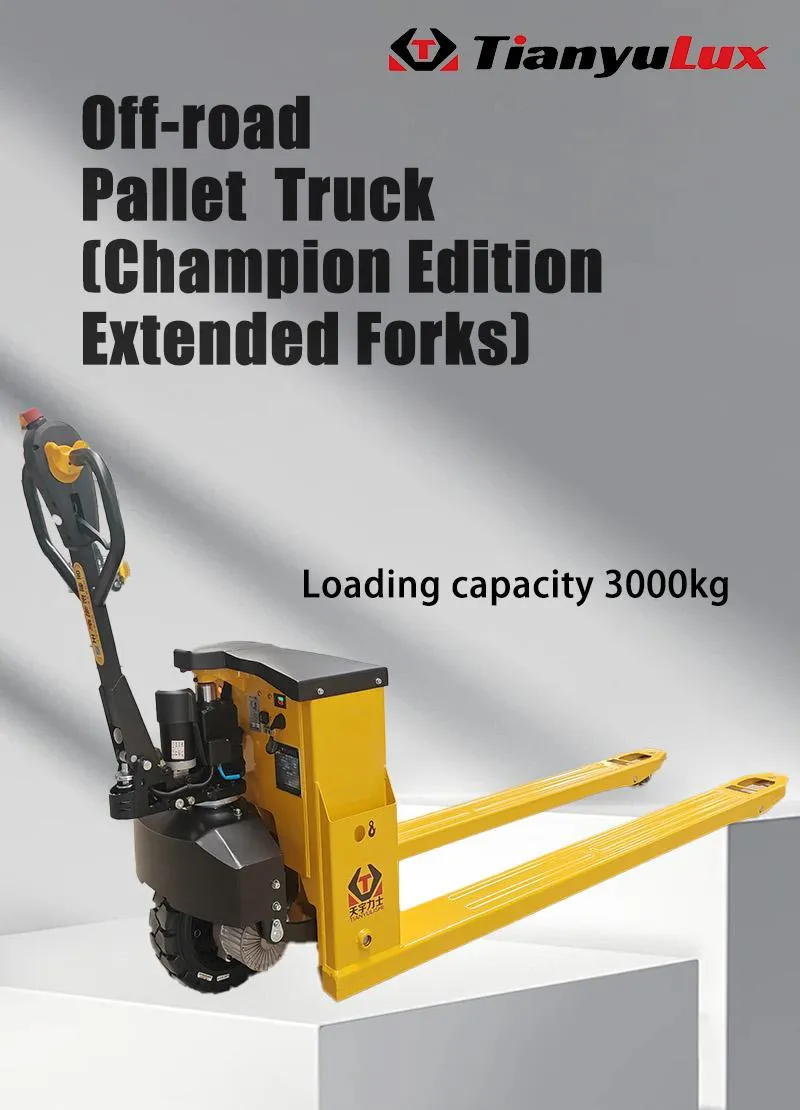

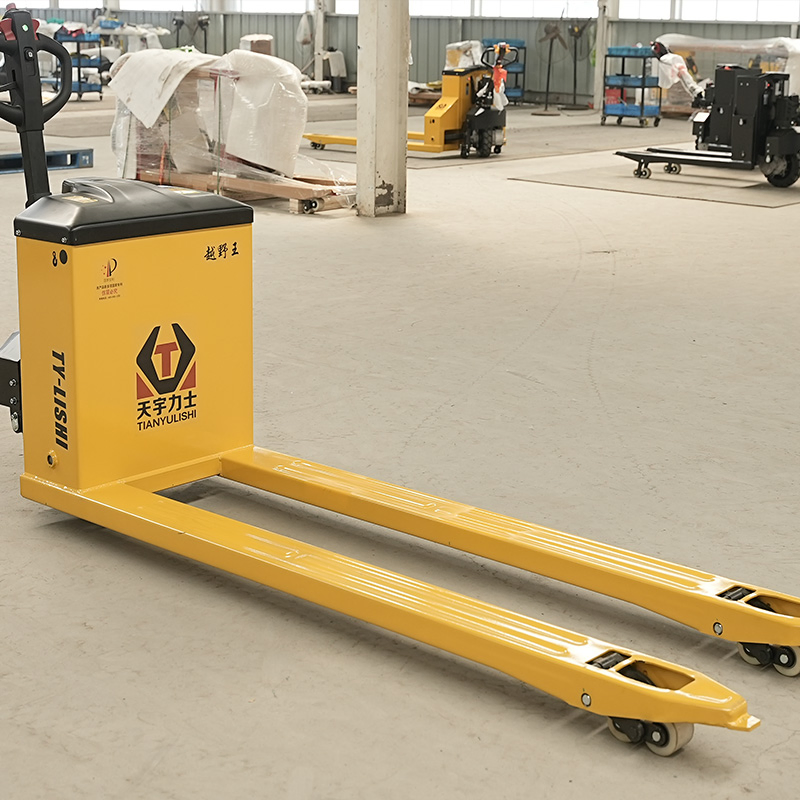

Pallet Truck View 1

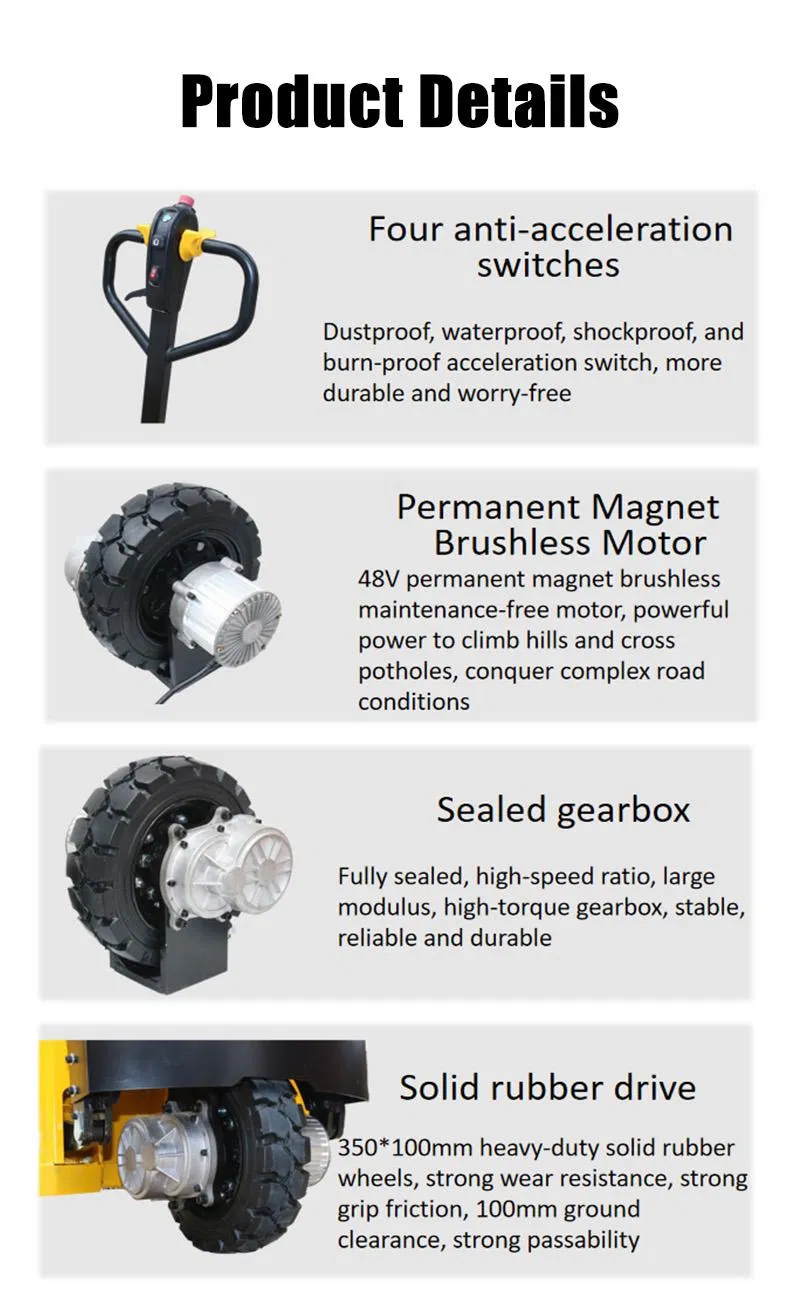

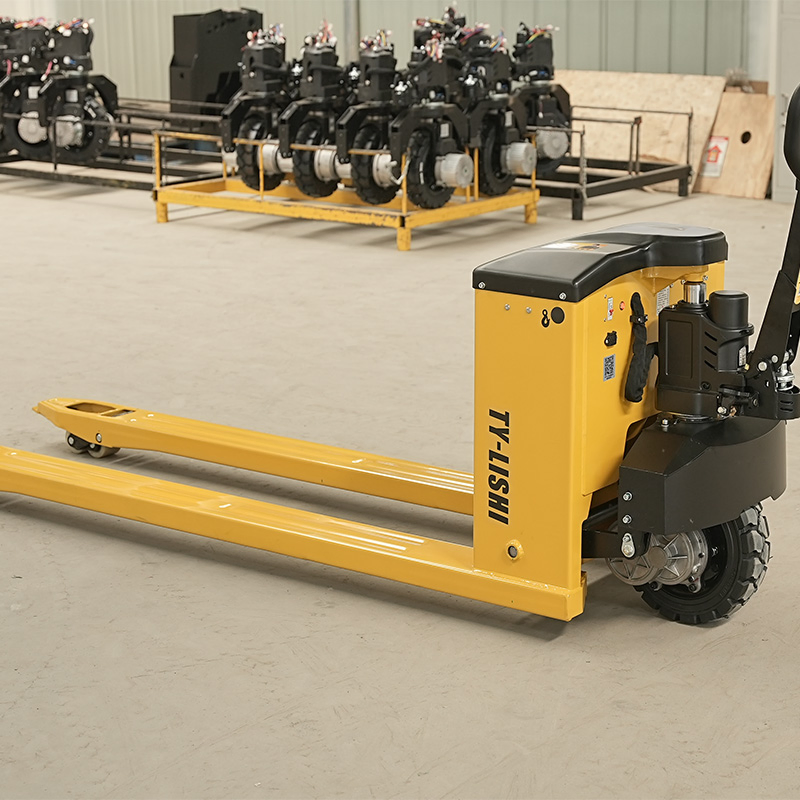

Pallet Truck View 2
Mechanical Details
Operating Handle
Core Capabilities
Extended Fork Capacity
Loading Performance

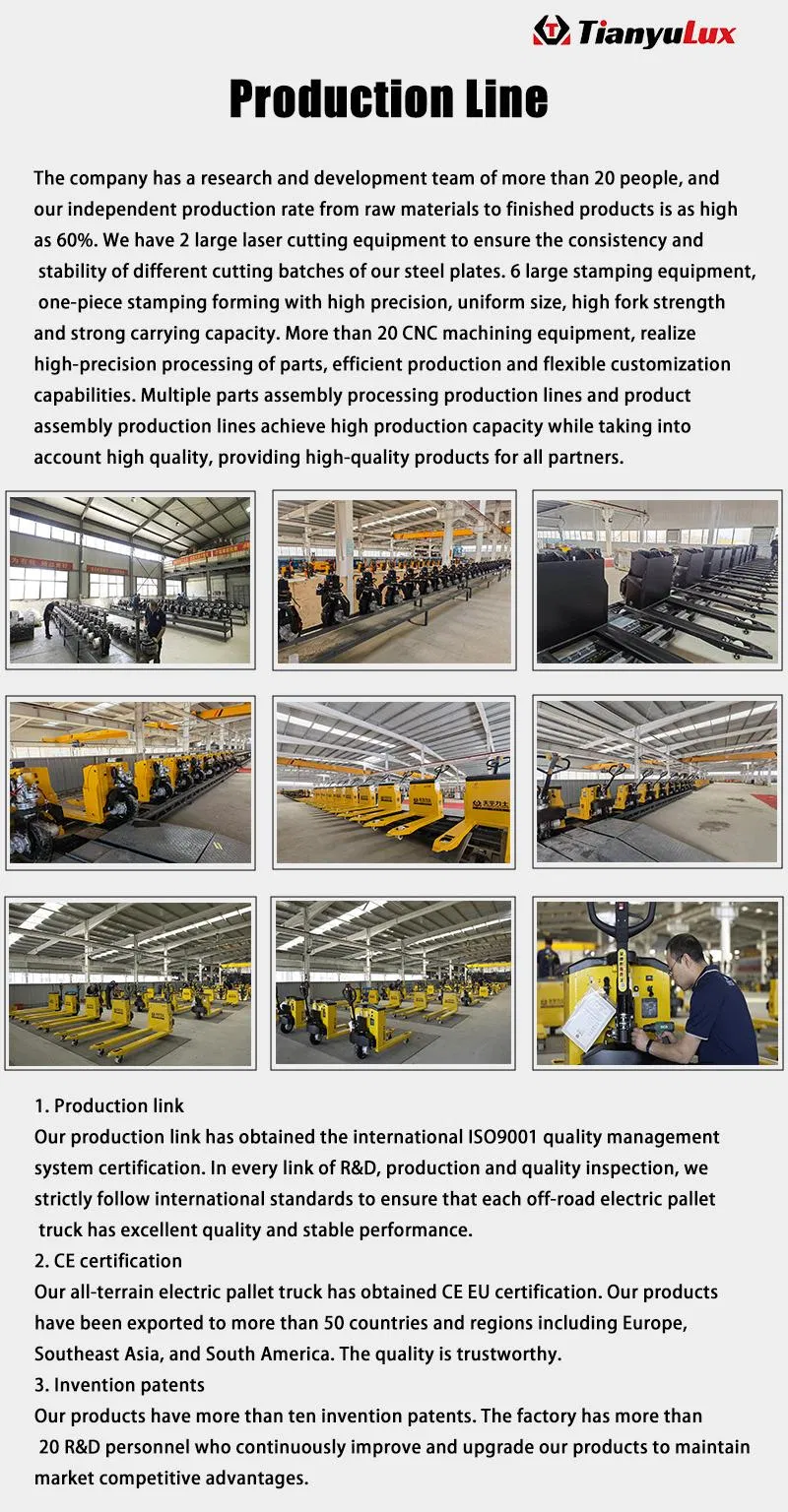

Application Scenario
📦 Packaging & Delivery
Package Size 195.00cm * 90.00cm * 110.00cm
Gross Weight 510.000kg
Package Type Wooden Pallets
Factory Storage
Delivery Preparation
Full Electric Pallet Truck Specifications
Frequently Asked Questions

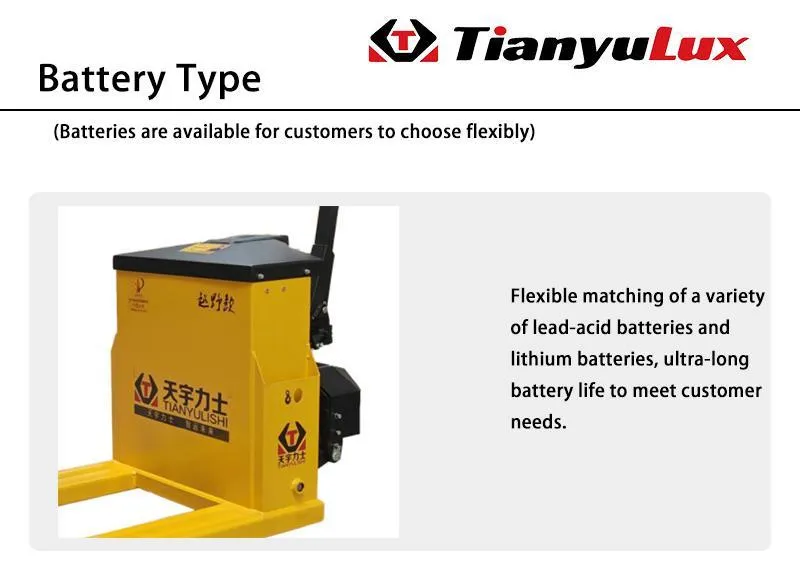

Q1: What are the battery specifications for this truck?
We offer both lead-acid and lithium batteries with various specifications. The standard configuration is 48V/32Ah, but customization is available to meet specific operational requirements.
Q2: What is the standard warranty period?
We provide a one-year warranty covering manufacturing failures not caused by improper use or overloading. Please note that wearing parts such as wheels and fuses are not included in the warranty.
Q3: How long is the typical delivery time?
Production usually takes 20-30 working days after receiving the advance payment. Standard models are often in stock for immediate delivery, while customized units may require additional time.
Q4: What certifications do these products have?
All our electric pallet trucks comply with the ISO 9001 quality system and are fully CE certified, ensuring international safety and quality standards.
Q5: Is OEM or ODM service available?
Yes, we can provide customized products according to specific customer requirements. Both OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services are fully supported.
Q6: Why choose our electric forklift equipment?
Our products offer high performance at competitive prices, backed by comprehensive after-sales support. We integrate research, development, and production to ensure top-tier reliability for global terrain and industrial transport.
