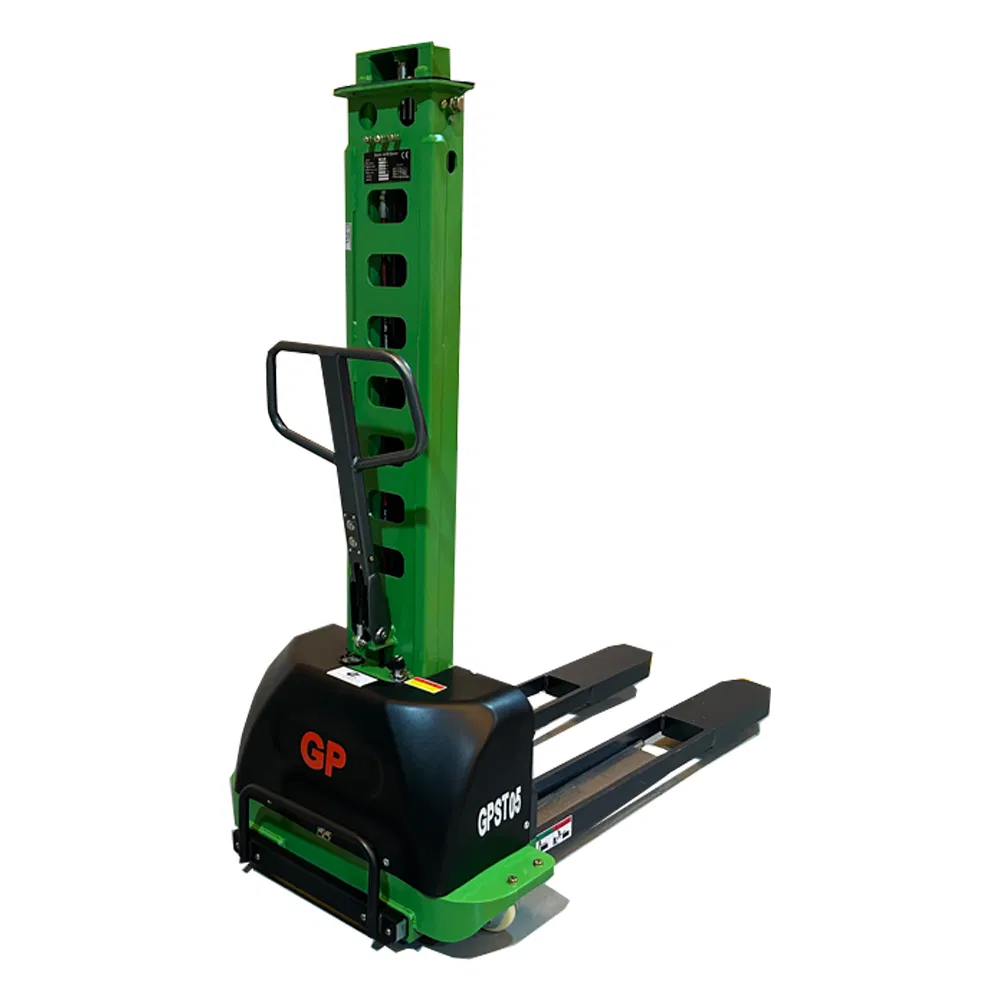

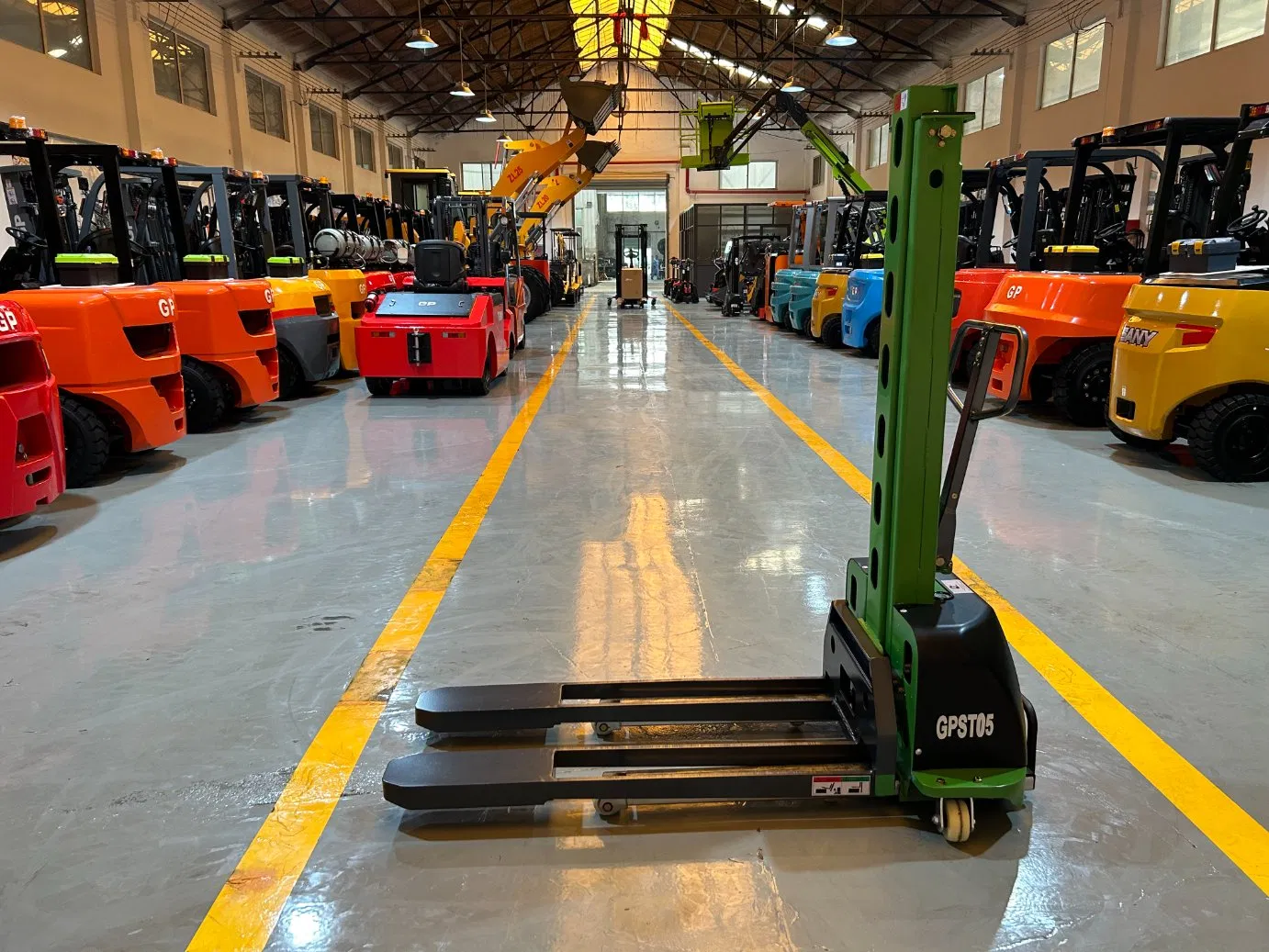

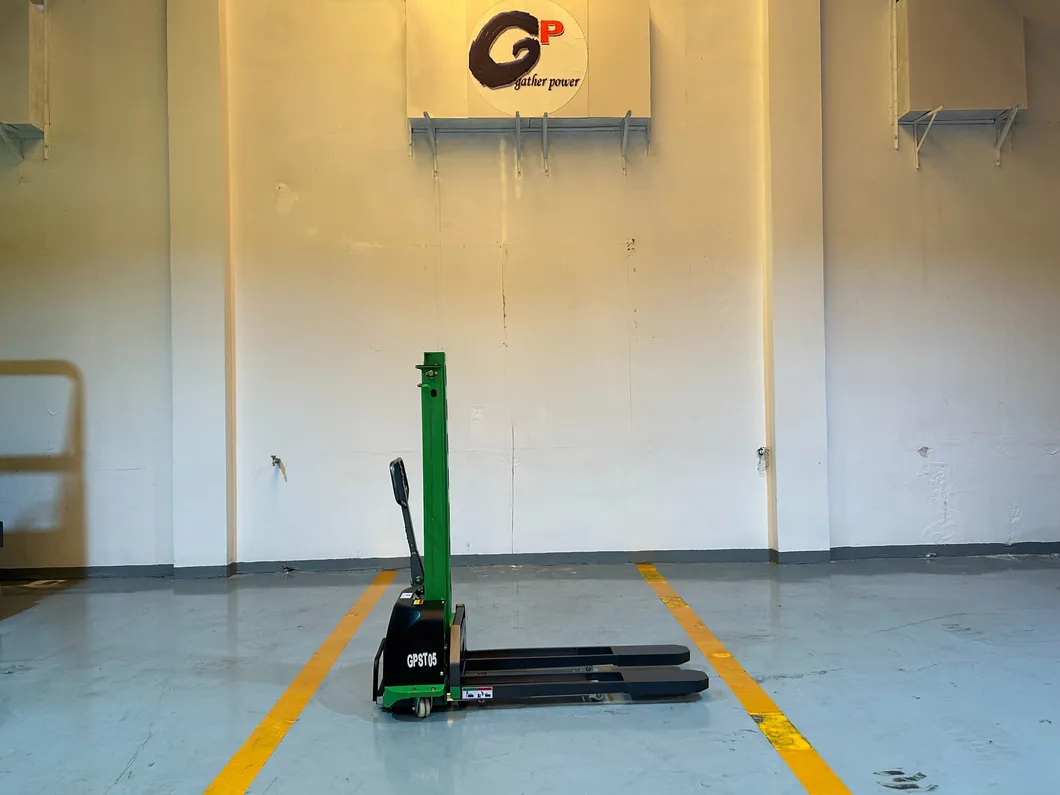

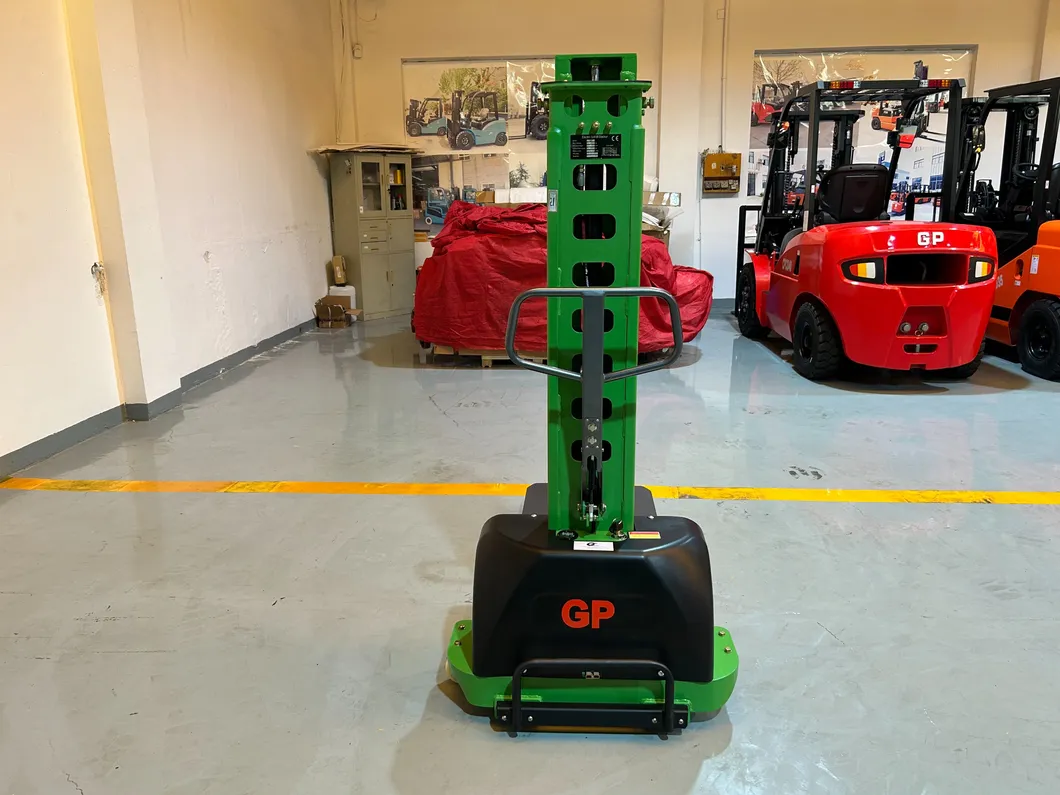

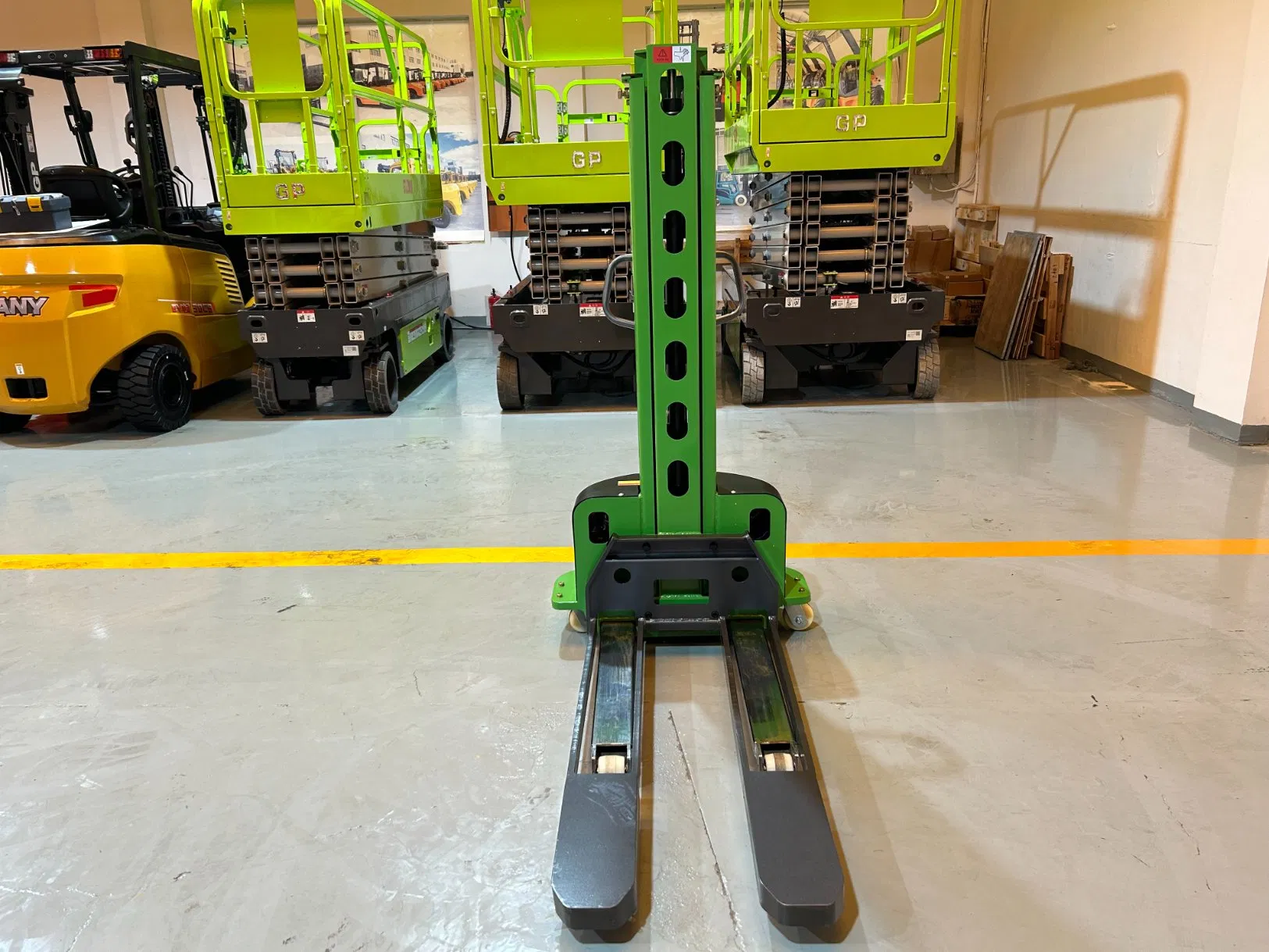

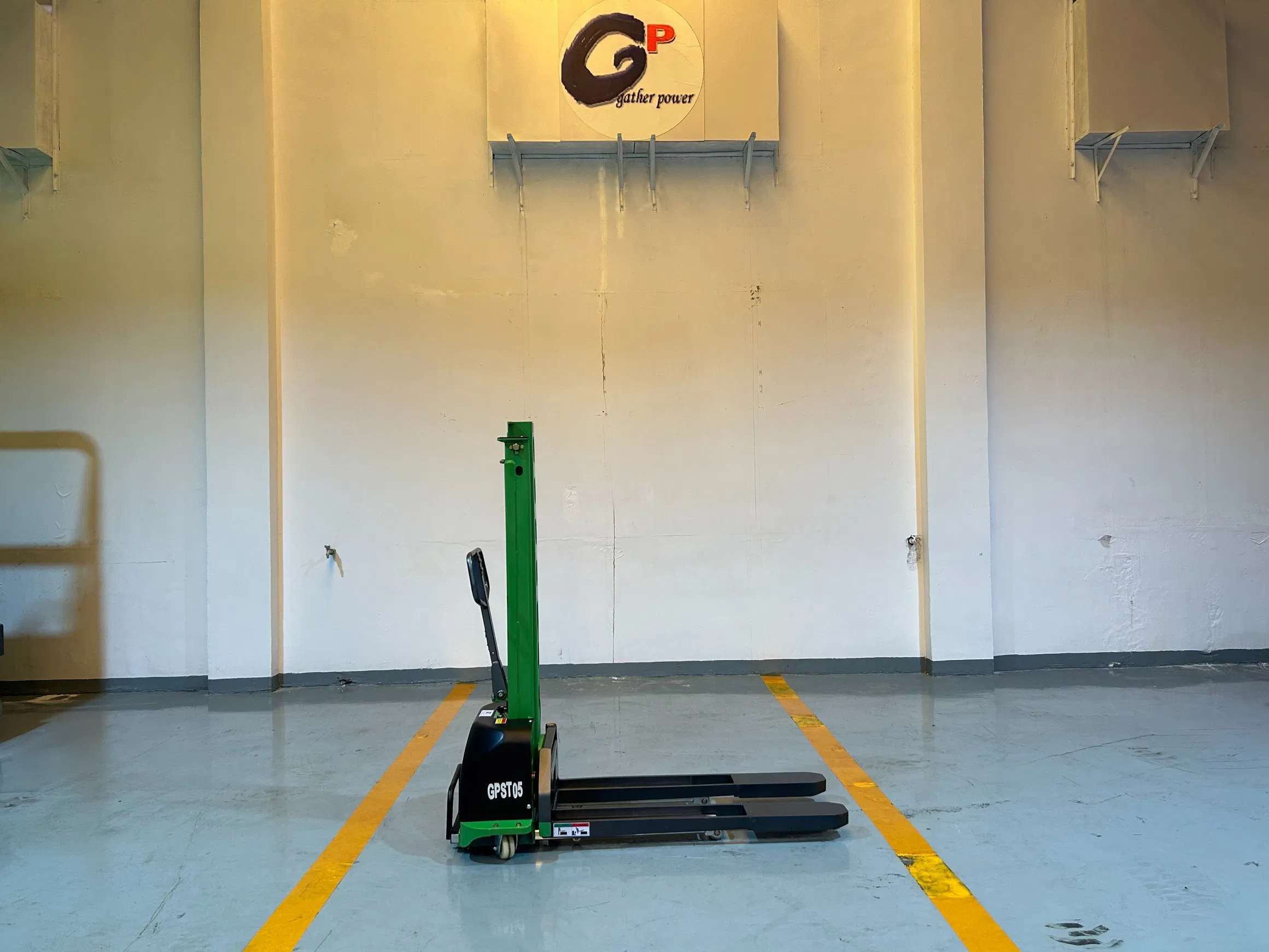

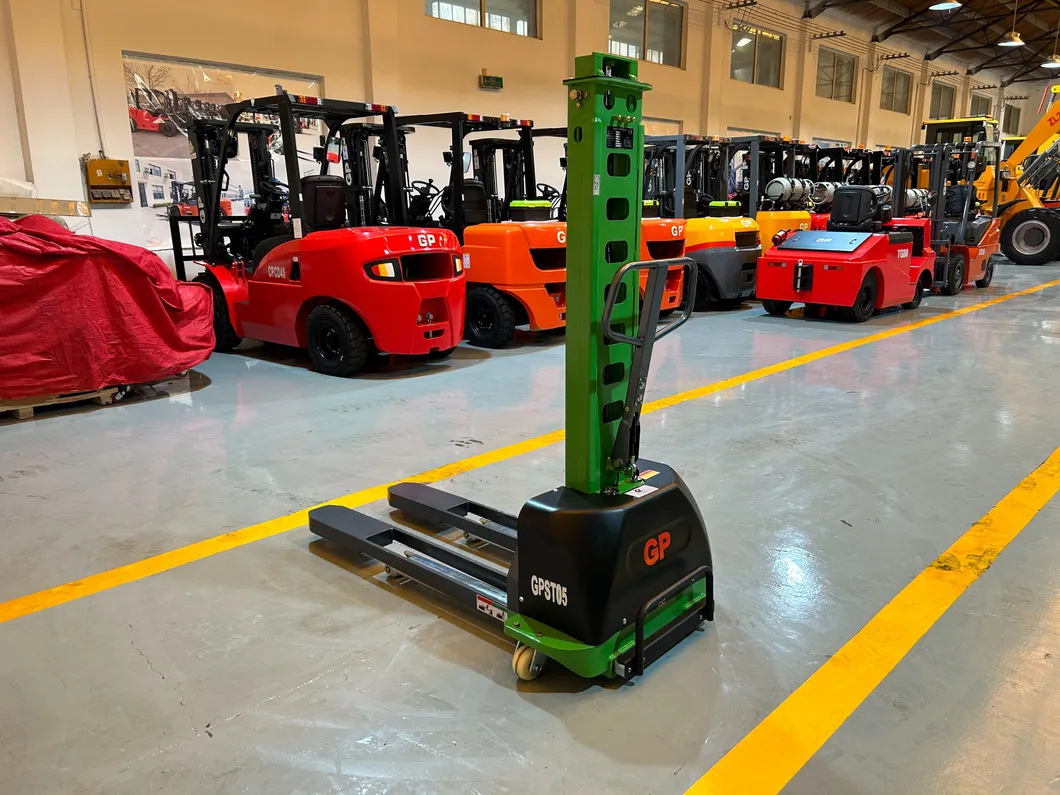

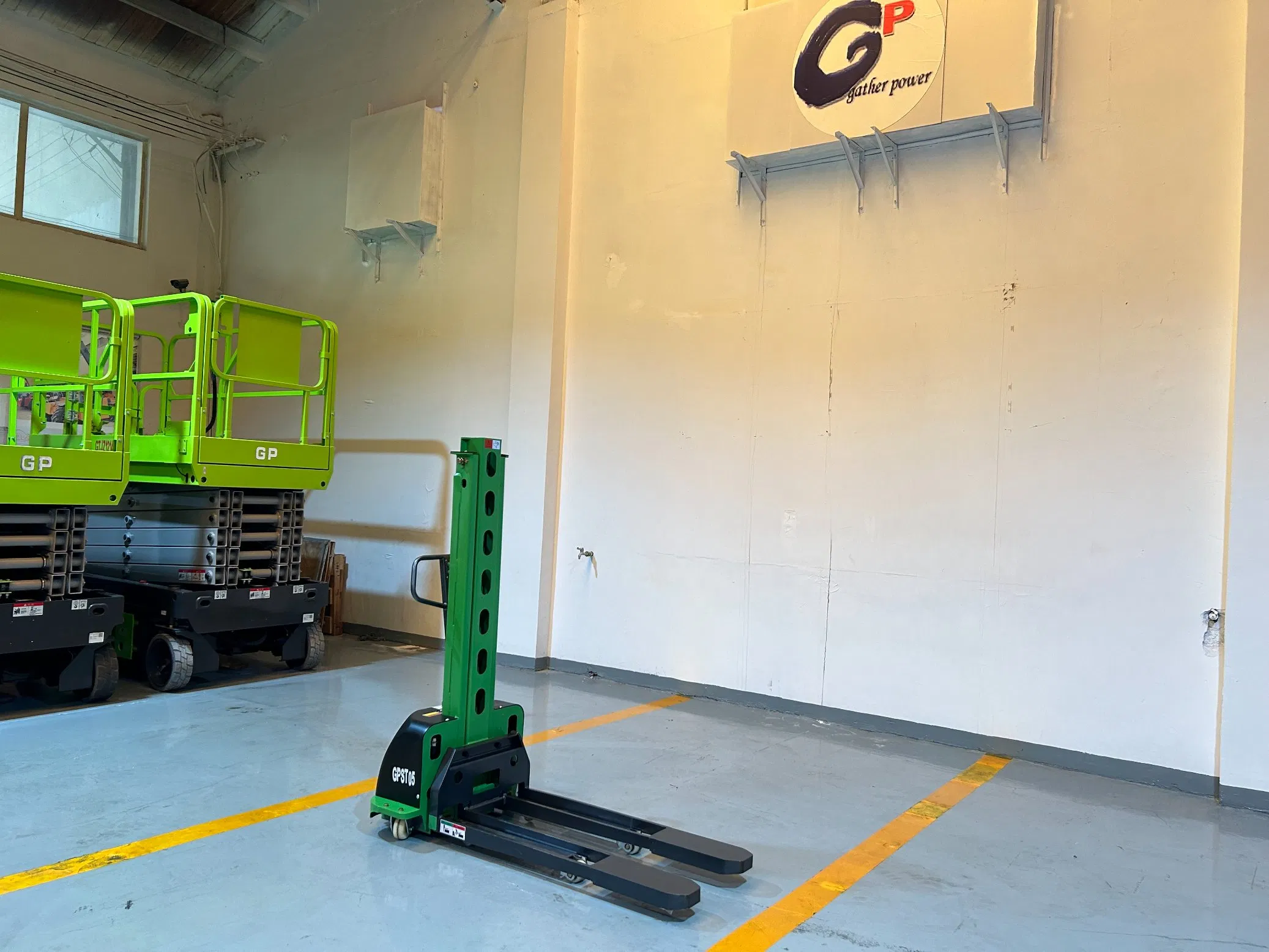

The Self-Stacker (self-stacker forklift) is a semi-automatic or fully automatic warehousing equipment, specially designed for narrow aisles and high-density storage. It can independently complete the lifting, handling and stacking of goods, and is suitable for efficient warehousing management in e-commerce, logistics and manufacturing industries.
Precise stacking is achieved by automatically identifying storage locations through preset programs or sensors. Supports automatic height adjustment (1.5m to 6m) to adapt to different shelf heights.
The vehicle body width is usually no more than 800mm, operating in narrow passages of 1.2m. Bidirectional driving improves the utilization rate of warehouse space.
Equipped with Touchscreen / Wi-Fi remote control, supporting path planning. Optional AGV linkage and integration with WMS (Warehouse Management System).
| Model Parameter | Unit | GPST03 | GPST05 | GPST10 |
|---|---|---|---|---|
| Capacity | Q(Kg) | 300 | 500 | 1000 |
| Load center | C(mm) | 400 | 400 | 400 |
| Type of lifting | - | Electric | Electric | Electric |
| Operating type | - | Walkie | Walkie | Walkie |
| Wheel Material | - | PU/Nylon | PU/Nylon | PU/Nylon |
| Wheel base | y(mm) | 860 | 860 | 860 |
| Min. fork height | mm | 90 | 90 | 90 |
| Max. fork height | h3(mm) | 1100 | 1300 | 1300 |
| Fork length | l2(mm) | 1150 | 1150 | 1150 |
| Overall width | b1(mm) | 790 | 790 | 790 |
| Overall height | h1(mm) | 1400 | 1560 | 1600 |
| Lifting speed (laden/unladen) | mm/s | 80/110 | 80/110 | 80/110 |
| Battery capacity | V/Ah | 12/33 | 12/33 | 12/33 |
| Net weight | Kg | 187 | 209 | 215 |
