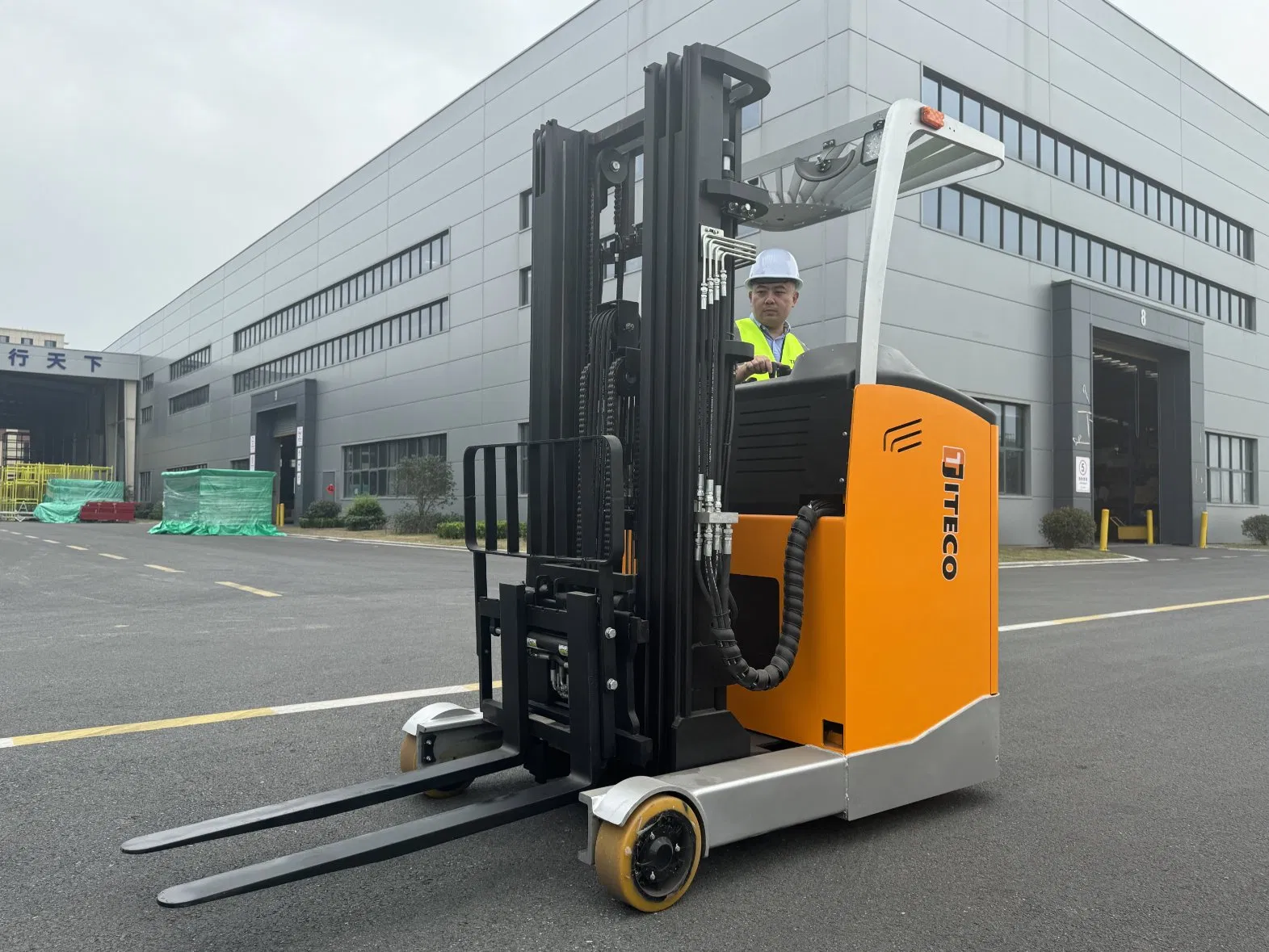

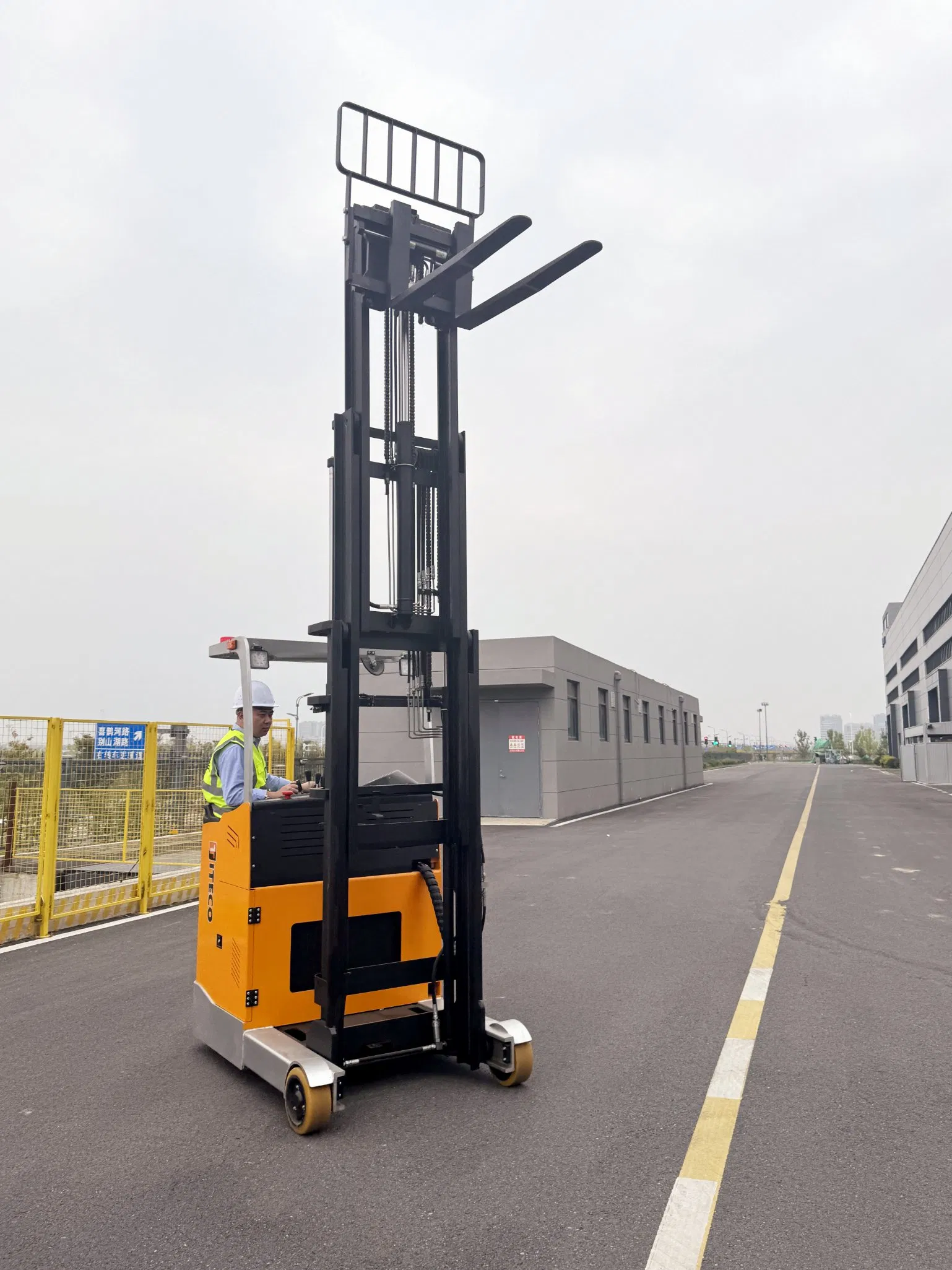

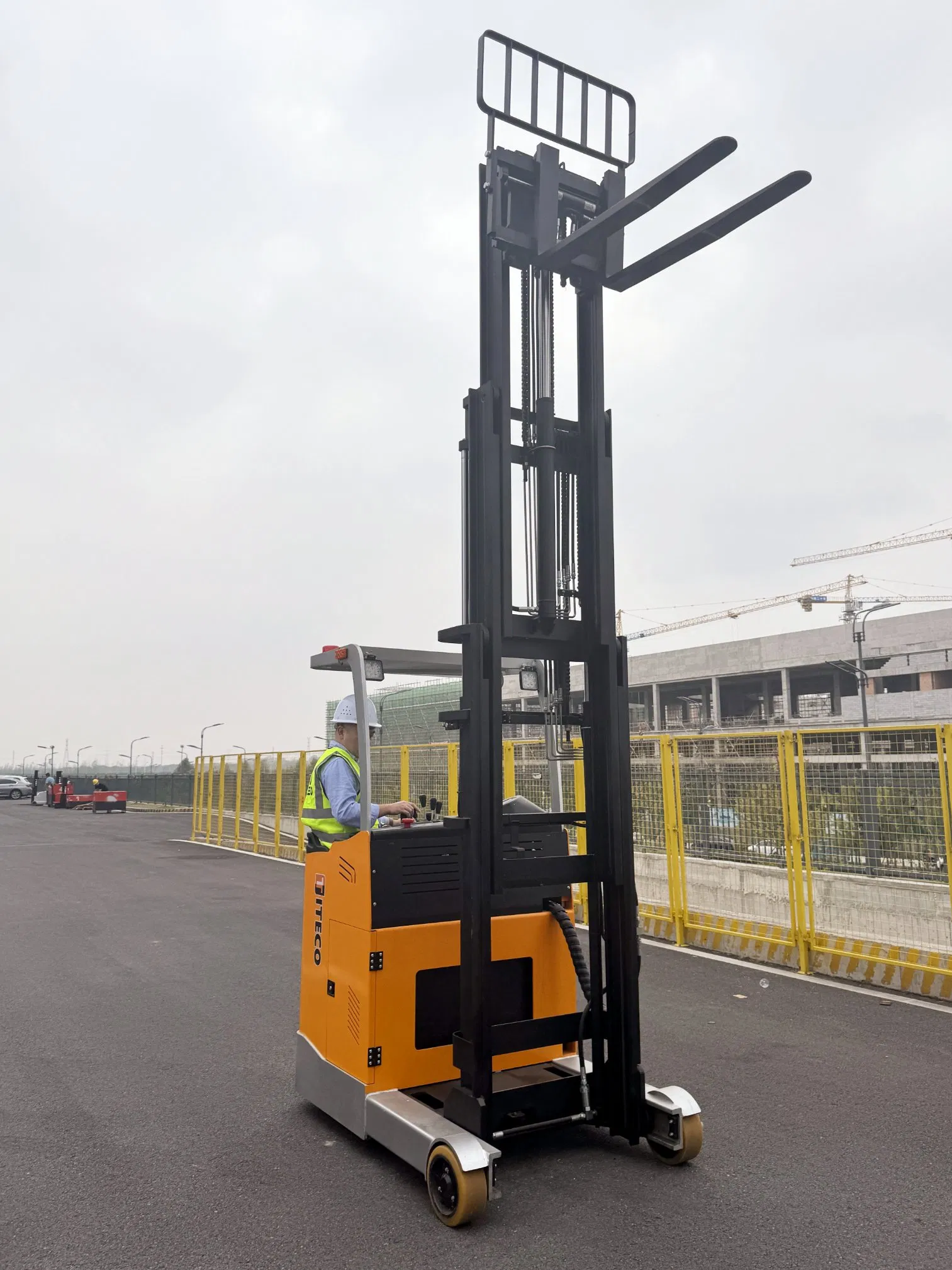

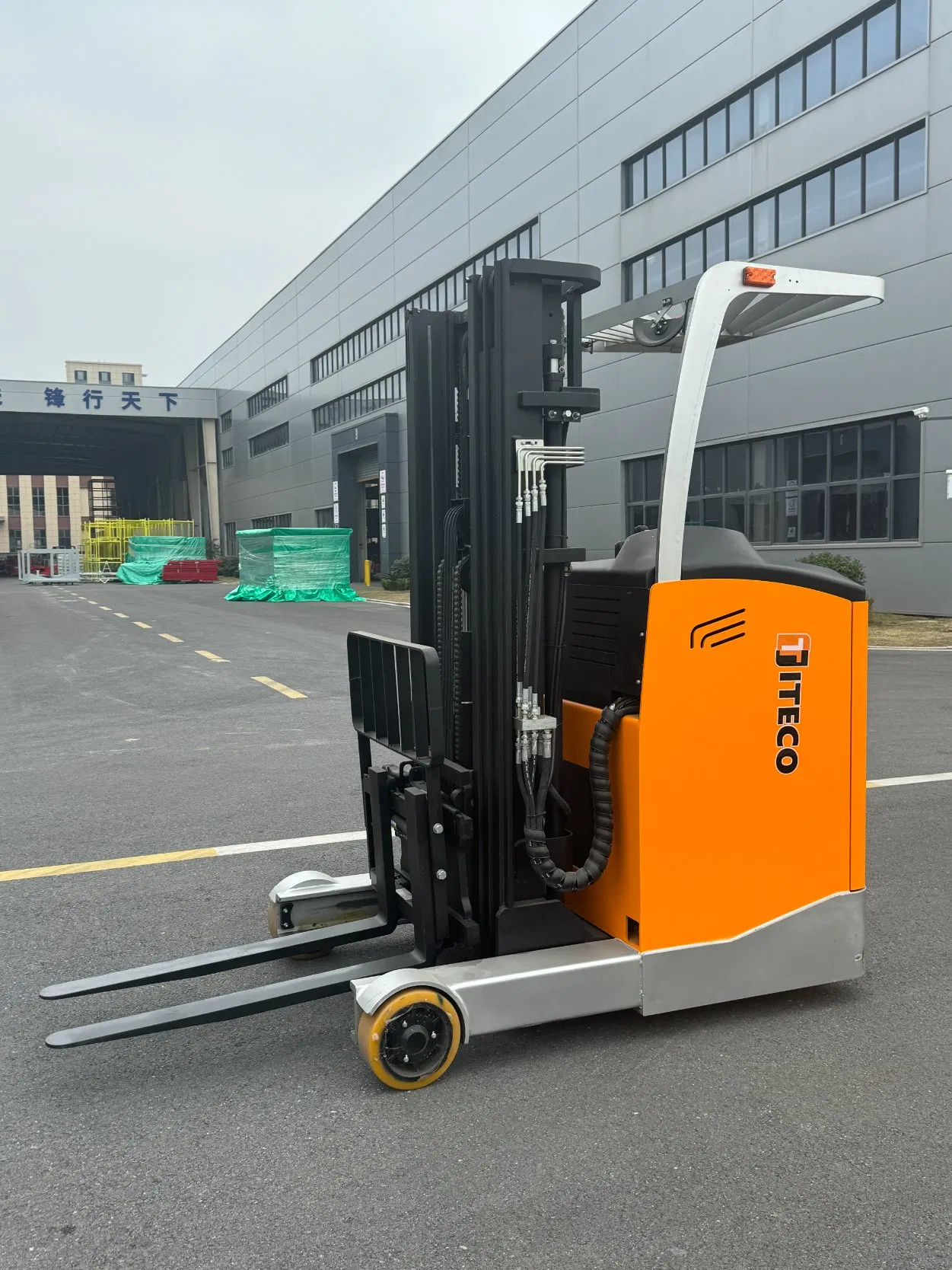

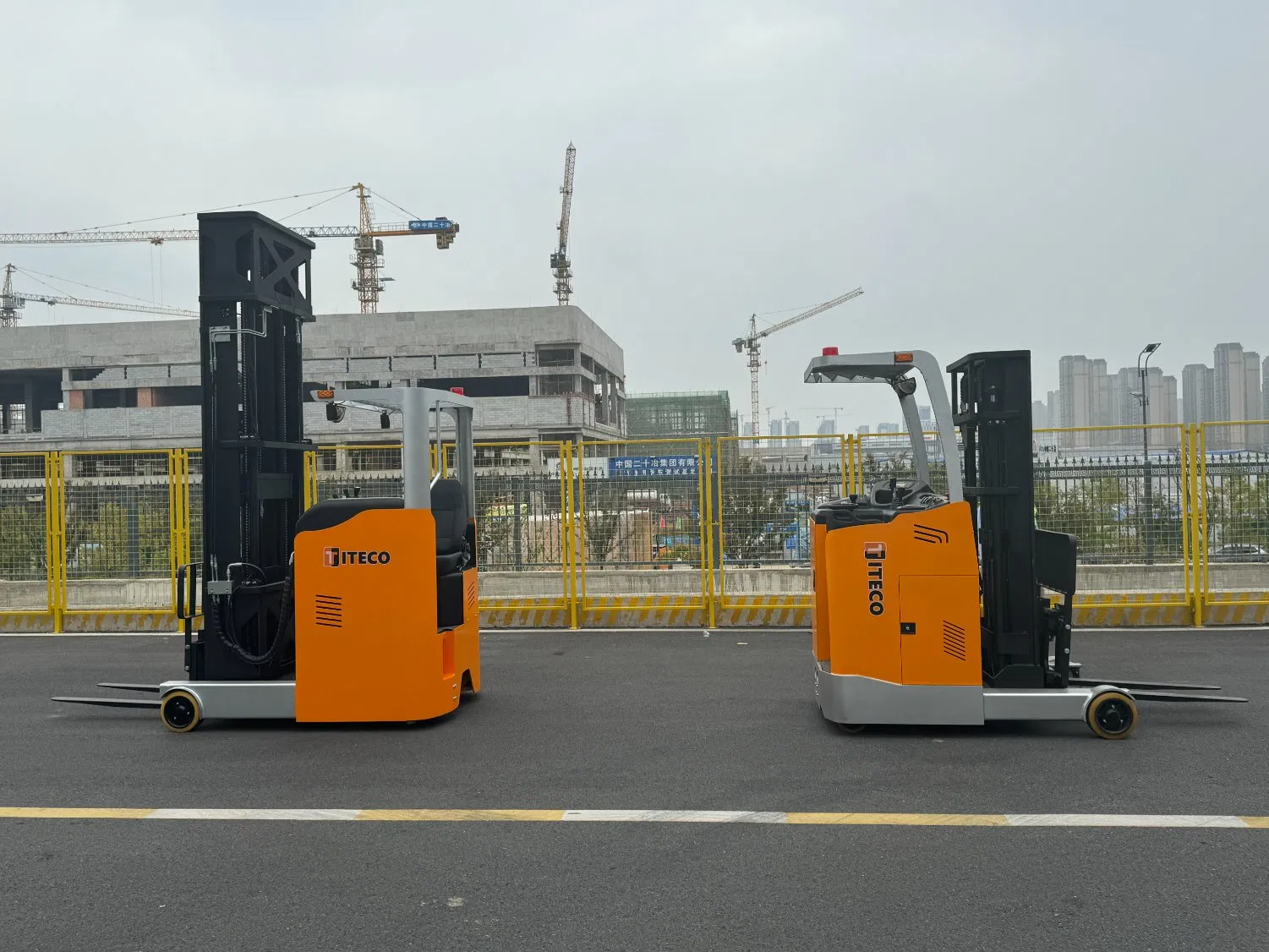

Narrow Aisle and Reach Truck with Moving Mast for Pallet Storage and Retrieval in Warehouses Capacity From 3, 000 to 5, 500 Pounds Reach Truck Forklifts
Narrow Aisle and Reach Truck with Moving Mast for Pallet Storage and Retrieval in Warehouses Capacity From 3, 000 to 5, 500 Pounds Reach Truck Forklifts
Narrow Aisle and Reach Truck with Moving Mast for Pallet Storage and Retrieval in Warehouses Capacity From 3, 000 to 5, 500 Pounds Reach Truck Forklifts
Narrow Aisle and Reach Truck with Moving Mast for Pallet Storage and Retrieval in Warehouses Capacity From 3, 000 to 5, 500 Pounds Reach Truck Forklifts
Narrow Aisle and Reach Truck with Moving Mast for Pallet Storage and Retrieval in Warehouses Capacity From 3, 000 to 5, 500 Pounds Reach Truck Forklifts
1 / 5
Narrow Aisle and Reach Truck with Moving Mast for Pallet Storage and Retrieval in Warehouses Capacity From 3, 000 to 5, 500 Pounds Reach Truck Forklifts
Narrow Aisle and Reach Truck with Moving Mast for Pallet Storage and Retrieval in Warehouses Capacity From 3, 000 to 5, 500 Pounds Reach Truck Forklifts
Narrow Aisle and Reach Truck with Moving Mast for Pallet Storage and Retrieval in Warehouses Capacity From 3, 000 to 5, 500 Pounds Reach Truck Forklifts
Narrow Aisle and Reach Truck with Moving Mast for Pallet Storage and Retrieval in Warehouses Capacity From 3, 000 to 5, 500 Pounds Reach Truck Forklifts
Narrow Aisle and Reach Truck with Moving Mast for Pallet Storage and Retrieval in Warehouses Capacity From 3, 000 to 5, 500 Pounds Reach Truck Forklifts

Narrow Aisle and Reach Truck with Moving Mast for Pallet Storage and Retrieval in Warehouses Capacity From 3, 000 to 5, 500 Pounds Reach Truck Forklifts

Customization: Available
After-sales Service: 24h Online Service.
Warranty: One Year After Delivery
Send Inquiry

Product Description

📋

Basic Information

Model NO.
CQDE150-450S
Type
Electric Forklift
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift height
>5000mm
Condition
New
Battery Voltage
48V300ah
Tyre Type
Polyurethane PU
Brake Type
Electromagnetic
🏗️

Product Description

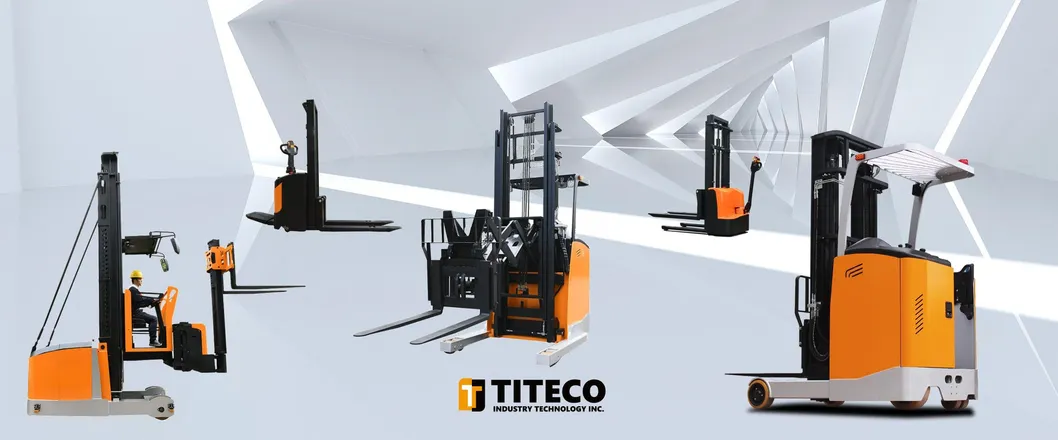

Reach Truck Forklift Overview
Reach truck forklifts have a compact structure, suitable for operations in narrow aisles and limited spaces. They have high lifting and loading capacity, making them ideal tools for loading, unloading, and stacking in warehouses, supermarkets, and workshops.
📊

Technical Specifications (Sit Type)

Model Unit CQDE15-45S CQDE20-45S CQDE25-80S CQDE30-45S CQDE20H-120S
Load Capacitykg15002000250030002000
Load Centermm500500500500500
Lifting Heightmm450045008000450012000
Wheelbasemm14701620162016501650
Service Weightkg31003200390043005390
Travel Speed (Laden)km/h141481014
BatteryV/Ah48V300Ah48V400Ah48V400Ah48V400Ah48V400Ah
🌟

Key Features & Details

  • ✔ Compact body structure with a low center of gravity for superior stability in high-lift applications.
  • ✔ Forward-moving gantry and small turning radius, perfect for narrow aisle operations.
  • ✔ Full AC drive system: maintenance-free, strong climbing ability, and regenerative braking.
  • ✔ Intelligent HD display for real-time operation status and simplified troubleshooting.
  • ✔ EPS steering reduces energy consumption by ~20% and minimizes driver fatigue.
  • ✔ Side-pull battery design for quick replacement during multi-shift operations.

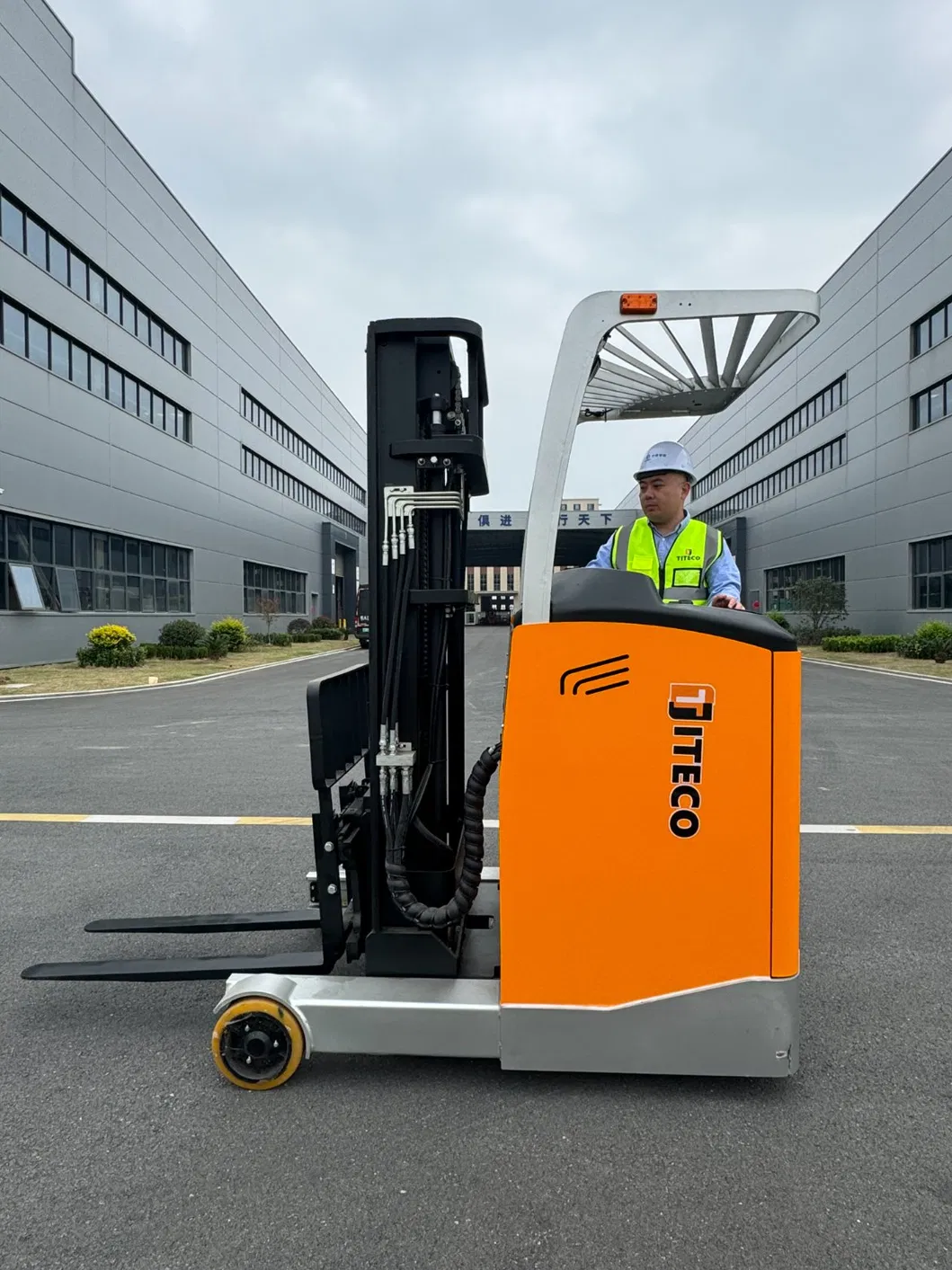

Feature Detail 1

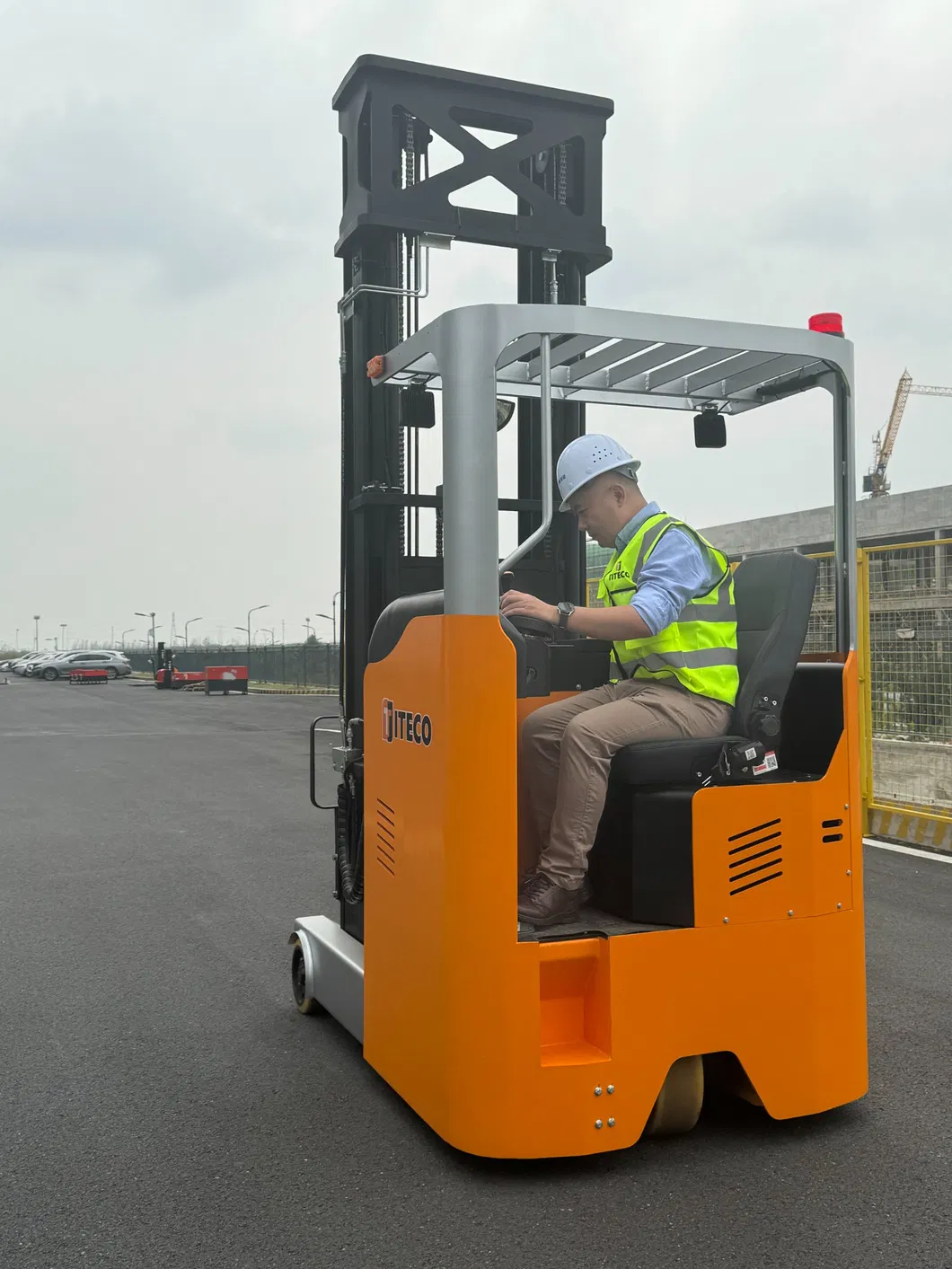

Feature Detail 2
🏭

Applications

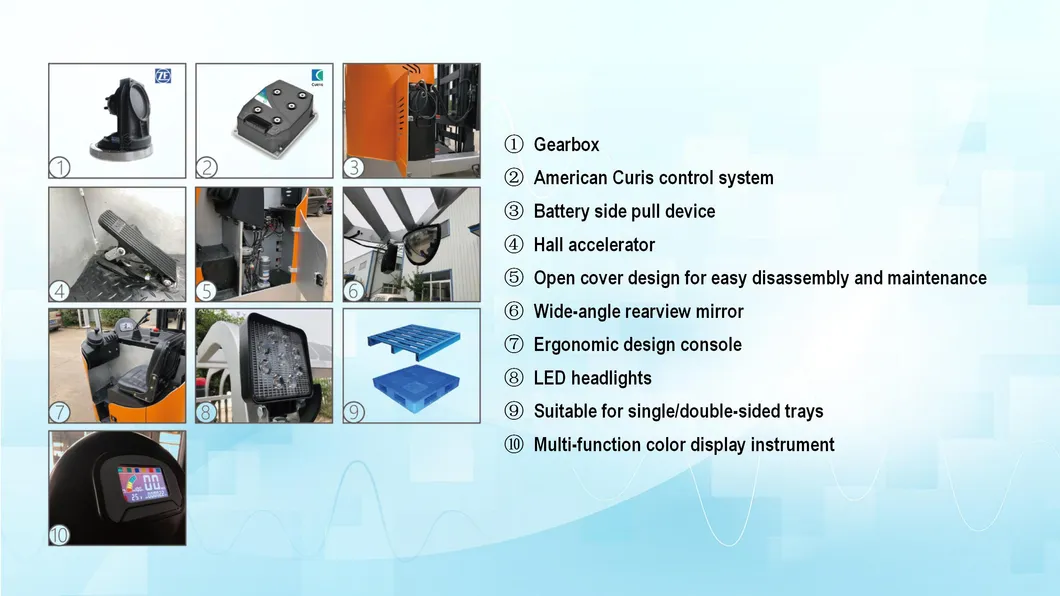

Application 1

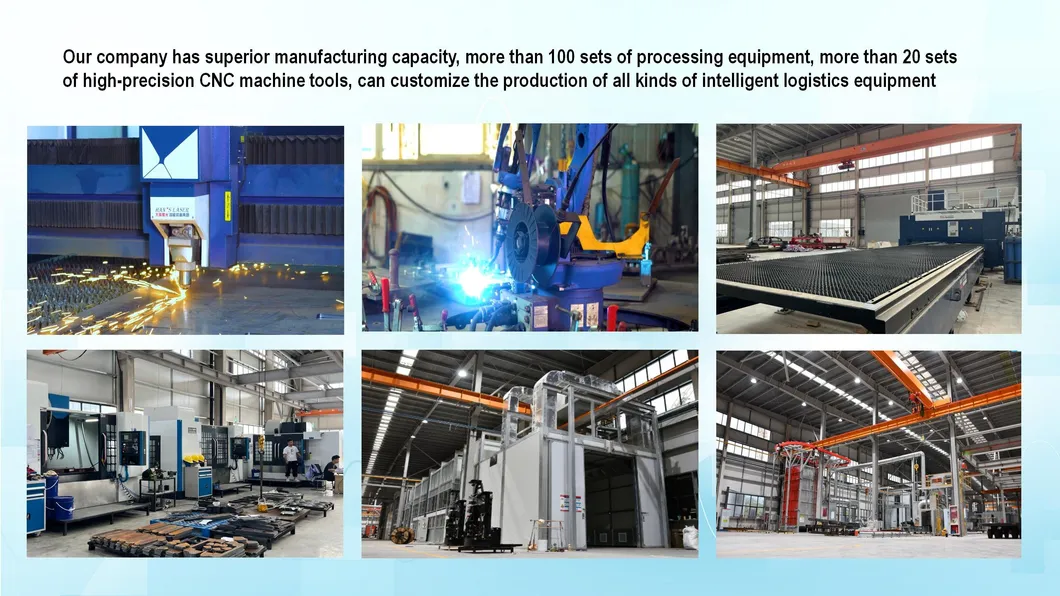

Application 2

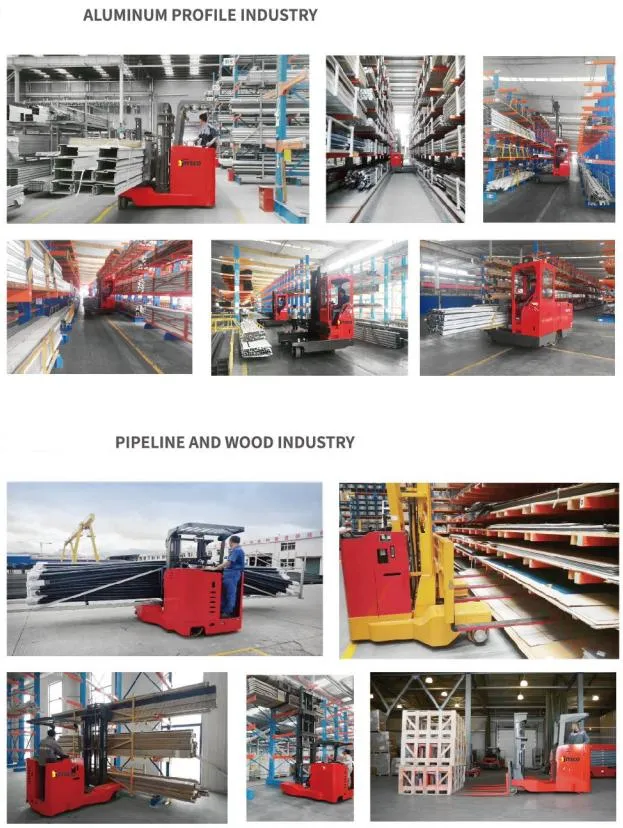

Application 3
🚢

Packaging & Delivery

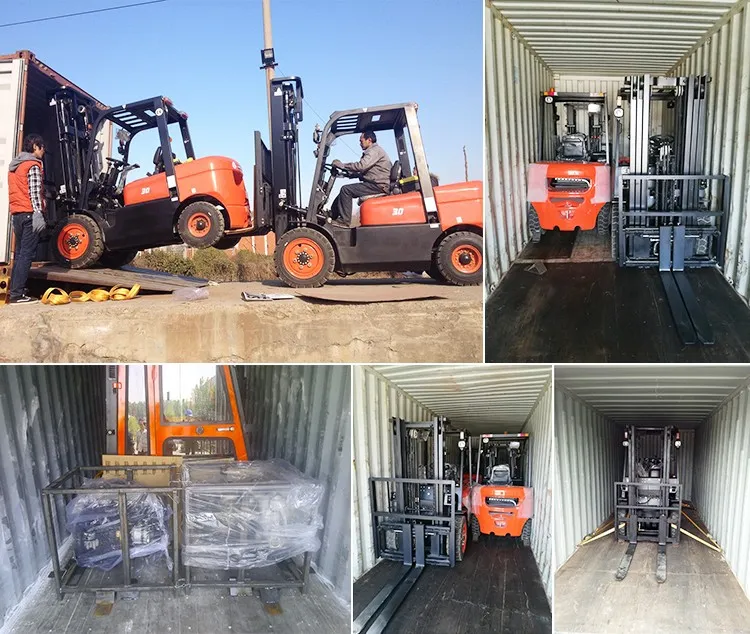

Transportation
❓

Frequently Asked Questions

1. What is the maximum lifting height of this reach truck?
The lifting height ranges from 3000mm up to 12000mm depending on the specific model selected.
2. Is the forklift suitable for very narrow aisles?
Yes, the compact structure and small turning radius are specifically designed for efficient operation in limited spaces and narrow warehouse aisles.
3. What are the advantages of the AC drive system?
The full AC drive system is maintenance-free (no carbon brushes), offers strong climbing ability, and includes regenerative braking for better efficiency.
4. How does the EPS steering help the operator?
Electric Power Steering (EPS) reduces energy consumption by approximately 20%, provides precise control, and significantly reduces driver fatigue.
5. Can the battery be easily replaced for multi-shift work?
Yes, it features a side-pull battery design and a standard battery roller trolley, making it very convenient to swap batteries for continuous operation.
6. What type of tires are used on this forklift?
The vehicle is equipped with high-quality Polyurethane (PU) tires, which offer excellent durability and floor protection.
