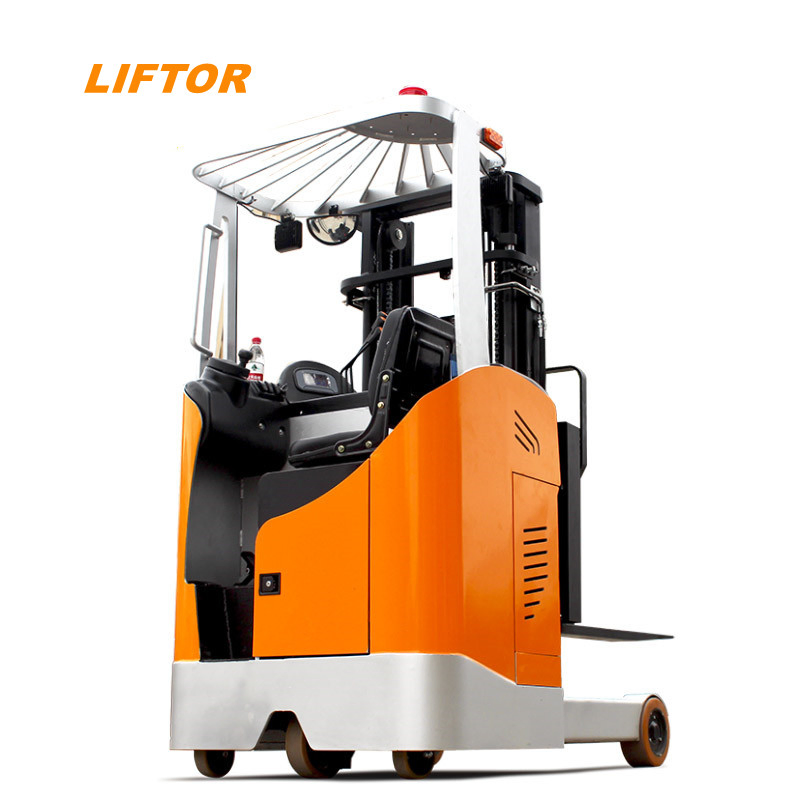

Electric VNA Order Picker Very Narrow Aisle Reach Pallet Fork Lift Truck Stacker

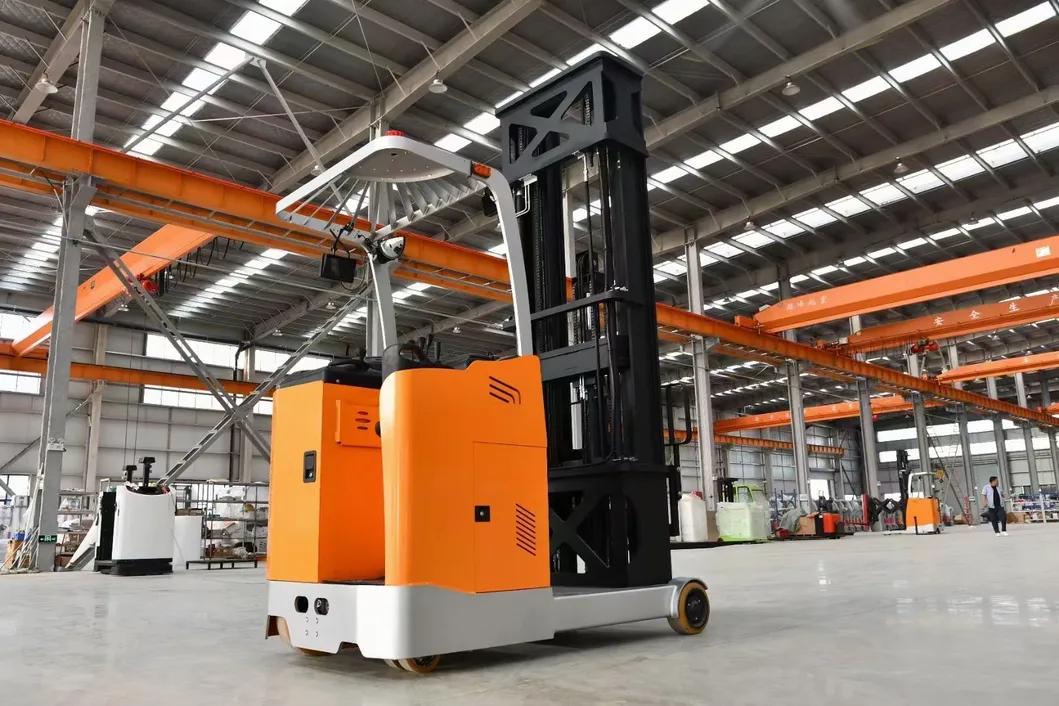

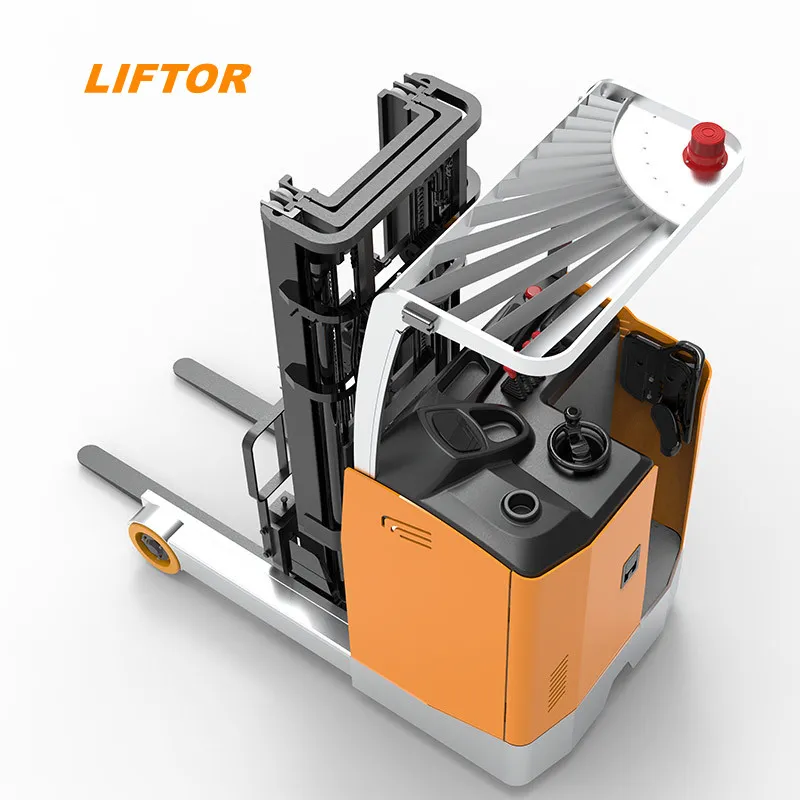

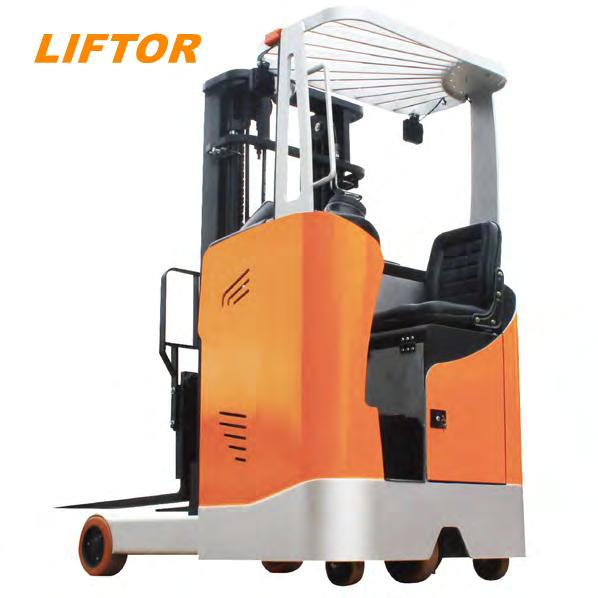

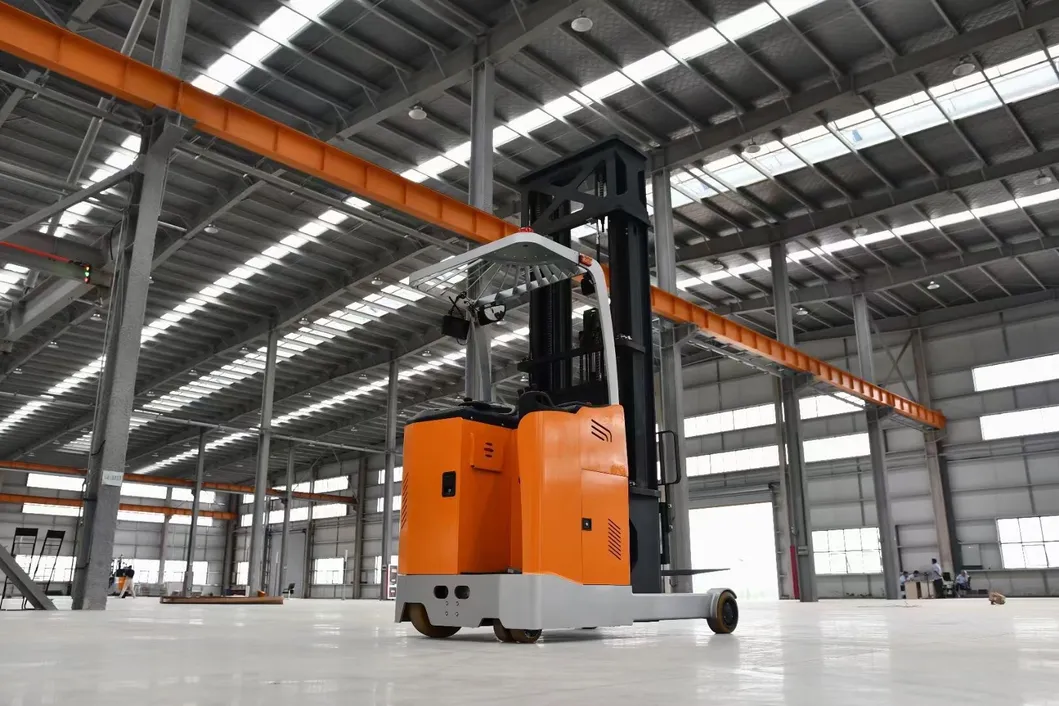

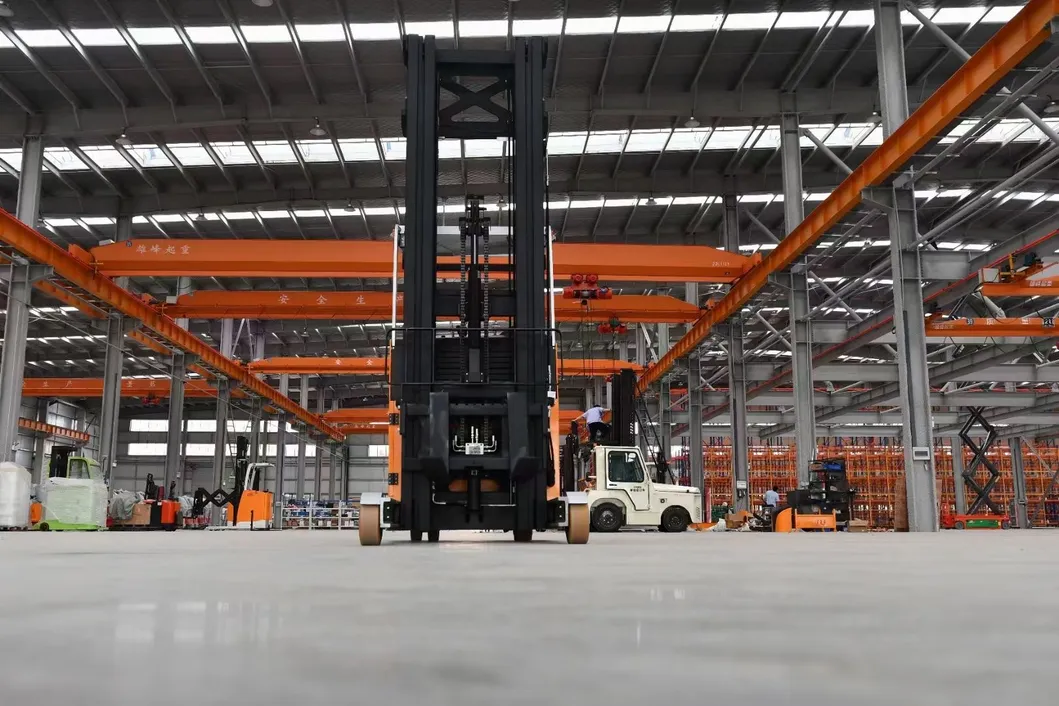

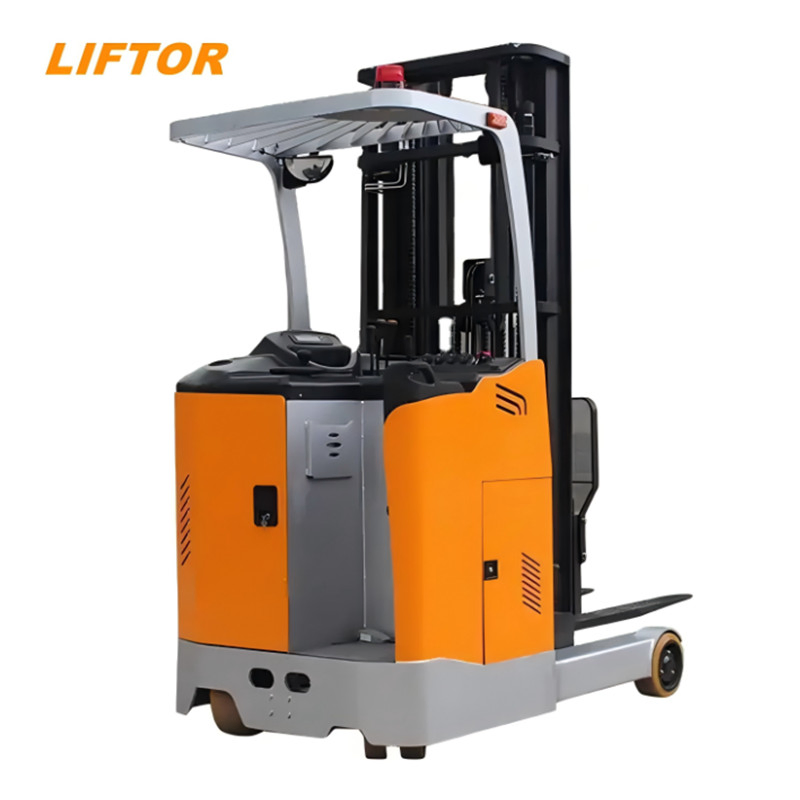

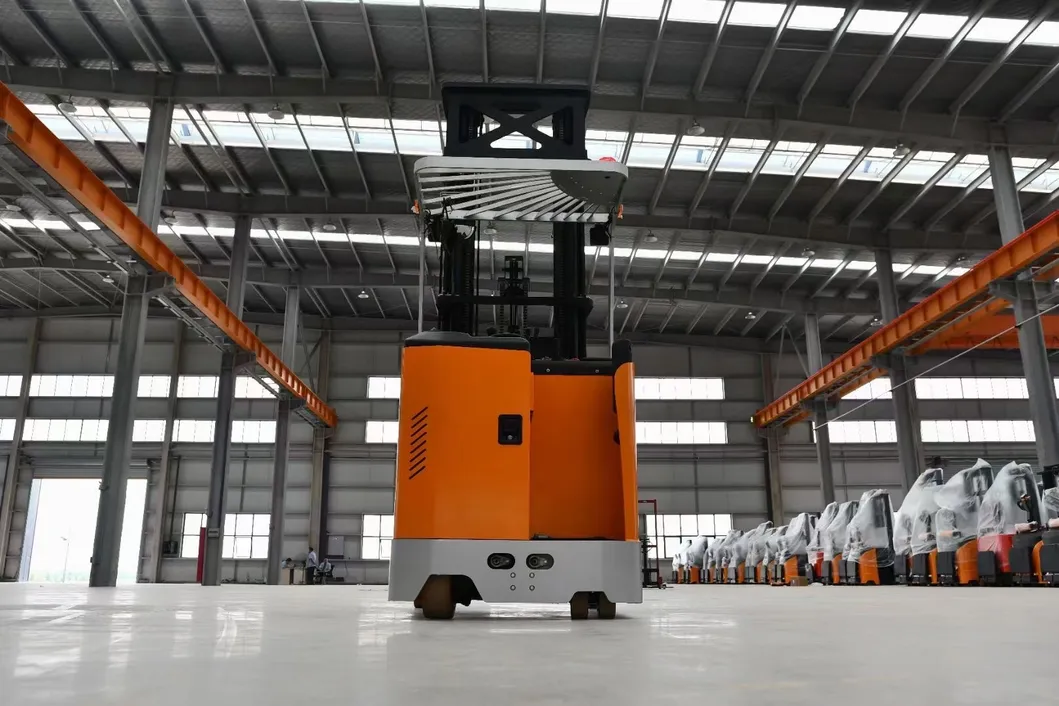

The Narrow Aisle Reach Truck is an efficient industrial equipment designed for narrow racking storage environments. Its unique design allows operators to maneuver easily within limited spaces, achieving high stacking and retrieval capabilities. This type of forklift plays a crucial role in warehousing and logistics, optimizing both cargo management and warehouse space utilization.
| Parameter Name | Unit | CQD15-30 | CQD20-30 | CQD25-30 |
|---|---|---|---|---|
| Power type | - | Full-Electric | Full-Electric | Full-Electric |
| Load Capacity | KG | 1500 | 2000 | 2500 |
| Max lifting height | mm | 3000 | 3000 | 3000 |
| Load center | mm | 500 | 500 | 500 |
| Wheel type | - | Pu solid tire | ||
| Reach distance | mm | 605 | 720 | 720 |
| Overall length (inc. fork) | mm | 2240 | 2470 | 2470 |
| Overall width | mm | 1098 | 1260 | 1260 |
| Turning radius | mm | 1615 | 1970 | 1970 |
| Max travel speed | Km/h | 6.5/7.2 | 6.8/7.8 | 6.8/7.8 |
| Battery capacity | V/Ah | 48/300 | 48/400 | 48/400 |
| Driving motor | Kw | 4.5 | 5.0 | 5.0 |
