Product Description

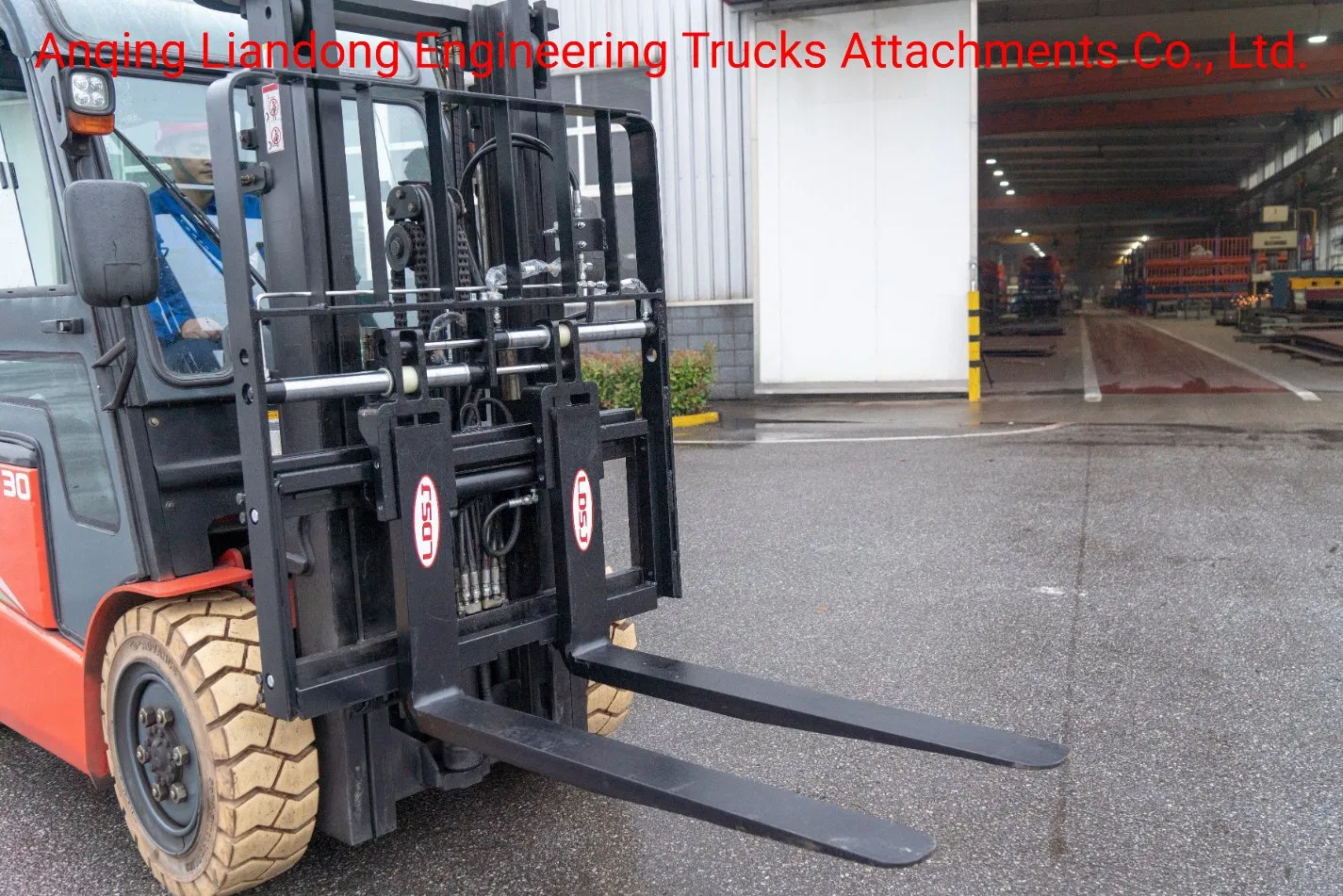

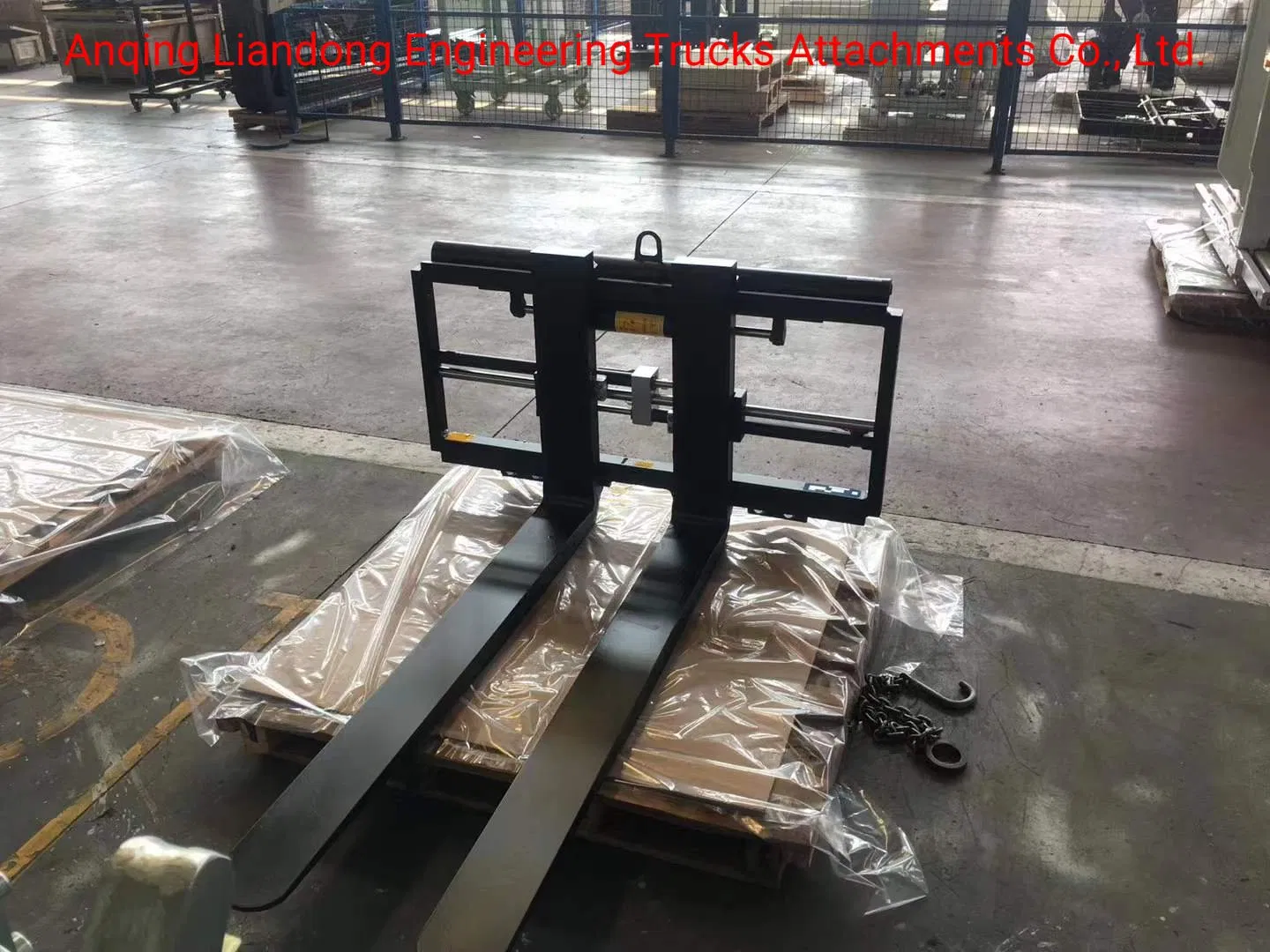

Fork positioners are widely used in logistic, warehouse and manufacturing industry. It can allow the drivers to adjust the forks quickly and accurately to fit different pallet sizes without leaving the seat. Fork positioner can also achieve the function of side shift.
Product Parameters

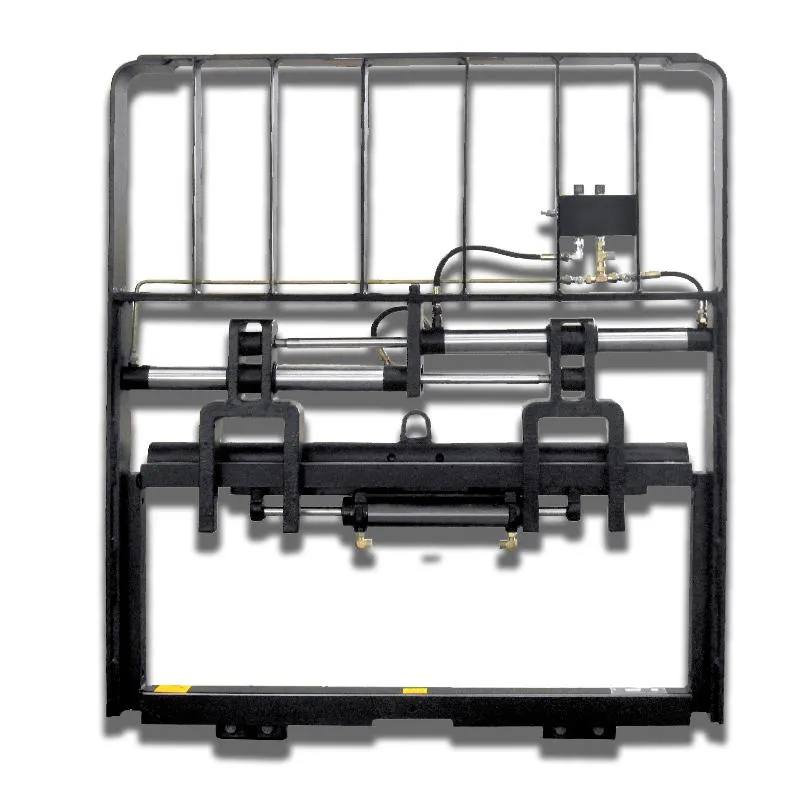

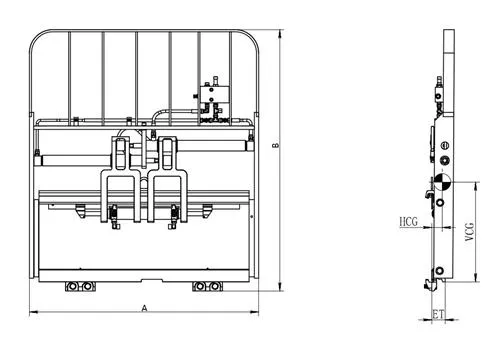

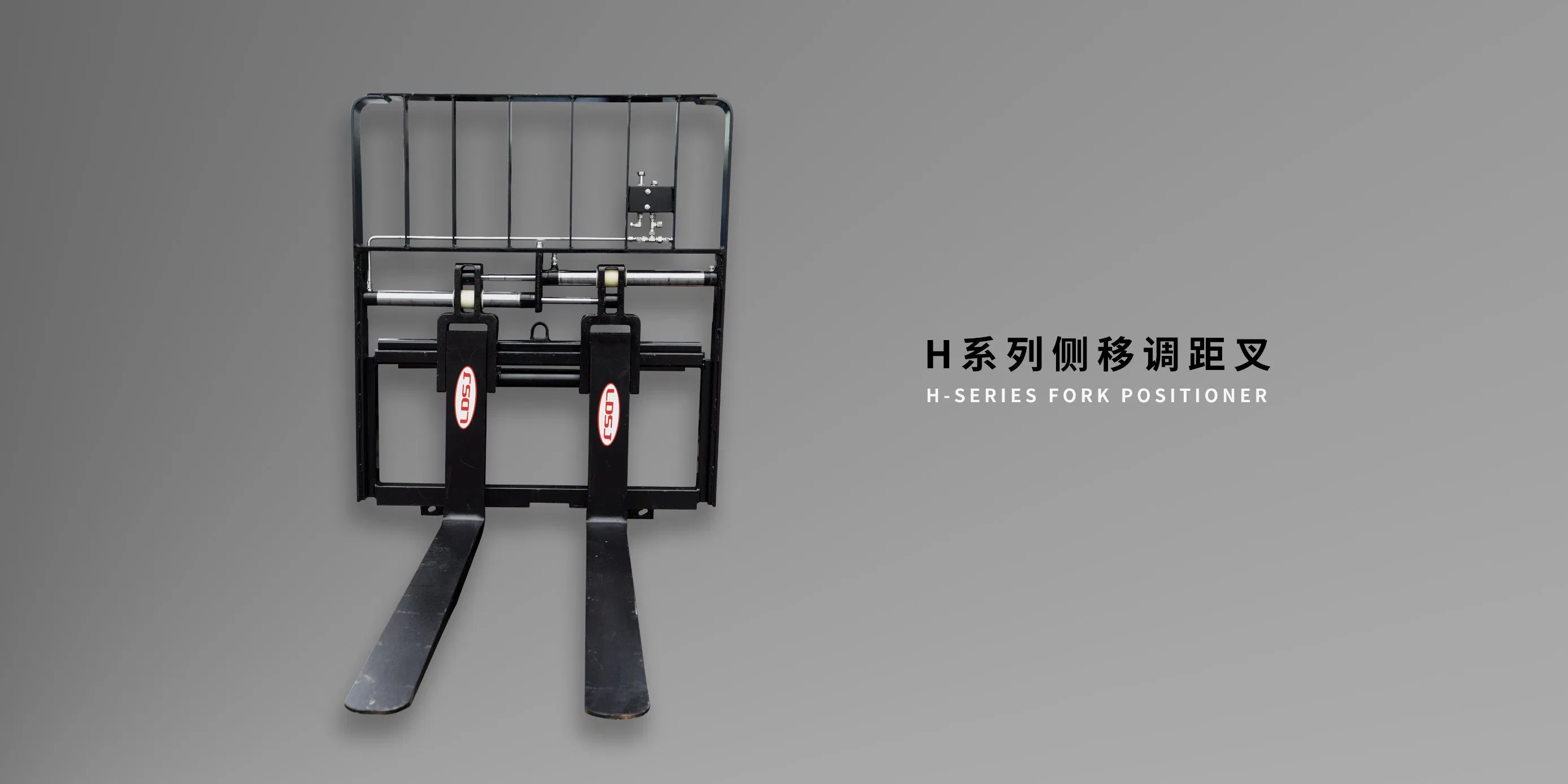

| H-Series Fork Positioners |
| Capacity @ Load Center (Kg@mm) |
Catalog Order NO. |
Mounting Class |
Opening Range (mm) |
Total Side Shift (mm) |
Fork Pocket Width (mm) |
Min Truck Carriage Width (mm) |
Overall Width A (mm) |
Overall Height B (mm) |
Weight (kg) |
Effective Thickness ET (mm) |
VCG (mm) |
HCG (mm) |
Available Forklift (t) |
| 1800@500 | TC18G-A1 | II | 100-900 | - | 100 | 895 | 1018 | 1245 | 135 | 63 | 472 | 50 | 1-1.8t |
| 2500@500 | TC25G-A1 | II | 100-970 | - | 100 | 895 | 1088 | 1245 | 148 | 63 | 472 | 50 | 2-2.5t |
| 3000@500 | TC30G-B1 | III | 100-1125 | - | 125 | 930 | 1248 | 1336 | 186 | 68 | 501 | 50 | 3-3.5t |
| 4500@500 | TC45G-B1 | III | 100-1300 | - | 150 | 1080 | 1428 | 1343 | 256 | 73 | 533 | 50 | 4-4.5t |
| 6800@600 | TC70G-C1 | IV | 120-1750 | - | 150 | 1420 | 1905 | 1452 | 553 | 75 | 559 | 57 | 5-7t |
Notes:
1. Opening range: minimum means inside distance while closing, maximum means outside distance while opening.
2. Catalog Order No.: "TC" refers to Fork Positioner. "TY" refers to Sideshifting Fork Positioner.
3. Recommended fork length should not exceed 1520mm.
Features:
✓ Easy installation and high visibility structure.
✓ Balance valves ensure synchronous movement of two forks.
✓ Controlled by double oil cylinder for superior stability.
✓ Imported hydraulic control valves and high-pressure rubber hoses.

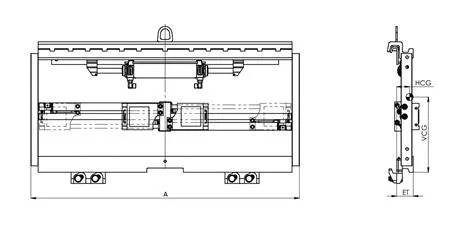

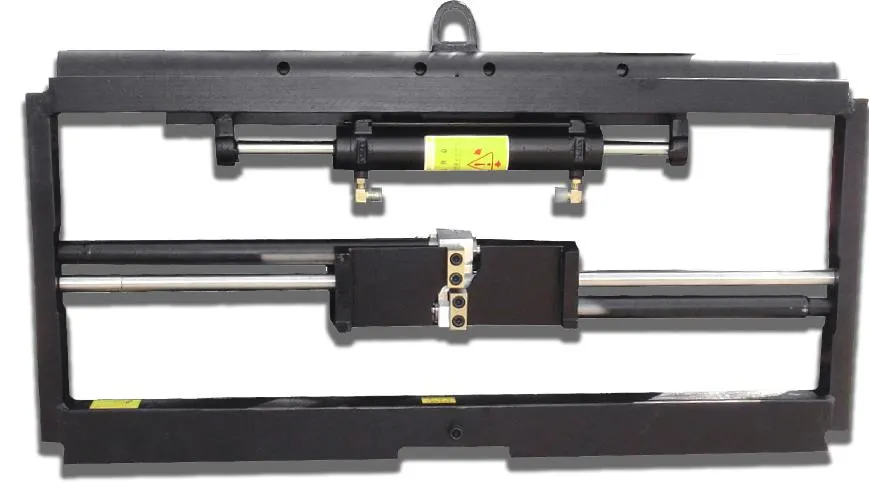

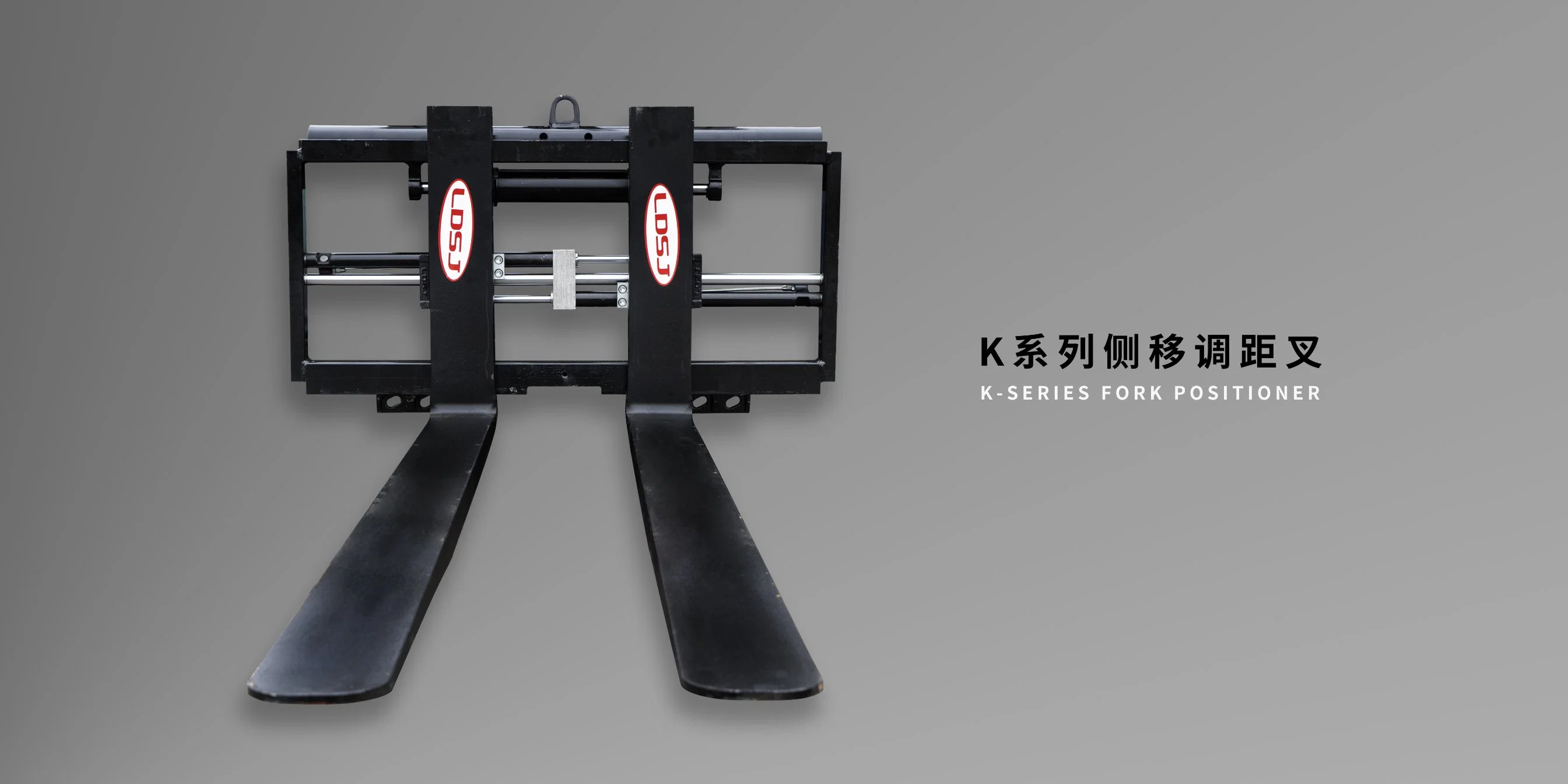

| K-Series Fork Positioners |
|---|
| Capacity @ Load Center |
Catalog Order NO. |
Mounting Class |
Opening Range |
Total Side Shift |
Fork Pocket Width |
Min Carriage Width |
Overall Width |
Weight |
Effective Thickness |
VCG |
HCG |
Available Forklift |
| 1800@500 | TY18G-A2 | II | 28-860 | ±100 | 100 | 895 | 970 | 72 | 68 | 218 | 31 | 1-1.8t |
| 2500@500 | TY25G-A4 | III | 28-930 | ±100 | 100/122 | 940 | 1040 | 78 | 68 | 218 | 31 | 2-2.5t |
| 3000@500 | TY30G-B3 | III | 28-990 | ±100 | 125 | 970 | 1100 | 90 | 68 | 275 | 31 | 3-4.5t |
Company Profile
The company integrates R & D, manufacturing, sales and service of construction machinery attachments and parts. The products are widely used in papermaking, storage, tobacco, port, chemical industry, construction, smelting and many other industries. They are highly efficient and intelligent handling equipment for mechanized loading and unloading, stacking and short-distance handling.

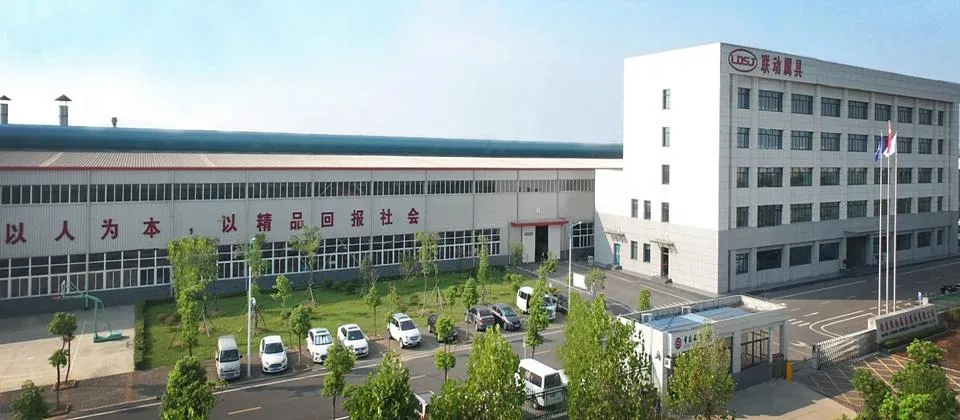

At present, the product type has reached more than 3000 kinds and key parts have been independently developed and manufactured. Many products have independent intellectual property rights and obtained national patents. The company has high-efficiency digital intelligent equipment such as CNC cutting machine, welding robot, machining center, and painting line. It has passed ISO9001, ISO14001, and OHSAS18001 system certifications.
Frequently Asked Questions (FAQ)
What is the primary function of a fork positioner?
A fork positioner allows forklift operators to adjust the distance between forks hydraulically from the driver's seat, enabling quick adaptation to different pallet sizes.
Does this attachment support sideshifting?
Yes, many models in our range, specifically the "TY" series, include an integrated sideshift function for precise lateral load positioning.
What materials are used in the construction?
The attachments are built using high-strength steel and feature fine steel castings for the shift forks to ensure durability and long-term performance.
Are the hydraulic components reliable?
We use imported hydraulic control valves and high-quality seals from brands like Nok and Parker, along with cone-sealed high-pressure rubber hoses.
Can these be customized for specific forklift models?
Yes, our fork positioners are compatible with various mounting classes (II, III, IV) and can be customized to fit different forklift capacities ranging from 0.8 to 7 tons.
