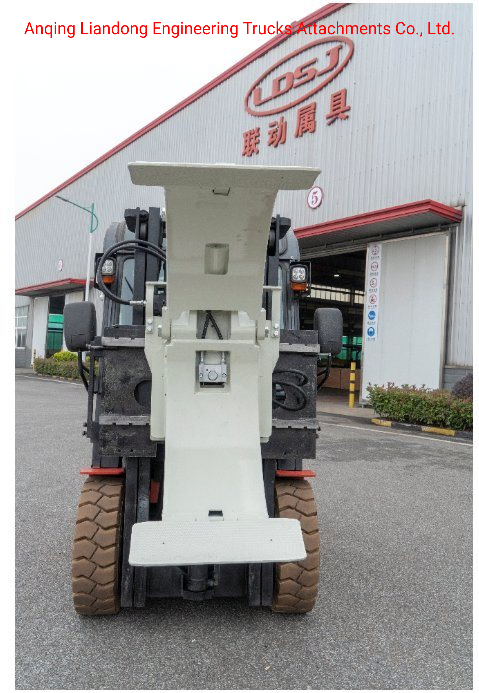

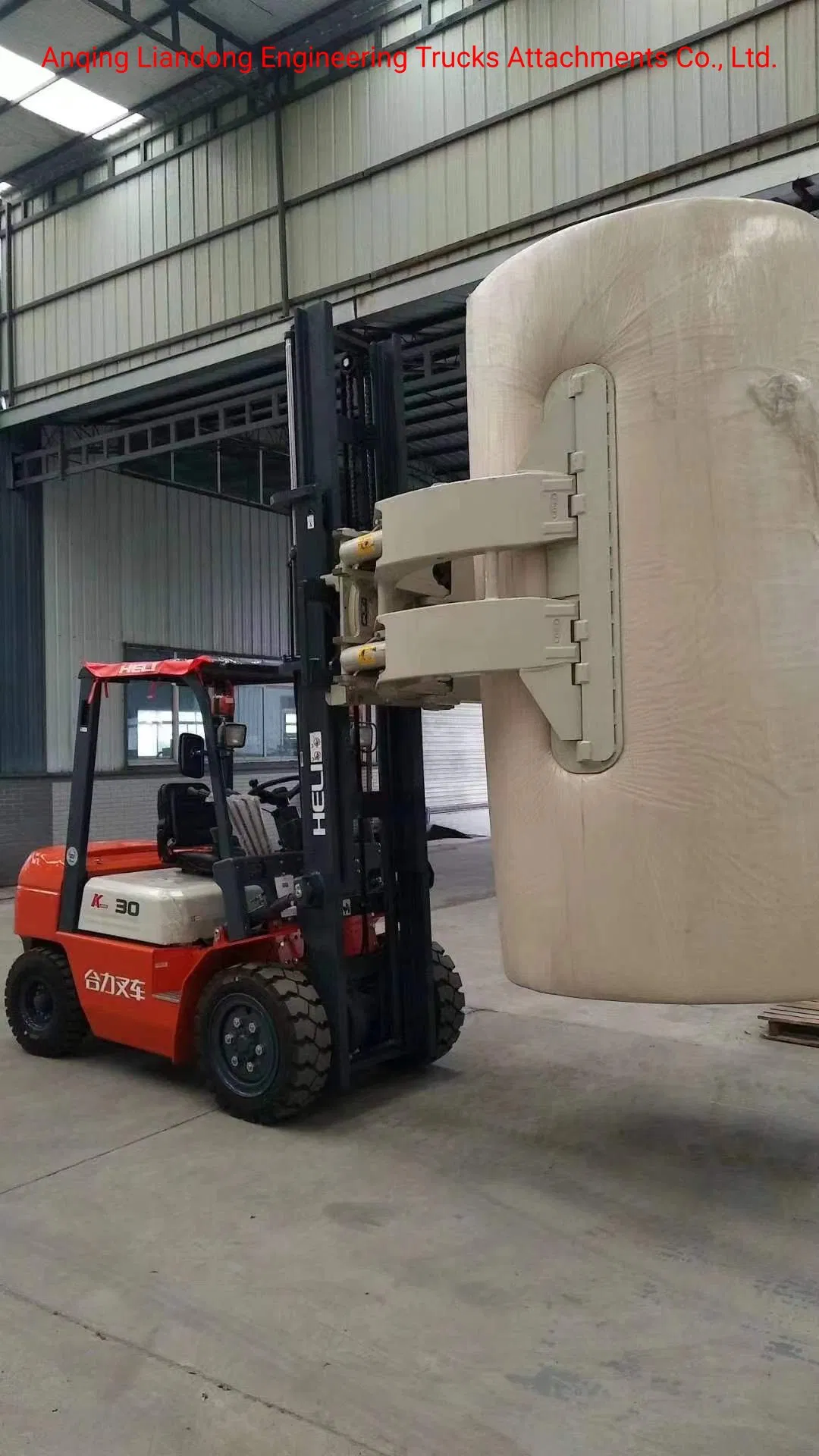

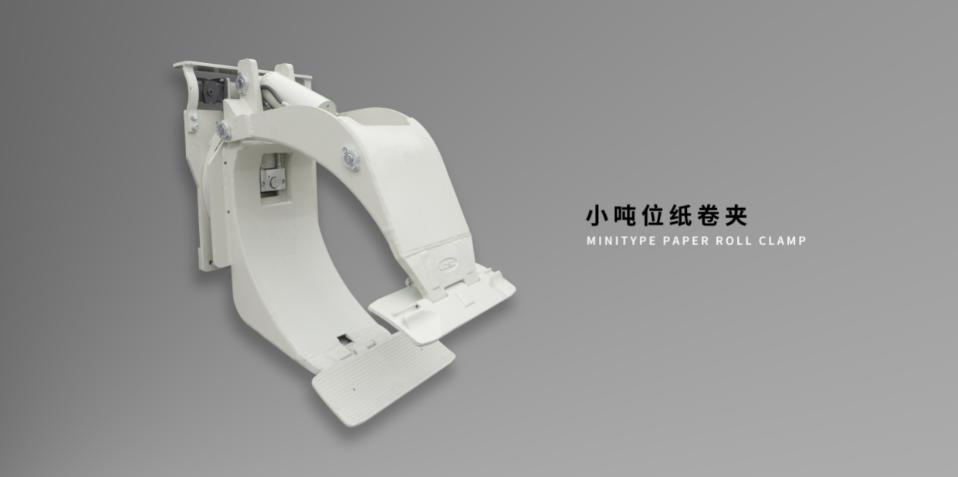

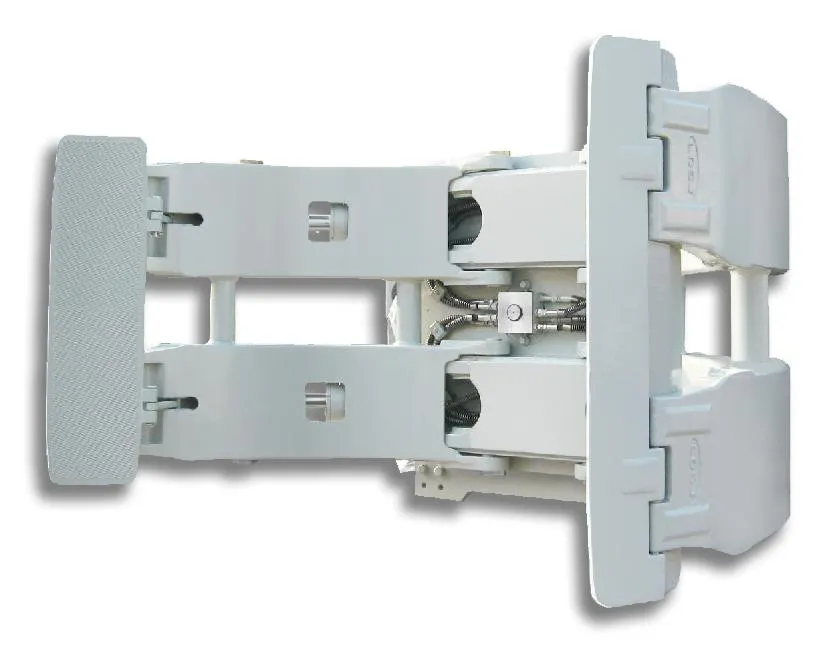

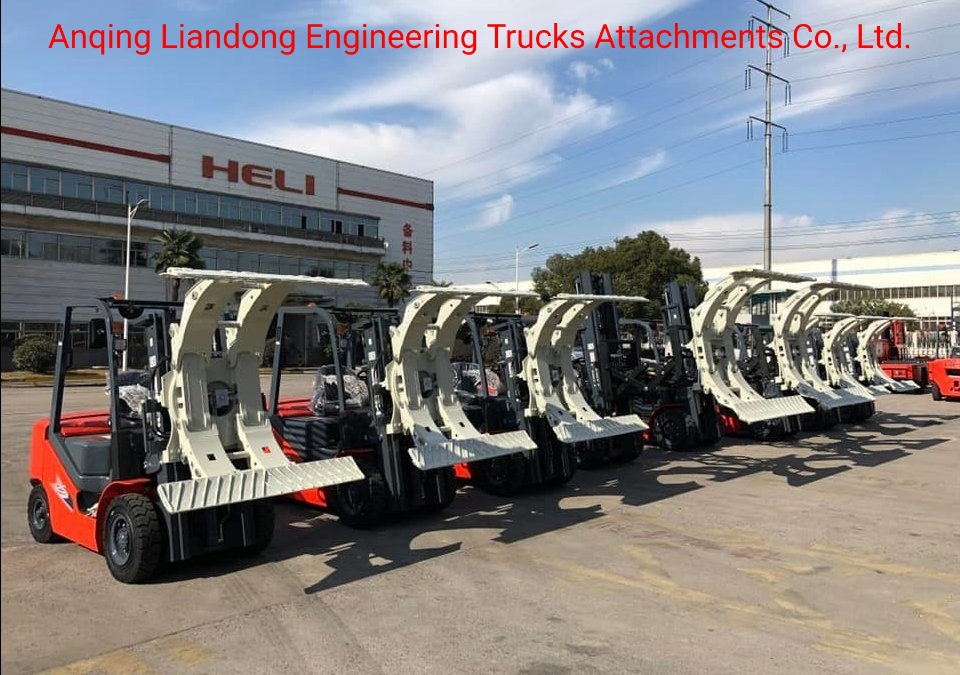

Paper roll clamp is widely used in the paper roll industry for damage free roll handling with maximum efficiency. We offer a full line of paper roll clamps to handle paper rolls regardless of diameter, weight or type of paper. For paper roll handling of every size in industries from stevedoring to printing, our Paper Roll Clamp will deliver.

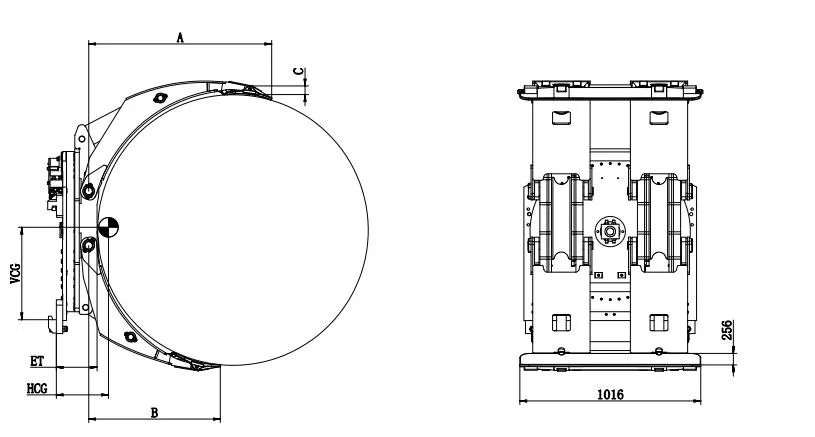

| Capacity @ LC (kg@mm) |
Model NO. |
Opening Range (mm) |
Mounting Class |
Long Arm (mm) |
Short Arm (mm) |
Arm Thick (mm) |
Weight (kg) |
ET (mm) |
VCG (mm) |
HCG (mm) |
Forklift (t) |
| 1000@800 | ZJ10R-A1 | 560-1600 | II | 995 | 675 | 45 | 420 | 135 | 330 | 290 | 1-2.5t |
| 1100@750 | ZJ11R-A1 | 450-1500 | II | 890 | 640 | 45 | 400 | 135 | 330 | 300 | 1-2.5t |
| 1200@650 | ZJ12R-A1 | 410-1300 | II | 860 | 570 | 45 | 376 | 135 | 340 | 255 | 1-2.5t |
| 1200@650 | ZJ12R-B1 | 410-1300 | III | 860 | 570 | 45 | 380 | 135 | 340 | 255 | 3-4.5t |
| 1300@575 | ZJ13R-A1 | 330-1150 | II | 745 | 535 | 45 | 385 | 135 | 335 | 250 | 1-2.5t |
| 3500@650 | ZJ35R-B13A | 300-1300 | III | 970 | 637 | 65 | 1015 | 229 | 495 | 298 | 5-7t |
| 3500@760 | ZJ35R-B1 | 610-1520 | III | 1025 | 745 | 65 | 1215 | 229 | 560 | 335 | 3-4.5t |
| 3500@800 | ZJ35R-B3 | 600-1600 | III | 1096 | 776 | 65 | 1210 | 229 | 565 | 312 | 5-7t |
Notes:
1. Forklift trucks need to add 2 sets of oil lines;
2. Please obtain the actual comprehensive bearing capacity from the forklift manufacturer;
3. According to the needs of customers, we can provide clamping plates suitable for different paper roll clamps;
4. Odd model numbers mean the short arm is adjustable; even means fixed.
⊕

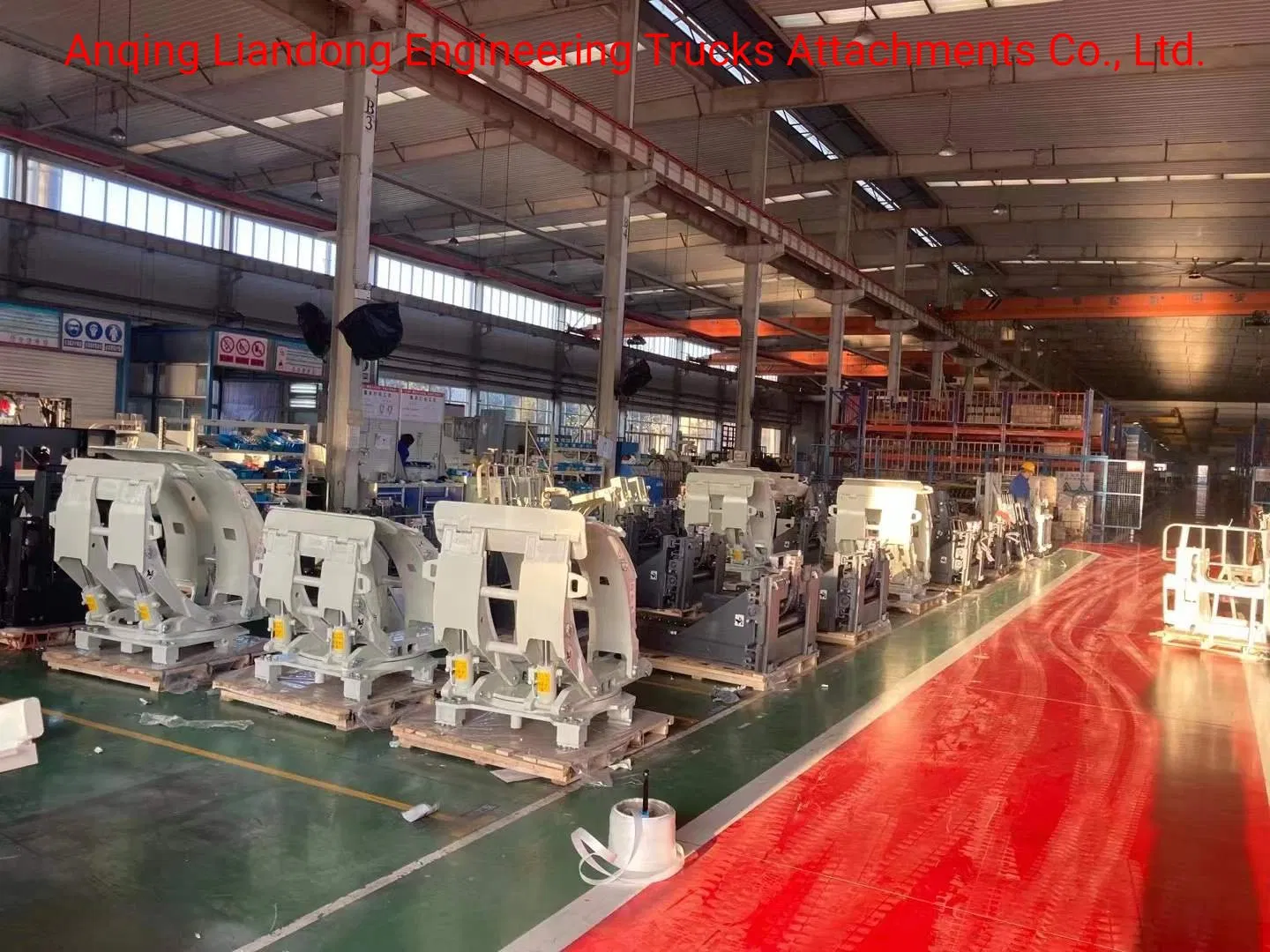

Manufacturing Excellence

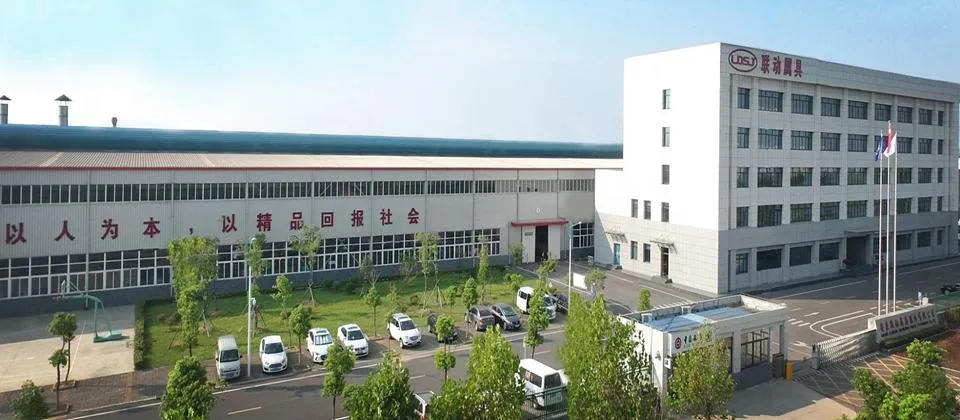

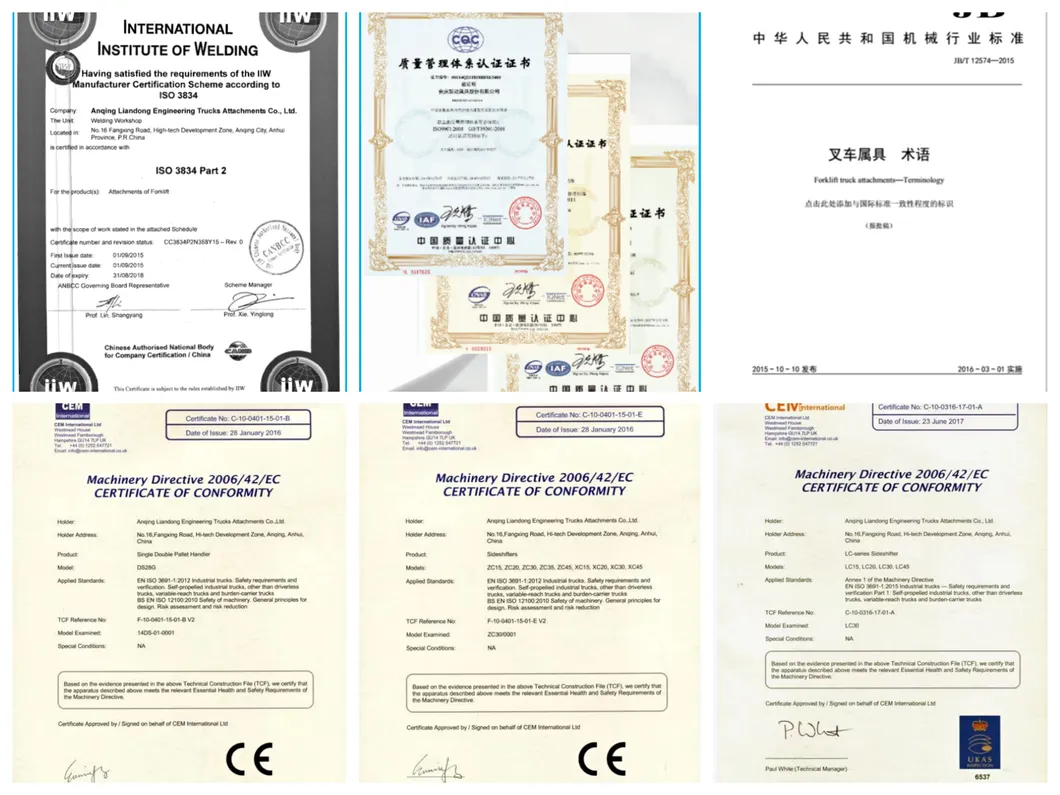

Integrating R & D, manufacturing, sales and service of construction machinery attachments and parts. The products are widely used in papermaking, storage, tobacco, port, chemical, and construction industries. With more than 3000 kinds of products, key parts are independently developed. Equipped with CNC cutting machines, welding robots, and painting lines, the facility ensures high-quality intelligent handling equipment production. Certified by ISO9001, ISO14001, and OHSAS18001.
?
Frequently Asked Questions
What industries are these paper roll clamps suitable for?
They are ideal for papermaking, printing, storage, tobacco, chemical, and port industries where damage-free roll handling is required.
Can the clamp rotate 360 degrees?
Yes, the R-series clamps feature a 360º continuous rotation capability for fast transitions and precise bilge positioning.
What are the installation requirements for my forklift?
Forklift trucks typically need to be equipped with 2 additional sets of oil lines to operate the clamping and rotation functions.
How do I choose between an adjustable and a fixed short arm?
According to our model numbering, an odd number indicates an adjustable short arm, while an even number indicates a fixed short arm.
What materials are used to ensure the durability of the clamp?
The clamp arms are manufactured from high-strength alloy steel plate (Q345 Steel) and feature large modulus slewing bearings for maximum durability.
Are the seals and valve cores from reliable brands?
Yes, we use Sun brand valve cores and Nok or Parker seals to ensure consistent performance and long service life.
