Forklift Parts Attachment White Goods Home Appliance Carton Clamps for Heli Jungheinrich Clark Sumitomo

1 / 5

Forklift Parts Attachment White Goods Home Appliance Carton Clamps for Heli Jungheinrich Clark Sumitomo

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📦 Basic Information

Model NO.

Customized

Material

High Strength Steel

Surface Treatment

Polishing

Standard

Sideshifting

Optional

Valve Core

Sun Brand

Seals

Nok/Parker

Pressure Valve

Standard

Specification

0.8-5T

Origin

China

Production Capacity

8000pieces/Year

📖 Product Description

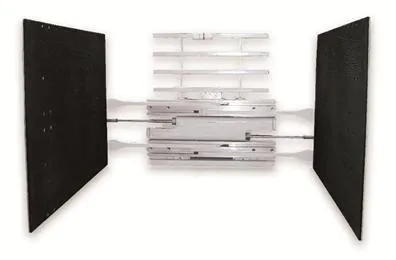

Carton clamps can securely handle and stack various goods packed in cartons without pallets and are widely used in the warehousing, beverage, appliance and electronics industries.

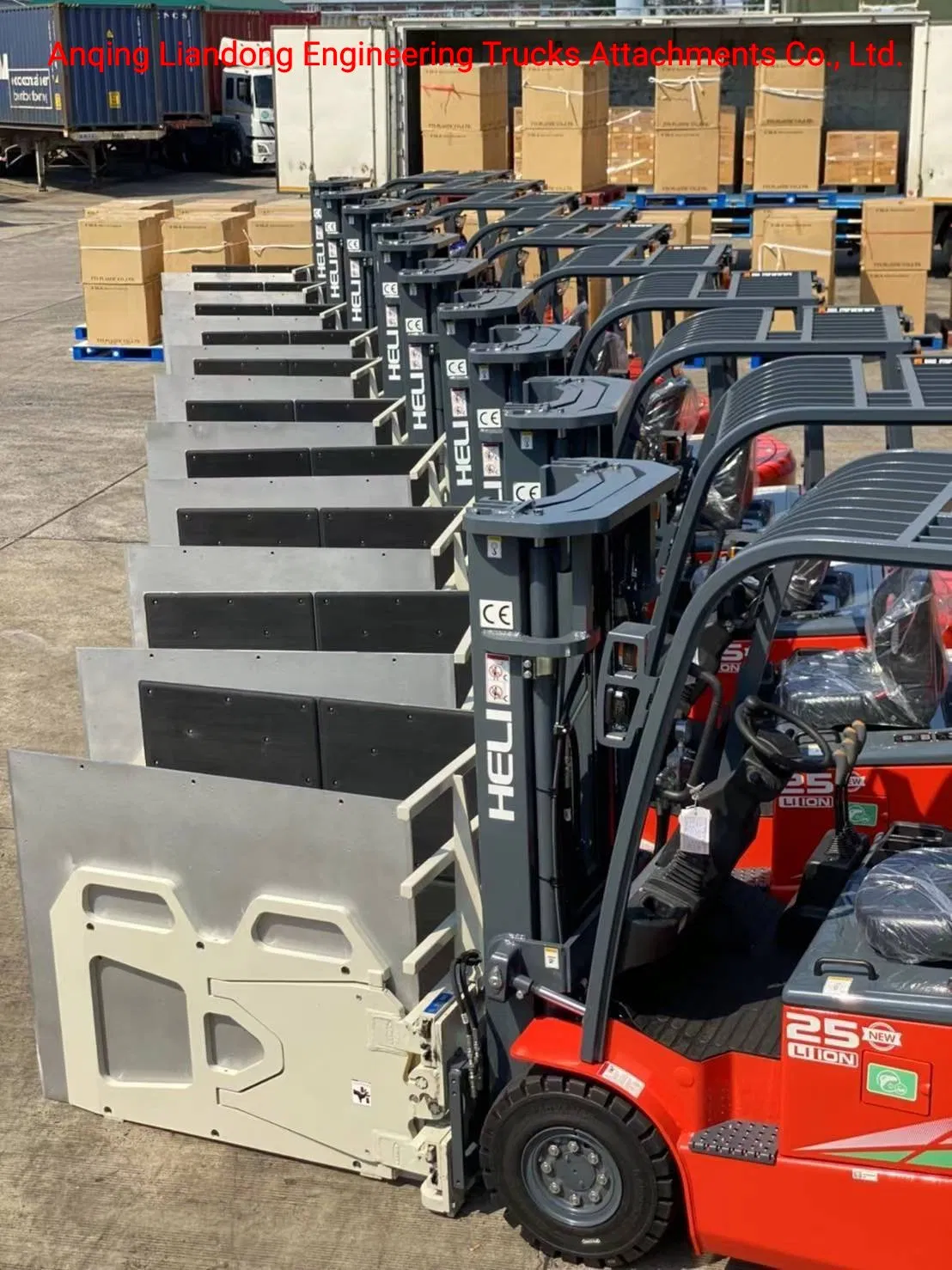

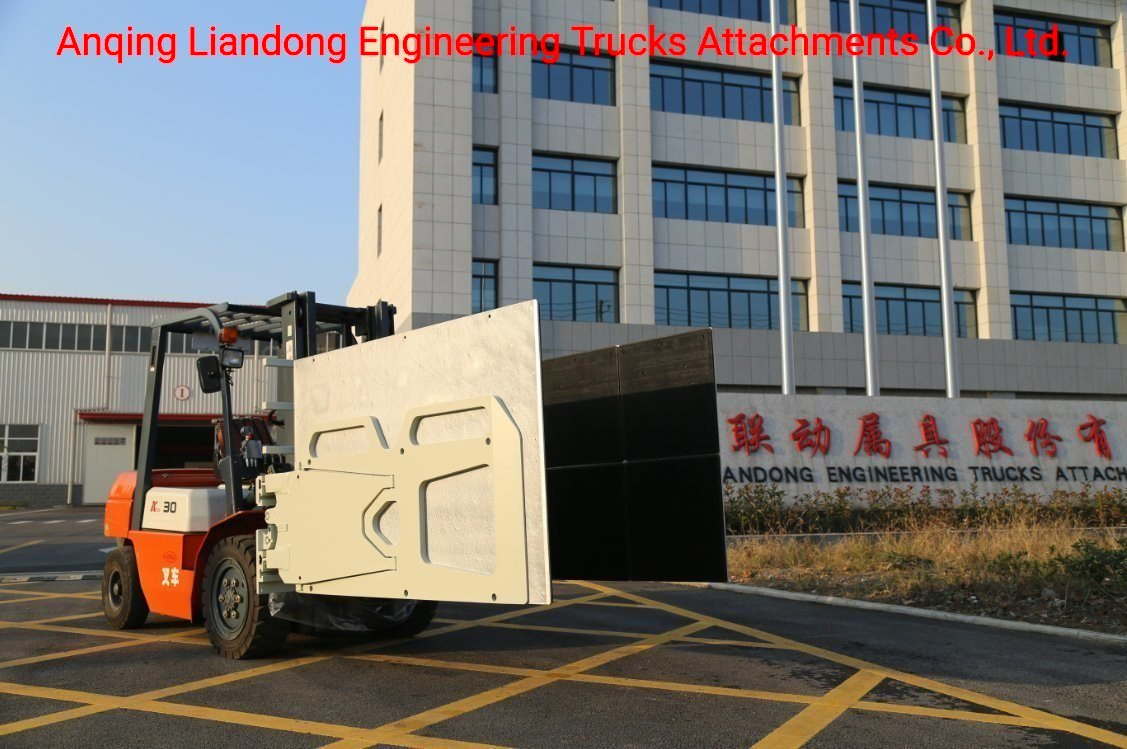

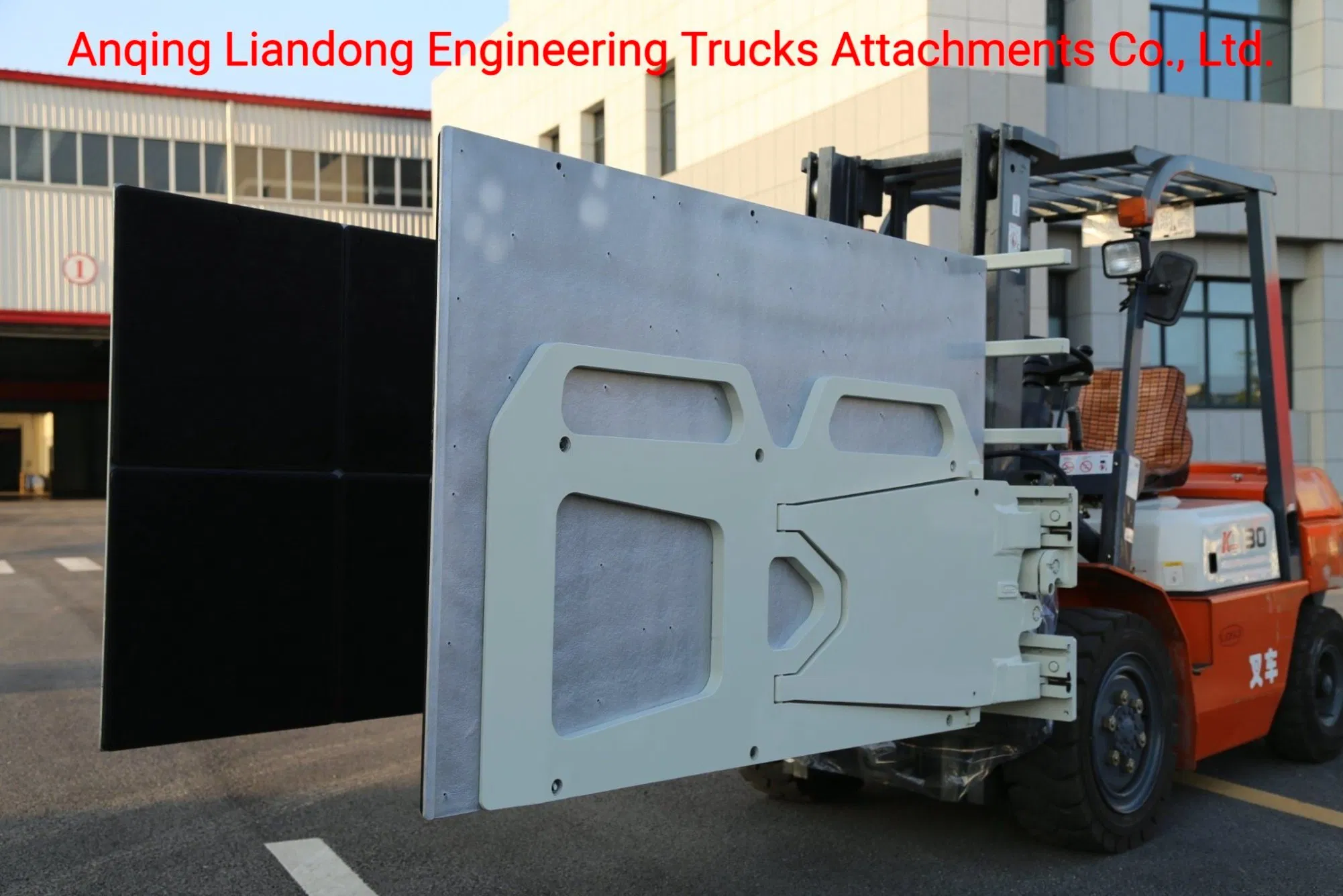

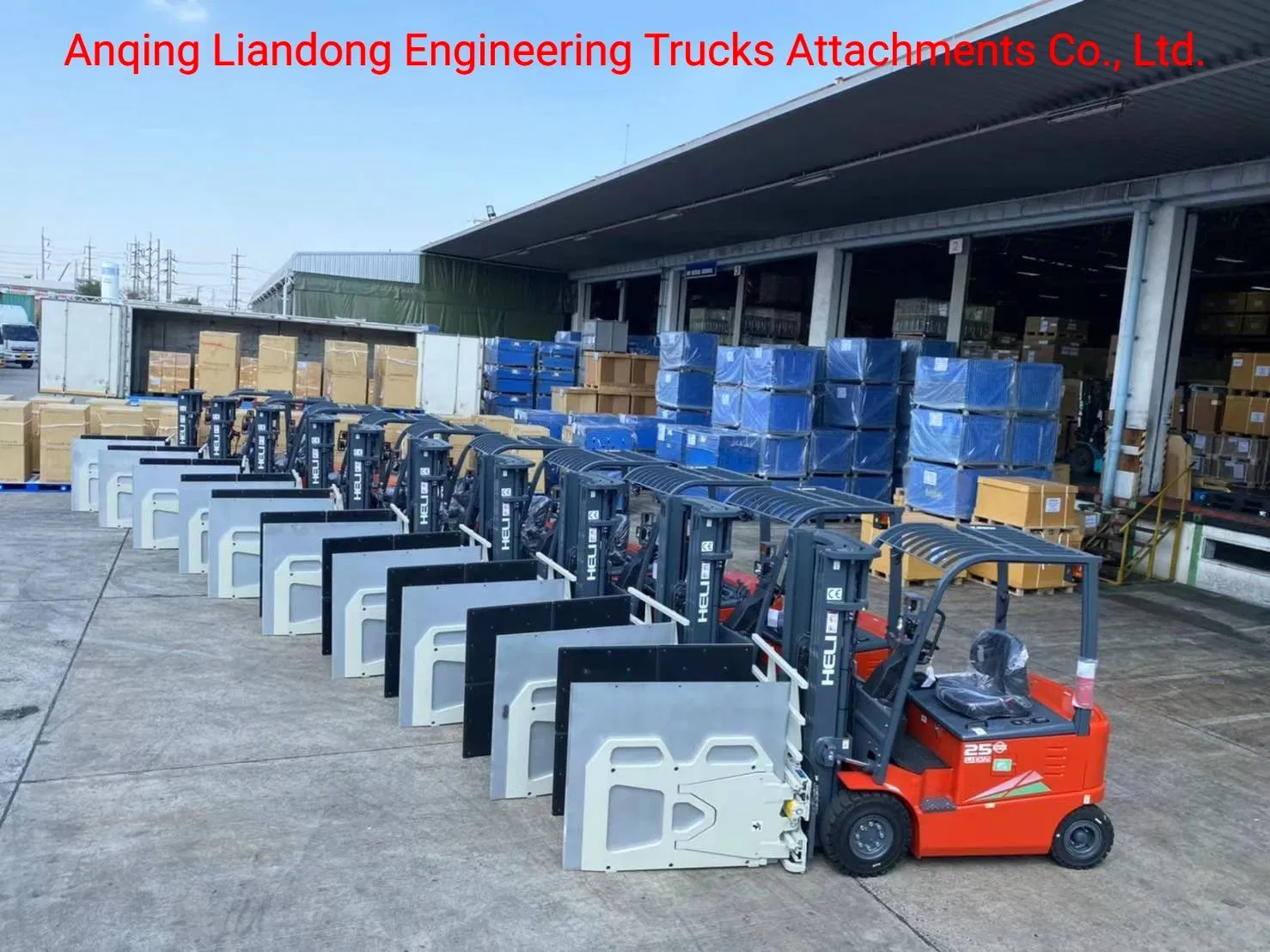

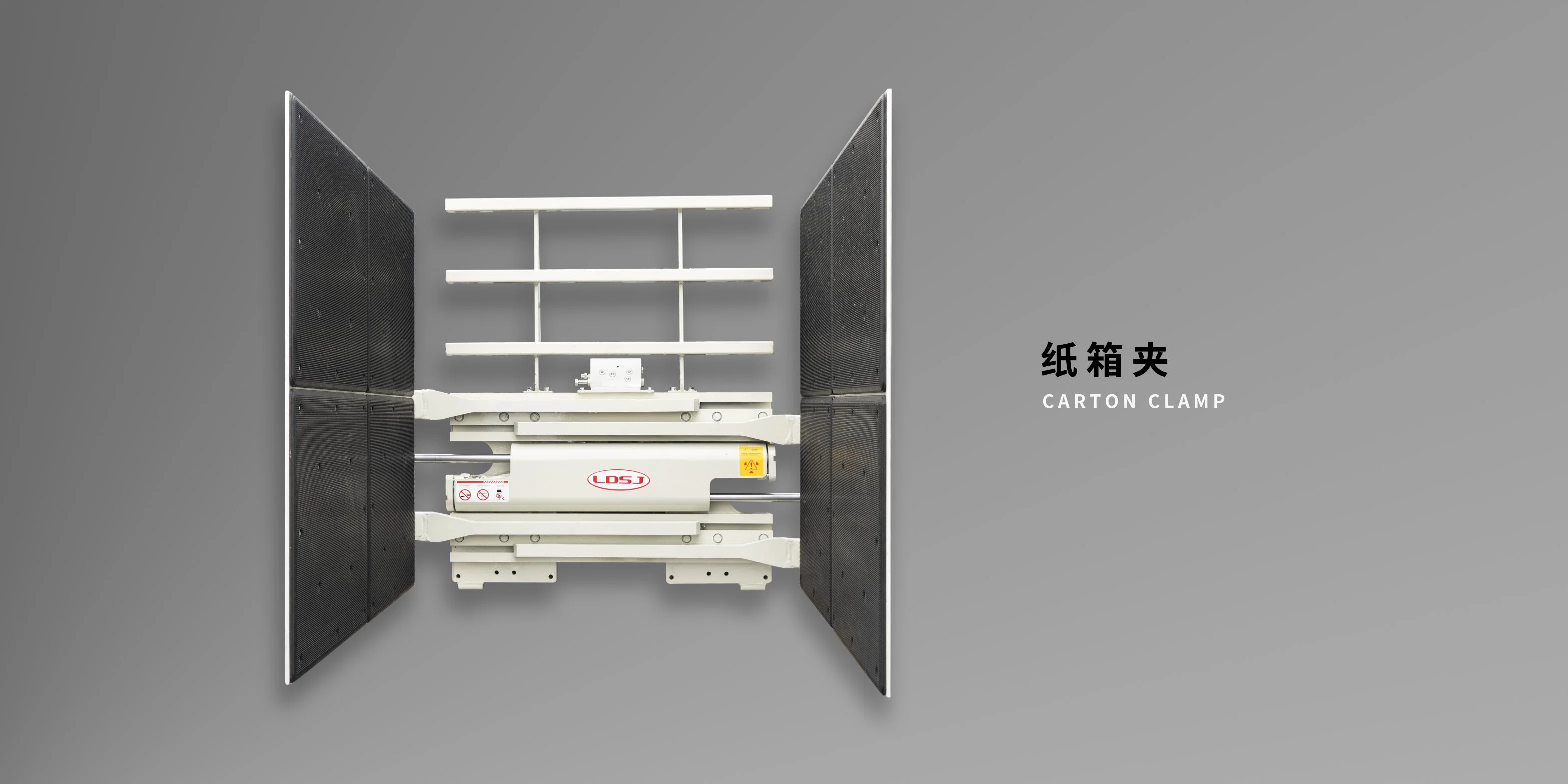

📷 Detailed Photos

📊 Product Parameters

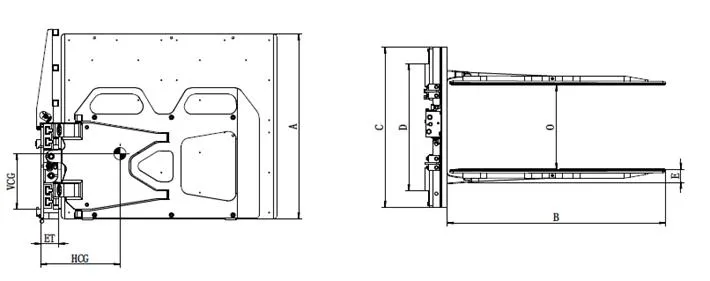

J-Series Carton Clamps Data Sheet
Capacity @ LC (kg@mm)	Catalog Order NO.	Mounting Class	Opening Range (mm)	Arm Height (mm)	Arm Length (mm)	Frame Width (mm)	Hook Spread (mm)	Arm Thickness (mm)	Weight (kg)	ET (mm)	VCG (mm)	HCG (mm)	Forklift (t)
1400@700	ZX14J-A1	II	560-1940	1200	1420	1040	825	90	875	117	371	504	2-2.5t
1400@700	ZX14J-A2	II	760-2140	1200	1420	1040	825	90	890	117	369	497	2-2.5t
1400@700	ZX14J-A3	II	590-1970	1200	1480	1040	825	90	900	117	369	534	2-2.5t
1200@600	ZX12J-A1	II	400-1570	1200	1220	1040	825	90	785	117	368	429	2-2.5t
1400@600	ZX14J-A4	II	565-1945	1200	1220	1040	825	90	800	117	367	424	2-2.5t

D-Series Carton Clamps Data Sheet
Capacity @ LC (kg@mm)	Catalog Order NO.	Mounting Class	Opening Range (mm)	Arm Height (mm)	Arm Length (mm)	Frame Width (mm)	Hook Spread (mm)	Arm Thickness (mm)	Weight (kg)	ET (mm)	VCG (mm)	HCG (mm)	Forklift (t)
1200@600	ZX12D-A1	II	400-1570	1200	1220	1040	825	90	765	117	368	429	2-2.5t
1360@700	ZX14D-A1	II	560-1940	1200	1420	1040	825	90	855	117	371	504	2-2.5t
1360@700	ZX14D-A2	II	760-2140	1200	1420	1040	825	90	870	117	369	497	2-2.5t

⚙️ Technical Features

Imported load keeping valves and cone sealed high-performance rubber hoses.
Four-gear pressure regulating valve to set suitable clamping power for different goods.
Equipped with internal sideshifting function.
High-performance alloy steel plates for left and right clamping panels.
Integrally charged connection blocks with superior anti-bending performance.

Notes:

1. Please obtain actual bearing capacity from the forklift manufacturer.
2. Forklift requires 2 groups of additional oil lines.
3. Arm thickness refers to the minimum wedge gap required during clamping.

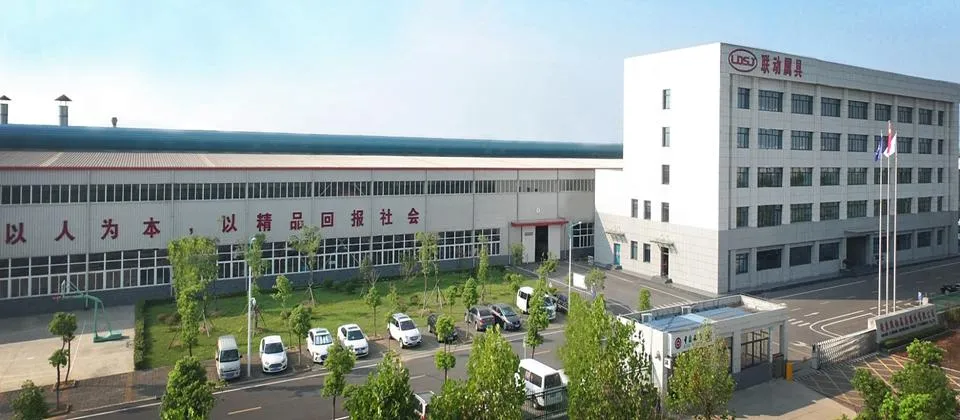

🏢 Company Profile

The manufacturer integrates R & D, manufacturing, sales and service of construction machinery attachments and parts. Products are widely used in papermaking, storage, tobacco, port, chemical, and construction industries. They represent efficient and intelligent handling equipment for mechanized loading, unloading, and stacking.

With over 3000 types of products, key components are independently developed. The facility features digital intelligent equipment including CNC cutting machines, welding robots, and advanced physical/chemical laboratories. The enterprise is ISO9001, ISO14001, and OHSAS18001 certified, ensuring high-quality development and environmental respect.

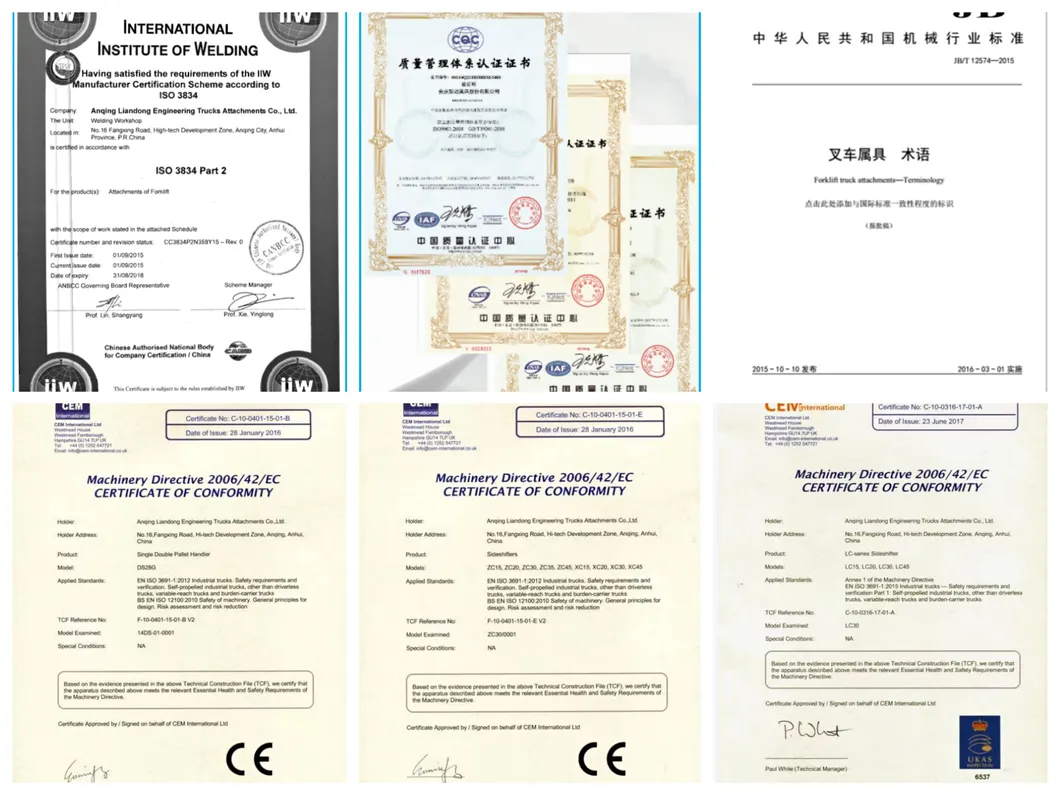

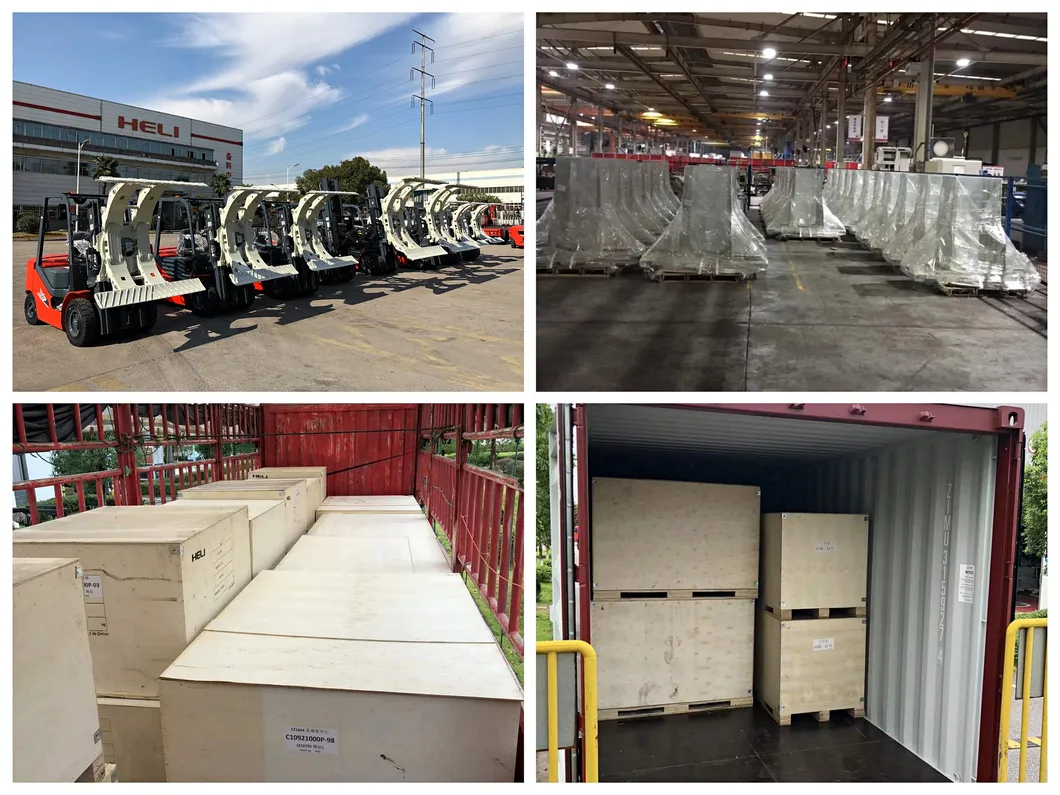

📜 Certifications & Packaging

Frequently Asked Questions

Q1: What are the primary applications for carton clamps? A1: They are designed for palletless handling of goods in cartons, ideal for warehousing, beverage, appliance, and electronics industries.

Q2: Can I adjust the clamping pressure for fragile items? A2: Yes, the attachments come with a four-gear pressure regulating valve to set the appropriate power for different types of cargo.

Q3: Are the carton clamps equipped with a sideshifting function? A3: Yes, an internal sideshifting function is included to improve handling precision and efficiency.

Q4: What materials are used in the construction of the clamps? A4: We use high-strength steel and high-performance alloy steel plates for the clamping panels to ensure durability and anti-bending performance.

Q5: What are the forklift requirements for installation? A5: The forklift truck generally needs to be equipped with 2 additional groups of oil lines to operate the attachment functions.

Q6: What certifications does the manufacturing facility hold? A6: The facility is certified under ISO9001, ISO14001, OHSAS18001, and ISO3834-2 international welding quality systems.
