Product Description

Basic Information
Model NO.
Customized
Material
High Strength Profile Steel
Surface Treatment
Polishing
Standard
Standard
Rotating
360 Degree
Sideshifting
Optional
Valve Core
Sun Brand
Seals
Nok/Parker
Specification
0.8-25t
Origin
China
Capacity
8000 pieces/Year
Product Description

Bale clamps can efficiently handle many types of baled products such as cotton, synthetic textile bales, corrugated, newsprint, rag, hay, metal and other scrap bales without work platform condition.

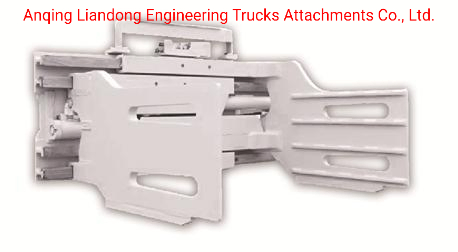

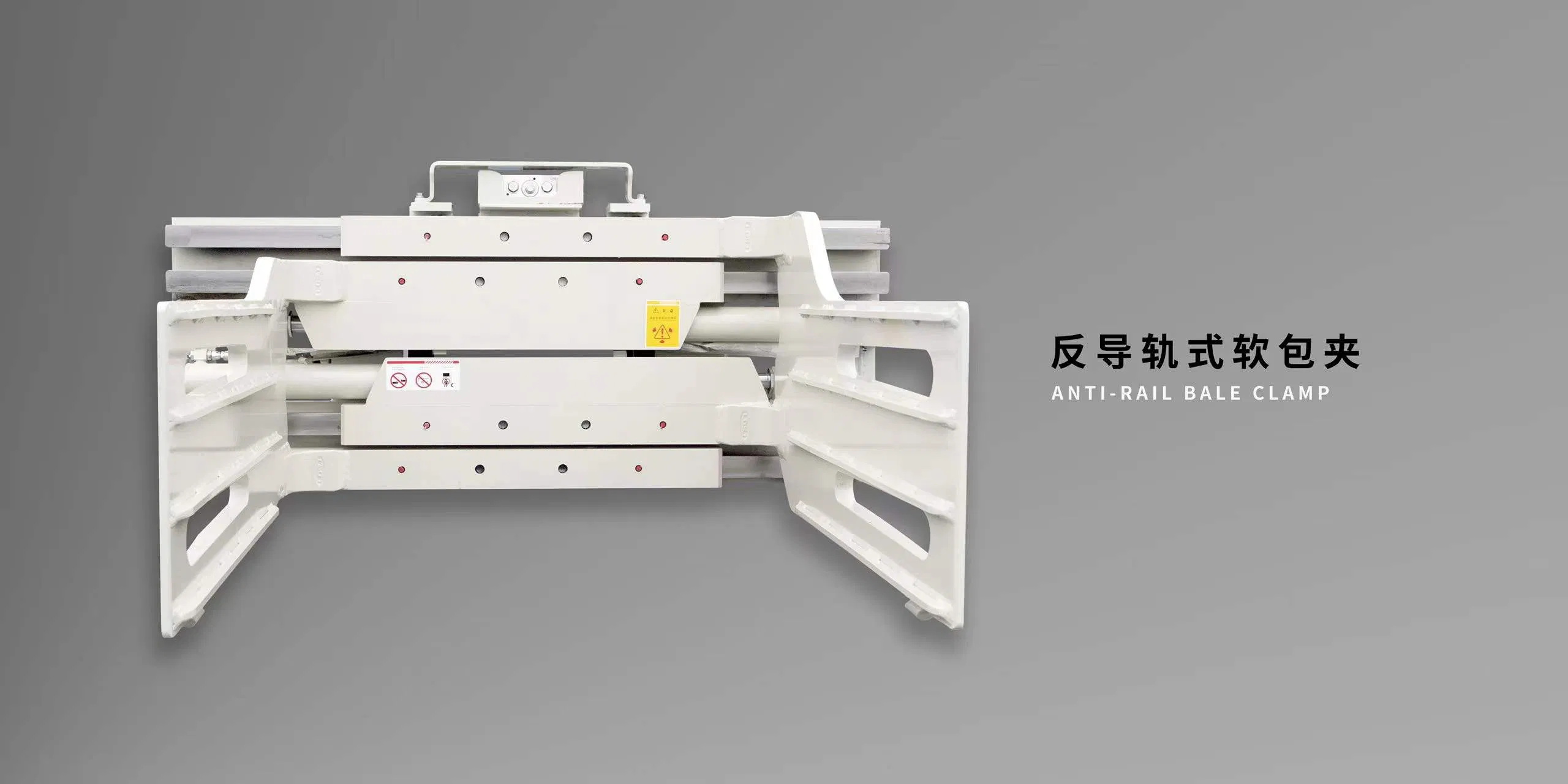

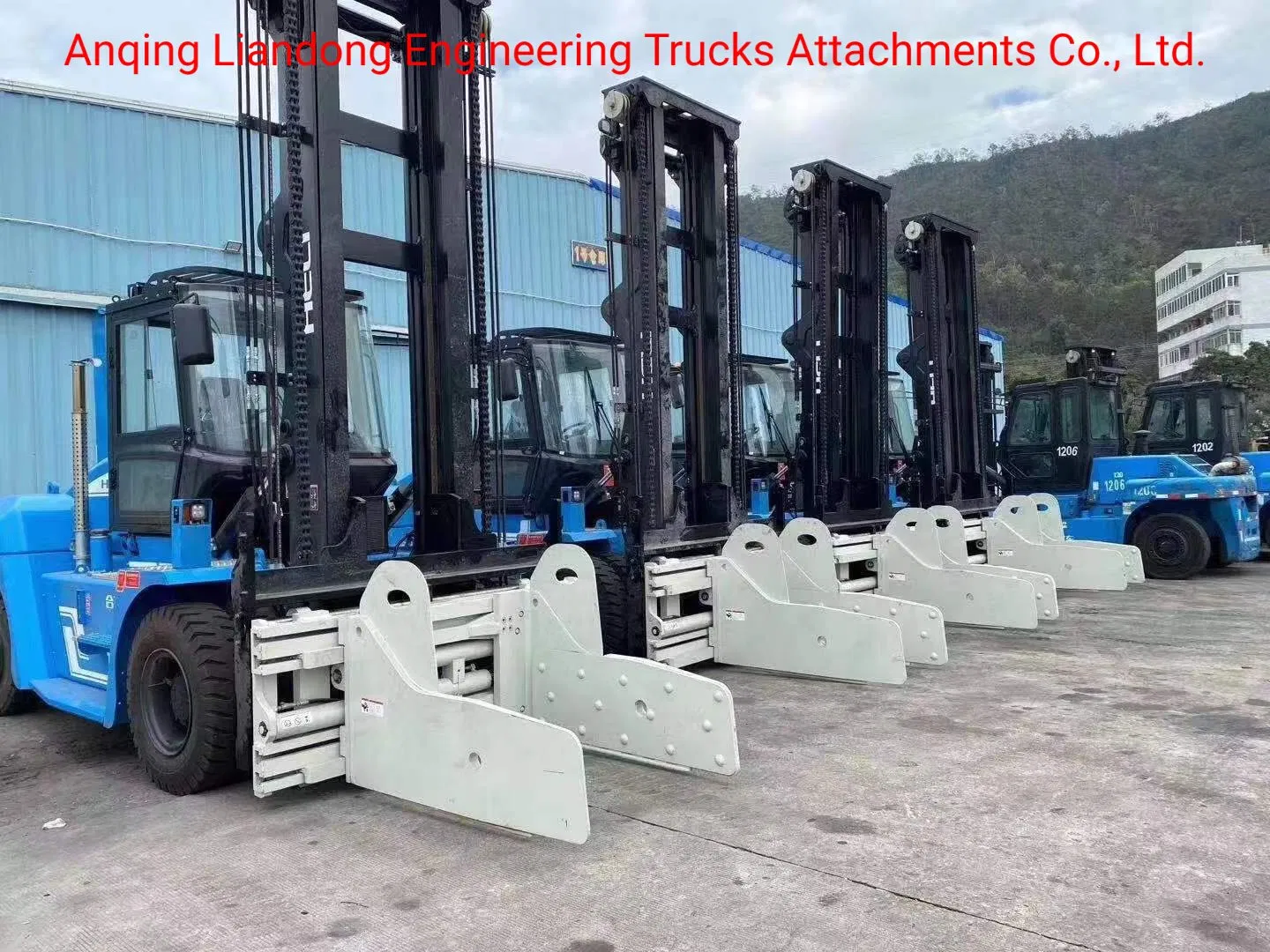

Bale Clamps Detailed View
Product Parameters

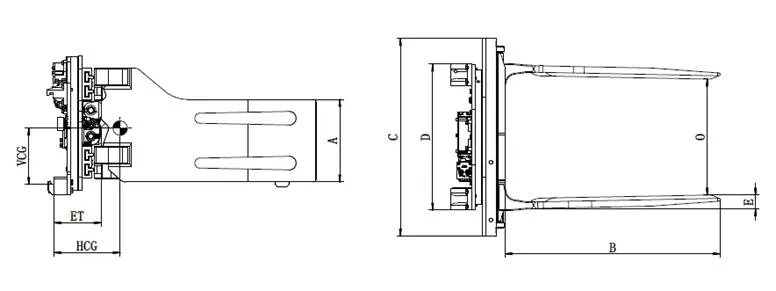

Parameter Diagram
Revolving Bale Clamps Specifications
Capacity @ Load Center (kg@mm) Catalog Order NO. Mounting Class Opening Range (mm) Arm Height (mm) Arm Length (mm) Frame Width (mm) Hook Spread (mm) Arm Thickness (mm) Weight (kg) Effective Thickness (mm) VCG (mm) HCG (mm) Available Forklift (t)
1900@500 RJ19RT-A1 II 445-1670 418 990 1040 815 75 530 198 221 275 1-2.5t
1900@500 RJ19RT-A2 II 460-1700 418 1190 1040 814 75 710 257 303 355 1-2.5t
1900@500 RJ19RT-A3 II 580-1960 418 1190 1040 814 75 760 252 295 339 1-2.5t
2700@500 RJ30RT-B1 III 570-1880 460 1200 1010 814 75 790 259 313 371 3-4.5t
2700@500 RJ30RT-B2 III 650-2020 460 1200 1100 814 75 810 259 313 369 3-4.5t
Notes:
  • Please obtain the actual comprehensive bearing capacity of forklift/attachment from the forklift factory.
  • The forklift truck needs to add 2 groups of oil lines.
  • The arm thickness is the needed minimum wedge gap size when clamping, but not the real thickness.
Key Features:
  • Two-way hydraulic locks for rotating oil lines ensure safety when working.
  • High-performance alloy steel plates for left and right clamping panels.
  • The connection blocks are integrally charged with good anti-bending performance.
  • 360 degrees of rotation capability.
  • Rotating oil hinge features a self-locking function.
Company Profile

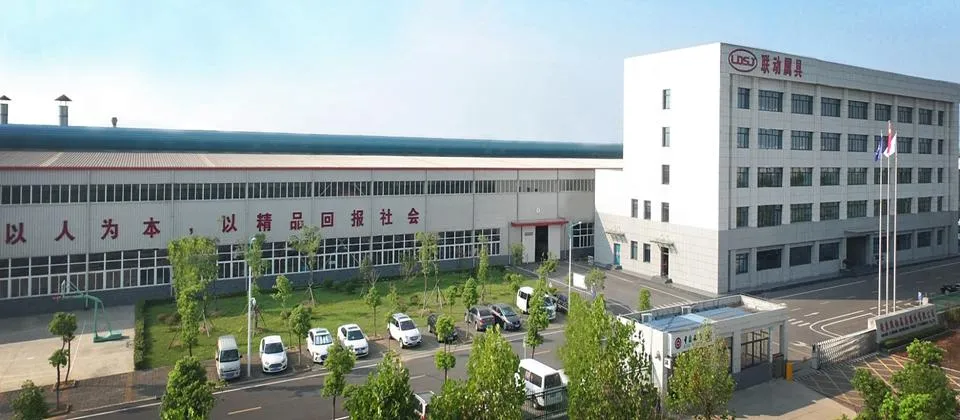

Production Facility

The company was created in January 2011 and integrates R&D, manufacturing, sales, and service of construction machinery attachments and parts. The products are widely used in papermaking, storage, tobacco, port, chemical industry, construction, smelting, and many other industries. They are highly efficient and intelligent handling equipment for mechanized loading and unloading, stacking, and short-distance handling.

At present, the product type has reached more than 3000 kinds and key parts have been independently developed and manufactured. Many products have independent intellectual property rights and obtained national patents. The company actively participates in and leads the formulation of industry standards for construction machinery attachments.

The facility is equipped with high-efficiency digital intelligent equipment such as CNC cutting machines, welding robots, machining centers, CNC lathes, shot blasting machines, washing machines, and painting lines. It also features advanced physical and chemical laboratories and perfect product testing facilities. The enterprise has passed ISO9001, ISO14001, OHSAS18001 system certifications, and ISO3834-2 international welding quality system certification.

Certifications
Quality Certifications
Packaging & Shipping

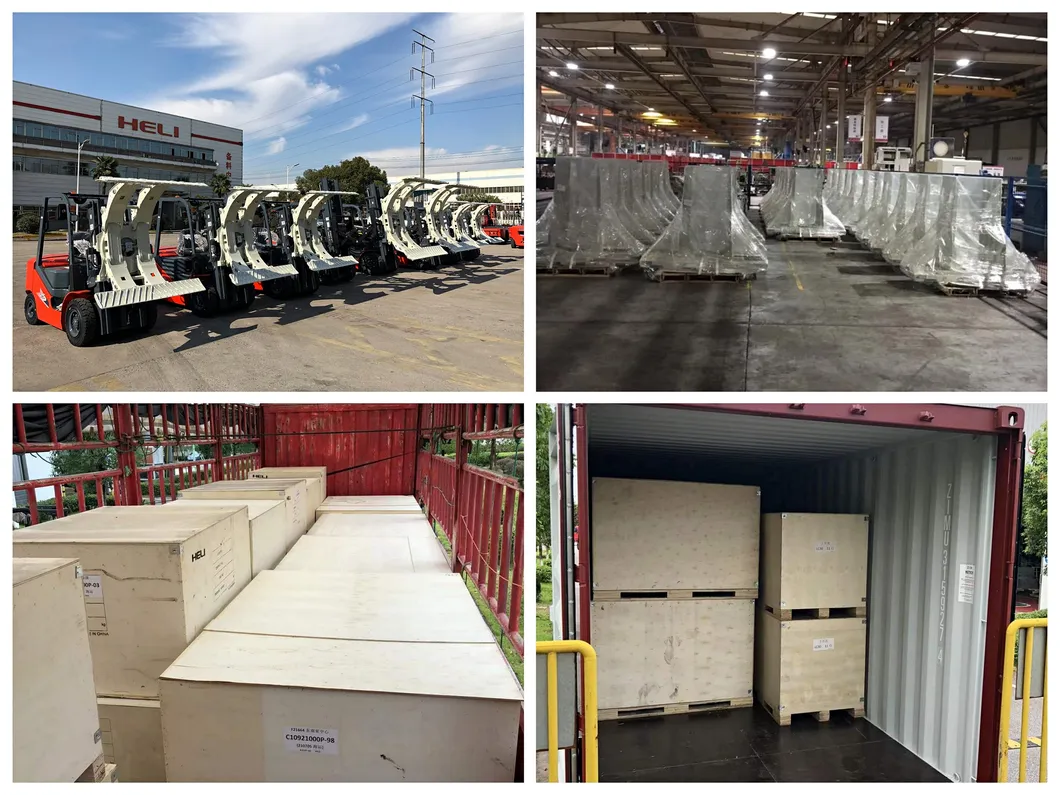

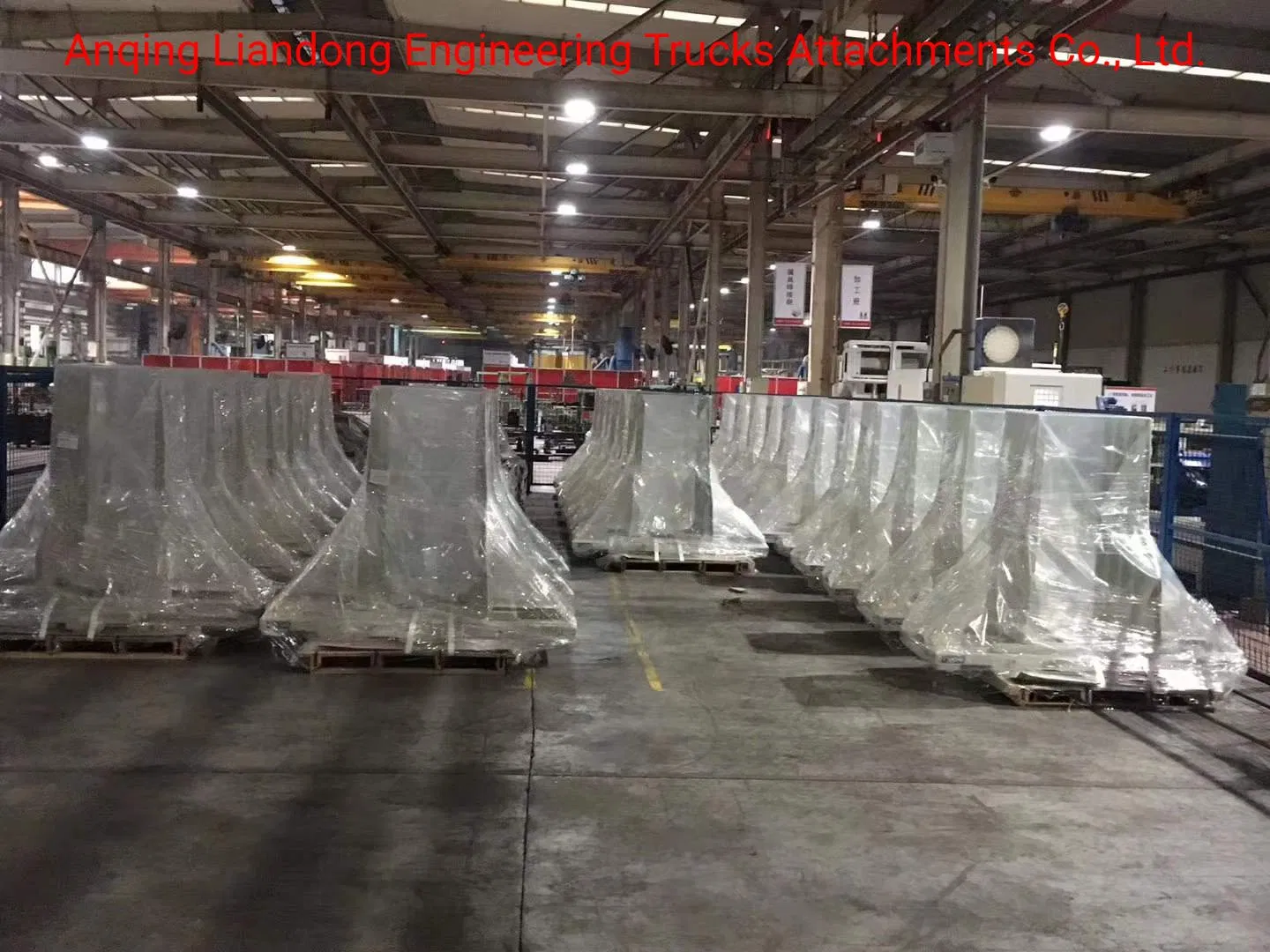

Packaging Process
Frequently Asked Questions
What types of materials can these bale clamps handle?
These clamps are designed to handle various baled products including cotton, synthetic textiles, corrugated paper, newsprint, rags, hay, and metal scrap.
Does the forklift require any special modifications?
Yes, the forklift truck needs to be equipped with 2 additional groups of oil lines to operate the revolving and clamping functions.
What is the rotation range of the attachment?
The attachment provides a full 360-degree continuous rotation for maximum flexibility in handling and stacking.
Are the clamping panels durable enough for heavy scrap?
Yes, the left and right clamping panels are manufactured from high-performance alloy steel plates to ensure durability and long service life.
How is safety ensured during rotation?
The attachment is equipped with two-way hydraulic locks for the rotating oil lines and a self-locking function on the rotating oil hinge to ensure safety during operation.
What is the capacity range available?
We offer a wide range of specifications with capacities typically ranging from 0.8 tons up to 25 tons, suitable for various forklift sizes.
