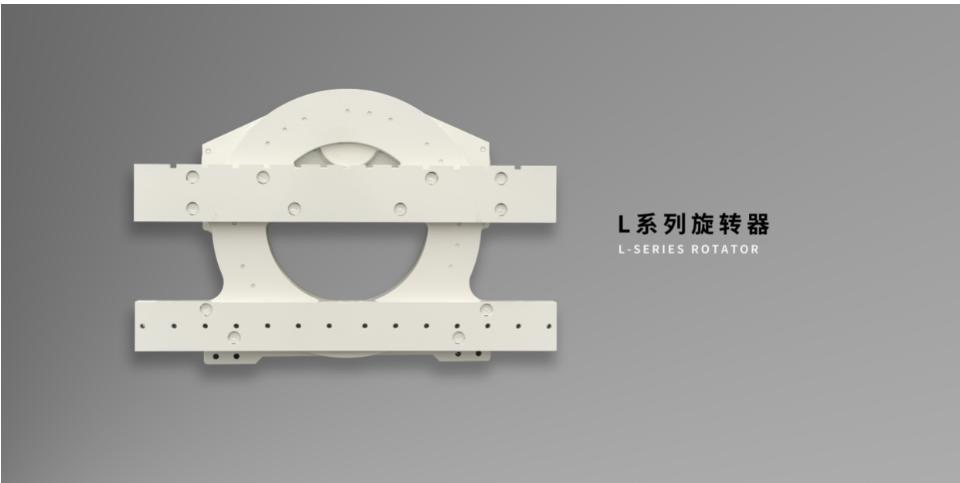

Forklift Part Attachment 1-20t Rotator Equipped with Observation Hole for Good Vision for Heli Mitsubishi Hyster

1 / 5

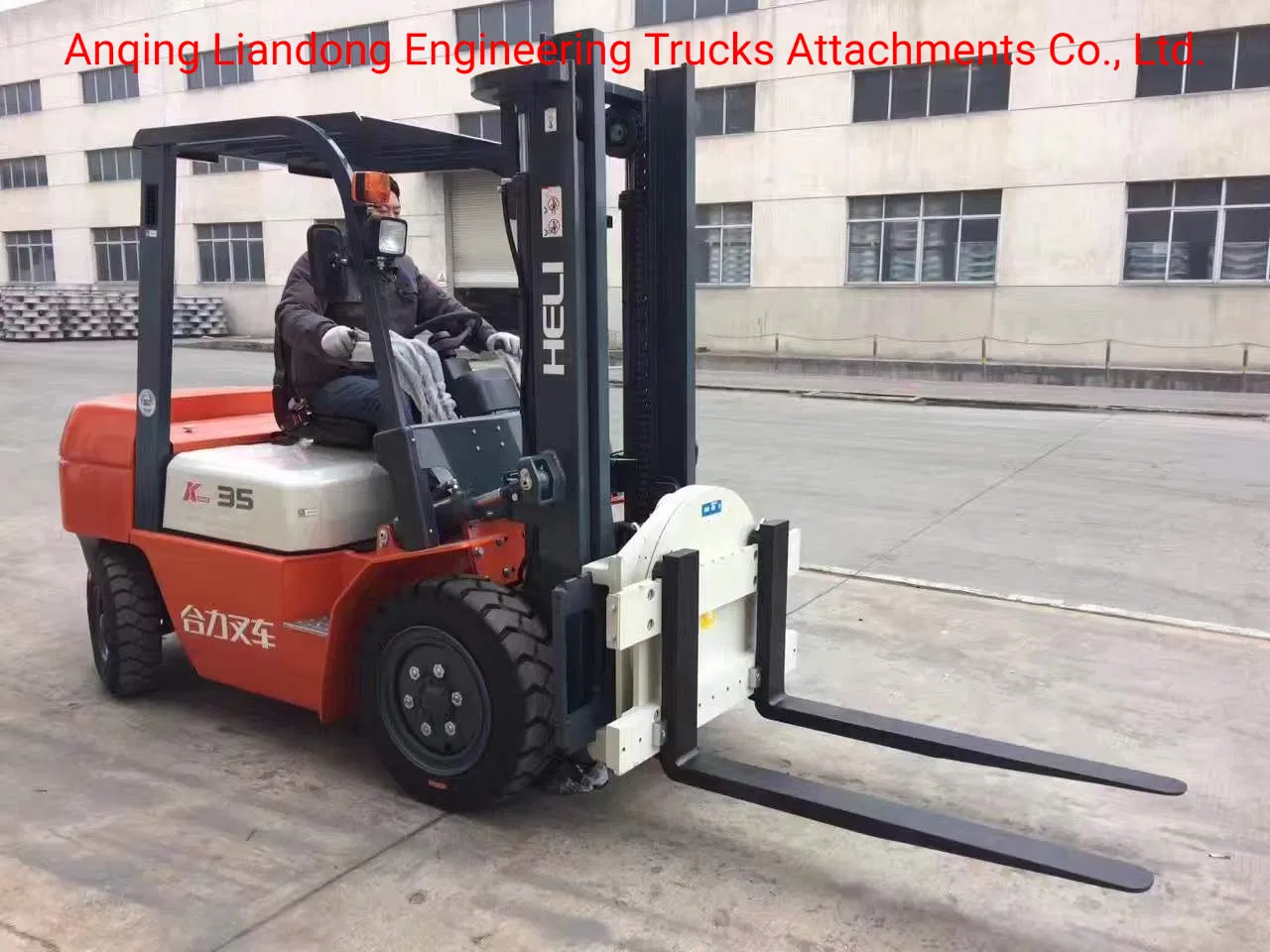

Forklift Part Attachment 1-20t Rotator Equipped with Observation Hole for Good Vision for Heli Mitsubishi Hyster

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊

Basic Info

Model NO.

Rotator with/without Hole

Material

Q345 Steel

Surface Treatment

Polishing

Valve Core

Sun Brand

Rotating

360°

Seals

Nok/Parker

Specification

2000kg

HS Code

8431209000

📝

Product Description

Rotators give you the safe operation with standard forks can be fixed by means of square stops and 360° rotating for container turning or emptying operation. They are widely used in food, chemical, sanitation, recycle, casting industries and general manufacturing- anywhere it is necessary to dump bins or tote boxes.

📸

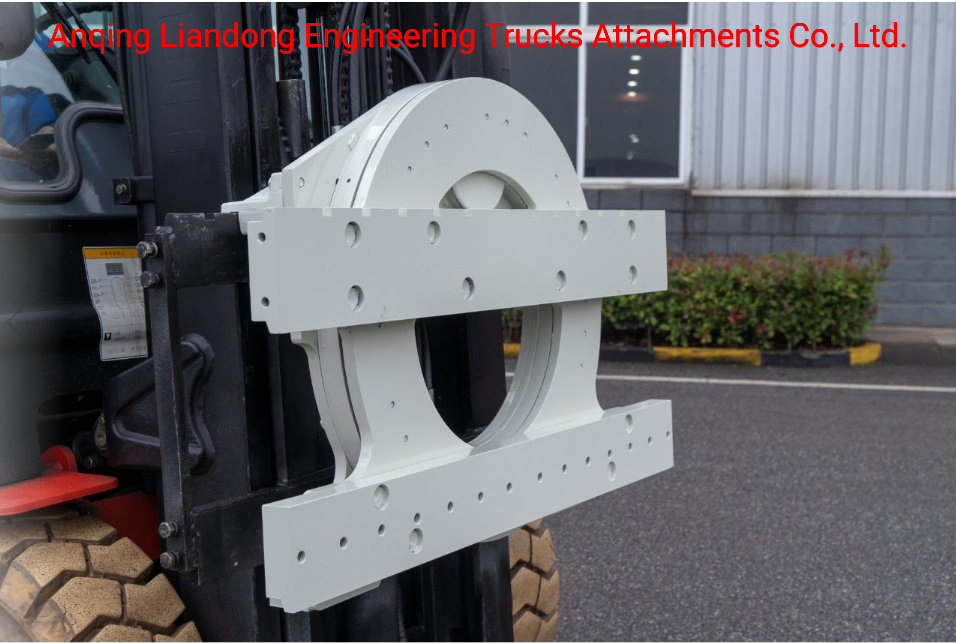

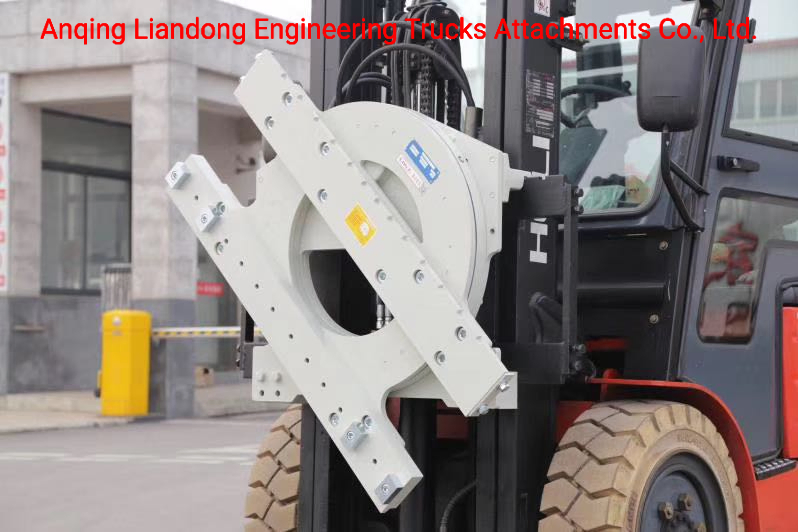

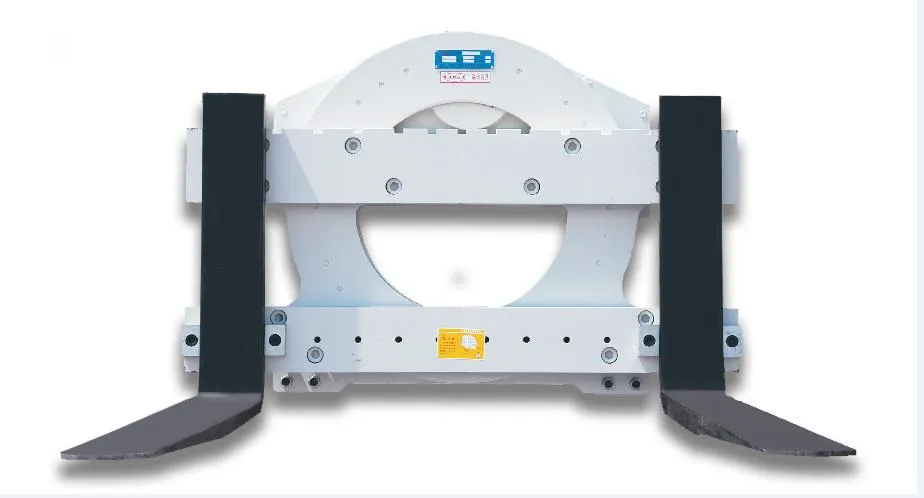

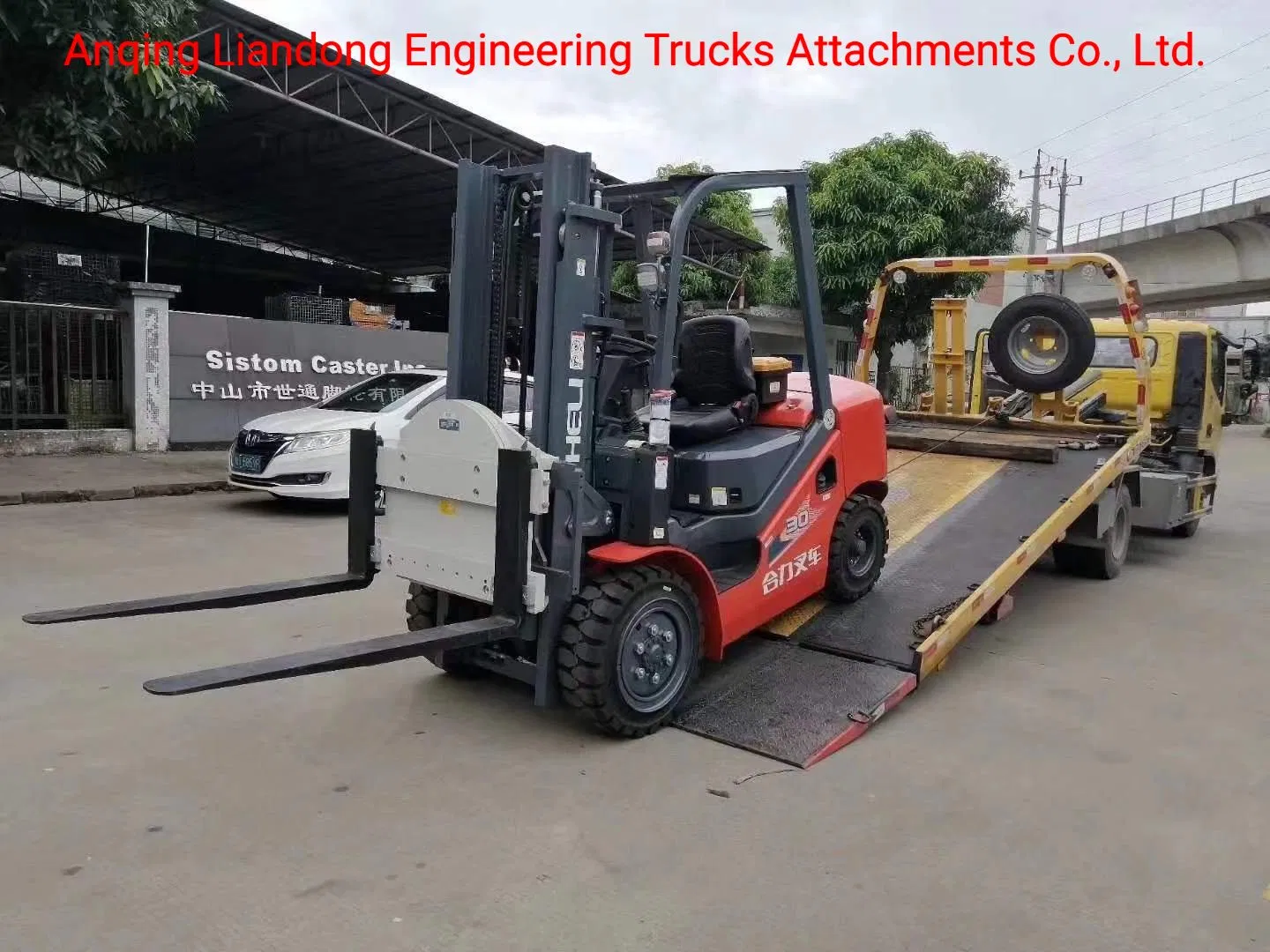

Detailed Photos

⚙️

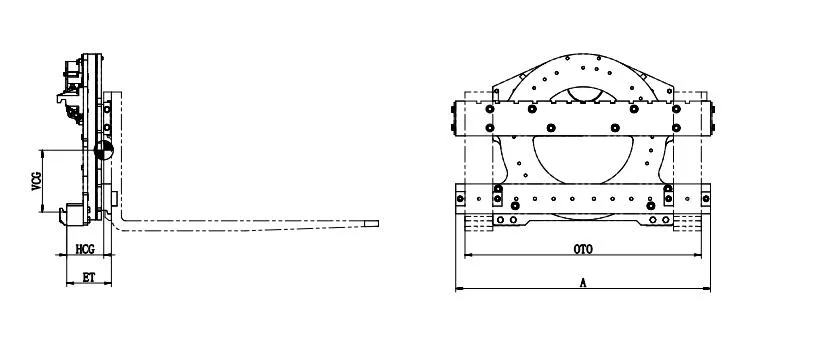

Product Parameters

Capacity @ Load Center (Kg@mm)	Catalog Order NO.	Overall Width (mm)	Carriage Width (mm)	Mounting Class	Effective Thickness (mm)	Weight (kg)
1700@500	XZ17L-A1	843	815	II/II	128	200
2200@500	XZ22L-A2	975	942	II/II	194	270
3000@500	XZ30L-B1	1180	1145	III/III	194	362
3500@500	XZ35L-B1	1275	1240	III/III	210	383
5400@500	XZ60L-C1	1585	1550	IV/IV	233	640

⚠️ Notes:

Forklift trucks need to add 1 sets of oil lines;
Please obtain the actual comprehensive bearing capacity from the forklift manufacturer;
The fork can be added according to user needs, please pay attention to the carrying capacity of the fork itself;
The forks of the rotator must be equipped with a middle hook.

⭐ Features:

Highly durable gear drive box and ring gear to provide superior service life;
With large modulus slewing bearing to achieve high-strength capacity;
Observation hole in the middle of the rotator to provide maximum visibility for the driver.

🏢

Industry Expertise

Our focus integrates R & D, manufacturing, sales and service of construction machinery attachments and parts. The products are widely used in papermaking, storage, tobacco, port, chemical industry, construction, smelting and many other industries. They are highly efficient and intelligent handling equipment for mechanized loading and unloading, stacking and short-distance handling.

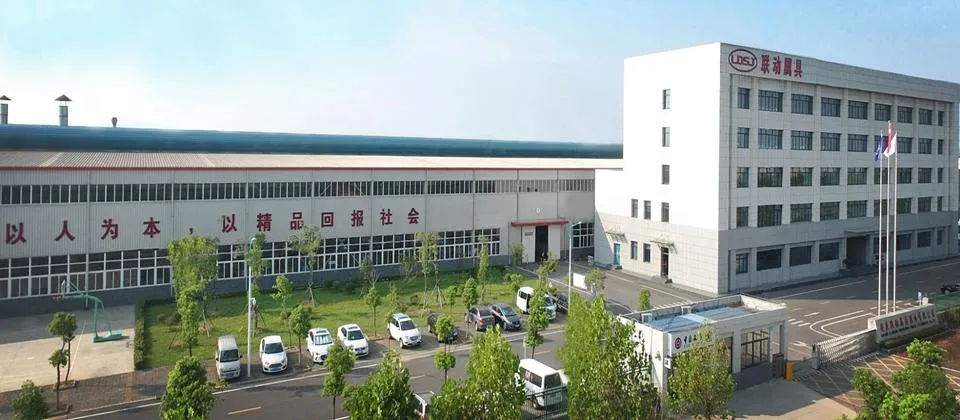

The facility features high-efficiency digital intelligent equipment such as CNC cutting machines, welding robots, machining centers, and painting lines. Committed to continuous quality improvements from product design to after-sale service, the processes have passed ISO9001, ISO14001, and OHSAS18001 system certifications.

📜

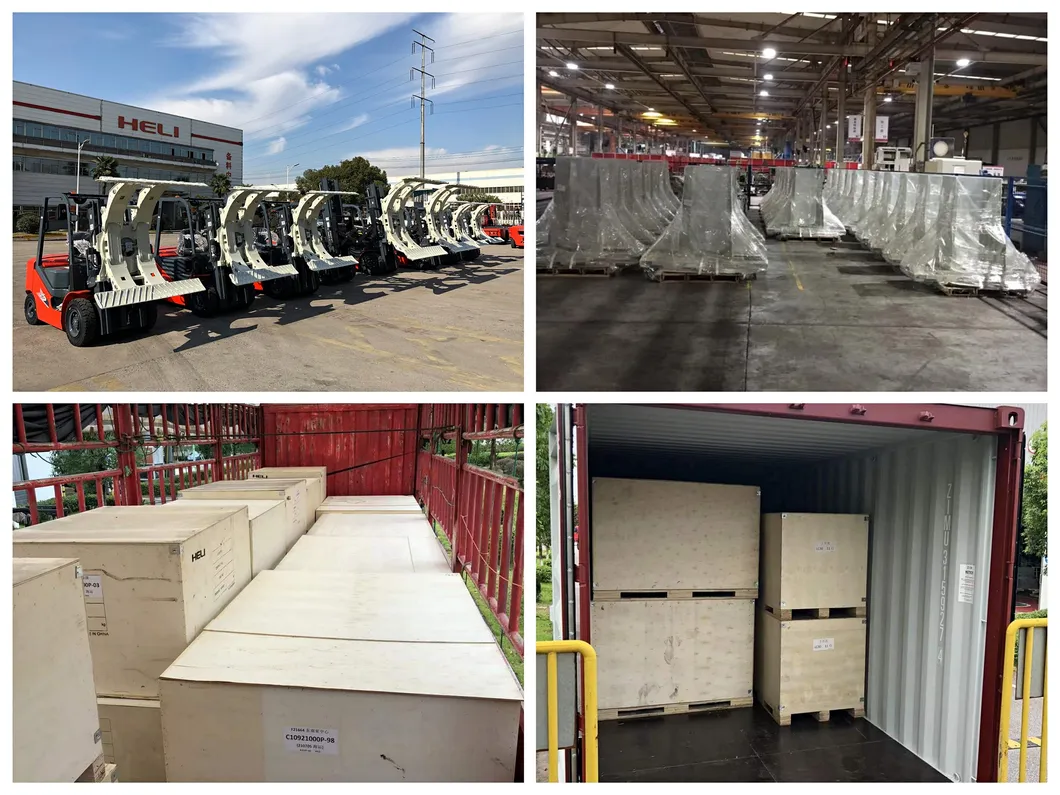

Certifications & Shipping

❓

FAQ

Q1: What is the primary function of the 360° Rotator? A: It allows for 360-degree rotation of standard forks, enabling the turning and emptying of containers or bins safely and efficiently.

Q2: Which industries benefit most from using these rotators? A: They are widely used in food, chemical, sanitation, recycling, casting, and general manufacturing industries for dumping tote boxes or bins.

Q3: How does the rotator ensure driver visibility? A: It is equipped with a large observation hole in the middle, providing the forklift driver with maximum visibility during operation.

Q4: What materials are used in the construction of the rotator? A: The rotators are built using high-strength Q345 steel and feature highly durable gear drive boxes for a long service life.

Q5: Are there any special requirements for the forklift to install this? A: Yes, forklifts usually need one additional set of oil lines to operate the rotation mechanism.

Q6: Can the capacity of the rotator be customized? A: Yes, we offer various models ranging from 1700kg up to 5400kg capacity to suit different handling requirements.
