| Model NO. | CTX20/30Q | Type | Powered Pallet Truck |
| Load Capacity | 1T - 5T | Power | AC Motor |
| Fuel | Electric | Lift height | 200mm |
| Condition | New | Drive Type | Electric Drive |
| Battery Type | Lead-Acid / Lithium (Optional) | Fork Material | High-Strength Steel |
| Braking System | Electromagnetic | Origin | China |

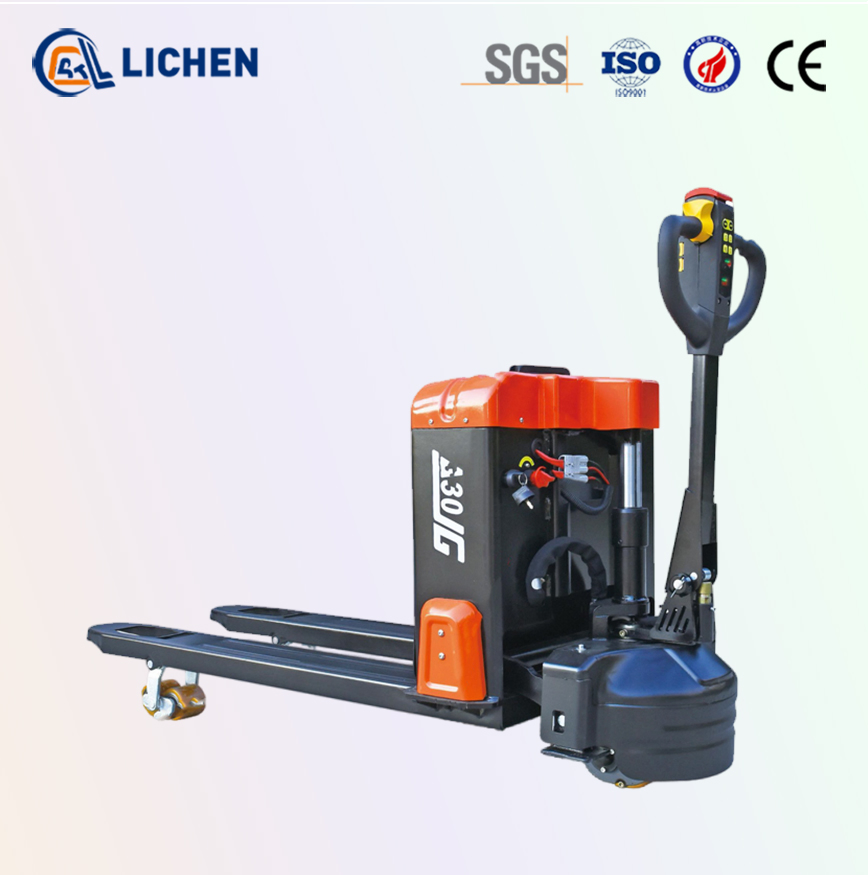

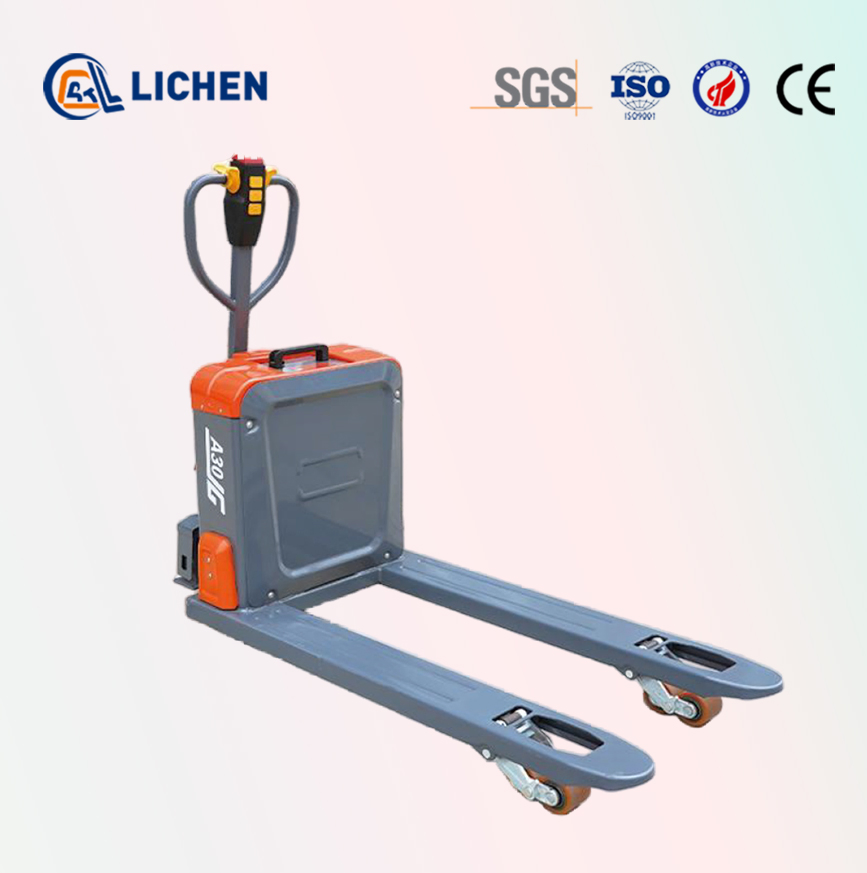

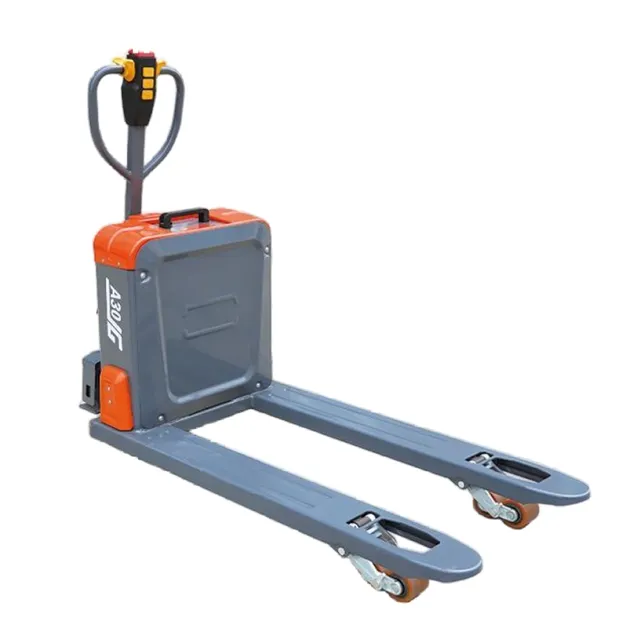

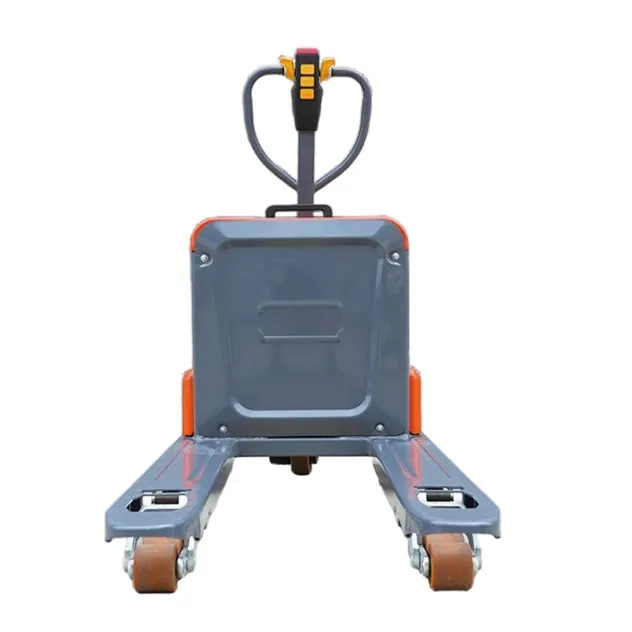

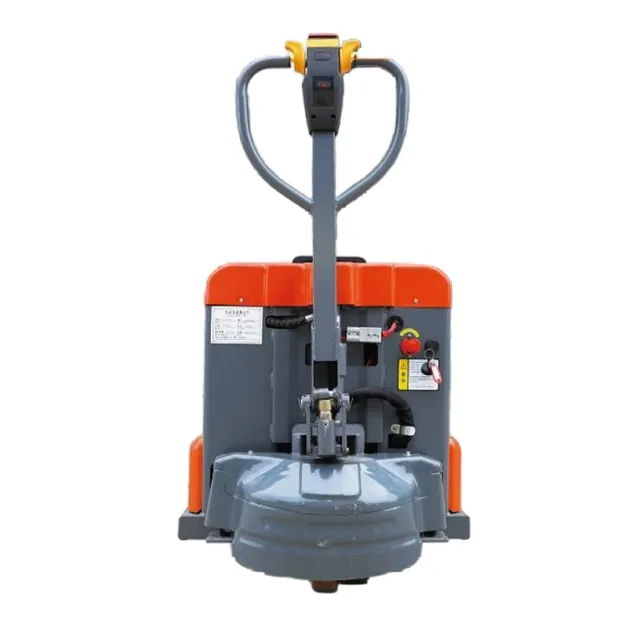

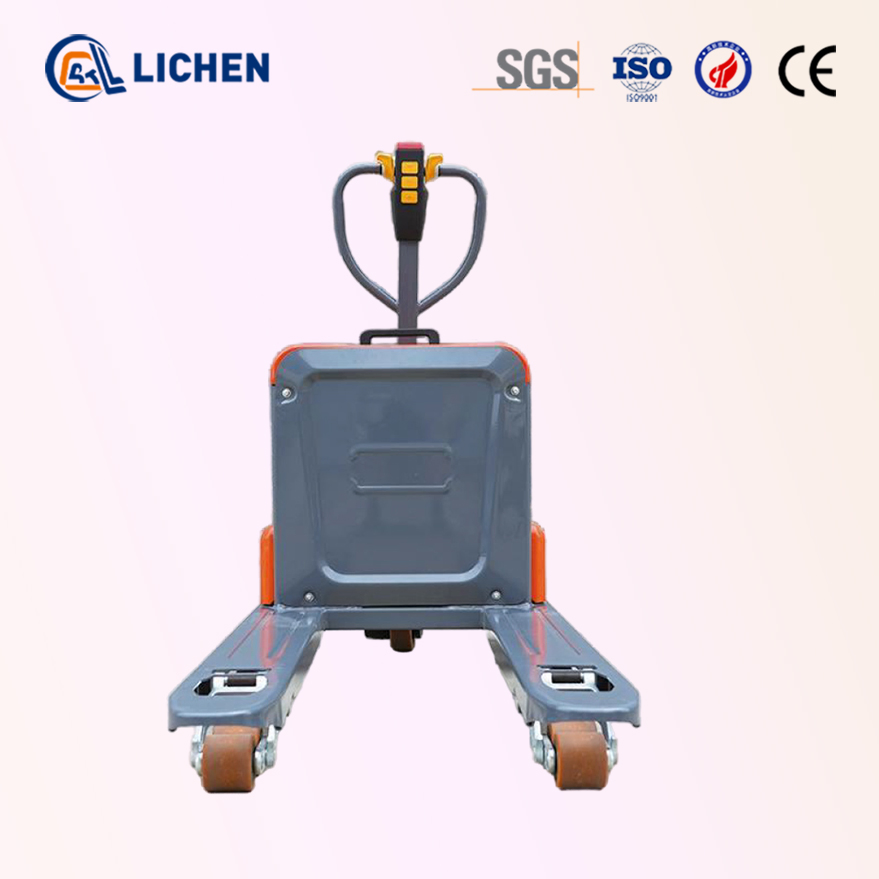

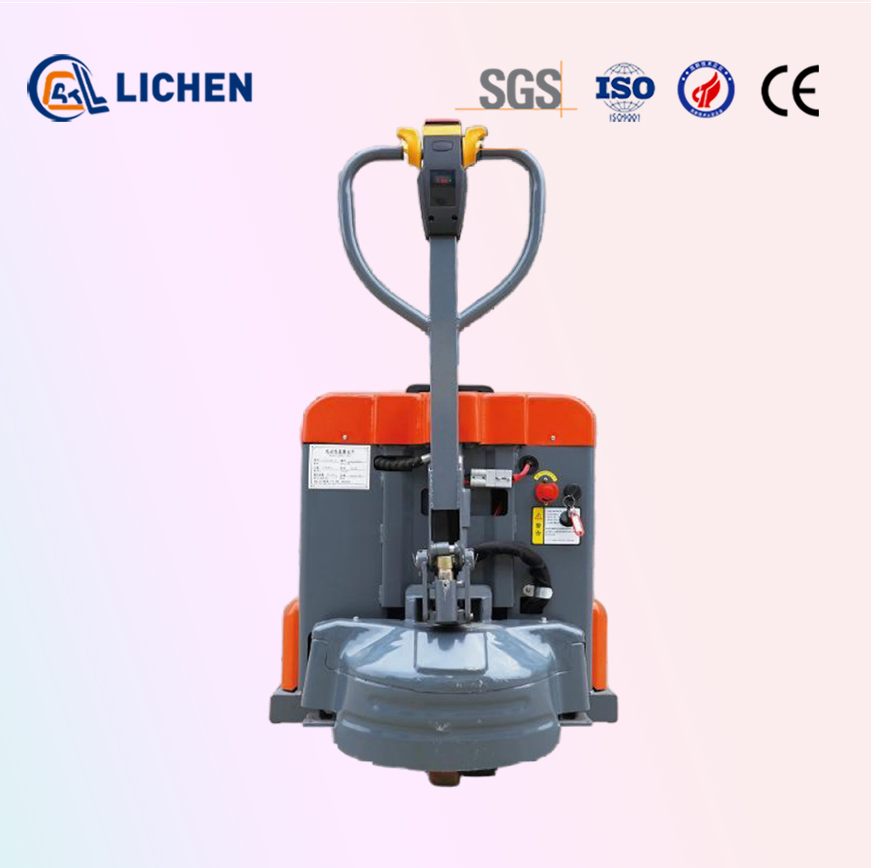

This walkie electric pallet truck is engineered to boost warehouse logistics efficiency, with a load capacity ranging from 2000 to 3000kg. Equipped with a high-quality drive motor, it delivers robust power while consuming less energy, ensuring extended runtime for all-day operations and eliminating manual fatigue.

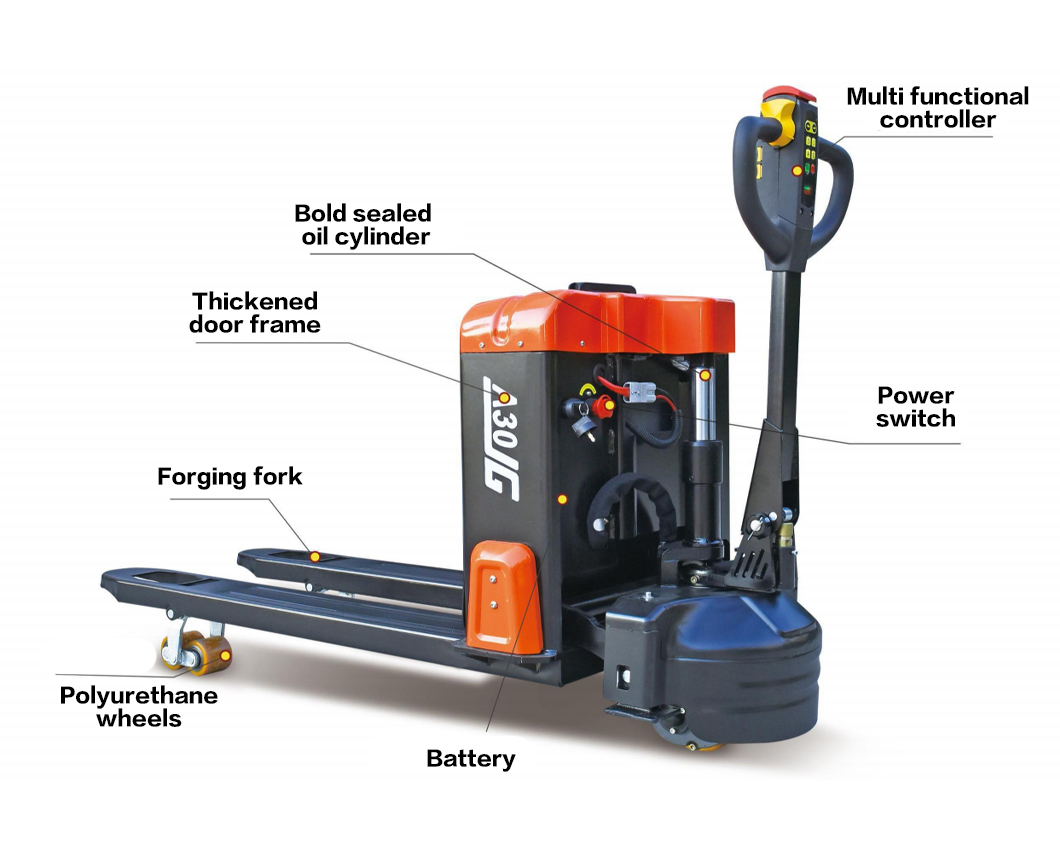

Ergonomic design permeates the entire vehicle. Walk-behind operation offers flexibility and convenience, with a compact turning radius enabling effortless navigation through narrow aisles. The forks, constructed from high-strength steel, ensure stable load-bearing. Combined with a precise lifting control system, they provide smooth operation, safeguarding cargo integrity.



| Overall dimensions | 1625*695*1280mm | Rated load | 2000/3000KG |
| Battery voltage | 48V 20/32Ah | Self-weight | 175kg |
| Walking motor | 48V 0.8Kw | Oil pump motor | 48V 0.8Kw |
| Min turning radius | 1350mm | Climbing angle | 10° |
| Driving speed | 3.5km/h | Noise level | ≤ 70dB(A) |
Package Size: 162.00cm * 69.00cm * 120.00cm
Gross Weight: 178.000kg
Lead Time: 3-15 days depending on order quantity.
We provide a 1-year warranty for each vehicle. Within the warranty period, if any parts fail due to quality issues, new parts will be sent to you free of charge within 5 working days. Our professional after-sales department is available to support you at any time.
