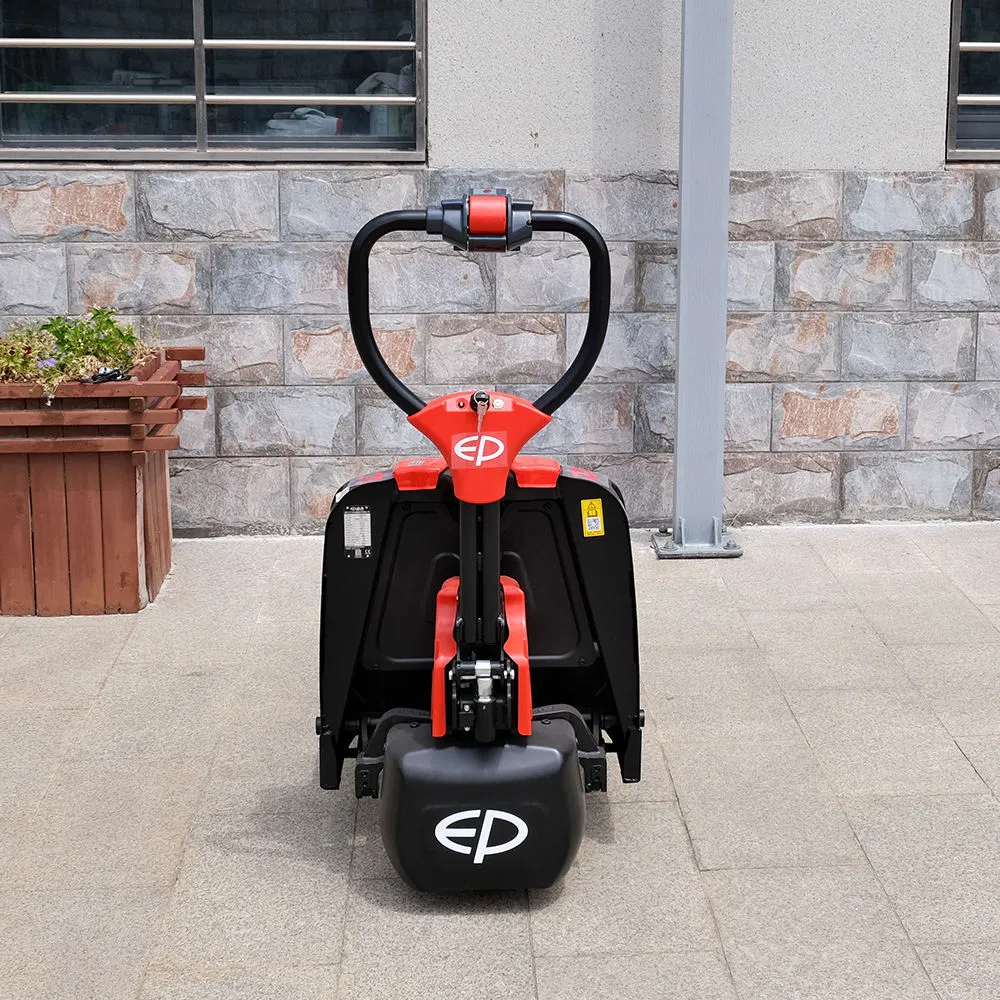

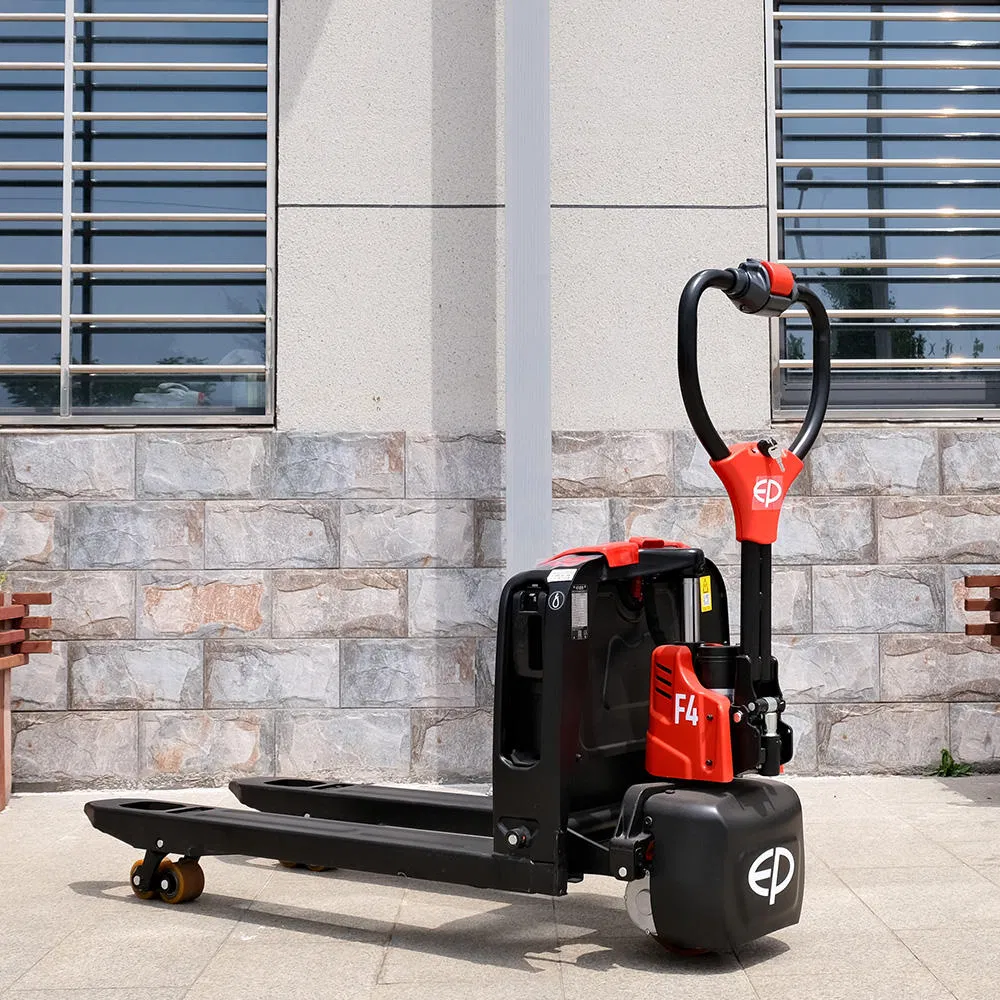

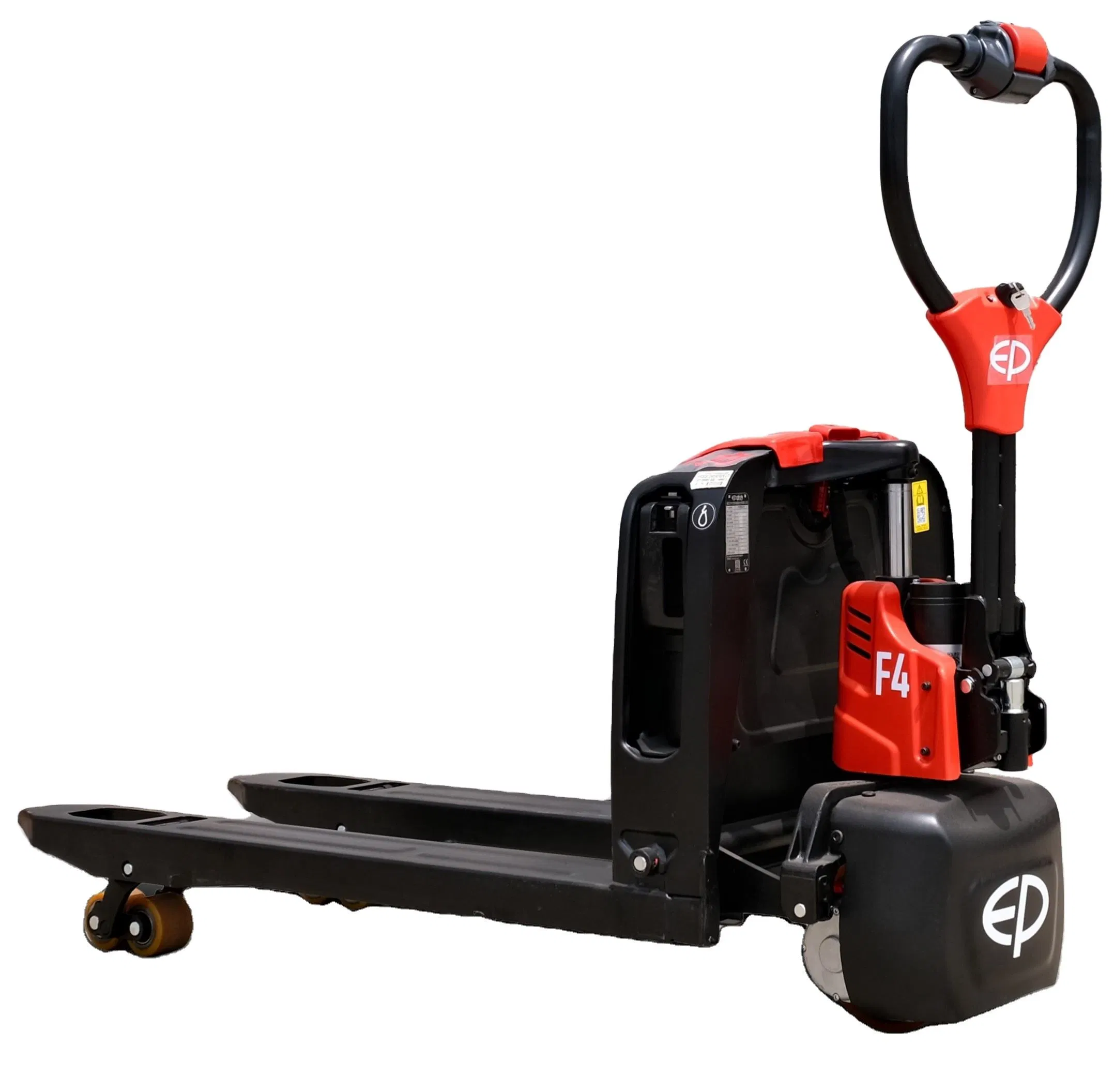

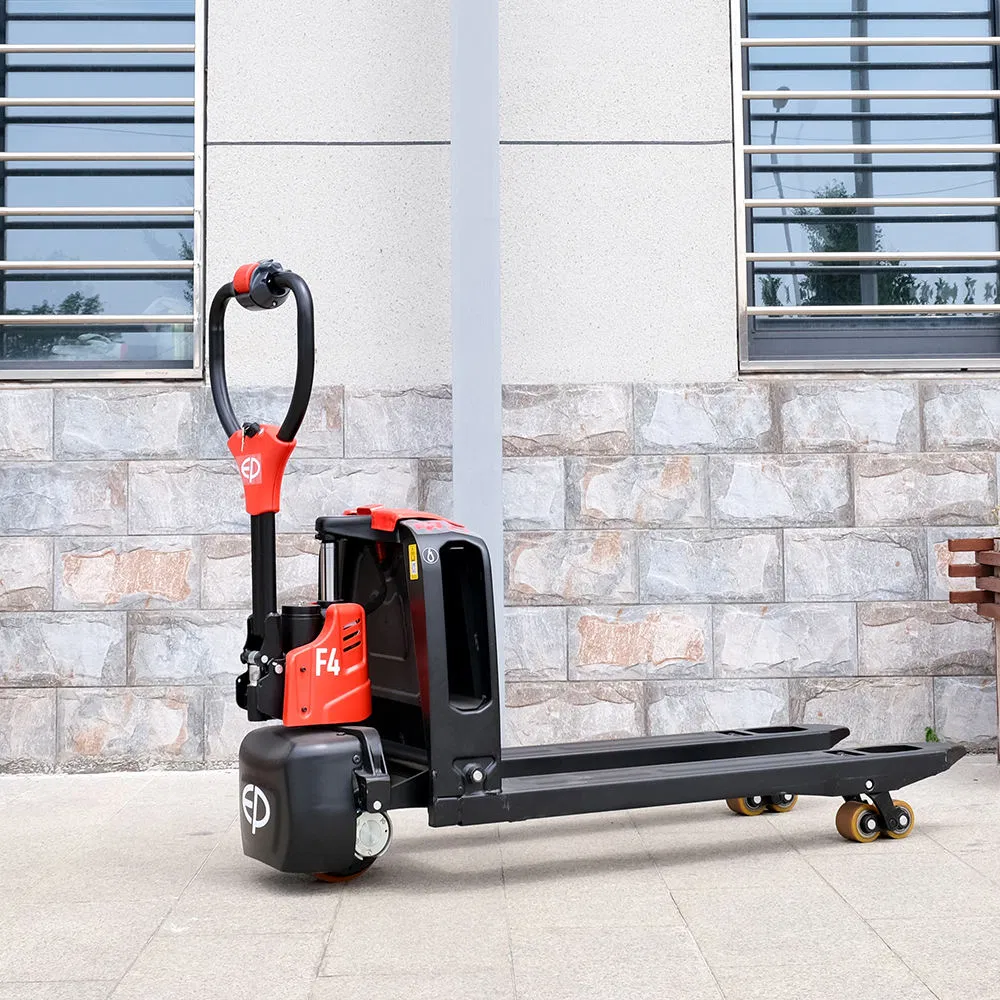

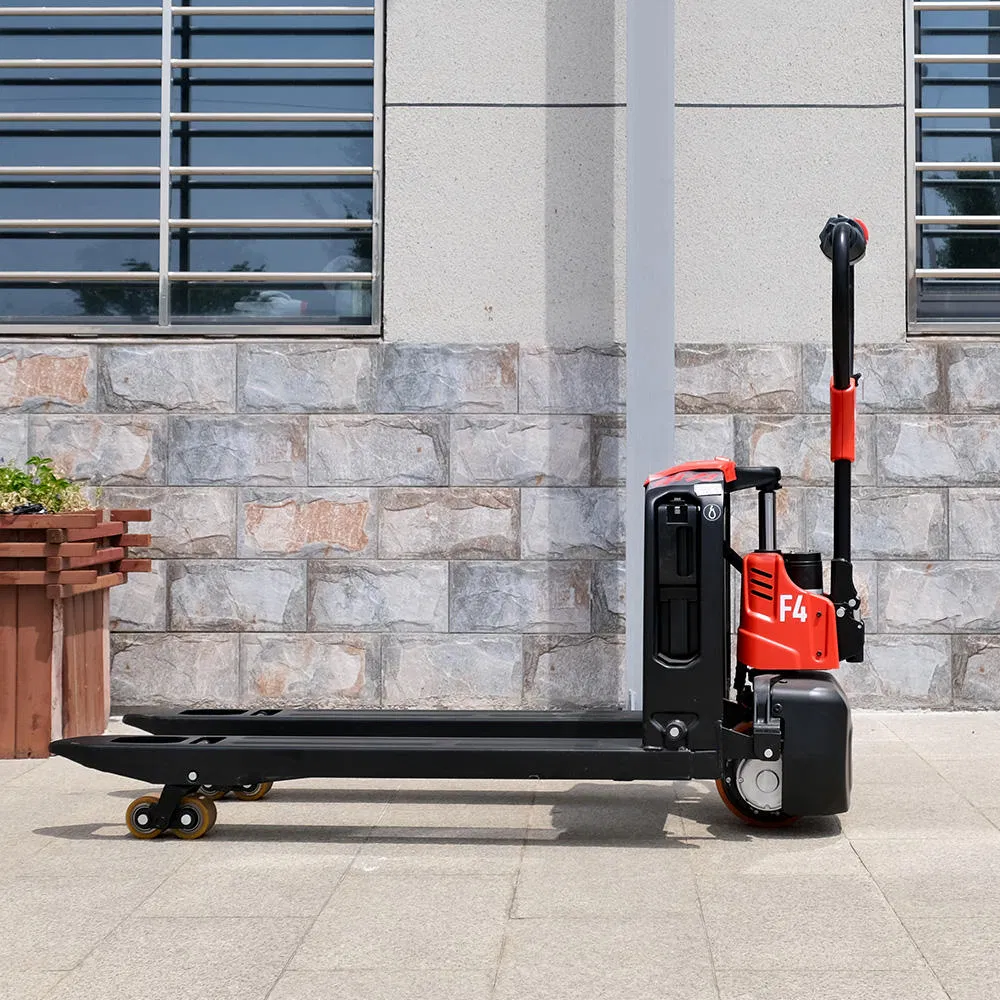

The F4 electric transport vehicle is designed for high efficiency and versatility in warehouse environments. Built on a robust platform, it meets modern market demands for ergonomic material handling.
| Category | Code | Description | Unit | Value |
|---|---|---|---|---|
| Distinguishing mark | 1.2 | Model designation | - | F4 |
| 1.3 | Drive unit | - | Electric | |
| 1.5 | Rated capacity | kg | 1500 | |
| 1.6 | Load center distance | mm | 600 | |
| Service weight | 2.1 | Service weight | kg | 120 |
| 2.2 | Axle loading, laden front/rear | kg | 480/1140 | |
| Tyres/chassis | 3.1 | Tyre type | - | Polyurethane |
| 3.2 | Tyre size, front | mm | 210x70 | |
| 3.3 | Tyre size, rear | mm | Ф80x60 | |
| Dimensions | 4.1 | Lift height | mm | 105 |
| 4.4 | Overall length | mm | 1550 | |
| 4.7 | Fork dimensions (s/e/l) | mm | 55/150/1150 | |
| 4.12 | Turning radius | mm | 1360 | |
| Performance | 5.1 | Travel speed, laden/unladen | km/h | 4/4.5 |
| 5.4 | Max. gradeability, laden/unladen | % | 5/16 |
