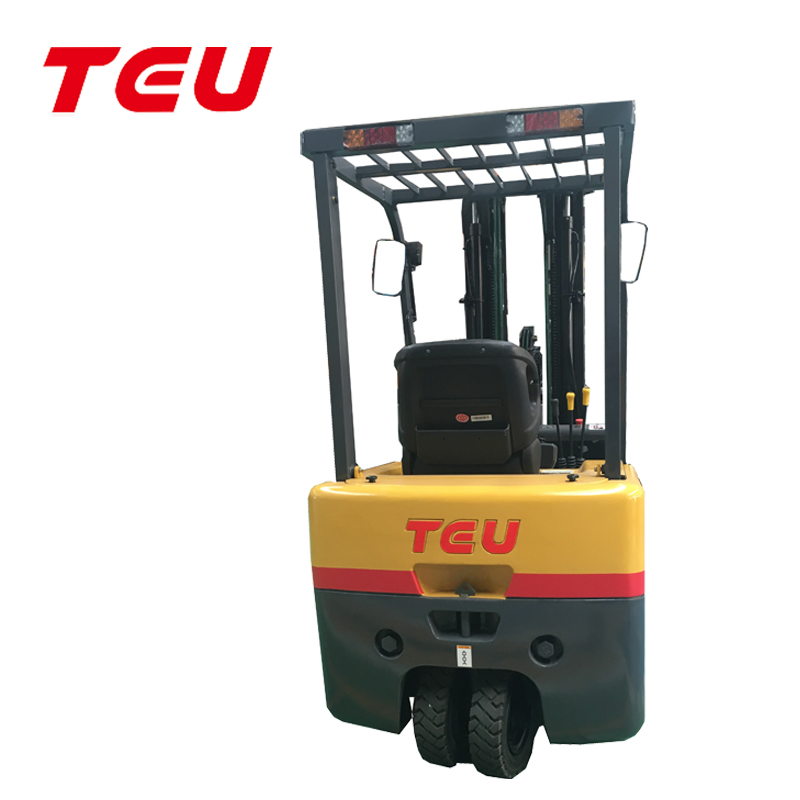

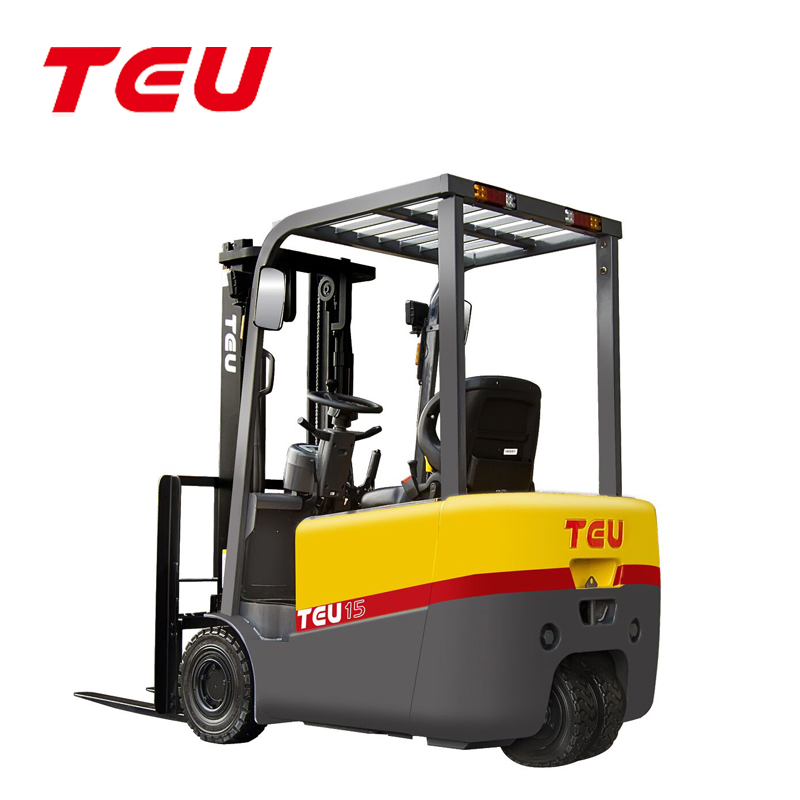

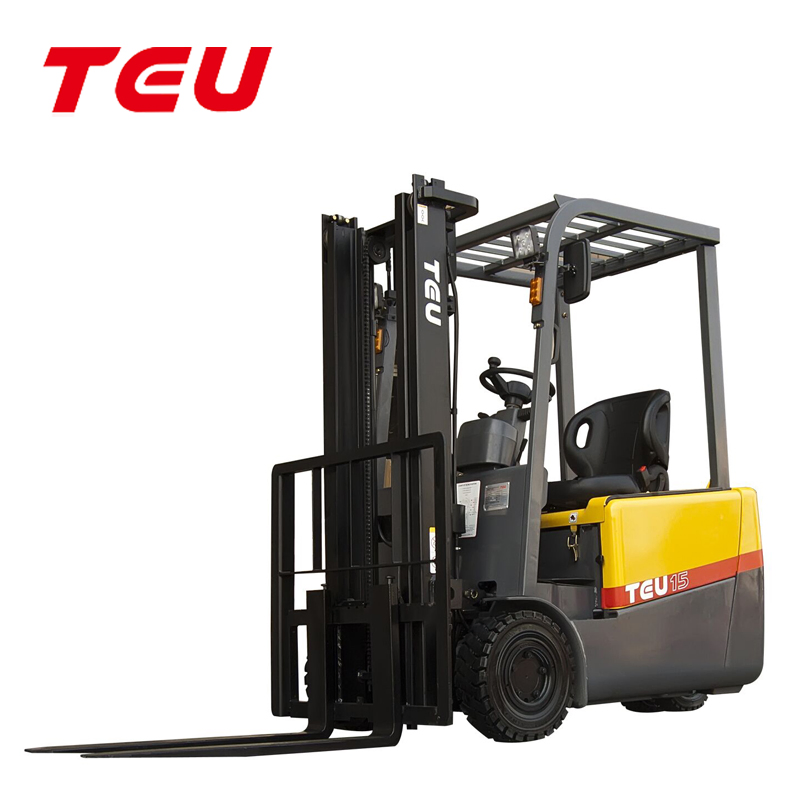

1.5-2.0 Ton Electric 3 Three-Wheel Battery Reach Diesel Forklift Truck

1 / 5

1.5-2.0 Ton Electric 3 Three-Wheel Battery Reach Diesel Forklift Truck

Customization:	Available
After-sales Service:	Available
Warranty:	12 Months or 2000 Working Hours

Send Inquiry

Product Description

Basic Information

Model NO.

FTB15

Type

Electric Forklift

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Lift height

>5000mm

Condition

New

Battery

Free Maintenance

Motors

Dual AC Motors

HS Code

8427209000

FTB15 Technology Specification

Category		Feature	Unit	Data
Specifications	Model	FTB15	-	FTB15
	Capacity	Load capacity	kg	1500
	Center	Load center	mm	500
	Tires	Tire type	-	SOLID TIRES
Dimensions	Lifting	Max. lifting height	mm	3000
	Forks	Fork size (LWT)	mm	92010035
	Chassis	Overall length (w/o fork)	mm	1785
	Radius	Turning radius (outside)	mm	1445
	Aisle	Min. right angle stacking aisle	mm	3010
Performance	Travel Speed	Full load / No load	km/h	15 / 16
	Lift Speed	Full load / No load	mm/s	280 / 430
	Gradeability	Full load	%	20
Drive Line	Battery	Voltage/capacity	V-AH	48V-400
	Driving Motor	AC Power	kw	4.75
	Hydraulic Motor	DC/AC Power	kw	8.2 / 10 (Opt)

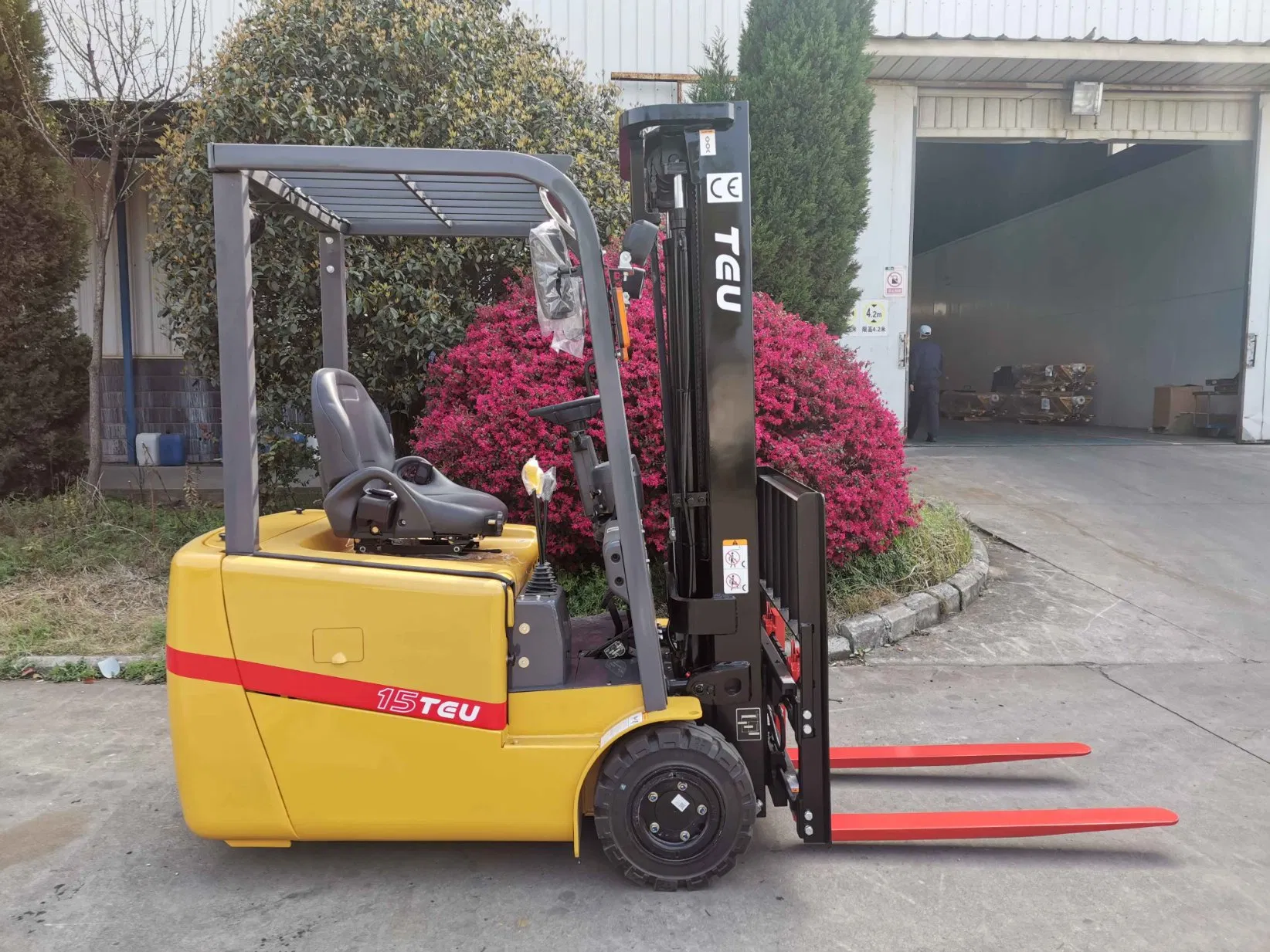

Product Display

Warranty Policy

🛡️

Electric Forklift and Reach Forklift: 1 YEAR OR 2000 WORKING HOURS, SUBJECT TO THE FIRST.

🛡️

Forklift with Imported Engines: 1 YEAR OR 2000 WORKING HOURS, SUBJECT TO THE FIRST.

🛡️

Forklift with Chinese Engines: 6 MONTHS OR 1000 WORKING HOURS, SUBJECT TO THE FIRST.

Frequently Asked Questions

What is the standard load capacity of the FTB15 electric forklift?

The standard load capacity for the FTB15 model is 1500kg, with a total load capacity range across the series of 1T to 5T.

What are the advantages of the AC motor used in this forklift?

The FTB15 uses a high-performance AC driving motor (4.75kw) providing better efficiency, higher travel speeds (up to 16km/h), and lower maintenance compared to traditional DC motors.

Can this forklift be equipped with a lithium battery?

Yes, while it comes with a free-maintenance lead-acid battery as standard, a lithium battery is available as an option for longer life cycles and faster charging.

What type of tires are fitted to the FTB15?

The forklift is equipped with durable solid tires (Front 18x7-8, Rear 15x4.5-8), making it ideal for indoor industrial environments and stable operations.

What is the turning radius for this model?

The FTB15 features a compact turning radius of 1445mm, allowing it to operate efficiently in narrow aisles and confined warehouse spaces.
